1-11 — RADIATOR HOSE AND SUB TANK (#126521) — 146 parça

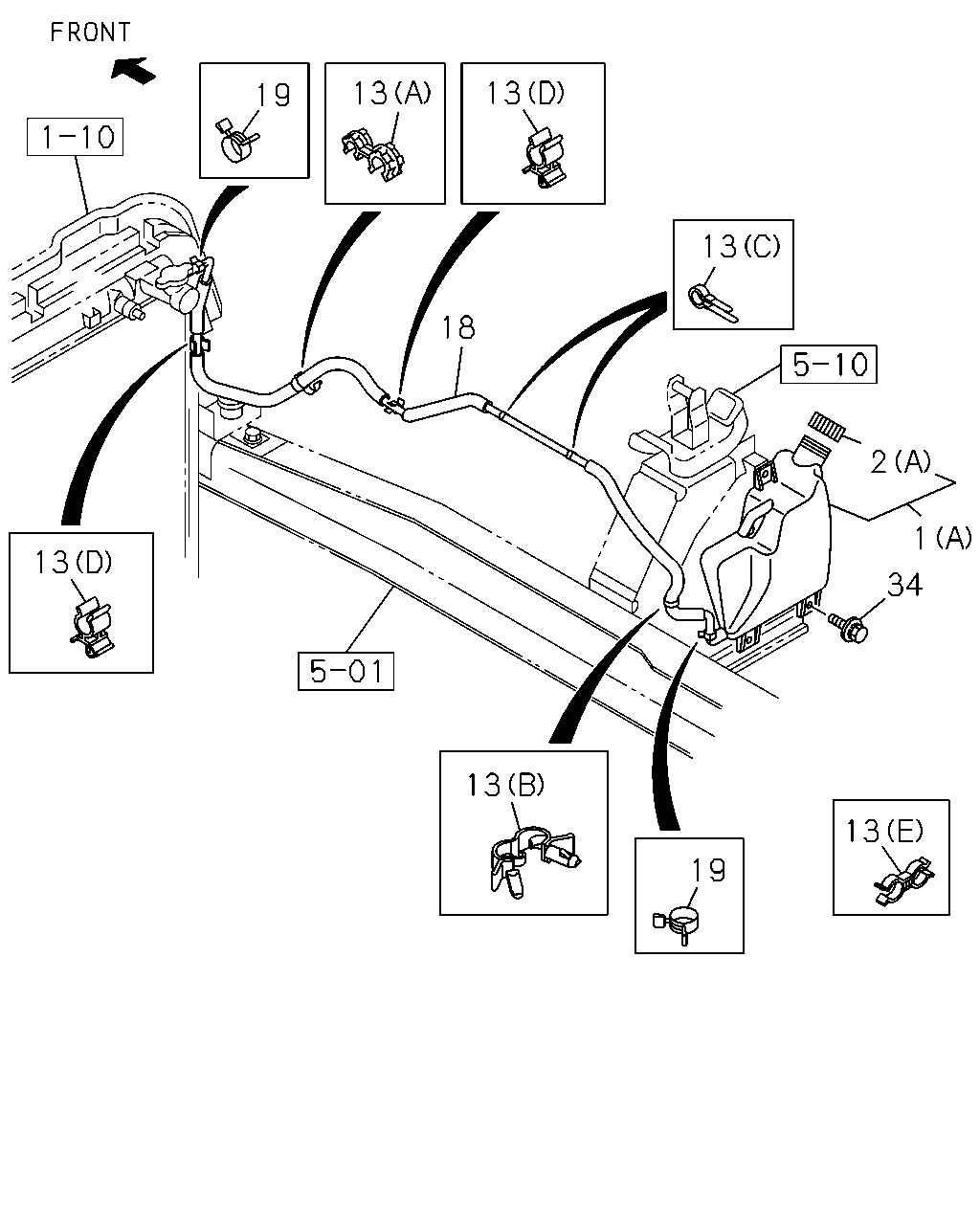

18 13 13 19 13 34 2 1 13 13 13 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 TANK; SURGE,RAD 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (C)	8-98276-955-0	01	1	1409-	●
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1311-1404	●
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1405-1408	●
1	01.219 TANK; SURGE,RAD 4JJ1-TCC ENG(RDU) (B)	8-98001-240-1	01	1	1409-	●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1309-1404		●	●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1405-		●	●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1311-1404	●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1405-1408	●
2	01.203 CAP; SURGE TANK 4JJ1-TCC ENG(RDU) (B)	8-97130-964-0	01	1	1409-	●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1309-1404		●	●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1405-1405	●	●	●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1405-1408		●	●
2	01.203 CAP; SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A)	8-98178-074-0	01	1	1409-	●	●	●
2	01.203 CAP; SURGE TANK 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (A)	8-98178-074-0	01	1	1409-		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	1311-1408		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	1311-1408	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	1409-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1309-1310		●	●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1311-		●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	1309-1310		●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	1311-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK (A) ID=10 & 12	8-94416-613-0	01	1	1309-1310		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A) ID=10 & 12	8-94416-613-0	01	1	1311-1408		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A) ID=10 & 12	8-94416-613-0	01	1	1409-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	02	1	1309-1310		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (D) ID=12	8-98029-256-0	02	1	1311-1408		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (D) ID=12	8-98029-256-0	02	1	1409-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98279-889-0	01	1	1409-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU)	8-98204-171-2	01	1	1311-		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-98207-795-1	01	1	1311-1408	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5)	8-98207-795-1	01	1	1409-	●
18	01.240 HOSE; RAD TO SURGE TANK	8-98023-219-1	01	1	1309-1310		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98023-219-1	01	1	1311-		●	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1309-1310		●	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1311-	●	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1309-1310		●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1311-1404	●	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1405-	●	●	●

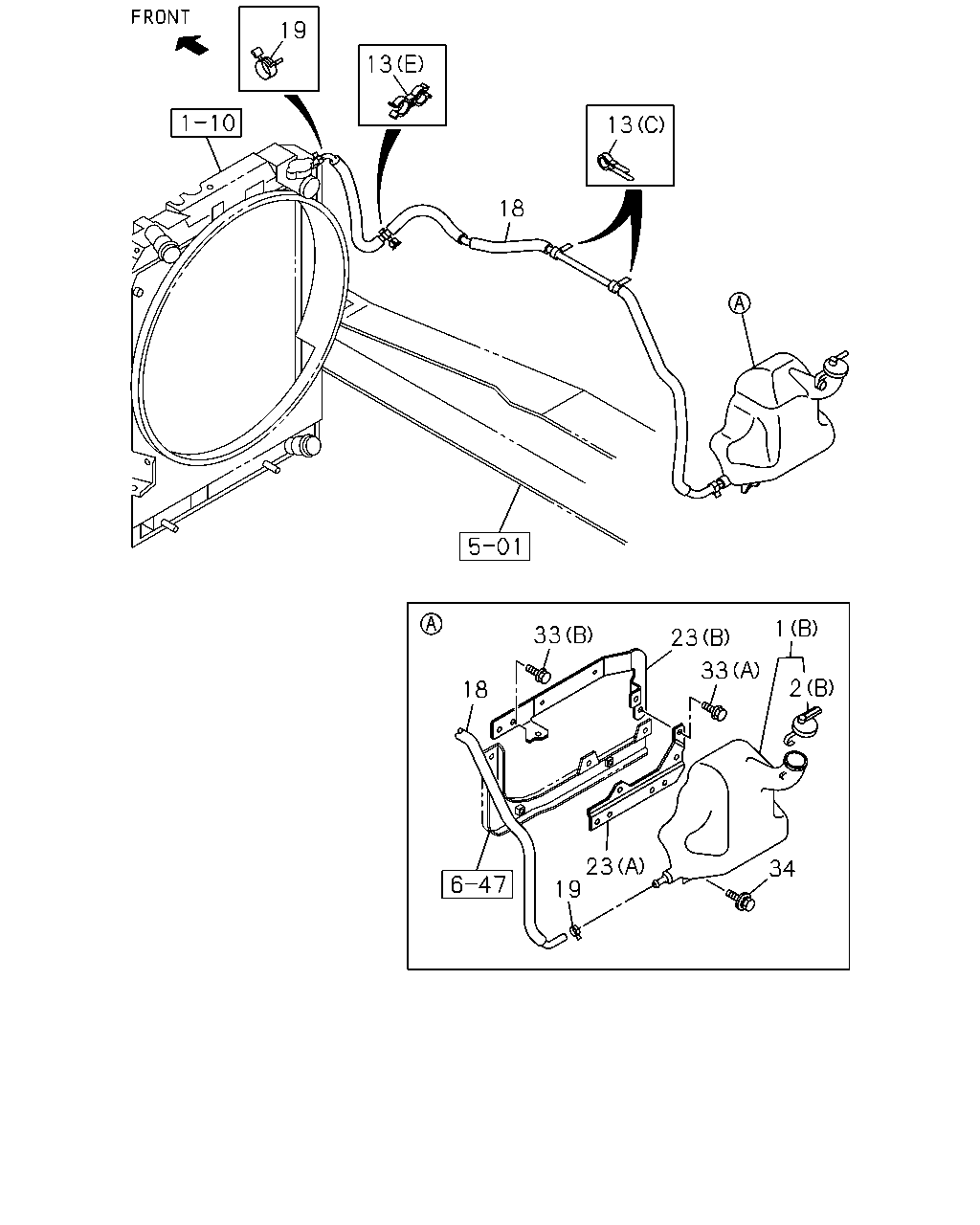

23 33 2 1 34 23 19 18 33 18 13 13 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 TANK; SURGE,RAD 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (C)	8-98276-955-0	01	1	1409-	●
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1311-1404	●
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1405-1408	●
1	01.219 TANK; SURGE,RAD 4JJ1-TCC ENG(RDU) (B)	8-98001-240-1	01	1	1409-	●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1309-1404		●	●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1405-		●	●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1311-1404	●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1405-1408	●
2	01.203 CAP; SURGE TANK 4JJ1-TCC ENG(RDU) (B)	8-97130-964-0	01	1	1409-	●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1309-1404		●	●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1405-1405	●	●	●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1405-1408		●	●
2	01.203 CAP; SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A)	8-98178-074-0	01	1	1409-	●	●	●
2	01.203 CAP; SURGE TANK 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (A)	8-98178-074-0	01	1	1409-		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	1311-1408		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	1311-1408	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	1409-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1309-1310		●	●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1311-		●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	1309-1310		●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	1311-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK (A) ID=10 & 12	8-94416-613-0	01	1	1309-1310		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A) ID=10 & 12	8-94416-613-0	01	1	1311-1408		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A) ID=10 & 12	8-94416-613-0	01	1	1409-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	02	1	1309-1310		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (D) ID=12	8-98029-256-0	02	1	1311-1408		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (D) ID=12	8-98029-256-0	02	1	1409-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98279-889-0	01	1	1409-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU)	8-98204-171-2	01	1	1311-		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-98207-795-1	01	1	1311-1408	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5)	8-98207-795-1	01	1	1409-	●
18	01.240 HOSE; RAD TO SURGE TANK	8-98023-219-1	01	1	1309-1310		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98023-219-1	01	1	1311-		●	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1309-1310		●	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1311-	●	●	●
23	01.219 BRACKET; RESERVE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (C)	8-98276-956-0	01	1	1409-	●
23	01.219 BRACKET; RESERVE TANK (A)	8-98001-742-1	01	1	1311-1404	●
23	01.219 BRACKET; RESERVE TANK (A)	8-98001-742-1	01	1	1405-1408	●
23	01.219 BRACKET; RESERVE TANK 4JJ1-TCC ENG(RDU) (A)	8-98001-742-1	01	1	1409-	●
23	01.219 BRACKET; RESERVE TANK (B)	8-98010-501-2	01	1	1311-1404	●
23	01.219 BRACKET; RESERVE TANK (B)	8-98010-501-2	01	1	1405-1408	●
23	01.219 BRACKET; RESERVE TANK 4JJ1-TCC ENG(RDU) (B)	8-98010-501-2	01	1	1409-	●
33	01.277 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1311-1404	●
33	01.277 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1405-1405	●
33	01.277 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1405-1408	●
33	01.277 BOLT; BRKT 4JJ1-TCC ENG(RDU) 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1409-	●
33	01.277 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1311-1404	●
33	01.277 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1405-	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1309-1310		●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1311-1404	●	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1405-	●	●	●

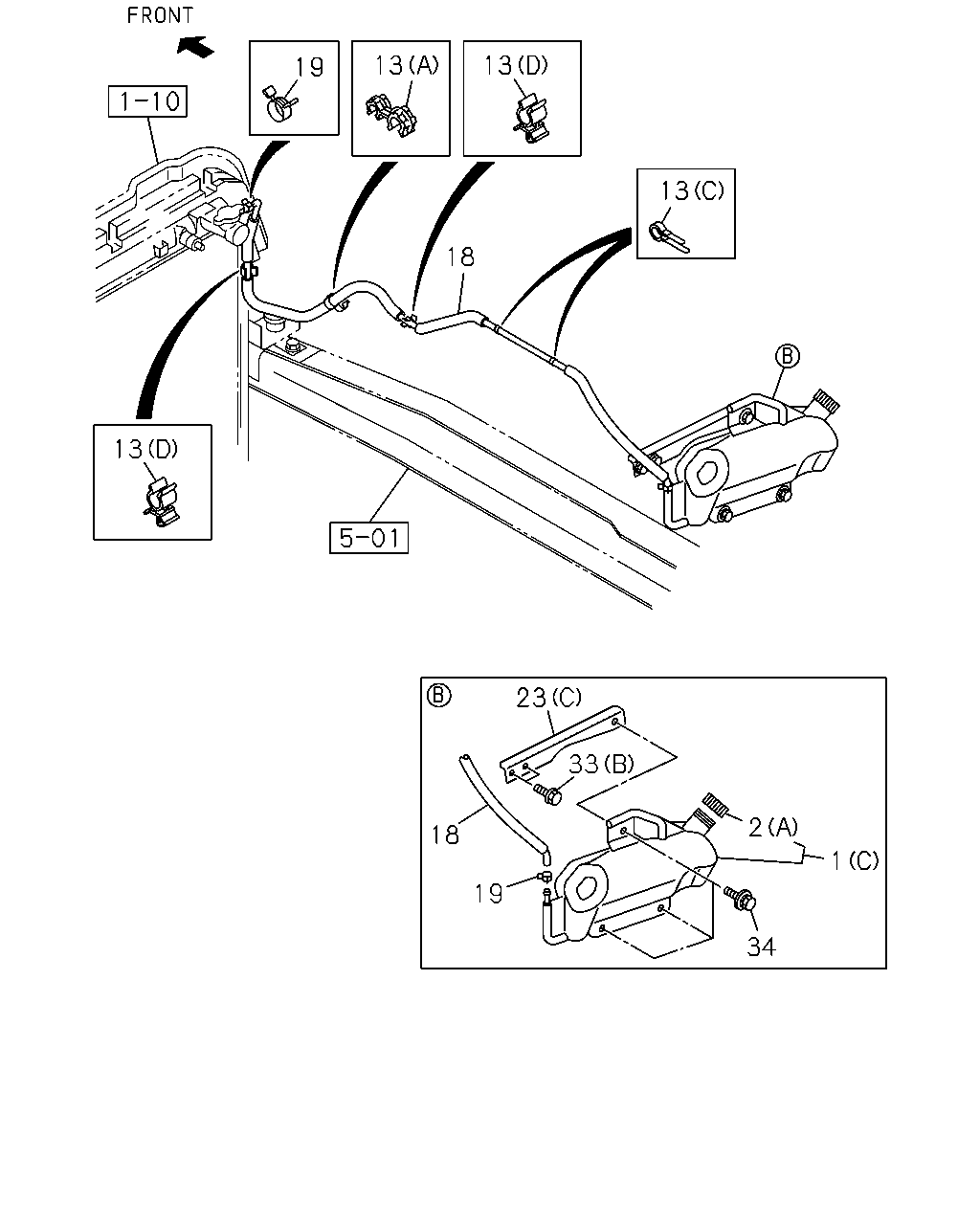

19 13 13 13 18 13 23 18 19 33 2 1 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 TANK; SURGE,RAD 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (C)	8-98276-955-0	01	1	1409-	●
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1311-1404	●
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1405-1408	●
1	01.219 TANK; SURGE,RAD 4JJ1-TCC ENG(RDU) (B)	8-98001-240-1	01	1	1409-	●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1309-1404		●	●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1405-		●	●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1311-1404	●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1405-1408	●
2	01.203 CAP; SURGE TANK 4JJ1-TCC ENG(RDU) (B)	8-97130-964-0	01	1	1409-	●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1309-1404		●	●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1405-1405	●	●	●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1405-1408		●	●
2	01.203 CAP; SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A)	8-98178-074-0	01	1	1409-	●	●	●
2	01.203 CAP; SURGE TANK 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (A)	8-98178-074-0	01	1	1409-		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	1311-1408		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	1311-1408	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	1409-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1309-1310		●	●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1311-		●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	1309-1310		●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	1311-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK (A) ID=10 & 12	8-94416-613-0	01	1	1309-1310		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A) ID=10 & 12	8-94416-613-0	01	1	1311-1408		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A) ID=10 & 12	8-94416-613-0	01	1	1409-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	02	1	1309-1310		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (D) ID=12	8-98029-256-0	02	1	1311-1408		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (D) ID=12	8-98029-256-0	02	1	1409-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98279-889-0	01	1	1409-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU)	8-98204-171-2	01	1	1311-		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-98207-795-1	01	1	1311-1408	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5)	8-98207-795-1	01	1	1409-	●
18	01.240 HOSE; RAD TO SURGE TANK	8-98023-219-1	01	1	1309-1310		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98023-219-1	01	1	1311-		●	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1309-1310		●	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1311-	●	●	●
23	01.219 BRACKET; RESERVE TANK 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (C)	8-98276-956-0	01	1	1409-	●
23	01.219 BRACKET; RESERVE TANK (A)	8-98001-742-1	01	1	1311-1404	●
23	01.219 BRACKET; RESERVE TANK (A)	8-98001-742-1	01	1	1405-1408	●
23	01.219 BRACKET; RESERVE TANK 4JJ1-TCC ENG(RDU) (A)	8-98001-742-1	01	1	1409-	●
23	01.219 BRACKET; RESERVE TANK (B)	8-98010-501-2	01	1	1311-1404	●
23	01.219 BRACKET; RESERVE TANK (B)	8-98010-501-2	01	1	1405-1408	●
23	01.219 BRACKET; RESERVE TANK 4JJ1-TCC ENG(RDU) (B)	8-98010-501-2	01	1	1409-	●
33	01.277 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1311-1404	●
33	01.277 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1405-1405	●
33	01.277 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1405-1408	●
33	01.277 BOLT; BRKT 4JJ1-TCC ENG(RDU) 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1409-	●
33	01.277 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1311-1404	●
33	01.277 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1405-	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1309-1310		●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1311-1404	●	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1405-	●	●	●

56 55 56 56 128 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
55	01.173 HOSE; WATER,RAD OUTLET	8-97383-814-1	01	1	1309-1310		●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97383-814-1	01	1	1311-	●	●	●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-98133-956-0	04	1	1309-1310		●	●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-98133-956-0	04	1	1311-	●	●	●
128	01.159 HOSE; WATER,RAD INL	8-97383-812-1	01	1	1309-1310		●	●
128	01.159 HOSE; WATER,RAD INL	8-97383-812-1	01	1	1311-	●	●	●
