0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#126516) — 179 parça

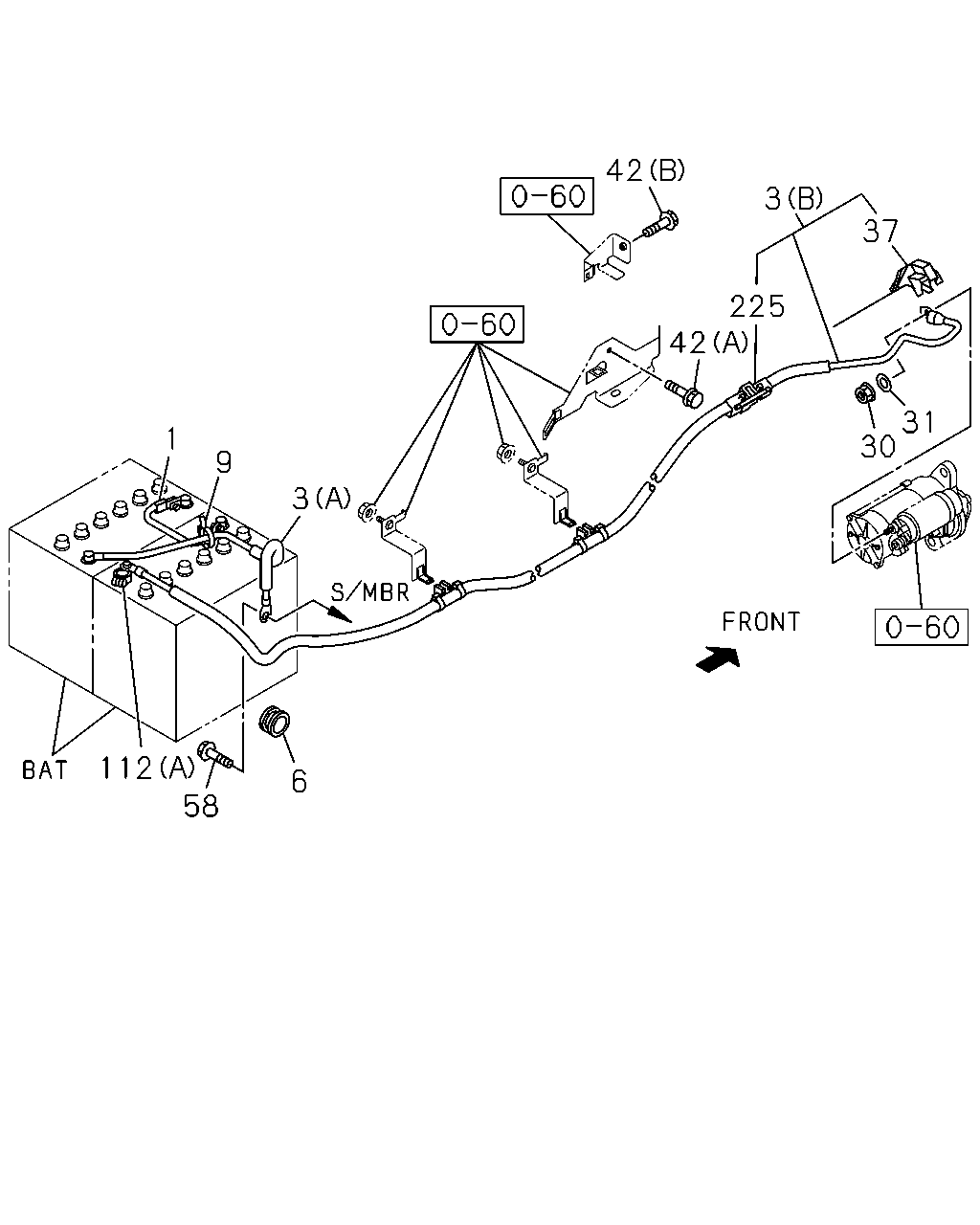

çizim 373644
1 9 3 6 58 112 42 3 37 31 225 42 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1309-1310 ●
1 02.341 CABLE; BATTERY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=280 		8-98025-412-3 01 1 1311-1403 ●
1 02.341 CABLE; BATTERY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) L=280 		8-98025-412-3 01 1 1311-1403 ●
1 02.341 CABLE; BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) L=280 		8-98025-412-3 01 1 1311-1403 ●
1 02.341 CABLE; BATTERY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=280 		8-98025-412-3 01 1 1404-1408 ●
1 02.341 CABLE; BATTERY
SGL CAB(NM**S*) L=280 		8-98025-412-3 01 1 1404-1408 ●
1 02.341 CABLE; BATTERY
DBL CAB(NM**W*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=280 		8-98025-412-3 01 1 1404-1408 ●
1 02.341 CABLE; BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) L=280 		8-98025-412-3 01 1 1409- ● ●
1 02.341 CABLE; BATTERY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=280 		8-98025-412-3 01 1 1409- ●
1 02.341 CABLE; BATTERY
SGL CAB(NM**S*) L=280 		8-98025-412-3 01 1 1409- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (B) 		8-98280-275-0 01 1 1409-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (B) 		8-98294-709-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W) SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98260-316-1 01 1 1401-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W) SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98294-713-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (B) 		8-98048-439-3 01 1 1311-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (B) 		8-98048-439-3 01 1 1311-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (B) 		8-98293-886-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (B) 		8-98293-886-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) L=200 		8-98056-337-1 01 1 1311-1403 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (A) L=200 		8-98056-337-1 01 1 1311-1403 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) (A) L=200 		8-98056-337-1 01 1 1404-1408 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=200 		8-98056-337-1 01 1 1404-1408 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) (A) L=200 		8-98056-337-1 01 1 1409- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (A) L=200 		8-98056-337-1 01 1 1409- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (B) 		8-98131-620-0 01 1 1311-1403 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-98131-620-0 01 1 1404-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-98294-685-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W) (A) L=250 		8-98056-338-1 01 1 1309-1310 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) (A) L=250 		8-98056-338-1 01 1 1311-1312 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W) (D) 		8-98259-982-0 01 1 1401- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W) (B) 		8-98227-625-1 01 1 1309-1310 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) (B) 		8-98227-625-1 01 1 1311-1312 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98260-315-1 01 1 1401-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98294-712-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (B) 		8-98227-626-1 01 1 1309-1310 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (B) 		8-98227-626-1 01 1 1311-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (B) 		8-98294-707-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (A) 		8-98227-629-1 01 1 1309-1310 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (A) 		8-98227-629-1 01 1 1311-1408 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (A) 		8-98227-629-1 01 1 1409- ●
6 02.343 GROMMET; BATTERY CABLE
WHEEL BASE 2800MM(28W) 03.483 ID=24 OD=30 T=12 		9-09956-093-1 01 1 1309-1310 ●
6 02.343 GROMMET; BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) 03.483 ID=24 OD=30 T=12 		9-09956-093-1 01 1 1311-1312 ●
9 02.343 CLIP; BATTERY CABLE
WHEEL BASE 3300MM(33W) 03.162 L=140 		5-09707-031-1 01 1 1309-1312 ●
9 02.343 CLIP; BATTERY CABLE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 L=140 		5-09707-031-1 01 1 1401-1408 ●
9 02.343 CLIP; BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 L=140 		5-09707-031-1 01 1 1409- ●
9 02.343 CLIP; BATTERY CABLE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) 03.162 L=140 		5-09707-031-1 01 1 1409- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1309-1310 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1311- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1309-1310 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1311- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1309-1310 ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1311-1408 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) 		8-98042-507-0 01 1 1409- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 		8-98042-507-0 01 1 1409- ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
SGL CAB(NM**S*) 		8-98042-507-0 01 1 1409- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1311- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1311- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1309-1310 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1311-1403 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1311-1403 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1311-1403 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1404-1408 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1404-1408 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NM**W*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1404-1408 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1409- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1409- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1409- ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1309-1310 ●
58 02.343 BOLT; CABLE,BATTERY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1311-1403 ●
58 02.343 BOLT; CABLE,BATTERY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1311-1403 ●
58 02.343 BOLT; CABLE,BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1311-1403 ●
58 02.343 BOLT; CABLE,BATTERY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1404-1408 ●
58 02.343 BOLT; CABLE,BATTERY
SGL CAB(NM**S*) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1404-1408 ●
58 02.343 BOLT; CABLE,BATTERY
DBL CAB(NM**W*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1404-1408 ●
58 02.343 BOLT; CABLE,BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1409- ● ●
58 02.343 BOLT; CABLE,BATTERY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1409- ●
58 02.343 BOLT; CABLE,BATTERY
SGL CAB(NM**S*) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1409- ●
112 02.343 TERMINAL; BATTERY
WHEEL BASE 2800MM(28W) (A) <+> 		8-97365-771-0 01 1 1309-1310 ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) (A) <+> 		8-97365-771-0 01 1 1311-1312 ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) <+> 		8-97365-771-0 01 1 1311-1312 ●
112 02.343 TERMINAL; BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (A) <+> 		8-97365-771-0 01 1 1311-1312 ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) <+> 		8-97365-771-0 01 1 1401-1403 ●
112 02.343 TERMINAL; BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (A) <+> 		8-97365-771-0 01 1 1401-1403 ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NM**S*) (A) <+> 		8-97365-771-0 01 1 1404-1408 ●
112 02.343 TERMINAL; BATTERY
DBL CAB(NM**W*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) <+> 		8-97365-771-0 01 1 1404-1408 ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NM**S*) (A) <+> 		8-97365-771-0 01 1 1409- ●
112 02.343 TERMINAL; BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (A) <+> 		8-97365-771-0 01 1 1409- ●
112 02.343 TERMINAL; BATTERY
WHEEL BASE 3300MM(33W) (B) 		8-97365-770-0 01 1 1309-1312 ●
112 02.343 TERMINAL; BATTERY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-97365-770-0 01 1 1401-1408 ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-97365-770-0 01 1 1409- ●
112 02.343 TERMINAL; BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (B) 		8-97365-770-0 01 1 1409- ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1309-1310 ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1311-1408 ● ●
225 02.343 BLOCK; TERMINAL
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) 		8-98029-689-0 01 1 1409-1409 ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 		8-98029-689-0 01 1 1409-1409 ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) 		8-98029-689-0 01 1 1409-1409 ●
225 02.343 BLOCK; TERMINAL
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) 		8-98294-524-0 01 1 1410- ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 		8-98294-524-0 01 1 1410- ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) 		8-98294-524-0 01 1 1410- ●

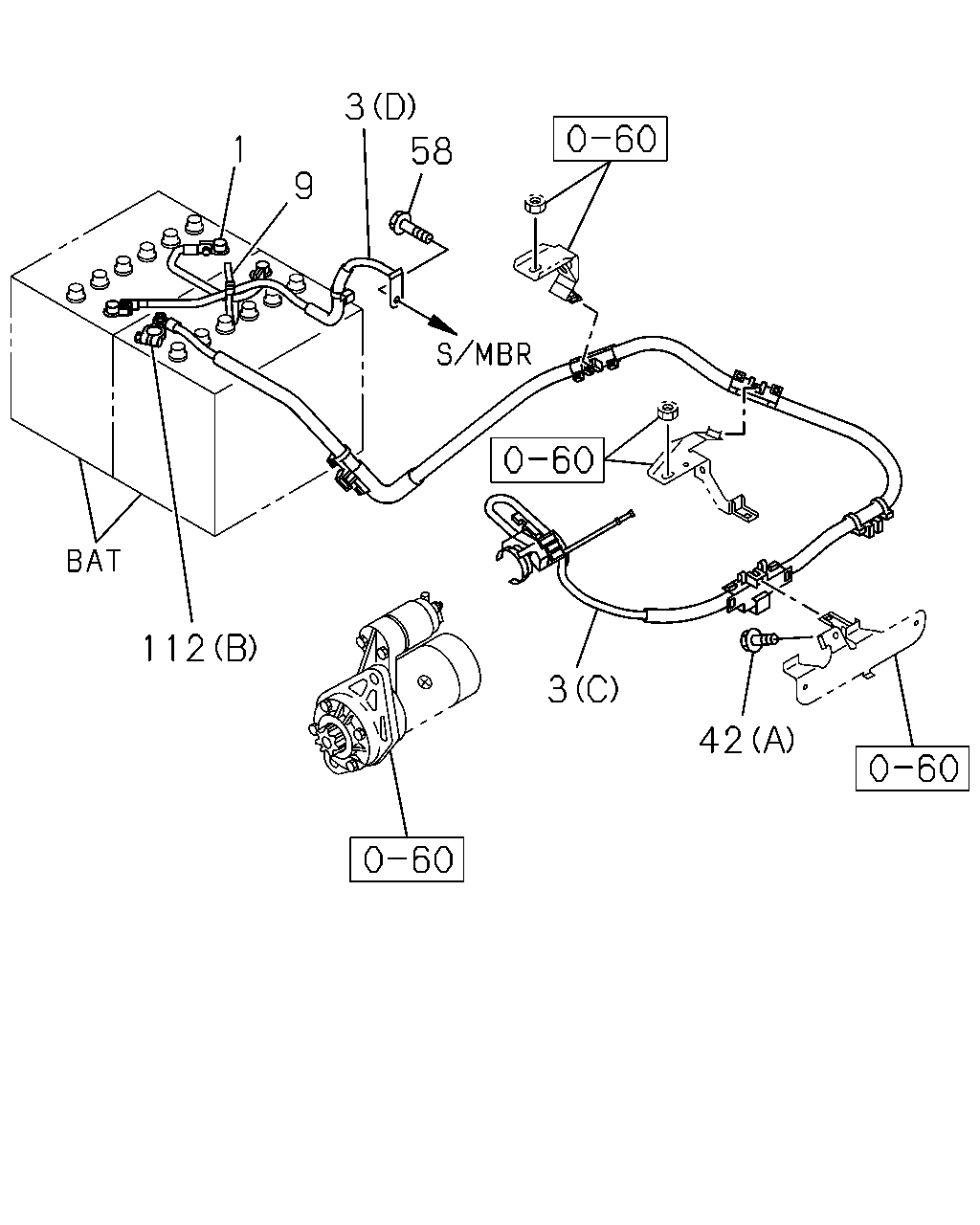

çizim 426539
3 1 9 58 112 3 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1309-1310 ●
1 02.341 CABLE; BATTERY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=280 		8-98025-412-3 01 1 1311-1403 ●
1 02.341 CABLE; BATTERY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) L=280 		8-98025-412-3 01 1 1311-1403 ●
1 02.341 CABLE; BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) L=280 		8-98025-412-3 01 1 1311-1403 ●
1 02.341 CABLE; BATTERY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=280 		8-98025-412-3 01 1 1404-1408 ●
1 02.341 CABLE; BATTERY
SGL CAB(NM**S*) L=280 		8-98025-412-3 01 1 1404-1408 ●
1 02.341 CABLE; BATTERY
DBL CAB(NM**W*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=280 		8-98025-412-3 01 1 1404-1408 ●
1 02.341 CABLE; BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) L=280 		8-98025-412-3 01 1 1409- ● ●
1 02.341 CABLE; BATTERY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=280 		8-98025-412-3 01 1 1409- ●
1 02.341 CABLE; BATTERY
SGL CAB(NM**S*) L=280 		8-98025-412-3 01 1 1409- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (B) 		8-98280-275-0 01 1 1409-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (B) 		8-98294-709-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W) SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98260-316-1 01 1 1401-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W) SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98294-713-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (B) 		8-98048-439-3 01 1 1311-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (B) 		8-98048-439-3 01 1 1311-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (B) 		8-98293-886-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (B) 		8-98293-886-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) L=200 		8-98056-337-1 01 1 1311-1403 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (A) L=200 		8-98056-337-1 01 1 1311-1403 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) (A) L=200 		8-98056-337-1 01 1 1404-1408 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=200 		8-98056-337-1 01 1 1404-1408 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) (A) L=200 		8-98056-337-1 01 1 1409- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (A) L=200 		8-98056-337-1 01 1 1409- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (B) 		8-98131-620-0 01 1 1311-1403 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-98131-620-0 01 1 1404-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-98294-685-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W) (A) L=250 		8-98056-338-1 01 1 1309-1310 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) (A) L=250 		8-98056-338-1 01 1 1311-1312 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W) (D) 		8-98259-982-0 01 1 1401- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W) (B) 		8-98227-625-1 01 1 1309-1310 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) (B) 		8-98227-625-1 01 1 1311-1312 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98260-315-1 01 1 1401-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98294-712-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (B) 		8-98227-626-1 01 1 1309-1310 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (B) 		8-98227-626-1 01 1 1311-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (B) 		8-98294-707-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (A) 		8-98227-629-1 01 1 1309-1310 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (A) 		8-98227-629-1 01 1 1311-1408 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (A) 		8-98227-629-1 01 1 1409- ●
9 02.343 CLIP; BATTERY CABLE
WHEEL BASE 3300MM(33W) 03.162 L=140 		5-09707-031-1 01 1 1309-1312 ●
9 02.343 CLIP; BATTERY CABLE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 L=140 		5-09707-031-1 01 1 1401-1408 ●
9 02.343 CLIP; BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 L=140 		5-09707-031-1 01 1 1409- ●
9 02.343 CLIP; BATTERY CABLE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) 03.162 L=140 		5-09707-031-1 01 1 1409- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1311- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1311- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1309-1310 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1311-1403 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1311-1403 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1311-1403 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1404-1408 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1404-1408 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NM**W*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1404-1408 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1409- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1409- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) 02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1409- ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1309-1310 ●
58 02.343 BOLT; CABLE,BATTERY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1311-1403 ●
58 02.343 BOLT; CABLE,BATTERY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1311-1403 ●
58 02.343 BOLT; CABLE,BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1311-1403 ●
58 02.343 BOLT; CABLE,BATTERY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1404-1408 ●
58 02.343 BOLT; CABLE,BATTERY
SGL CAB(NM**S*) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1404-1408 ●
58 02.343 BOLT; CABLE,BATTERY
DBL CAB(NM**W*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1404-1408 ●
58 02.343 BOLT; CABLE,BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1409- ● ●
58 02.343 BOLT; CABLE,BATTERY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1409- ●
58 02.343 BOLT; CABLE,BATTERY
SGL CAB(NM**S*) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1409- ●
112 02.343 TERMINAL; BATTERY
WHEEL BASE 2800MM(28W) (A) <+> 		8-97365-771-0 01 1 1309-1310 ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) (A) <+> 		8-97365-771-0 01 1 1311-1312 ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) <+> 		8-97365-771-0 01 1 1311-1312 ●
112 02.343 TERMINAL; BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (A) <+> 		8-97365-771-0 01 1 1311-1312 ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) <+> 		8-97365-771-0 01 1 1401-1403 ●
112 02.343 TERMINAL; BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (A) <+> 		8-97365-771-0 01 1 1401-1403 ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NM**S*) (A) <+> 		8-97365-771-0 01 1 1404-1408 ●
112 02.343 TERMINAL; BATTERY
DBL CAB(NM**W*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) <+> 		8-97365-771-0 01 1 1404-1408 ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NM**S*) (A) <+> 		8-97365-771-0 01 1 1409- ●
112 02.343 TERMINAL; BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (A) <+> 		8-97365-771-0 01 1 1409- ●
112 02.343 TERMINAL; BATTERY
WHEEL BASE 3300MM(33W) (B) 		8-97365-770-0 01 1 1309-1312 ●
112 02.343 TERMINAL; BATTERY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-97365-770-0 01 1 1401-1408 ●
112 02.343 TERMINAL; BATTERY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-97365-770-0 01 1 1409- ●
112 02.343 TERMINAL; BATTERY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (B) 		8-97365-770-0 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
