0-60 — ENGINE ELECTRICAL CONTROL PARTS (#126515) — 168 parça

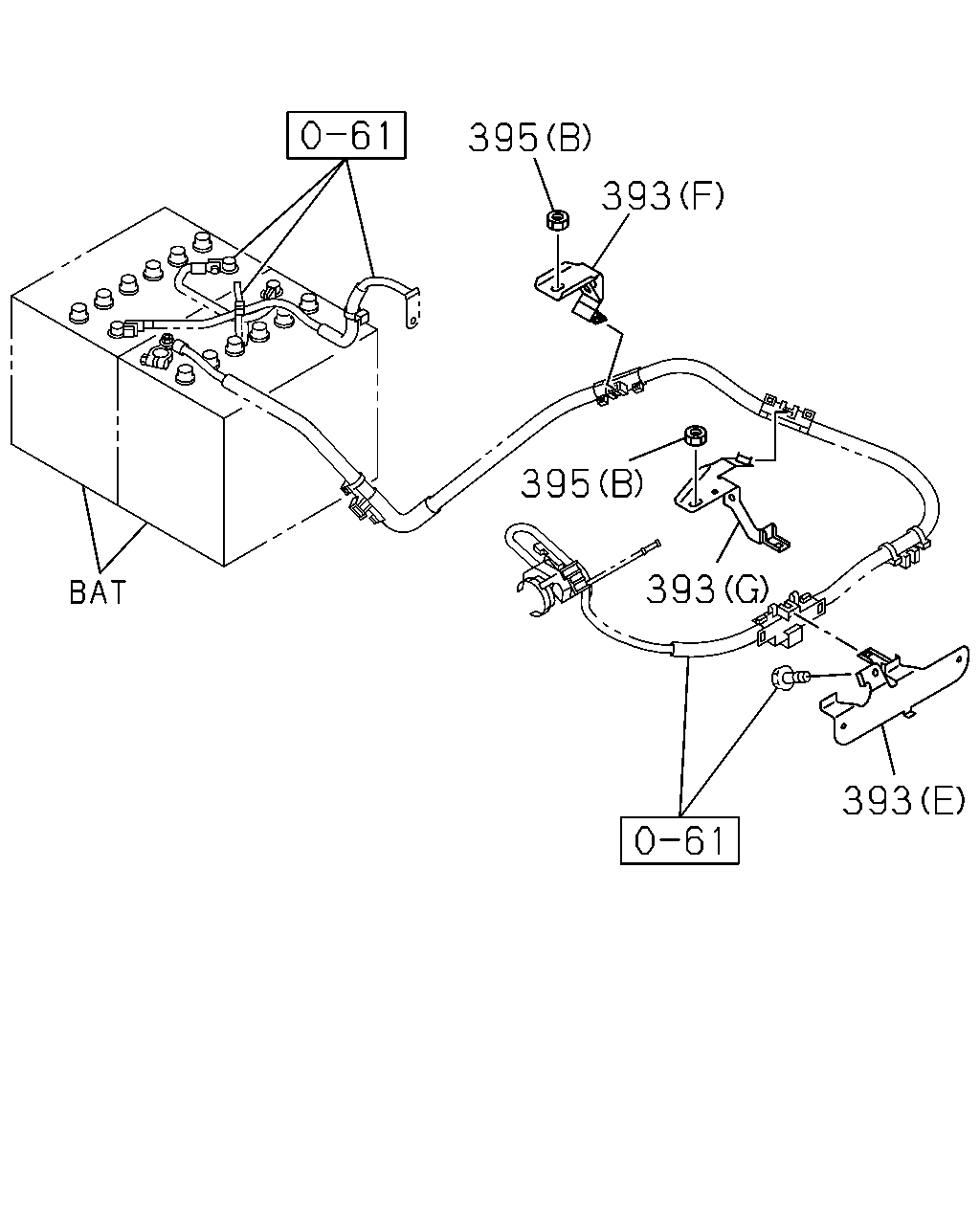

çizim 373180
395 393 395 393 393
BalonParca AdiParca NoAdetTipApplied Date A B
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (B) 		8-98245-494-0 03 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W) (F) 		8-98260-938-0 01 1 1401- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W) (G) 		8-98260-939-0 01 1 1401- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (E) 		8-98123-872-0 01 1 1311- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (E) 		8-98123-872-0 01 1 1311- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1311-1401 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1311-1401 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1311-1401 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1402-1403 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1402-1403 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1402-1403 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1404-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1404-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1404-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1409- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) 		8-98028-601-3 01 1 1309-1310 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1311-1401 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1311-1401 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1311-1401 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1402-1403 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1402-1403 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1402-1403 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1404-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) DBL CAB(NM**W*) (A) 		8-98028-601-3 01 1 1404-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1404-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1409- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W) (C) 		8-98245-926-0 01 1 1309-1310 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) (C) 		8-98245-926-0 01 1 1311-1312 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (C) 		8-98245-926-0 01 1 1311-1312 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (C) 		8-98245-926-0 01 1 1401-1403 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C) 		8-98245-926-0 01 1 1404- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) (B) 		8-98245-494-0 02 1 1309-1310 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (B) 		8-98245-494-0 02 1 1311- ●
395 02.343 NUT; BRKT FIX
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1409- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 2800MM(28W) 00.787 (B) M10 		0-91111-510-0 02 1 1401- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 2800MM(28W) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1311-1312 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1311-1312 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1401-1403 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1404- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1311- ●

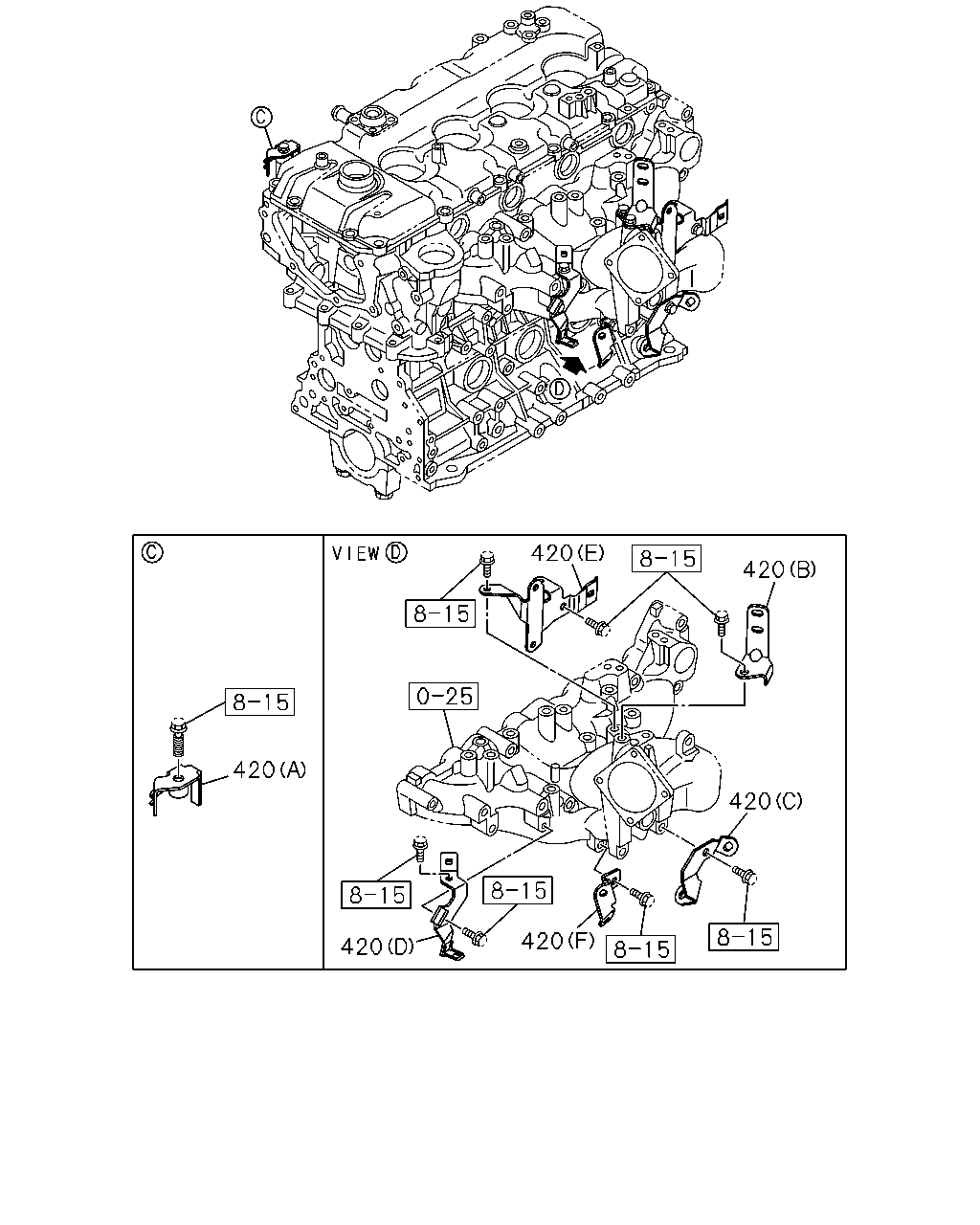

çizim 373181
420 420 420 420 420 420
BalonParca AdiParca NoAdetTipApplied Date A B
420 02.183 BRACKET; HARNESS
(D) 		8-98115-415-1 01 1 1311- ●
420 02.183 BRACKET; HARNESS
02.483 (E) 		8-98195-122-0 01 1 1311- ●
420 02.183 BRACKET; HARNESS
(F) 		8-98203-403-0 01 1 1311- ●
420 02.183 BRACKET; HARNESS
(A) 		8-98140-298-2 01 1 1309-1310 ●
420 02.183 BRACKET; HARNESS
(A) 		8-98140-298-3 01 1 1311- ● ●
420 02.183 BRACKET; HARNESS
(B) 		8-98209-804-1 01 1 1309-1310 ●
420 02.183 BRACKET; HARNESS
(B) 		8-98209-804-1 01 1 1311- ● ●
420 02.183 BRACKET; HARNESS
(C) 		8-98209-803-1 01 1 1309- ●

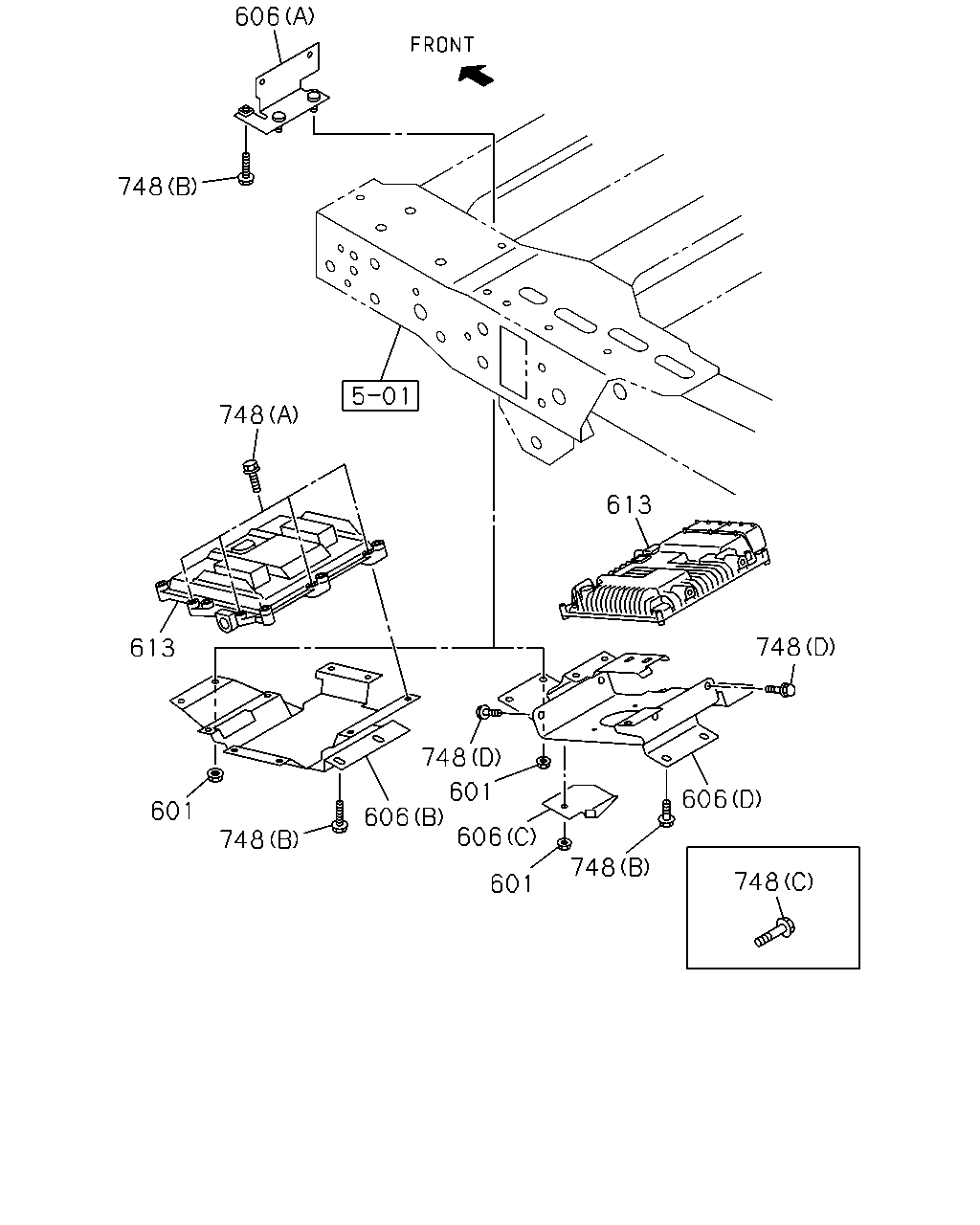

çizim 374188
606 748 748 613 748 606 748 748 601 606 601 748 606 748 601 613
BalonParca AdiParca NoAdetTipApplied Date A B
601 03.670 NUT; UNIT
EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE 		0-91180-108-0 03 1 1311- ●
601 03.670 NUT; UNIT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ●
601 03.670 NUT; UNIT
EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1311- ●
606 03.680 BRACKET; CONT UNIT
EURO5B+ SPECIFICATION(NT5) (C) 		8-98146-323-1 01 1 1311- ●
606 03.680 BRACKET; CONT UNIT
EURO5B+ SPECIFICATION(NT5) (D) 		8-98207-079-1 01 1 1311- ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98119-085-0 01 1 1309-1310 ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98119-085-0 01 1 1311- ● ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98207-080-2 01 1 1309-1310 ●
606 03.680 BRACKET; CONT UNIT
EURO6 SPECIFICATION(NT6) (B) 		8-98207-080-2 01 1 1311- ●
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98270-927-2 01 1 1402- ●
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98270-928-2 01 1 1402- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NM**W*) SMOOTHER-EX(TYPE2)(8NS) 		8-98270-929-2 01 1 1402-1408 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NM**W*) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98270-929-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) M/T MYY5A(RSL) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98225-006-3 01 1 1311-1408 ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) M/T MYY5A(RSL) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98225-006-3 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) EURO5B+ SPECIFICATION(NT5) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98225-012-4 01 1 1311- ●
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) M/T MYY5A(RSL) FINAL GEAR RATIO 41/9(HC6) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98227-669-3 01 1 1311- ●
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) M/T MYY5A(RSL) FINAL GEAR RATIO 43/10(S7C) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98227-668-3 01 1 1311- ●
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) EURO5B+ SPECIFICATION(NT5) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98225-013-4 01 1 1311- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NM**W*) 		8-98242-483-4 01 1 1311-1401 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NM**W*) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98242-483-4 01 1 1402-1408 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NM**W*) EURO5B+ SPECIFICATION(NT5) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98242-483-4 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) M/T MYY5A(RSL) 		8-98225-004-5 01 1 1309-1310 ●
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) M/T MYY5A(RSL) EURO6 SPECIFICATION(NT6) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98225-004-5 01 1 1311-1408 ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) M/T MYY5A(RSL) EURO6 SPECIFICATION(NT6) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98225-004-5 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) M/T MYY5A(RSL) FINAL GEAR RATIO 41/9(HC6) 		8-98225-009-5 01 1 1309-1310 ●
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) M/T MYY5A(RSL) FINAL GEAR RATIO 41/9(HC6) EURO6 SPECIFICATION(NT6) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98225-009-5 01 1 1311- ●
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) M/T MYY5A(RSL) FINAL GEAR RATIO 43/10(S7C) 		8-98225-008-5 01 1 1309-1310 ●
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) M/T MYY5A(RSL) FINAL GEAR RATIO 43/10(S7C) EURO6 SPECIFICATION(NT6) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98225-008-5 01 1 1311- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NM**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) G.V.W. 3.5-4.0TON(RPQ) IMMOBILIZER SYSTEM(7KC) SMOOTHER-EX(TYPE2)(8NS) EXC. SPEED LIMITER 90KM(NMJ) 		8-98270-927-1 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NM**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> SPEED LIMITER 90KM(NMJ) EURO5B+ SPECIFICATION(NT5) G.V.W. 5.5-6.0TON(RPU) IMMOBILIZER SYSTEM(7KC) SMOOTHER-EX(TYPE2)(8NS) 		8-98270-928-1 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NM**W*) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) G.V.W. 3.5-4.0TON(RPQ) IMMOBILIZER SYSTEM(7KC) SMOOTHER-EX(TYPE2)(8NS) EXC. SPEED LIMITER 90KM(NMJ) 		8-98270-929-1 01 1 1407- ●
748 02.500 BOLT; CONT UNIT
03.403 (C) M8X30 FLANGE 		0-28650-830-0 04 1 1309-1310 ●
748 02.500 BOLT; CONT UNIT
EURO5B+ SPECIFICATION(NT5) 02.343 (D) M8X16 FLANGE 		0-28050-816-0 04 1 1311- ●
748 02.500 BOLT; CONT UNIT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 1309-1310 ●
748 02.500 BOLT; CONT UNIT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 1311- ● ●
748 02.500 BOLT; CONT UNIT
03.680 (A) M6X30 FLANGE 		0-28650-630-0 08 1 1309-1310 ●
748 02.500 BOLT; CONT UNIT
EURO6 SPECIFICATION(NT6) 03.680 (A) M6X30 FLANGE 		0-28650-630-0 08 1 1311- ●

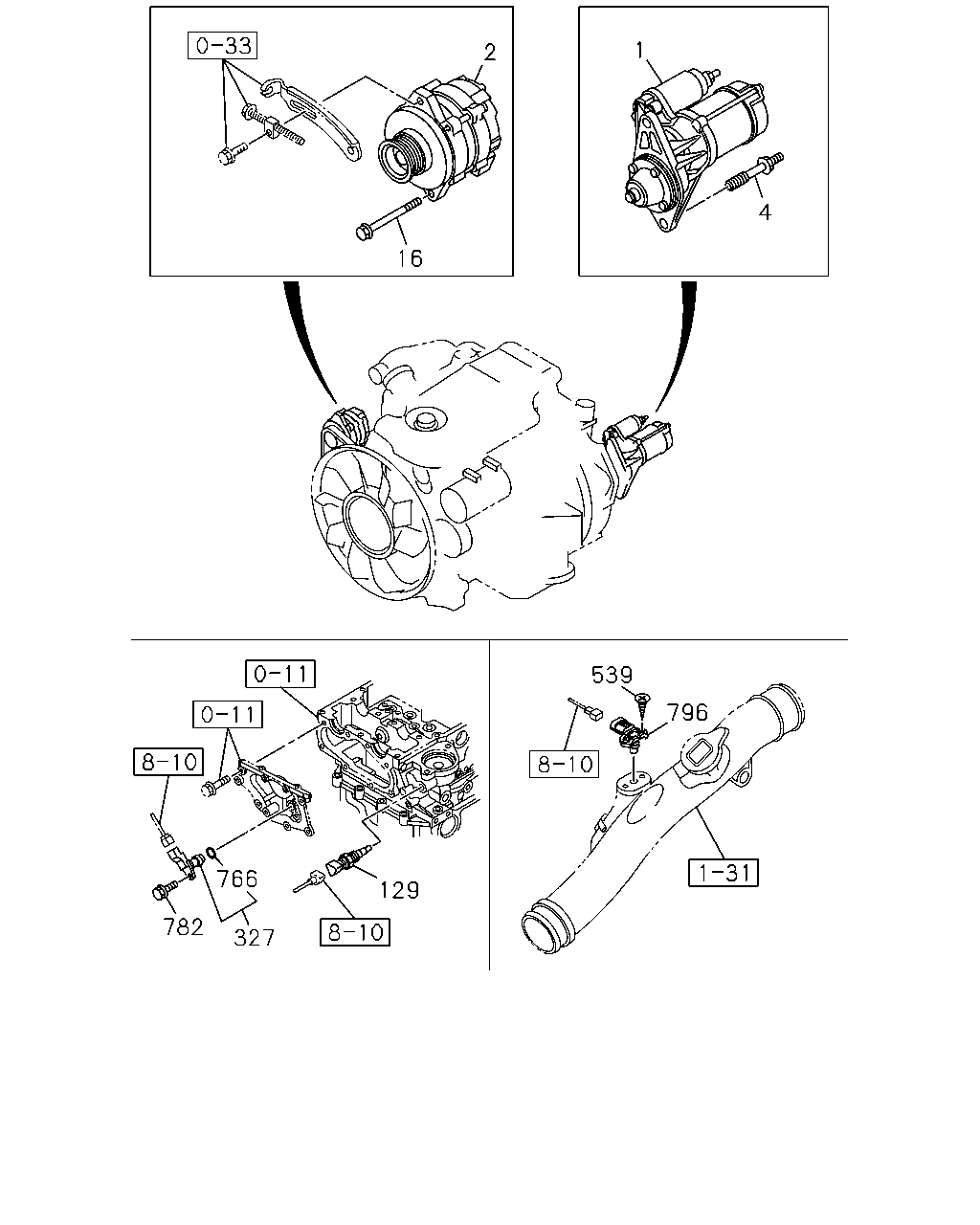

çizim 374494
2 16 1 4 539 796 129 327 782 766
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1309-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1311- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-98029-887-2 01 1 1309-1310 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-98029-887-2 01 1 1311- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-889-2 01 1 1309-1310 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-889-2 01 1 1311- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1309-1310 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1311- ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1309-1310 ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1311- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1309-1310 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1311- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1309-1310 ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1311- ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1311- ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1309- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1309-1310 ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1311- ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1309-1310 ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1311- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1311- ●

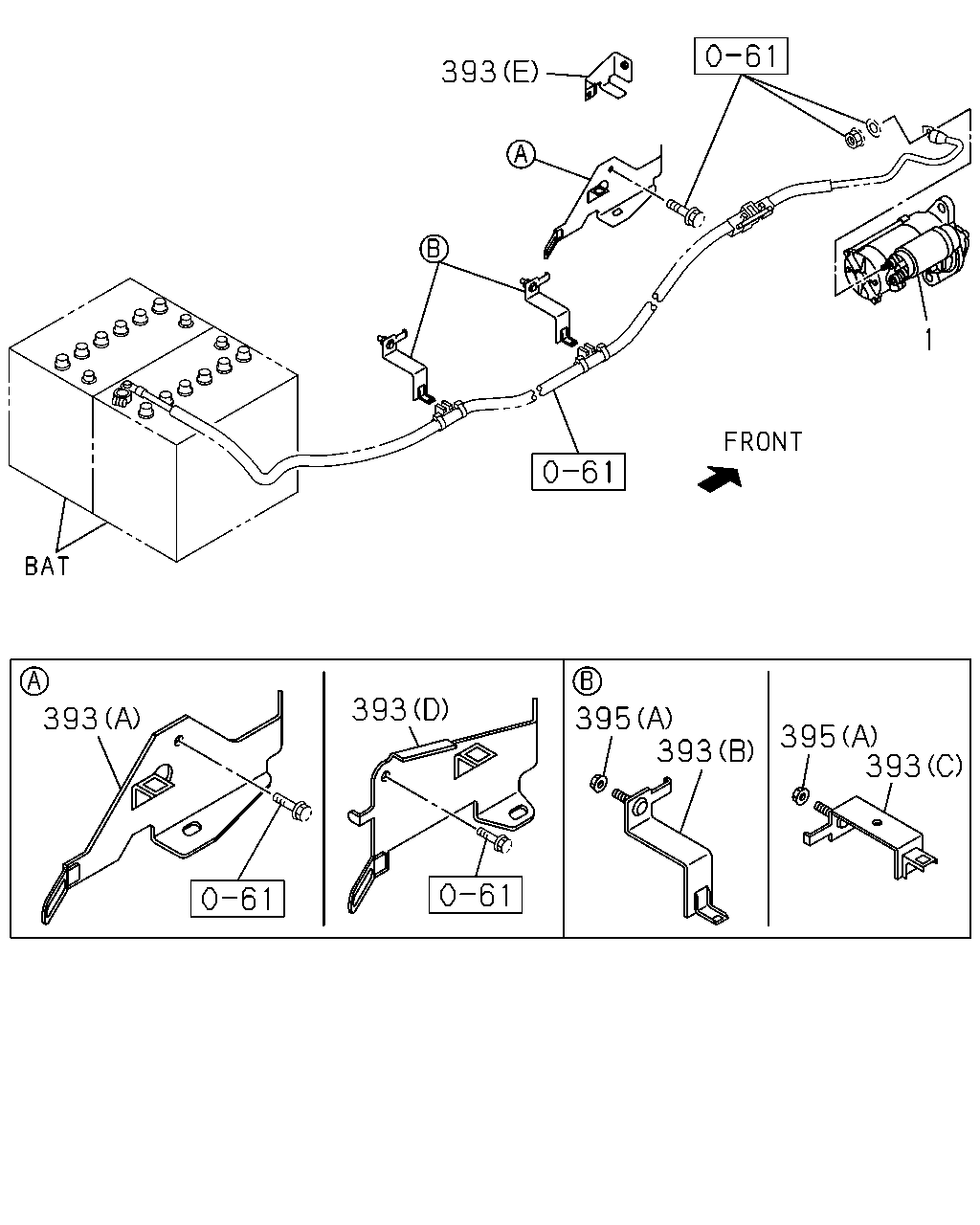

çizim 374638
393 393 393 395 393 395 393 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1309-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1311- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (B) 		8-98245-494-0 03 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W) (F) 		8-98260-938-0 01 1 1401- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W) (G) 		8-98260-939-0 01 1 1401- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (E) 		8-98123-872-0 01 1 1311- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (E) 		8-98123-872-0 01 1 1311- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1311-1401 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1311-1401 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1311-1401 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1402-1403 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1402-1403 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1402-1403 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1404-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1404-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1404-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1409- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) 		8-98028-601-3 01 1 1309-1310 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1311-1401 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1311-1401 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1311-1401 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1402-1403 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1402-1403 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1402-1403 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1404-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) DBL CAB(NM**W*) (A) 		8-98028-601-3 01 1 1404-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1404-1408 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1409- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2800MM(28W) (C) 		8-98245-926-0 01 1 1309-1310 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) (C) 		8-98245-926-0 01 1 1311-1312 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (C) 		8-98245-926-0 01 1 1311-1312 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (C) 		8-98245-926-0 01 1 1401-1403 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C) 		8-98245-926-0 01 1 1404- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) (B) 		8-98245-494-0 02 1 1309-1310 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (B) 		8-98245-494-0 02 1 1311- ●
395 02.343 NUT; BRKT FIX
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1409- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 2800MM(28W) 00.787 (B) M10 		0-91111-510-0 02 1 1401- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 2800MM(28W) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1311-1312 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1311-1312 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1401-1403 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1404- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1311- ●

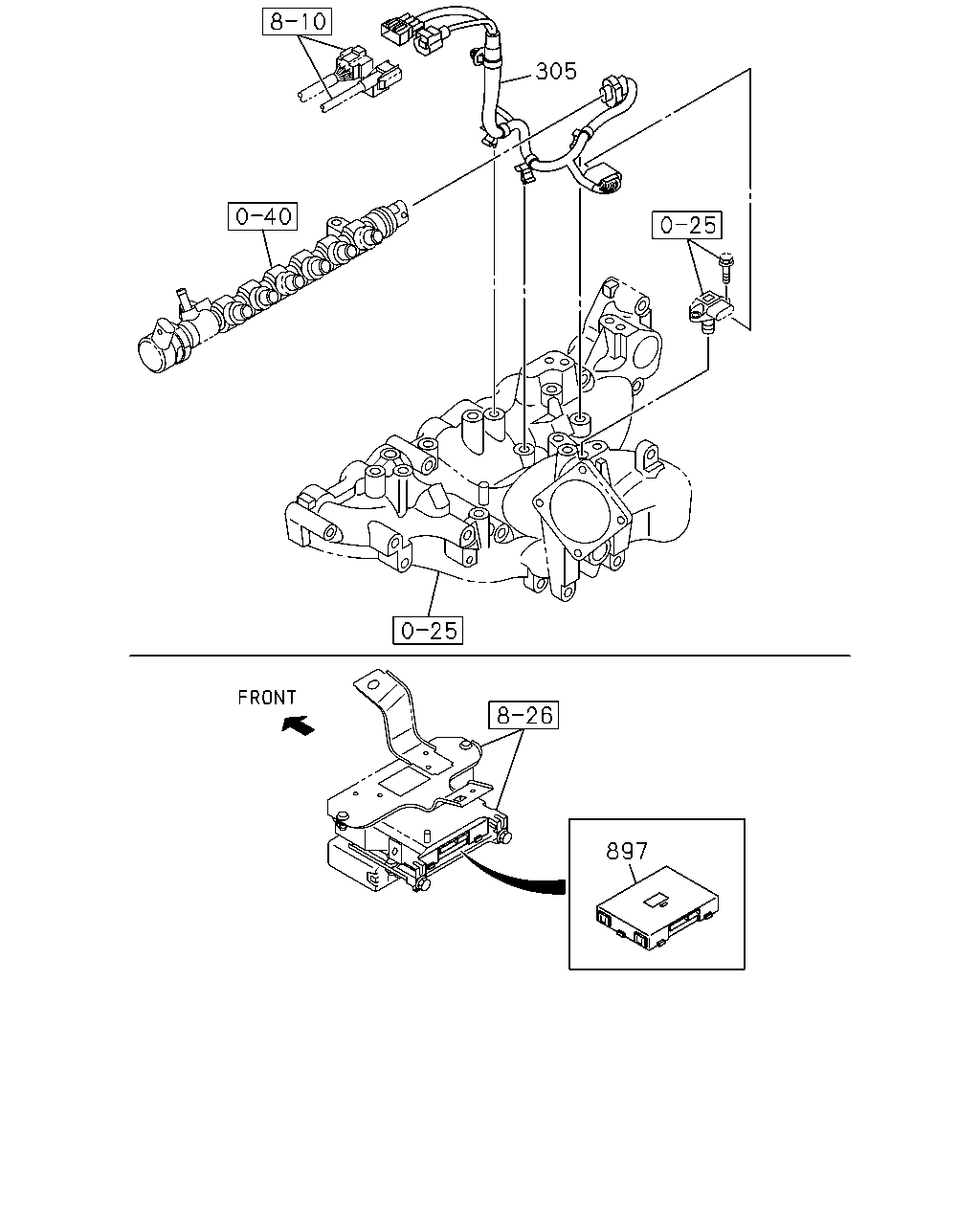

çizim 374766
897 305
BalonParca AdiParca NoAdetTipApplied Date A B
305 02.480 HARNESS; EXT,GLOW PLUG 8-98209-543-1 01 1 1309- ●
897 02.510 DRM 8-98232-116-1 01 1 1309-1310 ●
897 02.510 DRM 8-98232-116-1 01 1 1311- ● ●
çizim 426131
46 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1309-1310 ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1311- ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1309-1310 ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1311- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
