0-57 — EMISSION PIPING (#126514) — 107 parça

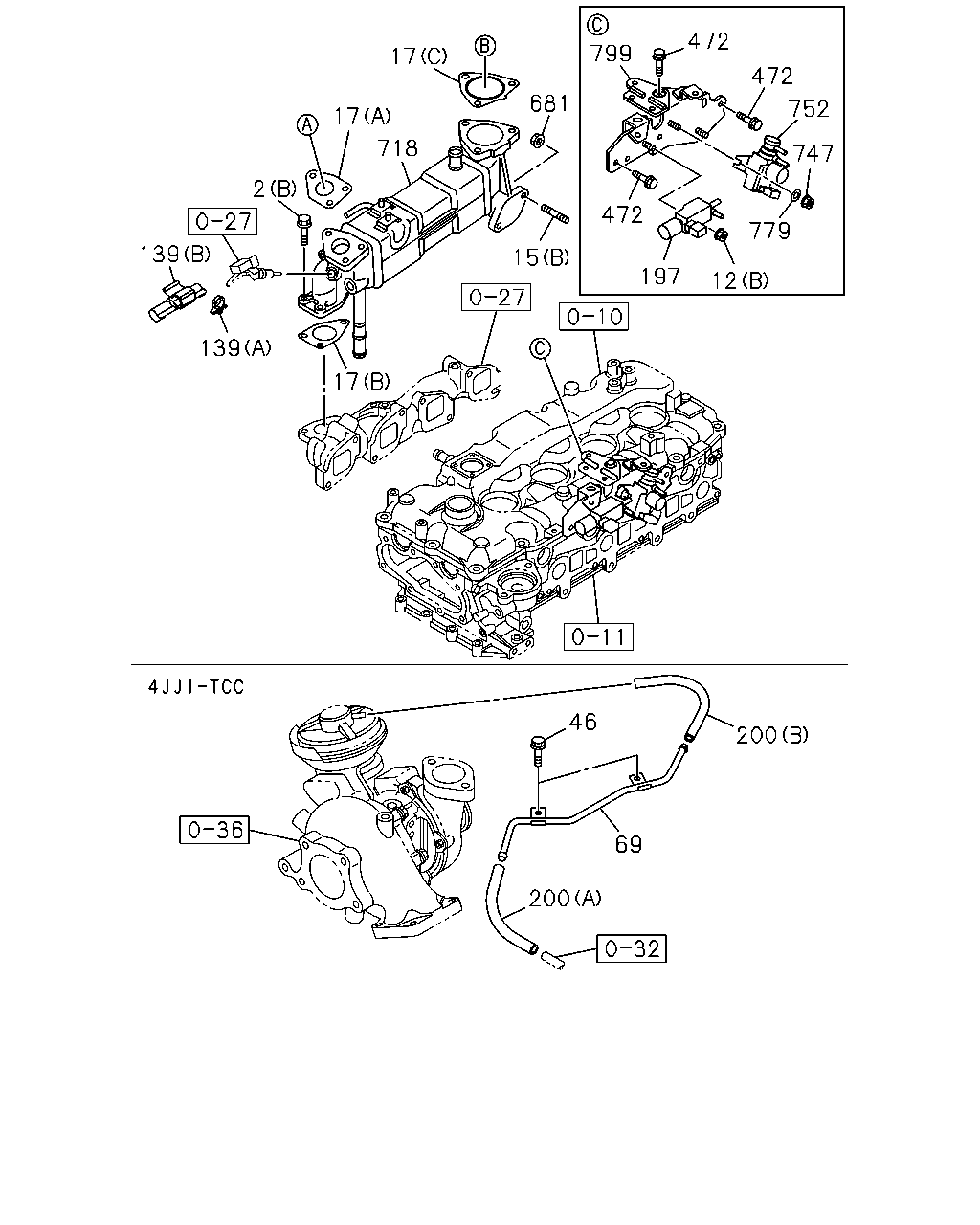

17 17 2 139 139 17 15 681 718 197 472 799 472 472 752 747 779 12 46 69 200 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.670 BOLT; EGR VLV 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1309-1310	●
2	03.670 BOLT; EGR VLV 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1311-	●	●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1309-1310	●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1311-	●	●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	03	1	1309-1310	●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	03	1	1311-	●	●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1309-1310	●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1311-	●	●
15	03.670 STUD; EGR PIPE 03.275 (B) M8X25 L=37	0-41010-825-0	02	1	1309-1310	●
15	03.670 STUD; EGR PIPE 03.275 (B) M8X25 L=37	0-41010-825-0	02	1	1311-	●	●
15	03.670 STUD; EGR PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1309-1310	●
15	03.670 STUD; EGR PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	1309-1310	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1309-1310	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1309-1310	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1309-1310	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1311-	●	●
46	03.680 BOLT; VAC PIPE 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1507-		●
69	03.675 PIPE ASM; VAC	8-98287-564-0	01	1	1507-		●
139	02.559 CLIP; HARNESS 03.682 (A) ID=7 L=7.5	8-97369-561-0	01	1	1309-1310	●
139	02.559 CLIP; HARNESS 03.682 (A) ID=7 L=7.5	8-97369-561-0	01	1	1311-	●	●
139	02.559 CLIP; HARNESS (B) ID=10.2 & 5.2	8-98117-177-0	01	1	1309-1310	●
139	02.559 CLIP; HARNESS (B) ID=10.2 & 5.2	8-98117-177-0	01	1	1311-	●	●
197	03.670 VALVE; VAC SWITCHING	8-97352-151-0	01	1	1309-1310	●
197	03.670 VALVE; VAC SWITCHING	8-97352-151-0	01	1	1311-	●	●
200	03.675 HOSE; VAC (B) L=150 SERVICED BY L=3000	0-14320-300-0	01	1	1507-		●
200	03.675 HOSE; VAC (A) L=110	0-14140-110-0	01	1	1507-		●
472	03.671 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1309-1310	●
472	03.671 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1311-	●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	04	1	1309-1310	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	04	1	1311-	●	●
718	03.337 COOLER; EGR	8-98201-683-1	01	1	1309-1310	●
718	03.337 COOLER; EGR	8-98201-683-2	01	1	1311-	●	●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310	●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-	●	●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1309-1310	●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1311-	●	●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1309-1310	●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1311-	●	●
799	03.670 BRACKET; VSV	8-98209-312-2	01	1	1309-1310	●
799	03.670 BRACKET; VSV	8-98209-312-2	01	1	1311-	●	●

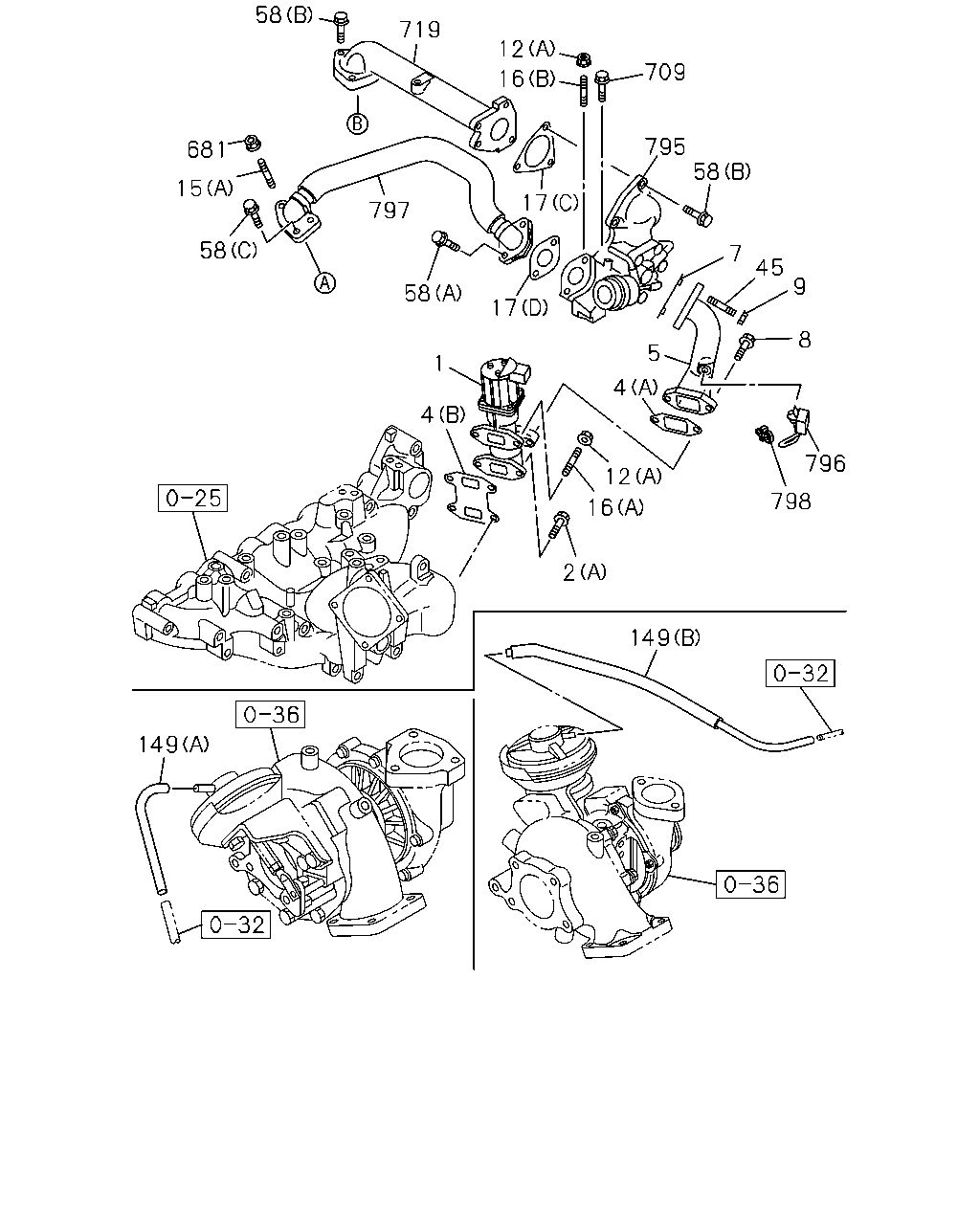

58 719 12 16 709 795 58 7 45 9 8 796 798 2 16 12 4 5 17 17 58 797 58 15 681 1 4 149 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR	8-98194-599-0	01	1	1311-		●
1	03.670 VALVE; EGR	8-98211-742-0	01	1	1309-	●
2	03.670 BOLT; EGR VLV 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1309-1310	●
2	03.670 BOLT; EGR VLV 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1311-	●	●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1309-1310	●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1311-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98106-025-1	01	1	1309-1310	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98106-025-1	01	1	1311-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98106-027-1	01	1	1309-1310	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98106-027-1	01	1	1311-	●	●
5	03.670 ADAPTER ASM	8-98106-747-1	01	1	1309-1310	●
5	03.670 ADAPTER ASM	8-98106-747-1	01	1	1311-	●	●
7	03.670 GASKET; ADAPTER	8-98150-745-0	01	1	1309-1310	●
7	03.670 GASKET; ADAPTER	8-98150-745-0	01	1	1311-	●	●
8	03.670 BOLT; EGR ADAPTER 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1309-1310	●
8	03.670 BOLT; EGR ADAPTER 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1311-	●	●
9	03.670 NUT; EGR ADAPTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1309-1310	●
9	03.670 NUT; EGR ADAPTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1311-	●	●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	03	1	1309-1310	●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	03	1	1311-	●	●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1309-1310	●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1311-	●	●
15	03.670 STUD; EGR PIPE 03.275 (B) M8X25 L=37	0-41010-825-0	02	1	1309-1310	●
15	03.670 STUD; EGR PIPE 03.275 (B) M8X25 L=37	0-41010-825-0	02	1	1311-	●	●
15	03.670 STUD; EGR PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1309-1310	●
15	03.670 STUD; EGR PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1311-	●	●
16	03.275 STUD; EGR VLV (A) M8X25 L=41	0-40210-825-0	02	1	1309-1310	●
16	03.275 STUD; EGR VLV (A) M8X25 L=41	0-40210-825-0	02	1	1311-	●	●
16	03.275 STUD; EGR VLV 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1309-1310	●
16	03.275 STUD; EGR VLV 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	1309-1310	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1309-1310	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1309-1310	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1311-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1309-1310	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1311-	●	●
45	09.173 STUD; ADAPTER,EGR 01.073 M8X22 L=34	0-41010-822-0	02	1	1309-1310	●
45	09.173 STUD; ADAPTER,EGR 01.073 M8X22 L=34	0-41010-822-0	02	1	1311-	●	●
58	03.417 BOLT; PIPE 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1309-1310	●
58	03.417 BOLT; PIPE 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1311-	●	●
58	03.417 BOLT; PIPE 00.206 (B) M8X30 FLANGE	0-28050-830-0	06	1	1309-1310	●
58	03.417 BOLT; PIPE 00.206 (B) M8X30 FLANGE	0-28050-830-0	06	1	1311-	●	●
58	03.417 BOLT; PIPE (C) M8X23 FLANGE	8-97378-077-0	01	1	1309-1310	●
58	03.417 BOLT; PIPE (C) M8X23 FLANGE	8-97378-077-0	01	1	1311-	●	●
149	08.962 HOSE; VAC PIPE (B)	8-98175-025-0	01	1	1311-1506		●
149	08.962 HOSE; VAC PIPE 03.675 (A)	8-98107-557-0	01	1	1309-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	04	1	1309-1310	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	04	1	1311-	●	●
709	03.670 BOLT; EGR COOLER 00.206 M8X70 FLANGE	0-28050-870-0	01	1	1309-1310	●
709	03.670 BOLT; EGR COOLER 00.206 M8X70 FLANGE	0-28050-870-0	01	1	1311-	●	●
719	03.675 PIPE; EGR	8-98136-683-1	01	1	1309-1310	●
719	03.675 PIPE; EGR	8-98136-683-1	01	1	1311-	●	●
795	03.670 VALVE; EGR COOLER BYPASS	8-98240-264-0	01	1	1309-1310	●
795	03.670 VALVE; EGR COOLER BYPASS	8-98240-264-0	01	1	1311-1501	●	●
795	03.670 VALVE; EGR COOLER BYPASS	8-98299-182-0	01	1	1502-	●	●
796	03.670 SENSOR; TEMP,EGR COOLER OUT	8-98238-241-0	01	1	1311-		●
796	03.670 SENSOR; TEMP,EGR COOLER OUT	8-98240-072-0	01	1	1309-	●
797	01.540 PIPE; BYPASS	8-98214-448-1	01	1	1309-1310	●
797	01.540 PIPE; BYPASS	8-98214-448-1	01	1	1311-	●	●
798	03.671 CLIP; TEMP SENSOR 03.682 ID=7 L=7.5	8-97369-561-0	01	1	1309-1310	●
798	03.671 CLIP; TEMP SENSOR 03.682 ID=7 L=7.5	8-97369-561-0	01	1	1311-	●	●
