0-41 — FUEL FILTER AND BRACKET (#126509) — 75 parça

112 2 119 7 66 112 93 92 1 5 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98095-980-1	01	1	1311-	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1311-	●
1	03.890 FILTER ASM; FUEL (B)	8-98169-738-0	01	1	1309-		●
1	03.890 FILTER ASM; FUEL (A)	8-98124-107-4	01	1	1309-		●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (C)	8-98095-983-0	01	1	1311-	●
2	03.890 ELEMENT KIT; FUEL FILTER (B)	8-98037-481-0	01	1	1309-		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1309-1310		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1311-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1309-1310		●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1311-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (B) BEST VALUE PARTS	5-87610-157-0	01	1	1309-		●
5	03.890 BOLT; FUEL FILTER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1309-1310		●
5	03.890 BOLT; FUEL FILTER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1311-		●
7	03.890 PLUG; SENSOR,FUEL FILTER	8-97123-549-0	01	1	1309-		●
66	03.890 GASKET; PLUG,FUEL FILTER	8-94447-156-0	01	1	1309-		●
92	03.417 CAP; FUEL FILTER (A)	8-97172-548-0	01	1	1309-		●
92	03.417 CAP; FUEL FILTER (B)	8-98034-314-0	01	1	1309-1310		●
92	03.417 CAP; FUEL FILTER (B)	8-98034-314-0	01	1	1311-	●	●
93	03.890 CONNECTOR; FUEL FILTER (A)	8-97172-546-1	01	1	1309-		●
93	03.890 CONNECTOR; FUEL FILTER (B) M8X10	8-98034-312-0	01	1	1309-1310		●
93	03.890 CONNECTOR; FUEL FILTER (B) M8X10	8-98034-312-0	01	1	1311-	●	●
112	06.605 GASKET; SENSOR TO CASE 03.417	1-09623-649-0	01	1	1309-		●
119	03.890 PLUG; DRAIN,FUEL FILTER (A)	8-97603-456-0	01	1	1309-		●
119	03.890 PLUG; DRAIN,FUEL FILTER (B)	8-98037-095-0	01	1	1309-1310		●
119	03.890 PLUG; DRAIN,FUEL FILTER (B)	8-98037-095-0	01	1	1311-	●	●

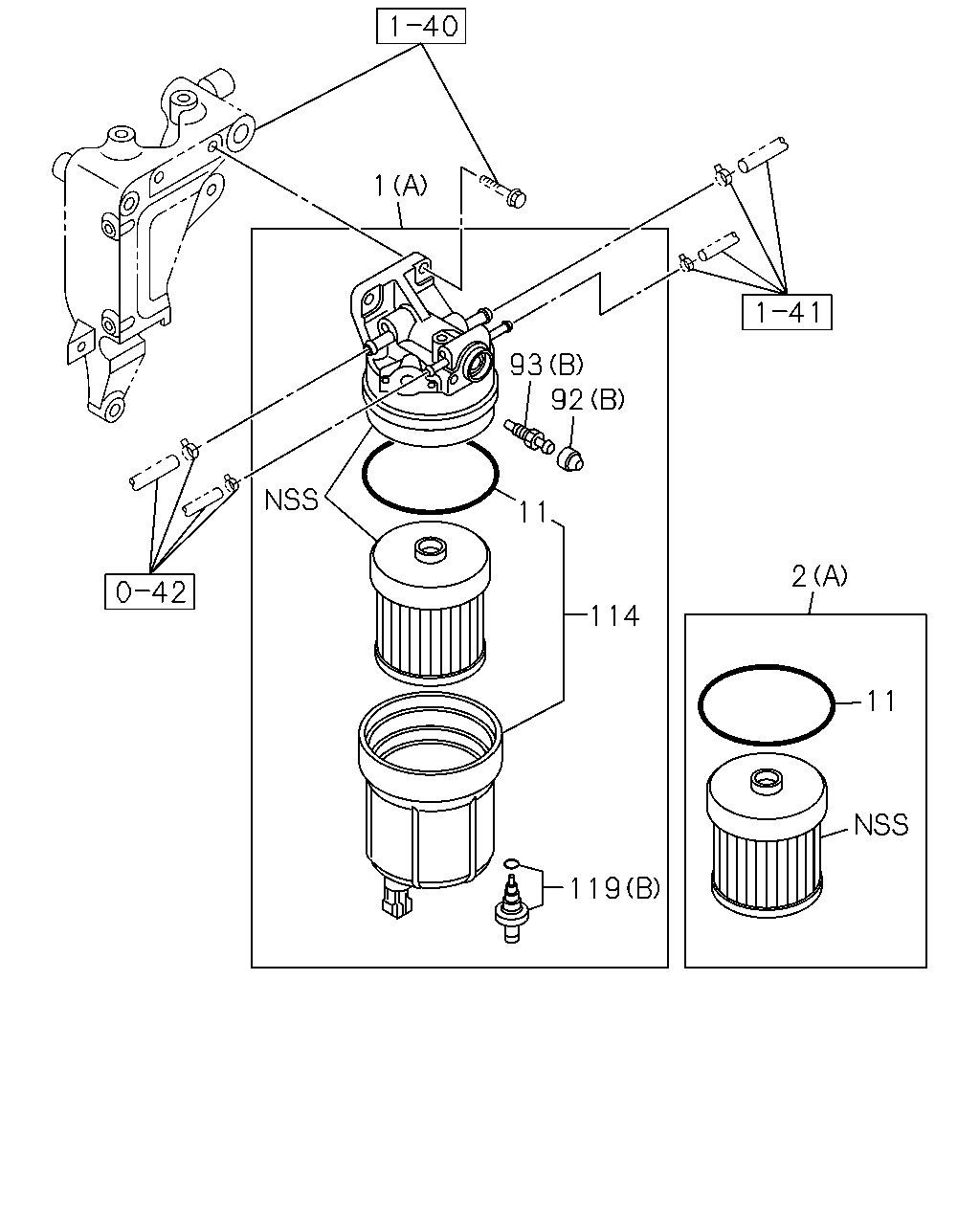

1 93 92 11 114 119 2 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98095-980-1	01	1	1311-	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1311-	●
1	03.890 FILTER ASM; FUEL (B)	8-98169-738-0	01	1	1309-		●
1	03.890 FILTER ASM; FUEL (A)	8-98124-107-4	01	1	1309-		●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (C)	8-98095-983-0	01	1	1311-	●
2	03.890 ELEMENT KIT; FUEL FILTER (B)	8-98037-481-0	01	1	1309-		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1309-1310		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1311-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1309-1310		●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1311-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (B) BEST VALUE PARTS	5-87610-157-0	01	1	1309-		●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1309-1310		●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1311-	●	●
92	03.417 CAP; FUEL FILTER (A)	8-97172-548-0	01	1	1309-		●
92	03.417 CAP; FUEL FILTER (B)	8-98034-314-0	01	1	1309-1310		●
92	03.417 CAP; FUEL FILTER (B)	8-98034-314-0	01	1	1311-	●	●
93	03.890 CONNECTOR; FUEL FILTER (A)	8-97172-546-1	01	1	1309-		●
93	03.890 CONNECTOR; FUEL FILTER (B) M8X10	8-98034-312-0	01	1	1309-1310		●
93	03.890 CONNECTOR; FUEL FILTER (B) M8X10	8-98034-312-0	01	1	1311-	●	●
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-1	01	1	1309-1310		●
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-1	01	1	1311-	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER (A)	8-97603-456-0	01	1	1309-		●
119	03.890 PLUG; DRAIN,FUEL FILTER (B)	8-98037-095-0	01	1	1309-1310		●
119	03.890 PLUG; DRAIN,FUEL FILTER (B)	8-98037-095-0	01	1	1311-	●	●

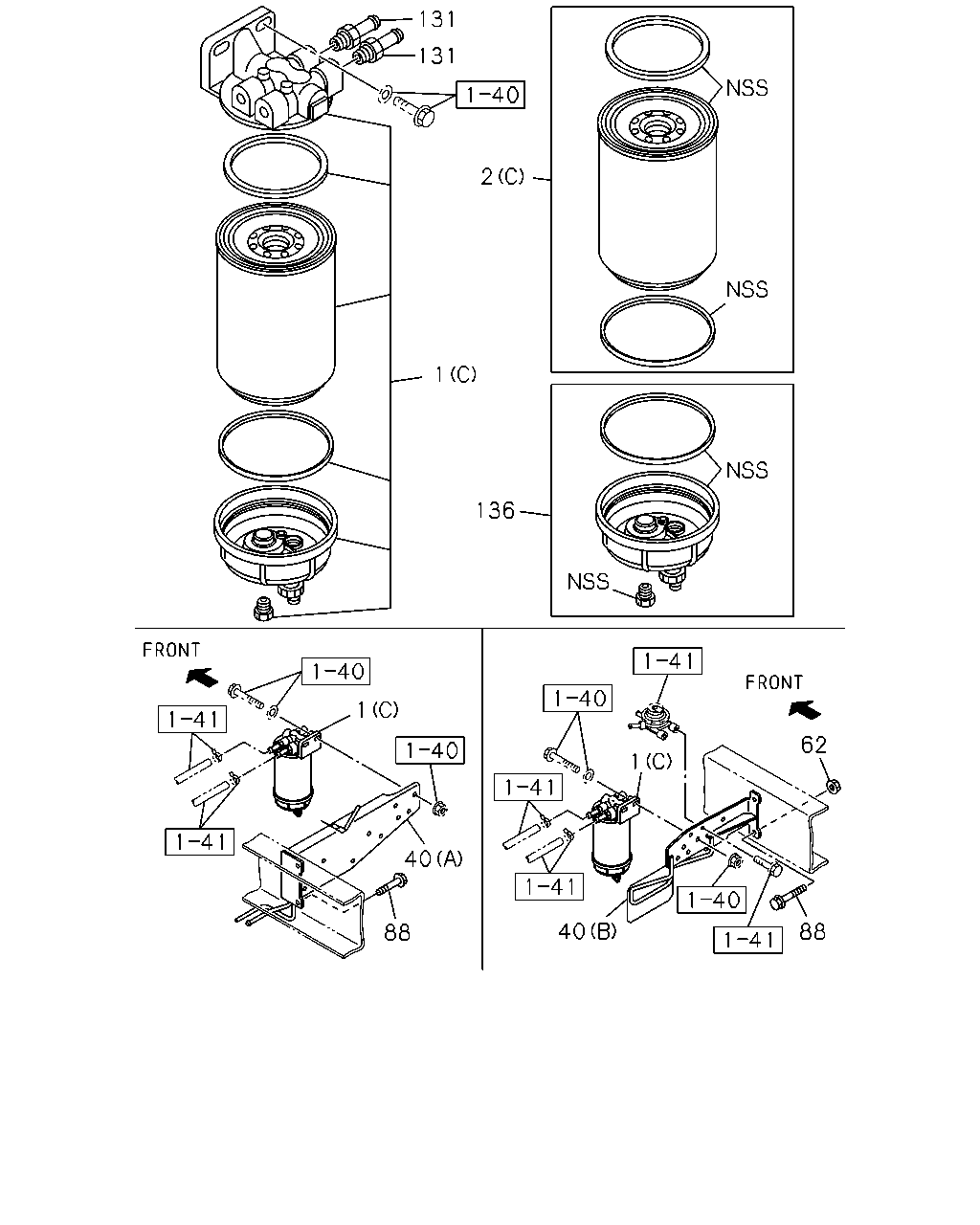

88 62 1 40 40 88 1 136 1 2 131 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98095-980-1	01	1	1311-	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1311-	●
1	03.890 FILTER ASM; FUEL (B)	8-98169-738-0	01	1	1309-		●
1	03.890 FILTER ASM; FUEL (A)	8-98124-107-4	01	1	1309-		●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (C)	8-98095-983-0	01	1	1311-	●
2	03.890 ELEMENT KIT; FUEL FILTER (B)	8-98037-481-0	01	1	1309-		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1309-1310		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1311-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1309-1310		●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1311-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (B) BEST VALUE PARTS	5-87610-157-0	01	1	1309-		●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98230-549-0	01	1	1311-1401	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98230-549-0	01	1	1402-	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98147-247-0	01	1	1311-1401	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98147-247-0	01	1	1402-1403	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98147-247-0	01	1	1404-	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	01	1	1402-1403	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	01	1	1404-	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-1401	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1402-	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1311-1401	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1402-1403	●
88	03.895 BOLT; BRKT,FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1404-	●
131	03.890 PIPE; FILTER POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1311-	●
136	03.890 CAP KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0)	8-98096-004-0	01	1	1311-1408	●
136	03.890 CAP KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0)	8-98279-324-0	01	1	1409-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
