◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51496 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#126508) — 133 parça

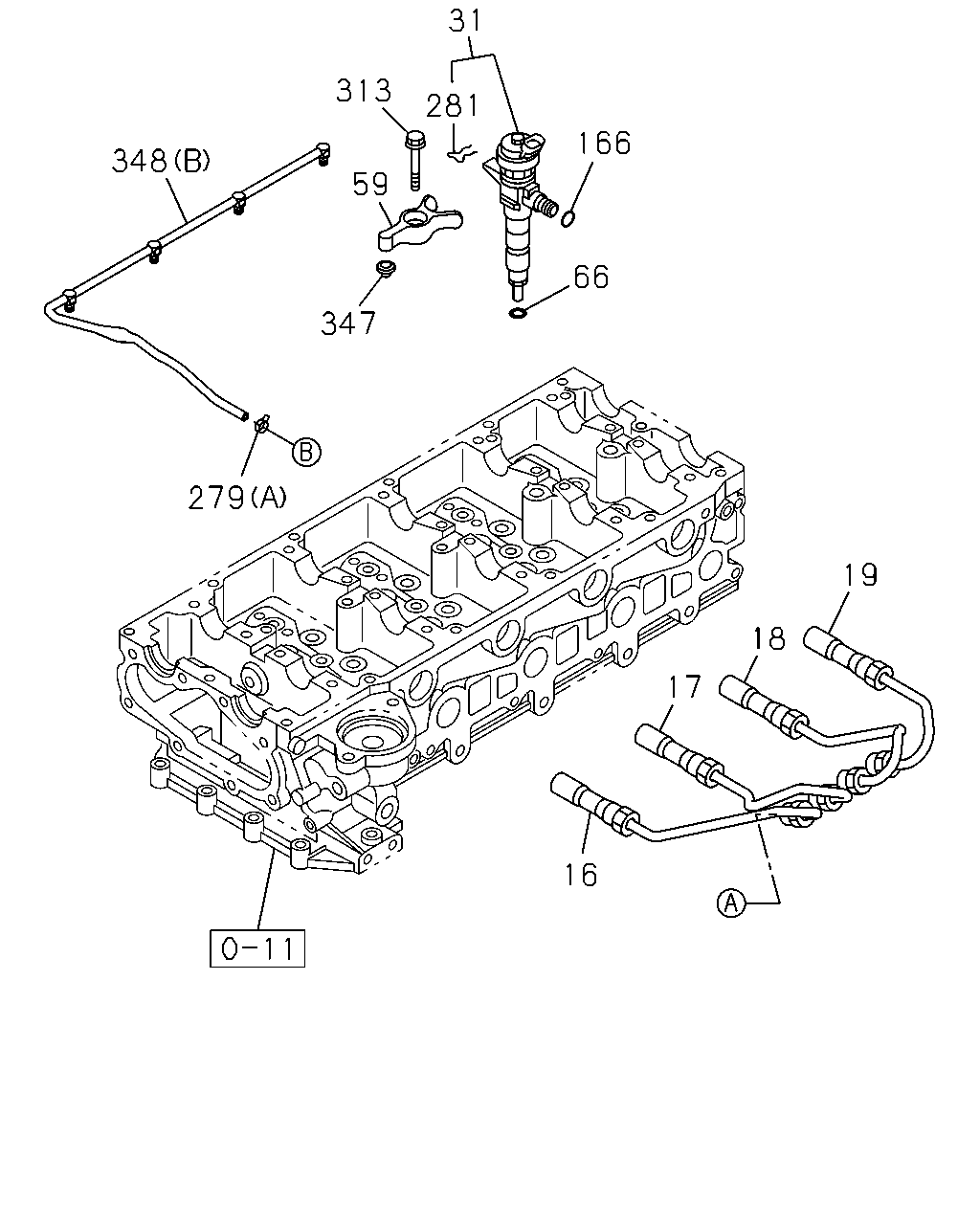

çizim 373144
19 18 17 16 279 347 66 166 31 281 313 59 348
BalonParca AdiParca NoAdetTipApplied Date A B
16 03.330 PIPE; INJ NO.1 8-98074-932-1 01 1 1311- ●
16 03.330 PIPE; INJ NO.1 8-98127-062-3 01 1 1309- ●
17 03.330 PIPE; INJ NO.2 8-98074-933-1 01 1 1311- ●
17 03.330 PIPE; INJ NO.2 8-98127-063-3 01 1 1309- ●
18 03.330 PIPE; INJ NO.3 8-98074-934-1 01 1 1311- ●
18 03.330 PIPE; INJ NO.3 8-98127-064-3 01 1 1309- ●
19 03.330 PIPE; INJ NO.4 8-98074-935-1 01 1 1311- ●
19 03.330 PIPE; INJ NO.4 8-98127-065-3 01 1 1309- ●
31 03.332 NOZZLE ASM; INJ 8-98238-318-0 04 1 1311- ●
31 03.332 NOZZLE ASM; INJ 8-98087-985-1 04 1 1309- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98113-691-0 04 1 1309-1310 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98113-691-0 04 1 1311- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1309-1310 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1311- ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1309-1310 ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1311- ● ●
279 03.162 CLIP; FUEL HOSE
03.680 (A) ID=7 		8-94208-596-0 01 1 1309- ●
279 03.162 CLIP; FUEL HOSE
01.240 (B) ID=16 		8-94392-924-0 04 1 1309- ●
279 03.162 CLIP; FUEL HOSE
01.540 (C) ID=18.9 		8-94478-875-0 02 1 1309- ●
279 03.162 CLIP; FUEL HOSE
16.065 (D) ID=16 		8-97038-800-0 01 1 1309- ●
279 03.162 CLIP; FUEL HOSE
01.153 (E) ID=11.5 		8-97375-638-0 02 1 1309- ●
281 03.162 CLIP 8-98171-622-0 04 1 1309- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98212-021-0 04 1 1309-1310 ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98212-021-0 04 1 1311- ● ●
347 03.332 PIN 8-98165-035-0 04 1 1309-1310 ●
347 03.332 PIN 8-98165-035-0 04 1 1311- ● ●
348 03.163 HOSE; FUEL
(B) 		8-98089-285-0 01 1 1309- ●
348 03.163 HOSE; FUEL
(C) 		8-98097-671-0 01 1 1309- ●
348 03.163 HOSE; FUEL
(D) 		8-98097-672-2 01 1 1309- ●
348 03.163 HOSE; FUEL
(A) L=100 		8-98240-459-0 01 1 1309- ●

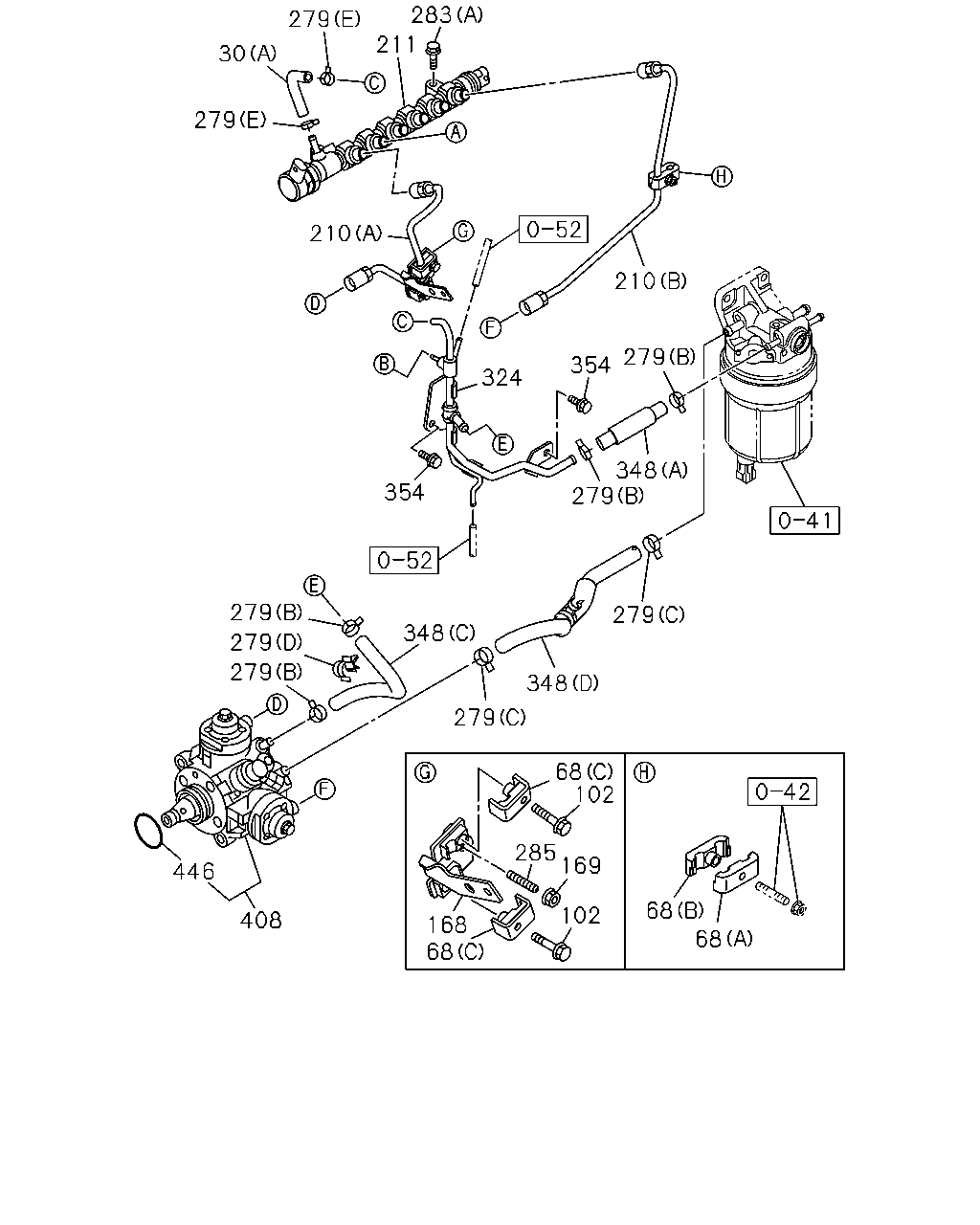

çizim 373152
279 30 279 211 283 210 354 324 354 279 348 279 210 279 348 279 348 279 279 279 446 408 168 285 68 169 102 68 68 102 68
BalonParca AdiParca NoAdetTipApplied Date A B
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98162-319-0 01 1 1311- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) 		8-98162-623-1 03 1 1311- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98166-894-0 01 1 1311- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) 		8-98142-370-1 01 1 1309- ●
68 03.162 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 01 1 1309-1310 ●
68 03.162 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 01 1 1311- ● ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 01 1 1309-1310 ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 01 1 1311- ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=7 L=11 		8-98153-873-0 02 1 1309- ●
102 03.162 BOLT; INJ PIPE CLIP
01.531 M6X30 FLANGE 		0-28050-630-0 02 1 1309- ●
168 03.890 BRACKET; FUEL PIPE 8-98153-479-2 01 1 1309- ●
169 03.890 NUT; BRKT
01.540 M8 FLANGE 		0-91180-208-0 01 1 1309- ●
210 03.330 PIPE; INJ,C/R
(A) 		8-98089-019-2 01 1 1309- ●
210 03.330 PIPE; INJ,C/R
(B) 		8-98089-020-0 01 1 1309- ●
211 03.331 RAIL ASM; COMMON 8-98077-001-1 01 1 1311- ●
211 03.331 RAIL ASM; COMMON 8-98087-987-1 01 1 1309- ●
279 03.162 CLIP; FUEL HOSE
03.680 (A) ID=7 		8-94208-596-0 01 1 1309- ●
279 03.162 CLIP; FUEL HOSE
01.240 (B) ID=16 		8-94392-924-0 04 1 1309- ●
279 03.162 CLIP; FUEL HOSE
01.540 (C) ID=18.9 		8-94478-875-0 02 1 1309- ●
279 03.162 CLIP; FUEL HOSE
16.065 (D) ID=16 		8-97038-800-0 01 1 1309- ●
279 03.162 CLIP; FUEL HOSE
01.153 (E) ID=11.5 		8-97375-638-0 02 1 1309- ●
283 03.330 BOLT; COMMON RAIL
04.510 (B) M10X35 FLANGE 		0-28051-035-0 01 1 1410- ●
283 03.330 BOLT; COMMON RAIL
03.275 (A) M8X25 FLANGE 		0-28050-825-0 02 1 1309- ●
285 03.162 STUD; BRKT
01.453 M8X16 L=28 		0-41010-816-0 01 1 1309- ●
324 03.330 PIPE; FUEL RETURN 8-98111-476-3 01 1 1311- ●
324 03.330 PIPE; FUEL RETURN 8-98089-221-1 01 1 1309- ●
348 03.163 HOSE; FUEL
(B) 		8-98089-285-0 01 1 1309- ●
348 03.163 HOSE; FUEL
(C) 		8-98097-671-0 01 1 1309- ●
348 03.163 HOSE; FUEL
(D) 		8-98097-672-2 01 1 1309- ●
348 03.163 HOSE; FUEL
(A) L=100 		8-98240-459-0 01 1 1309- ●
354 03.163 BOLT; FUEL PIPE
00.386 M8X50 FLANGE 		0-28050-850-0 01 1 1311- ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1309- ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97381-555-5 01 1 1311- ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98087-986-2 01 1 1309- ●
446 03.331 GASKET; SUPPLY PUMP 8-98210-203-0 01 1 1309- ●

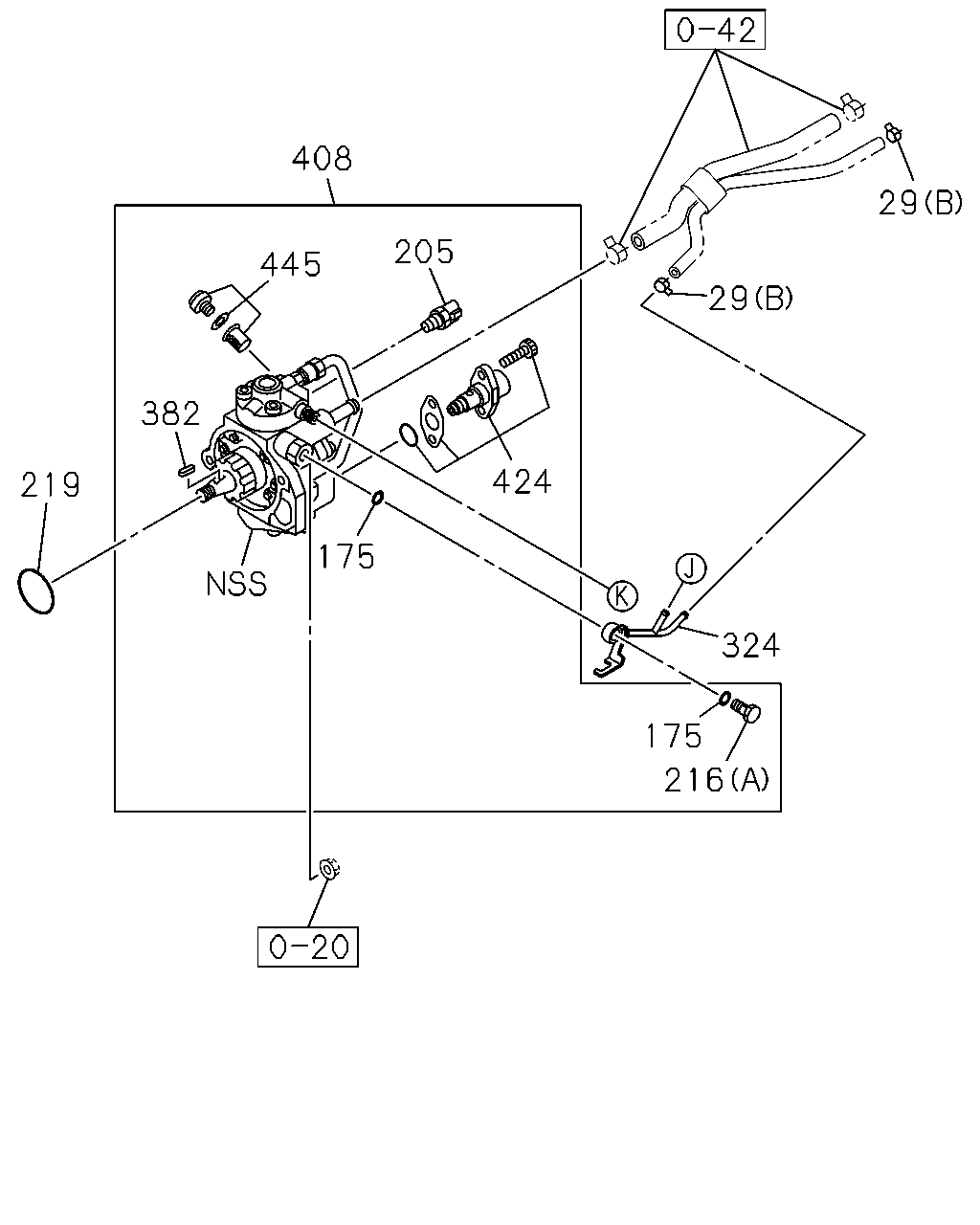

çizim 388148
408 205 445 382 219 175 424 324 175 216 29 29
BalonParca AdiParca NoAdetTipApplied Date A B
29 03.162 CLIP; HOSE
03.374 (A) ID=10.5 		8-97019-473-0 08 1 1311- ●
29 03.162 CLIP; HOSE
01.153 (B) ID=11 		8-97375-639-0 02 1 1311- ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1311- ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1311- ●
216 03.162 BOLT; EYE
(B) 		8-98035-828-0 01 1 1311- ●
216 03.162 BOLT; EYE
03.280 (A) 		9-88130-088-0 01 1 1311- ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1311- ●
324 03.330 PIPE; FUEL RETURN 8-98111-476-3 01 1 1311- ●
324 03.330 PIPE; FUEL RETURN 8-98089-221-1 01 1 1309- ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1311- ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97381-555-5 01 1 1311- ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98087-986-2 01 1 1309- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1311- ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1311- ●

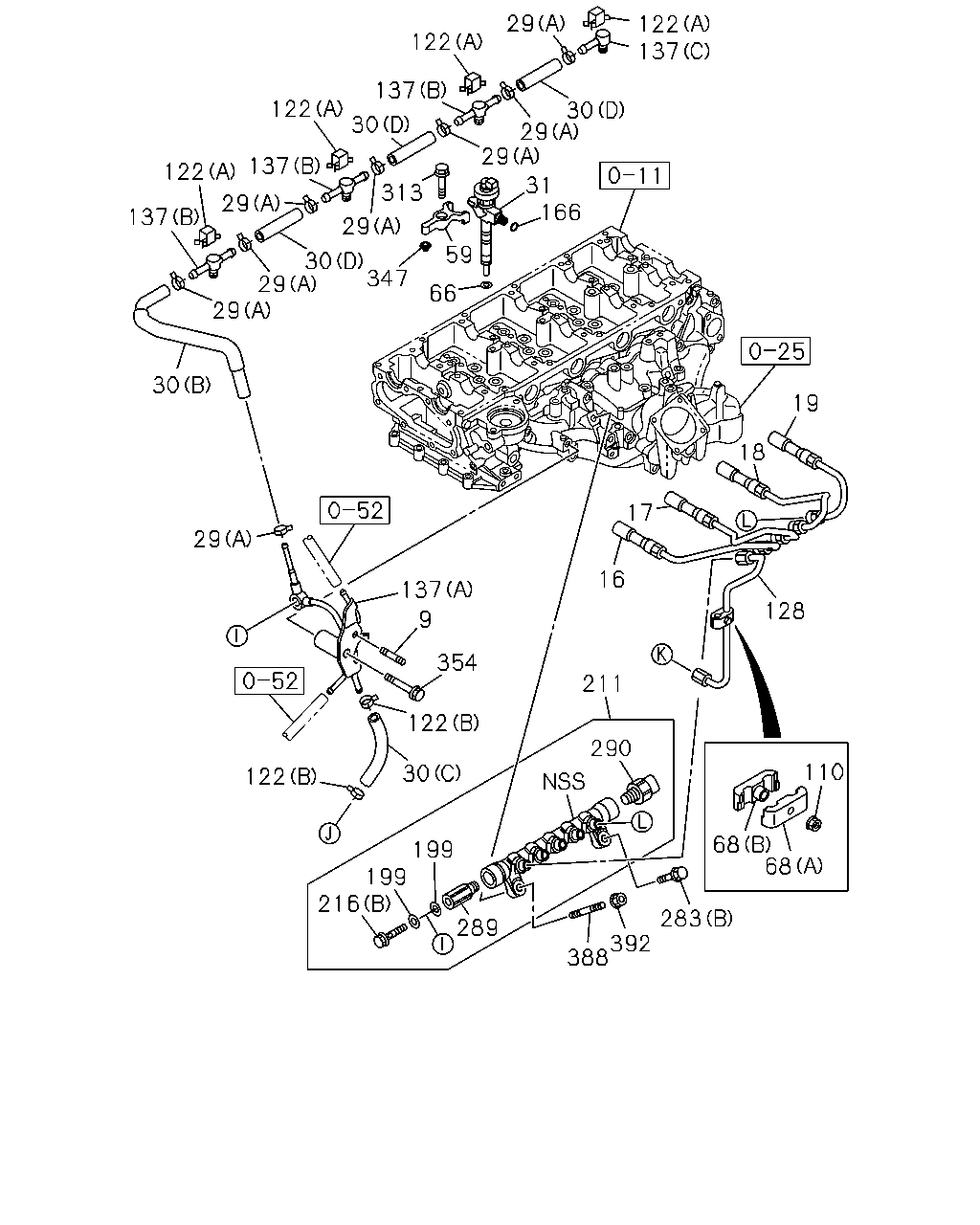

çizim 389136
347 30 29 29 30 29 137 9 354 122 30 199 199 289 216 122 211 16 17 18 19 128 68 68 110 283 388 392 137 122 137 122 137 29 29 313 59 66 166 31 29 29 30 137 122 29 122 30 290
BalonParca AdiParca NoAdetTipApplied Date A B
9 03.340 STUD; CLIP
00.413 M6X30 L=38 		0-41010-630-0 01 1 1311- ●
16 03.330 PIPE; INJ NO.1 8-98074-932-1 01 1 1311- ●
16 03.330 PIPE; INJ NO.1 8-98127-062-3 01 1 1309- ●
17 03.330 PIPE; INJ NO.2 8-98074-933-1 01 1 1311- ●
17 03.330 PIPE; INJ NO.2 8-98127-063-3 01 1 1309- ●
18 03.330 PIPE; INJ NO.3 8-98074-934-1 01 1 1311- ●
18 03.330 PIPE; INJ NO.3 8-98127-064-3 01 1 1309- ●
19 03.330 PIPE; INJ NO.4 8-98074-935-1 01 1 1311- ●
19 03.330 PIPE; INJ NO.4 8-98127-065-3 01 1 1309- ●
29 03.162 CLIP; HOSE
03.374 (A) ID=10.5 		8-97019-473-0 08 1 1311- ●
29 03.162 CLIP; HOSE
01.153 (B) ID=11 		8-97375-639-0 02 1 1311- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98162-319-0 01 1 1311- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) 		8-98162-623-1 03 1 1311- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98166-894-0 01 1 1311- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) 		8-98142-370-1 01 1 1309- ●
31 03.332 NOZZLE ASM; INJ 8-98238-318-0 04 1 1311- ●
31 03.332 NOZZLE ASM; INJ 8-98087-985-1 04 1 1309- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98113-691-0 04 1 1309-1310 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98113-691-0 04 1 1311- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1309-1310 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1311- ● ●
68 03.162 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 01 1 1309-1310 ●
68 03.162 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 01 1 1311- ● ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 01 1 1309-1310 ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 01 1 1311- ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=7 L=11 		8-98153-873-0 02 1 1309- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1311- ●
122 03.162 CLIP; LEAK OFF PIPE
(A) 		8-97315-286-0 04 1 1311- ●
122 03.162 CLIP; LEAK OFF PIPE
01.153 (B) ID=11 		8-97375-639-0 02 1 1311- ●
128 03.162 PIPE ASM; INJ 8-98074-938-1 01 1 1311- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98074-940-3 01 1 1311- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1311- ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98161-062-0 01 1 1311- ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1309-1310 ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1311- ● ●
199 03.332 GASKET; EYE BOLT 8-97602-218-0 02 1 1311- ●
211 03.331 RAIL ASM; COMMON 8-98077-001-1 01 1 1311- ●
211 03.331 RAIL ASM; COMMON 8-98087-987-1 01 1 1309- ●
216 03.162 BOLT; EYE
(B) 		8-98035-828-0 01 1 1311- ●
216 03.162 BOLT; EYE
03.280 (A) 		9-88130-088-0 01 1 1311- ●
283 03.330 BOLT; COMMON RAIL
04.510 (B) M10X35 FLANGE 		0-28051-035-0 01 1 1410- ●
283 03.330 BOLT; COMMON RAIL
03.275 (A) M8X25 FLANGE 		0-28050-825-0 02 1 1309- ●
289 03.331 LIMITER; FUEL PRESS 8-98138-695-0 01 1 1311- ●
290 03.331 SENSOR; PRESS 8-98138-736-0 01 1 1311- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98212-021-0 04 1 1309-1310 ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98212-021-0 04 1 1311- ● ●
347 03.332 PIN 8-98165-035-0 04 1 1309-1310 ●
347 03.332 PIN 8-98165-035-0 04 1 1311- ● ●
354 03.163 BOLT; FUEL PIPE
00.386 M8X50 FLANGE 		0-28050-850-0 01 1 1311- ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1309- ●
388 03.332 STUD; RAIL
04.510 M10X28,M10X15 L=50 		5-09300-050-0 02 1 1311-1409 ●
388 03.332 STUD; RAIL
04.510 M10X28,M10X15 L=50 		5-09300-050-0 01 1 1410- ●
392 03.330 NUT; RAIL ASM
04.085 M10 FLANGE 		0-91180-210-0 02 1 1311-1409 ●
392 03.330 NUT; RAIL ASM
04.085 M10 FLANGE 		0-91180-210-0 01 1 1410- ●
