Isuzu WW
▶
TRUCKS
▶
NLR
▶
51496 - NLR/NMR LHD EUROPE EURO5B+,6
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶

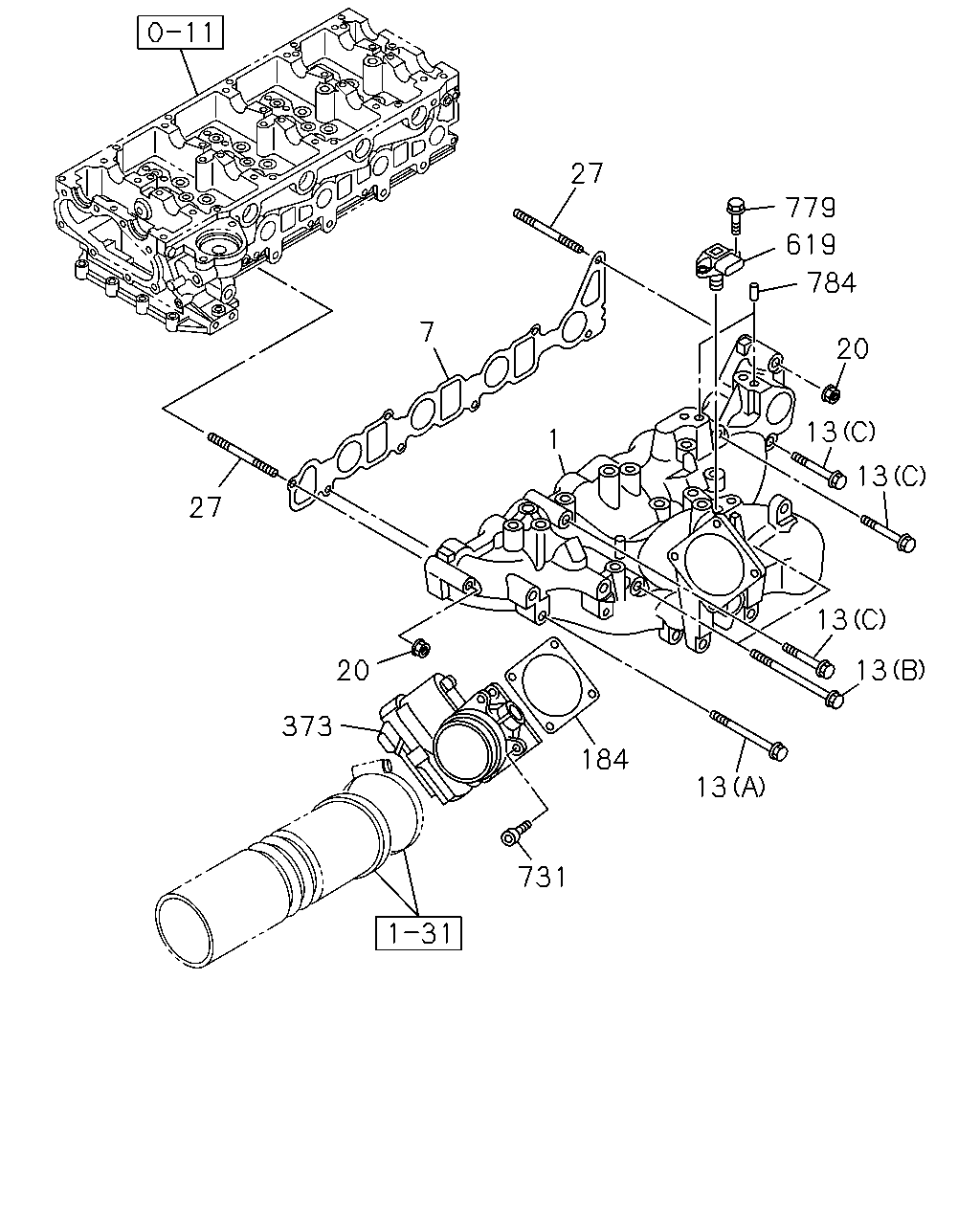

0-25 — INLET MANIFOLD
(#126501) — 26 parça
Tümü
A - 4JJ1-TCC ENG
B - 4JJ1-TCS ENG
27
7
1
27
20
373
731
184
13
13
13
13
13
20
784
619
779
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.265 MANIFOLD; INL
8-98233-553-3
01
1
1311-
●
1
03.265 MANIFOLD; INL
8-98233-063-3
01
1
1309-
●
7
03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98232-378-1
01
1
1309-1309
●
7
03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98253-973-0
01
1
1309-1310
●
7
03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98253-973-0
01
1
1311-1409
●
●
7
03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98284-081-0
01
1
1410-
●
●
13
03.275 BOLT; INL MANIF
01.780 (A) M8X120 FLANGE
0-28055-812-0
01
1
1309-1310
●
13
03.275 BOLT; INL MANIF
01.780 (A) M8X120 FLANGE
0-28055-812-0
01
1
1311-
●
●
13
03.275 BOLT; INL MANIF
03.278 (B) M8X150 FLANGE
0-28055-815-0
02
1
1309-1310
●
13
03.275 BOLT; INL MANIF
03.278 (B) M8X150 FLANGE
0-28055-815-0
02
1
1311-
●
●
13
03.275 BOLT; INL MANIF
03.162 (C) M8X66 FLANGE
8-98081-507-0
03
1
1309-1310
●
13
03.275 BOLT; INL MANIF
03.162 (C) M8X66 FLANGE
8-98081-507-0
03
1
1311-
●
●
20
03.275 NUT; INL MANIF
01.540 M8 FLANGE
0-91180-208-0
02
1
1309-1310
●
20
03.275 NUT; INL MANIF
01.540 M8 FLANGE
0-91180-208-0
02
1
1311-
●
●
27
03.275 STUD; INL MANIF
M8X71 L=83
8-98017-063-0
02
1
1309-1310
●
27
03.275 STUD; INL MANIF
M8X71 L=83
8-98017-063-0
02
1
1311-
●
●
184
03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98096-968-0
01
1
1309-1310
●
184
03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98096-968-0
01
1
1311-
●
●
373
03.265 THROTTLE ASM; INT
8-98100-891-3
01
1
1309-1310
●
373
03.265 THROTTLE ASM; INT
8-98100-891-4
01
1
1311-
●
●
619
01.150 SENSOR; MAP
8-98121-697-1
01
1
1309-
●
731
02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET
0-58330-650-0
04
1
1309-1310
●
731
02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET
0-58330-650-0
04
1
1311-
●
●
779
03.682 BOLT; SENSOR
03.162 M6X12 FLANGE
0-28050-612-0
02
1
1309-
●
784
03.265 PIN; KNOCK
04.399 OD=4 L=12
1-09740-032-0
02
1
1309-1310
●
784
03.265 PIN; KNOCK
04.399 OD=4 L=12
1-09740-032-0
02
1
1311-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
