0-22 — ENGINE MOUNTING (#126500) — 60 parça

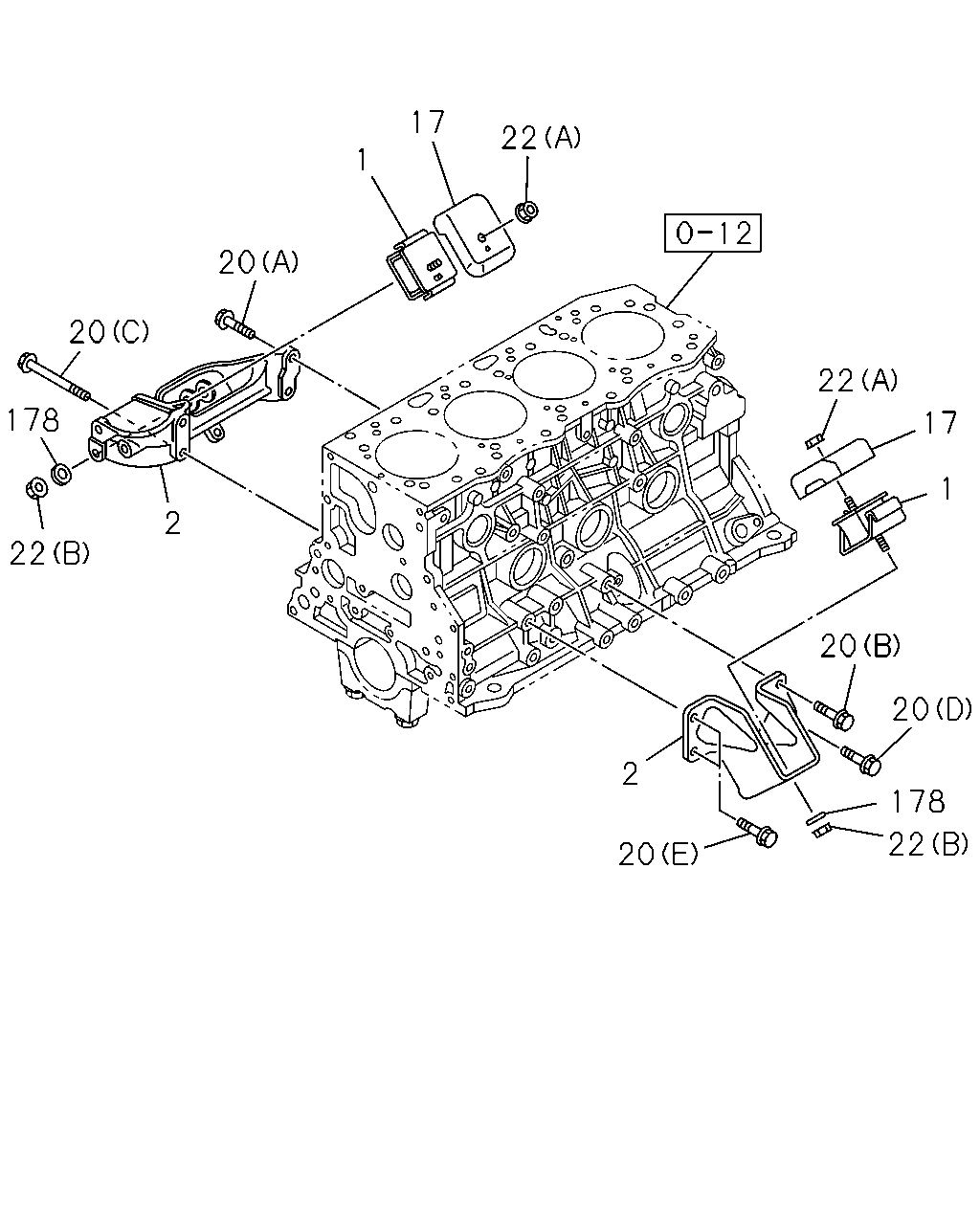

çizim 373075
1 17 22 22 17 1 20 20 178 22 2 20 2 22 178 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98053-831-0 01 1 1309-1310 ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98053-831-0 01 1 1311-1601 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-822-0 01 1 1602- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98053-832-0 01 1 1309-1310 ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98053-832-0 01 1 1311-1601 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-823-0 01 1 1602- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97229-822-0 01 1 1309-1310 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97229-822-0 01 1 1311- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97229-823-0 01 1 1309-1310 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97229-823-0 01 1 1311- ● ●
2 00.029 FOOT; ENG 8-97381-514-2 01 1 1309-1310 ●
2 00.029 FOOT; ENG 8-97381-514-2 01 1 1311- ● ●
2 00.029 FOOT; ENG 8-97381-513-1 01 1 1309-1310 ●
2 00.029 FOOT; ENG 8-97381-513-1 01 1 1311- ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97229-825-0 01 1 1309-1310 ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97229-825-0 01 1 1311- ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97383-796-0 01 1 1309-1310 ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97383-796-0 01 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 1309-1310 ●
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X30 FLANGE 		0-28651-030-0 03 1 1309-1310 ●
20 00.029 BOLT; ENG FOOT
(A) M10X30 FLANGE 		0-28651-030-0 03 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 1309-1310 ●
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 1309-1310 ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 1311- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1309-1310 ●
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1311- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(FF0) 05.002 (B) M12 		0-91110-512-0 02 1 1309-1310 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(FF0) 05.002 (B) M12 		0-91110-512-0 02 1 1311- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 1309-1310 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 1311- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M12 FLANGE 		8-98046-987-0 02 1 1309-1310 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M12 FLANGE 		8-98046-987-0 02 1 1311- ● ●
178 00.002 WASHER; PL,CUSHION RUBBER TO BRK
FRT INDEPENDENT SUSPENSION(FF0) 07.529 ID=12.5 OD=32 		0-91614-712-0 02 1 1309-1310 ●
178 00.002 WASHER; PL,CUSHION RUBBER TO BRK
FRT INDEPENDENT SUSPENSION(FF0) 07.529 ID=12.5 OD=32 		0-91614-712-0 02 1 1311- ● ●
çizim 373078
84 76 76 71 78 134 134 52 71 76 67 67 76 52 78 76 87 71 134 134 76 71
BalonParca AdiParca NoAdetTipApplied Date A B
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1309-1310 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1311- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
SMOOTHER-EX(TYPE2)(8NS) 		8-98004-324-1 01 1 1311- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
SMOOTHER-EX(TYPE2)(8NS) 		8-98004-325-1 01 1 1311- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97354-876-1 01 1 1309-1310 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97354-876-1 01 1 1311- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97354-877-1 01 1 1309-1310 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97354-877-1 01 1 1311- ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1310 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1311- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 1309-1310 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 1311- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 1309-1310 ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 1311- ● ●
78 00.029 BRACKET; ENG MTG,RR
SMOOTHER-EX(TYPE2)(8NS) 		8-98053-903-0 02 1 1311-1407 ● ●
78 00.029 BRACKET; ENG MTG,RR
SMOOTHER-EX(TYPE2)(8NS) 		8-98220-858-0 02 1 1408- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-98053-902-1 02 1 1309-1310 ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98053-902-1 02 1 1311- ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1309-1310 ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1311- ● ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1310 ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 1311- ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 1309-1310 ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 1311- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
