4-10 — FRONT AXLE (#1265) — 118 parça

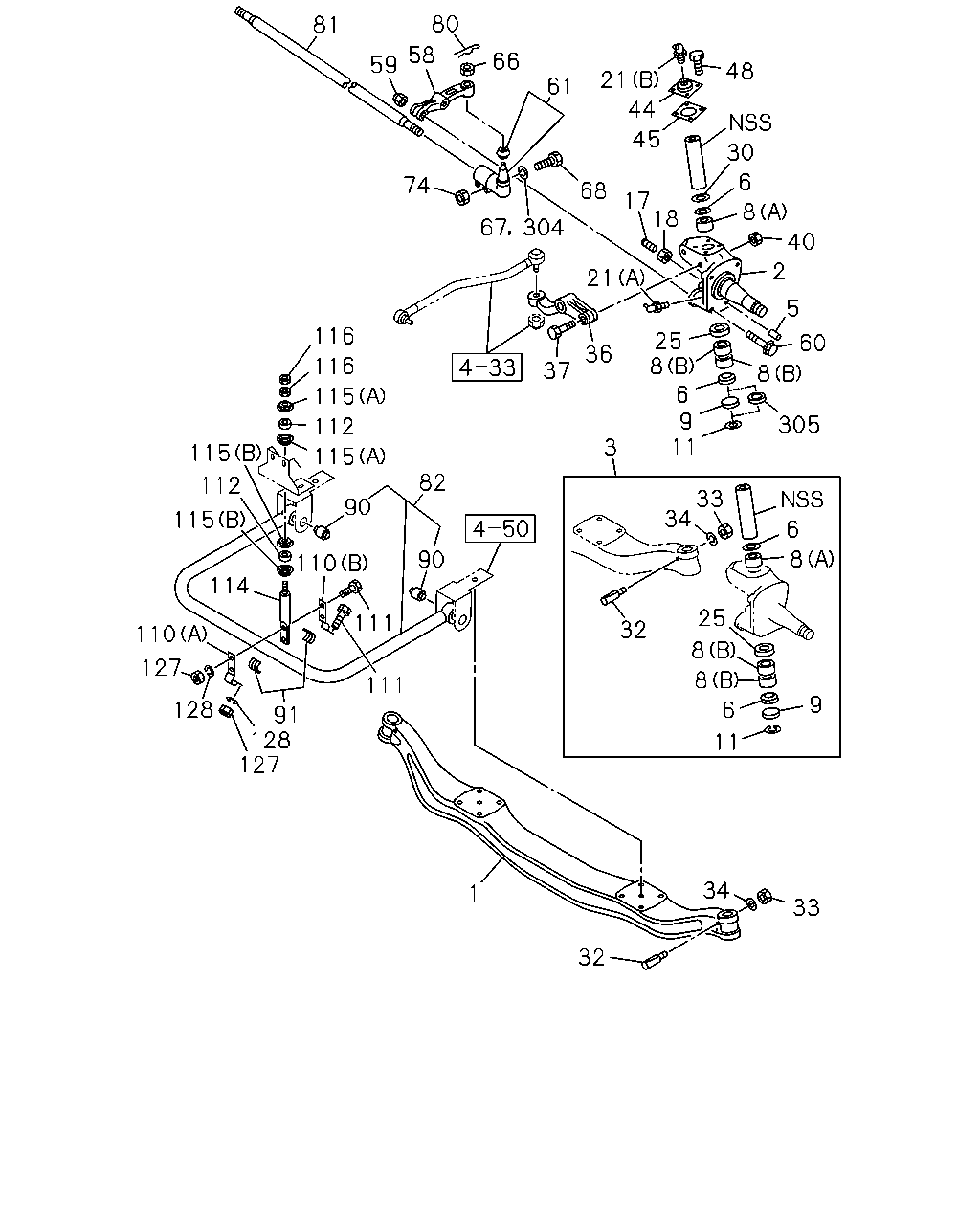

çizim 27552
80 81 58 66 59 48 21 61 44 45 30 6 74 68 17 18 8 67 304 40 2 21 5 116 25 8 6 9 11 60 36 116 37 8 115 305 112 115 3 115 82 112 33 34 90 115 6 8 90 110 114 25 111 32 110 8 127 8 111 9 128 6 91 128 127 11 34 1 33 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-102-2 01 1 9202-9312 ● ●
1 AXLE; FRT 1-43111-113-1 01 1 9401- ● ●
2 KNUCKLE; FRT AXLE 1-43132-071-0 01 1 9202-9404 ●
2 KNUCKLE; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-43132-071-0 01 1 9202-9404 ●
2 KNUCKLE; FRT AXLE 1-43132-087-0 01 1 9405- ●
2 KNUCKLE; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-43132-087-0 01 1 9405- ●
2 KNUCKLE; FRT AXLE 1-43132-078-1 01 1 9202-9404 ●
2 KNUCKLE; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-43132-078-1 01 1 9202-9404 ●
2 KNUCKLE; FRT AXLE 1-43132-090-0 01 1 9405- ●
2 KNUCKLE; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-43132-090-0 01 1 9405- ●
2 KNUCKLE; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-43132-046-3 01 1 9202-9404 ●
2 KNUCKLE; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-43132-079-0 01 1 9405- ●
2 KNUCKLE; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-43131-046-4 01 1 9202-9404 ●
2 KNUCKLE; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-43131-079-0 01 1 9405- ●
3 KING PIN SET 1-87830-039-5 02 1 9202-9404 ● ●
3 KING PIN SET 1-87830-737-0 02 1 9405-9412 ● ●
3 KING PIN SET 1-87830-738-0 02 1 9501- ● ●
5 PIN; KNUCKLE TO DRUM COVER 1-09740-072-0 02 1 9202-9404 ●
5 PIN; KNUCKLE TO DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09740-072-0 02 1 9202-9404 ●
5 PIN; KNUCKLE TO DRUM COVER 1-09740-072-0 02 1 9405- ● ●
5 PIN; KNUCKLE TO DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09878-625-0 02 1 9202-9404 ●
6 SEAL; KING PIN 9-09926-024-0 04 1 9202- ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-242-0 04 1 9202- ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-243-0 02 1 9202- ● ●
9 PLUG; KNUCKLE 9-09201-363-0 02 1 9202-9404 ● ●
11 RING; SNAP,KNUCKLE PLUG 9-09950-204-0 02 1 9202- ● ●
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 02 1 9202- ●
17 BOLT; STOPPER KNUCKLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M18X53 		1-09009-066-0 02 1 9202- ●
17 BOLT; STOPPER KNUCKLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M18X43 		1-09009-065-0 02 1 9202- ●
18 NUT; STOPPER BOLT,KNUCKLE
M18 		9-99110-518-0 02 1 9202- ● ●
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9202- ● ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 		9-09031-210-0 02 1 9202- ● ●
25 BEARING; THRUST,KING PIN
NTN 		1-09829-027-1 02 1 9202-9412 ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 9501- ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 9202- ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 9202- ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 9202- ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 9202- ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 9202- ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 9202- ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 9202- ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 9202- ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 9202- ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 9202- ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 9202- ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 9202- ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 9202- ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 9202- ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 9202- ● ●
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 9202- ● ●
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 9202- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 9202- ● ●
36 ARM; KNUCKLE 1-43133-059-1 01 1 9202-9404 ●
36 ARM; KNUCKLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-43133-059-1 01 1 9202-9404 ●
36 ARM; KNUCKLE 1-43133-066-0 01 1 9405- ●
36 ARM; KNUCKLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-43133-066-0 01 1 9405- ●
36 ARM; KNUCKLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-43133-057-1 01 1 9202-9404 ●
36 ARM; KNUCKLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-43133-063-0 01 1 9405- ●
37 BOLT; KNUCKLE ARM
L=179 M22X179 		1-09000-578-0 01 1 9202- ● ●
37 BOLT; KNUCKLE ARM
L=167 M22X167 		9-09806-847-2 01 1 9202- ● ●
40 NUT; KNUCKLE ARM
M22 		9-09844-670-0 02 1 9202- ● ●
44 COVER; KING PIN 1-43175-014-1 02 1 9202- ● ●
45 GASKET; KING PIN COVER 1-42319-044-0 02 1 9202- ● ●
48 BOLT; COVER
M12X20 W/LK WASHER 		0-50041-220-0 08 1 9202-9501 ● ●
48 BOLT; COVER
M12X16 FLANGE 		0-28081-216-0 08 1 9502- ● ●
58 ARM; TIE ROD 1-43135-021-1 01 1 9202-9308 ●
58 ARM; TIE ROD 1-43135-021-1 01 1 9309-9404 ●
58 ARM; TIE ROD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-43135-021-1 01 1 9309-9404 ●
58 ARM; TIE ROD 1-43135-044-0 01 1 9405- ●
58 ARM; TIE ROD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-43135-044-0 01 1 9405- ●
58 ARM; TIE ROD 1-43134-021-1 01 1 9202-9308 ●
58 ARM; TIE ROD 1-43134-021-1 01 1 9309-9404 ●
58 ARM; TIE ROD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-43134-021-1 01 1 9309-9404 ●
58 ARM; TIE ROD 1-43134-044-0 01 1 9405- ●
58 ARM; TIE ROD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-43134-044-0 01 1 9405- ●
58 ARM; TIE ROD 1-43135-036-0 01 1 9202-9308 ●
58 ARM; TIE ROD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-43135-036-0 01 1 9309-9404 ●
58 ARM; TIE ROD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-43135-043-0 01 1 9405- ●
58 ARM; TIE ROD 1-43134-036-0 01 1 9202-9308 ●
58 ARM; TIE ROD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-43134-036-0 01 1 9309-9404 ●
58 ARM; TIE ROD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-43134-043-0 01 1 9405- ●
59 NUT; TIE ROD ARM
M22 		9-09844-670-0 04 1 9202- ● ●
60 BOLT; TIE ROD ARM
M22X180.5 		1-09070-117-0 04 1 9202- ●
60 BOLT; TIE ROD ARM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22X180.5 		1-09070-117-0 04 1 9202- ●
60 BOLT; TIE ROD ARM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X193 		1-09000-154-1 04 1 9202- ●
61 ROD END; TIE ROD
FRT AXLE GRESE ,NON MENTENANCE FREE<B3L> 		1-43150-627-1 01 1 9202-9302 ● ●
61 ROD END; TIE ROD 1-43150-627-2 01 1 9303- ● ●
61 ROD END; TIE ROD
FRT AXLE GRESE ,NON MENTENANCE FREE<B3L> 		1-43150-626-1 01 1 9202-9302 ● ●
61 ROD END; TIE ROD 1-43150-626-2 01 1 9303- ● ●
61 ROD END; TIE ROD
EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L> 		1-43150-662-1 01 1 9202-9302 ● ●
61 ROD END; TIE ROD
EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L> 		1-43150-661-1 01 1 9202-9302 ● ●
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 9202- ● ●
67 WASHER; LK,TIE ROD END
ID=12.2 		9-09150-512-0 04 1 9202-9207 ● ●
67 WASHER; LK,TIE ROD END
ID=12.2 		9-09150-812-0 04 1 9208-9410 ● ●
68 BOLT; TIE ROD END
M12X55 		9-91061-255-0 04 1 9202- ● ●
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 9202- ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		9-08115-035-0 02 1 9202- ● ●
81 ROD; TIE 9-43151-120-1 01 1 9202-9308 ●
81 ROD; TIE 9-43151-120-1 01 1 9309- ●
81 ROD; TIE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-43151-120-1 01 1 9309- ●
81 ROD; TIE 9-43151-119-1 01 1 9202-9308 ●
81 ROD; TIE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-43151-119-1 01 1 9309- ●
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51770-072-1 01 1 9202-9404 ● ●
90 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-067-0 02 1 9202-9404 ● ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-084-0 04 1 9202-9404 ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-1 02 1 9202-9404 ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 9202-9404 ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> M12X30 		0-20801-230-0 02 1 9202-9404 ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> M12X50 		0-20801-250-0 04 1 9202-9404 ● ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-050-0 04 1 9202-9404 ● ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-065-0 02 1 9202-9404 ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=16.8 		1-51631-022-0 04 1 9202-9404 ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=14.5 		9-51631-051-0 04 1 9202-9404 ● ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 04 1 9202-9404 ● ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		9-99110-512-0 06 1 9202-9404 ● ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		9-09150-512-0 06 1 9202-9404 ● ●
304 WASHER; PL
ID=12.5 		9-09164-512-0 04 1 9411- ● ●
305 COVER; KNUCKLE 1-43175-021-0 02 1 9405- ● ●
