◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51496 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#126499) — 104 parça

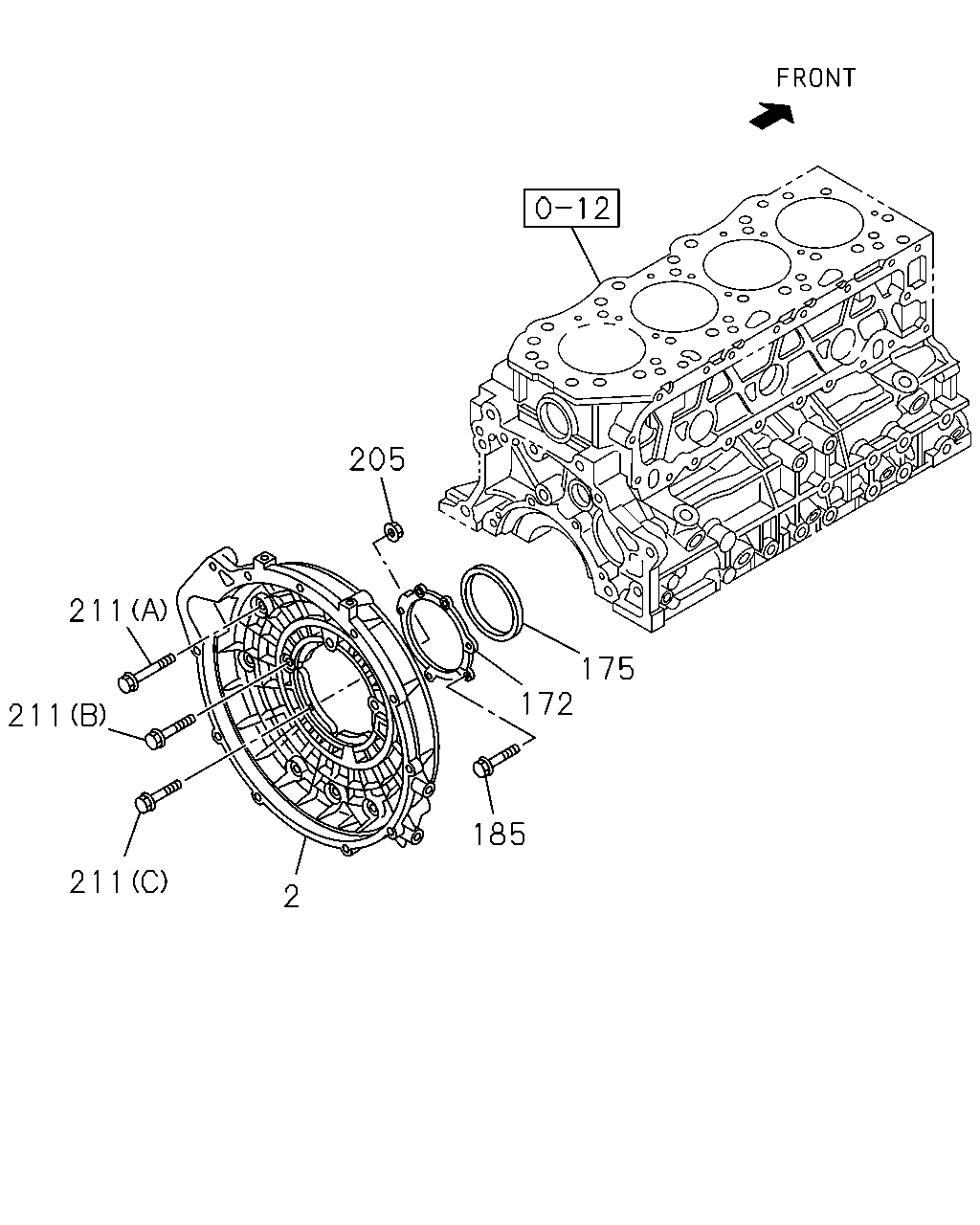

çizim 373067
205 172 185 175 211 211 211 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.683 HOUSING; FLYWHEEL 8-98240-829-0 01 1 1309-1310 ●
2 00.683 HOUSING; FLYWHEEL 8-98240-829-0 01 1 1311- ● ●
172 00.137 RETAINER; CR/SHF 8-97379-826-0 01 1 1309-1310 ●
172 00.137 RETAINER; CR/SHF 8-97379-826-0 01 1 1311- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1309-1310 ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1311- ● ●
185 00.727 BOLT; RET TO C/BL
06.216 M8X25 FLANGE 		0-28650-825-0 05 1 1309-1310 ●
185 00.727 BOLT; RET TO C/BL
06.216 M8X25 FLANGE 		0-28650-825-0 05 1 1311- ● ●
205 00.669 NUT; HSG
04.085 M10 FLANGE 		0-91180-210-0 01 1 1309-1310 ●
205 00.669 NUT; HSG
04.085 M10 FLANGE 		0-91180-210-0 01 1 1311- ● ●
211 00.669 BOLT; HSG
09.003 (A) M12X35 FLANGE 		0-28651-235-0 05 1 1309-1310 ●
211 00.669 BOLT; HSG
09.003 (A) M12X35 FLANGE 		0-28651-235-0 05 1 1311- ● ●
211 00.669 BOLT; HSG
00.683 (B) M12X25 		5-09000-227-0 03 1 1309-1310 ●
211 00.669 BOLT; HSG
00.683 (B) M12X25 		5-09000-227-0 03 1 1311- ● ●
211 00.669 BOLT; HSG
00.862 (C) M10X43 		9-09606-535-0 01 1 1309-1310 ●
211 00.669 BOLT; HSG
00.862 (C) M10X43 		9-09606-535-0 01 1 1311- ● ●

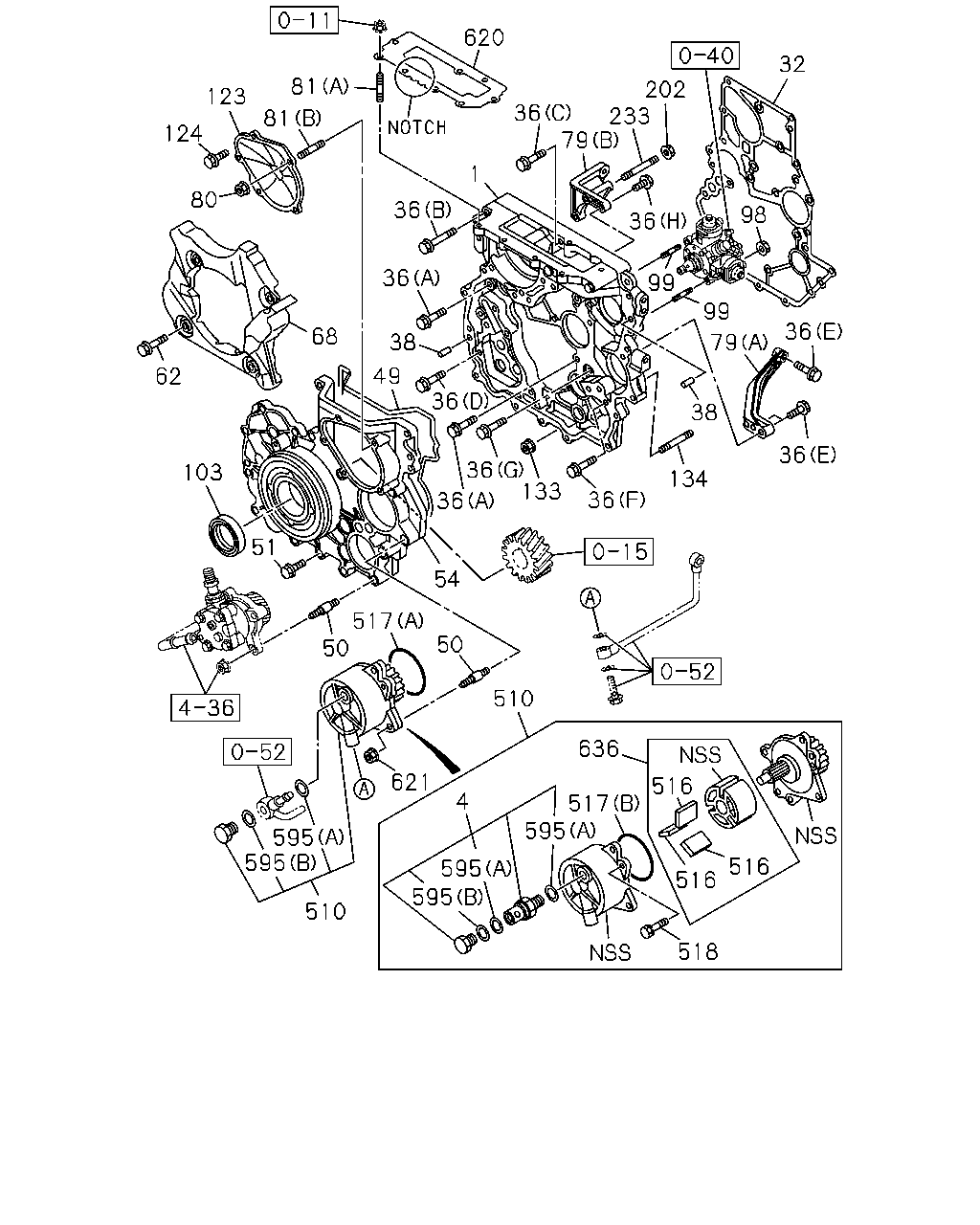

çizim 374708
620 202 233 32 36 1 36 36 38 49 68 80 124 123 81 81 62 103 51 517 50 50 54 36 36 36 133 134 36 36 38 79 36 99 99 36 79 98 621 510 636 517 595 516 516 518 516 510 595 595 4 595 595
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.206 CASE; TIMING GEAR 8-98217-735-0 01 1 1311- ●
1 00.206 CASE; TIMING GEAR 8-98211-898-0 01 1 1309- ●
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 1309-1310 ●
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 1311- ● ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98181-198-1 01 1 1309-1310 ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98181-198-1 01 1 1311- ● ●
36 00.206 BOLT; GEAR CASE
03.403 (H) M8X30 FLANGE 		0-28650-830-0 03 1 1311- ●
36 00.206 BOLT; GEAR CASE
02.343 (G) M8X16 FLANGE 		0-28050-816-0 01 1 1309-1310 ●
36 00.206 BOLT; GEAR CASE
02.343 (G) M8X16 FLANGE 		0-28050-816-0 01 1 1311- ● ●
36 00.206 BOLT; GEAR CASE
04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1309-1310 ●
36 00.206 BOLT; GEAR CASE
04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1311- ● ●
36 00.206 BOLT; GEAR CASE
03.162 (C) M8X35 FLANGE 		0-28050-835-0 01 1 1309-1310 ●
36 00.206 BOLT; GEAR CASE
03.162 (C) M8X35 FLANGE 		0-28050-835-0 01 1 1311- ● ●
36 00.206 BOLT; GEAR CASE
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 1309-1310 ●
36 00.206 BOLT; GEAR CASE
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 1311- ● ●
36 00.206 BOLT; GEAR CASE
04.686 (B) M8X60 FLANGE 		0-28050-860-0 01 1 1309-1310 ●
36 00.206 BOLT; GEAR CASE
04.686 (B) M8X60 FLANGE 		0-28050-860-0 01 1 1311- ● ●
36 00.206 BOLT; GEAR CASE
06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ●
36 00.206 BOLT; GEAR CASE
06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 1311- ● ●
36 00.206 BOLT; GEAR CASE
01.060 (E) M8X35 FLANGE 		0-28650-835-0 03 1 1309- ●
38 00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20 		8-97135-423-0 02 1 1309-1310 ●
38 00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20 		8-97135-423-0 02 1 1311- ● ●
49 00.206 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97945-298-0 01 1 1309-1310 ●
49 00.206 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97945-298-0 01 1 1311- ● ●
50 00.206 STUD
M8X27,M8X14 L=64.5 		8-97354-808-2 06 1 1309-1310 ●
50 00.206 STUD
M8X27,M8X14 L=64.5 		8-97354-808-2 06 1 1311- ● ●
51 00.206 BOLT; GEAR CASE COVER 8-97354-697-1 14 1 1309-1310 ●
51 00.206 BOLT; GEAR CASE COVER 8-97354-697-1 14 1 1311- ● ●
54 00.206 COVER; GEAR CASE 8-98165-119-1 01 1 1309-1310 ●
54 00.206 COVER; GEAR CASE 8-98165-119-1 01 1 1311-1405 ● ●
54 00.206 COVER; GEAR CASE 8-98253-700-1 01 1 1406- ● ●
62 00.206 BOLT; COVER
03.162 M6X20 FLANGE 		0-28650-620-0 04 1 1309-1310 ●
62 00.206 BOLT; COVER
03.162 M6X20 FLANGE 		0-28650-620-0 04 1 1311- ● ●
68 00.206 COVER ASM; GEAR CASE COVER 8-98009-466-3 01 1 1309-1310 ●
68 00.206 COVER ASM; GEAR CASE COVER 8-98009-466-3 01 1 1311-1409 ● ●
68 00.206 COVER ASM; GEAR CASE COVER 8-98245-226-0 01 1 1410- ● ●
79 00.219 BRACKET; GEAR CASE COVER
(B) 		8-98107-106-0 01 1 1311- ●
79 00.219 BRACKET; GEAR CASE COVER
(A) 		8-98088-943-1 01 1 1309- ●
80 00.206 NUT; COVER
01.540 M6 FLANGE 		0-91180-206-0 02 1 1309-1310 ●
80 00.206 NUT; COVER
01.540 M6 FLANGE 		0-91180-206-0 02 1 1311- ● ●
81 00.206 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 		0-41010-616-0 02 1 1309-1310 ●
81 00.206 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 		0-41010-616-0 02 1 1311- ● ●
81 00.206 STUD; GEAR CASE COVER FIX
00.413 (A) M8X30 L=48 		0-49140-830-0 02 1 1309-1310 ●
81 00.206 STUD; GEAR CASE COVER FIX
00.413 (A) M8X30 L=48 		0-49140-830-0 02 1 1311- ● ●
98 00.206 NUT; STUD,INJ PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 1311- ●
98 00.206 NUT; STUD,INJ PUMP
01.540 M8 FLANGE 		0-91180-208-0 03 1 1309- ●
99 00.206 STUD; INJ PUMP
M8X30 L=41 		8-97369-449-0 02 1 1311-1510 ●
99 00.206 STUD; INJ PUMP
M8X30 L=41 		8-98336-983-0 02 1 1511- ●
99 00.206 STUD; INJ PUMP
M8X30 L=41 		8-97369-449-0 03 1 1309-1510 ●
99 00.206 STUD; INJ PUMP
M8X30 L=41 		8-98336-983-0 03 1 1511- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98158-110-0 01 1 1309-1310 ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98158-110-0 01 1 1311- ● ●
123 00.206 COVER; TIMING,LWR 8-98158-145-0 01 1 1309-1310 ●
123 00.206 COVER; TIMING,LWR 8-98158-145-0 01 1 1311- ● ●
124 00.206 BOLT; TIMING COVER
09.242 M6X16 FLANGE 		0-28050-616-0 03 1 1309-1310 ●
124 00.206 BOLT; TIMING COVER
09.242 M6X16 FLANGE 		0-28050-616-0 03 1 1311- ● ●
133 00.206 NUT; TIMING GEAR CASE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1309-1310 ●
133 00.206 NUT; TIMING GEAR CASE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1311- ● ●
134 00.669 STUD; TIMING GEAR CASE
02.510 M8X20 L=32 		0-41010-820-0 02 1 1309-1310 ●
134 00.669 STUD; TIMING GEAR CASE
02.510 M8X20 L=32 		0-41010-820-0 02 1 1311- ● ●
202 00.206 NUT; BRKT
01.540 M8 FLANGE 		0-91180-208-0 01 1 1311- ●
233 00.669 STUD; BRKT
03.275 M8X71 L=83 		8-98017-063-0 01 1 1311- ●
510 04.895 PUMP ASM; VACUUM 8-98241-234-0 01 1 1309-1310 ●
510 04.895 PUMP ASM; VACUUM 8-98241-234-0 01 1 1311-1311 ● ●
510 04.895 PUMP ASM; VACUUM 8-98251-764-0 01 1 1312- ● ●
516 04.895 VANE; VAC PUMP 8-98051-275-0 03 1 1309-1310 ●
516 04.895 VANE; VAC PUMP 8-98051-275-0 03 1 1311- ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98244-022-0 01 1 1309-1310 ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98244-022-0 01 1 1311-1311 ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98251-769-0 01 1 1312- ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) 		9-09566-271-0 01 1 1309-1310 ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) 		9-09566-271-0 01 1 1311- ● ●
518 04.895 BOLT; VAC PUMP 8-98049-523-0 03 1 1309-1310 ●
518 04.895 BOLT; VAC PUMP 8-98049-523-0 03 1 1311- ● ●
595 00.213 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1309-1310 ●
595 00.213 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1311- ● ●
595 00.213 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1309-1310 ●
595 00.213 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1311- ● ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH 		8-97328-828-2 01 1 1309-1310 ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH 		8-97328-828-2 01 1 1311- ● ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH 		8-97331-631-2 01 1 1309-1310 ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH 		8-97331-631-2 01 1 1311- ● ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH 		8-97331-632-2 01 1 1309-1310 ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH 		8-97331-632-2 01 1 1311- ● ●
621 00.207 NUT; VAC PUMP
01.540 M8 FLANGE 		0-91180-208-0 03 1 1309-1310 ●
621 00.207 NUT; VAC PUMP
01.540 M8 FLANGE 		0-91180-208-0 03 1 1311- ● ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98049-520-0 01 1 1309-1310 ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98049-520-0 01 1 1311- ● ●
