0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#126498) — 84 parça

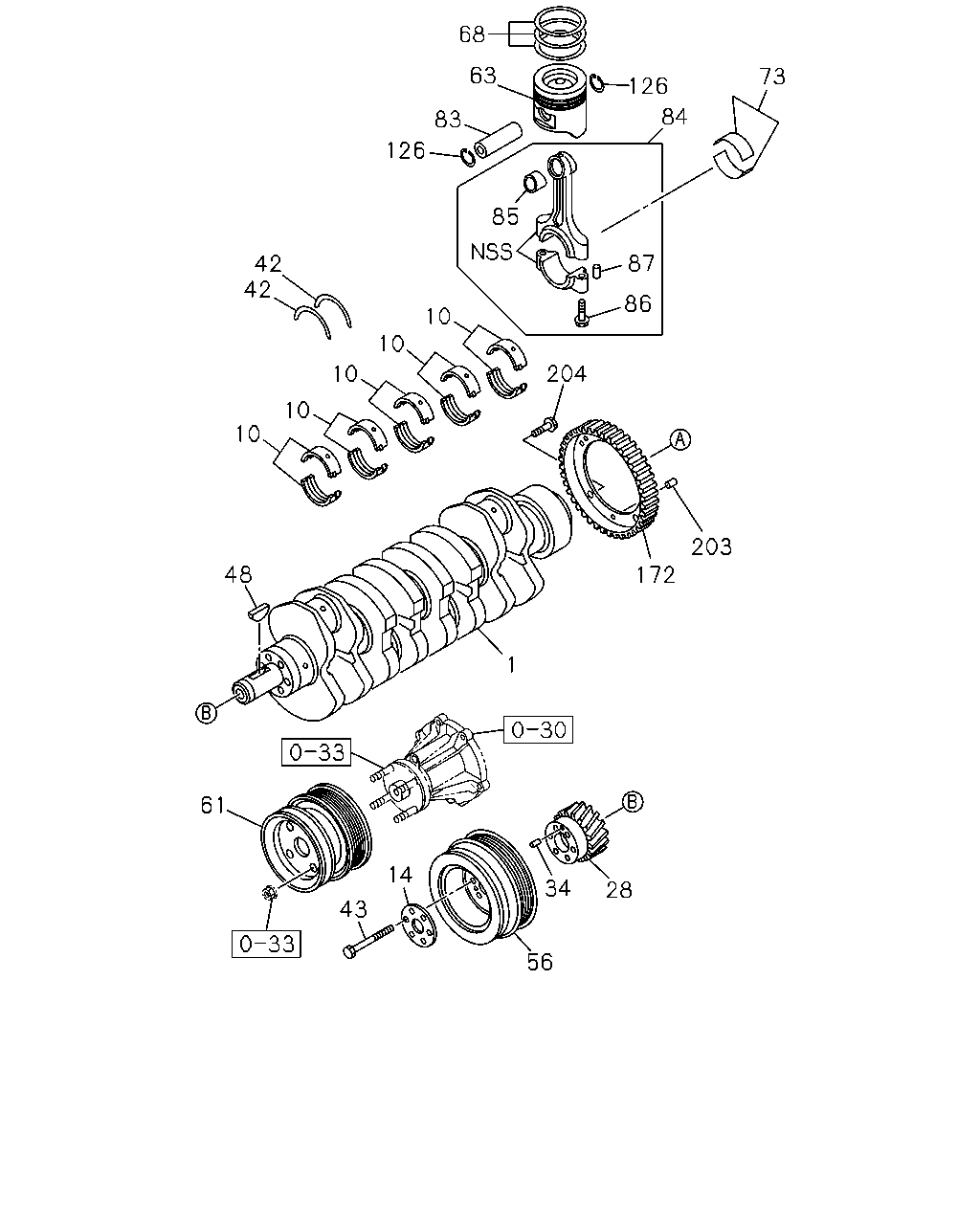

çizim 373062
28 34 56 14 43 61 1 48 10 10 10 10 10 42 42 126 83 63 68 126 84 73 85 87 86 204 203 172
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.646 CRANKSHAFT 8-98154-950-2 01 1 1309-1310 ●
1 00.646 CRANKSHAFT 8-98154-950-2 01 1 1311-1409 ● ●
1 00.646 CRANKSHAFT 8-98273-590-0 01 1 1410- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97387-964-0 05 1 1309-1310 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97387-964-0 05 1 1311- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97387-965-0 05 1 1309-1310 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97387-965-0 05 1 1311- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97387-966-0 05 1 1309-1310 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97387-966-0 05 1 1311- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
CRANK 1,2,4,5 GRADE 4 		8-97387-967-0 04 1 1309-1310 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
CRANK 1,2,4,5 GRADE 4 		8-97387-967-0 04 1 1311- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
CRANK 1,2,4,5 GRADE 5 		8-97387-968-0 04 1 1309-1310 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
CRANK 1,2,4,5 GRADE 5 		8-97387-968-0 04 1 1311- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
CRANK 3 GRADE 9 		8-98053-576-0 01 1 1309-1310 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
CRANK 3 GRADE 9 		8-98053-576-0 01 1 1311- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
CRANK 3 GRADE 0 		8-98053-578-0 01 1 1309-1310 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
CRANK 3 GRADE 0 		8-98053-578-0 01 1 1311- ● ●
14 00.662 WASHER; PULLEY DAMPER
ID=23 OD=72 T=3 		8-98165-125-0 01 1 1309-1310 ●
14 00.662 WASHER; PULLEY DAMPER
ID=23 OD=72 T=3 		8-98165-125-0 01 1 1311- ● ●
28 00.728 GEAR; CR/SHF
Z=44 		8-98154-945-1 01 1 1309-1310 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-98154-945-1 01 1 1311- ● ●
34 00.738 PIN; GEAR SETTING
OD=5 L=10 		9-08160-510-0 01 1 1309-1310 ●
34 00.738 PIN; GEAR SETTING
OD=5 L=10 		9-08160-510-0 01 1 1311- ● ●
42 00.095 WASHER; THRUST,CR/SHF 8-98040-704-0 02 1 1309-1310 ●
42 00.095 WASHER; THRUST,CR/SHF 8-98040-704-0 02 1 1311- ● ●
43 00.662 BOLT; CR/SHF PULLEY
M10X90 		8-98165-234-1 06 1 1309-1310 ●
43 00.662 BOLT; CR/SHF PULLEY
M10X90 		8-98165-234-1 06 1 1311- ● ●
48 00.662 KEY; WOODRUFF,CR/SHF
00.729 		8-94201-641-0 01 1 1309-1310 ●
48 00.662 KEY; WOODRUFF,CR/SHF
00.729 		8-94201-641-0 01 1 1311- ● ●
56 00.659 PULLEY; CR/SHF DAMPER
2-GROOVE 		8-98154-943-1 01 1 1309-1310 ●
56 00.659 PULLEY; CR/SHF DAMPER
2-GROOVE 		8-98154-943-1 01 1 1311- ● ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 1309-1310 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 1311- ● ●
63 00.629 PISTON
GRADE=A 		8-98043-703-0 04 1 1311- ●
63 00.629 PISTON
GRADE=B 		8-98043-704-0 04 1 1311- ●
63 00.629 PISTON
GRADE=C 		8-98043-705-0 04 1 1311- ●
63 00.629 PISTON
GRADE A 		8-98209-865-2 04 1 1309- ●
63 00.629 PISTON
GRADE B 		8-98209-866-2 04 1 1309- ●
63 00.629 PISTON
GRADE C 		8-98209-867-2 04 1 1309- ●
68 00.643 RING SET; PISTON,STANDARD 8-98185-780-0 04 1 1309-1310 ●
68 00.643 RING SET; PISTON,STANDARD 8-98185-780-0 04 1 1311- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 1309-1310 ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 1311- ● ●
83 00.636 PIN; PISTON 8-98015-193-1 04 1 1309-1310 ●
83 00.636 PIN; PISTON 8-98015-193-1 04 1 1311- ● ●
84 00.603 ROD ASM; CONN 8-97388-921-2 04 1 1309-1310 ●
84 00.603 ROD ASM; CONN 8-97388-921-2 04 1 1311- ● ●
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 1309-1310 ●
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 1311- ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 1309-1310 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 1311- ● ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 1309-1310 ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 1311- ● ●
126 00.639 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 1309-1310 ●
126 00.639 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 1311- ● ●
172 02.383 ROTOR; CRANK SENSOR 8-98163-693-0 01 1 1309-1310 ●
172 02.383 ROTOR; CRANK SENSOR 8-98163-693-0 01 1 1311- ● ●
203 01.150 PIN; ROTOR
00.613 OD=5 L=8 		9-08160-508-0 01 1 1309-1310 ●
203 01.150 PIN; ROTOR
00.613 OD=5 L=8 		9-08160-508-0 01 1 1311- ● ●
204 01.150 BOLT; ROTOR
02.383 M6X10 		8-98038-343-0 03 1 1309-1310 ●
204 01.150 BOLT; ROTOR
02.383 M6X10 		8-98038-343-0 03 1 1311- ● ●

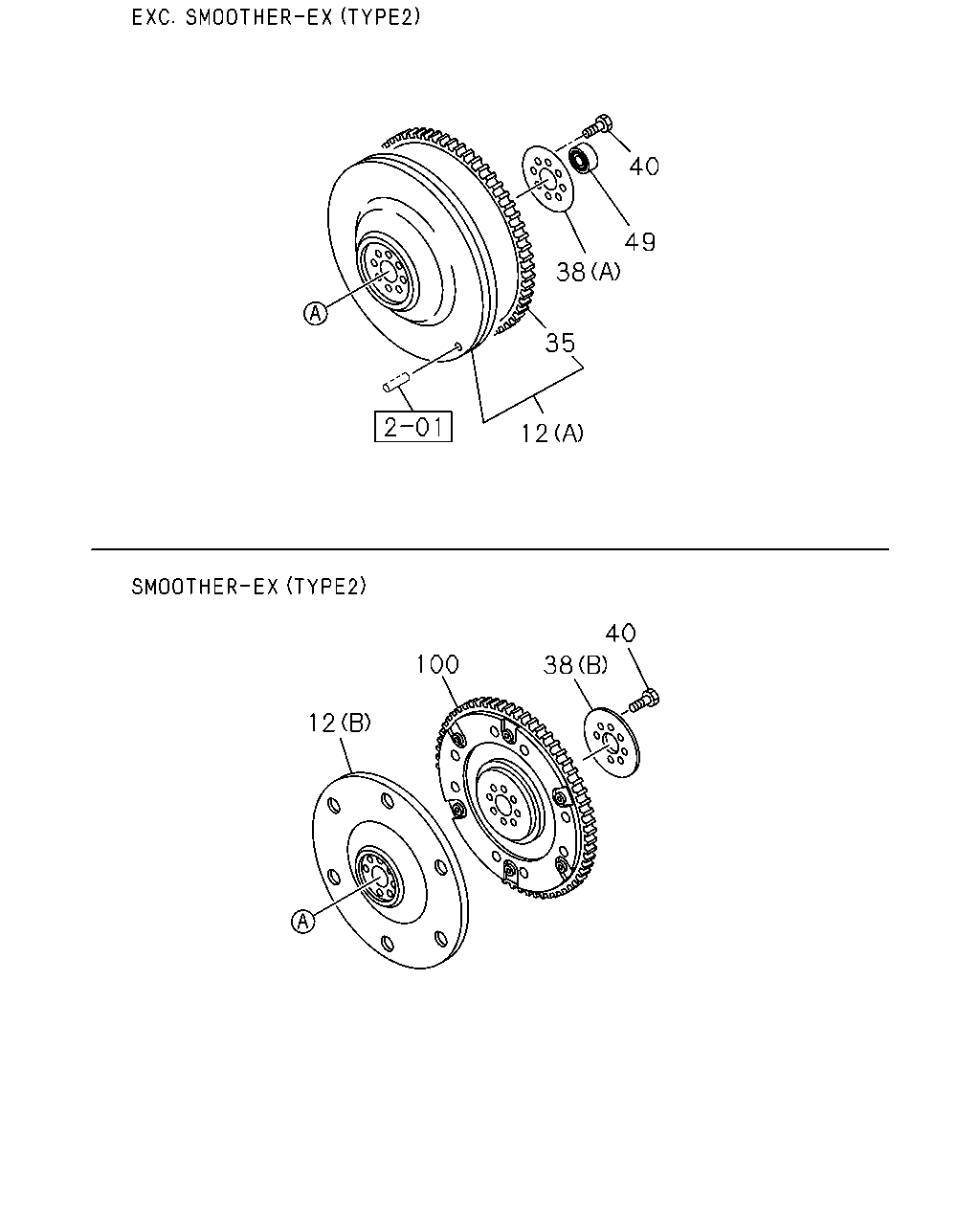

çizim 374362
40 38 100 12 12 35 38 49 40
BalonParca AdiParca NoAdetTipApplied Date A B
12 00.666 FLYWHEEL
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98029-611-0 01 1 1311-1401 ●
12 00.666 FLYWHEEL
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98029-611-0 01 1 1402- ● ●
12 00.666 FLYWHEEL
(A) 		8-98148-063-1 01 1 1309-1310 ●
12 00.666 FLYWHEEL
EXC. SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98148-063-1 01 1 1311- ●
12 00.666 FLYWHEEL
(A) 		8-98148-063-1 01 1 1311- ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 1309-1310 ●
35 00.673 GEAR; RING
EXC. SMOOTHER-EX(TYPE2)(8NS) Z=138 		8-97046-366-1 01 1 1311- ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 1311- ●
38 00.862 WASHER; FLYWHEEL
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97386-162-2 01 1 1311-1401 ●
38 00.862 WASHER; FLYWHEEL
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97386-162-2 01 1 1402- ● ●
38 00.862 WASHER; FLYWHEEL
(A) ID=50.5 OD=97 		8-98171-700-0 01 1 1309-1310 ●
38 00.862 WASHER; FLYWHEEL
EXC. SMOOTHER-EX(TYPE2)(8NS) (A) ID=50.5 OD=97 		8-98171-700-0 01 1 1311- ●
38 00.862 WASHER; FLYWHEEL
(A) ID=50.5 OD=97 		8-98171-700-0 01 1 1311- ●
40 00.669 BOLT; FLYWHEEL
M13X45 		8-94418-050-0 08 1 1309-1310 ●
40 00.669 BOLT; FLYWHEEL
M13X45 		8-94418-050-0 08 1 1311- ● ●
49 00.669 BEARING; PILOT 8-97325-153-0 01 1 1309-1310 ●
49 00.669 BEARING; PILOT
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-97325-153-0 01 1 1311- ●
49 00.669 BEARING; PILOT 8-97325-153-0 01 1 1311- ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-166-0 01 1 1309-1310 ●
49 00.669 BEARING; PILOT
EXC. SMOOTHER-EX(TYPE2)(8NS) BEST VALUE PARTS 		5-87610-166-0 01 1 1311- ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-166-0 01 1 1311- ●
100 00.666 PLATE; FLEX
SMOOTHER-EX(TYPE2)(8NS) 		8-98029-612-1 01 1 1311-1401 ●
100 00.666 PLATE; FLEX
SMOOTHER-EX(TYPE2)(8NS) 		8-98029-612-1 01 1 1402- ● ●
