Isuzu WW
▶
TRUCKS
▶
NLR
▶
51496 - NLR/NMR LHD EUROPE EURO5B+,6
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

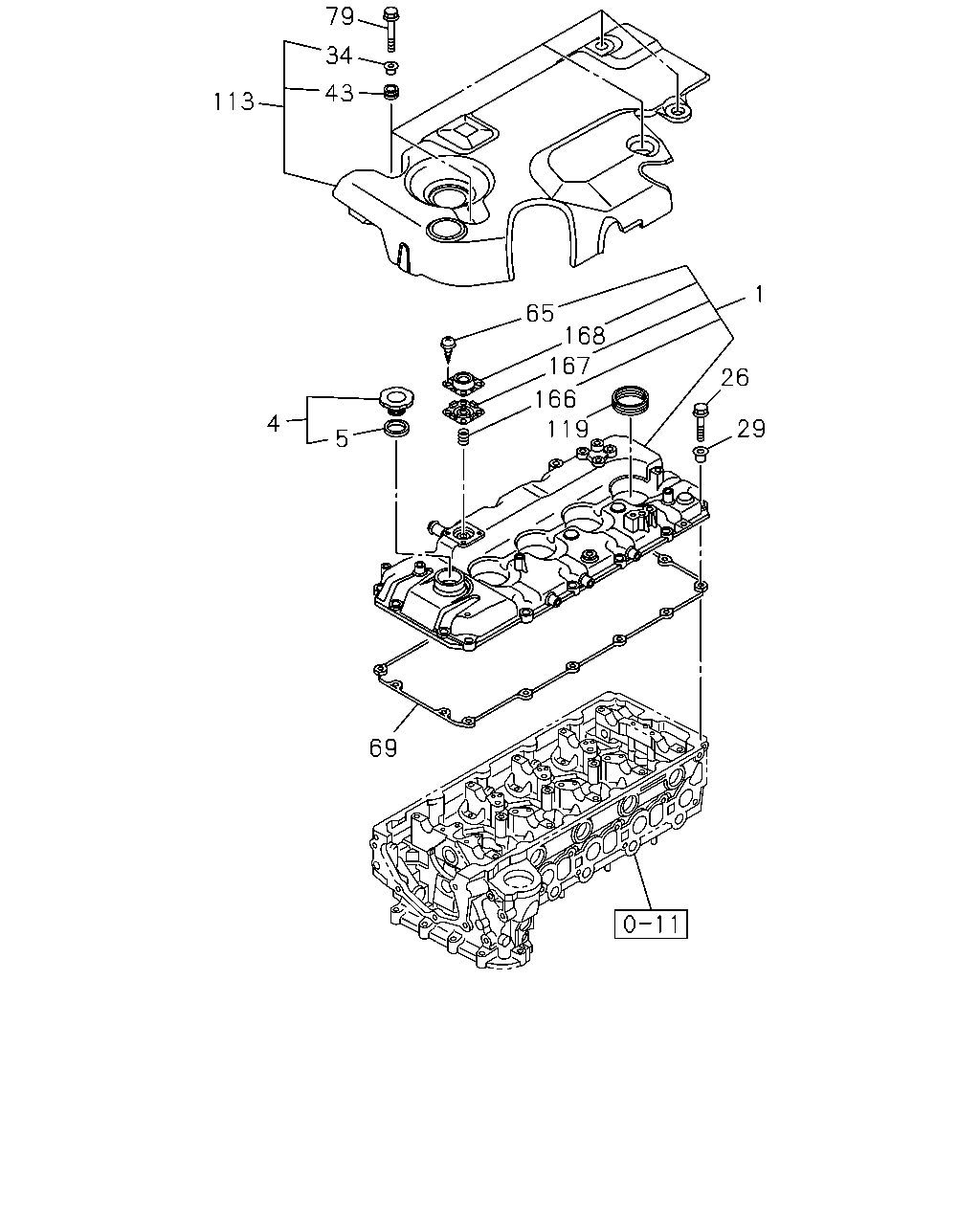

0-10 — CYLINDER HEAD COVER
(#126493) — 28 parça
Tümü
A - 4JJ1-TCS ENG
B - 4JJ1-TCC ENG
1
26
65
167
166
29
119
69
4
113
5
43
34
79
168
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
00.386 COVER; CYL HD
8-98245-124-0
01
1
1502-1502
●
●
1
00.386 COVER; CYL HD
8-98220-002-3
01
1
1502-
●
●
4
01.758 CAP; OIL FILLER
8-94133-207-5
01
1
1309-1310
●
4
01.758 CAP; OIL FILLER
8-94133-207-5
01
1
1311-
●
●
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40
8-94123-623-1
01
1
1309-1310
●
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40
8-94123-623-1
01
1
1311-
●
●
26
08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE
0-28650-630-0
15
1
1309-1310
●
26
08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE
0-28650-630-0
15
1
1311-
●
●
29
00.413 RUBBER; MTG,HD COVER
8-97381-524-0
15
1
1309-1310
●
29
00.413 RUBBER; MTG,HD COVER
8-97381-524-0
15
1
1311-1408
●
●
29
00.413 RUBBER; MTG,HD COVER
00.206
8-97168-200-1
15
1
1409-
●
●
34
00.413 BUSHING; MTG RUBBER,CYL HD COVER
8-98036-120-0
05
1
1309-1310
●
34
00.413 BUSHING; MTG RUBBER,CYL HD COVER
8-98036-120-0
05
1
1311-
●
●
43
00.413 RUBBER; MTG,HD COVER,OUTER
8-98036-119-0
05
1
1309-1310
●
43
00.413 RUBBER; MTG,HD COVER,OUTER
8-98036-119-0
05
1
1311-
●
●
65
00.413 SCREW; ADAPTER
02.361 M5X10 W/LK WASHER
0-36220-510-0
04
1
1502-
●
●
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98181-200-0
01
1
1309-1310
●
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98181-200-0
01
1
1311-
●
●
79
00.293 BOLT; COVER
04.338 M8X20 FLANGE
0-28050-820-0
05
1
1309-1310
●
79
00.293 BOLT; COVER
04.338 M8X20 FLANGE
0-28050-820-0
05
1
1311-
●
●
113
00.386 COVER; CYL HEAD COVER
8-98225-306-0
01
1
1309-1310
●
113
00.386 COVER; CYL HEAD COVER
8-98225-306-0
01
1
1311-
●
●
119
00.386 COVER; SEAL,NOZZLE
8-98037-543-0
04
1
1309-1310
●
119
00.386 COVER; SEAL,NOZZLE
8-98037-543-0
04
1
1311-
●
●
166
00.283 SPRING; VENTILATOR
00.423
8-97365-998-0
01
1
1502-
●
●
167
00.283 DIAPHRAGM; VENTILATOR
8-98226-101-0
01
1
1502-1502
●
●
167
00.283 DIAPHRAGM; VENTILATOR
8-98003-164-0
01
1
1502-
●
●
168
00.283 COVER; VENTILATOR
00.269
8-97365-992-0
01
1
1502-
●
●
