9-33 — REAR BODY; GATE AND SIDE GUARD (#126490) — 854 parça

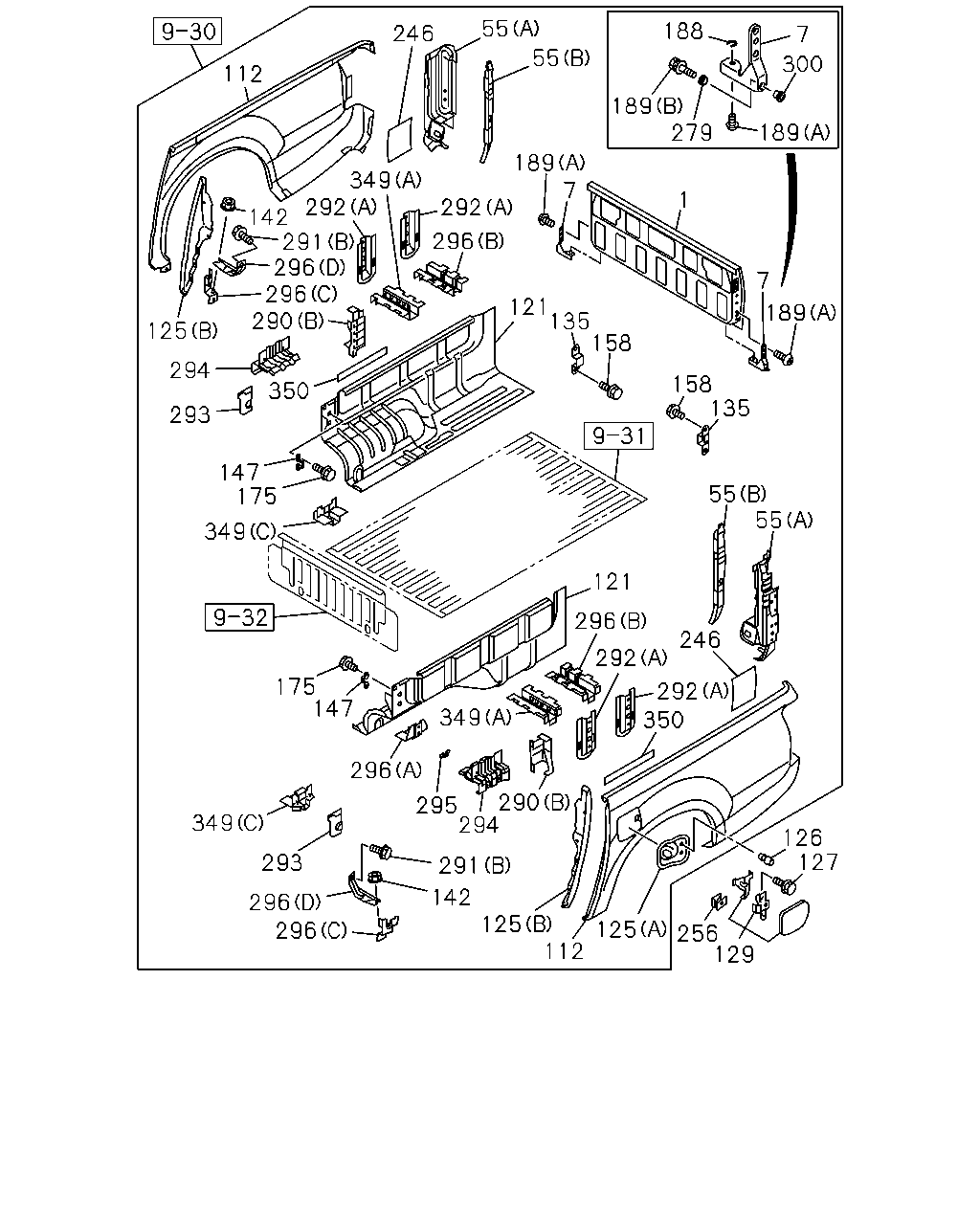

çizim 373625
112 246 55 55 188 189 279 189 300 7 142 292 349 189 292 296 7 1 7 189 125 294 293 291 296 296 290 350 121 135 158 158 135 55 55 147 175 349 121 175 147 296 349 293 296 296 295 294 291 142 125 112 125 256 129 127 126 349 290 296 292 292 350 246
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GATE ASM; RR
THA 		8-98104-332-9 01 1 1310- ● ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98198-539-2 01 1 1310-1311 ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98198-539-2 01 1 1312- ● ●
1 GATE ASM; RR
THA 		8-98104-362-9 01 1 1310- ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-948-0 01 1 1310-1311 ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-948-0 01 1 1310-1311 ●
7 HINGE ASM; RR GATE
THA 		8-98180-948-0 01 1 1312- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-948-0 01 1 1312- ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-949-0 01 1 1310-1311 ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-949-0 01 1 1310-1311 ●
7 HINGE ASM; RR GATE
THA 		8-98180-949-0 01 1 1312- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-949-0 01 1 1312- ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-259-6 01 1 1310- ● ● ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-261-6 01 1 1310- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-378-7 01 1 1310- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-379-7 01 1 1310- ● ● ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-262-5 01 1 1310-1311 ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-262-5 01 1 1312- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-264-5 01 1 1310-1311 ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-264-5 01 1 1312- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-380-4 01 1 1310-1311 ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-380-4 01 1 1312- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-381-4 01 1 1310-1311 ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-381-4 01 1 1312- ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98122-518-7 01 1 1312- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98122-519-9 01 1 1312- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-558-9 01 1 1310- ●
112 PANEL; SIDE GATE
THA 		8-98104-558-9 01 1 1310- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98205-935-1 01 1 1310- ●
112 PANEL; SIDE GATE
THA 		8-98205-935-1 01 1 1310- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-548-9 01 1 1310- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-549-7 01 1 1310- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-553-8 01 1 1310- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-555-6 01 1 1310- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-560-9 01 1 1310- ●
112 PANEL; SIDE GATE
THA 		8-98104-560-9 01 1 1310- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-561-7 01 1 1310- ●
112 PANEL; SIDE GATE
THA 		8-98104-561-7 01 1 1310- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-551-8 01 1 1310- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-552-6 01 1 1310- ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-608-4 01 1 1310- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-609-4 01 1 1310- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-927-5 01 1 1310-1311 ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-927-6 01 1 1312- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-928-4 01 1 1310-1311 ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-928-5 01 1 1312- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-294-7 01 1 1310- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-296-7 01 1 1310- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-234-7 01 1 1310-1311 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) THA 		8-98104-234-7 01 1 1310-1311 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-234-7 01 1 1312- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) THA 		8-98104-234-7 01 1 1312- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-234-7 01 1 1312- ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-868-4 01 1 1310- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-869-4 01 1 1310- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-233-7 01 1 1310- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-233-7 01 1 1310- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-180-1 01 1 1310-1311 ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-180-1 01 1 1312- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-181-1 01 1 1310-1311 ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-181-1 01 1 1312- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-189-4 01 1 1310- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-192-4 01 1 1310- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-98144-635-1 03 1 1310-1311 ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98144-635-1 03 1 1310-1311 ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-98144-635-1 03 1 1312- ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98144-635-1 03 1 1312- ● ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 1310-1311 ● ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> M6X16 THA 		8-98056-287-0 02 1 1310-1311 ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 1312- ● ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> M6X16 THA 		8-98056-287-0 02 1 1312- ● ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-298-7 01 1 1310-1311 ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-98103-298-7 01 1 1310-1311 ● ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-298-7 01 1 1312- ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-98103-298-7 01 1 1312- ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98103-298-7 01 1 1312- ●
129 LID ASM; FUEL FILLER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-297-6 01 1 1310- ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98103-297-6 01 1 1310- ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 1310- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 1310- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-656-2 01 1 1310-1311 ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-656-2 01 1 1312- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-657-2 01 1 1310-1311 ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-657-2 01 1 1312- ● ●
142 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1310- ● ●
147 HOOK ASM; ROPE,FRT
THA 		8-98202-587-0 04 1 1310- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 1310- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> M8X22 THA 		8-98050-437-0 04 1 1310-1311 ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> M8X22 THA 		8-98050-437-0 04 1 1312- ● ●
175 BOLT; SET,RR GATE HOOK
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1310- ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 1310-1408 ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 1409- ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 AR 1 1409- ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 02 1 1310-1311 ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 02 1 1310-1311 ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 02 1 1312-1408 ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 02 1 1312-1408 ● ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1310-1311 ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1310-1311 ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1312- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1312- ● ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1310-1311 ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1310-1311 ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1312- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1312- ● ●
189 BOLT; HINGE,RR GATE
(C) M8X22 THA 		8-98050-437-0 02 1 1310-1311 ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (C) M8X22 THA 		8-98050-437-0 02 1 1310-1311 ●
189 BOLT; HINGE,RR GATE
(C) M8X22 THA 		8-98050-437-0 02 1 1312- ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (C) M8X22 THA 		8-98050-437-0 02 1 1312- ● ●
246 STIFFENER
THA 		8-98184-275-1 02 1 1310-1311 ● ● ● ●
246 STIFFENER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98184-275-1 02 1 1310-1311 ●
246 STIFFENER
THA 		8-98184-275-1 02 1 1312- ● ● ● ●
246 STIFFENER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98184-275-1 02 1 1312- ● ●
256 SPRING; LID,FUEL FILLER
THA 		8-98141-610-3 01 1 1310-1311 ● ● ● ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98141-610-3 01 1 1310-1311 ●
256 SPRING; LID,FUEL FILLER
THA 		8-98141-610-3 01 1 1312- ● ● ● ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98141-610-3 01 1 1312- ● ●
279 SPACER
THA 		8-97357-403-0 02 1 1310-1311 ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1310-1311 ●
279 SPACER
THA 		8-97357-403-0 02 1 1312- ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1312- ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-244-2 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-244-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-245-2 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-245-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1310-1311 ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1310-1311 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1312-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1312-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-117-0 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1310-1311 ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1310-1311 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1312-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1312-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-118-0 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1310- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-543-0 01 1 1310- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1310- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-544-0 01 1 1310- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1310- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-062-2 01 1 1310- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1310- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-063-2 01 1 1310- ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1310-1311 ● ● ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1310-1311 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1310-1311 ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1310-1311 ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1312-1505 ● ● ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1312-1505 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1312-1505 ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1312-1505 ●
291 BOLT; RR BODY
(A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ● ● ●
291 BOLT; RR BODY
(A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
291 BOLT; RR BODY
(B) M8X32.5 W/PL WASHER THA 		8-98136-077-0 02 1 1310- ● ●
292 EXTENSION; RR BODY
(A) THA 		8-98104-156-0 04 1 1310- ● ● ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98104-134-1 01 1 1310- ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98156-912-0 01 1 1310- ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-156-0 08 1 1310-1311 ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-156-0 08 1 1312- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98144-610-1 01 1 1310- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98144-611-1 01 1 1310- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98104-611-2 01 1 1310- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98104-612-2 01 1 1310- ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-405-3 01 1 1310-1311 ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-405-3 01 1 1310-1311 ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-405-3 01 1 1312- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-405-3 01 1 1312- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-405-3 01 1 1312- ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-406-3 01 1 1310-1311 ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-406-3 01 1 1310-1311 ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-406-3 01 1 1312- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-406-3 01 1 1312- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-406-3 01 1 1312- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-392-2 01 1 1310- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-392-2 01 1 1310- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-393-2 01 1 1310- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-393-2 01 1 1310- ●
295 BRACKET; FILLER
THA 		8-98104-666-1 01 1 1310-1311 ● ● ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-666-1 01 1 1310-1311 ●
295 BRACKET; FILLER
THA 		8-98104-666-1 01 1 1312- ● ● ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-666-1 01 1 1312- ● ●
296 BRACKET; RR BODY
(A) THA 		8-98104-649-0 02 1 1310-1311 ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-649-0 02 1 1310-1311 ●
296 BRACKET; RR BODY
(A) THA 		8-98104-649-0 02 1 1312- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-649-0 02 1 1312- ● ●
296 BRACKET; RR BODY
(B) THA 		8-98104-665-1 02 1 1310-1311 ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-665-1 02 1 1310-1311 ●
296 BRACKET; RR BODY
(B) THA 		8-98104-665-1 02 1 1312- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-665-1 02 1 1312- ● ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-642-3 01 1 1310- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-642-3 01 1 1310- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-643-3 01 1 1310- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-643-3 01 1 1310- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-648-3 01 1 1310- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-648-3 01 1 1310- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-649-3 01 1 1310- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-649-3 01 1 1310- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-640-5 01 1 1310- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-641-5 01 1 1310- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-646-2 01 1 1310- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-647-2 01 1 1310- ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1310-1311 ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1310-1311 ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1312- ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1312- ● ●
349 REINFORCEMENT; RR BODY,SILL
(A) THA 		8-98104-614-2 02 1 1310-1311 ● ● ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-614-2 02 1 1310-1311 ●
349 REINFORCEMENT; RR BODY,SILL
(A) THA 		8-98104-614-2 02 1 1312- ● ● ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-614-2 02 1 1312- ● ●
349 REINFORCEMENT; RR BODY,SILL
(B) THA 		8-98104-613-2 02 1 1310- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-613-2 04 1 1310-1311 ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-613-2 04 1 1312- ● ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-650-1 01 1 1310- ● ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-651-1 01 1 1310- ● ●
350 SEAL; TAPE
UPPER THA 		8-98192-937-0 02 1 1310-1311 ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> UPPER THA 		8-98192-937-0 02 1 1310-1311 ●
350 SEAL; TAPE
UPPER THA 		8-98192-937-0 02 1 1312- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> UPPER THA 		8-98192-937-0 02 1 1312- ● ●
350 SEAL; TAPE
LOWER THA 		8-98192-940-0 02 1 1310-1311 ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> LOWER THA 		8-98192-940-0 02 1 1310-1311 ●
350 SEAL; TAPE
LOWER THA 		8-98192-940-0 02 1 1312- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> LOWER THA 		8-98192-940-0 02 1 1312- ● ●

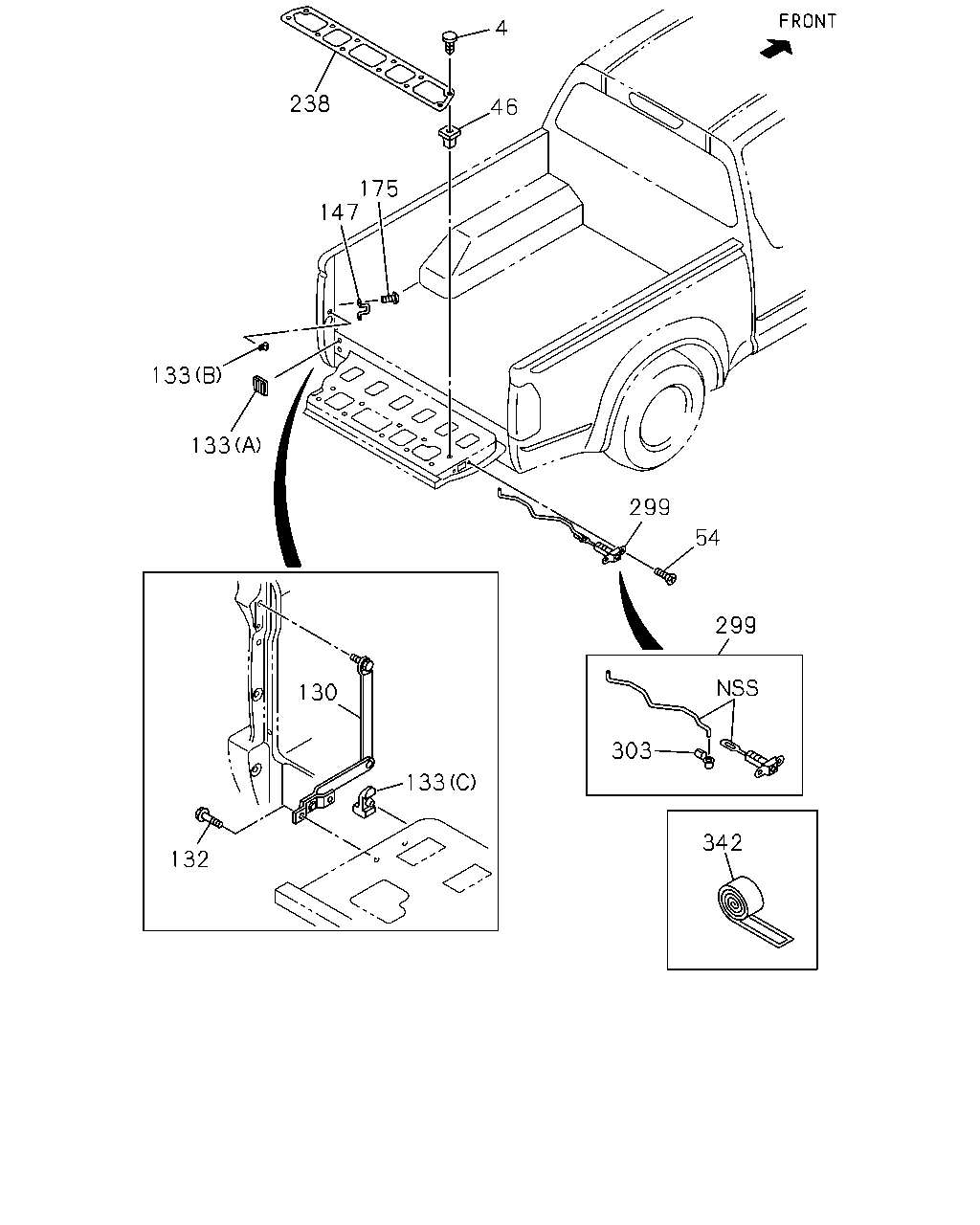

çizim 374173
238 4 147 175 46 133 133 299 54 132 130 133 299 303 342
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 SCREW; PANEL,RR GATE
M4X10 THA 		8-97043-528-0 12 1 1310- ● ● ● ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
THA 		8-98165-002-2 12 1 1310- ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
M8X20 THA 		8-97247-699-0 04 1 1310- ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-98180-461-1 01 1 1310-1311 ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-461-1 01 1 1310-1311 ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-98180-461-1 01 1 1312- ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-461-1 01 1 1312- ● ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-98180-462-1 01 1 1310-1311 ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-462-1 01 1 1310-1311 ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-98180-462-1 01 1 1312- ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-462-1 01 1 1312- ● ●
132 BOLT; TAIL GATE LINK,RR BODY
M8X20 FLANGE THA 		0-28650-820-0 04 1 1310-1311 ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> M8X20 FLANGE THA 		0-28650-820-0 04 1 1310-1311 ●
132 BOLT; TAIL GATE LINK,RR BODY
M8X20 FLANGE THA 		0-28650-820-0 04 1 1312- ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> M8X20 FLANGE THA 		0-28650-820-0 04 1 1312- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
(C) THA 		8-97302-185-2 02 1 1310-1311 ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97302-185-2 02 1 1310-1311 ●
133 STOPPER; TAIL GATE LINK,RR BODY
(C) THA 		8-97302-185-2 02 1 1312- ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97302-185-2 02 1 1312- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
(B) THA 		8-98110-231-2 02 1 1310-1311 ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98110-231-2 02 1 1310-1311 ●
133 STOPPER; TAIL GATE LINK,RR BODY
(B) THA 		8-98110-231-2 02 1 1312- ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98110-231-2 02 1 1312- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,SALES PACKAGE SPORTY<XK0> (A) THA 		8-98134-726-1 01 1 1310- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> (A) THA 		8-98134-726-1 01 1 1310- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,SALES PACKAGE SPORTY<XK0> (A) THA 		8-98134-727-1 01 1 1310- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> (A) THA 		8-98134-727-1 01 1 1310- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98126-088-1 01 1 1310-1311 ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98126-088-1 01 1 1312- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98126-089-1 01 1 1310-1311 ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98126-089-1 01 1 1312- ● ●
147 HOOK ASM; ROPE,FRT
THA 		8-98202-587-0 04 1 1310- ● ● ● ●
175 BOLT; SET,RR GATE HOOK
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1310- ● ● ● ●
238 COVER; RR GATE
THA 		8-98181-076-2 01 1 1310- ● ● ● ●
299 LATCH; END GATE
THA 		8-98102-971-3 01 1 1310- ● ● ● ●
299 LATCH; END GATE
THA 		8-98102-972-3 01 1 1310- ● ● ● ●
303 SNAP; LATCH,END GATE
THA 		8-97381-276-0 01 1 1310- ● ● ● ●
303 SNAP; LATCH,END GATE
THA 		8-97381-277-0 01 1 1310- ● ● ● ●
342 TAPE
HIGH RIDE SUSPENSION<7YC> THA 		8-98139-776-3 01 1 1310-1311 ● ●
342 TAPE
THA 		8-98139-776-3 01 1 1310-1311 ● ●
342 TAPE
HIGH RIDE SUSPENSION<7YC> THA 		8-98139-776-4 01 1 1312- ● ●
342 TAPE
THA 		8-98139-776-4 01 1 1312- ● ●
342 TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98139-776-4 01 1 1312- ●
342 TAPE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98139-775-4 01 1 1310- ● ●
342 TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98139-775-4 01 1 1310- ●

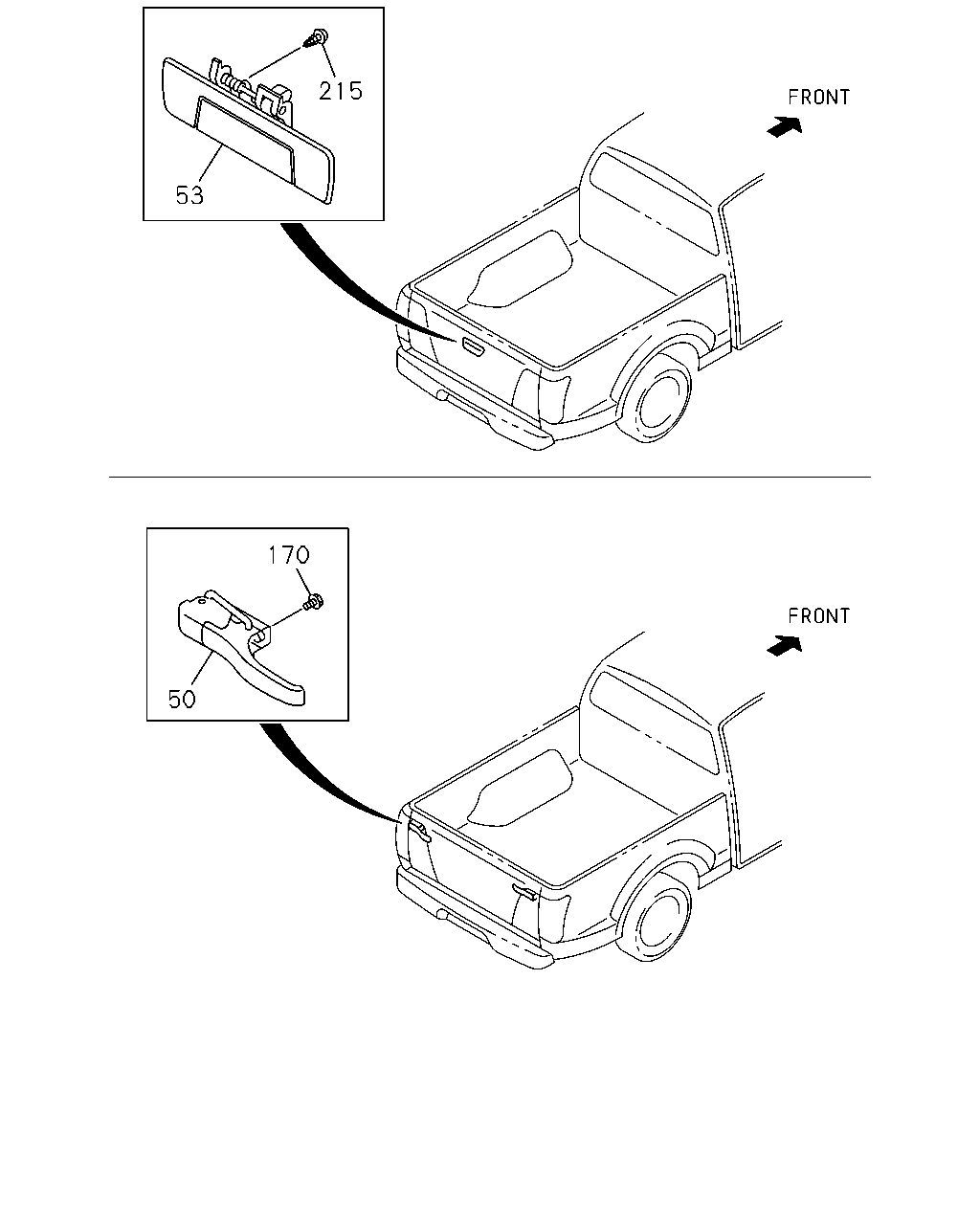

çizim 374211
53 215 50 170
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
50 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98061-099-0 02 1 1310-1311 ●
50 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98061-099-0 02 1 1312- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR MINERAL GRAY MET<530> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> GRAY THA 		8-97416-524-3 01 1 1310- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR CHROME<E20> REAR BODY DBL WALL CTR PULL<E63> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-98102-968-3 01 1 1310- ● ● ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98202-618-1 01 1 1310- ● ● ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20>,OUTER ROPE HOOKS<7MZ> THA 		8-98102-967-2 01 1 1310- ● ● ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> DARK BLUE THA 		8-97416-517-3 01 1 1310- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> BLACK THA 		8-97416-519-3 01 1 1310- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> WHITE THA 		8-97416-521-3 01 1 1310- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> SILVER THA 		8-97416-523-3 01 1 1310- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> WHITE THA 		8-97416-525-3 01 1 1310- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> LIGHT BEIGE THA 		8-97421-143-3 01 1 1310- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> LIGHT BLUE THA 		8-97424-561-3 01 1 1310- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR VENETIAN RED MICA<546> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> RED THA 		8-97424-562-3 01 1 1310- ● ●
170 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL<E63> M6X20 W/WASHER THA 		8-98056-282-0 04 1 1310-1311 ●
170 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL<E63> M6X20 W/WASHER THA 		8-98056-282-0 04 1 1312- ● ●
215 BOLT; HANDLE TO GUARD FRAME
M6X8 FLANGE THA 		8-98048-996-0 02 1 1310- ● ● ● ●

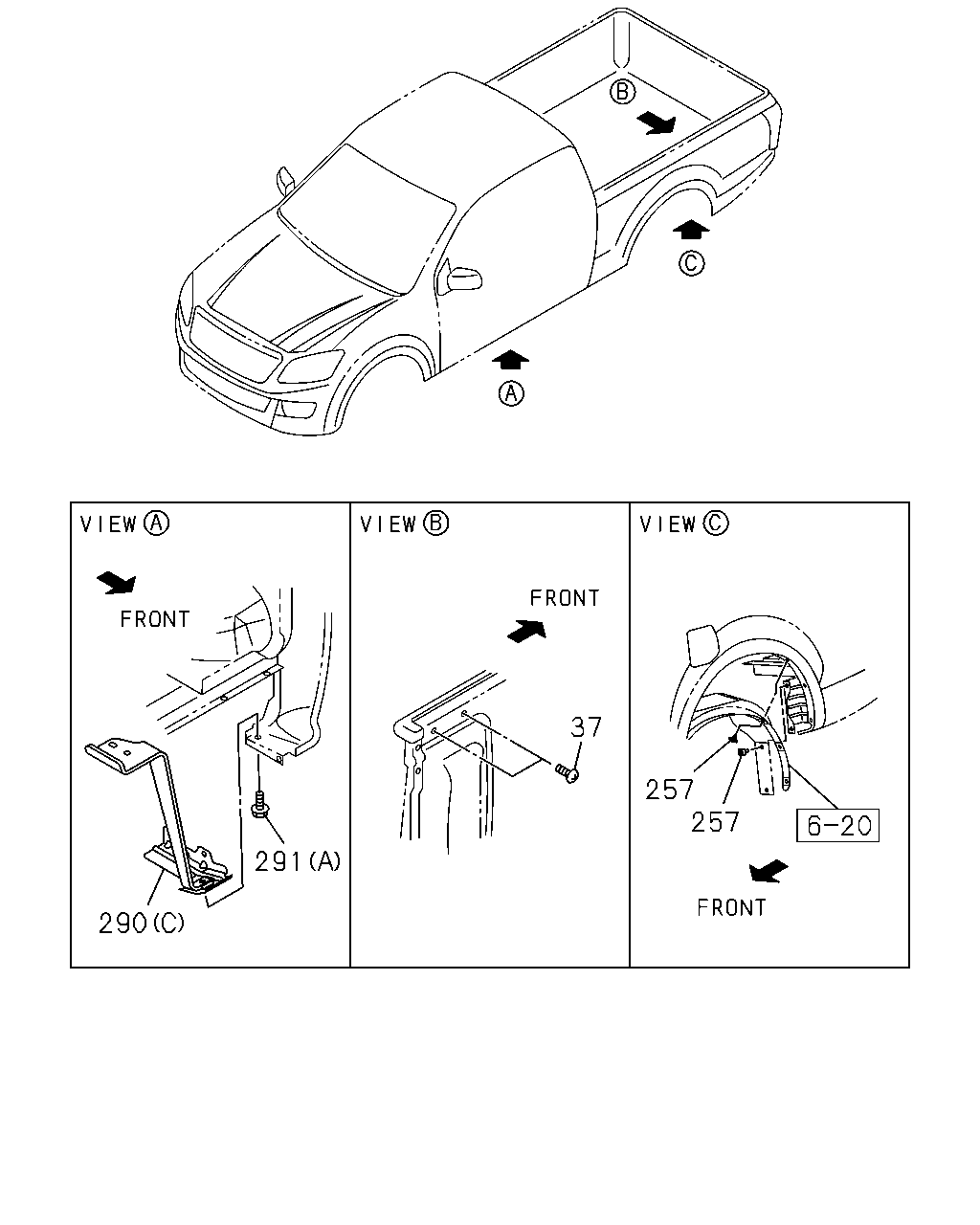

çizim 374582
290 291 37 257 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
37 SCREW
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 04 1 1310-1408 ● ● ● ●
37 SCREW
M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 04 1 1409- ● ● ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1310-1311 ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1312-1408 ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 06 1 1409-1505 ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 06 1 1506- ● ●
257 RIVET
HIGH RIDE SUSPENSION<7YC> THA 		8-98057-864-0 04 1 1310-1311 ● ●
257 RIVET
THA 		8-98057-864-0 04 1 1310-1311 ● ●
257 RIVET
HIGH RIDE SUSPENSION<7YC> THA 		8-98057-864-0 04 1 1312- ● ●
257 RIVET
THA 		8-98057-864-0 04 1 1312- ● ●
257 RIVET
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98057-864-0 04 1 1312- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-244-2 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-244-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-245-2 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-245-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1310-1311 ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1310-1311 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1312-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1312-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-117-0 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1310-1311 ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1310-1311 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1312-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1312-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-118-0 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1310- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-543-0 01 1 1310- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1310- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-544-0 01 1 1310- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1310- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-062-2 01 1 1310- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1310- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-063-2 01 1 1310- ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1310-1311 ● ● ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1310-1311 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1310-1311 ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1310-1311 ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1312-1505 ● ● ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1312-1505 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1312-1505 ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1312-1505 ●
291 BOLT; RR BODY
(A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ● ● ●
291 BOLT; RR BODY
(A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
291 BOLT; RR BODY
(B) M8X32.5 W/PL WASHER THA 		8-98136-077-0 02 1 1310- ● ●

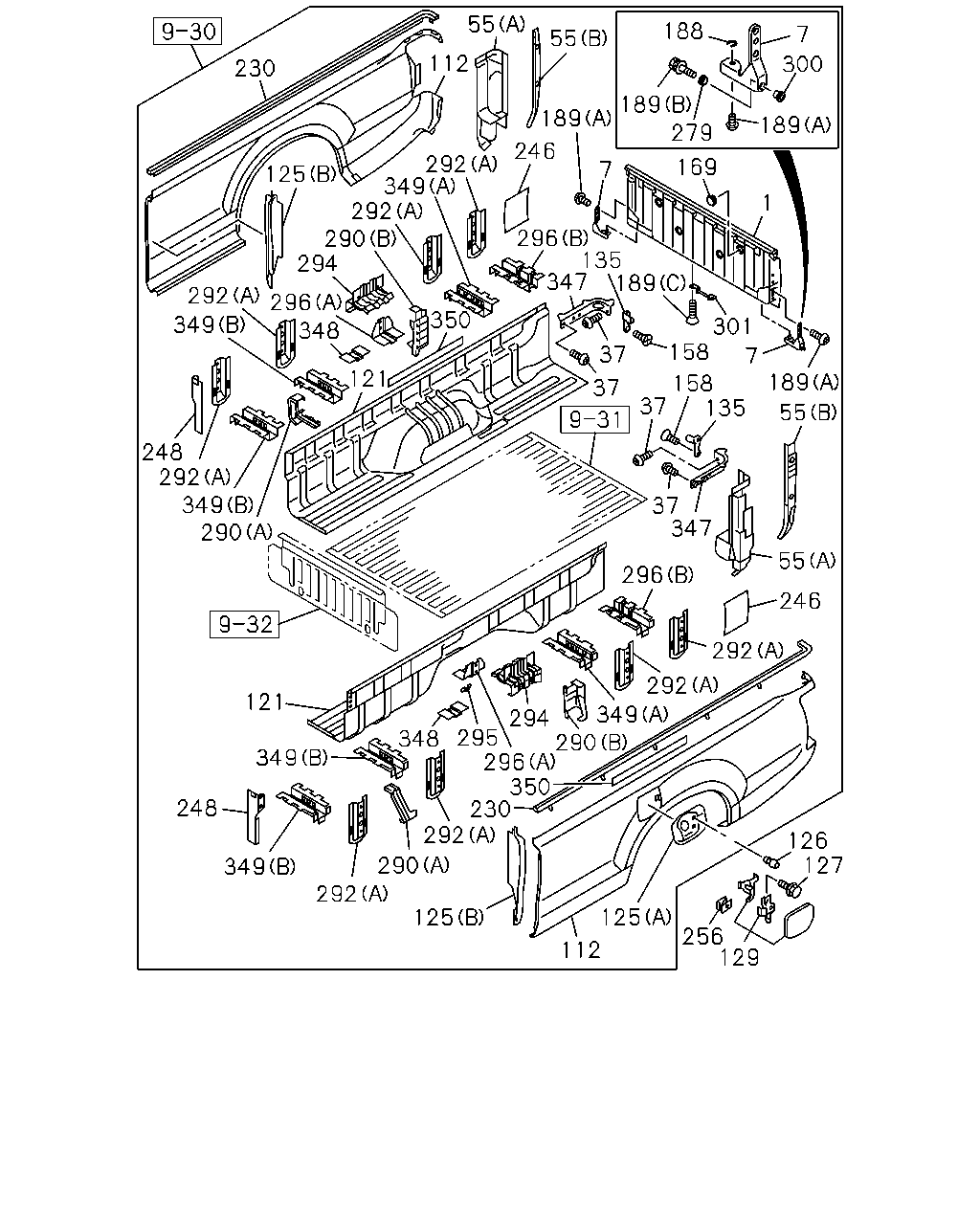

çizim 374651
230 112 55 55 188 7 300 189 279 189 189 125 349 292 296 348 294 290 292 349 292 246 7 169 1 248 292 121 350 296 347 135 189 301 7 189 249 290 37 158 37 158 37 135 55 37 121 347 248 349 348 295 294 296 55 349 292 290 292 230 296 350 290 349 292 292 246 125 112 125 256 126 129 127
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GATE ASM; RR
THA 		8-98104-332-9 01 1 1310- ● ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98198-539-2 01 1 1310-1311 ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98198-539-2 01 1 1312- ● ●
1 GATE ASM; RR
THA 		8-98104-362-9 01 1 1310- ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-948-0 01 1 1310-1311 ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-948-0 01 1 1310-1311 ●
7 HINGE ASM; RR GATE
THA 		8-98180-948-0 01 1 1312- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-948-0 01 1 1312- ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-949-0 01 1 1310-1311 ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-949-0 01 1 1310-1311 ●
7 HINGE ASM; RR GATE
THA 		8-98180-949-0 01 1 1312- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-949-0 01 1 1312- ● ●
37 SCREW
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 04 1 1310-1408 ● ● ● ●
37 SCREW
M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 04 1 1409- ● ● ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1310-1311 ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1312-1408 ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 06 1 1409-1505 ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 06 1 1506- ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-259-6 01 1 1310- ● ● ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-261-6 01 1 1310- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-378-7 01 1 1310- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-379-7 01 1 1310- ● ● ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-262-5 01 1 1310-1311 ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-262-5 01 1 1312- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-264-5 01 1 1310-1311 ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-264-5 01 1 1312- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-380-4 01 1 1310-1311 ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-380-4 01 1 1312- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-381-4 01 1 1310-1311 ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-381-4 01 1 1312- ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98122-518-7 01 1 1312- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98122-519-9 01 1 1312- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-558-9 01 1 1310- ●
112 PANEL; SIDE GATE
THA 		8-98104-558-9 01 1 1310- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98205-935-1 01 1 1310- ●
112 PANEL; SIDE GATE
THA 		8-98205-935-1 01 1 1310- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-548-9 01 1 1310- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-549-7 01 1 1310- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-553-8 01 1 1310- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-555-6 01 1 1310- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-560-9 01 1 1310- ●
112 PANEL; SIDE GATE
THA 		8-98104-560-9 01 1 1310- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-561-7 01 1 1310- ●
112 PANEL; SIDE GATE
THA 		8-98104-561-7 01 1 1310- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-551-8 01 1 1310- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-552-6 01 1 1310- ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-608-4 01 1 1310- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-609-4 01 1 1310- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-927-5 01 1 1310-1311 ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-927-6 01 1 1312- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-928-4 01 1 1310-1311 ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-928-5 01 1 1312- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-294-7 01 1 1310- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-296-7 01 1 1310- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-234-7 01 1 1310-1311 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) THA 		8-98104-234-7 01 1 1310-1311 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-234-7 01 1 1312- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) THA 		8-98104-234-7 01 1 1312- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-234-7 01 1 1312- ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-868-4 01 1 1310- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-869-4 01 1 1310- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-233-7 01 1 1310- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-233-7 01 1 1310- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-180-1 01 1 1310-1311 ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-180-1 01 1 1312- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-181-1 01 1 1310-1311 ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-181-1 01 1 1312- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-189-4 01 1 1310- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-192-4 01 1 1310- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-98144-635-1 03 1 1310-1311 ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98144-635-1 03 1 1310-1311 ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-98144-635-1 03 1 1312- ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98144-635-1 03 1 1312- ● ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 1310-1311 ● ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> M6X16 THA 		8-98056-287-0 02 1 1310-1311 ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 1312- ● ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> M6X16 THA 		8-98056-287-0 02 1 1312- ● ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-298-7 01 1 1310-1311 ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-98103-298-7 01 1 1310-1311 ● ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-298-7 01 1 1312- ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-98103-298-7 01 1 1312- ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98103-298-7 01 1 1312- ●
129 LID ASM; FUEL FILLER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-297-6 01 1 1310- ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98103-297-6 01 1 1310- ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 1310- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 1310- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-656-2 01 1 1310-1311 ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-656-2 01 1 1312- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-657-2 01 1 1310-1311 ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-657-2 01 1 1312- ● ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 1310- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> M8X22 THA 		8-98050-437-0 04 1 1310-1311 ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> M8X22 THA 		8-98050-437-0 04 1 1312- ● ●
169 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97166-110-0 04 1 1310-1311 ●
169 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97166-110-0 04 1 1312- ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 1310-1408 ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 1409- ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 AR 1 1409- ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 02 1 1310-1311 ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 02 1 1310-1311 ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 02 1 1312-1408 ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 02 1 1312-1408 ● ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1310-1311 ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1310-1311 ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1312- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1312- ● ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1310-1311 ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1310-1311 ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1312- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1312- ● ●
189 BOLT; HINGE,RR GATE
(C) M8X22 THA 		8-98050-437-0 02 1 1310-1311 ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (C) M8X22 THA 		8-98050-437-0 02 1 1310-1311 ●
189 BOLT; HINGE,RR GATE
(C) M8X22 THA 		8-98050-437-0 02 1 1312- ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (C) M8X22 THA 		8-98050-437-0 02 1 1312- ● ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-565-1 01 1 1310-1311 ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-565-2 01 1 1312- ● ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-566-1 01 1 1310-1311 ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-566-2 01 1 1312- ● ●
246 STIFFENER
THA 		8-98184-275-1 02 1 1310-1311 ● ● ● ●
246 STIFFENER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98184-275-1 02 1 1310-1311 ●
246 STIFFENER
THA 		8-98184-275-1 02 1 1312- ● ● ● ●
246 STIFFENER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98184-275-1 02 1 1312- ● ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-333-0 01 1 1310-1311 ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-333-0 01 1 1312- ● ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-336-0 01 1 1310-1311 ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-336-0 01 1 1312- ● ●
256 SPRING; LID,FUEL FILLER
THA 		8-98141-610-3 01 1 1310-1311 ● ● ● ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98141-610-3 01 1 1310-1311 ●
256 SPRING; LID,FUEL FILLER
THA 		8-98141-610-3 01 1 1312- ● ● ● ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98141-610-3 01 1 1312- ● ●
279 SPACER
THA 		8-97357-403-0 02 1 1310-1311 ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1310-1311 ●
279 SPACER
THA 		8-97357-403-0 02 1 1312- ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1312- ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-244-2 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-244-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-245-2 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-245-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1310-1311 ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1310-1311 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1312-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1312-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-117-0 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1310-1311 ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1310-1311 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1312-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1312-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-118-0 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1310- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-543-0 01 1 1310- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1310- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-544-0 01 1 1310- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1310- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-062-2 01 1 1310- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1310- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-063-2 01 1 1310- ●
292 EXTENSION; RR BODY
(A) THA 		8-98104-156-0 04 1 1310- ● ● ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98104-134-1 01 1 1310- ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98156-912-0 01 1 1310- ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-156-0 08 1 1310-1311 ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-156-0 08 1 1312- ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-405-3 01 1 1310-1311 ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-405-3 01 1 1310-1311 ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-405-3 01 1 1312- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-405-3 01 1 1312- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-405-3 01 1 1312- ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-406-3 01 1 1310-1311 ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-406-3 01 1 1310-1311 ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-406-3 01 1 1312- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-406-3 01 1 1312- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-406-3 01 1 1312- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-392-2 01 1 1310- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-392-2 01 1 1310- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-393-2 01 1 1310- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-393-2 01 1 1310- ●
295 BRACKET; FILLER
THA 		8-98104-666-1 01 1 1310-1311 ● ● ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-666-1 01 1 1310-1311 ●
295 BRACKET; FILLER
THA 		8-98104-666-1 01 1 1312- ● ● ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-666-1 01 1 1312- ● ●
296 BRACKET; RR BODY
(A) THA 		8-98104-649-0 02 1 1310-1311 ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-649-0 02 1 1310-1311 ●
296 BRACKET; RR BODY
(A) THA 		8-98104-649-0 02 1 1312- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-649-0 02 1 1312- ● ●
296 BRACKET; RR BODY
(B) THA 		8-98104-665-1 02 1 1310-1311 ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-665-1 02 1 1310-1311 ●
296 BRACKET; RR BODY
(B) THA 		8-98104-665-1 02 1 1312- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-665-1 02 1 1312- ● ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-642-3 01 1 1310- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-642-3 01 1 1310- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-643-3 01 1 1310- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-643-3 01 1 1310- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-648-3 01 1 1310- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-648-3 01 1 1310- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-649-3 01 1 1310- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-649-3 01 1 1310- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-640-5 01 1 1310- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-641-5 01 1 1310- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-646-2 01 1 1310- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-647-2 01 1 1310- ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1310-1311 ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1310-1311 ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1312- ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1312- ● ●
301 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 1310-1311 ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98053-899-0 01 1 1310-1311 ●
301 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 1312- ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98053-899-0 01 1 1312- ● ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-603-1 01 1 1310-1311 ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-603-1 01 1 1312- ● ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-604-1 01 1 1310-1311 ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-604-1 01 1 1312- ● ●
348 REINFORCEMENT; RR BODY,INRL
THA 		8-98104-619-0 02 1 1310-1311 ● ●
348 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-619-0 02 1 1310-1311 ●
348 REINFORCEMENT; RR BODY,INRL
THA 		8-98104-619-0 02 1 1312- ● ●
348 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-619-0 02 1 1312- ● ●
349 REINFORCEMENT; RR BODY,SILL
(A) THA 		8-98104-614-2 02 1 1310-1311 ● ● ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-614-2 02 1 1310-1311 ●
349 REINFORCEMENT; RR BODY,SILL
(A) THA 		8-98104-614-2 02 1 1312- ● ● ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-614-2 02 1 1312- ● ●
349 REINFORCEMENT; RR BODY,SILL
(B) THA 		8-98104-613-2 02 1 1310- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-613-2 04 1 1310-1311 ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-613-2 04 1 1312- ● ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-650-1 01 1 1310- ● ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-651-1 01 1 1310- ● ●
350 SEAL; TAPE
UPPER THA 		8-98192-937-0 02 1 1310-1311 ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> UPPER THA 		8-98192-937-0 02 1 1310-1311 ●
350 SEAL; TAPE
UPPER THA 		8-98192-937-0 02 1 1312- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> UPPER THA 		8-98192-937-0 02 1 1312- ● ●
350 SEAL; TAPE
LOWER THA 		8-98192-940-0 02 1 1310-1311 ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> LOWER THA 		8-98192-940-0 02 1 1310-1311 ●
350 SEAL; TAPE
LOWER THA 		8-98192-940-0 02 1 1312- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> LOWER THA 		8-98192-940-0 02 1 1312- ● ●
çizim 374753
112 125 294 290 293 292 349 290 147 175 175 147 296 348 349 290 292 293 295 292 292 349 350 348 296 55 55 246 296 121 189 189 188 279 7 300 189 189 135 158 301 158 135 7 189 55 55 121 296 292 246 350 292 290 349 294 125 112 125 126 127 256 129 1 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GATE ASM; RR
THA 		8-98104-332-9 01 1 1310- ● ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98198-539-2 01 1 1310-1311 ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98198-539-2 01 1 1312- ● ●
1 GATE ASM; RR
THA 		8-98104-362-9 01 1 1310- ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-948-0 01 1 1310-1311 ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-948-0 01 1 1310-1311 ●
7 HINGE ASM; RR GATE
THA 		8-98180-948-0 01 1 1312- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-948-0 01 1 1312- ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-949-0 01 1 1310-1311 ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-949-0 01 1 1310-1311 ●
7 HINGE ASM; RR GATE
THA 		8-98180-949-0 01 1 1312- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-949-0 01 1 1312- ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-259-6 01 1 1310- ● ● ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-261-6 01 1 1310- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-378-7 01 1 1310- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-379-7 01 1 1310- ● ● ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-262-5 01 1 1310-1311 ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-262-5 01 1 1312- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-264-5 01 1 1310-1311 ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-264-5 01 1 1312- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-380-4 01 1 1310-1311 ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-380-4 01 1 1312- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-381-4 01 1 1310-1311 ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-381-4 01 1 1312- ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98122-518-7 01 1 1312- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98122-519-9 01 1 1312- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-558-9 01 1 1310- ●
112 PANEL; SIDE GATE
THA 		8-98104-558-9 01 1 1310- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98205-935-1 01 1 1310- ●
112 PANEL; SIDE GATE
THA 		8-98205-935-1 01 1 1310- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-548-9 01 1 1310- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-549-7 01 1 1310- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-553-8 01 1 1310- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-555-6 01 1 1310- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-560-9 01 1 1310- ●
112 PANEL; SIDE GATE
THA 		8-98104-560-9 01 1 1310- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-561-7 01 1 1310- ●
112 PANEL; SIDE GATE
THA 		8-98104-561-7 01 1 1310- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-551-8 01 1 1310- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-552-6 01 1 1310- ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-608-4 01 1 1310- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-609-4 01 1 1310- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-927-5 01 1 1310-1311 ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-927-6 01 1 1312- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-928-4 01 1 1310-1311 ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-928-5 01 1 1312- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-294-7 01 1 1310- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-296-7 01 1 1310- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-234-7 01 1 1310-1311 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) THA 		8-98104-234-7 01 1 1310-1311 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-234-7 01 1 1312- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) THA 		8-98104-234-7 01 1 1312- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-234-7 01 1 1312- ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-868-4 01 1 1310- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-869-4 01 1 1310- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-233-7 01 1 1310- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-233-7 01 1 1310- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-180-1 01 1 1310-1311 ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-180-1 01 1 1312- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-181-1 01 1 1310-1311 ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-181-1 01 1 1312- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-189-4 01 1 1310- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-192-4 01 1 1310- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-98144-635-1 03 1 1310-1311 ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98144-635-1 03 1 1310-1311 ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-98144-635-1 03 1 1312- ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98144-635-1 03 1 1312- ● ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 1310-1311 ● ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> M6X16 THA 		8-98056-287-0 02 1 1310-1311 ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 1312- ● ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> M6X16 THA 		8-98056-287-0 02 1 1312- ● ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-298-7 01 1 1310-1311 ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-98103-298-7 01 1 1310-1311 ● ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-298-7 01 1 1312- ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-98103-298-7 01 1 1312- ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98103-298-7 01 1 1312- ●
129 LID ASM; FUEL FILLER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-297-6 01 1 1310- ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98103-297-6 01 1 1310- ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 1310- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 1310- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-656-2 01 1 1310-1311 ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-656-2 01 1 1312- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-657-2 01 1 1310-1311 ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-657-2 01 1 1312- ● ●
147 HOOK ASM; ROPE,FRT
THA 		8-98202-587-0 04 1 1310- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 1310- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> M8X22 THA 		8-98050-437-0 04 1 1310-1311 ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> M8X22 THA 		8-98050-437-0 04 1 1312- ● ●
175 BOLT; SET,RR GATE HOOK
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1310- ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 1310-1408 ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 1409- ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 AR 1 1409- ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 02 1 1310-1311 ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 02 1 1310-1311 ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 02 1 1312-1408 ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 02 1 1312-1408 ● ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1310-1311 ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1310-1311 ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1312- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1312- ● ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1310-1311 ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1310-1311 ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1312- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1312- ● ●
189 BOLT; HINGE,RR GATE
(C) M8X22 THA 		8-98050-437-0 02 1 1310-1311 ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (C) M8X22 THA 		8-98050-437-0 02 1 1310-1311 ●
189 BOLT; HINGE,RR GATE
(C) M8X22 THA 		8-98050-437-0 02 1 1312- ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (C) M8X22 THA 		8-98050-437-0 02 1 1312- ● ●
246 STIFFENER
THA 		8-98184-275-1 02 1 1310-1311 ● ● ● ●
246 STIFFENER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98184-275-1 02 1 1310-1311 ●
246 STIFFENER
THA 		8-98184-275-1 02 1 1312- ● ● ● ●
246 STIFFENER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98184-275-1 02 1 1312- ● ●
256 SPRING; LID,FUEL FILLER
THA 		8-98141-610-3 01 1 1310-1311 ● ● ● ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98141-610-3 01 1 1310-1311 ●
256 SPRING; LID,FUEL FILLER
THA 		8-98141-610-3 01 1 1312- ● ● ● ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98141-610-3 01 1 1312- ● ●
279 SPACER
THA 		8-97357-403-0 02 1 1310-1311 ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1310-1311 ●
279 SPACER
THA 		8-97357-403-0 02 1 1312- ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1312- ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-244-2 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-244-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1310-1311 ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1312-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-245-2 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-245-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1310-1311 ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1310-1311 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1312-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1312-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-117-0 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1310-1311 ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1310-1311 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1312-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1312-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-118-0 01 1 1312-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1310- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-543-0 01 1 1310- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1310- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-544-0 01 1 1310- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1310- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-062-2 01 1 1310- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1310- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-063-2 01 1 1310- ●
292 EXTENSION; RR BODY
(A) THA 		8-98104-156-0 04 1 1310- ● ● ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98104-134-1 01 1 1310- ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98156-912-0 01 1 1310- ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-156-0 08 1 1310-1311 ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-156-0 08 1 1312- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98144-610-1 01 1 1310- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98144-611-1 01 1 1310- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98104-611-2 01 1 1310- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98104-612-2 01 1 1310- ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-405-3 01 1 1310-1311 ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-405-3 01 1 1310-1311 ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-405-3 01 1 1312- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-405-3 01 1 1312- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-405-3 01 1 1312- ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-406-3 01 1 1310-1311 ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-406-3 01 1 1310-1311 ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-406-3 01 1 1312- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-406-3 01 1 1312- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-406-3 01 1 1312- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-392-2 01 1 1310- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-392-2 01 1 1310- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-393-2 01 1 1310- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-393-2 01 1 1310- ●
295 BRACKET; FILLER
THA 		8-98104-666-1 01 1 1310-1311 ● ● ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-666-1 01 1 1310-1311 ●
295 BRACKET; FILLER
THA 		8-98104-666-1 01 1 1312- ● ● ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-666-1 01 1 1312- ● ●
296 BRACKET; RR BODY
(A) THA 		8-98104-649-0 02 1 1310-1311 ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-649-0 02 1 1310-1311 ●
296 BRACKET; RR BODY
(A) THA 		8-98104-649-0 02 1 1312- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-649-0 02 1 1312- ● ●
296 BRACKET; RR BODY
(B) THA 		8-98104-665-1 02 1 1310-1311 ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-665-1 02 1 1310-1311 ●
296 BRACKET; RR BODY
(B) THA 		8-98104-665-1 02 1 1312- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-665-1 02 1 1312- ● ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-642-3 01 1 1310- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-642-3 01 1 1310- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-643-3 01 1 1310- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-643-3 01 1 1310- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-648-3 01 1 1310- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-648-3 01 1 1310- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-649-3 01 1 1310- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-649-3 01 1 1310- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-640-5 01 1 1310- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-641-5 01 1 1310- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-646-2 01 1 1310- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-647-2 01 1 1310- ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1310-1311 ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1310-1311 ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1312- ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1312- ● ●
301 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 1310-1311 ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98053-899-0 01 1 1310-1311 ●
301 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 1312- ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98053-899-0 01 1 1312- ● ●
348 REINFORCEMENT; RR BODY,INRL
THA 		8-98104-619-0 02 1 1310-1311 ● ●
348 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-619-0 02 1 1310-1311 ●
348 REINFORCEMENT; RR BODY,INRL
THA 		8-98104-619-0 02 1 1312- ● ●
348 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-619-0 02 1 1312- ● ●
349 REINFORCEMENT; RR BODY,SILL
(A) THA 		8-98104-614-2 02 1 1310-1311 ● ● ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-614-2 02 1 1310-1311 ●
349 REINFORCEMENT; RR BODY,SILL
(A) THA 		8-98104-614-2 02 1 1312- ● ● ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-614-2 02 1 1312- ● ●
349 REINFORCEMENT; RR BODY,SILL
(B) THA 		8-98104-613-2 02 1 1310- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-613-2 04 1 1310-1311 ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-613-2 04 1 1312- ● ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-650-1 01 1 1310- ● ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-651-1 01 1 1310- ● ●
350 SEAL; TAPE
UPPER THA 		8-98192-937-0 02 1 1310-1311 ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> UPPER THA 		8-98192-937-0 02 1 1310-1311 ●
350 SEAL; TAPE
UPPER THA 		8-98192-937-0 02 1 1312- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> UPPER THA 		8-98192-937-0 02 1 1312- ● ●
350 SEAL; TAPE
LOWER THA 		8-98192-940-0 02 1 1310-1311 ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> LOWER THA 		8-98192-940-0 02 1 1310-1311 ●
350 SEAL; TAPE
LOWER THA 		8-98192-940-0 02 1 1312- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> LOWER THA 		8-98192-940-0 02 1 1312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
