Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10876 - EXZ RHD FUEL TANK 200L+200L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#12649) — 33 parça
Tümü
A - 10PE1S
B - 10PE1H
◀

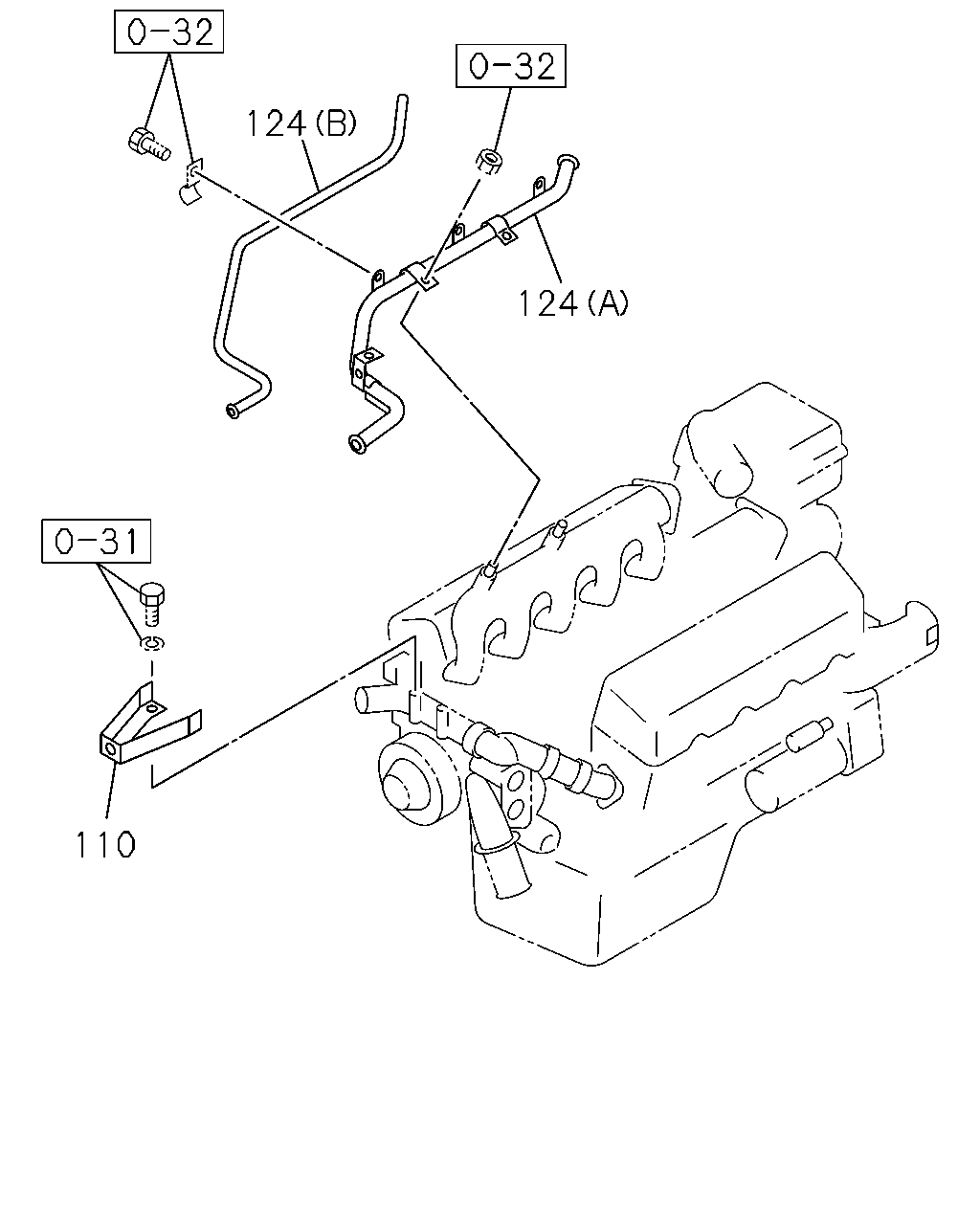

[110A] FAN GUIDE STAY,WATER PIPE (3 parça)

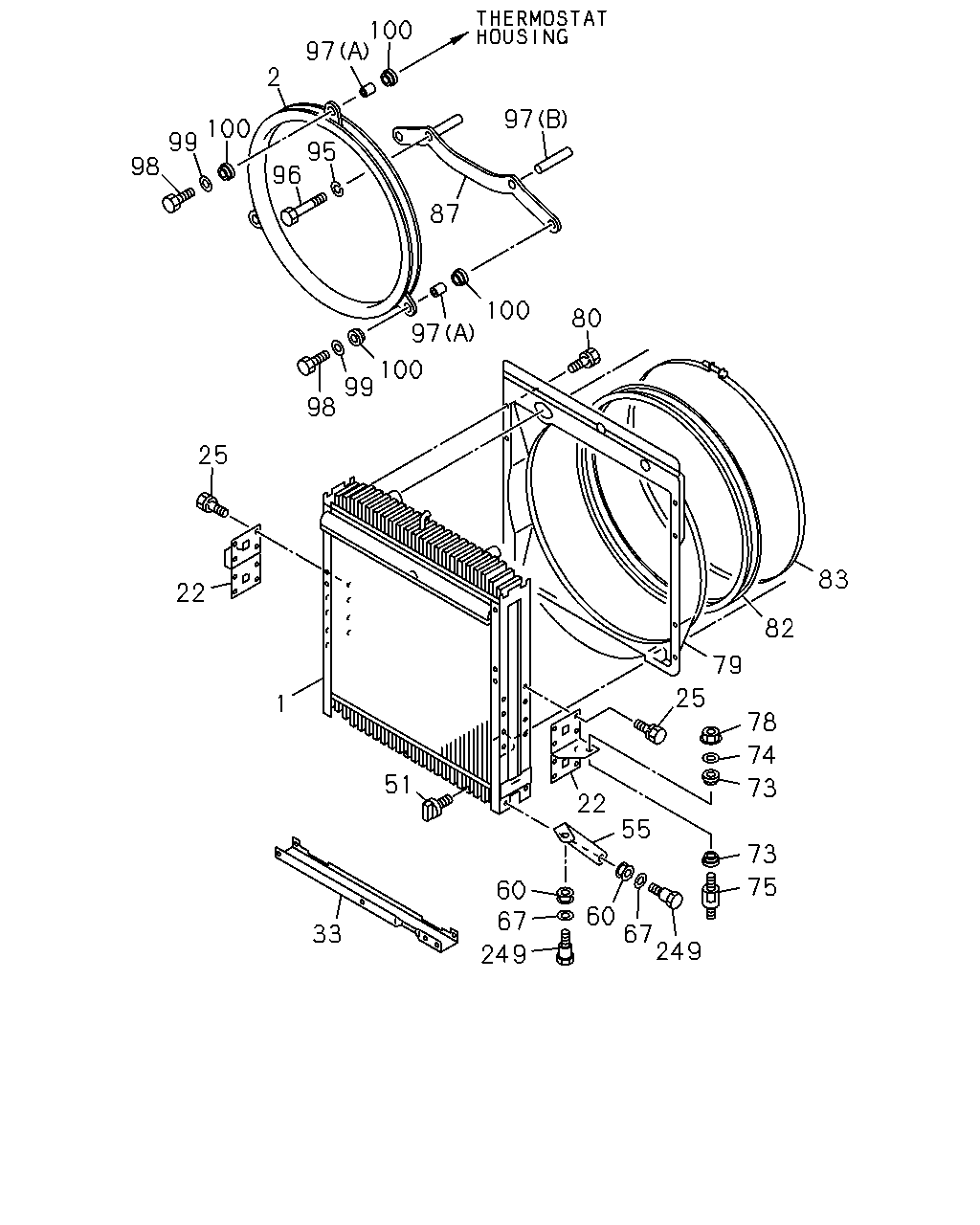

[110A] RADIATOR ASM,FAN GUIDE (30 parça)
▶
124
124
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
110
STAY; FAN GUIDE
1-21559-104-2
01
1
0105-
●
●
124
PIPE; WATER,TANK TO RAD
(A)
1-13711-667-2
01
1
0105-
●
●
124
PIPE; WATER,TANK TO RAD
(B)
1-13711-728-0
01
1
0105-
●
●
100
97
2
97
100
99
98
95
96
87
100
97
100
99
98
80
25
83
22
82
79
25
1
78
74
73
51
22
55
73
75
60
67
249
60
67
249
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
1-21410-685-0
01
1
0105-
●
●
2
GUIDE; FAN
1-21551-235-3
01
1
0105-
●
●
22
BRACKET; RAD MTG
1-21464-382-0
01
1
0105-
●
●
22
BRACKET; RAD MTG
1-21464-381-0
01
1
0105-
●
●
25
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
14
1
0105-
●
●
33
PROTECTOR; RAD
1-21419-050-0
01
1
0105-
●
●
51
PLUG; DRAIN
W/GASKET
1-09609-009-0
01
1
0105-
●
●
55
STAY; RAD TO UPR MBR
1-21464-386-0
01
1
0105-
●
●
55
STAY; RAD TO UPR MBR
1-21464-385-0
01
1
0105-
●
●
60
GROMMET
1-09332-117-0
04
1
0105-
●
●
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
9-09160-612-0
04
1
0105-
●
●
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
0105-
●
●
74
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
1-09503-154-1
02
1
0105-
●
●
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
0105-
●
●
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91150-210-0
02
1
0105-
●
●
79
GUIDE; FAN,RAD
1-21551-477-0
01
1
0105-
●
●
80
BOLT; FAN GUIDE
M8X12 FLANGE
0-28080-812-0
12
1
0105-
●
●
82
COVER; FAN,RAD
1-21559-134-1
01
1
0105-
●
●
83
CLIP; FAN COVER
1-09707-127-1
01
1
0105-
●
●
87
STAY; FAN GUIDE
1-21559-285-0
01
1
0105-
●
●
95
WASHER; LK
ID=12.2
9-09150-512-0
02
1
0105-
●
●
96
BOLT; STAY FIX
M12X160
1-09020-067-1
02
1
0105-
●
●
97
TUBE; DIST,FAN GUIDE
(B) ID=27.6 L=138.8
1-13666-037-0
01
1
0105-
●
●
97
TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27
1-21559-149-0
03
1
0105-
●
●
98
BOLT; RAD FAN GUIDE
M8X45 FLANGE
0-28080-845-0
03
1
0105-
●
●
99
WASHER; PL
ID=8.4 OD=26
9-09164-808-0
03
1
0105-
●
●
100
RUBBER; MTG
1-09337-017-0
06
1
0105-
●
●
249
BOLT; STAY,RAD MBR
M8X30
1-09009-020-1
04
1
0105-0201
●
●
249
BOLT; STAY,RAD MBR
M8X30
1-09009-020-1
02
1
0202-
●
●
249
BOLT; STAY,RAD MBR
M8X26
1-09009-175-0
02
1
0202-
●
●
