◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 9 - Tools ▶ 9-31 - REAR BODY; FLOOR AND FENDER ▶
9-31 — REAR BODY; FLOOR AND FENDER (#126488) — 179 parça

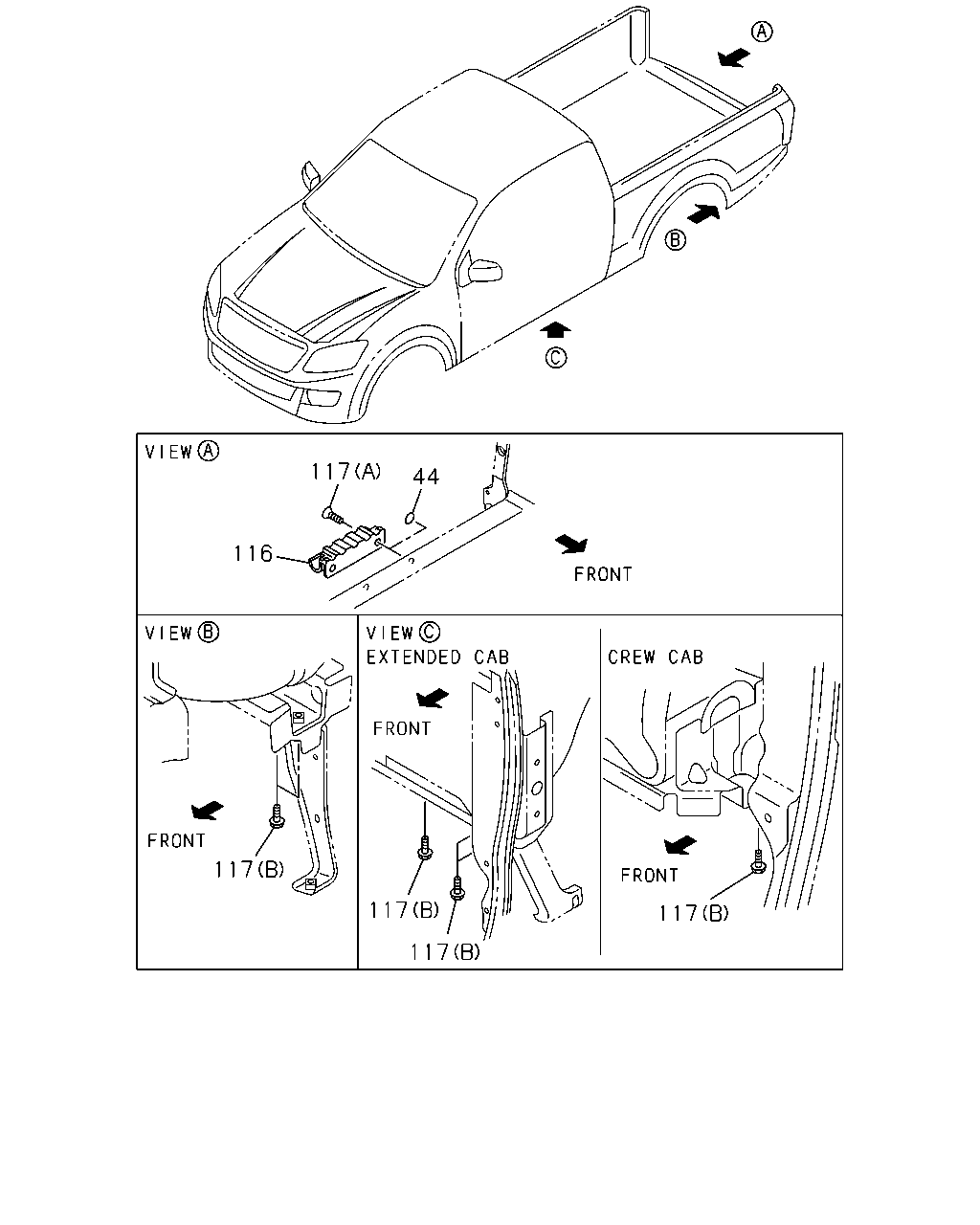

çizim 373693
116 117 44 117 117 117 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 SEAL; RR POST,RR BODY
OD=25 BLACK THA 		1-76798-019-0 02 1 1310- ● ●
116 SUPPORT; RR BODY,SILL
THA 		8-98104-017-1 01 1 1310-1311 ● ●
116 SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-017-1 01 1 1310-1311 ●
116 SUPPORT; RR BODY,SILL
THA 		8-98104-017-1 01 1 1312- ● ●
116 SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-017-1 01 1 1312- ● ●
117 BOLT; SILL
(B) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 10 1 1409- ● ● ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 10 1 1409- ● ●
117 BOLT; SILL
(B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 18 1 1310-1311 ● ● ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 18 1 1310-1311 ●
117 BOLT; SILL
(B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 18 1 1312-1408 ● ● ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 18 1 1312-1408 ● ●
117 BOLT; SILL
(B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1409-1411 ● ● ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1409-1411 ● ●
117 BOLT; SILL
(B) M8X20 THA 		8-98294-857-0 08 1 1412- ● ● ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20 THA 		8-98294-857-0 08 1 1412- ● ●
117 BOLT; SILL
(A) M8X22 THA 		8-98050-437-0 02 1 1310-1311 ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) M8X22 THA 		8-98050-437-0 02 1 1310-1311 ●
117 BOLT; SILL
(A) M8X22 THA 		8-98050-437-0 02 1 1312- ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) M8X22 THA 		8-98050-437-0 02 1 1312- ● ●
117 BOLT; SILL
(B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1310-1411 ● ●
117 BOLT; SILL
(B) M8X20 THA 		8-98294-857-0 06 1 1412- ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 12 1 1310-1311 ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 12 1 1312-1411 ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20 THA 		8-98294-857-0 12 1 1412- ● ●
117 BOLT; SILL
(B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1310-1505 ● ●
117 BOLT; SILL
(B) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●

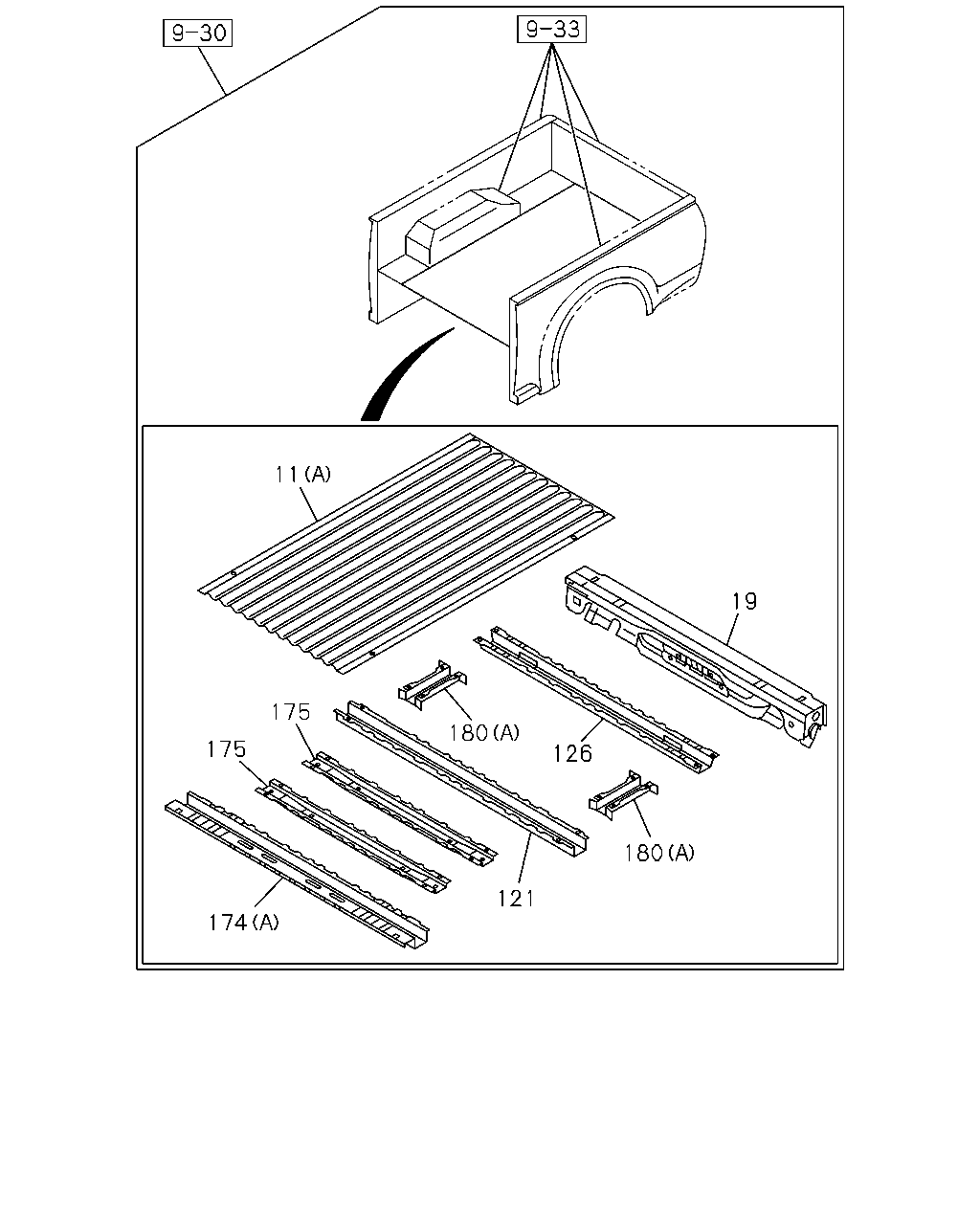

çizim 373694
11 175 175 174 180 126 121 180 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 PANEL; FLOOR BOARD,RR BODY
(A) THA 		8-98104-154-1 01 1 1310- ● ●
11 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98104-150-1 01 1 1310-1311 ●
11 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98104-150-1 01 1 1312- ● ●
11 PANEL; FLOOR BOARD,RR BODY
(B) THA 		8-98104-159-2 01 1 1310- ● ●
19 BOLSTER; RR END,RR BODY
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98210-518-0 01 1 1310- ● ●
19 BOLSTER; RR END,RR BODY
REAR STEP BUMPER CHROME<V42> THA 		8-98210-518-0 01 1 1310- ● ●
19 BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98104-216-7 01 1 1310-1311 ● ●
19 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-216-7 01 1 1310-1311 ●
19 BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> THA 		8-98104-216-7 01 1 1310-1311 ● ●
19 BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98104-216-7 01 1 1312- ● ●
19 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-216-7 01 1 1312- ● ●
19 BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> THA 		8-98104-216-7 01 1 1312- ● ●
121 BOLSTER; RR BODY
THA 		8-98104-194-2 01 1 1310-1311 ● ● ● ●
121 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-194-2 01 1 1310-1311 ●
121 BOLSTER; RR BODY
THA 		8-98104-194-2 01 1 1312- ● ● ● ●
121 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-194-2 01 1 1312- ● ●
126 BOLSTER; FRT END,RR BODY
THA 		8-98104-201-2 01 1 1310-1311 ● ● ● ●
126 BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-201-2 01 1 1310-1311 ●
126 BOLSTER; FRT END,RR BODY
THA 		8-98104-201-2 01 1 1312- ● ● ● ●
126 BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-201-2 01 1 1312- ● ●
174 SILL; RR BODY CROSS NO.1
(A) THA 		8-98140-852-4 01 1 1310- ● ●
174 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98104-179-1 02 1 1310-1311 ●
174 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98104-179-1 02 1 1312- ● ●
174 SILL; RR BODY CROSS NO.1
(B) THA 		8-98104-258-3 01 1 1310- ● ●
175 SILL; RR BODY CROSS NO.2
THA 		8-98104-191-2 02 1 1310-1311 ● ●
175 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-191-2 02 1 1310-1311 ●
175 SILL; RR BODY CROSS NO.2
THA 		8-98104-191-2 02 1 1312- ● ●
175 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-191-2 02 1 1312- ● ●
175 SILL; RR BODY CROSS NO.2
THA 		8-98104-191-2 01 1 1310- ● ●
180 REINFORCEMENT; SILL
(A) THA 		8-98104-197-0 02 1 1310-1311 ● ● ● ●
180 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-197-0 02 1 1310-1311 ●
180 REINFORCEMENT; SILL
(A) THA 		8-98104-197-0 02 1 1312- ● ● ● ●
180 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-197-0 02 1 1312- ● ●
180 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-185-0 02 1 1310-1311 ●
180 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-185-0 02 1 1312- ● ●

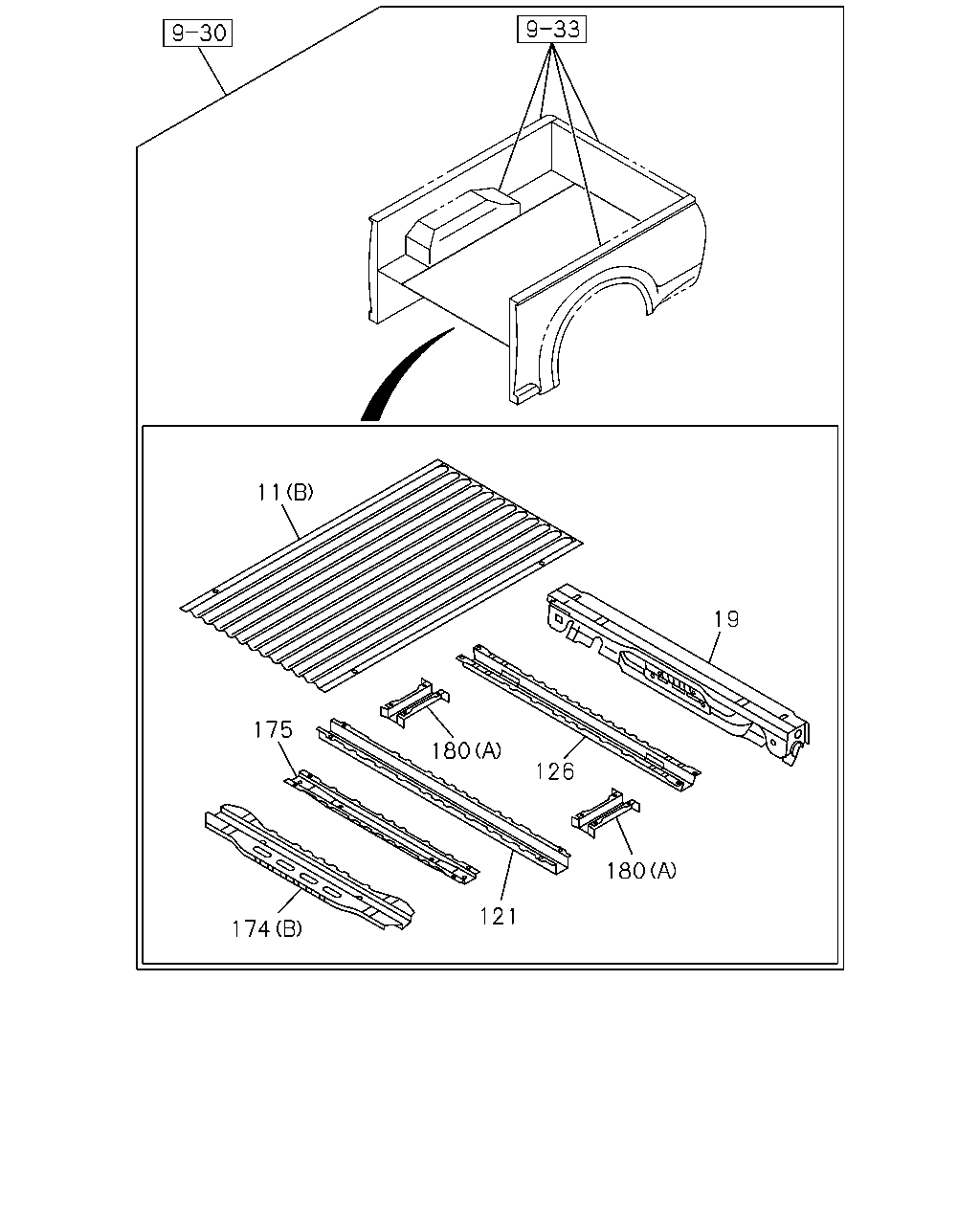

çizim 373695
11 175 174 180 121 126 180 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 PANEL; FLOOR BOARD,RR BODY
(A) THA 		8-98104-154-1 01 1 1310- ● ●
11 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98104-150-1 01 1 1310-1311 ●
11 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98104-150-1 01 1 1312- ● ●
11 PANEL; FLOOR BOARD,RR BODY
(B) THA 		8-98104-159-2 01 1 1310- ● ●
19 BOLSTER; RR END,RR BODY
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98210-518-0 01 1 1310- ● ●
19 BOLSTER; RR END,RR BODY
REAR STEP BUMPER CHROME<V42> THA 		8-98210-518-0 01 1 1310- ● ●
19 BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98104-216-7 01 1 1310-1311 ● ●
19 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-216-7 01 1 1310-1311 ●
19 BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> THA 		8-98104-216-7 01 1 1310-1311 ● ●
19 BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98104-216-7 01 1 1312- ● ●
19 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-216-7 01 1 1312- ● ●
19 BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> THA 		8-98104-216-7 01 1 1312- ● ●
121 BOLSTER; RR BODY
THA 		8-98104-194-2 01 1 1310-1311 ● ● ● ●
121 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-194-2 01 1 1310-1311 ●
121 BOLSTER; RR BODY
THA 		8-98104-194-2 01 1 1312- ● ● ● ●
121 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-194-2 01 1 1312- ● ●
126 BOLSTER; FRT END,RR BODY
THA 		8-98104-201-2 01 1 1310-1311 ● ● ● ●
126 BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-201-2 01 1 1310-1311 ●
126 BOLSTER; FRT END,RR BODY
THA 		8-98104-201-2 01 1 1312- ● ● ● ●
126 BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-201-2 01 1 1312- ● ●
174 SILL; RR BODY CROSS NO.1
(A) THA 		8-98140-852-4 01 1 1310- ● ●
174 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98104-179-1 02 1 1310-1311 ●
174 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98104-179-1 02 1 1312- ● ●
174 SILL; RR BODY CROSS NO.1
(B) THA 		8-98104-258-3 01 1 1310- ● ●
175 SILL; RR BODY CROSS NO.2
THA 		8-98104-191-2 02 1 1310-1311 ● ●
175 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-191-2 02 1 1310-1311 ●
175 SILL; RR BODY CROSS NO.2
THA 		8-98104-191-2 02 1 1312- ● ●
175 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-191-2 02 1 1312- ● ●
175 SILL; RR BODY CROSS NO.2
THA 		8-98104-191-2 01 1 1310- ● ●
180 REINFORCEMENT; SILL
(A) THA 		8-98104-197-0 02 1 1310-1311 ● ● ● ●
180 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-197-0 02 1 1310-1311 ●
180 REINFORCEMENT; SILL
(A) THA 		8-98104-197-0 02 1 1312- ● ● ● ●
180 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-197-0 02 1 1312- ● ●
180 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-185-0 02 1 1310-1311 ●
180 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-185-0 02 1 1312- ● ●

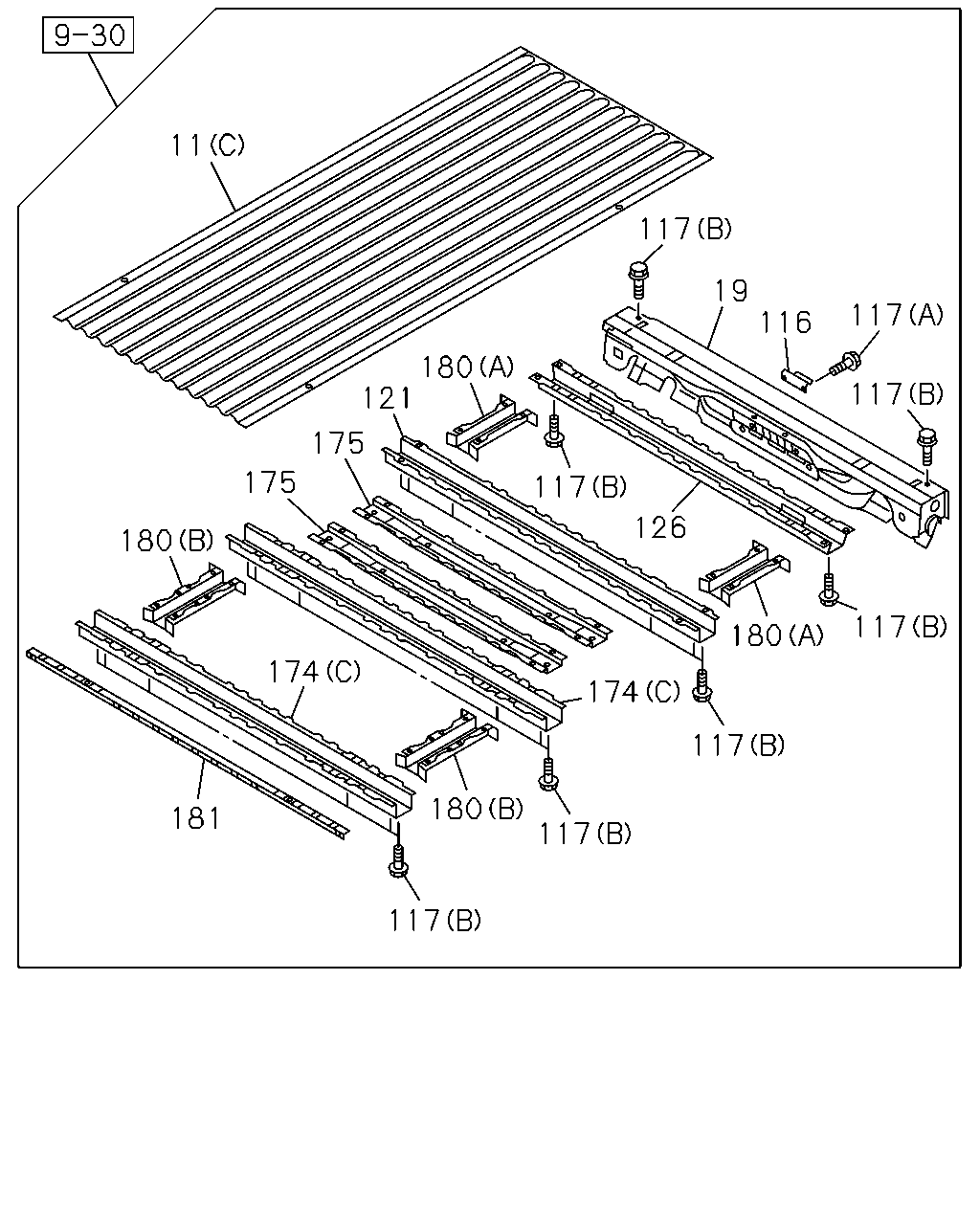

çizim 374172
11 180 175 174 181 180 117 117 175 121 180 117 126 180 174 117 117 117 117 116 19 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 PANEL; FLOOR BOARD,RR BODY
(A) THA 		8-98104-154-1 01 1 1310- ● ●
11 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98104-150-1 01 1 1310-1311 ●
11 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98104-150-1 01 1 1312- ● ●
11 PANEL; FLOOR BOARD,RR BODY
(B) THA 		8-98104-159-2 01 1 1310- ● ●
19 BOLSTER; RR END,RR BODY
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98210-518-0 01 1 1310- ● ●
19 BOLSTER; RR END,RR BODY
REAR STEP BUMPER CHROME<V42> THA 		8-98210-518-0 01 1 1310- ● ●
19 BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98104-216-7 01 1 1310-1311 ● ●
19 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-216-7 01 1 1310-1311 ●
19 BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> THA 		8-98104-216-7 01 1 1310-1311 ● ●
19 BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98104-216-7 01 1 1312- ● ●
19 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-216-7 01 1 1312- ● ●
19 BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> THA 		8-98104-216-7 01 1 1312- ● ●
116 SUPPORT; RR BODY,SILL
THA 		8-98104-017-1 01 1 1310-1311 ● ●
116 SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-017-1 01 1 1310-1311 ●
116 SUPPORT; RR BODY,SILL
THA 		8-98104-017-1 01 1 1312- ● ●
116 SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-017-1 01 1 1312- ● ●
117 BOLT; SILL
(B) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 10 1 1409- ● ● ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 10 1 1409- ● ●
117 BOLT; SILL
(B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 18 1 1310-1311 ● ● ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 18 1 1310-1311 ●
117 BOLT; SILL
(B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 18 1 1312-1408 ● ● ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 18 1 1312-1408 ● ●
117 BOLT; SILL
(B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1409-1411 ● ● ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1409-1411 ● ●
117 BOLT; SILL
(B) M8X20 THA 		8-98294-857-0 08 1 1412- ● ● ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20 THA 		8-98294-857-0 08 1 1412- ● ●
117 BOLT; SILL
(A) M8X22 THA 		8-98050-437-0 02 1 1310-1311 ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) M8X22 THA 		8-98050-437-0 02 1 1310-1311 ●
117 BOLT; SILL
(A) M8X22 THA 		8-98050-437-0 02 1 1312- ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) M8X22 THA 		8-98050-437-0 02 1 1312- ● ●
117 BOLT; SILL
(B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1310-1411 ● ●
117 BOLT; SILL
(B) M8X20 THA 		8-98294-857-0 06 1 1412- ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 12 1 1310-1311 ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 12 1 1312-1411 ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20 THA 		8-98294-857-0 12 1 1412- ● ●
117 BOLT; SILL
(B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1310-1505 ● ●
117 BOLT; SILL
(B) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
121 BOLSTER; RR BODY
THA 		8-98104-194-2 01 1 1310-1311 ● ● ● ●
121 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-194-2 01 1 1310-1311 ●
121 BOLSTER; RR BODY
THA 		8-98104-194-2 01 1 1312- ● ● ● ●
121 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-194-2 01 1 1312- ● ●
126 BOLSTER; FRT END,RR BODY
THA 		8-98104-201-2 01 1 1310-1311 ● ● ● ●
126 BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-201-2 01 1 1310-1311 ●
126 BOLSTER; FRT END,RR BODY
THA 		8-98104-201-2 01 1 1312- ● ● ● ●
126 BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-201-2 01 1 1312- ● ●
174 SILL; RR BODY CROSS NO.1
(A) THA 		8-98140-852-4 01 1 1310- ● ●
174 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98104-179-1 02 1 1310-1311 ●
174 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98104-179-1 02 1 1312- ● ●
174 SILL; RR BODY CROSS NO.1
(B) THA 		8-98104-258-3 01 1 1310- ● ●
175 SILL; RR BODY CROSS NO.2
THA 		8-98104-191-2 02 1 1310-1311 ● ●
175 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-191-2 02 1 1310-1311 ●
175 SILL; RR BODY CROSS NO.2
THA 		8-98104-191-2 02 1 1312- ● ●
175 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-191-2 02 1 1312- ● ●
175 SILL; RR BODY CROSS NO.2
THA 		8-98104-191-2 01 1 1310- ● ●
180 REINFORCEMENT; SILL
(A) THA 		8-98104-197-0 02 1 1310-1311 ● ● ● ●
180 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-197-0 02 1 1310-1311 ●
180 REINFORCEMENT; SILL
(A) THA 		8-98104-197-0 02 1 1312- ● ● ● ●
180 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-197-0 02 1 1312- ● ●
180 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-185-0 02 1 1310-1311 ●
180 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-185-0 02 1 1312- ● ●
181 EXTENSION; PUBX,SILL
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-171-1 01 1 1310-1311 ●
181 EXTENSION; PUBX,SILL
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-171-1 01 1 1312- ● ●

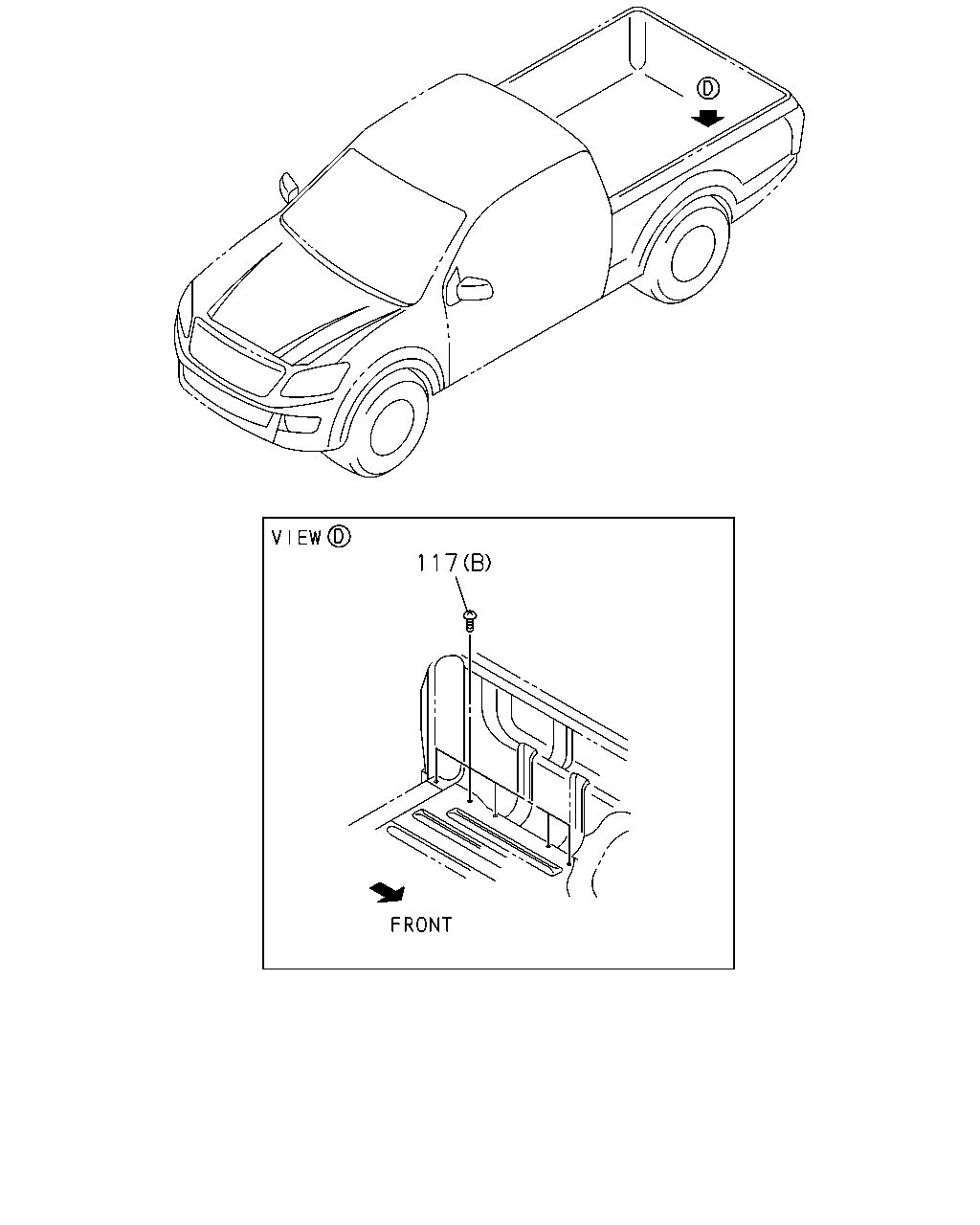

çizim 374245
117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
117 BOLT; SILL
(B) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 10 1 1409- ● ● ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 10 1 1409- ● ●
117 BOLT; SILL
(B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 18 1 1310-1311 ● ● ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 18 1 1310-1311 ●
117 BOLT; SILL
(B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 18 1 1312-1408 ● ● ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 18 1 1312-1408 ● ●
117 BOLT; SILL
(B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1409-1411 ● ● ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1409-1411 ● ●
117 BOLT; SILL
(B) M8X20 THA 		8-98294-857-0 08 1 1412- ● ● ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20 THA 		8-98294-857-0 08 1 1412- ● ●
117 BOLT; SILL
(A) M8X22 THA 		8-98050-437-0 02 1 1310-1311 ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) M8X22 THA 		8-98050-437-0 02 1 1310-1311 ●
117 BOLT; SILL
(A) M8X22 THA 		8-98050-437-0 02 1 1312- ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) M8X22 THA 		8-98050-437-0 02 1 1312- ● ●
117 BOLT; SILL
(B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1310-1411 ● ●
117 BOLT; SILL
(B) M8X20 THA 		8-98294-857-0 06 1 1412- ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 12 1 1310-1311 ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 12 1 1312-1411 ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20 THA 		8-98294-857-0 12 1 1412- ● ●
117 BOLT; SILL
(B) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1310-1505 ● ●
117 BOLT; SILL
(B) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
