Isuzu WW
▶
PICKUP
▶
TFR
▶
51491 - TFR/TFS(THAILAND)
▶
9 - Tools
▶
9-30 - REAR BODY ASM AND MOUNTING
▶
9-30 — REAR BODY ASM AND MOUNTING
(#126487) — 23 parça
Tümü
A - TFB5CF
B - TFS5CF
C - TFB5SF
D - TFS5SF
E - TFB5WF
F - TFS5WF
◀

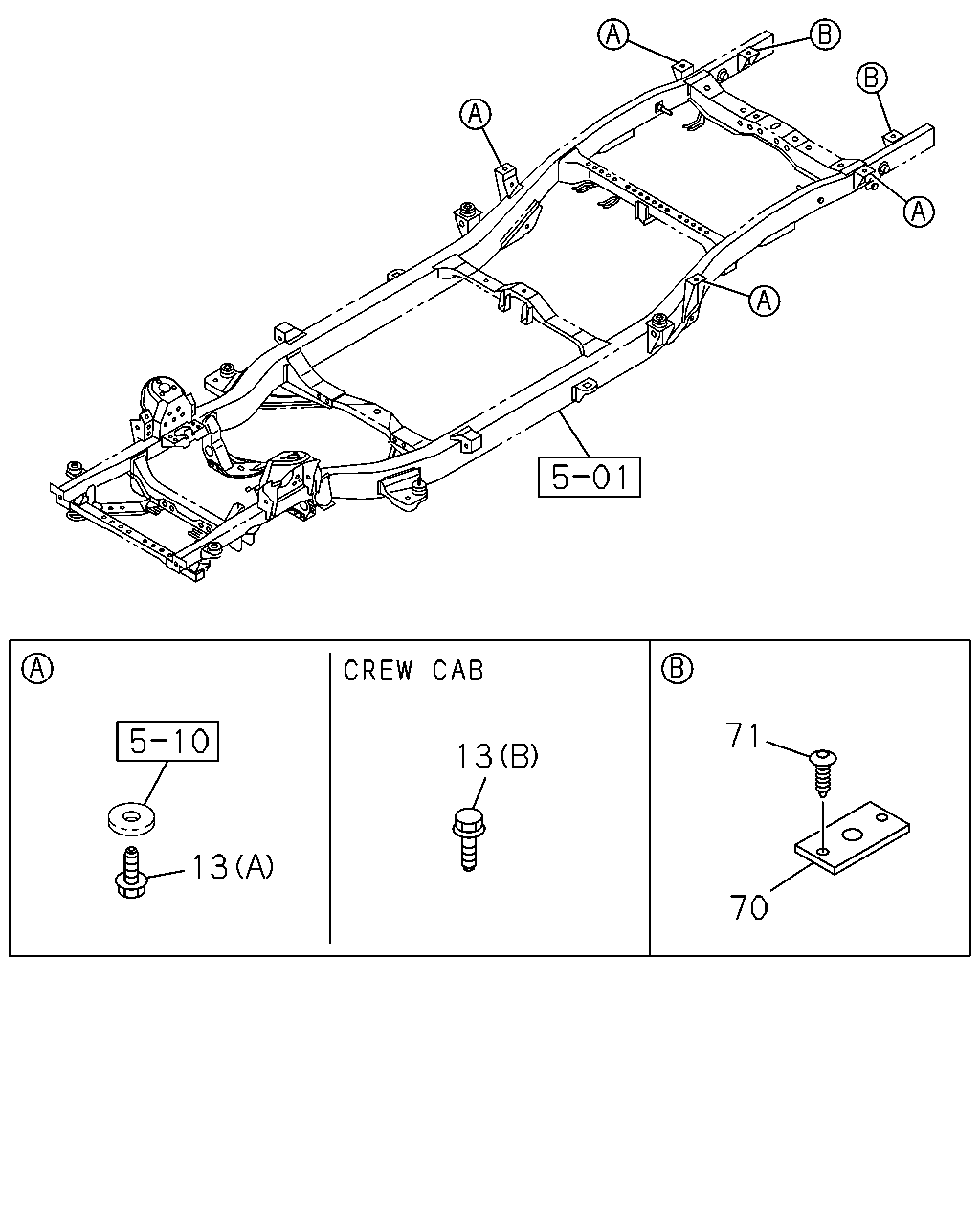

[930A] MOUNTING (15 parça)

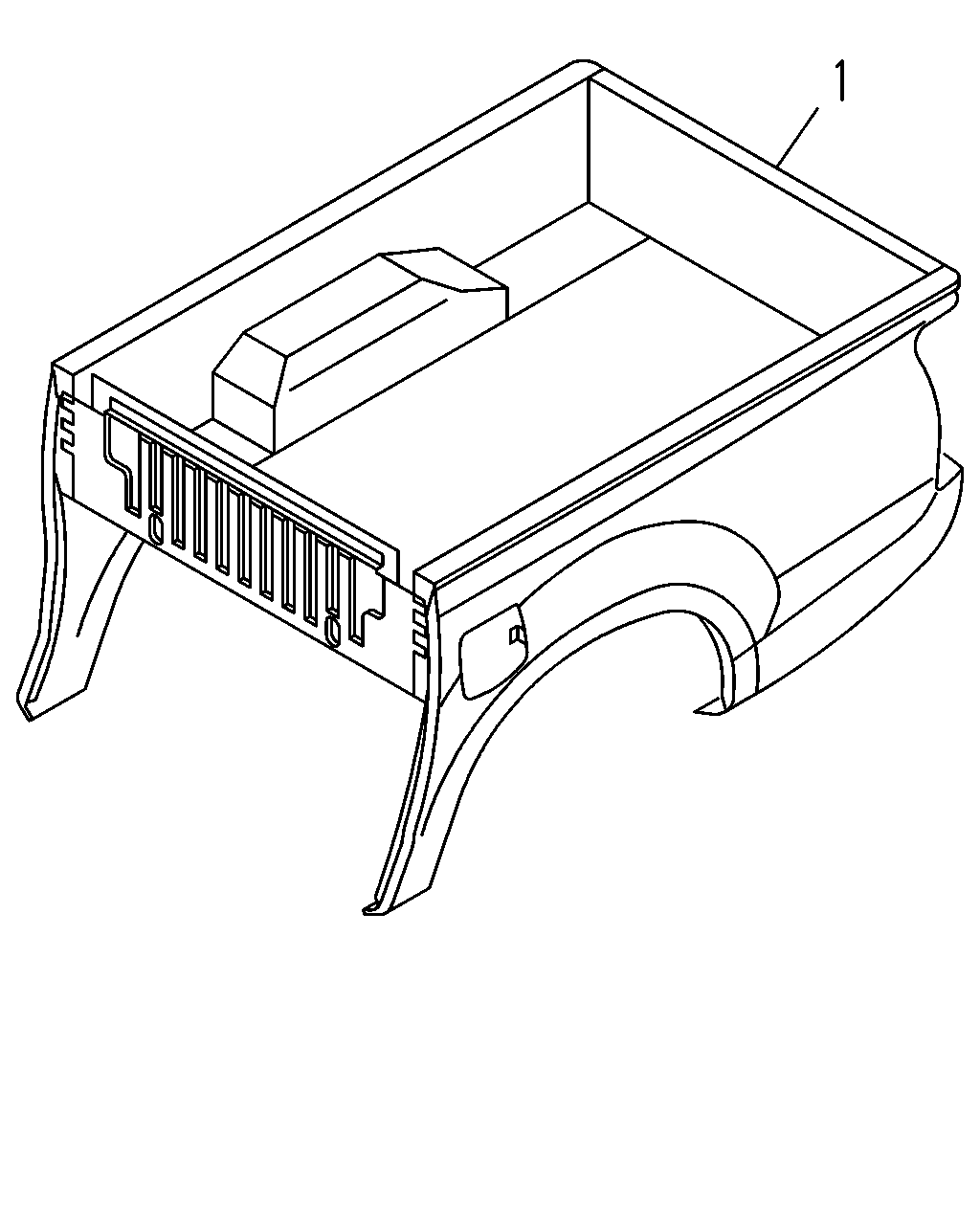

[930A] REAR BODY ASM (8 parça)
▶
13
13
71
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
13
BOLT; RR BODY MTG
(A) M12X35 FLANGE THA
0-28651-235-0
06
1
1310-
●
●
13
BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL<E63> (A) M12X35 FLANGE THA
0-28651-235-0
08
1
1310-1311
●
13
BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL<E63> (A) M12X35 FLANGE THA
0-28651-235-0
08
1
1312-
●
●
13
BOLT; RR BODY MTG
(A) M12X35 FLANGE THA
0-28651-235-0
04
1
1310-
●
●
13
BOLT; RR BODY MTG
(B) M12X35 FLANGE THA
8-98176-522-0
02
1
1310-
●
●
70
CUSHION; RR BODY MTG
THA
8-98090-512-0
04
1
1310-1311
●
●
70
CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL<E63> THA
8-98090-512-0
04
1
1310-1311
●
70
CUSHION; RR BODY MTG
THA
8-98090-512-0
04
1
1312-
●
●
70
CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL<E63> THA
8-98090-512-0
04
1
1312-
●
●
70
CUSHION; RR BODY MTG
THA
8-98090-512-0
02
1
1310-
●
●
71
CLIP; CUSHION
ID=6 OD=16 L=18 IMA
8-94178-705-0
08
1
1310-1311
●
●
71
CLIP; CUSHION
REAR BODY DBL WALL CTR PULL<E63> ID=6 OD=16 L=18 IMA
8-94178-705-0
08
1
1310-1311
●
71
CLIP; CUSHION
ID=6 OD=16 L=18 IMA
8-94178-705-0
08
1
1312-
●
●
71
CLIP; CUSHION
REAR BODY DBL WALL CTR PULL<E63> ID=6 OD=16 L=18 IMA
8-94178-705-0
08
1
1312-
●
●
71
CLIP; CUSHION
ID=6 OD=16 L=18 IMA
8-94178-705-0
04
1
1310-
●
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
BODY ASM; REAR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA
8-98260-910-0
01
1
1312-
●
1
BODY ASM; REAR
HIGH RIDE SUSPENSION<7YC> THA
8-98193-766-0
01
1
1310-
●
1
BODY ASM; REAR
THA
8-98193-766-0
01
1
1310-
●
1
BODY ASM; REAR
EXC. HIGH RIDE SUSPENSION<7YC> THA
8-98193-764-0
01
1
1310-
●
1
BODY ASM; REAR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA
8-98193-763-0
01
1
1310-
●
1
BODY ASM; REAR
HIGH RIDE SUSPENSION<7YC> THA
8-98193-770-0
01
1
1310-
●
1
BODY ASM; REAR
THA
8-98193-770-0
01
1
1310-
●
1
BODY ASM; REAR
EXC. HIGH RIDE SUSPENSION<7YC> THA
8-98193-768-0
01
1
1310-
●
