Sayfa 8-90 - Isuzu EPC

8-90 — RADIO AND TV (#126485) — 127 parça

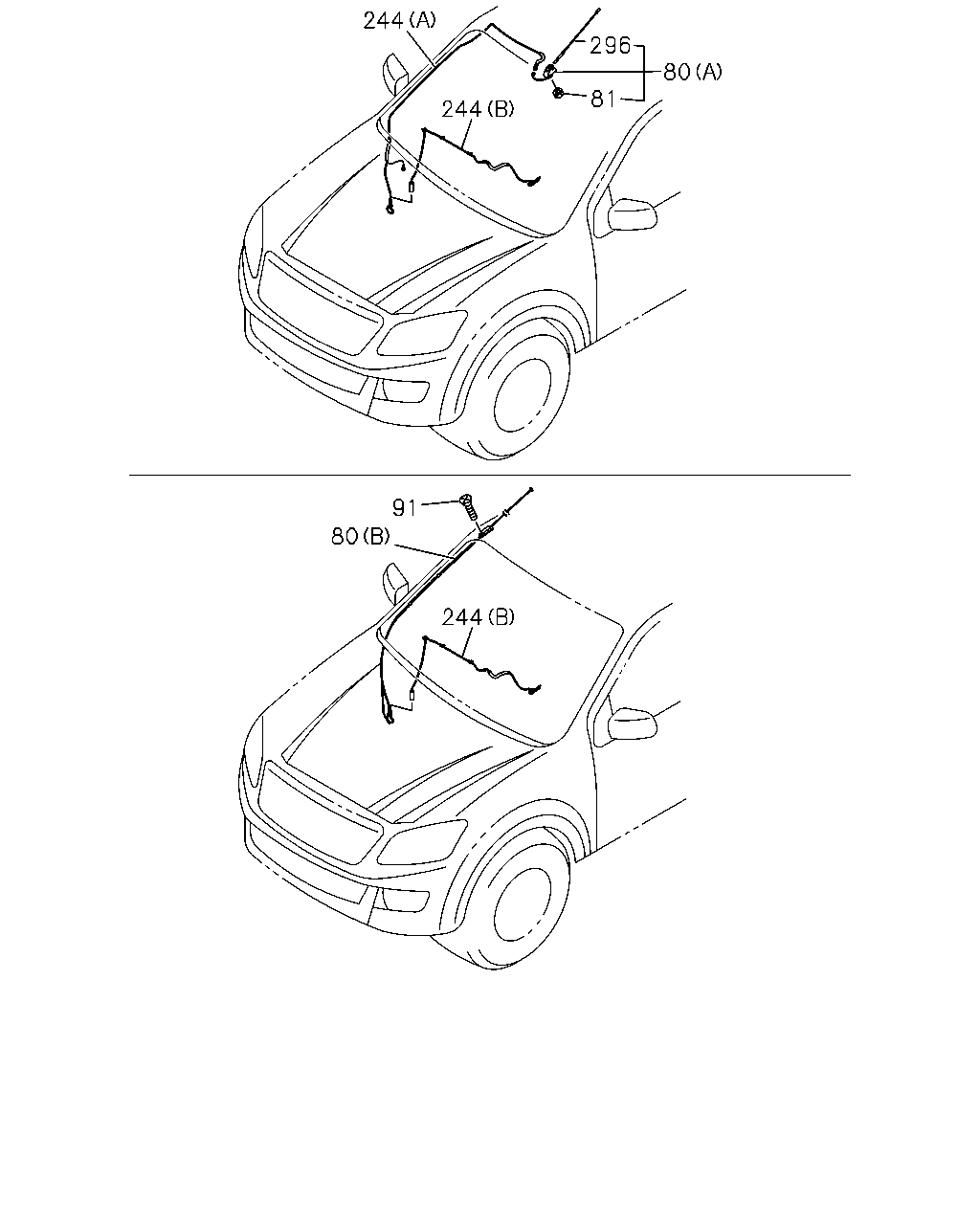

244 244 296 81 80 91 80 244

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> ROOF RADIO ANTENNA<U71> (A) THA	8-98053-048-0	01	1	1310-	●	●	●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> (A) THA	8-98053-048-0	01	1	1310-				●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> (B) THA	8-98053-047-2	01	1	1310-1311	●	●	●
80	ANTENNA RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-047-2	01	1	1310-1311					●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ROOF RADIO ANTENNA<U71> (B) THA	8-98053-047-2	01	1	1310-1311				●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> (B) THA	8-98053-047-2	01	1	1312-	●	●	●
80	ANTENNA RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-047-2	01	1	1312-					●	●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ROOF RADIO ANTENNA<U71> (B) THA	8-98053-047-2	01	1	1312-				●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> ,BODY COLOR FJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. SALES PACKAGE SPORTY<XK0> (C) SILVER THA	8-97423-670-2	01	1	1310-1505	●	●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR SPLASH WHITE<527>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR ASH BEIGE MET<541>,BODY COLORFJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> SALES PACKAGE SPORTY<XK0> (C) SILVER THA	8-97423-670-2	01	1	1310-1505	●	●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> ,BODY COLOR FJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) SILVER THA	8-97423-670-2	01	1	1310-1505			●	●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> ,BODY COLOR FJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. SALES PACKAGE SPORTY<XK0> (C) THA	8-97466-010-0	01	1	1506-	●	●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR SPLASH WHITE<527>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR ASH BEIGE MET<541>,BODY COLORFJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> SALES PACKAGE SPORTY<XK0> (C) THA	8-97466-010-0	01	1	1506-	●	●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> ,BODY COLOR FJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) THA	8-97466-010-0	01	1	1506-			●	●
80	ANTENNA BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> SALES PACKAGE SPORTY<XK0> (C) DARK GRAY THA	8-97423-673-2	01	1	1310-1507	●	●
80	ANTENNA BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> SALES PACKAGE SPORTY<XK0> (C) THA	8-97466-011-0	01	1	1508-	●	●
81	NUT; ANTENNA POLE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> ROOF RADIO ANTENNA<U71> THA	8-98165-971-0	01	1	1310-	●	●	●
81	NUT; ANTENNA POLE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> THA	8-98165-971-0	01	1	1310-				●
91	BOLT; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5X16 IMA	8-97375-569-0	02	1	1310-1311	●	●	●
91	BOLT; ANTENNA RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> M5X16 IMA	8-97375-569-0	02	1	1310-1311					●
91	BOLT; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ROOF RADIO ANTENNA<U71> M5X16 IMA	8-97375-569-0	02	1	1310-1311				●
91	BOLT; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5X16 IMA	8-97375-569-0	02	1	1312-	●	●	●
91	BOLT; ANTENNA RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> M5X16 IMA	8-97375-569-0	02	1	1312-					●	●
91	BOLT; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ROOF RADIO ANTENNA<U71> M5X16 IMA	8-97375-569-0	02	1	1312-				●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) THA	8-98192-896-2	01	1	1310-	●	●	●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> ROOF RADIO ANTENNA<U71> (A) THA	8-98063-228-0	01	1	1310-	●	●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> (A) THA	8-98063-228-0	01	1	1310-				●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-051-1	01	1	1310-1311	●	●	●
244	CABLE; FEEDER RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-051-1	01	1	1310-1311					●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> (B) THA	8-98053-051-1	01	1	1310-1311				●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-051-1	01	1	1312-	●	●	●
244	CABLE; FEEDER RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-051-1	01	1	1312-					●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> (B) THA	8-98053-051-1	01	1	1312-				●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> (B) THA	8-98227-542-0	01	1	1310-	●	●	●	●
296	ROD; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> ROOF RADIO ANTENNA<U71> THA	8-98165-969-0	01	1	1310-	●	●	●
296	ROD; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> THA	8-98165-969-0	01	1	1310-				●

244 80 141 141 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> ROOF RADIO ANTENNA<U71> (A) THA	8-98053-048-0	01	1	1310-	●	●	●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> (A) THA	8-98053-048-0	01	1	1310-				●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> (B) THA	8-98053-047-2	01	1	1310-1311	●	●	●
80	ANTENNA RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-047-2	01	1	1310-1311					●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ROOF RADIO ANTENNA<U71> (B) THA	8-98053-047-2	01	1	1310-1311				●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> (B) THA	8-98053-047-2	01	1	1312-	●	●	●
80	ANTENNA RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-047-2	01	1	1312-					●	●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ROOF RADIO ANTENNA<U71> (B) THA	8-98053-047-2	01	1	1312-				●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> ,BODY COLOR FJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. SALES PACKAGE SPORTY<XK0> (C) SILVER THA	8-97423-670-2	01	1	1310-1505	●	●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR SPLASH WHITE<527>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR ASH BEIGE MET<541>,BODY COLORFJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> SALES PACKAGE SPORTY<XK0> (C) SILVER THA	8-97423-670-2	01	1	1310-1505	●	●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> ,BODY COLOR FJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) SILVER THA	8-97423-670-2	01	1	1310-1505			●	●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> ,BODY COLOR FJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. SALES PACKAGE SPORTY<XK0> (C) THA	8-97466-010-0	01	1	1506-	●	●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR SPLASH WHITE<527>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR ASH BEIGE MET<541>,BODY COLORFJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> SALES PACKAGE SPORTY<XK0> (C) THA	8-97466-010-0	01	1	1506-	●	●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> ,BODY COLOR FJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) THA	8-97466-010-0	01	1	1506-			●	●
80	ANTENNA BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> SALES PACKAGE SPORTY<XK0> (C) DARK GRAY THA	8-97423-673-2	01	1	1310-1507	●	●
80	ANTENNA BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> SALES PACKAGE SPORTY<XK0> (C) THA	8-97466-011-0	01	1	1508-	●	●
141	CLIP; ANTENNA CABLE BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> ,BODY COLOR FJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA	8-98219-154-0	02	1	1310-	●	●	●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) THA	8-98192-896-2	01	1	1310-	●	●	●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> ROOF RADIO ANTENNA<U71> (A) THA	8-98063-228-0	01	1	1310-	●	●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> (A) THA	8-98063-228-0	01	1	1310-				●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-051-1	01	1	1310-1311	●	●	●
244	CABLE; FEEDER RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-051-1	01	1	1310-1311					●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> (B) THA	8-98053-051-1	01	1	1310-1311				●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-051-1	01	1	1312-	●	●	●
244	CABLE; FEEDER RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-051-1	01	1	1312-					●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> (B) THA	8-98053-051-1	01	1	1312-				●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> (B) THA	8-98227-542-0	01	1	1310-	●	●	●	●
298	NUT; ANTENNA BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> ,BODY COLOR FJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA	8-98219-125-0	01	1	1310-	●	●	●	●

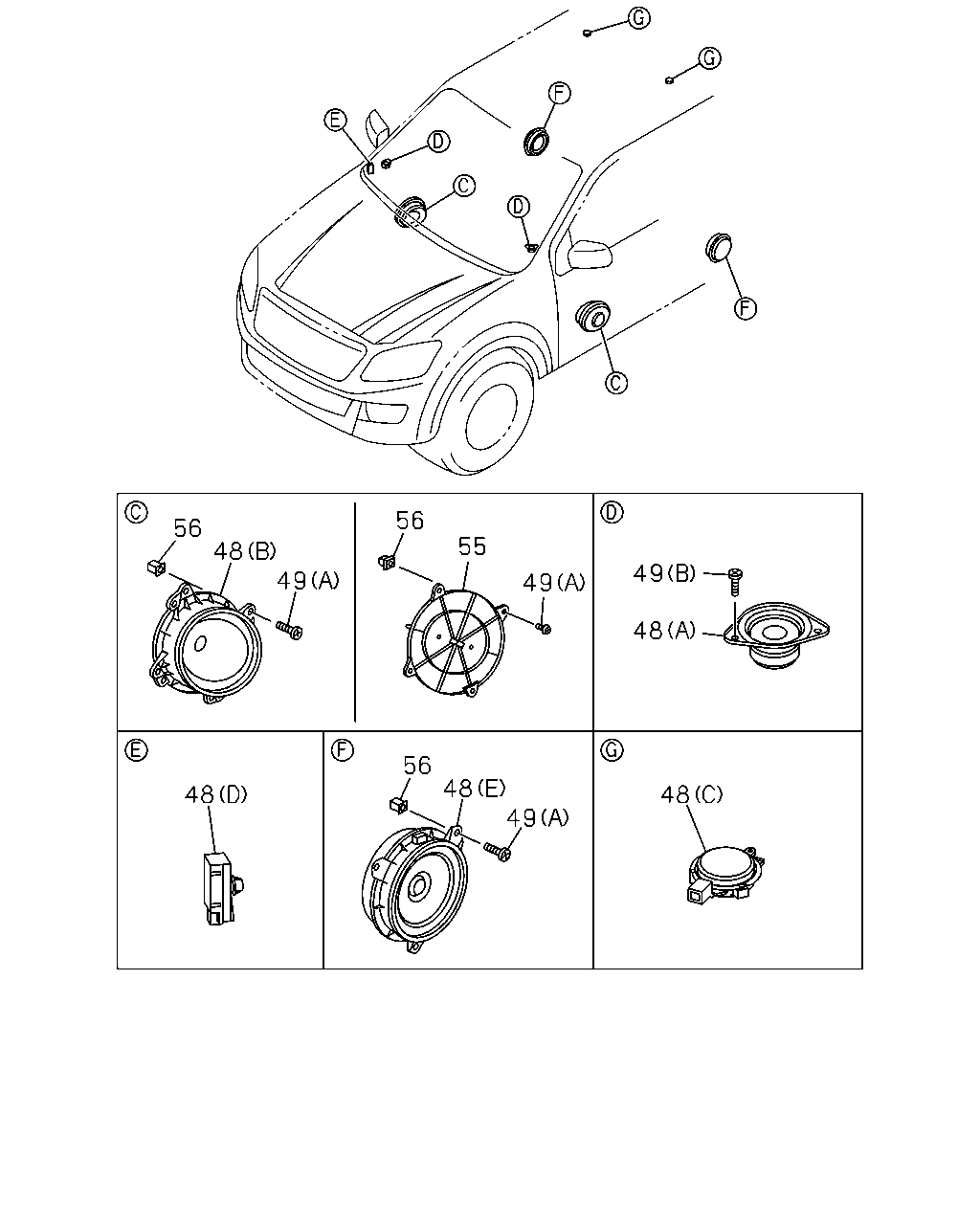

56 48 49 56 55 49 49 48 56 48 48 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6> (A) THA	8-98052-940-0	02	1	1310-	●		●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (A) THA	8-98052-940-0	02	1	1310-		●		●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6> (C) THA	8-98052-942-0	02	1	1310-	●		●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (C) THA	8-98052-942-0	02	1	1310-		●		●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6> (D) THA	8-98064-704-0	01	1	1310-	●		●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (D) THA	8-98064-704-0	01	1	1310-		●		●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> (B) THA	8-98052-937-0	02	1	1310-1311	●		●
48	SPEAKER; AUDIO 2-SPEAKER SYSTEM BASE<U95> (B) THA	8-98052-937-0	02	1	1310-1311					●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87>,2-SPEAKER SYSTEM BASE<U95> (B) THA	8-98052-937-0	02	1	1310-1311		●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (B) THA	8-98052-937-0	02	1	1310-1311				●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> (B) THA	8-98052-937-0	02	1	1312-	●		●
48	SPEAKER; AUDIO 2-SPEAKER SYSTEM BASE<U95> (B) THA	8-98052-937-0	02	1	1312-					●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87>,2-SPEAKER SYSTEM BASE<U95> (B) THA	8-98052-937-0	02	1	1312-		●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (B) THA	8-98052-937-0	02	1	1312-				●
48	SPEAKER; AUDIO (B) THA	8-98052-937-0	02	1	1312-						●
48	SPEAKER; AUDIO 8-SPEAKER SYSTEM CUSTOM<U87> (E) THA	8-98052-941-0	02	1	1310-		●		●
49	SCREW; SPEAKER 6-SPEAKER SYSTEM CUSTOM<UW6> (B) M5X16 TAPPING THA	8-98167-449-0	04	1	1310-	●		●
49	SCREW; SPEAKER 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (B) M5X16 TAPPING THA	8-98167-449-0	04	1	1310-		●		●
49	SCREW; SPEAKER (A) M5X14 TAPPING THA	8-98184-363-0	08	1	1310-1311	●	●	●	●	●
49	SCREW; SPEAKER (A) M5X14 TAPPING THA	8-98184-363-0	08	1	1312-	●	●	●	●	●	●
49	SCREW; SPEAKER 8-SPEAKER SYSTEM CUSTOM<U87> (A) M5X14 TAPPING THA	8-98184-363-0	06	1	1310-		●		●
55	COVER; SPEAKER HOLE EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> THA	8-98102-183-0	02	1	1310-	●		●
55	COVER; SPEAKER HOLE EXC. 2-SPEAKER SYSTEM BASE<U95> THA	8-98102-183-0	02	1	1310-					●
55	COVER; SPEAKER HOLE EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87>,2-SPEAKER SYSTEM BASE<U95> THA	8-98102-183-0	02	1	1310-		●
55	COVER; SPEAKER HOLE EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98102-183-0	02	1	1310-				●
56	NUT; SPEAKER,RADIO OR STEREO THA	8-98163-895-0	08	1	1310-1311	●	●	●	●	●
56	NUT; SPEAKER,RADIO OR STEREO THA	8-98163-895-0	08	1	1312-	●	●	●	●	●	●
56	NUT; SPEAKER,RADIO OR STEREO 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98163-895-0	06	1	1310-		●		●

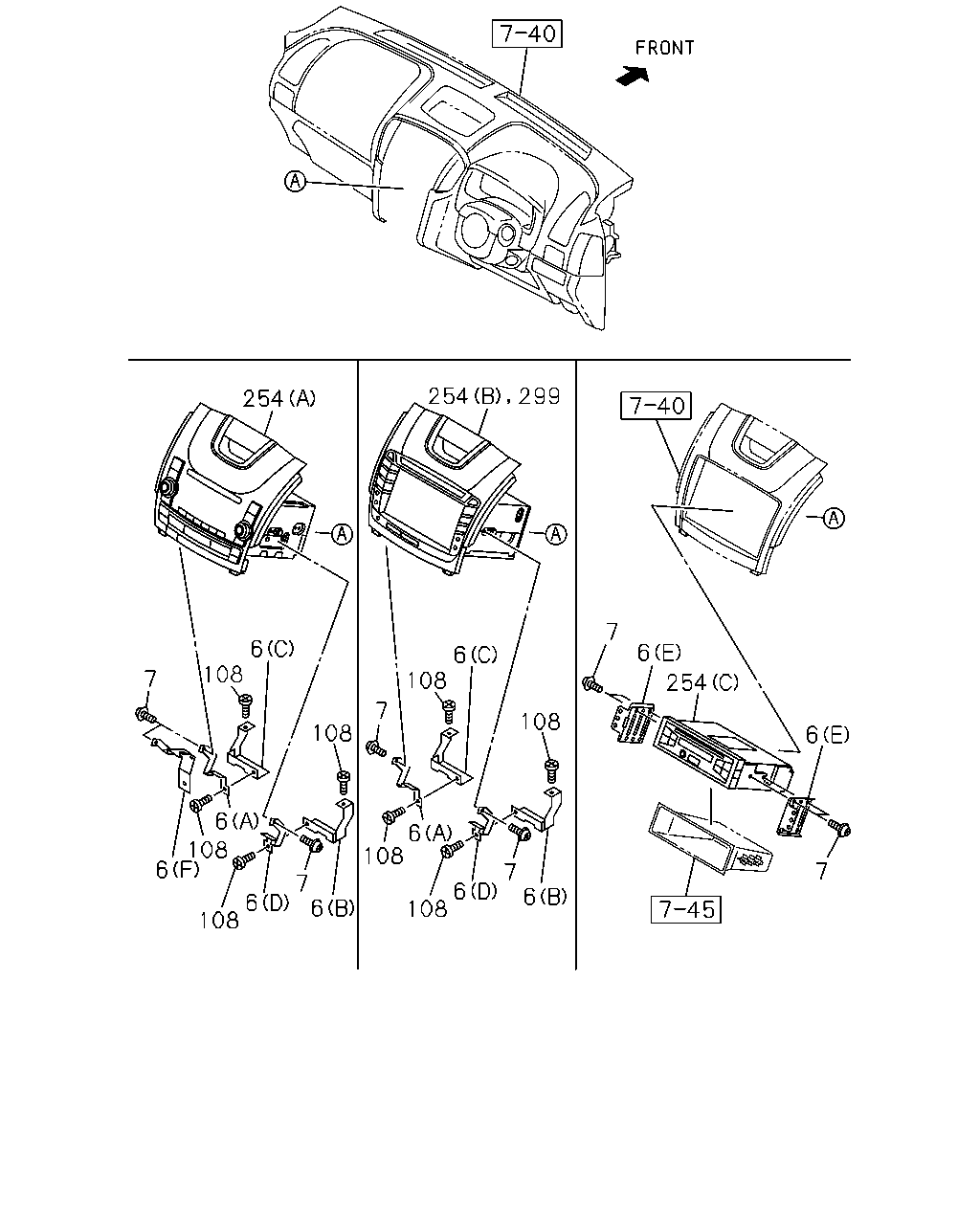

254 254 6 108 7 6 108 6 108 6 7 6 108 7 108 6 108 6 7 6 108 6 108 7 6 254 6 7 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,AM/FM, CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (C) THA	8-98106-390-3	01	1	1310-	●	●	●	●
6	BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (A) THA	8-98102-186-2	01	1	1310-	●	●	●	●
6	BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (B) THA	8-98102-187-3	01	1	1310-	●	●	●	●
6	BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (D) THA	8-98109-822-2	01	1	1310-	●	●	●	●
6	BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> (F) THA	8-98227-139-1	01	1	1310-	●	●	●	●
6	BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (E) THA	8-98102-188-2	02	1	1310-1311	●	●	●		●
6	BRACKET; RADIO TO PANEL RADIO DELETE<UL5> (E) THA	8-98102-188-2	02	1	1310-1311				●
6	BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (E) THA	8-98102-188-2	02	1	1312-	●	●	●		●	●
6	BRACKET; RADIO TO PANEL RADIO DELETE<UL5> (E) THA	8-98102-188-2	02	1	1312-				●
7	SCREW; RADIO AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> M5X10 W/LK+PL WASHER IMA	0-36230-510-0	02	1	1310-	●	●	●	●
7	SCREW; RADIO AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> M5X10 W/LK+PL WASHER IMA	0-36230-510-0	01	1	1310-	●	●	●	●
7	SCREW; RADIO AM/FM,CLOCK,CD PLAYER<U1C> M5X10 W/LK+PL WASHER IMA	0-36230-510-0	04	1	1310-1311	●	●	●		●
7	SCREW; RADIO AM/FM,CLOCK,CD PLAYER<U1C> M5X10 W/LK+PL WASHER IMA	0-36230-510-0	04	1	1312-	●	●	●		●	●
108	SCREW; BRKT AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> M5X16 TAPPING THA	8-98167-449-0	04	1	1310-	●	●	●	●
108	SCREW; BRKT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> M5X16 TAPPING THA	8-98167-449-0	02	1	1310-	●	●	●	●
254	RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> 6-SPEAKER SYSTEM CUSTOM<UW6> (A) THA	8-98219-845-3	01	1	1310-	●	●	●	●
254	RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (B) THA	8-98222-317-3	01	1	1310-	●	●	●	●
254	RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,CD PLAYER<U1C> (C) THA	8-98219-844-3	01	1	1310-1311	●	●	●		●
254	RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,CD PLAYER<U1C> (C) THA	8-98219-844-3	01	1	1312-	●	●	●		●	●
299	DISPLAY; MULTI AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA	8-98182-420-2	01	1	1310-1407	●	●	●	●
299	DISPLAY; MULTI AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA	8-98287-430-0	01	1	1408-1504	●	●	●	●
299	DISPLAY; MULTI AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA	8-98309-240-0	01	1	1505-1508	●	●	●	●
299	DISPLAY; MULTI AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA	8-98322-820-0	01	1	1509-	●	●	●	●

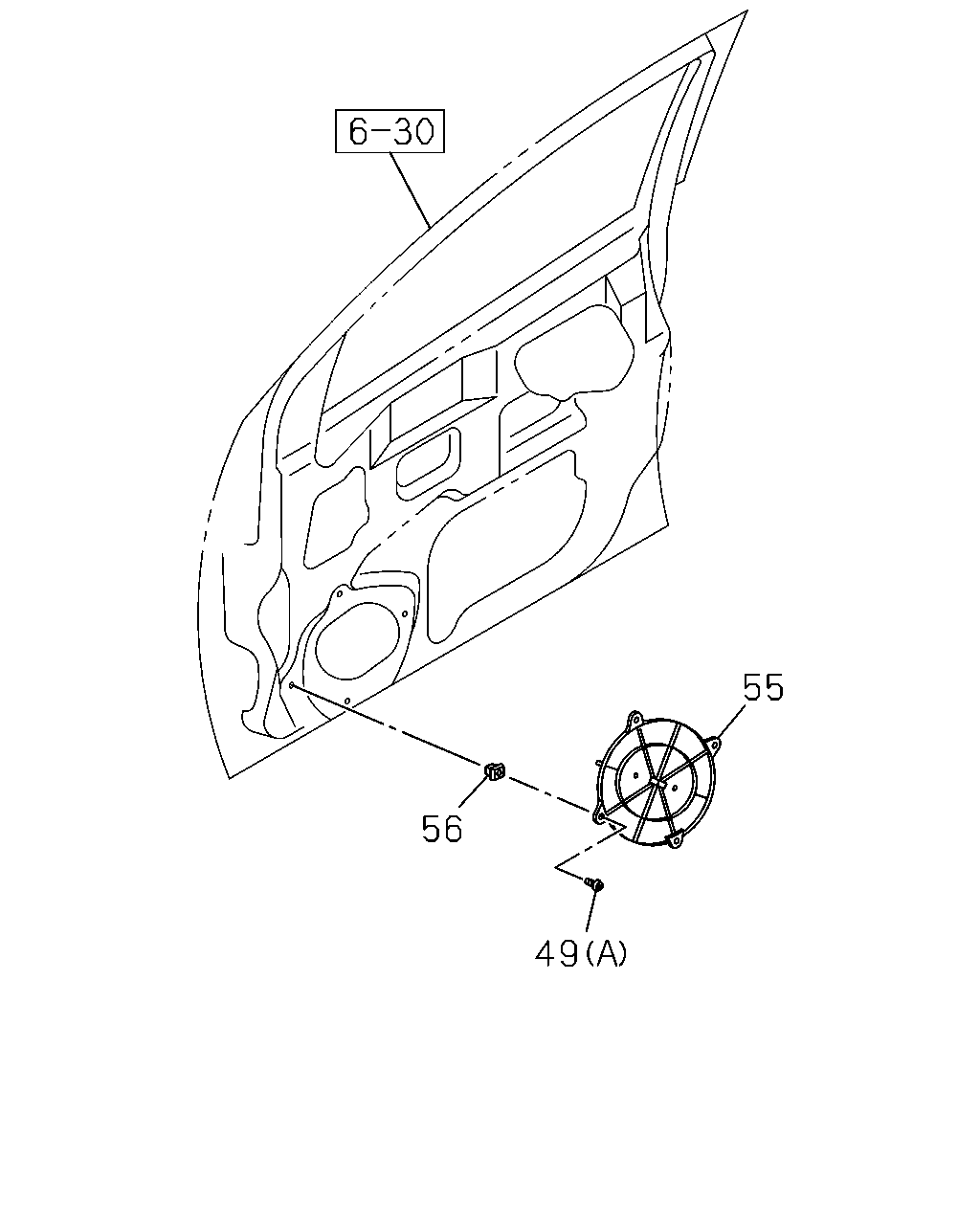

56 55 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
49	SCREW; SPEAKER 6-SPEAKER SYSTEM CUSTOM<UW6> (B) M5X16 TAPPING THA	8-98167-449-0	04	1	1310-	●		●
49	SCREW; SPEAKER 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (B) M5X16 TAPPING THA	8-98167-449-0	04	1	1310-		●		●
49	SCREW; SPEAKER (A) M5X14 TAPPING THA	8-98184-363-0	08	1	1310-1311	●	●	●	●	●
49	SCREW; SPEAKER (A) M5X14 TAPPING THA	8-98184-363-0	08	1	1312-	●	●	●	●	●	●
49	SCREW; SPEAKER 8-SPEAKER SYSTEM CUSTOM<U87> (A) M5X14 TAPPING THA	8-98184-363-0	06	1	1310-		●		●
55	COVER; SPEAKER HOLE EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> THA	8-98102-183-0	02	1	1310-	●		●
55	COVER; SPEAKER HOLE EXC. 2-SPEAKER SYSTEM BASE<U95> THA	8-98102-183-0	02	1	1310-					●
55	COVER; SPEAKER HOLE EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87>,2-SPEAKER SYSTEM BASE<U95> THA	8-98102-183-0	02	1	1310-		●
55	COVER; SPEAKER HOLE EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98102-183-0	02	1	1310-				●
56	NUT; SPEAKER,RADIO OR STEREO THA	8-98163-895-0	08	1	1310-1311	●	●	●	●	●
56	NUT; SPEAKER,RADIO OR STEREO THA	8-98163-895-0	08	1	1312-	●	●	●	●	●	●
56	NUT; SPEAKER,RADIO OR STEREO 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98163-895-0	06	1	1310-		●		●
