8-80 — WINDSHIELD WIPER AND WASHER (#126484) — 87 parça

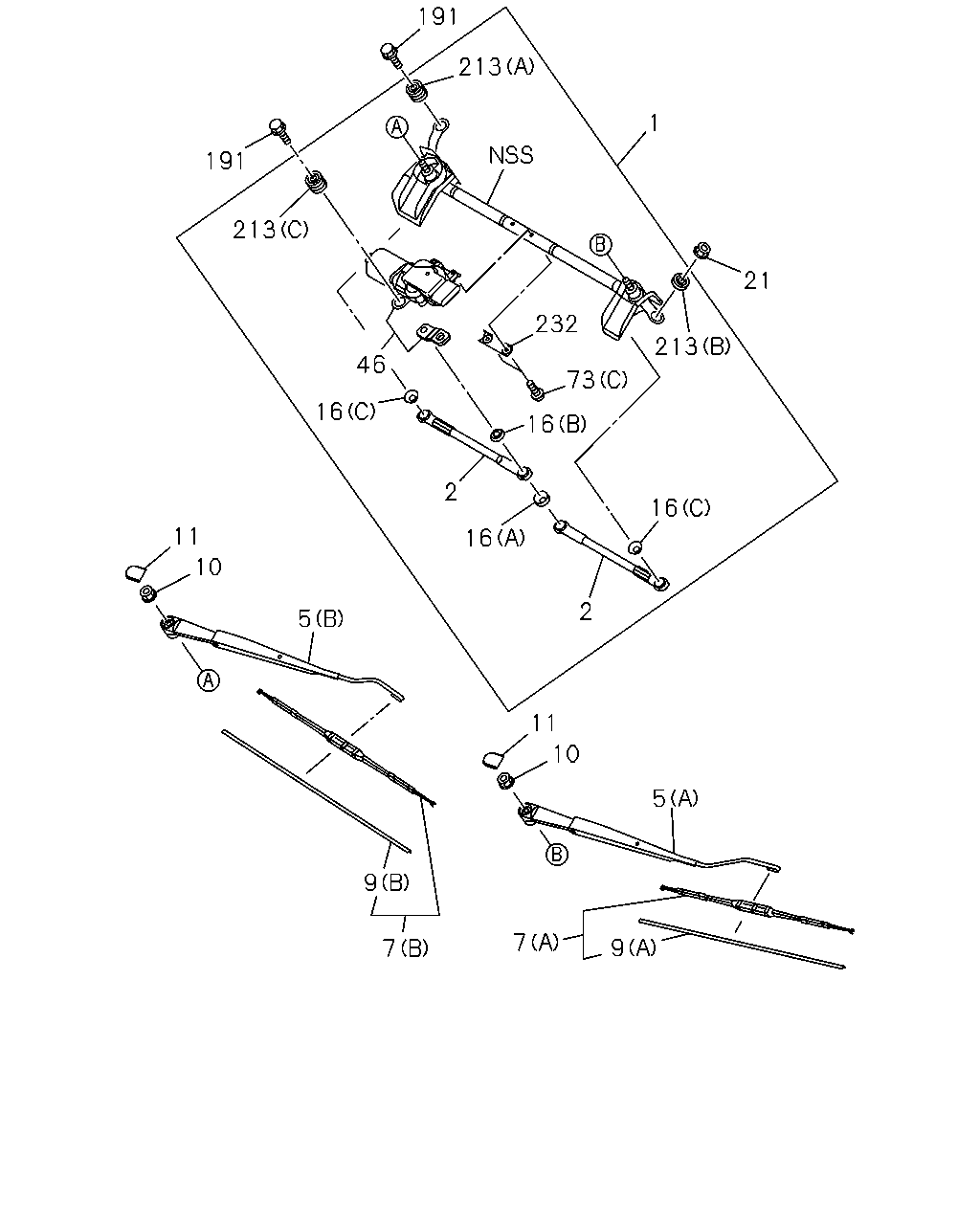

çizim 374145
191 213 191 213 16 46 2 1 21 213 232 73 16 16 16 2 5 10 11 11 10 5 9 7 7 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LINK ASM; FRT WIPER
THA 		8-98057-449-1 01 1 1310-1311 ● ● ● ● ●
1 LINK ASM; FRT WIPER
THA 		8-98057-449-1 01 1 1312- ● ● ● ● ● ●
2 LINK; FRT WIPER
THA 		8-98193-801-0 01 1 1310-1311 ● ● ● ● ●
2 LINK; FRT WIPER
THA 		8-98193-801-0 01 1 1312- ● ● ● ● ● ●
2 LINK; FRT WIPER
THA 		8-98193-802-0 01 1 1310-1311 ● ● ● ● ●
2 LINK; FRT WIPER
THA 		8-98193-802-0 01 1 1312- ● ● ● ● ● ●
5 ARM; WIPER
(B) THA 		8-98193-629-0 01 1 1310-1311 ● ● ● ● ●
5 ARM; WIPER
(B) THA 		8-98193-629-0 01 1 1312- ● ● ● ● ● ●
5 ARM; WIPER
(A) THA 		8-98193-813-0 01 1 1310-1311 ● ● ● ● ●
5 ARM; WIPER
(A) THA 		8-98193-813-0 01 1 1312- ● ● ● ● ● ●
7 BLADE; WIPER
(B) L=550 THA 		8-97349-900-0 01 1 1310-1311 ● ● ● ● ●
7 BLADE; WIPER
(B) L=550 THA 		8-97349-900-0 01 1 1312- ● ● ● ● ● ●
7 BLADE; WIPER
(A) L=450 THA 		8-98193-815-0 01 1 1310-1311 ● ● ● ● ●
7 BLADE; WIPER
(A) L=450 THA 		8-98193-815-0 01 1 1312- ● ● ● ● ● ●
9 RUBBER; FRT WIPER BLADE
(B) L=550 THA 		8-97349-901-0 01 1 1310-1311 ● ● ● ● ●
9 RUBBER; FRT WIPER BLADE
(B) L=550 THA 		8-97349-901-0 01 1 1312- ● ● ● ● ● ●
9 RUBBER; FRT WIPER BLADE
(A) L=450 THA 		8-98193-819-0 01 1 1310-1311 ● ● ● ● ●
9 RUBBER; FRT WIPER BLADE
(A) L=450 THA 		8-98193-819-0 01 1 1312- ● ● ● ● ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE THA 		8-98049-367-0 02 1 1310-1311 ● ● ● ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE THA 		8-98049-367-0 02 1 1312- ● ● ● ● ● ●
11 COVER; WIPER ARM
THA 		8-98101-104-0 02 1 1310-1311 ● ● ● ● ●
11 COVER; WIPER ARM
THA 		8-98101-104-0 02 1 1312- ● ● ● ● ● ●
16 SEAL; BALL JOINT
(A) THA 		8-98193-845-0 01 1 1310-1311 ● ● ● ● ●
16 SEAL; BALL JOINT
(A) THA 		8-98193-845-0 01 1 1312- ● ● ● ● ● ●
16 SEAL; BALL JOINT
(B) THA 		8-98193-846-0 01 1 1310-1311 ● ● ● ● ●
16 SEAL; BALL JOINT
(B) THA 		8-98193-846-0 01 1 1312- ● ● ● ● ● ●
16 SEAL; BALL JOINT
(C) THA 		8-98193-847-0 02 1 1310-1311 ● ● ● ● ●
16 SEAL; BALL JOINT
(C) THA 		8-98193-847-0 02 1 1312- ● ● ● ● ● ●
21 NUT; WIPER LINK PIVOT
M6 W/DISHED WASHER THA 		8-98049-368-0 01 1 1310-1311 ● ● ● ● ●
21 NUT; WIPER LINK PIVOT
M6 W/DISHED WASHER THA 		8-98049-368-0 01 1 1312- ● ● ● ● ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
THA 		8-98142-507-0 01 1 1310-1311 ● ● ● ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
THA 		8-98142-507-0 01 1 1312- ● ● ● ● ● ●
73 BOLT
(A) M6X16 FLANGE THA 		8-98049-357-0 01 1 1310-1311 ● ● ● ● ●
73 BOLT
(A) M6X16 FLANGE THA 		8-98049-357-0 01 1 1312- ● ● ● ● ● ●
73 BOLT
(B) M6X18 TAPPING W/LK&PL WASHER THA 		8-98062-140-0 01 1 1310-1311 ● ● ● ● ●
73 BOLT
(B) M6X18 TAPPING W/LK&PL WASHER THA 		8-98062-140-0 01 1 1312- ● ● ● ● ● ●
73 BOLT
(C) M6X32 THA 		8-98193-851-0 02 1 1310-1311 ● ● ● ● ●
73 BOLT
(C) M6X32 THA 		8-98193-851-0 02 1 1312- ● ● ● ● ● ●
191 BOLT; WIPER LINK
M6X33 W/PL WASHER THA 		8-98048-997-0 02 1 1310-1311 ● ● ● ● ●
191 BOLT; WIPER LINK
M6X33 W/PL WASHER THA 		8-98048-997-0 02 1 1312- ● ● ● ● ● ●
213 RUBBER; MTG
(A) THA 		8-98193-848-0 01 1 1310-1311 ● ● ● ● ●
213 RUBBER; MTG
(A) THA 		8-98193-848-0 01 1 1312- ● ● ● ● ● ●
213 RUBBER; MTG
(B) THA 		8-98193-849-0 01 1 1310-1311 ● ● ● ● ●
213 RUBBER; MTG
(B) THA 		8-98193-849-0 01 1 1312- ● ● ● ● ● ●
213 RUBBER; MTG
(C) THA 		8-98193-850-0 01 1 1310-1311 ● ● ● ● ●
213 RUBBER; MTG
(C) THA 		8-98193-850-0 01 1 1312- ● ● ● ● ● ●
232 PLATE; FIXING
THA 		8-98196-564-0 01 1 1310-1311 ● ● ● ● ●
232 PLATE; FIXING
THA 		8-98196-564-0 01 1 1312- ● ● ● ● ● ●

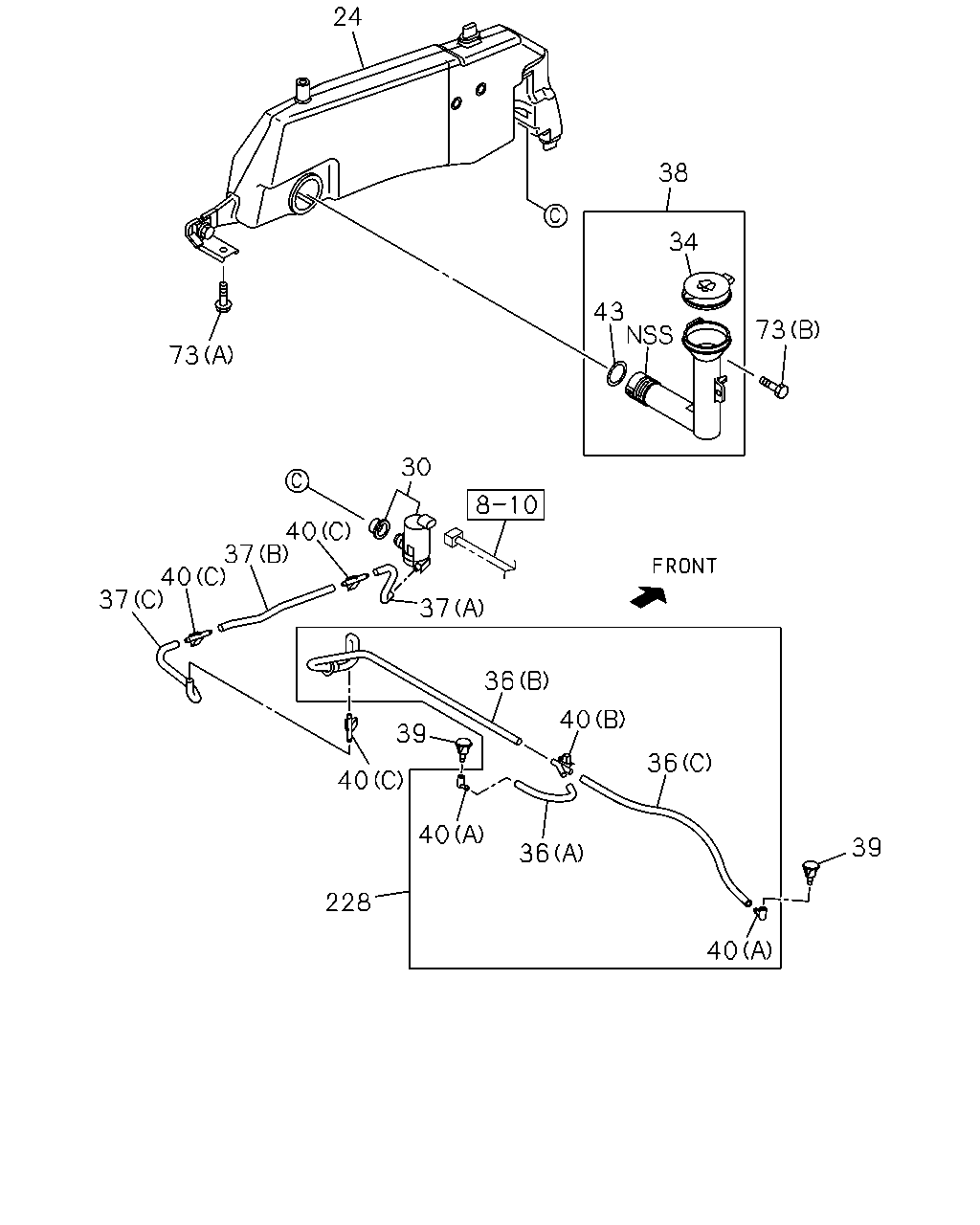

çizim 374155
24 73 37 40 37 40 30 37 40 39 36 40 40 228 36 36 40 39 73 43 34 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 TANK ASM; WASHER
THA 		8-98057-455-0 01 1 1310-1311 ● ● ● ● ●
24 TANK ASM; WASHER
THA 		8-98057-455-0 01 1 1312- ● ● ● ● ● ●
30 MOTOR ASM; FRT WASHER TANK
THA 		8-97314-350-0 01 1 1310-1311 ● ● ● ● ●
30 MOTOR ASM; FRT WASHER TANK
THA 		8-97314-350-0 01 1 1312- ● ● ● ● ● ●
34 CAP; WASHER TANK
THA 		8-98194-286-0 01 1 1310-1311 ● ● ● ● ●
34 CAP; WASHER TANK
THA 		8-98194-286-0 01 1 1312- ● ● ● ● ● ●
36 HOSE; WASHER
(A) L=110 THA 		8-98193-807-1 01 1 1310-1311 ● ● ● ● ●
36 HOSE; WASHER
(A) L=110 THA 		8-98193-807-1 01 1 1312- ● ● ● ● ● ●
36 HOSE; WASHER
(B) L=630 THA 		8-98193-808-1 01 1 1310-1311 ● ● ● ● ●
36 HOSE; WASHER
(B) L=630 THA 		8-98193-808-1 01 1 1312- ● ● ● ● ● ●
36 HOSE; WASHER
(C) L=380 THA 		8-98193-809-1 01 1 1310-1311 ● ● ● ● ●
36 HOSE; WASHER
(C) L=380 THA 		8-98193-809-1 01 1 1312- ● ● ● ● ● ●
37 TUBE ASM; WASHER TANK
(A) L=130 THA 		8-98193-853-0 01 1 1310-1311 ● ● ● ● ●
37 TUBE ASM; WASHER TANK
(A) L=130 THA 		8-98193-853-0 01 1 1312- ● ● ● ● ● ●
37 TUBE ASM; WASHER TANK
(B) L=190 THA 		8-98193-854-0 01 1 1310-1311 ● ● ● ● ●
37 TUBE ASM; WASHER TANK
(B) L=190 THA 		8-98193-854-0 01 1 1312- ● ● ● ● ● ●
37 TUBE ASM; WASHER TANK
(C) L=200 THA 		8-98193-855-0 01 1 1310-1311 ● ● ● ● ●
37 TUBE ASM; WASHER TANK
(C) L=200 THA 		8-98193-855-0 01 1 1312- ● ● ● ● ● ●
38 HOSE; JOINT,TANK
THA 		8-98057-456-0 01 1 1310-1311 ● ● ● ● ●
38 HOSE; JOINT,TANK
THA 		8-98057-456-0 01 1 1312- ● ● ● ● ● ●
39 NOZZLE; WINDSHIELD WASHER
THA 		8-98067-859-3 02 1 1310-1311 ● ● ● ● ●
39 NOZZLE; WINDSHIELD WASHER
THA 		8-98067-859-3 02 1 1312- ● ● ● ● ● ●
40 JOINT; WASHER HOSE
(A) THA 		8-98193-805-0 02 1 1310-1311 ● ● ● ● ●
40 JOINT; WASHER HOSE
(A) THA 		8-98193-805-0 02 1 1312- ● ● ● ● ● ●
40 JOINT; WASHER HOSE
(B) THA 		8-98193-806-0 01 1 1310-1311 ● ● ● ● ●
40 JOINT; WASHER HOSE
(B) IMA 		8-97855-163-0 01 1 1312-1312 ● ● ● ● ●
40 JOINT; WASHER HOSE
(B) IMA 		8-97855-163-0 01 1 1312- ● ● ● ● ● ●
40 JOINT; WASHER HOSE
(C) THA 		8-98193-811-0 03 1 1310-1311 ● ● ● ● ●
40 JOINT; WASHER HOSE
(C) THA 		8-98193-811-0 03 1 1312- ● ● ● ● ● ●
43 RUBBER; GASKET,TANK
THA 		8-98194-287-0 01 1 1310-1311 ● ● ● ● ●
43 RUBBER; GASKET,TANK
THA 		8-98194-287-0 01 1 1312- ● ● ● ● ● ●
73 BOLT
(A) M6X16 FLANGE THA 		8-98049-357-0 01 1 1310-1311 ● ● ● ● ●
73 BOLT
(A) M6X16 FLANGE THA 		8-98049-357-0 01 1 1312- ● ● ● ● ● ●
73 BOLT
(B) M6X18 TAPPING W/LK&PL WASHER THA 		8-98062-140-0 01 1 1310-1311 ● ● ● ● ●
73 BOLT
(B) M6X18 TAPPING W/LK&PL WASHER THA 		8-98062-140-0 01 1 1312- ● ● ● ● ● ●
73 BOLT
(C) M6X32 THA 		8-98193-851-0 02 1 1310-1311 ● ● ● ● ●
73 BOLT
(C) M6X32 THA 		8-98193-851-0 02 1 1312- ● ● ● ● ● ●
228 HOSE ASM; WASHER
THA 		8-98057-506-1 01 1 1310-1311 ● ● ● ● ●
228 HOSE ASM; WASHER
THA 		8-98057-506-1 01 1 1312- ● ● ● ● ● ●
