◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#126480) — 100 parça

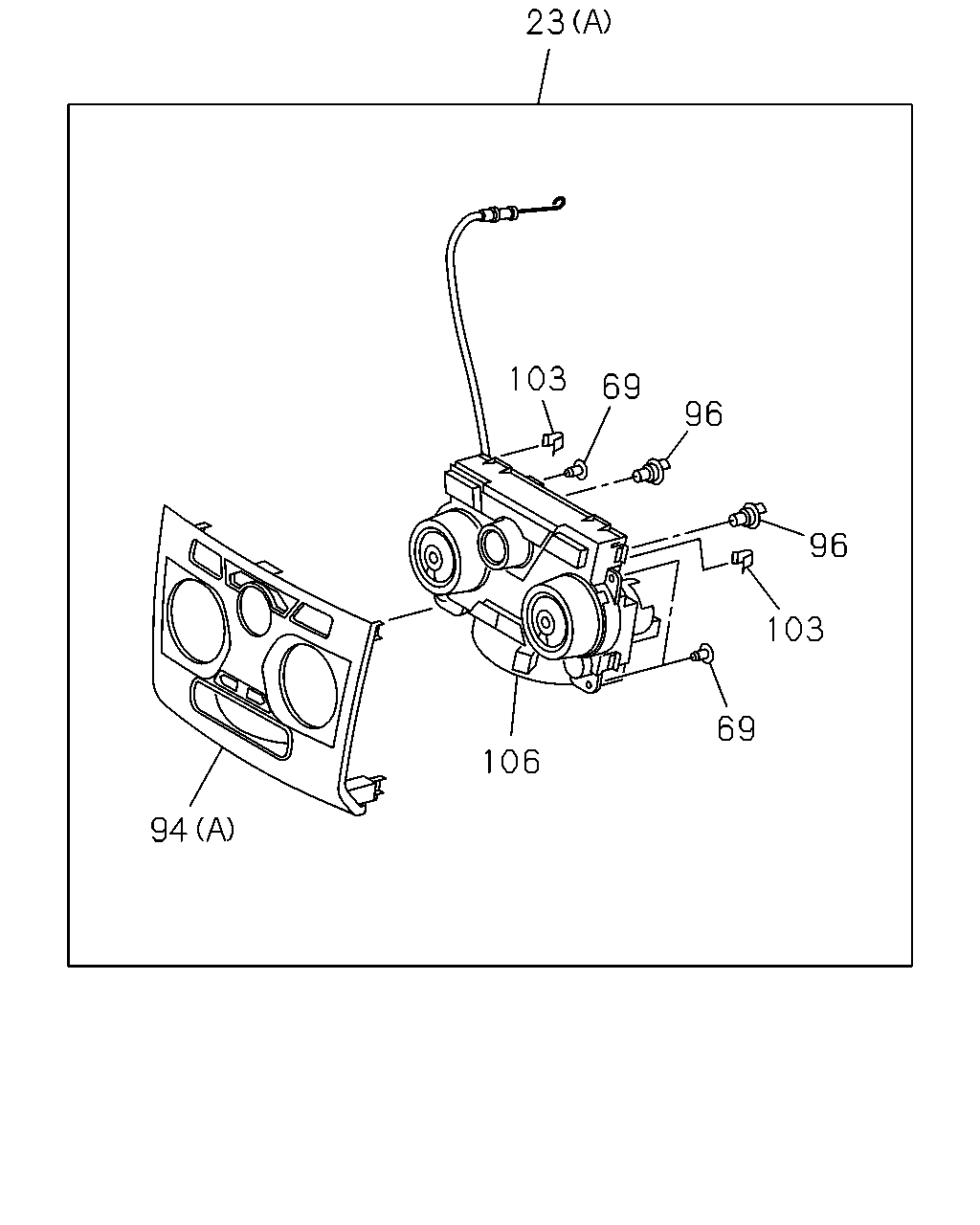

çizim 373627
23 103 69 96 96 103 69 106 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> (A) THA 		8-98103-517-4 01 1 1310- ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> EXC. REAR DEFOGGER<C49> (A) THA 		8-98052-645-3 01 1 1310- ● ● ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> (A) THA 		8-98052-641-4 01 1 1310- ● ● ● ●
23 BEZEL; CONT LEVER
COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA 		8-98052-637-3 01 1 1310- ● ● ● ●
23 BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA 		8-98166-353-4 01 1 1310- ● ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98052-636-3 01 1 1310-1311 ●
23 BEZEL; CONT LEVER
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98052-636-3 01 1 1312- ●
23 BEZEL; CONT LEVER
(C) THA 		8-98052-636-3 01 1 1312- ●
69 SCREW; BEZEL BRKT
COOLER W/FRESH AIR<C65> M4X10 TAPPING THA 		8-98164-986-0 04 1 1310-1311 ● ● ● ● ●
69 SCREW; BEZEL BRKT
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> M4X10 TAPPING THA 		8-98164-986-0 04 1 1310-1311 ● ● ● ●
69 SCREW; BEZEL BRKT
COOLER WO/FRESH AIR<8NF> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> M4X10 TAPPING THA 		8-98164-986-0 04 1 1310-1311 ●
69 SCREW; BEZEL BRKT
COOLER W/FRESH AIR<C65> M4X10 TAPPING THA 		8-98164-986-0 04 1 1312- ● ● ● ● ●
69 SCREW; BEZEL BRKT
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> M4X10 TAPPING THA 		8-98164-986-0 04 1 1312- ● ● ● ●
69 SCREW; BEZEL BRKT
COOLER WO/FRESH AIR<8NF> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> M4X10 TAPPING THA 		8-98164-986-0 04 1 1312- ● ●
94 PANEL; BEZEL
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA 		8-98141-789-0 01 1 1310- ● ● ● ●
94 PANEL; BEZEL
COOLER W/FRESH AIR<C65> (A) THA 		8-98164-668-0 01 1 1310- ● ● ● ● ●
94 PANEL; BEZEL
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98064-614-0 01 1 1310-1311 ●
94 PANEL; BEZEL
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98064-614-0 01 1 1312- ●
94 PANEL; BEZEL
(C) THA 		8-98064-614-0 01 1 1312- ●
96 BULB ASM; BEZEL
COOLER W/FRESH AIR<C65> THA 		8-98156-188-0 02 1 1310-1311 ● ● ● ●
96 BULB ASM; BEZEL
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98156-188-0 02 1 1310-1311 ●
96 BULB ASM; BEZEL
COOLER W/FRESH AIR<C65> THA 		8-98156-188-0 02 1 1312- ● ● ● ●
96 BULB ASM; BEZEL
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98156-188-0 02 1 1312- ●
96 BULB ASM; BEZEL
THA 		8-98156-188-0 02 1 1312- ●
103 CLIP
COOLER W/FRESH AIR<C65> THA 		8-98164-677-0 04 1 1310-1311 ● ● ● ● ●
103 CLIP
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA 		8-98164-677-0 04 1 1310-1311 ● ● ● ●
103 CLIP
COOLER WO/FRESH AIR<8NF> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> THA 		8-98164-677-0 04 1 1310-1311 ●
103 CLIP
COOLER W/FRESH AIR<C65> THA 		8-98164-677-0 04 1 1312- ● ● ● ● ●
103 CLIP
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA 		8-98164-677-0 04 1 1312- ● ● ● ●
103 CLIP
COOLER WO/FRESH AIR<8NF> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> THA 		8-98164-677-0 04 1 1312- ● ●
106 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> THA 		8-98142-033-0 01 1 1310- ● ● ● ●
106 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> EXC. REAR DEFOGGER<C49> THA 		8-98142-042-0 01 1 1310- ● ● ●
106 CONTROL SUB ASM; HTR & A/C
REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> THA 		8-98142-039-0 01 1 1310- ● ● ● ●
106 CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> THA 		8-98142-036-0 01 1 1310- ● ● ● ●
106 CONTROL SUB ASM; HTR & A/C
COOLER WO/FRESH AIR<8NF> THA 		8-98142-030-0 01 1 1310-1311 ●
106 CONTROL SUB ASM; HTR & A/C
COOLER WO/FRESH AIR<8NF> THA 		8-98142-030-0 01 1 1312- ●
106 CONTROL SUB ASM; HTR & A/C
THA 		8-98142-030-0 01 1 1312- ●
çizim 373631
23 103 69 96 96 103 69 106 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> (A) THA 		8-98103-517-4 01 1 1310- ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> EXC. REAR DEFOGGER<C49> (A) THA 		8-98052-645-3 01 1 1310- ● ● ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> (A) THA 		8-98052-641-4 01 1 1310- ● ● ● ●
23 BEZEL; CONT LEVER
COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA 		8-98052-637-3 01 1 1310- ● ● ● ●
23 BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA 		8-98166-353-4 01 1 1310- ● ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98052-636-3 01 1 1310-1311 ●
23 BEZEL; CONT LEVER
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98052-636-3 01 1 1312- ●
23 BEZEL; CONT LEVER
(C) THA 		8-98052-636-3 01 1 1312- ●
69 SCREW; BEZEL BRKT
COOLER W/FRESH AIR<C65> M4X10 TAPPING THA 		8-98164-986-0 04 1 1310-1311 ● ● ● ● ●
69 SCREW; BEZEL BRKT
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> M4X10 TAPPING THA 		8-98164-986-0 04 1 1310-1311 ● ● ● ●
69 SCREW; BEZEL BRKT
COOLER WO/FRESH AIR<8NF> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> M4X10 TAPPING THA 		8-98164-986-0 04 1 1310-1311 ●
69 SCREW; BEZEL BRKT
COOLER W/FRESH AIR<C65> M4X10 TAPPING THA 		8-98164-986-0 04 1 1312- ● ● ● ● ●
69 SCREW; BEZEL BRKT
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> M4X10 TAPPING THA 		8-98164-986-0 04 1 1312- ● ● ● ●
69 SCREW; BEZEL BRKT
COOLER WO/FRESH AIR<8NF> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> M4X10 TAPPING THA 		8-98164-986-0 04 1 1312- ● ●
94 PANEL; BEZEL
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA 		8-98141-789-0 01 1 1310- ● ● ● ●
94 PANEL; BEZEL
COOLER W/FRESH AIR<C65> (A) THA 		8-98164-668-0 01 1 1310- ● ● ● ● ●
94 PANEL; BEZEL
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98064-614-0 01 1 1310-1311 ●
94 PANEL; BEZEL
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98064-614-0 01 1 1312- ●
94 PANEL; BEZEL
(C) THA 		8-98064-614-0 01 1 1312- ●
96 BULB ASM; BEZEL
COOLER W/FRESH AIR<C65> THA 		8-98156-188-0 02 1 1310-1311 ● ● ● ●
96 BULB ASM; BEZEL
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98156-188-0 02 1 1310-1311 ●
96 BULB ASM; BEZEL
COOLER W/FRESH AIR<C65> THA 		8-98156-188-0 02 1 1312- ● ● ● ●
96 BULB ASM; BEZEL
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98156-188-0 02 1 1312- ●
96 BULB ASM; BEZEL
THA 		8-98156-188-0 02 1 1312- ●
103 CLIP
COOLER W/FRESH AIR<C65> THA 		8-98164-677-0 04 1 1310-1311 ● ● ● ● ●
103 CLIP
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA 		8-98164-677-0 04 1 1310-1311 ● ● ● ●
103 CLIP
COOLER WO/FRESH AIR<8NF> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> THA 		8-98164-677-0 04 1 1310-1311 ●
103 CLIP
COOLER W/FRESH AIR<C65> THA 		8-98164-677-0 04 1 1312- ● ● ● ● ●
103 CLIP
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA 		8-98164-677-0 04 1 1312- ● ● ● ●
103 CLIP
COOLER WO/FRESH AIR<8NF> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> THA 		8-98164-677-0 04 1 1312- ● ●
106 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> THA 		8-98142-033-0 01 1 1310- ● ● ● ●
106 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> EXC. REAR DEFOGGER<C49> THA 		8-98142-042-0 01 1 1310- ● ● ●
106 CONTROL SUB ASM; HTR & A/C
REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> THA 		8-98142-039-0 01 1 1310- ● ● ● ●
106 CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> THA 		8-98142-036-0 01 1 1310- ● ● ● ●
106 CONTROL SUB ASM; HTR & A/C
COOLER WO/FRESH AIR<8NF> THA 		8-98142-030-0 01 1 1310-1311 ●
106 CONTROL SUB ASM; HTR & A/C
COOLER WO/FRESH AIR<8NF> THA 		8-98142-030-0 01 1 1312- ●
106 CONTROL SUB ASM; HTR & A/C
THA 		8-98142-030-0 01 1 1312- ●

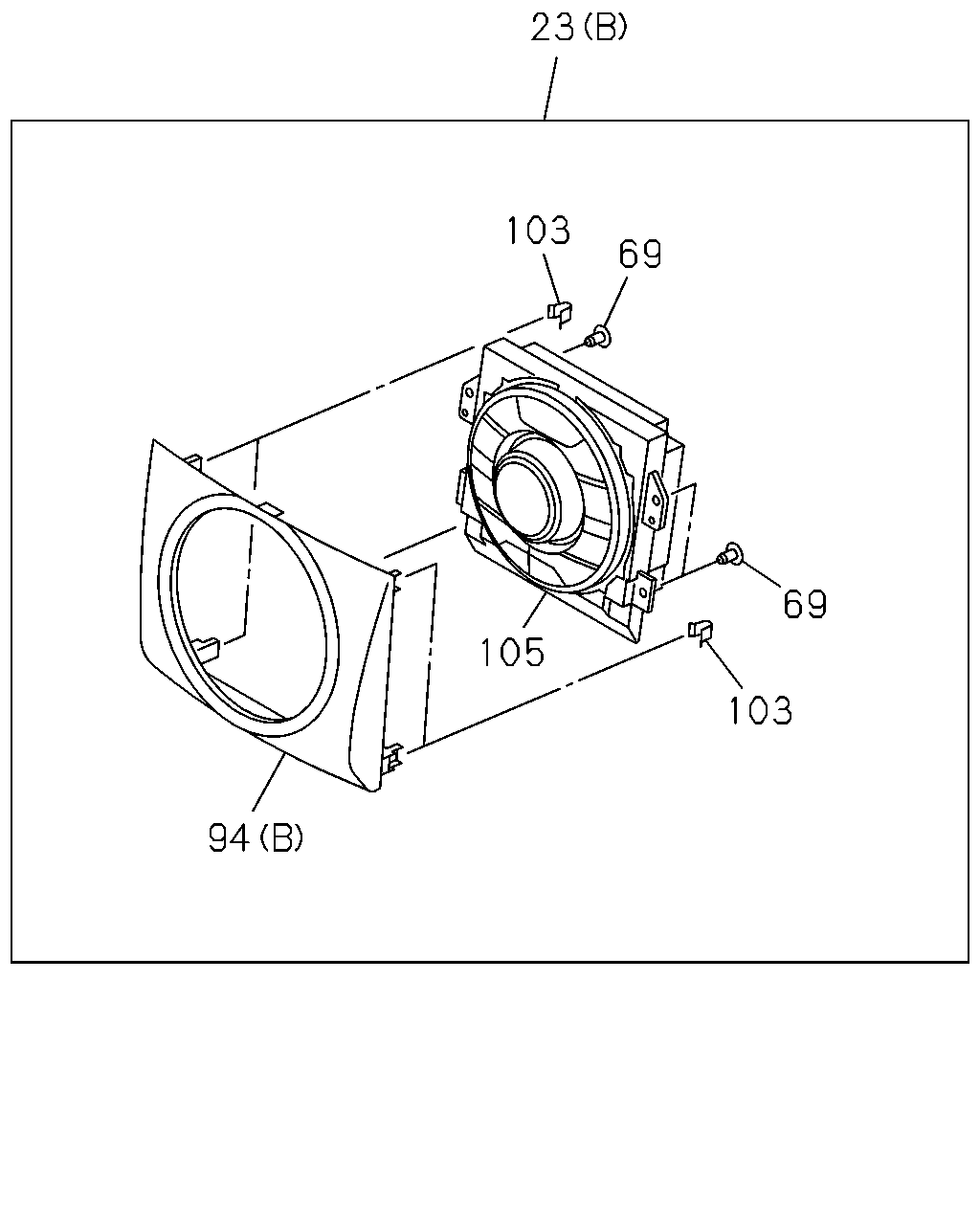

çizim 374409
23 103 69 105 103 69 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> (A) THA 		8-98103-517-4 01 1 1310- ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> EXC. REAR DEFOGGER<C49> (A) THA 		8-98052-645-3 01 1 1310- ● ● ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> (A) THA 		8-98052-641-4 01 1 1310- ● ● ● ●
23 BEZEL; CONT LEVER
COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA 		8-98052-637-3 01 1 1310- ● ● ● ●
23 BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA 		8-98166-353-4 01 1 1310- ● ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98052-636-3 01 1 1310-1311 ●
23 BEZEL; CONT LEVER
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98052-636-3 01 1 1312- ●
23 BEZEL; CONT LEVER
(C) THA 		8-98052-636-3 01 1 1312- ●
69 SCREW; BEZEL BRKT
COOLER W/FRESH AIR<C65> M4X10 TAPPING THA 		8-98164-986-0 04 1 1310-1311 ● ● ● ● ●
69 SCREW; BEZEL BRKT
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> M4X10 TAPPING THA 		8-98164-986-0 04 1 1310-1311 ● ● ● ●
69 SCREW; BEZEL BRKT
COOLER WO/FRESH AIR<8NF> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> M4X10 TAPPING THA 		8-98164-986-0 04 1 1310-1311 ●
69 SCREW; BEZEL BRKT
COOLER W/FRESH AIR<C65> M4X10 TAPPING THA 		8-98164-986-0 04 1 1312- ● ● ● ● ●
69 SCREW; BEZEL BRKT
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> M4X10 TAPPING THA 		8-98164-986-0 04 1 1312- ● ● ● ●
69 SCREW; BEZEL BRKT
COOLER WO/FRESH AIR<8NF> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> M4X10 TAPPING THA 		8-98164-986-0 04 1 1312- ● ●
94 PANEL; BEZEL
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA 		8-98141-789-0 01 1 1310- ● ● ● ●
94 PANEL; BEZEL
COOLER W/FRESH AIR<C65> (A) THA 		8-98164-668-0 01 1 1310- ● ● ● ● ●
94 PANEL; BEZEL
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98064-614-0 01 1 1310-1311 ●
94 PANEL; BEZEL
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98064-614-0 01 1 1312- ●
94 PANEL; BEZEL
(C) THA 		8-98064-614-0 01 1 1312- ●
103 CLIP
COOLER W/FRESH AIR<C65> THA 		8-98164-677-0 04 1 1310-1311 ● ● ● ● ●
103 CLIP
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA 		8-98164-677-0 04 1 1310-1311 ● ● ● ●
103 CLIP
COOLER WO/FRESH AIR<8NF> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> THA 		8-98164-677-0 04 1 1310-1311 ●
103 CLIP
COOLER W/FRESH AIR<C65> THA 		8-98164-677-0 04 1 1312- ● ● ● ● ●
103 CLIP
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA 		8-98164-677-0 04 1 1312- ● ● ● ●
103 CLIP
COOLER WO/FRESH AIR<8NF> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> THA 		8-98164-677-0 04 1 1312- ● ●
105 SWITCH ASM; A/C
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA 		8-98168-138-0 01 1 1310- ● ● ● ●
