◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#126479) — 169 parça

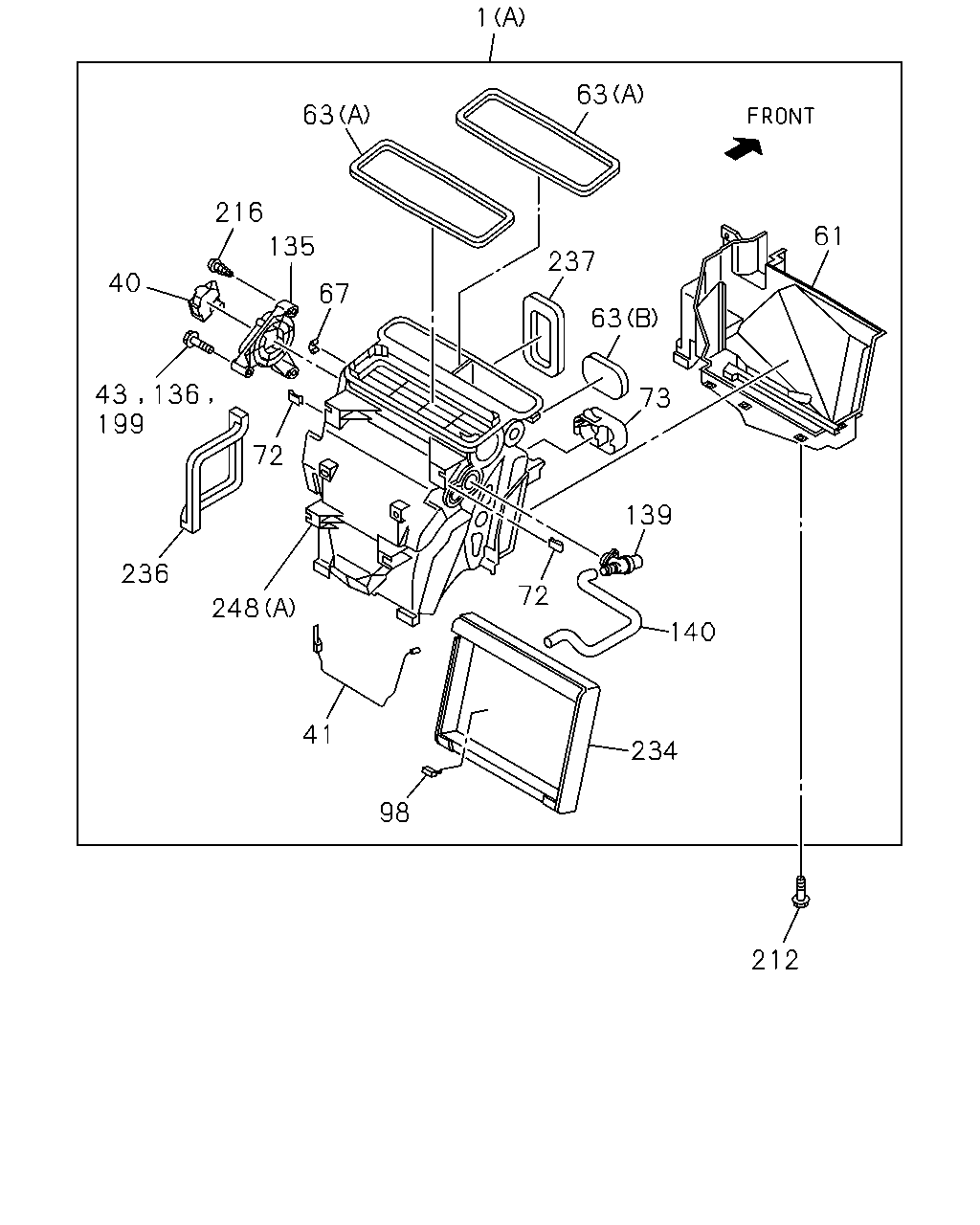

çizim 374147
1 63 61 63 237 73 139 140 234 98 41 248 236 199 43 136 40 216 63 67 135 72 72 212
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEATER UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98233-035-1 01 1 1310- ● ● ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-025-1 01 1 1310- ● ● ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98233-025-1 01 1 1310- ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DELETE<8HH> (B) THA 		8-98233-009-1 01 1 1310- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-024-1 01 1 1310-1311 ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-024-1 01 1 1312- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98233-024-1 01 1 1312- ●
1 HEATER UNIT
REAR BODY DELETE<8HH> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-008-1 01 1 1310-1311 ●
1 HEATER UNIT
REAR BODY DELETE<8HH> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-008-1 01 1 1312- ●
1 HEATER UNIT
REAR BODY DELETE<8HH> (C) THA 		8-98233-008-1 01 1 1312- ●
40 ACTUATOR; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-385-0 01 1 1310- ● ● ● ●
41 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-382-0 01 1 1310- ● ● ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98157-121-0 01 1 1310-1311 ● ● ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98157-121-0 01 1 1310-1311 ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98157-121-0 01 1 1312- ● ● ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98157-121-0 01 1 1312- ●
41 THERMOSTAT; HTR UNIT
THA 		8-98157-121-0 01 1 1312- ●
43 SCREW; CASE,HTR UNIT
THA 		8-98233-593-0 15 1 1310-1311 ● ● ● ● ●
43 SCREW; CASE,HTR UNIT
THA 		8-98233-593-0 15 1 1312- ● ● ● ● ● ●
61 CASE; HTR UNIT
THA 		8-98233-572-0 01 1 1310-1311 ● ● ● ● ●
61 CASE; HTR UNIT
THA 		8-98233-572-0 01 1 1312- ● ● ● ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98139-358-0 02 1 1310- ● ● ● ●
63 LINING; HTR UNIT
(B) THA 		8-98157-118-1 01 1 1310-1311 ● ● ● ● ●
63 LINING; HTR UNIT
(B) THA 		8-98157-118-1 01 1 1312- ● ● ● ● ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA 		8-98139-358-0 01 1 1310-1311 ● ● ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) THA 		8-98139-358-0 01 1 1310-1311 ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA 		8-98139-358-0 01 1 1312- ● ● ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) THA 		8-98139-358-0 01 1 1312- ●
63 LINING; HTR UNIT
(A) THA 		8-98139-358-0 01 1 1312- ●
67 CLIP; HTR UNIT
THA 		8-98157-123-0 01 1 1310-1311 ● ● ● ● ●
67 CLIP; HTR UNIT
THA 		8-98157-123-0 01 1 1312- ● ● ● ● ● ●
72 NUT; CASE,HTR UNIT
THA 		8-98139-394-1 03 1 1310-1311 ● ● ● ● ●
72 NUT; CASE,HTR UNIT
THA 		8-98139-394-1 03 1 1312- ● ● ● ● ● ●
73 PLATE; HTR UNIT
THA 		8-98233-591-0 01 1 1310-1311 ● ● ● ● ●
73 PLATE; HTR UNIT
THA 		8-98233-591-0 01 1 1312- ● ● ● ● ● ●
98 CLIP; HTR UNIT
THA 		8-98157-122-0 01 1 1310-1311 ● ● ● ● ●
98 CLIP; HTR UNIT
THA 		8-98157-122-0 01 1 1312- ● ● ● ● ● ●
135 COVER; HTR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-377-0 01 1 1310- ● ● ● ●
135 COVER; HTR
COOLER W/FRESH AIR<C65> THA 		8-98139-377-0 01 1 1310- ●
136 SCREW; PLATE
THA 		8-98233-593-0 02 1 1310-1311 ● ● ● ● ●
136 SCREW; PLATE
THA 		8-98233-593-0 02 1 1312- ● ● ● ● ● ●
139 ASPIRATOR; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-392-1 01 1 1310- ● ● ● ●
140 HOSE; AIR
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-393-1 01 1 1310- ● ● ● ●
199 SCREW; ACTUATOR
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-593-0 02 1 1310- ● ● ● ●
199 SCREW; ACTUATOR
COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1310- ● ● ● ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE THA 		0-28650-620-0 05 1 1310-1311 ● ● ● ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE THA 		0-28650-620-0 05 1 1312- ● ● ● ● ● ●
216 SCREW; COVER,HEATER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1310- ● ● ● ●
216 SCREW; COVER,HEATER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1310- ●
234 EVAPORATOR ASM; HEATER
THA 		8-98139-376-1 01 1 1310-1311 ● ● ● ● ●
234 EVAPORATOR ASM; HEATER
THA 		8-98139-376-1 01 1 1312- ● ● ● ● ● ●
236 GASKET; HEATER
THA 		8-98139-357-0 01 1 1310-1311 ● ● ● ● ●
236 GASKET; HEATER
THA 		8-98139-357-0 01 1 1312- ● ● ● ● ● ●
237 INSULATOR; EVAPORATOR
THA 		8-98139-360-1 01 1 1310-1311 ● ● ● ● ●
237 INSULATOR; EVAPORATOR
THA 		8-98139-360-1 01 1 1312- ● ● ● ● ● ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98233-570-0 01 1 1310- ● ● ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-564-0 01 1 1310- ● ● ● ● ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-563-0 01 1 1310-1311 ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-563-0 01 1 1312- ●
248 CASE ASM; HTR UNIT
(C) THA 		8-98233-563-0 01 1 1312- ●

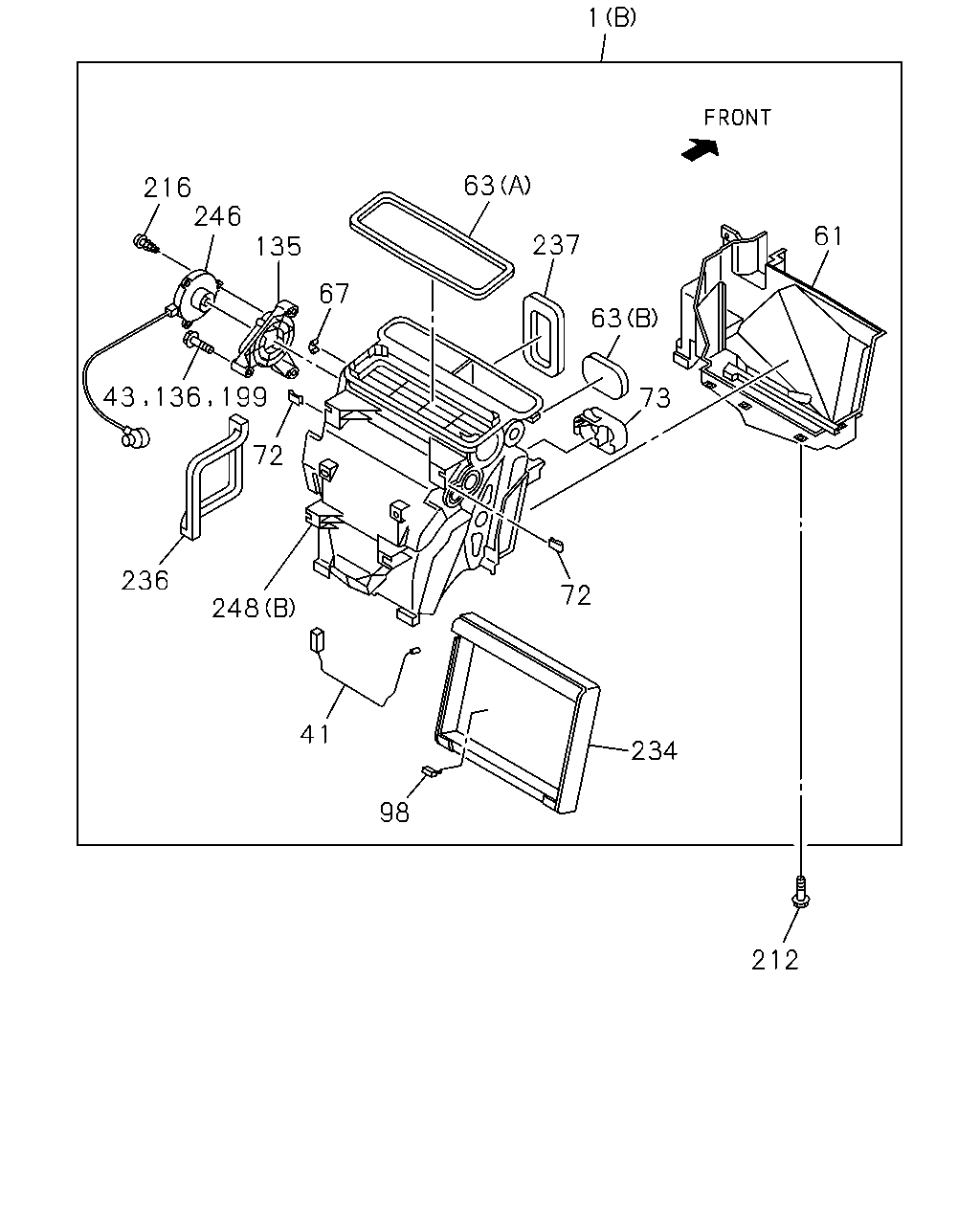

çizim 374148
1 61 63 237 63 73 72 234 212 98 41 248 236 43 136 199 72 216 246 135 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEATER UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98233-035-1 01 1 1310- ● ● ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-025-1 01 1 1310- ● ● ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98233-025-1 01 1 1310- ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DELETE<8HH> (B) THA 		8-98233-009-1 01 1 1310- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-024-1 01 1 1310-1311 ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-024-1 01 1 1312- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98233-024-1 01 1 1312- ●
1 HEATER UNIT
REAR BODY DELETE<8HH> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-008-1 01 1 1310-1311 ●
1 HEATER UNIT
REAR BODY DELETE<8HH> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-008-1 01 1 1312- ●
1 HEATER UNIT
REAR BODY DELETE<8HH> (C) THA 		8-98233-008-1 01 1 1312- ●
41 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-382-0 01 1 1310- ● ● ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98157-121-0 01 1 1310-1311 ● ● ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98157-121-0 01 1 1310-1311 ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98157-121-0 01 1 1312- ● ● ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98157-121-0 01 1 1312- ●
41 THERMOSTAT; HTR UNIT
THA 		8-98157-121-0 01 1 1312- ●
43 SCREW; CASE,HTR UNIT
THA 		8-98233-593-0 15 1 1310-1311 ● ● ● ● ●
43 SCREW; CASE,HTR UNIT
THA 		8-98233-593-0 15 1 1312- ● ● ● ● ● ●
61 CASE; HTR UNIT
THA 		8-98233-572-0 01 1 1310-1311 ● ● ● ● ●
61 CASE; HTR UNIT
THA 		8-98233-572-0 01 1 1312- ● ● ● ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98139-358-0 02 1 1310- ● ● ● ●
63 LINING; HTR UNIT
(B) THA 		8-98157-118-1 01 1 1310-1311 ● ● ● ● ●
63 LINING; HTR UNIT
(B) THA 		8-98157-118-1 01 1 1312- ● ● ● ● ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA 		8-98139-358-0 01 1 1310-1311 ● ● ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) THA 		8-98139-358-0 01 1 1310-1311 ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA 		8-98139-358-0 01 1 1312- ● ● ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) THA 		8-98139-358-0 01 1 1312- ●
63 LINING; HTR UNIT
(A) THA 		8-98139-358-0 01 1 1312- ●
67 CLIP; HTR UNIT
THA 		8-98157-123-0 01 1 1310-1311 ● ● ● ● ●
67 CLIP; HTR UNIT
THA 		8-98157-123-0 01 1 1312- ● ● ● ● ● ●
72 NUT; CASE,HTR UNIT
THA 		8-98139-394-1 03 1 1310-1311 ● ● ● ● ●
72 NUT; CASE,HTR UNIT
THA 		8-98139-394-1 03 1 1312- ● ● ● ● ● ●
73 PLATE; HTR UNIT
THA 		8-98233-591-0 01 1 1310-1311 ● ● ● ● ●
73 PLATE; HTR UNIT
THA 		8-98233-591-0 01 1 1312- ● ● ● ● ● ●
98 CLIP; HTR UNIT
THA 		8-98157-122-0 01 1 1310-1311 ● ● ● ● ●
98 CLIP; HTR UNIT
THA 		8-98157-122-0 01 1 1312- ● ● ● ● ● ●
135 COVER; HTR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-377-0 01 1 1310- ● ● ● ●
135 COVER; HTR
COOLER W/FRESH AIR<C65> THA 		8-98139-377-0 01 1 1310- ●
136 SCREW; PLATE
THA 		8-98233-593-0 02 1 1310-1311 ● ● ● ● ●
136 SCREW; PLATE
THA 		8-98233-593-0 02 1 1312- ● ● ● ● ● ●
199 SCREW; ACTUATOR
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-593-0 02 1 1310- ● ● ● ●
199 SCREW; ACTUATOR
COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1310- ● ● ● ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE THA 		0-28650-620-0 05 1 1310-1311 ● ● ● ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE THA 		0-28650-620-0 05 1 1312- ● ● ● ● ● ●
216 SCREW; COVER,HEATER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1310- ● ● ● ●
216 SCREW; COVER,HEATER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1310- ●
234 EVAPORATOR ASM; HEATER
THA 		8-98139-376-1 01 1 1310-1311 ● ● ● ● ●
234 EVAPORATOR ASM; HEATER
THA 		8-98139-376-1 01 1 1312- ● ● ● ● ● ●
236 GASKET; HEATER
THA 		8-98139-357-0 01 1 1310-1311 ● ● ● ● ●
236 GASKET; HEATER
THA 		8-98139-357-0 01 1 1312- ● ● ● ● ● ●
237 INSULATOR; EVAPORATOR
THA 		8-98139-360-1 01 1 1310-1311 ● ● ● ● ●
237 INSULATOR; EVAPORATOR
THA 		8-98139-360-1 01 1 1312- ● ● ● ● ● ●
246 ACTUATOR; MODE
COOLER W/FRESH AIR<C65> THA 		8-98139-397-1 01 1 1310- ● ● ● ● ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98233-570-0 01 1 1310- ● ● ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-564-0 01 1 1310- ● ● ● ● ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-563-0 01 1 1310-1311 ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-563-0 01 1 1312- ●
248 CASE ASM; HTR UNIT
(C) THA 		8-98233-563-0 01 1 1312- ●

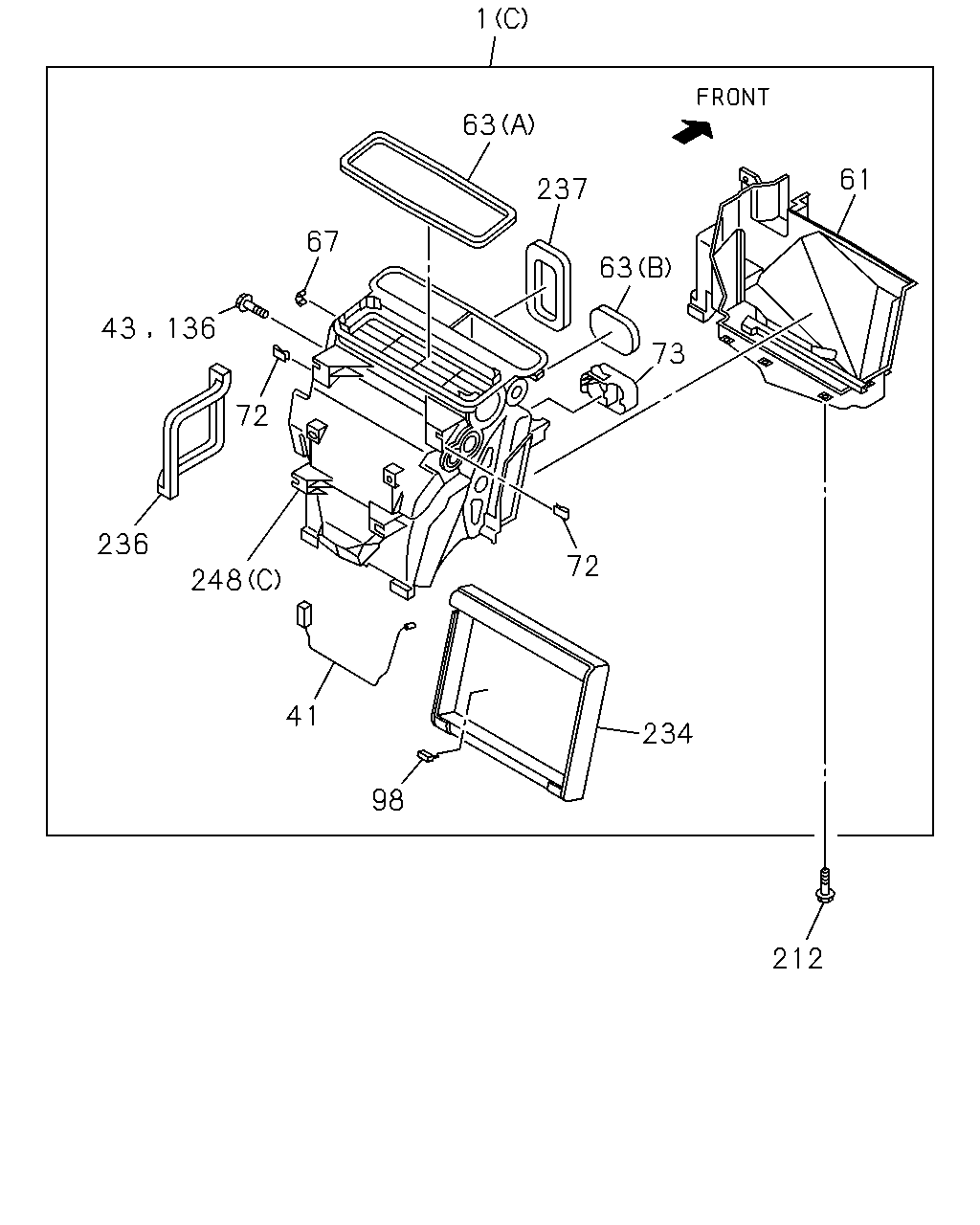

çizim 374153
1 63 237 63 61 73 72 234 212 98 41 248 236 43 136 72 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEATER UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98233-035-1 01 1 1310- ● ● ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-025-1 01 1 1310- ● ● ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98233-025-1 01 1 1310- ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DELETE<8HH> (B) THA 		8-98233-009-1 01 1 1310- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-024-1 01 1 1310-1311 ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-024-1 01 1 1312- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98233-024-1 01 1 1312- ●
1 HEATER UNIT
REAR BODY DELETE<8HH> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-008-1 01 1 1310-1311 ●
1 HEATER UNIT
REAR BODY DELETE<8HH> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-008-1 01 1 1312- ●
1 HEATER UNIT
REAR BODY DELETE<8HH> (C) THA 		8-98233-008-1 01 1 1312- ●
41 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-382-0 01 1 1310- ● ● ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98157-121-0 01 1 1310-1311 ● ● ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98157-121-0 01 1 1310-1311 ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98157-121-0 01 1 1312- ● ● ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98157-121-0 01 1 1312- ●
41 THERMOSTAT; HTR UNIT
THA 		8-98157-121-0 01 1 1312- ●
43 SCREW; CASE,HTR UNIT
THA 		8-98233-593-0 15 1 1310-1311 ● ● ● ● ●
43 SCREW; CASE,HTR UNIT
THA 		8-98233-593-0 15 1 1312- ● ● ● ● ● ●
61 CASE; HTR UNIT
THA 		8-98233-572-0 01 1 1310-1311 ● ● ● ● ●
61 CASE; HTR UNIT
THA 		8-98233-572-0 01 1 1312- ● ● ● ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98139-358-0 02 1 1310- ● ● ● ●
63 LINING; HTR UNIT
(B) THA 		8-98157-118-1 01 1 1310-1311 ● ● ● ● ●
63 LINING; HTR UNIT
(B) THA 		8-98157-118-1 01 1 1312- ● ● ● ● ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA 		8-98139-358-0 01 1 1310-1311 ● ● ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) THA 		8-98139-358-0 01 1 1310-1311 ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA 		8-98139-358-0 01 1 1312- ● ● ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) THA 		8-98139-358-0 01 1 1312- ●
63 LINING; HTR UNIT
(A) THA 		8-98139-358-0 01 1 1312- ●
67 CLIP; HTR UNIT
THA 		8-98157-123-0 01 1 1310-1311 ● ● ● ● ●
67 CLIP; HTR UNIT
THA 		8-98157-123-0 01 1 1312- ● ● ● ● ● ●
72 NUT; CASE,HTR UNIT
THA 		8-98139-394-1 03 1 1310-1311 ● ● ● ● ●
72 NUT; CASE,HTR UNIT
THA 		8-98139-394-1 03 1 1312- ● ● ● ● ● ●
73 PLATE; HTR UNIT
THA 		8-98233-591-0 01 1 1310-1311 ● ● ● ● ●
73 PLATE; HTR UNIT
THA 		8-98233-591-0 01 1 1312- ● ● ● ● ● ●
98 CLIP; HTR UNIT
THA 		8-98157-122-0 01 1 1310-1311 ● ● ● ● ●
98 CLIP; HTR UNIT
THA 		8-98157-122-0 01 1 1312- ● ● ● ● ● ●
136 SCREW; PLATE
THA 		8-98233-593-0 02 1 1310-1311 ● ● ● ● ●
136 SCREW; PLATE
THA 		8-98233-593-0 02 1 1312- ● ● ● ● ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE THA 		0-28650-620-0 05 1 1310-1311 ● ● ● ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE THA 		0-28650-620-0 05 1 1312- ● ● ● ● ● ●
234 EVAPORATOR ASM; HEATER
THA 		8-98139-376-1 01 1 1310-1311 ● ● ● ● ●
234 EVAPORATOR ASM; HEATER
THA 		8-98139-376-1 01 1 1312- ● ● ● ● ● ●
236 GASKET; HEATER
THA 		8-98139-357-0 01 1 1310-1311 ● ● ● ● ●
236 GASKET; HEATER
THA 		8-98139-357-0 01 1 1312- ● ● ● ● ● ●
237 INSULATOR; EVAPORATOR
THA 		8-98139-360-1 01 1 1310-1311 ● ● ● ● ●
237 INSULATOR; EVAPORATOR
THA 		8-98139-360-1 01 1 1312- ● ● ● ● ● ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98233-570-0 01 1 1310- ● ● ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-564-0 01 1 1310- ● ● ● ● ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-563-0 01 1 1310-1311 ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-563-0 01 1 1312- ●
248 CASE ASM; HTR UNIT
(C) THA 		8-98233-563-0 01 1 1312- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
