◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#126478) — 34 parça

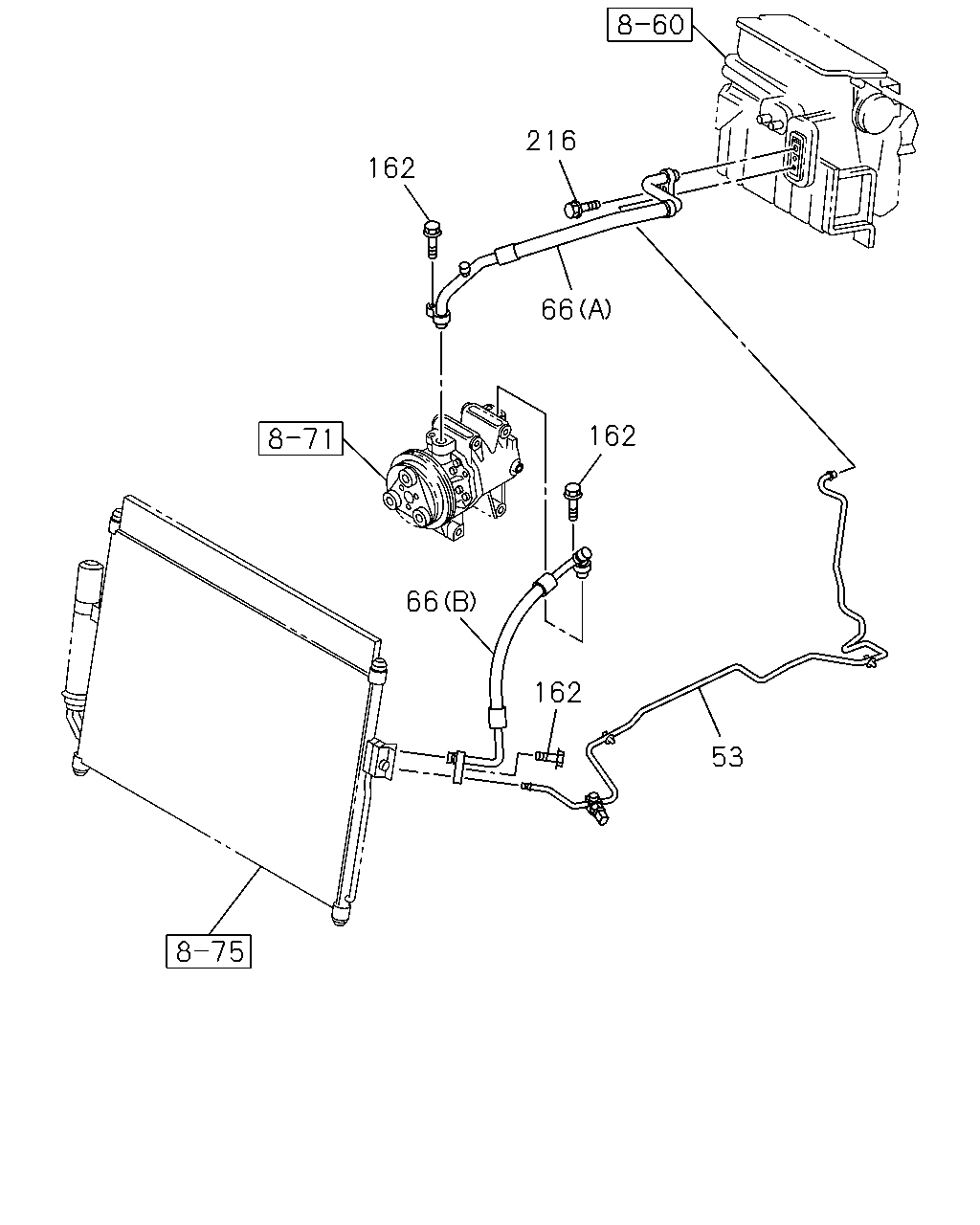

çizim 373622
216 162 66 162 53 162 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
53 PIPE; RECEIVER TANK TO EVAP
HIGH PRESSURE THA 		8-98129-150-4 01 1 1310-1311 ● ● ● ● ●
53 PIPE; RECEIVER TANK TO EVAP
HIGH PRESSURE THA 		8-98129-150-4 01 1 1312- ● ● ● ● ● ●
66 HOSE; FLEX,A/C
(A) LOW PRESSURE THA 		8-98102-233-3 01 1 1310-1311 ● ● ● ● ●
66 HOSE; FLEX,A/C
(A) LOW PRESSURE THA 		8-98102-233-3 01 1 1312- ● ● ● ● ● ●
66 HOSE; FLEX,A/C
(B) HIGH PRESSURE THA 		8-98129-345-1 01 1 1310-1311 ● ● ● ● ●
66 HOSE; FLEX,A/C
(B) HIGH PRESSURE THA 		8-98129-345-1 01 1 1312- ● ● ● ● ● ●
162 BOLT; FLEX HOSE
M8X25 FLANGE THA 		0-28650-825-0 03 1 1310-1311 ● ● ● ● ●
162 BOLT; FLEX HOSE
M8X25 FLANGE THA 		0-28650-825-0 03 1 1312- ● ● ● ● ● ●
216 BOLT; HOSE FIX
M6X20 FLANGE THA 		0-28650-620-0 01 1 1310-1311 ● ● ● ● ●
216 BOLT; HOSE FIX
M6X20 FLANGE THA 		0-28650-620-0 01 1 1312- ● ● ● ● ● ●
çizim 374131
53 123 146 122 146 123 202 67 147 66 66 67 67 67 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
53 PIPE; RECEIVER TANK TO EVAP
HIGH PRESSURE THA 		8-98129-150-4 01 1 1310-1311 ● ● ● ● ●
53 PIPE; RECEIVER TANK TO EVAP
HIGH PRESSURE THA 		8-98129-150-4 01 1 1312- ● ● ● ● ● ●
66 HOSE; FLEX,A/C
(A) LOW PRESSURE THA 		8-98102-233-3 01 1 1310-1311 ● ● ● ● ●
66 HOSE; FLEX,A/C
(A) LOW PRESSURE THA 		8-98102-233-3 01 1 1312- ● ● ● ● ● ●
66 HOSE; FLEX,A/C
(B) HIGH PRESSURE THA 		8-98129-345-1 01 1 1310-1311 ● ● ● ● ●
66 HOSE; FLEX,A/C
(B) HIGH PRESSURE THA 		8-98129-345-1 01 1 1312- ● ● ● ● ● ●
67 GASKET; FLEX HOSE
(B) THA 		8-98164-687-0 01 1 1310-1311 ● ● ● ● ●
67 GASKET; FLEX HOSE
(B) THA 		8-98164-687-0 01 1 1312- ● ● ● ● ● ●
67 GASKET; FLEX HOSE
(C) THA 		8-98164-688-0 01 1 1310-1311 ● ● ● ● ●
67 GASKET; FLEX HOSE
(C) THA 		8-98164-688-0 01 1 1312- ● ● ● ● ● ●
67 GASKET; FLEX HOSE
(A) THA 		8-98193-624-0 02 1 1310-1311 ● ● ● ● ●
67 GASKET; FLEX HOSE
(A) THA 		8-98193-624-0 02 1 1312- ● ● ● ● ● ●
122 GASKET
THA 		8-98164-690-0 01 1 1310-1311 ● ● ● ● ●
122 GASKET
THA 		8-98164-690-0 01 1 1312- ● ● ● ● ● ●
123 GASKET; RECEIVER PIPE
THA 		8-98164-689-0 02 1 1310-1311 ● ● ● ● ●
123 GASKET; RECEIVER PIPE
THA 		8-98164-689-0 02 1 1312- ● ● ● ● ● ●
146 CLIP; RECEIVER PIPE
THA 		8-98193-622-0 02 1 1310-1311 ● ● ● ● ●
146 CLIP; RECEIVER PIPE
THA 		8-98193-622-0 02 1 1312- ● ● ● ● ● ●
147 CAP; FLEX HOSE
(A) THA 		8-98193-623-0 01 1 1310-1311 ● ● ● ● ●
147 CAP; FLEX HOSE
(A) THA 		8-98193-623-0 01 1 1312- ● ● ● ● ● ●
147 CAP; FLEX HOSE
(B) THA 		8-98193-625-0 01 1 1310-1311 ● ● ● ● ●
147 CAP; FLEX HOSE
(B) THA 		8-98193-625-0 01 1 1312- ● ● ● ● ● ●
202 SWITCH; PRESSURE
THA 		8-98164-691-0 01 1 1310-1311 ● ● ● ● ●
202 SWITCH; PRESSURE
THA 		8-98164-691-0 01 1 1312- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
