8-40 — HEATER SYSTEM (#126475) — 20 parça

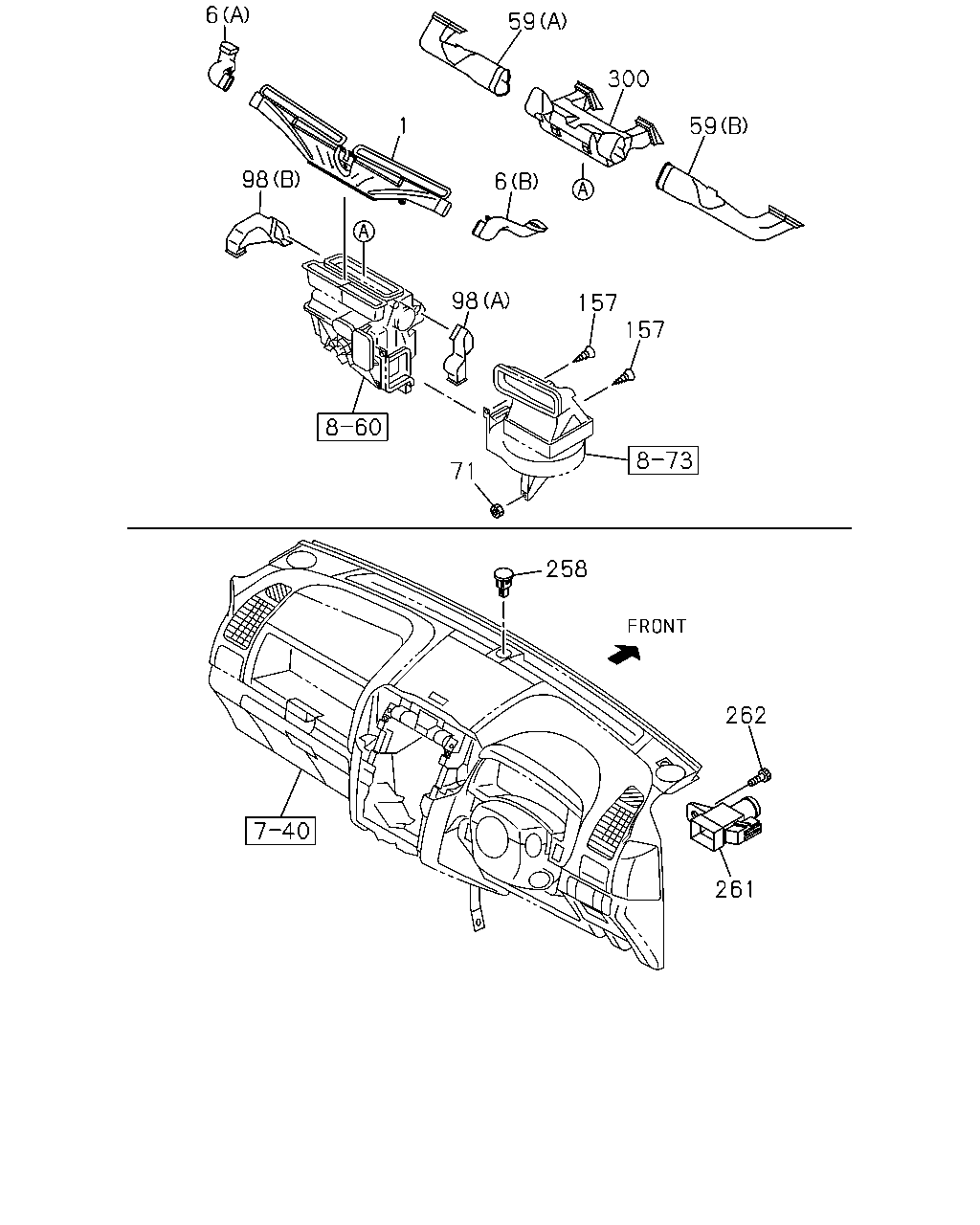

çizim 374141
6 59 300 59 6 98 98 157 157 71 258 262 261 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 NOZZLE; DEFROSTER,INST PNL
AUTO COOLER SYSTEM<CJ2> THA 		8-98187-101-2 01 1 1310- ● ● ● ●
6 DUCT; SIDE DEFROSTER
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98187-102-0 01 1 1310- ● ● ● ●
6 DUCT; SIDE DEFROSTER
AUTO COOLER SYSTEM<CJ2> (B) THA 		8-98187-103-0 01 1 1310- ● ● ● ●
59 DUCT; VENT,ASSIST SIDE
(A) THA 		8-98187-099-0 01 1 1310-1311 ● ● ● ● ●
59 DUCT; VENT,ASSIST SIDE
(A) THA 		8-98187-099-0 01 1 1312- ● ● ● ● ● ●
59 DUCT; VENT,ASSIST SIDE
(B) THA 		8-98187-100-0 01 1 1310-1311 ● ● ● ● ●
59 DUCT; VENT,ASSIST SIDE
(B) THA 		8-98187-100-0 01 1 1312- ● ● ● ● ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE IMA 		8-94279-514-0 01 1 1310-1311 ● ● ● ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE IMA 		8-94279-514-0 01 1 1312- ● ● ● ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA 		8-98233-054-0 01 1 1310- ● ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA 		8-98233-054-0 01 1 1310- ●
98 DUCT; BLOWER UNIT TO HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA 		8-98233-055-0 01 1 1310- ● ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-055-0 01 1 1310- ●
157 SCREW
M5X16 THA 		8-98167-220-0 02 1 1310-1311 ● ● ● ● ●
157 SCREW
M5X16 THA 		8-98167-220-0 02 1 1312- ● ● ● ● ● ●
258 SENSOR; SUN
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA 		8-98103-691-0 01 1 1310- ● ● ● ●
261 SENSOR; IN CAR
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA 		8-98103-694-0 01 1 1310- ● ● ● ●
262 SCREW; IN CAR SENSOR
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> M5X16 TAPPING THA 		8-98167-449-0 01 1 1310- ● ● ● ●
300 DUCT; VENT,CENTER
THA 		8-98187-098-0 01 1 1310-1311 ● ● ● ● ●
300 DUCT; VENT,CENTER
THA 		8-98187-098-0 01 1 1312- ● ● ● ● ● ●
