◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#126473) — 11 parça

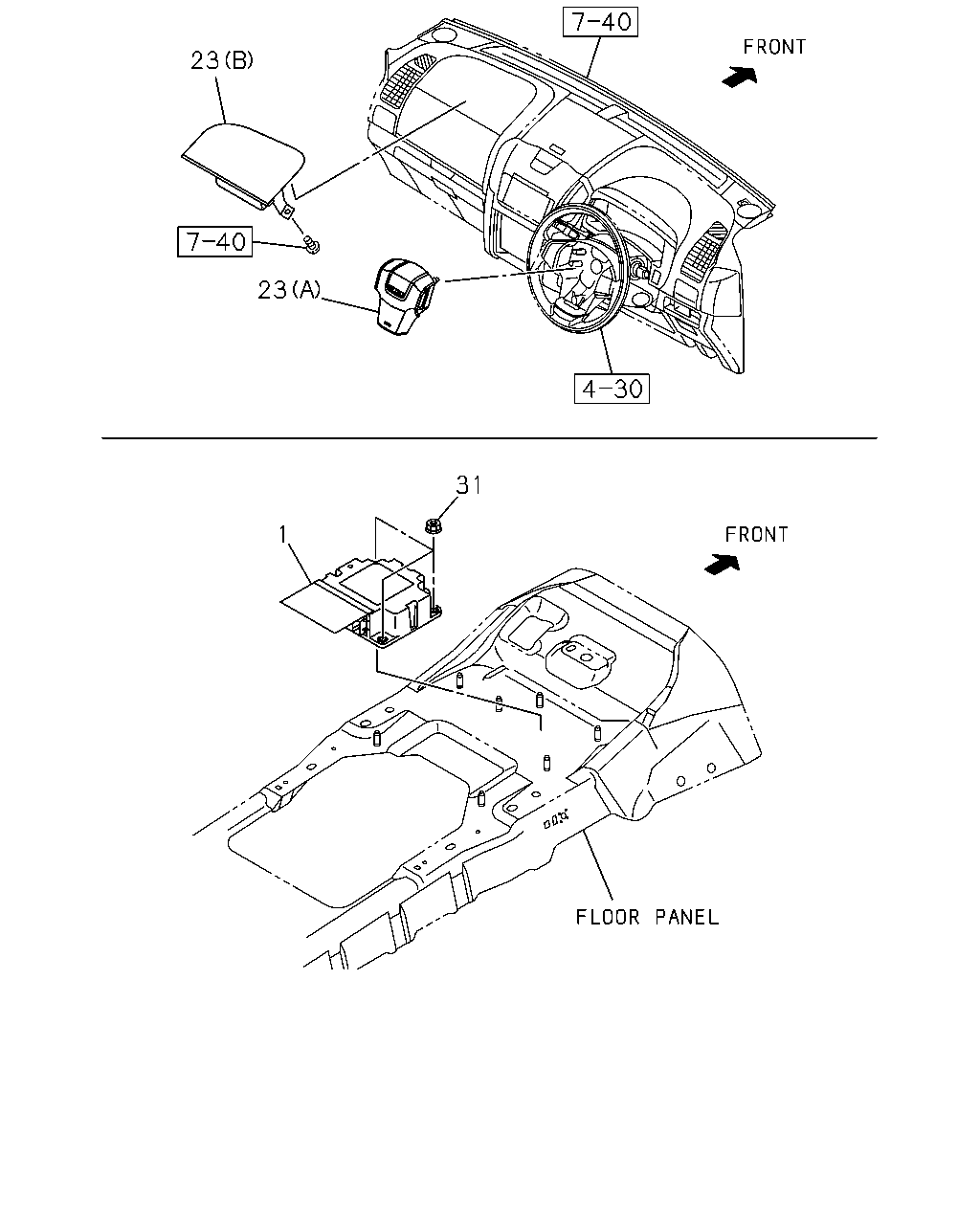

çizim 374399
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98127-250-2 01 1 1310-1312 ● ● ● ●
1 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98127-250-2 01 1 1401- ● ● ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> (B) BLACK THA 		8-97416-642-7 01 1 1310-1312 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> (A) BLACK THA 		8-97416-642-7 01 1 1401- ● ● ● ● ● ●
23 AIR BAG UNIT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR BAG DRIVER & PASSENGER<AK5> EXC. SALES PACKAGE SPORTY<XK0> (A) BLACK THA 		8-97416-641-6 01 1 1310-1312 ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> (A) BLACK THA 		8-97416-641-6 01 1 1310-1312 ● ●
23 AIR BAG UNIT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR BAG DRIVER & PASSENGER<AK5> EXC. SALES PACKAGE SPORTY<XK0> (A) BLACK THA 		8-97416-641-6 01 1 1401- ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> (A) BLACK THA 		8-97416-641-6 01 1 1401- ● ● ● ●
23 AIR BAG UNIT
INTERIOR COLOR UPR & LWR DARK GRAY<154> AIR BAG DRIVER & PASSENGER<AK5> SALES PACKAGE SPORTY<XK0> (A) BLACK THA 		8-97423-893-2 01 1 1310- ● ●
31 NUT
AIR BAG DRIVER & PASSENGER<AK5> M6 FLANGE THA 		0-91180-206-0 03 1 1310-1312 ● ● ● ●
31 NUT
AIR BAG DRIVER & PASSENGER<AK5> M6 FLANGE THA 		0-91180-206-0 03 1 1401- ● ● ● ● ● ●
