◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#126472) — 76 parça

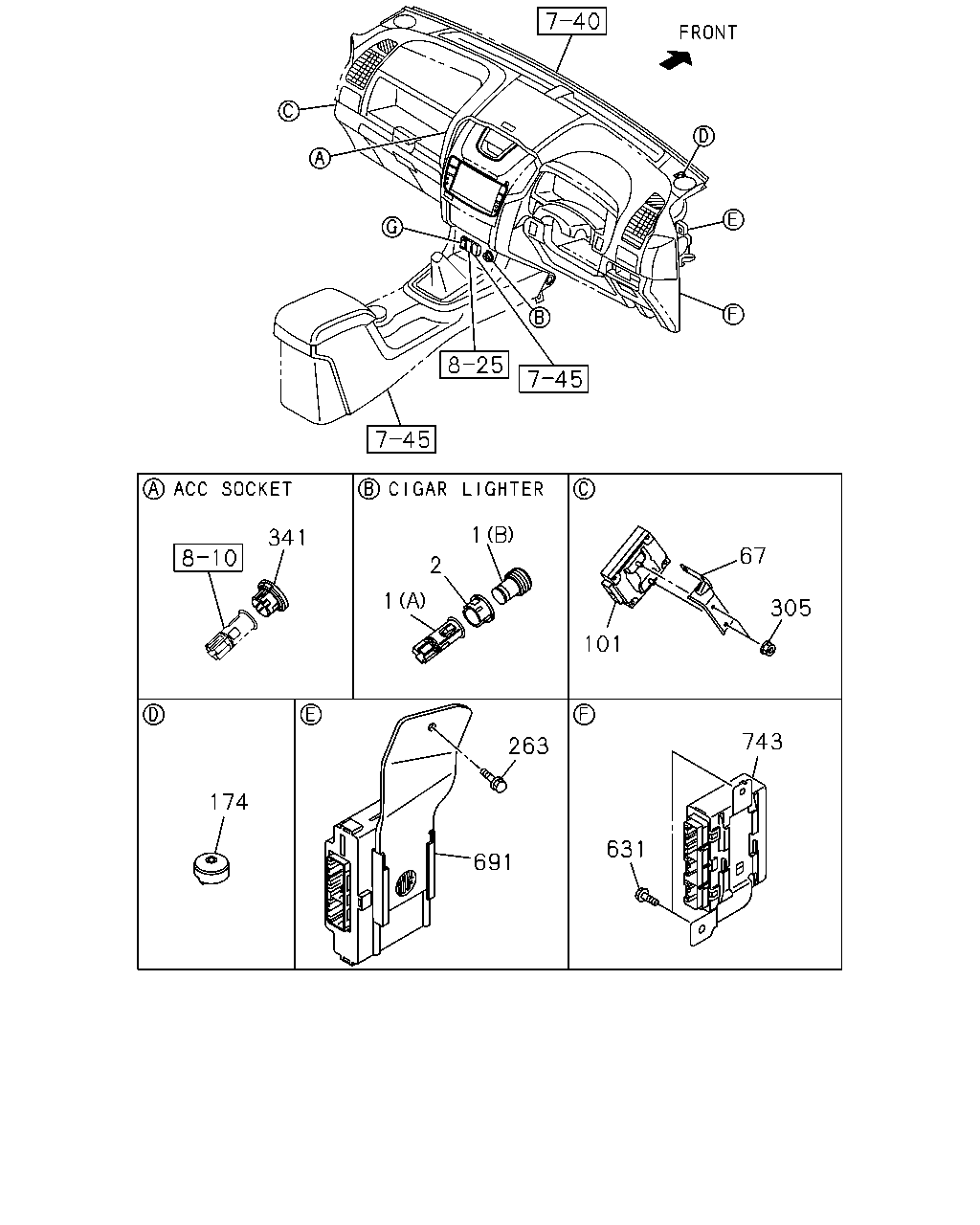

çizim 373386
341 174 691 263 1 2 1 67 305 101 743 631
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LIGHTER; CIGAR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> (A) IMA 		8-98123-114-0 01 1 1310-1311 ● ●
1 LIGHTER; CIGAR
INTERIOR DELUXE<RBB> (A) IMA 		8-98123-114-0 01 1 1310-1311 ● ●
1 LIGHTER; CIGAR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> (A) IMA 		8-98123-114-0 01 1 1312- ● ●
1 LIGHTER; CIGAR
INTERIOR DELUXE<RBB> (A) IMA 		8-98123-114-0 01 1 1312- ● ●
1 LIGHTER; CIGAR
(A) IMA 		8-98123-114-0 01 1 1312- ●
1 LIGHTER; CIGAR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> (B) IMA 		8-98123-117-0 01 1 1310-1311 ● ●
1 LIGHTER; CIGAR
INTERIOR DELUXE<RBB> (B) IMA 		8-98123-117-0 01 1 1310-1311 ● ●
1 LIGHTER; CIGAR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> (B) IMA 		8-98123-117-0 01 1 1312- ● ●
1 LIGHTER; CIGAR
INTERIOR DELUXE<RBB> (B) IMA 		8-98123-117-0 01 1 1312- ● ●
1 LIGHTER; CIGAR
(B) IMA 		8-98123-117-0 01 1 1312- ●
2 BEZEL; CIGAR LIGHTER
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> IMA 		8-98123-118-0 01 1 1310-1311 ● ●
2 BEZEL; CIGAR LIGHTER
INTERIOR DELUXE<RBB> IMA 		8-98123-118-0 01 1 1310-1311 ● ●
2 BEZEL; CIGAR LIGHTER
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> IMA 		8-98123-118-0 01 1 1312- ● ●
2 BEZEL; CIGAR LIGHTER
INTERIOR DELUXE<RBB> IMA 		8-98123-118-0 01 1 1312- ● ●
2 BEZEL; CIGAR LIGHTER
IMA 		8-98123-118-0 01 1 1312- ●
67 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN<MA1> THA 		8-98113-342-0 01 1 1310- ● ● ● ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> HIGH RIDE SUSPENSION<7YC> THA 		8-98239-943-0 01 1 1310- ● ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> THA 		8-98239-943-0 01 1 1310- ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98239-944-0 01 1 1310- ● ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> THA 		8-98239-944-0 01 1 1310- ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> HIGH RIDE SUSPENSION<7YC> THA 		8-98239-940-0 01 1 1310- ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> THA 		8-98239-940-0 01 1 1310- ●
174 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98153-855-0 01 1 1310- ● ● ● ●
263 BOLT; CONT UNIT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M6X16 FLANGE THA 		0-28650-616-0 01 1 1310-1311 ●
263 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1310-1311 ●
263 BOLT; CONT UNIT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M6X16 FLANGE THA 		0-28650-616-0 01 1 1312- ●
263 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1312- ●
263 BOLT; CONT UNIT
M/T MUA 5 SPEED 5H<MWQ> M6X16 FLANGE THA 		0-28650-616-0 01 1 1312- ●
305 NUT; CONT UNIT
A/T 5 SPEED-AISIN<MA1> M6 FLANGE THA 		0-91180-106-0 02 1 1310- ● ● ● ●
341 COVER ASM
ACCESSORY SOCKET FRT CONSOLE<KC5> IMA 		8-98123-123-0 01 1 1310- ● ●
341 COVER ASM
IMA 		8-98123-123-0 01 1 1310- ● ● ●
341 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> THA 		8-98142-409-1 01 1 1310-1311 ● ●
341 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> THA 		8-98142-409-1 01 1 1312- ● ●
341 COVER ASM
THA 		8-98142-409-1 01 1 1312- ●
631 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> M6X16 FLANGE THA 		0-28450-616-0 01 1 1310- ● ● ● ●
631 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> M6X16 FLANGE THA 		0-28450-616-0 01 1 1310- ●
631 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> M6X16 FLANGE THA 		0-28450-616-0 02 1 1310- ● ● ● ●
691 CONTROLLER; TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98186-110-0 01 1 1310-1311 ●
691 CONTROLLER; TRANSFER
THA 		8-98186-110-0 01 1 1310-1311 ●
691 CONTROLLER; TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98186-110-0 01 1 1312- ●
691 CONTROLLER; TRANSFER
THA 		8-98186-110-0 01 1 1312- ●
691 CONTROLLER; TRANSFER
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98186-110-0 01 1 1312- ●
743 CONTROL UNIT; BCM
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98065-084-5 01 1 1310- ● ● ● ●
743 CONTROL UNIT; BCM
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98215-286-0 01 1 1310- ● ● ● ●

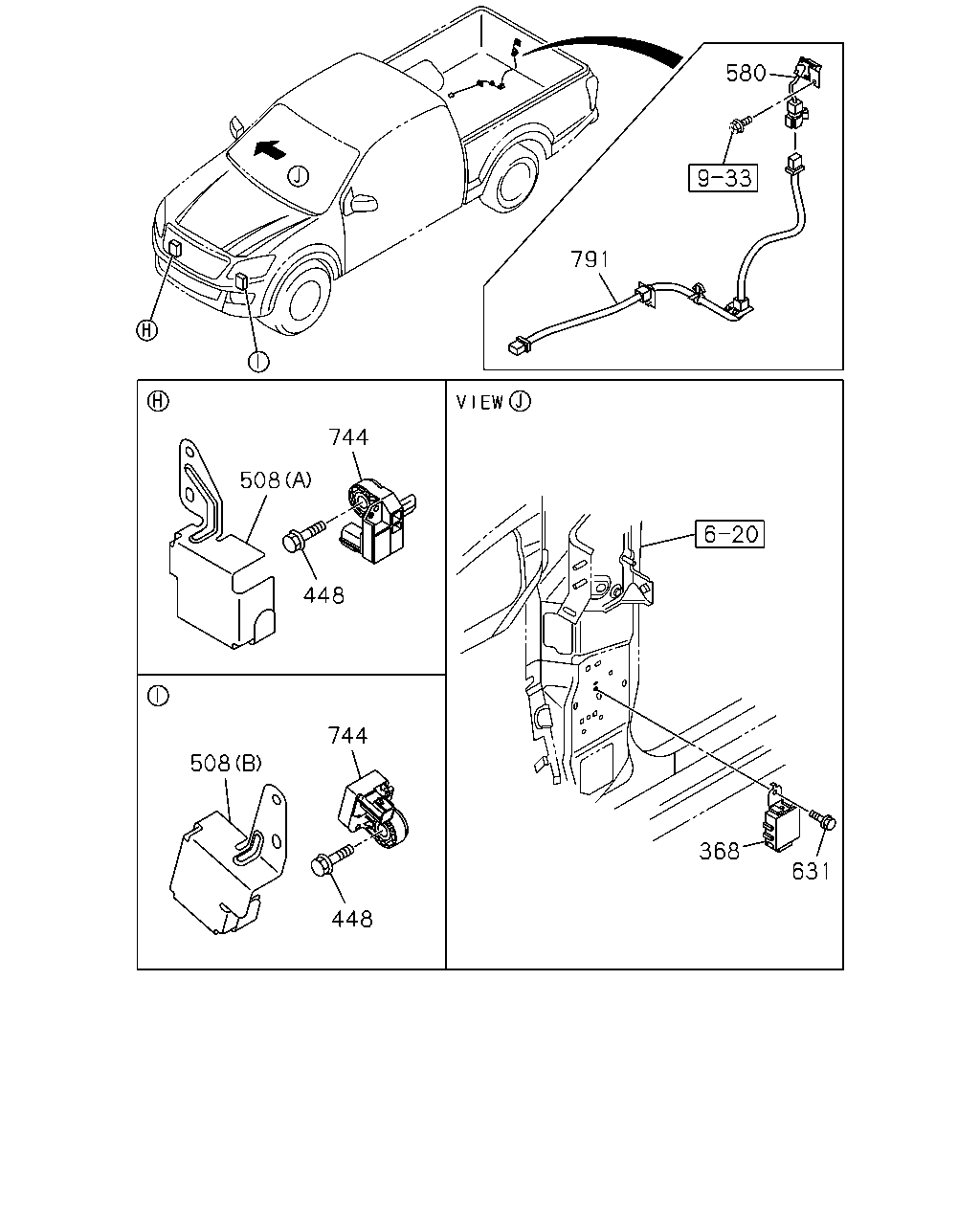

çizim 373698
744 508 791 580 368 631 448 744 508 448
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
368 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMA 		8-97385-923-0 01 1 1310- ● ● ● ●
368 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> IMA 		8-97385-923-0 01 1 1310- ●
448 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> M6X25 FLANGE THA 		0-28650-625-0 02 1 1310-1312 ● ● ● ●
448 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> M6X25 FLANGE THA 		0-28650-625-0 02 1 1401- ● ● ● ● ● ●
508 PROTECTOR
AIR BAG DRIVER & PASSENGER<AK5> (A) THA 		8-98165-179-0 01 1 1310-1312 ● ● ● ●
508 PROTECTOR
AIR BAG DRIVER & PASSENGER<AK5> (A) THA 		8-98165-179-0 01 1 1401- ● ● ● ● ● ●
508 PROTECTOR
AIR BAG DRIVER & PASSENGER<AK5> (B) THA 		8-98165-180-0 01 1 1310-1312 ● ● ● ●
508 PROTECTOR
AIR BAG DRIVER & PASSENGER<AK5> (B) THA 		8-98165-180-0 01 1 1401- ● ● ● ● ● ●
580 CAMERA; REAR
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98182-423-0 01 1 1310- ● ● ● ●
631 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> M6X16 FLANGE THA 		0-28450-616-0 01 1 1310- ● ● ● ●
631 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> M6X16 FLANGE THA 		0-28450-616-0 01 1 1310- ●
631 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> M6X16 FLANGE THA 		0-28450-616-0 02 1 1310- ● ● ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98059-533-2 02 1 1310-1312 ● ● ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98059-533-2 02 1 1401- ● ● ● ● ● ●
791 CABLE; SAFETY
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98182-428-0 01 1 1310- ● ● ● ●

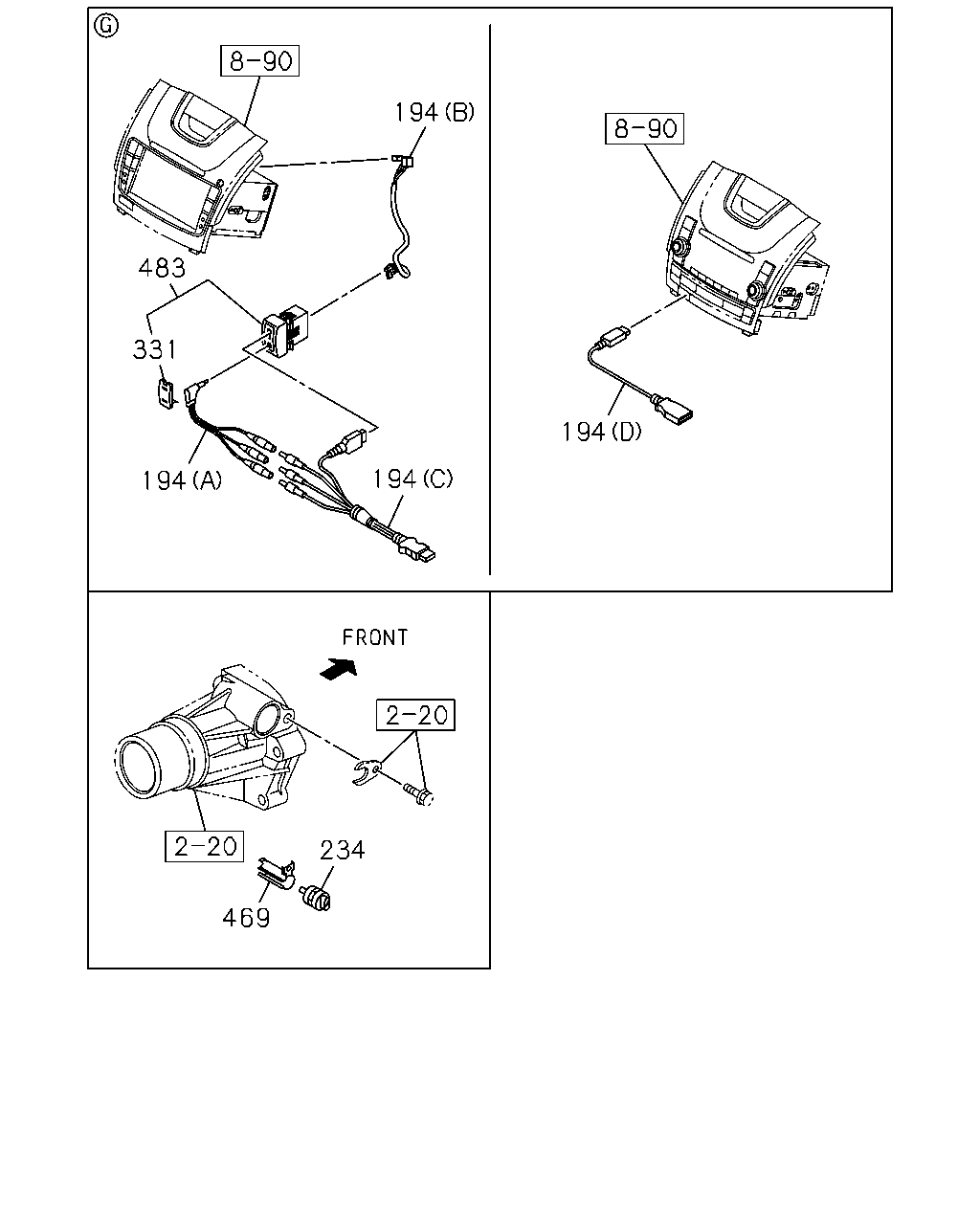

çizim 374365
194 194 194 331 483 194 234 469
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (C) THA 		8-98235-372-0 01 1 1310- ● ● ● ●
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> (D) THA 		8-98193-631-0 01 1 1310- ● ● ● ●
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (B) THA 		8-98209-263-0 01 1 1310- ● ● ● ●
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (A) THA 		8-98209-351-0 01 1 1310- ● ● ● ●
234 SENSOR; VEHICLE SPD
A/T 5 SPEED-AISIN<MA1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE/BLACK THA 		8-98043-734-0 01 1 1310- ● ●
234 SENSOR; VEHICLE SPD
A/T 5 SPEED-AISIN<MA1> 4 PULSE PPS RESIN WHITE/BLACK THA 		8-98043-734-0 01 1 1310- ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1310-1311 ● ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1310-1311 ●
234 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1310-1311 ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1312- ● ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1312- ●
234 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1312- ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1312- ●
331 COVER; SW
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98217-463-0 01 1 1310- ● ● ● ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA 		8-98119-901-0 01 1 1310- ● ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> IMA 		8-98119-901-0 01 1 1310- ●
483 SWITCH
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98209-259-1 01 1 1310- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
