8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#126471) — 97 parça

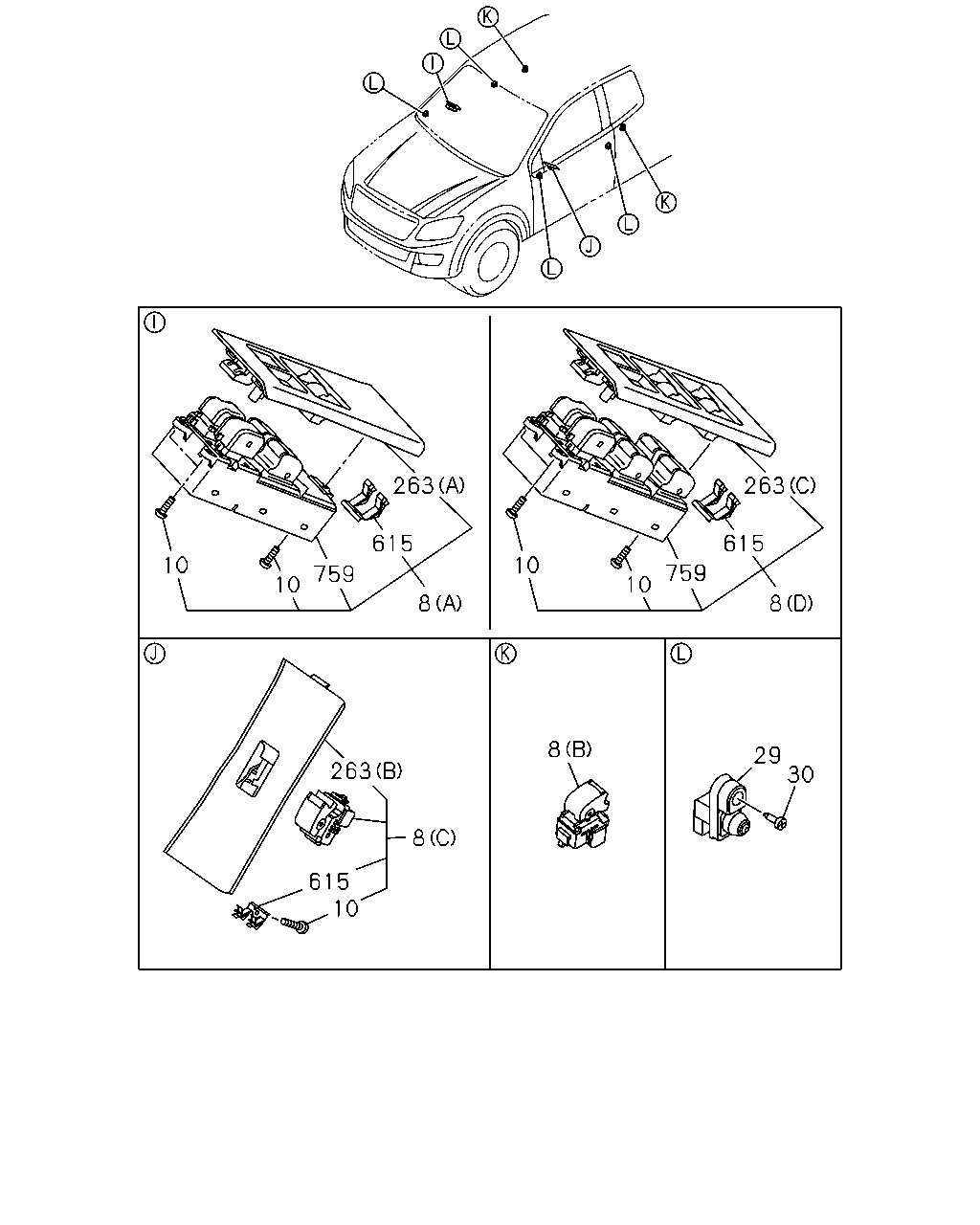

çizim 373310
10 10 615 8 263 759 615 759 10 10 263 8 29 30 8 263 8 615 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (A) BLACK THA 		8-97416-734-0 01 1 1310- ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA 		8-97416-810-0 01 1 1310- ● ● ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA 		8-97416-810-0 01 1 1310- ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) BLACK THA 		8-97416-735-0 01 1 1310- ● ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (D) BLACK THA 		8-97416-975-0 01 1 1310- ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA 		8-97417-004-0 02 1 1310- ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (D) BLACK THA 		8-97416-976-0 01 1 1310- ● ●
10 SCREW; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-450-0 03 1 1310- ● ● ● ● ●
10 SCREW; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-450-0 01 1 1310- ● ● ● ● ●
29 SWITCH; DOOR
THA 		8-97313-208-0 02 1 1310-1311 ● ● ● ● ●
29 SWITCH; DOOR
THA 		8-97313-208-0 02 1 1310-1311 ● ●
29 SWITCH; DOOR
THA 		8-97313-208-0 02 1 1312- ● ● ● ● ● ●
29 SWITCH; DOOR
THA 		8-97313-208-0 02 1 1312- ● ●
30 SCREW; DOOR SW
M5X14 IMA 		8-94120-095-0 02 1 1310-1311 ● ● ● ● ●
30 SCREW; DOOR SW
M5X14 IMA 		8-94120-095-0 02 1 1310-1311 ● ●
30 SCREW; DOOR SW
M5X14 IMA 		8-94120-095-0 02 1 1312- ● ● ● ● ● ●
30 SCREW; DOOR SW
M5X14 IMA 		8-94120-095-0 02 1 1312- ● ●
263 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA 		8-98192-247-0 01 1 1310- ● ● ● ●
263 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA 		8-98192-247-0 01 1 1310- ●
263 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) THA 		8-98192-243-0 01 1 1310- ● ●
263 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) THA 		8-98192-243-0 01 1 1310- ●
263 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) THA 		8-98192-244-0 01 1 1310- ● ●
615 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-268-0 01 1 1310- ● ● ● ●
615 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-268-0 01 1 1310- ● ● ● ●
615 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-268-0 01 1 1310- ●
615 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-268-0 01 1 1310- ●
759 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> THA 		8-98192-249-0 01 1 1310- ● ●
759 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-250-0 01 1 1310- ● ● ●
759 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> THA 		8-98192-251-0 01 1 1310- ● ●
759 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-252-0 01 1 1310- ● ●

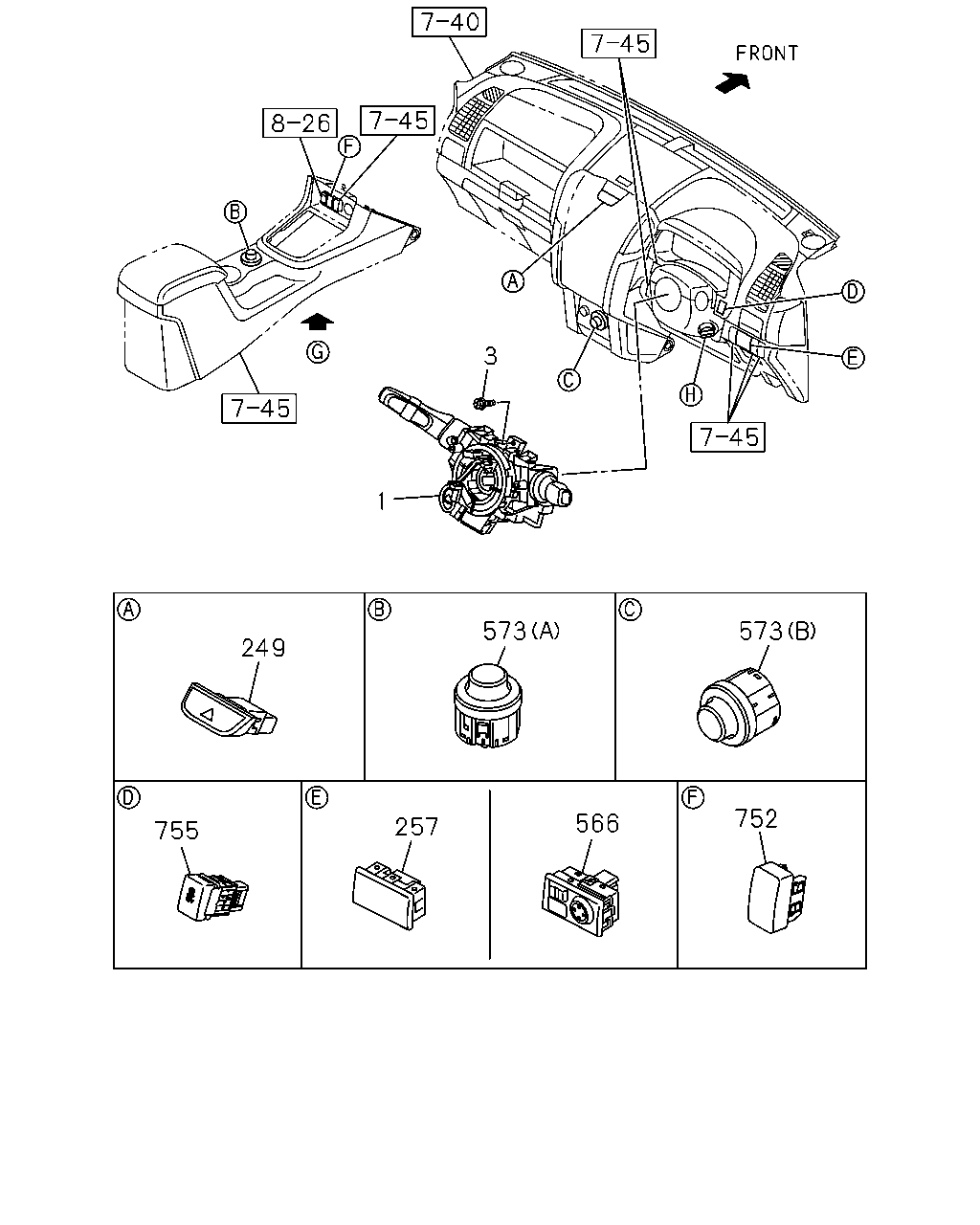

çizim 373601
1 3 573 573 249 755 257 566 752
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98194-140-1 01 1 1310- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98194-140-1 01 1 1310- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98194-140-1 01 1 1310- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98194-134-1 01 1 1310-1312 ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98194-134-1 01 1 1310-1312 ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98194-134-1 01 1 1401- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> THA 		8-98194-134-1 01 1 1401- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98194-134-1 01 1 1401- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98194-139-1 01 1 1310-1312 ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98194-139-1 01 1 1310-1312 ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98194-139-1 01 1 1401- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> EXC. INTERMITTENT WIPER<C13> THA 		8-98194-139-1 01 1 1401- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98194-139-1 01 1 1401- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98194-139-1 01 1 1401- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98132-625-2 01 1 1310- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98132-625-2 01 1 1310- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98132-625-2 01 1 1310- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERMITTENT WIPER<C13> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98059-571-2 01 1 1310-1312 ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> THA 		8-98059-571-2 01 1 1310-1312 ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98059-571-2 01 1 1310-1312 ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERMITTENT WIPER<C13> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98059-571-2 01 1 1401- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERMITTENT WIPER<C13> THA 		8-98059-571-2 01 1 1401- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98059-571-2 01 1 1401- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98059-570-2 01 1 1310-1311 ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> THA 		8-98059-570-2 01 1 1310-1311 ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98059-570-2 01 1 1310-1311 ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98059-570-2 01 1 1312-1312 ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> THA 		8-98059-570-2 01 1 1312-1312 ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98059-570-2 01 1 1312-1312 ●
1 SWITCH; COMB
THA 		8-98059-570-2 01 1 1312-1312 ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98059-570-2 01 1 1401- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. INTERMITTENT WIPER<C13> THA 		8-98059-570-2 01 1 1401- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98059-570-2 01 1 1401- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98059-570-2 01 1 1401- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98227-411-1 01 1 1310- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98227-411-1 01 1 1310- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98194-141-1 01 1 1310- ●
3 SCREW; COMB SW
M5X20 W/LK&PL WASHER THA 		0-36230-520-0 01 1 1310-1311 ● ● ● ● ●
3 SCREW; COMB SW
M5X20 W/LK&PL WASHER THA 		0-36230-520-0 01 1 1312- ● ● ● ● ● ●
249 SWITCH; HAZARD
BLACK THA 		8-97416-805-0 01 1 1310-1311 ● ● ● ● ●
249 SWITCH; HAZARD
BLACK THA 		8-97416-805-0 01 1 1312- ● ● ● ● ● ●
257 COVER; HOLE,SW
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> THA 		8-98106-389-2 01 1 1310-1311 ● ●
257 COVER; HOLE,SW
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-98106-389-2 01 1 1310-1311 ● ●
257 COVER; HOLE,SW
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> THA 		8-98106-389-2 01 1 1312- ● ●
257 COVER; HOLE,SW
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-98106-389-2 01 1 1312- ● ●
257 COVER; HOLE,SW
THA 		8-98106-389-2 01 1 1312- ●
566 SWITCH; MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> THA 		8-98058-078-1 01 1 1310- ● ● ● ●
566 SWITCH; MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-98106-392-1 01 1 1310- ● ●
566 SWITCH; MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98106-392-1 01 1 1310- ● ●
573 SWITCH; 4WD
FLOOR CONSOLE W/LID<D55> (A) THA 		8-98065-836-2 01 1 1310-1311 ●
573 SWITCH; 4WD
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (A) THA 		8-98065-836-2 01 1 1310-1311 ●
573 SWITCH; 4WD
FLOOR CONSOLE W/LID<D55> (A) THA 		8-98065-836-2 01 1 1312- ● ●
573 SWITCH; 4WD
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (A) THA 		8-98065-836-2 01 1 1312- ●
573 SWITCH; 4WD
EXC. FLOOR CONSOLE W/LID<D55> (B) THA 		8-98058-076-2 01 1 1310-1311 ●
573 SWITCH; 4WD
EXC. FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOOR CONSOLE W/LID<D55> (B) THA 		8-98058-076-2 01 1 1310-1311 ●
573 SWITCH; 4WD
EXC. FLOOR CONSOLE W/LID<D55> (B) THA 		8-98058-076-2 01 1 1312- ● ●
573 SWITCH; 4WD
EXC. FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOOR CONSOLE W/LID<D55> (B) THA 		8-98058-076-2 01 1 1312- ●
752 COVER; SEAT HTR
INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> THA 		8-98141-215-1 01 1 1310- ● ● ●
752 COVER; SEAT HTR
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> THA 		8-98141-215-1 01 1 1310- ●
755 SWITCH; ESC OFF
ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98058-081-1 01 1 1310- ● ●

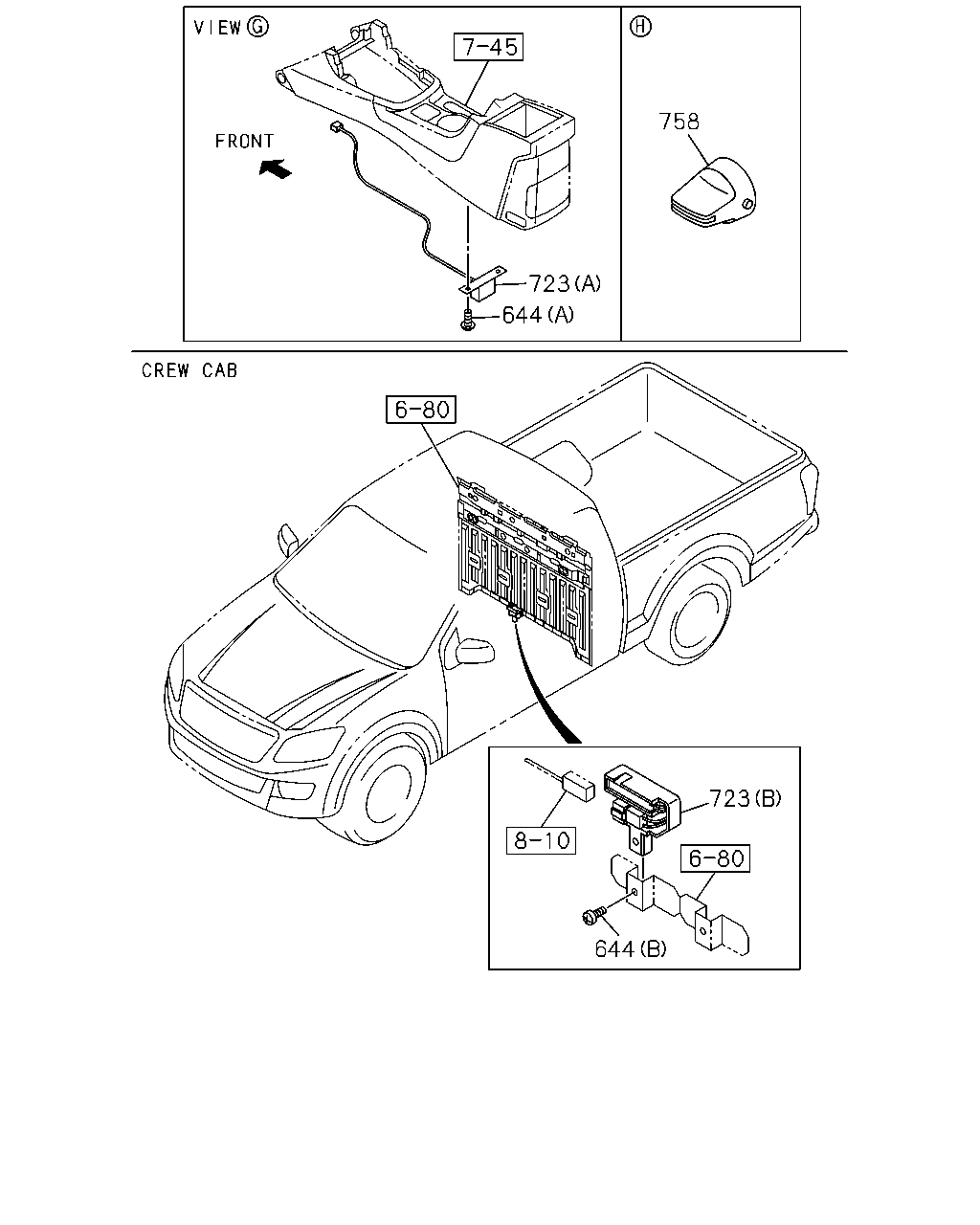

çizim 374492
758 723 644 723 644
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
644 SCREW; TAPPING
PASSIVE ENTRY AND START SYSTEM<AP3> (A) M5X16 TAPPING THA 		8-98167-449-0 02 1 1310- ● ● ● ●
644 SCREW; TAPPING
PASSIVE ENTRY AND START SYSTEM<AP3> (B) M6X12 TAPPING THA 		0-71240-612-0 01 1 1310- ● ●
723 ANTENNA; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-98076-332-1 01 1 1310- ● ● ● ●
723 ANTENNA; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98076-333-0 01 1 1310- ● ●
758 KNOB ASM; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> KEY REMINDER BUZZER<T48> THA 		8-98145-589-0 01 1 1310- ●
758 KNOB ASM; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98145-589-0 01 1 1310- ● ●
758 KNOB ASM; KEYLESS ENTRY
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98145-589-0 01 1 1310- ●
