◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#126470) — 34 parça

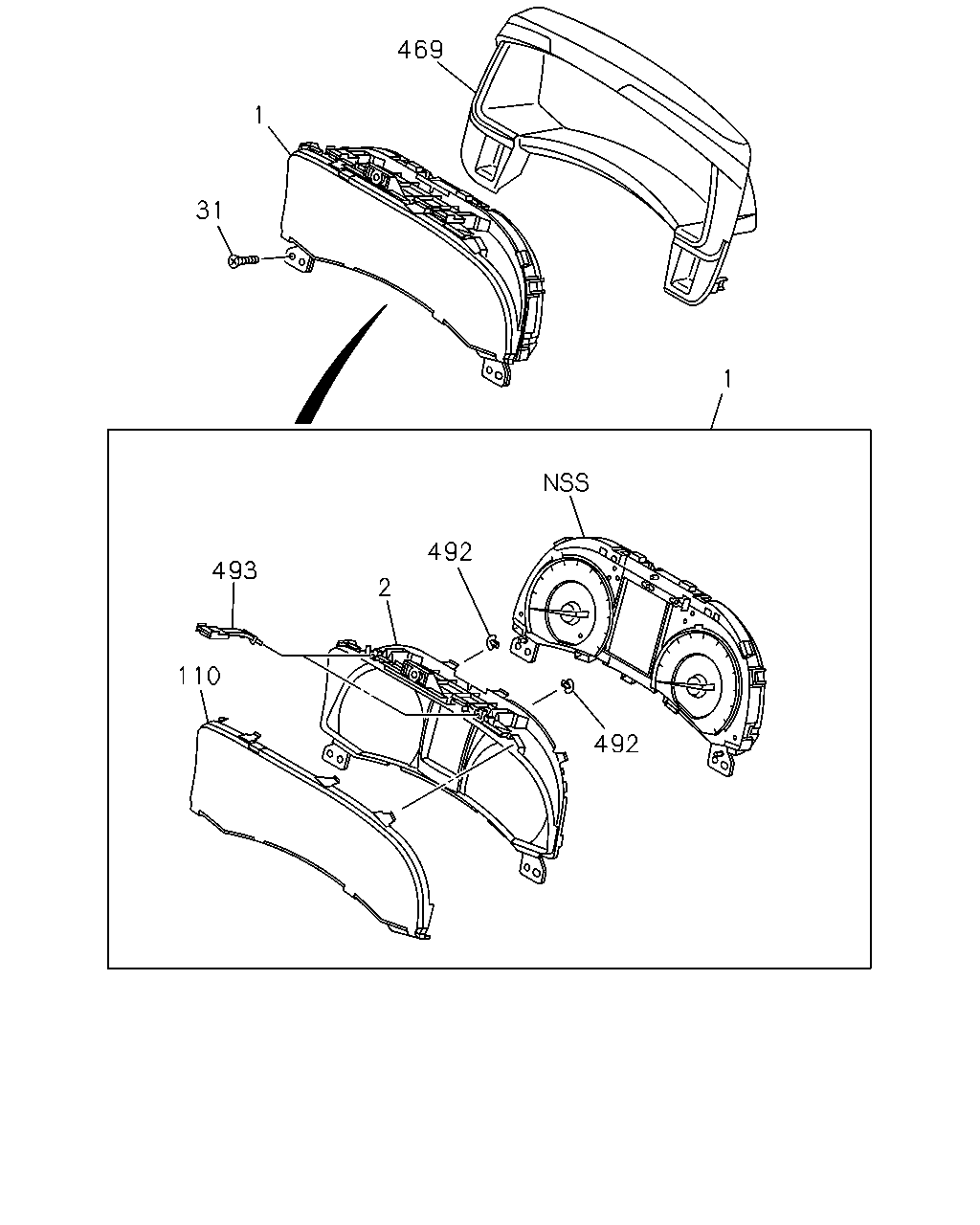

çizim 373574
1 31 469 1 492 2 492 493 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98228-633-0 01 1 1310- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98228-633-0 01 1 1310- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98228-633-0 01 1 1310- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98228-635-0 01 1 1310- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> THA 		8-98228-635-0 01 1 1310- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98228-635-0 01 1 1310- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98228-631-0 01 1 1310- ● ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98228-631-0 01 1 1310- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98228-631-0 01 1 1310- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98228-634-0 01 1 1310-1311 ● ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98228-634-0 01 1 1310-1311 ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98228-634-0 01 1 1310-1311 ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98228-634-0 01 1 1312- ● ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98228-634-0 01 1 1312- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98228-634-0 01 1 1312- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98228-634-0 01 1 1312- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98228-632-0 01 1 1310- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98228-632-0 01 1 1310- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> ELECTRONIC TRACTION CONTROL<NW9> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98185-145-4 01 1 1310- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98228-630-0 01 1 1310- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98228-630-0 01 1 1310- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRONIC TRACTION CONTROL<NW9> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98103-776-8 01 1 1310- ●
2 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-884-0 01 1 1310- ● ● ● ●
2 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98163-885-0 01 1 1310-1311 ● ● ● ●
2 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98163-885-0 01 1 1312- ● ● ● ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING THA 		8-98167-449-0 03 1 1310-1311 ● ● ● ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING THA 		8-98167-449-0 03 1 1312- ● ● ● ● ● ●
110 GLASS; CLUSTER METER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-882-0 01 1 1310- ● ● ● ●
110 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98163-883-0 01 1 1310-1311 ● ● ● ●
110 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98163-883-0 01 1 1312- ● ● ● ● ●
469 PLATE; INSTRUMENT PANEL
BLACK THA 		8-97416-628-1 01 1 1310-1311 ● ● ● ● ●
469 PLATE; INSTRUMENT PANEL
BLACK THA 		8-97416-628-1 01 1 1312- ● ● ● ● ● ●
492 PANEL; TURN LENS
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-886-0 02 1 1310- ● ● ● ●
493 PANEL; TOP LIGHT PRISM
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-887-0 02 1 1310- ● ● ● ●
