8-15 — FIXING PARTS; WIRING HARNESS (#126469) — 93 parça

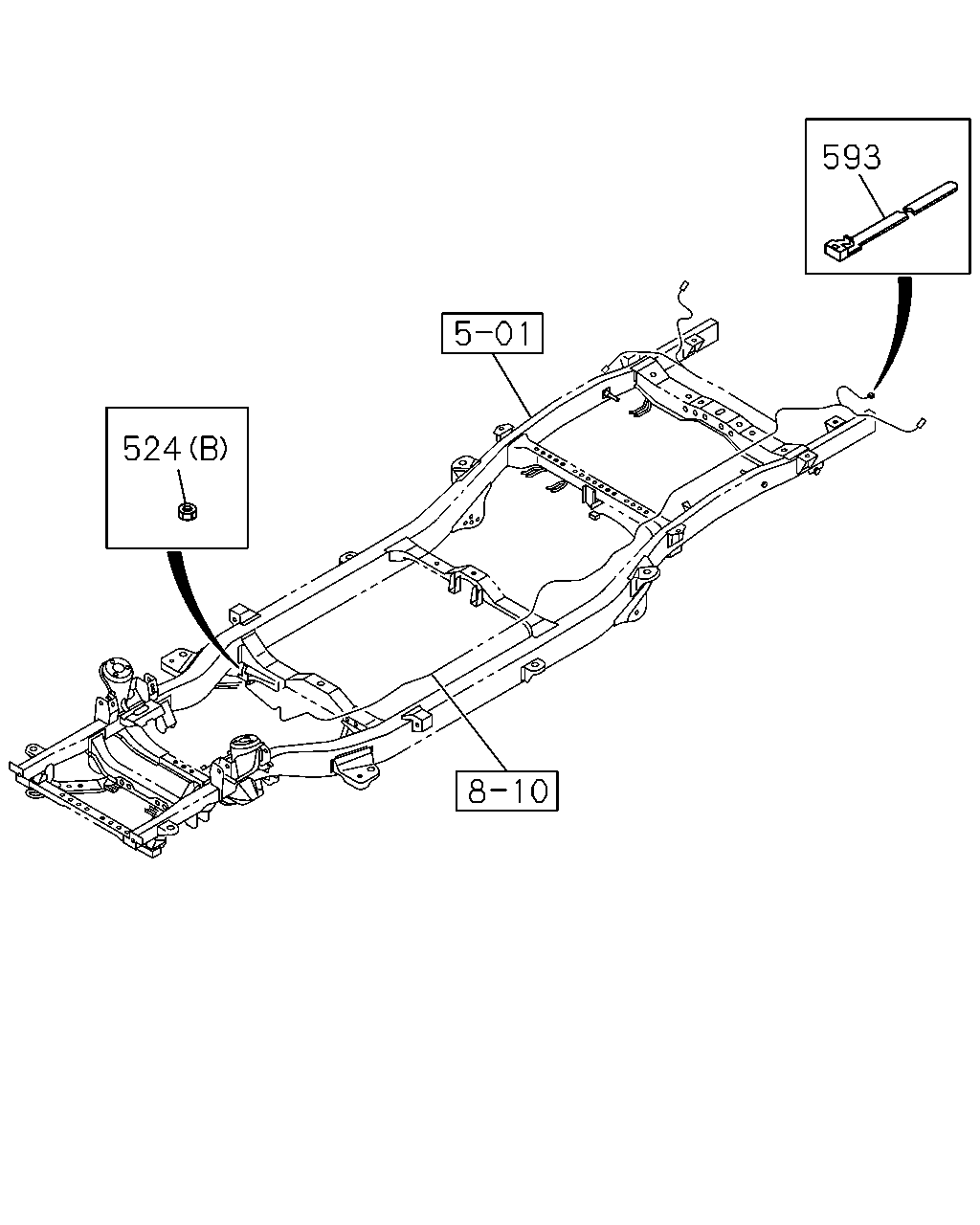

524 593

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
524	NUT; HARNESS (B) M6 FLANGE THA	0-91180-106-0	01	1	1310-1311	●	●	●	●	●
524	NUT; HARNESS (B) M6 FLANGE THA	0-91180-106-0	01	1	1312-	●	●	●	●	●	●
524	NUT; HARNESS (A) M8 FLANGE THA	0-91180-108-0	01	1	1310-1311	●	●	●	●	●
524	NUT; HARNESS (A) M8 FLANGE THA	0-91180-108-0	01	1	1312-	●	●	●	●	●	●
593	CLIP REAR BODY DELETE<8HH> L=250 IMA	5-09707-030-1	01	1	1310-1311		●
593	CLIP REAR BODY DELETE<8HH> L=250 IMA	5-09707-030-1	01	1	1312-		●				●

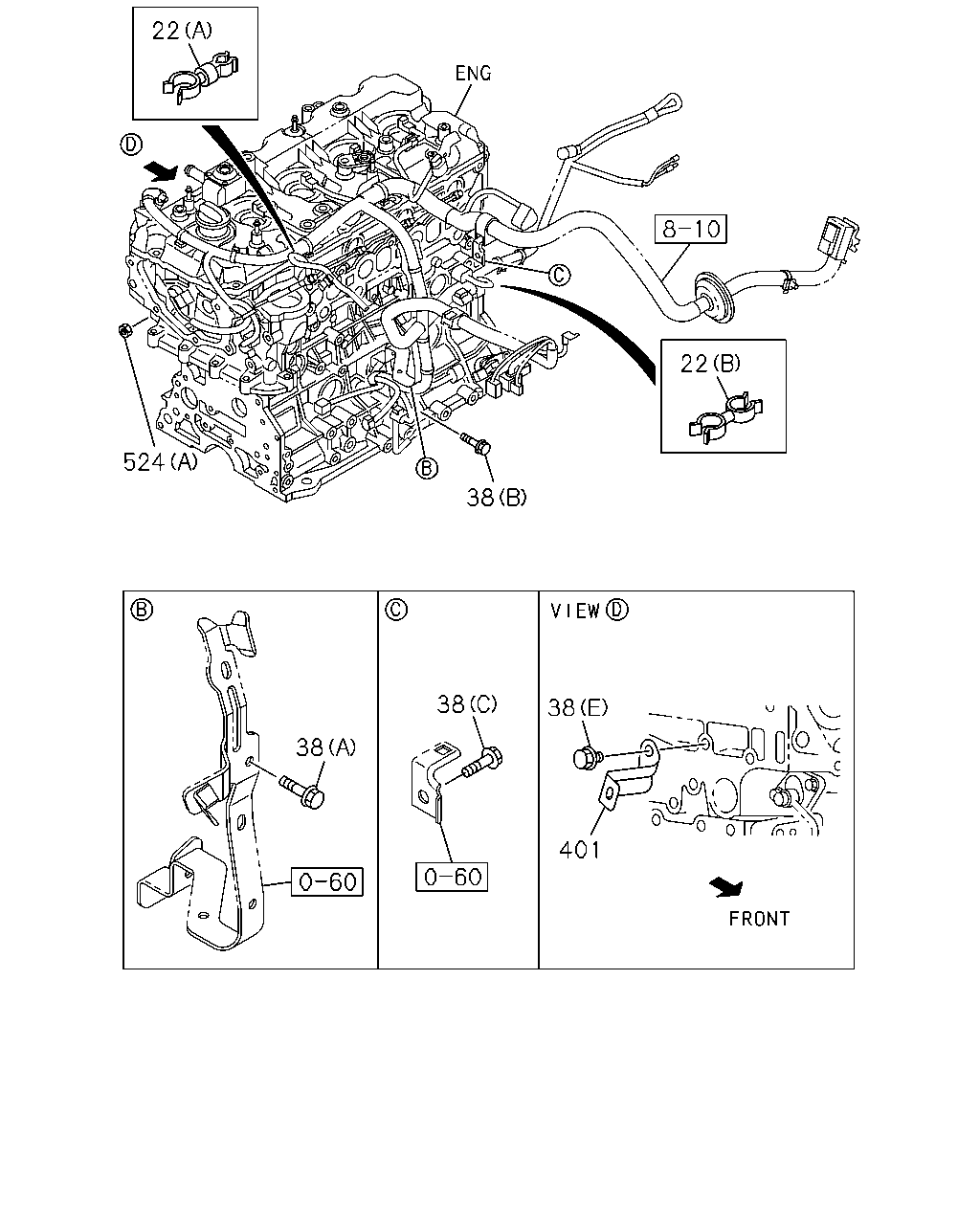

22 401 38 38 38 38 524 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	CLIP; ENG HARNESS (B) ID=7.5 & 7.5 THA	8-98212-981-0	01	1	1310-1311	●	●	●	●	●
22	CLIP; ENG HARNESS (B) ID=7.5 & 7.5 THA	8-98212-981-0	01	1	1312-	●	●	●	●	●	●
22	CLIP; ENG HARNESS (A) ID=11.8 & 7.5 THA	8-98212-982-0	01	1	1310-1311	●	●	●	●	●
22	CLIP; ENG HARNESS (A) ID=11.8 & 7.5 THA	8-98212-982-0	01	1	1312-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS BATTERY 75D26L<7TT> (D) M6X16 FLANGE THA	0-28650-616-0	05	1	1310-1311	●	●	●	●	●
38	BOLT; CLIP,HARNESS BATTERY 75D26L<7TT> (D) M6X16 FLANGE THA	0-28650-616-0	05	1	1312-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS (A) M6X12 FLANGE THA	0-28050-612-0	02	1	1310-1311	●	●	●	●	●
38	BOLT; CLIP,HARNESS (A) M6X12 FLANGE THA	0-28050-612-0	02	1	1312-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1310-1311	●	●	●	●	●
38	BOLT; CLIP,HARNESS (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1312-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1310-1311	●	●	●	●	●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1312-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS (E) M10X12 FLANGE IMA	0-28151-012-0	01	1	1310-1311	●	●	●	●	●
38	BOLT; CLIP,HARNESS (E) M10X12 FLANGE IMA	0-28151-012-0	01	1	1312-	●	●	●	●	●	●
401	BRACKET; HARNESS,GEN THA	8-98224-801-0	01	1	1310-1311	●	●	●	●	●
401	BRACKET; HARNESS,GEN THA	8-98224-801-0	01	1	1312-	●	●	●	●	●	●
524	NUT; HARNESS (B) M6 FLANGE THA	0-91180-106-0	01	1	1310-1311	●	●	●	●	●
524	NUT; HARNESS (B) M6 FLANGE THA	0-91180-106-0	01	1	1312-	●	●	●	●	●	●
524	NUT; HARNESS (A) M8 FLANGE THA	0-91180-108-0	01	1	1310-1311	●	●	●	●	●
524	NUT; HARNESS (A) M8 FLANGE THA	0-91180-108-0	01	1	1312-	●	●	●	●	●	●

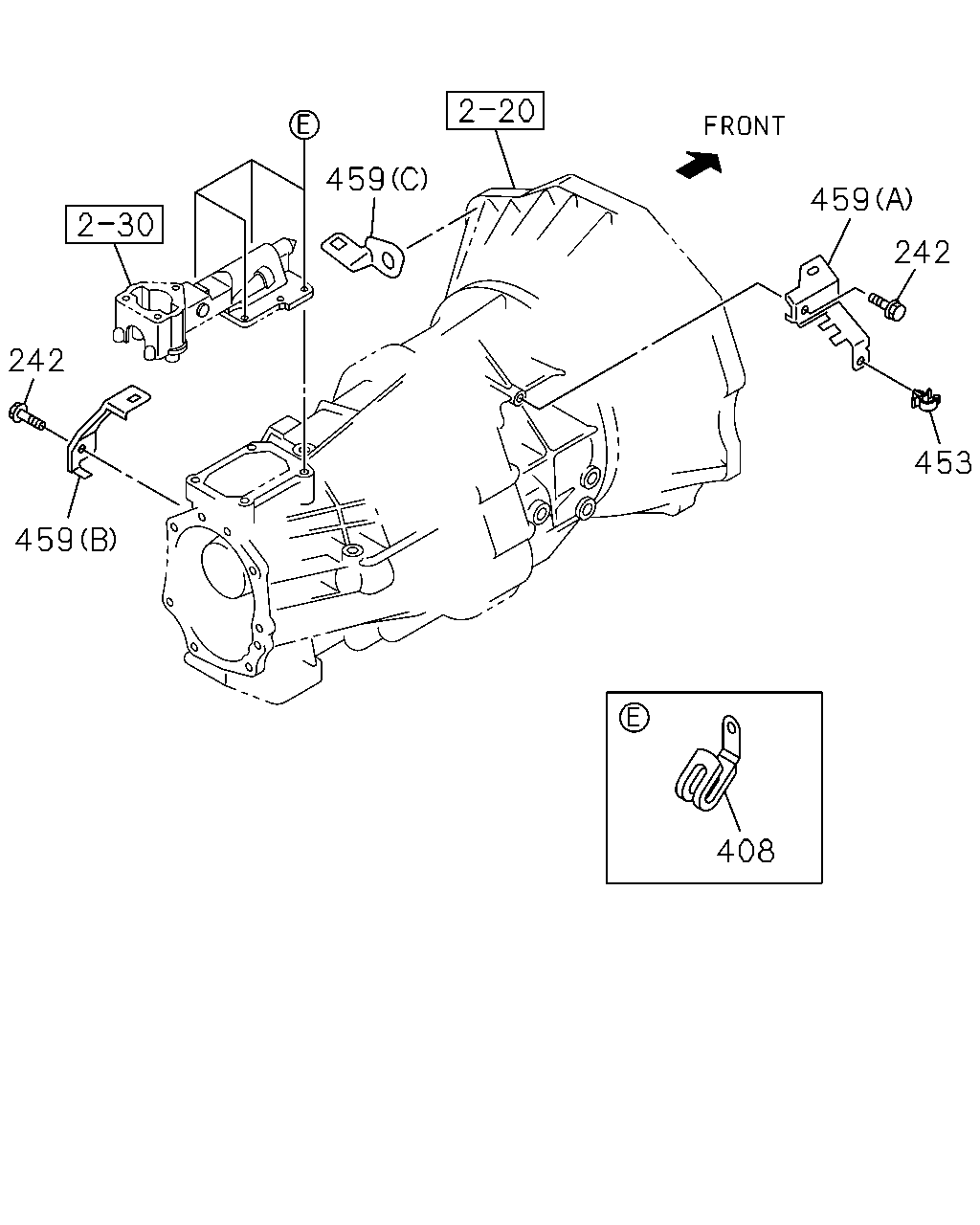

408 453 242 459 459 242 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
242	BOLT; BRKT,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA	0-28050-816-0	02	1	1310-	●	●	●	●	●
408	CLIP; TRANS HARNESS 4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA	8-97367-984-1	04	1	1310-1311	●	●	●	●
408	CLIP; TRANS HARNESS 4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA	8-97367-984-1	04	1	1310-1311				●
408	CLIP; TRANS HARNESS 4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA	8-97367-984-1	04	1	1310-1311					●
408	CLIP; TRANS HARNESS 4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA	8-97367-984-1	04	1	1310-1311					●
408	CLIP; TRANS HARNESS 4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA	8-97367-984-1	04	1	1312-	●	●	●	●
408	CLIP; TRANS HARNESS 4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA	8-97367-984-1	04	1	1312-				●
408	CLIP; TRANS HARNESS 4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA	8-97367-984-1	04	1	1312-					●	●
408	CLIP; TRANS HARNESS 4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA	8-97367-984-1	04	1	1312-					●	●
453	CLIP; CABLE HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> ID=6.5 IMA	5-09709-117-0	01	1	1310-	●	●	●	●	●
459	BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-98035-740-0	01	1	1310-	●	●	●	●	●
459	BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) THA	8-98035-741-0	01	1	1310-	●	●	●	●	●
459	BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5H<MWQ> (C) THA	8-98050-882-0	01	1	1310-1311	●	●	●	●	●
459	BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5H<MWQ> (C) THA	8-98050-882-0	01	1	1312-	●	●	●	●	●	●

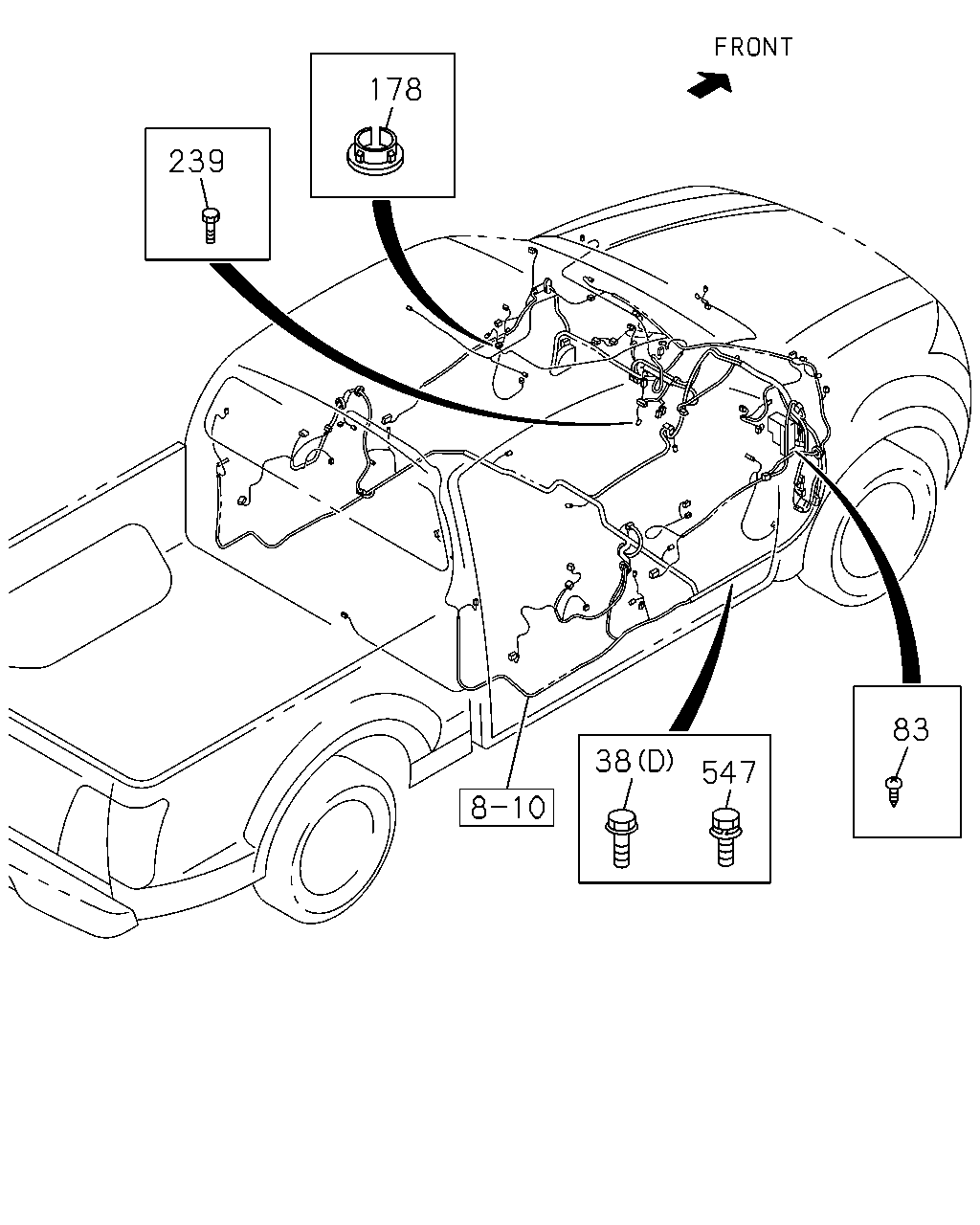

239 178 83 547 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
38	BOLT; CLIP,HARNESS BATTERY 75D26L<7TT> (D) M6X16 FLANGE THA	0-28650-616-0	05	1	1310-1311	●	●	●	●	●
38	BOLT; CLIP,HARNESS BATTERY 75D26L<7TT> (D) M6X16 FLANGE THA	0-28650-616-0	05	1	1312-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS (A) M6X12 FLANGE THA	0-28050-612-0	02	1	1310-1311	●	●	●	●	●
38	BOLT; CLIP,HARNESS (A) M6X12 FLANGE THA	0-28050-612-0	02	1	1312-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1310-1311	●	●	●	●	●
38	BOLT; CLIP,HARNESS (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1312-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1310-1311	●	●	●	●	●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1312-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS (E) M10X12 FLANGE IMA	0-28151-012-0	01	1	1310-1311	●	●	●	●	●
38	BOLT; CLIP,HARNESS (E) M10X12 FLANGE IMA	0-28151-012-0	01	1	1312-	●	●	●	●	●	●
83	SCREW; HARNESS M5X25 TAPPING W/PL WASHER THA	0-74360-525-0	01	1	1310-1311	●	●	●	●	●
83	SCREW; HARNESS M5X25 TAPPING W/PL WASHER THA	0-74360-525-0	01	1	1312-	●	●	●	●	●	●
178	GROMMET; HARNESS THA	8-97027-381-0	01	1	1310-1311	●	●	●	●	●
178	GROMMET; HARNESS THA	8-97027-381-0	01	1	1312-	●	●	●	●	●	●
239	BOLT; GRAND M6X14 W/LK&PL WASHER THA	8-97086-822-0	03	1	1310-1311	●	●	●	●	●
239	BOLT; GRAND M6X14 W/LK&PL WASHER THA	8-97086-822-0	03	1	1312-1501	●	●	●	●	●	●
239	BOLT; GRAND M6X14 W/PL WASHER IMA	8-98164-836-0	03	1	1502-	●	●	●	●	●	●
239	BOLT; GRAND M6X14 W/LK&PL WASHER THA	8-97086-822-0	02	1	1310-1311	●	●	●	●	●
239	BOLT; GRAND M6X14 W/LK&PL WASHER THA	8-97086-822-0	02	1	1310-1311	●	●	●	●	●
239	BOLT; GRAND M6X14 W/LK&PL WASHER THA	8-97086-822-0	02	1	1312-1501	●	●	●	●	●	●
239	BOLT; GRAND M6X14 W/LK&PL WASHER THA	8-97086-822-0	02	1	1312-1501	●	●	●	●	●
239	BOLT; GRAND M6X14 W/PL WASHER IMA	8-98164-836-0	02	1	1502-	●	●	●	●	●	●
239	BOLT; GRAND M6X14 W/PL WASHER IMA	8-98164-836-0	02	1	1502-	●	●	●	●	●
547	BOLT AIR BAG DRIVER & PASSENGER<AK5> M6X14 W/LK&PL WASHER THA	8-97086-822-0	01	1	1310-1312	●		●	●	●
547	BOLT AIR BAG DRIVER & PASSENGER<AK5> M6X14 W/LK&PL WASHER THA	8-97086-822-0	01	1	1401-1501	●	●	●	●	●	●
547	BOLT AIR BAG DRIVER & PASSENGER<AK5> M6X14 W/PL WASHER IMA	8-98164-836-0	01	1	1502-	●	●	●	●	●	●

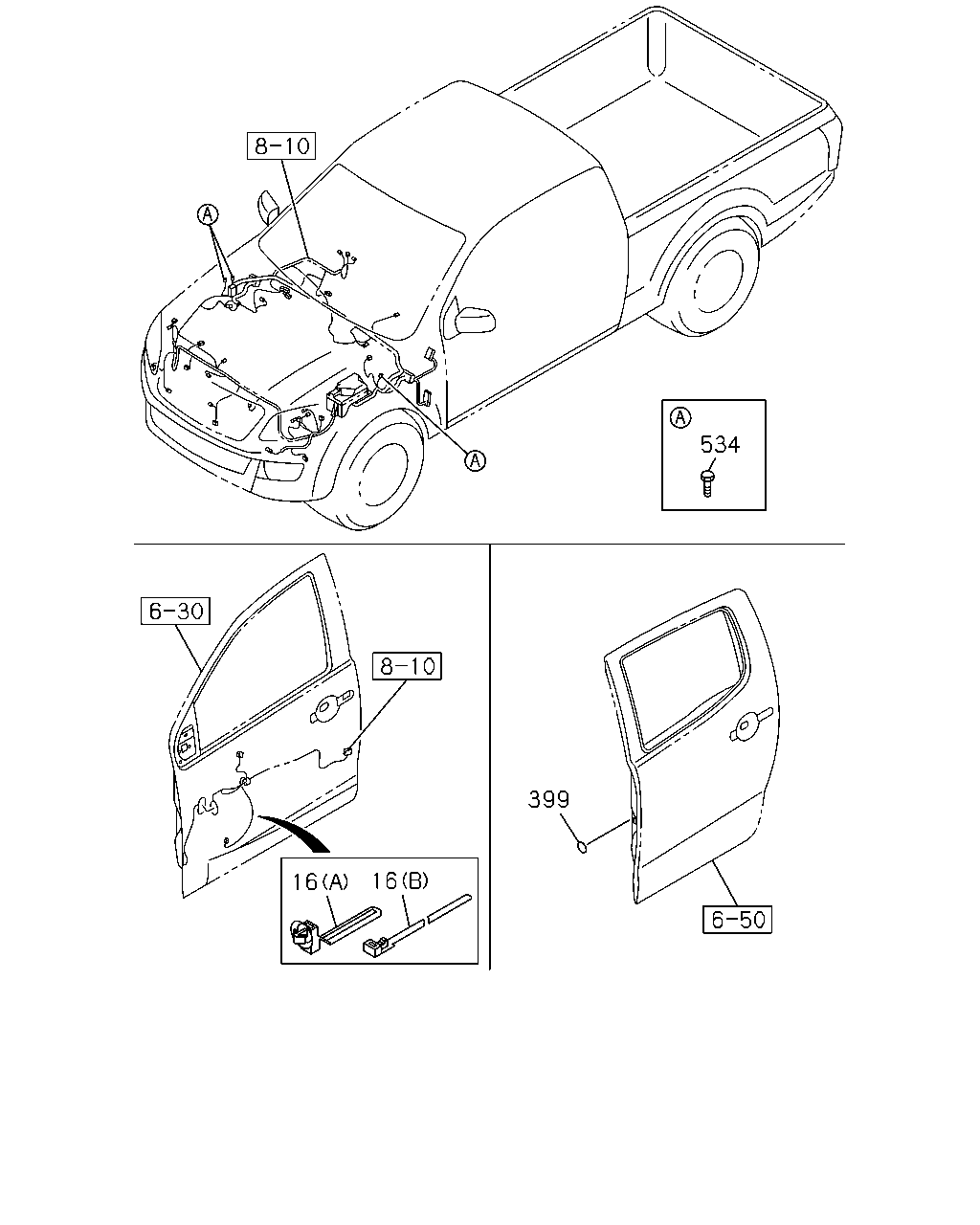

534 16 16 399

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA	8-97378-707-0	03	1	1310-	●		●
16	CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA	8-97378-707-0	03	1	1310-				●	●
16	CLIP; HARNESS DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> (A) L=155 THA	8-97173-307-0	02	1	1310-1311	●	●	●	●	●
16	CLIP; HARNESS REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> (A) L=155 THA	8-97173-307-0	02	1	1310-1311	●	●	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (A) L=155 THA	8-97173-307-0	02	1	1310-1311	●	●	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA	8-97173-307-0	02	1	1310-1311	●	●	●	●	●
16	CLIP; HARNESS DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4> (A) L=155 THA	8-97173-307-0	02	1	1310-1311	●	●	●	●	●
16	CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA	8-97173-307-0	02	1	1310-1311	●	●	●	●	●
16	CLIP; HARNESS DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> (A) L=155 THA	8-97173-307-0	02	1	1312-	●	●	●	●	●	●
16	CLIP; HARNESS REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> (A) L=155 THA	8-97173-307-0	02	1	1312-	●	●	●	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (A) L=155 THA	8-97173-307-0	02	1	1312-	●	●	●	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA	8-97173-307-0	02	1	1312-	●	●	●	●	●	●
16	CLIP; HARNESS DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4> (A) L=155 THA	8-97173-307-0	02	1	1312-	●	●	●	●	●	●
16	CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA	8-97173-307-0	02	1	1312-	●	●	●	●	●	●
16	CLIP; HARNESS DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> (B) L=140 THA	8-97378-707-0	01	1	1310-1311	●	●	●	●	●
16	CLIP; HARNESS REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> (B) L=140 THA	8-97378-707-0	01	1	1310-1311	●	●	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=140 THA	8-97378-707-0	01	1	1310-1311	●	●	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA	8-97378-707-0	01	1	1310-1311	●	●	●	●	●
16	CLIP; HARNESS DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4> (B) L=140 THA	8-97378-707-0	01	1	1310-1311	●	●	●	●	●
16	CLIP; HARNESS DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> (B) L=140 THA	8-97378-707-0	01	1	1312-	●	●	●	●	●	●
16	CLIP; HARNESS REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> (B) L=140 THA	8-97378-707-0	01	1	1312-	●	●	●	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=140 THA	8-97378-707-0	01	1	1312-	●	●	●	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA	8-97378-707-0	01	1	1312-	●	●	●	●	●	●
16	CLIP; HARNESS DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4> (B) L=140 THA	8-97378-707-0	01	1	1312-	●	●	●	●	●	●
399	COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4>,8-SPEAKER SYSTEM CUSTOM<U87> OD=44 BLACK THA	5-76777-037-0	02	1	1310-			●		●
534	BOLT; EARTH M6X14 W/LK&PL WASHER THA	8-97086-822-0	04	1	1310-1501	●			●
534	BOLT; EARTH M6X14 W/PL WASHER IMA	8-98164-836-0	04	1	1502-	●			●
