◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#126468) — 580 parça

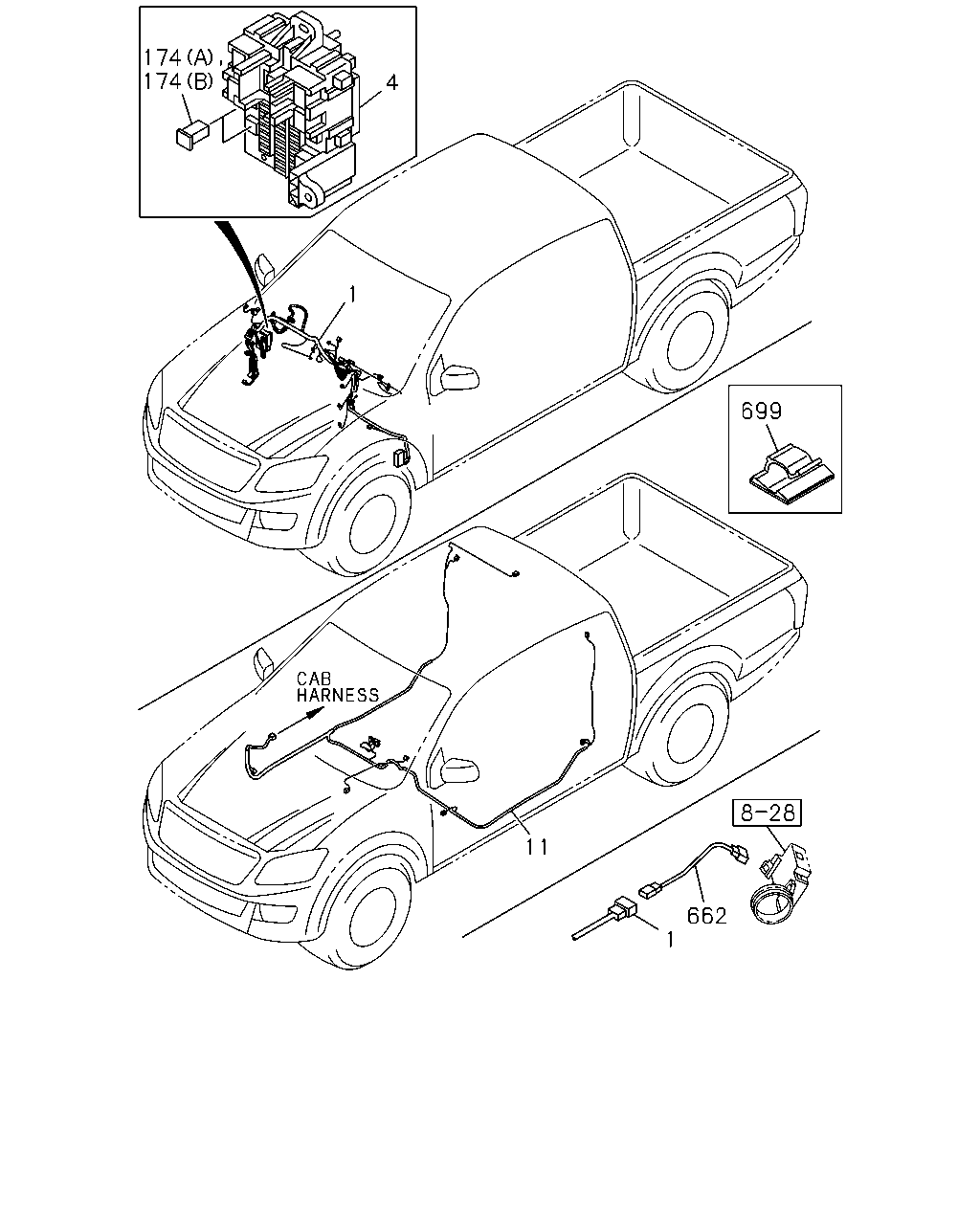

çizim 373410
4 174 174 1 11 1 662 699
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HARNESS; CAB
INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98271-953-0 01 1 1407- ●
1 HARNESS; CAB
INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. AUTO DOOR LOCK<AU4> THA 		8-98271-953-0 01 1 1407- ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98271-953-0 01 1 1407- ●
1 HARNESS; CAB
INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98271-952-0 01 1 1407- ● ● ●
1 HARNESS; CAB
INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98271-952-0 01 1 1407- ●
1 HARNESS; CAB
INTERIOR BASIC<RBA> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-069-1 01 1 1310-1311 ●
1 HARNESS; CAB
INTERIOR BASIC<RBA> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. AUTO DOOR LOCK<AU4> THA 		8-98227-069-1 01 1 1310-1311 ●
1 HARNESS; CAB
INTERIOR BASIC<RBA> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-069-1 01 1 1312-1406 ●
1 HARNESS; CAB
INTERIOR BASIC<RBA> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. AUTO DOOR LOCK<AU4> THA 		8-98227-069-1 01 1 1312-1406 ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98227-069-1 01 1 1312-1406 ●
1 HARNESS; CAB
INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-069-2 01 1 1407- ●
1 HARNESS; CAB
INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. AUTO DOOR LOCK<AU4> THA 		8-98227-069-2 01 1 1407- ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98227-069-2 01 1 1407- ●
1 HARNESS; CAB
INTERIOR DELUXE<RBB> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-068-2 01 1 1310-1406 ● ● ●
1 HARNESS; CAB
INTERIOR DELUXE<RBB> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98227-068-2 01 1 1310-1406 ●
1 HARNESS; CAB
INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-068-2 01 1 1407- ● ● ●
1 HARNESS; CAB
INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98227-068-2 01 1 1407- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-070-3 01 1 1310- ● ● ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-070-3 01 1 1310- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-071-3 01 1 1310- ● ● ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-071-3 01 1 1310- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-074-3 01 1 1310- ● ● ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-074-3 01 1 1310- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-075-3 01 1 1310- ● ● ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-075-3 01 1 1310- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-072-3 01 1 1310- ● ● ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-072-3 01 1 1310- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-066-3 01 1 1310- ● ● ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-066-3 01 1 1310- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-076-3 01 1 1310- ● ● ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-076-3 01 1 1310- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-077-3 01 1 1310- ● ● ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-077-3 01 1 1310- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-064-3 01 1 1310- ● ● ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-064-3 01 1 1310- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-065-3 01 1 1310- ● ● ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98227-065-3 01 1 1310- ●
4 BOX ASM; FUSE,HARNESS
THA 		8-98166-751-0 01 1 1310-1311 ● ● ● ● ●
4 BOX ASM; FUSE,HARNESS
THA 		8-98166-751-0 01 1 1312- ● ● ● ● ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98160-558-5 01 1 1401- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA 		8-98209-179-3 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98160-565-7 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA 		8-98209-182-3 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98160-568-7 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. REAR DEFOGGER<C49> THA 		8-98160-572-6 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA 		8-98209-180-2 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98160-566-5 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA 		8-98209-183-2 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98160-569-5 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. REAR DEFOGGER<C49> THA 		8-98160-573-4 01 1 1310- ● ●
11 HARNESS; BODY
THA 		8-98160-557-2 01 1 1310-1311 ●
11 HARNESS; BODY
THA 		8-98160-557-2 01 1 1312-1312 ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98160-557-2 01 1 1401- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-194-5 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-194-5 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-627-7 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR DEFOGGER<C49> THA 		8-98160-629-7 01 1 1310- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-188-5 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-188-5 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-597-7 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR DEFOGGER<C49> THA 		8-98160-590-7 01 1 1310- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4> THA 		8-98160-614-7 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49> THA 		8-98160-607-7 01 1 1310- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-195-4 01 1 1310- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-195-4 01 1 1310- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-195-4 01 1 1310- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-195-4 01 1 1310- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-630-5 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR DEFOGGER<C49> THA 		8-98160-631-5 01 1 1310- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-189-4 01 1 1310-1310 ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-189-4 01 1 1310-1310 ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-189-4 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-189-4 01 1 1310- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-592-5 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR DEFOGGER<C49> THA 		8-98160-594-5 01 1 1310- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4> THA 		8-98160-609-5 01 1 1310- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49> THA 		8-98160-611-5 01 1 1310- ●
174 FUSE; SLOW BLOW
(C) 120A WHITE IMA 		1-82516-028-1 AR 1 1310-1311 ● ● ● ● ●
174 FUSE; SLOW BLOW
(C) 120A WHITE IMA 		1-82516-028-1 AR 1 1312- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK THA 		8-98079-191-0 AR 1 1310-1311 ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK THA 		8-98079-191-0 AR 1 1312- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN THA 		8-98079-192-0 AR 1 1310-1311 ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN THA 		8-98079-192-0 AR 1 1312- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 50A RED THA 		8-98079-193-0 AR 1 1310-1311 ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 50A RED THA 		8-98079-193-0 AR 1 1312- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(A) THA 		8-97219-407-0 AR 1 1310-1311 ● ● ● ● ●
174 FUSE; SLOW BLOW
(A) THA 		8-97219-407-0 AR 1 1312- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW THA 		8-98197-288-0 AR 1 1310-1311 ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW THA 		8-98197-288-0 AR 1 1312- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(A) 20A BLUE THA 		8-98079-189-0 AR 1 1310-1311 ● ● ● ● ●
174 FUSE; SLOW BLOW
(A) 20A BLUE THA 		8-98079-189-0 AR 1 1312- ● ● ● ● ● ●
662 HARNESS; IMMOBILIZER
IMMOBILIZER SYSTEM<7KC> THA 		8-98163-074-0 01 1 1310- ● ● ●
662 HARNESS; IMMOBILIZER
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> THA 		8-98163-074-0 01 1 1310- ●
699 CLIP; ENG HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3> ID=7 THA 		8-98158-303-0 02 1 1310- ● ●

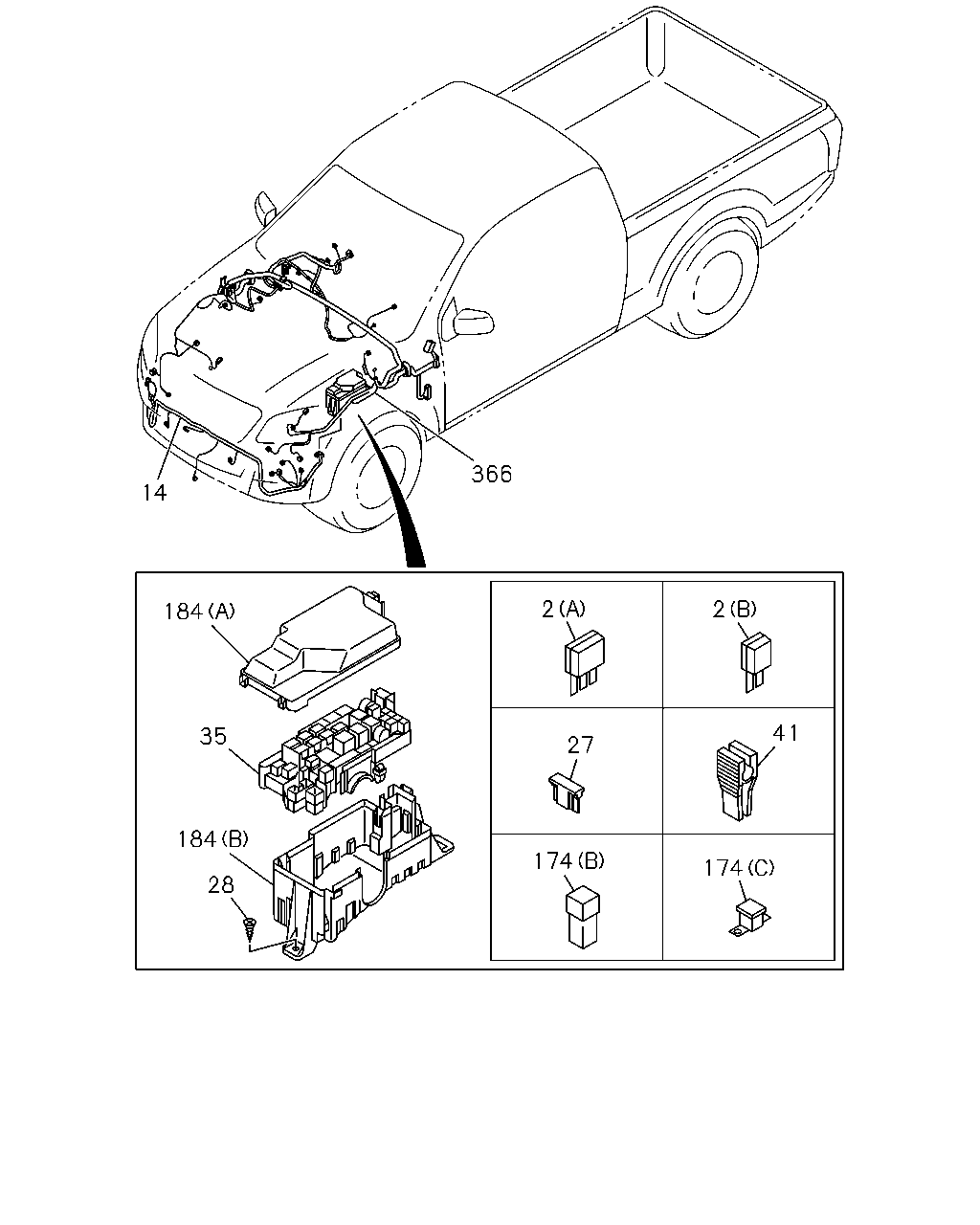

çizim 373430
14 366 184 35 184 28 2 27 174 2 41 174
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA 		8-94422-639-1 AR 1 1310-1311 ● ● ● ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA 		8-94422-639-1 AR 1 1312- ● ● ● ● ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A THA 		8-94422-640-1 AR 1 1310-1311 ● ● ● ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A THA 		8-94422-640-1 AR 1 1312- ● ● ● ● ● ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-349-1 01 1 1310- ● ● ●
14 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-349-1 01 1 1310- ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-341-1 01 1 1310- ● ● ●
14 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-341-1 01 1 1310- ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-348-1 01 1 1310- ● ● ●
14 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-348-1 01 1 1310- ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-340-1 01 1 1310- ● ● ●
14 HARNESS; HEADLAMP
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-340-1 01 1 1310- ●
14 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98159-347-1 01 1 1310- ● ● ●
14 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA>,HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-339-1 01 1 1310- ● ● ●
14 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-346-1 01 1 1310- ● ● ●
14 HARNESS; HEADLAMP
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-338-1 01 1 1310-1311 ● ● ●
14 HARNESS; HEADLAMP
THA 		8-98159-338-1 01 1 1310-1311 ●
14 HARNESS; HEADLAMP
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-338-1 01 1 1312- ● ● ●
14 HARNESS; HEADLAMP
THA 		8-98159-338-1 01 1 1312- ● ●
27 FUSE UNIT
10A RED THA 		8-98054-257-0 AR 1 1310-1311 ● ● ● ● ●
27 FUSE UNIT
10A RED THA 		8-98054-257-0 AR 1 1312- ● ● ● ● ● ●
27 FUSE UNIT
15A BLUE THA 		8-98054-258-0 AR 1 1310-1311 ● ● ● ● ●
27 FUSE UNIT
15A BLUE THA 		8-98054-258-0 AR 1 1312- ● ● ● ● ● ●
27 FUSE UNIT
20A YELLOW THA 		8-98054-259-0 AR 1 1310-1311 ● ● ● ● ●
27 FUSE UNIT
20A YELLOW THA 		8-98054-259-0 AR 1 1312- ● ● ● ● ● ●
28 SCREW; FUSE BOX
THA 		8-97249-192-0 02 1 1310-1311 ● ● ● ● ●
28 SCREW; FUSE BOX
THA 		8-97249-192-0 02 1 1312- ● ● ● ● ● ●
35 BOX; RELAY & FUSE
THA 		8-98113-097-0 01 1 1310-1311 ● ● ● ● ●
35 BOX; RELAY & FUSE
THA 		8-98113-097-0 01 1 1312- ● ● ● ● ● ●
41 PULLER; FUSE
THA 		8-98054-260-0 01 1 1310-1311 ● ● ● ● ●
41 PULLER; FUSE
THA 		8-98054-260-0 01 1 1312- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(C) 120A WHITE IMA 		1-82516-028-1 AR 1 1310-1311 ● ● ● ● ●
174 FUSE; SLOW BLOW
(C) 120A WHITE IMA 		1-82516-028-1 AR 1 1312- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK THA 		8-98079-191-0 AR 1 1310-1311 ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK THA 		8-98079-191-0 AR 1 1312- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN THA 		8-98079-192-0 AR 1 1310-1311 ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN THA 		8-98079-192-0 AR 1 1312- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 50A RED THA 		8-98079-193-0 AR 1 1310-1311 ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 50A RED THA 		8-98079-193-0 AR 1 1312- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(A) THA 		8-97219-407-0 AR 1 1310-1311 ● ● ● ● ●
174 FUSE; SLOW BLOW
(A) THA 		8-97219-407-0 AR 1 1312- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW THA 		8-98197-288-0 AR 1 1310-1311 ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW THA 		8-98197-288-0 AR 1 1312- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(A) 20A BLUE THA 		8-98079-189-0 AR 1 1310-1311 ● ● ● ● ●
174 FUSE; SLOW BLOW
(A) 20A BLUE THA 		8-98079-189-0 AR 1 1312- ● ● ● ● ● ●
184 COVER; RELAY & FUSE BOX
(A) THA 		8-98113-098-0 01 1 1310-1311 ● ● ● ● ●
184 COVER; RELAY & FUSE BOX
(A) THA 		8-98113-098-0 01 1 1312- ● ● ● ● ● ●
184 COVER; RELAY & FUSE BOX
(B) THA 		8-98113-099-0 01 1 1310-1311 ● ● ● ● ●
184 COVER; RELAY & FUSE BOX
(B) THA 		8-98113-099-0 01 1 1312- ● ● ● ● ● ●

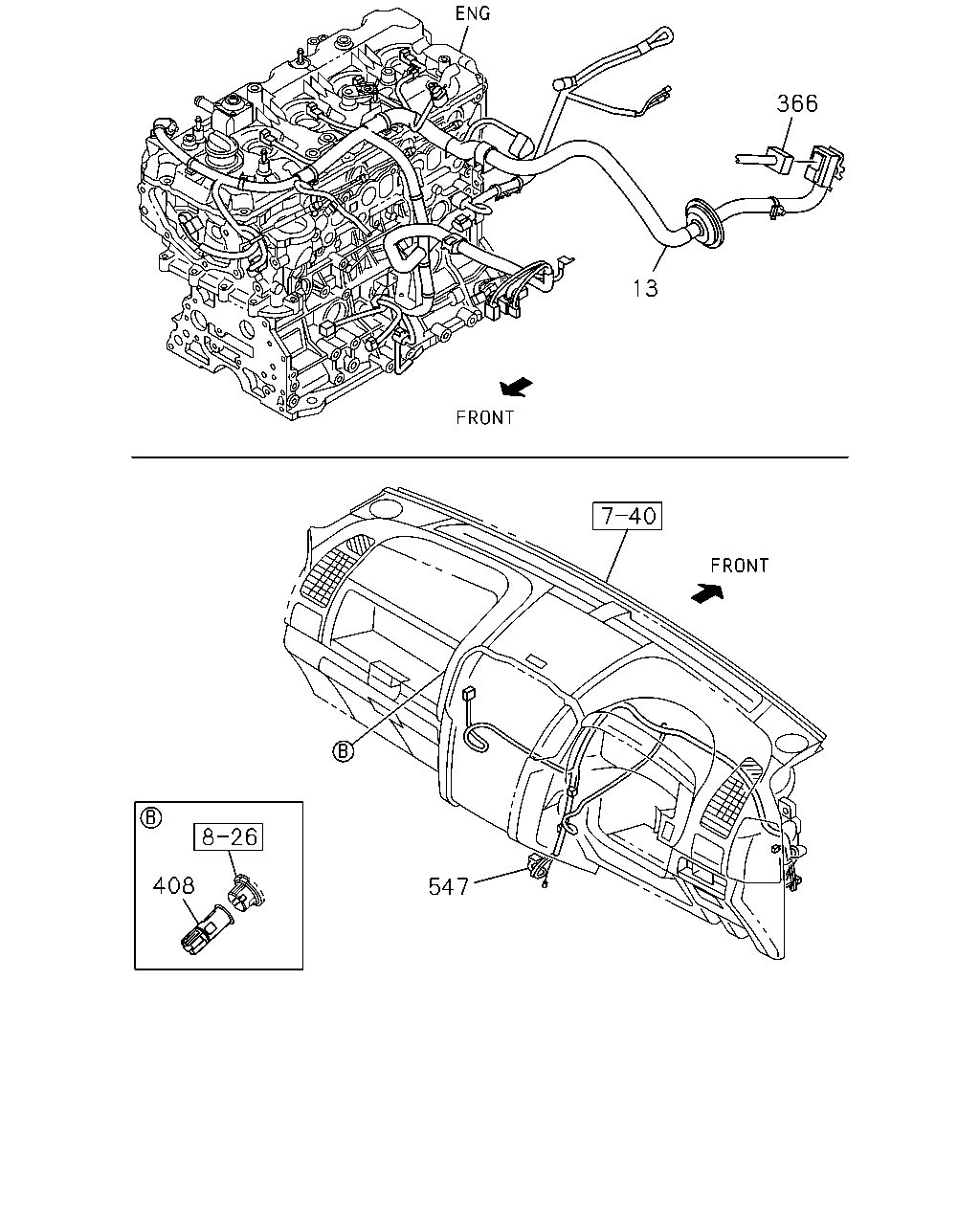

366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98270-118-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98270-118-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98270-118-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98270-119-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98270-119-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98270-119-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98270-117-2 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> AIR BAG DRIVER & PASSENGER<AK5> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98270-117-2 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98271-174-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> THA 		8-98271-177-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98271-175-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98271-178-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98271-176-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98271-172-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98271-179-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98271-173-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98240-723-2 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98240-723-2 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98240-723-2 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98240-723-2 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98240-723-2 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98240-723-2 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98240-724-2 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98240-724-2 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98240-724-2 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98240-724-2 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98240-724-2 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98240-724-2 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98240-725-3 01 1 1310-1311 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98240-725-3 01 1 1312-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98240-725-3 01 1 1312-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98240-725-3 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98240-725-3 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98231-405-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98231-405-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98232-652-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-652-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98232-653-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-653-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-253-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-253-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98223-265-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-265-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98223-276-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-276-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98232-655-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-655-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-257-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-257-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98232-654-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-654-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-255-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-255-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98232-656-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-656-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-260-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-260-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98223-264-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-264-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98223-275-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-275-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-277-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-277-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-254-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-254-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-279-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-279-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-258-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-258-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98231-406-3 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98231-406-3 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98231-406-3 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98231-406-3 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98231-406-3 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98231-406-3 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-278-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-278-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-256-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-256-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-280-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-280-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-259-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-259-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98231-404-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98232-651-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98232-650-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-251-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98223-263-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98223-274-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-266-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-252-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98232-658-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-658-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98232-661-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-661-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98232-662-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-662-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-244-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-244-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98232-664-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-664-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-248-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-248-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98232-663-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-663-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-246-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-246-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98232-665-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-665-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-250-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-250-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98223-262-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-262-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98223-269-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-269-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-270-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-270-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-243-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-243-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-272-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-272-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-247-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-247-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-271-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-271-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-245-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-245-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-273-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-273-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-249-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-249-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98232-657-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> THA 		8-98232-660-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98232-659-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-242-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98223-261-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> THA 		8-98223-268-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-267-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-241-3 01 1 1310- ●

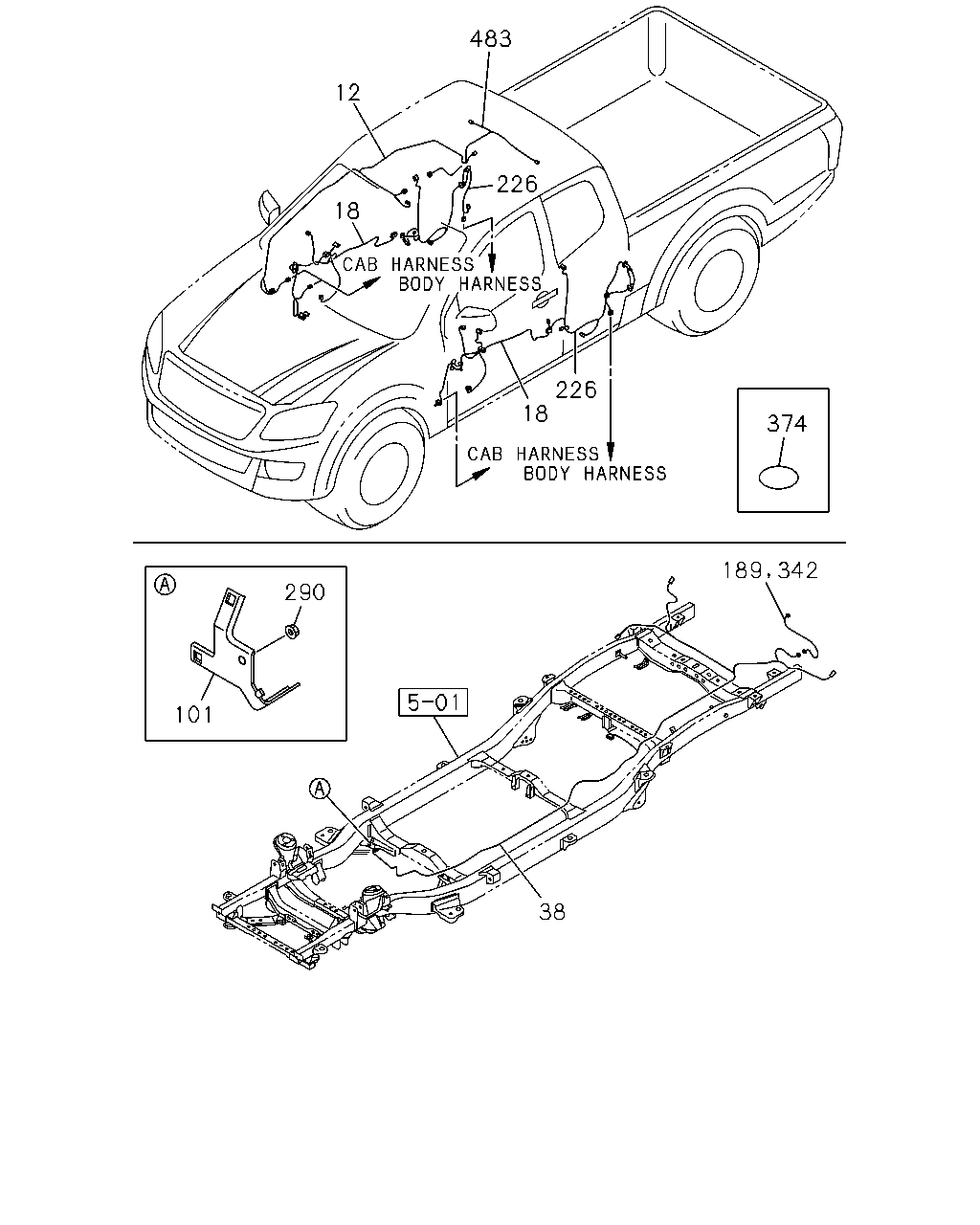

çizim 373446
483 226 226 18 18 12 374 189 342 38 290 101
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 HARNESS; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> 6-SPEAKER SYSTEM CUSTOM<UW6> THA 		8-98209-216-2 01 1 1310- ● ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-479-3 01 1 1310- ● ● ● ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-478-2 01 1 1310- ● ● ● ●
12 HARNESS; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-475-2 01 1 1310- ● ● ●
12 HARNESS; ROOF
THA 		8-98159-331-0 01 1 1310-1311 ●
12 HARNESS; ROOF
THA 		8-98159-331-0 01 1 1312- ● ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98209-218-2 01 1 1310- ● ●
18 HARNESS; DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-211-3 01 1 1310- ● ●
18 HARNESS; DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-211-3 01 1 1310- ● ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-363-1 01 1 1310- ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-363-1 01 1 1310- ● ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-365-1 01 1 1310- ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-365-1 01 1 1310- ● ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-362-1 01 1 1310- ● ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-362-1 01 1 1310- ● ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-364-1 01 1 1310- ● ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-364-1 01 1 1310- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98200-117-1 01 1 1310- ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98200-117-1 01 1 1310- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-508-5 01 1 1310- ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> THA 		8-98159-508-5 01 1 1310- ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-508-5 01 1 1310- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-490-3 01 1 1310- ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> THA 		8-98159-490-3 01 1 1310- ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-490-3 01 1 1310- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-486-4 01 1 1310- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-486-4 01 1 1310- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-506-5 01 1 1310- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-506-5 01 1 1310- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-488-4 01 1 1310- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-488-4 01 1 1310- ● ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4> THA 		8-98159-510-4 01 1 1310-1311 ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> THA 		8-98159-510-4 01 1 1310-1311 ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4> THA 		8-98159-510-4 01 1 1310-1311 ● ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4> THA 		8-98159-510-4 01 1 1312- ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> THA 		8-98159-510-4 01 1 1312- ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4> THA 		8-98159-510-4 01 1 1312- ● ●
18 HARNESS; DOOR
THA 		8-98159-510-4 01 1 1312- ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> THA 		8-98159-492-3 01 1 1310-1311 ● ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. AUTO DOOR LOCK<AU4> THA 		8-98159-492-3 01 1 1310-1311 ● ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> THA 		8-98159-492-3 01 1 1312- ● ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. AUTO DOOR LOCK<AU4> THA 		8-98159-492-3 01 1 1312- ● ●
18 HARNESS; DOOR
THA 		8-98159-492-3 01 1 1312- ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98209-205-3 01 1 1310- ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> HIGH RIDE SUSPENSION<7YC> THA 		8-98209-205-3 01 1 1310- ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98209-205-3 01 1 1310- ●
38 HARNESS; CHAS
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98209-205-3 01 1 1310- ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98159-322-2 01 1 1310- ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> HIGH RIDE SUSPENSION<7YC> THA 		8-98159-322-2 01 1 1310- ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98159-322-2 01 1 1310- ●
38 HARNESS; CHAS
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> THA 		8-98159-322-2 01 1 1310- ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-323-2 01 1 1310- ● ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98209-203-3 01 1 1310- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98209-203-3 01 1 1310- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA 		8-98209-203-3 01 1 1310- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-203-3 01 1 1310- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98209-203-3 01 1 1310- ●
38 HARNESS; CHAS
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-203-3 01 1 1310- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-317-2 01 1 1310-1311 ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98159-317-2 01 1 1310-1311 ●
38 HARNESS; CHAS
RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REAR BODY DELETE<8HH> THA 		8-98159-317-2 01 1 1310-1311 ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-317-2 01 1 1310-1311 ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98159-317-2 01 1 1310-1311 ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98159-317-2 01 1 1310-1311 ●
38 HARNESS; CHAS
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98159-317-2 01 1 1310-1311 ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-317-2 01 1 1312- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98159-317-2 01 1 1312- ●
38 HARNESS; CHAS
RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REAR BODY DELETE<8HH> THA 		8-98159-317-2 01 1 1312- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-317-2 01 1 1312- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98159-317-2 01 1 1312- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98159-317-2 01 1 1312- ●
38 HARNESS; CHAS
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98159-317-2 01 1 1312- ●
38 HARNESS; CHAS
4JK1-TCX ENG<LR0> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98159-317-2 01 1 1312- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> ,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-318-2 01 1 1310- ●
38 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL<E63> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98159-318-2 01 1 1310- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-318-2 01 1 1310- ●
101 BRACKET; HARNESS CONNECTOR
THA 		8-98102-999-0 01 1 1310-1311 ● ● ● ● ●
101 BRACKET; HARNESS CONNECTOR
THA 		8-98102-999-0 01 1 1312- ● ● ● ● ● ●
189 HARNESS; EXT
HIGH RIDE SUSPENSION<7YC> EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98140-863-0 01 1 1310-1311 ● ●
189 HARNESS; EXT
REAR BODY DELETE<8HH> THA 		8-98140-863-0 01 1 1310-1311 ●
189 HARNESS; EXT
EXC. REAR STEP BUMPER CHROME<V42> THA 		8-98140-863-0 01 1 1310-1311 ● ●
189 HARNESS; EXT
HIGH RIDE SUSPENSION<7YC> EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98140-863-0 01 1 1312- ● ●
189 HARNESS; EXT
REAR BODY DELETE<8HH> THA 		8-98140-863-0 01 1 1312- ●
189 HARNESS; EXT
EXC. REAR STEP BUMPER CHROME<V42> THA 		8-98140-863-0 01 1 1312- ● ●
189 HARNESS; EXT
THA 		8-98140-863-0 01 1 1312- ●
226 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98159-355-6 01 1 1310- ● ●
226 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98167-613-6 01 1 1310- ● ●
226 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98159-354-4 01 1 1310- ● ●
226 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98167-612-4 01 1 1310- ● ●
226 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 8-SPEAKER SYSTEM CUSTOM<U87> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-533-3 01 1 1310- ● ●
226 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 8-SPEAKER SYSTEM CUSTOM<U87> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-534-3 01 1 1310- ● ●
226 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 8-SPEAKER SYSTEM CUSTOM<U87> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-527-3 01 1 1310- ● ●
226 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 8-SPEAKER SYSTEM CUSTOM<U87> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-528-3 01 1 1310- ● ●
226 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-535-3 01 1 1310- ● ●
226 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-536-3 01 1 1310- ● ●
226 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 8-SPEAKER SYSTEM CUSTOM<U87>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-525-3 01 1 1310- ● ●
226 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 8-SPEAKER SYSTEM CUSTOM<U87>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-526-3 01 1 1310- ● ●
290 NUT; BRKT
BATTERY 75D26L<7TT> M6 FLANGE THA 		0-91180-106-0 01 1 1310-1311 ● ● ● ● ●
290 NUT; BRKT
BATTERY 75D26L<7TT> M6 FLANGE THA 		0-91180-106-0 01 1 1312- ● ● ● ● ● ●
342 HARNESS; EXT,LICENSE LAMP
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98137-580-2 01 1 1310- ● ● ● ●
374 PLUG; HARNESS CONNECTOR
EXC. AUTO DOOR LOCK<AU4>,8-SPEAKER SYSTEM CUSTOM<U87> D=58 BLACK THA 		8-97302-191-0 02 1 1310- ● ●
483 HARNESS; EXT,RADIO
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98165-202-2 01 1 1310- ● ● ● ●
483 HARNESS; EXT,RADIO
6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> EXC. HEADER CONSOLE<DK6> THA 		8-98129-592-2 01 1 1310- ● ● ●
çizim 373489
408 547 13 366
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 HARNESS; ENG
4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> EXC. REFRIGERATION KIT<7FH> THA 		8-98206-013-3 01 1 1310- ● ● ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98206-015-3 01 1 1310- ● ● ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> THA 		8-98206-415-3 01 1 1310- ● ● ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98206-011-3 01 1 1310- ● ● ●
13 HARNESS; ENG
4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> REFRIGERATION KIT<7FH> THA 		8-98234-321-2 01 1 1310- ●
13 HARNESS; ENG
4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98206-014-2 01 1 1310-1401 ●
13 HARNESS; ENG
4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98260-515-0 01 1 1402- ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98206-016-2 01 1 1310-1311 ● ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98206-016-2 01 1 1312-1401 ● ● ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98260-516-0 01 1 1402- ● ● ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98206-012-2 01 1 1310-1401 ● ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98260-517-0 01 1 1402- ● ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> THA 		8-98206-414-2 01 1 1310-1401 ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> THA 		8-98260-518-0 01 1 1402- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98270-118-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98270-118-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98270-118-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98270-119-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98270-119-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98270-119-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98270-117-2 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> AIR BAG DRIVER & PASSENGER<AK5> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98270-117-2 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98271-174-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> THA 		8-98271-177-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98271-175-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98271-178-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98271-176-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98271-172-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98271-179-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98271-173-1 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98240-723-2 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98240-723-2 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98240-723-2 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98240-723-2 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98240-723-2 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98240-723-2 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98240-724-2 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98240-724-2 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98240-724-2 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98240-724-2 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98240-724-2 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98240-724-2 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98240-725-3 01 1 1310-1311 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98240-725-3 01 1 1312-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98240-725-3 01 1 1312-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98240-725-3 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98240-725-3 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98231-405-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98231-405-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98232-652-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-652-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98232-653-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-653-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-253-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-253-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98223-265-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-265-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98223-276-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-276-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98232-655-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-655-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-257-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-257-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98232-654-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-654-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-255-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-255-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98232-656-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-656-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-260-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-260-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98223-264-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-264-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98223-275-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-275-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-277-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-277-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-254-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-254-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-279-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-279-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-258-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-258-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98231-406-3 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98231-406-3 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98231-406-3 01 1 1310-1312 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98231-406-3 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98231-406-3 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98231-406-3 01 1 1401- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-278-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-278-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-256-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-256-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-280-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-280-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-259-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-259-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98231-404-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98232-651-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98232-650-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-251-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98223-263-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98223-274-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-266-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-252-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98232-658-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-658-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98232-661-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-661-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98232-662-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-662-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-244-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-244-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98232-664-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-664-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-248-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-248-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98232-663-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-663-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-246-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-246-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98232-665-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-665-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-250-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-250-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98223-262-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-262-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98223-269-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-269-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-270-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-270-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-243-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-243-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-272-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-272-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-247-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-247-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-271-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-271-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-245-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-245-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-273-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-273-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98223-249-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98223-249-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98232-657-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> THA 		8-98232-660-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98232-659-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-242-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98223-261-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> THA 		8-98223-268-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-267-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-241-3 01 1 1310- ●
408 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> IMA 		8-98123-115-0 01 1 1310- ● ●
408 SOCKET ASM; ACCESSORY
IMA 		8-98123-115-0 01 1 1310- ● ● ●
547 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98159-334-4 01 1 1310-1312 ● ● ● ●
547 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98159-334-4 01 1 1401- ● ● ● ● ● ●
çizim 373519
35 738 736 738 739 741 743 742 746 737 745 747 748
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
35 BOX; RELAY & FUSE
THA 		8-98113-097-0 01 1 1310-1311 ● ● ● ● ●
35 BOX; RELAY & FUSE
THA 		8-98113-097-0 01 1 1312- ● ● ● ● ● ●
736 RELAY; STARTER CUT
12V YAZAKI THA 		8-97309-292-0 01 1 1310-1311 ● ● ● ● ●
736 RELAY; STARTER CUT
12V YAZAKI THA 		8-97309-292-0 01 1 1312- ● ● ● ● ● ●
737 RELAY; DIMMER
12V YAZAKI THA 		8-97309-292-0 01 1 1310-1311 ● ● ● ● ●
737 RELAY; DIMMER
12V YAZAKI THA 		8-97309-292-0 01 1 1312- ● ● ● ● ● ●
738 RELAY; HEADLAMP
INTERIOR CUSTOM<RBD> LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> (A) 12V YAZAKI THA 		8-97309-292-0 01 1 1310- ● ● ●
738 RELAY; HEADLAMP
LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> (A) 12V YAZAKI THA 		8-97309-292-0 01 1 1310- ●
738 RELAY; HEADLAMP
(B) 12V YAZAKI THA 		8-97309-293-0 01 1 1310-1311 ● ● ● ● ●
738 RELAY; HEADLAMP
(B) 12V YAZAKI THA 		8-97309-293-0 01 1 1312- ● ● ● ● ● ●
739 RELAY; TAIL LAMP
12V YAZAKI THA 		8-97309-293-0 01 1 1310-1311 ● ● ● ● ●
739 RELAY; TAIL LAMP
12V YAZAKI THA 		8-97309-293-0 01 1 1312- ● ● ● ● ● ●
741 RELAY; HORN
12V YAZAKI THA 		8-97309-293-0 01 1 1310-1311 ● ● ● ● ●
741 RELAY; HORN
12V YAZAKI THA 		8-97309-293-0 01 1 1312- ● ● ● ● ● ●
742 RELAY; THERMO
12V YAZAKI THA 		8-97309-293-0 01 1 1310-1311 ● ● ● ● ●
742 RELAY; THERMO
12V YAZAKI THA 		8-97309-293-0 01 1 1312- ● ● ● ● ● ●
743 RELAY; A/C COMPRESSOR
12V YAZAKI THA 		8-97309-293-0 01 1 1310-1311 ● ● ● ● ●
743 RELAY; A/C COMPRESSOR
12V YAZAKI THA 		8-97309-293-0 01 1 1312- ● ● ● ● ● ●
745 RELAY; HEATER
(A) 12V YAZAKI THA 		8-98146-834-0 01 1 1310-1311 ● ● ● ● ●
745 RELAY; HEATER
(A) 12V YAZAKI THA 		8-98146-834-0 01 1 1312- ● ● ● ● ● ●
745 RELAY; HEATER
(B) 12V YAZAKI THA 		8-97309-292-0 01 1 1310-1311 ● ● ● ● ●
745 RELAY; HEATER
(B) 12V YAZAKI THA 		8-97309-292-0 01 1 1312- ● ● ● ● ● ●
746 RELAY; ECM,MAIN
12V YAZAKI THA 		8-98146-834-0 01 1 1310-1311 ● ● ● ● ●
746 RELAY; ECM,MAIN
12V YAZAKI THA 		8-98146-834-0 01 1 1312- ● ● ● ● ● ●
747 RELAY; GLOW
12V YAZAKI THA 		8-98146-837-0 01 1 1310-1311 ● ● ● ● ●
747 RELAY; GLOW
12V YAZAKI THA 		8-98146-837-0 01 1 1312- ● ● ● ● ● ●
748 RELAY; STARTER
12V YAZAKI THA 		8-98146-837-0 01 1 1310-1311 ● ● ● ● ●
748 RELAY; STARTER
12V YAZAKI THA 		8-98146-837-0 01 1 1312- ● ● ● ● ● ●
çizim 374281
4 734 745 750 749
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 BOX ASM; FUSE,HARNESS
THA 		8-98166-751-0 01 1 1310-1311 ● ● ● ● ●
4 BOX ASM; FUSE,HARNESS
THA 		8-98166-751-0 01 1 1312- ● ● ● ● ● ●
734 RELAY; ACC SOCKET
INTERIOR DELUXE<RBB> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 12V YAZAKI THA 		8-97309-293-0 01 1 1310- ● ● ●
734 RELAY; ACC SOCKET
INTERIOR DELUXE<RBB> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> 12V YAZAKI THA 		8-97309-293-0 01 1 1310- ●
745 RELAY; HEATER
(A) 12V YAZAKI THA 		8-98146-834-0 01 1 1310-1311 ● ● ● ● ●
745 RELAY; HEATER
(A) 12V YAZAKI THA 		8-98146-834-0 01 1 1312- ● ● ● ● ● ●
745 RELAY; HEATER
(B) 12V YAZAKI THA 		8-97309-292-0 01 1 1310-1311 ● ● ● ● ●
745 RELAY; HEATER
(B) 12V YAZAKI THA 		8-97309-292-0 01 1 1312- ● ● ● ● ● ●
749 RELAY; POWER WINDOW
AUTO DOOR LOCK<AU4> 12V YAZAKI THA 		8-97309-293-0 01 1 1310- ● ● ● ● ●
750 RELAY; RR DEFOGGER
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 12V YAZAKI THA 		8-97309-293-0 01 1 1310- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
