8-05 — INTERIOR LAMP (#126467) — 11 parça

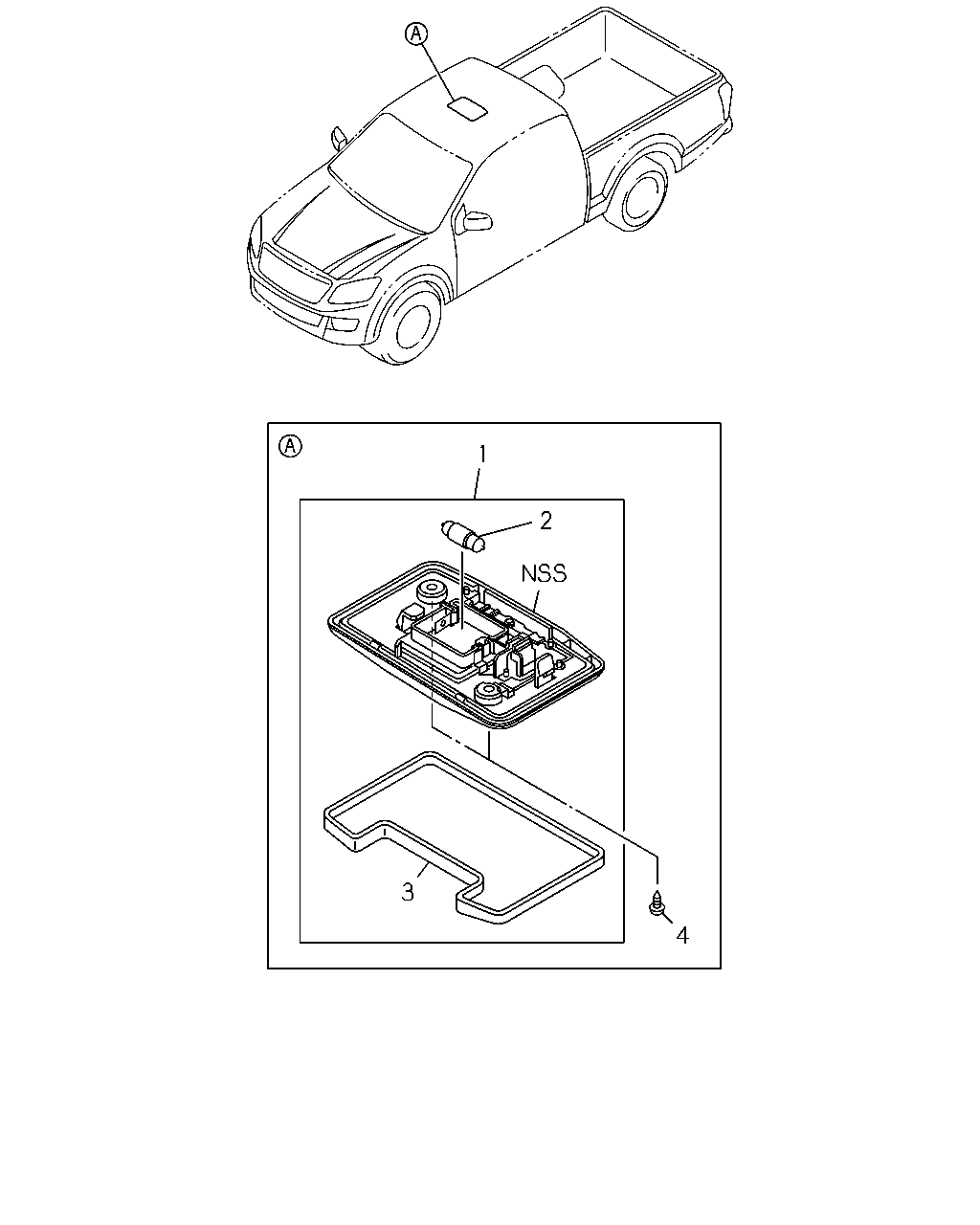

çizim 374343
1 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LAMP ASM; ROOM
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> GRAY THA 		8-97419-992-0 01 1 1310-1311 ● ●
1 LAMP ASM; ROOM
GRAY THA 		8-97419-992-0 01 1 1310-1311 ● ● ●
1 LAMP ASM; ROOM
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> GRAY THA 		8-97419-992-0 01 1 1312- ● ●
1 LAMP ASM; ROOM
GRAY THA 		8-97419-992-0 01 1 1312- ● ● ● ●
1 LAMP ASM; ROOM
INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97423-972-0 01 1 1310- ● ●
2 BULB; ROOM LAMP
12V 10W THA 		8-97128-771-0 01 1 1310-1311 ● ● ● ● ●
2 BULB; ROOM LAMP
12V 10W THA 		8-97128-771-0 01 1 1312- ● ● ● ● ● ●
3 LENS; ROOM LAMP
THA 		8-97333-429-0 01 1 1310-1311 ● ● ● ● ●
3 LENS; ROOM LAMP
THA 		8-97333-429-0 01 1 1312- ● ● ● ● ● ●
4 SCREW; ROOM LAMP
M5X12 TAPPING IMA 		0-71040-512-0 02 1 1310-1311 ● ● ● ● ●
4 SCREW; ROOM LAMP
M5X12 TAPPING IMA 		0-71040-512-0 02 1 1312- ● ● ● ● ● ●
