◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#126466) — 200 parça

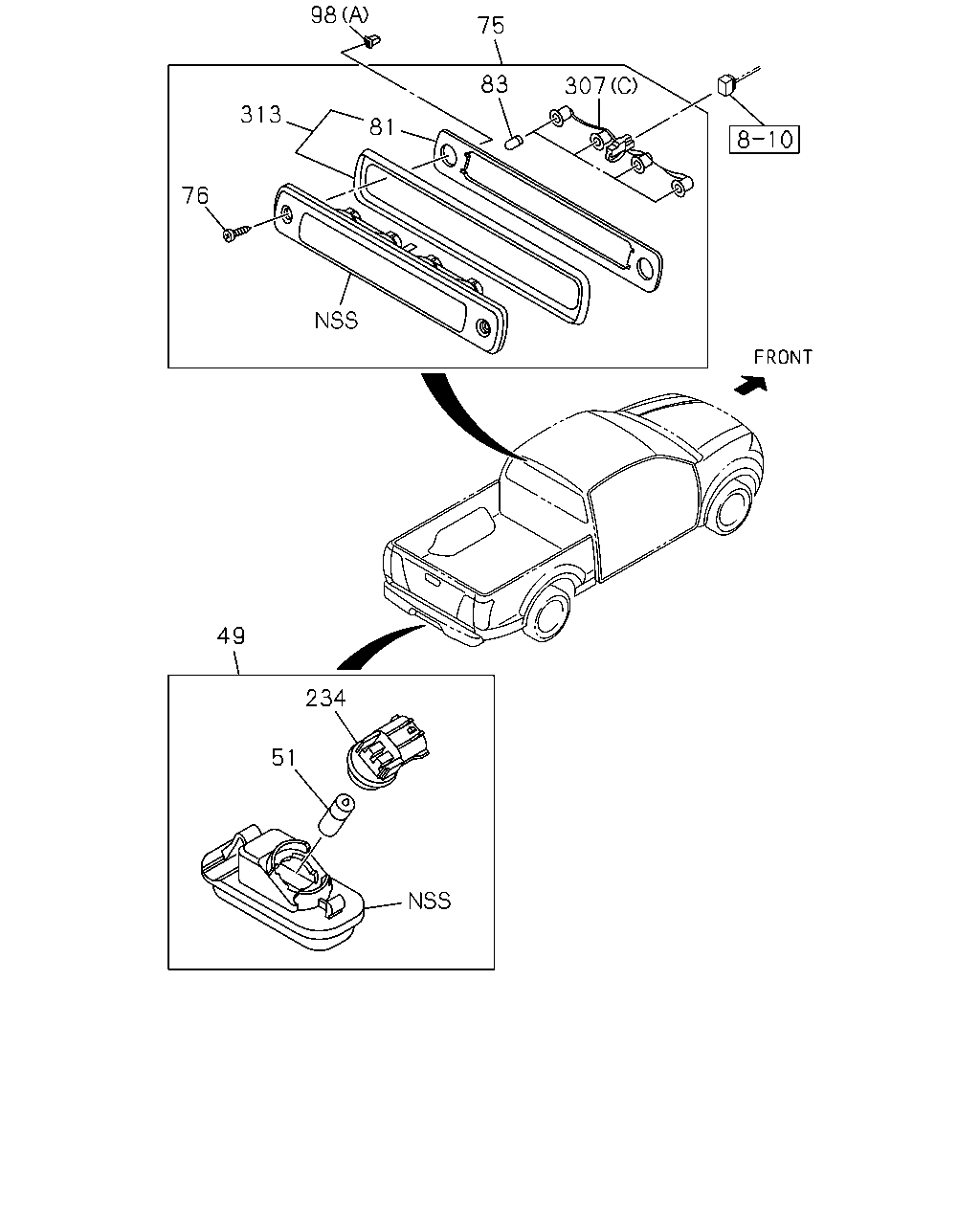

çizim 373331
76 313 98 75 83 81 307 49 234 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
49 LAMP; LICENSE PLATE
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98224-482-0 01 1 1310- ● ● ● ●
49 LAMP; LICENSE PLATE
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98224-482-0 02 1 1310-1311 ● ● ● ● ●
49 LAMP; LICENSE PLATE
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98224-482-0 02 1 1312- ● ● ● ● ● ●
51 BULB; LICENSE PLATE LAMP
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> 12V 5W THA 		8-94124-595-0 01 1 1310- ● ● ● ●
51 BULB; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> 12V 5W THA 		8-94124-595-0 02 1 1310-1311 ● ● ● ● ●
51 BULB; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> 12V 5W THA 		8-94124-595-0 02 1 1312- ● ● ● ● ● ●
75 LAMP ASM; STOP,HIGHMOUNTED
THA 		8-98084-142-2 01 1 1310-1310 ● ● ● ●
75 LAMP ASM; STOP,HIGHMOUNTED
THA 		8-98255-655-2 01 1 1311- ● ● ● ●
76 SCREW; STOP LAMP,HIGHMOUNTED
THA 		8-98193-901-0 02 1 1310- ● ● ● ●
81 GASKET; STOP LAMP
THA 		8-98193-899-0 01 1 1310-1310 ● ● ● ●
81 GASKET; STOP LAMP
THA 		8-98257-962-0 01 1 1311- ● ● ● ●
83 BULB; STOP LAMP,HIGHMOUNTED
12V 5W THA 		8-98193-898-0 04 1 1310- ● ● ● ●
98 WASHER
(B) D=16 THA 		8-94427-941-0 04 1 1310-1311 ● ● ● ●
98 WASHER
REAR BODY DBL WALL CTR PULL<E63> (B) D=16 THA 		8-94427-941-0 04 1 1310-1311 ●
98 WASHER
(B) D=16 THA 		8-94427-941-0 04 1 1312- ● ● ● ●
98 WASHER
REAR BODY DBL WALL CTR PULL<E63> (B) D=16 THA 		8-94427-941-0 04 1 1312- ● ●
98 WASHER
(A) THA 		8-94279-039-0 02 1 1310-1310 ● ● ● ●
98 WASHER
(A) D=7.8X7.8 L=18 NATURAL IMA 		8-94279-043-0 02 1 1311- ● ● ● ●
234 SOCKET ASM; LICENSE PLATE LAMP
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		1-82119-148-0 01 1 1310- ● ● ● ●
234 SOCKET ASM; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		1-82119-148-0 02 1 1310-1311 ● ● ● ● ●
234 SOCKET ASM; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		1-82119-148-0 02 1 1312- ● ● ● ● ● ●
307 CORD ASM; LAMP
LAMPS TAIL AND STOP DELUXE<T81> (A) THA 		8-98250-079-0 01 1 1310- ● ● ● ●
307 CORD ASM; LAMP
LAMPS TAIL AND STOP DELUXE<T81> (A) THA 		8-98250-079-0 01 1 1310- ● ● ● ●
307 CORD ASM; LAMP
(C) THA 		8-98193-900-0 01 1 1310- ● ● ● ●
307 CORD ASM; LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98193-896-0 01 1 1310-1311 ● ● ● ●
307 CORD ASM; LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98193-896-0 01 1 1310-1311 ● ● ● ●
307 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98193-896-0 01 1 1310-1311 ●
307 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98193-896-0 01 1 1310-1311 ●
307 CORD ASM; LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98193-896-0 01 1 1312- ● ● ● ●
307 CORD ASM; LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98193-896-0 01 1 1312- ● ● ● ●
307 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98193-896-0 01 1 1312- ● ●
307 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98193-896-0 01 1 1312- ● ●
313 RUBBER & GASKET
THA 		8-98250-208-0 01 1 1310- ● ● ● ●

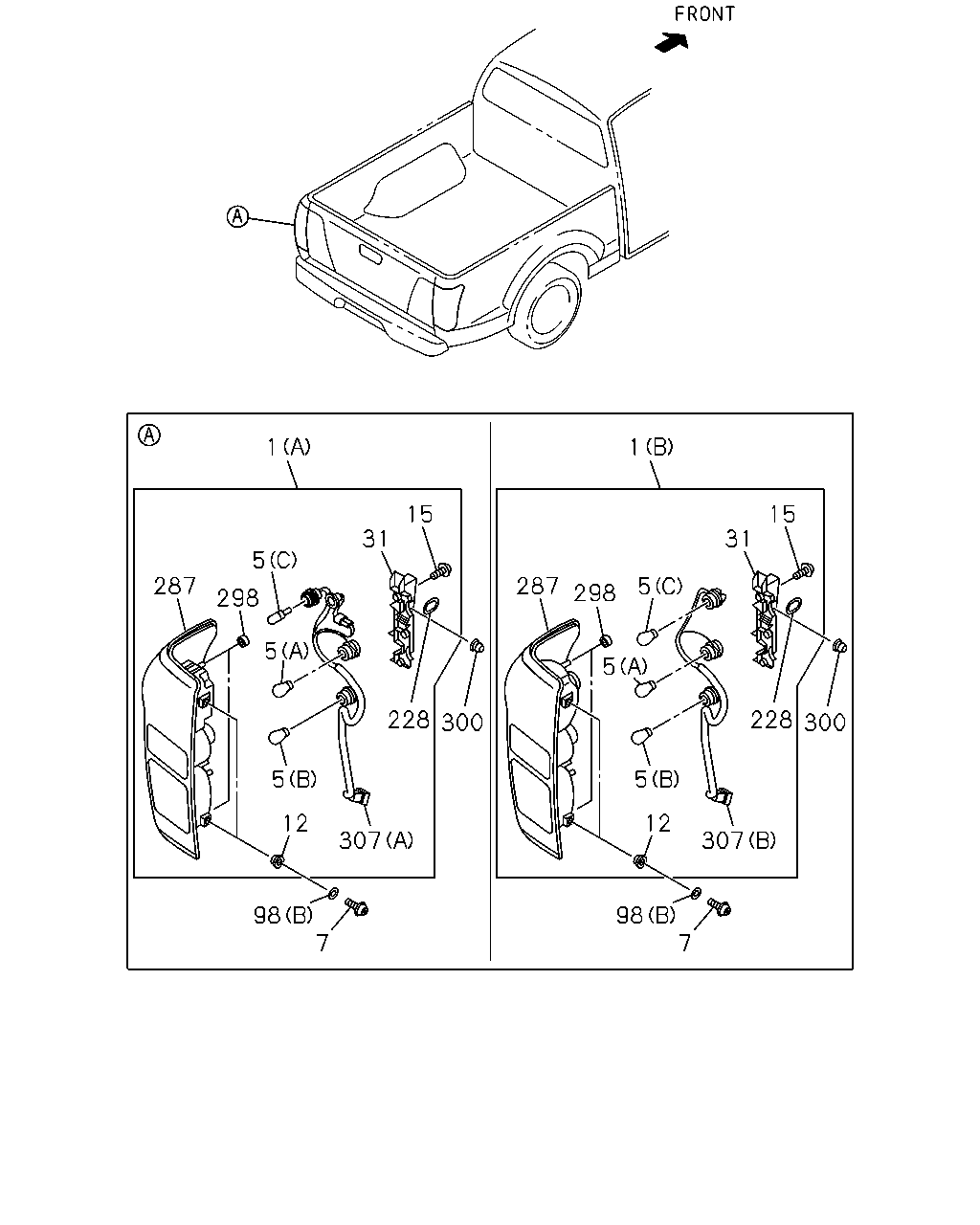

çizim 373353
1 1 15 31 5 287 298 5 5 228 300 307 12 98 7 98 7 307 300 228 15 31 5 5 5 12 298 287
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LAMP ASM; RR COMB
LAMPS TAIL AND STOP DELUXE<T81> (A) THA 		8-98222-281-2 01 1 1310- ● ● ● ●
1 LAMP ASM; RR COMB
LAMPS TAIL AND STOP DELUXE<T81> (A) THA 		8-98222-282-2 01 1 1310- ● ● ● ●
1 LAMP ASM; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98125-402-3 01 1 1310-1311 ● ● ● ●
1 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98125-402-3 01 1 1310-1311 ●
1 LAMP ASM; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98125-402-3 01 1 1312- ● ● ● ●
1 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98125-402-3 01 1 1312- ● ●
1 LAMP ASM; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98125-403-3 01 1 1310-1311 ● ● ● ●
1 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98125-403-3 01 1 1310-1311 ●
1 LAMP ASM; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98125-403-3 01 1 1312- ● ● ● ●
1 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98125-403-3 01 1 1312- ● ●
1 LAMP ASM; RR COMB
REAR BODY DELETE<8HH> (C) IMA 		8-97137-731-0 01 1 1310-1311 ●
1 LAMP ASM; RR COMB
REAR BODY DELETE<8HH> (C) IMA 		8-97137-731-0 01 1 1312- ● ●
1 LAMP ASM; RR COMB
REAR BODY DELETE<8HH> (C) IMA 		8-97137-732-0 01 1 1310-1311 ●
1 LAMP ASM; RR COMB
REAR BODY DELETE<8HH> (C) IMA 		8-97137-732-0 01 1 1312- ● ●
5 BULB; RR COMB LAMP
LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL 12V 5W THA 		8-94124-595-0 01 1 1310- ● ● ● ●
5 BULB; RR COMB LAMP
LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL 12V 5W THA 		8-94124-595-0 01 1 1310- ● ● ● ●
5 BULB; RR COMB LAMP
(B) BACK-UP AND RR FOG 12V 21W THA 		8-94124-074-0 01 1 1310-1311 ● ● ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA 		8-94124-074-0 01 1 1310-1311 ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA 		8-94124-074-0 01 1 1310-1311 ●
5 BULB; RR COMB LAMP
(B) BACK-UP AND RR FOG 12V 21W THA 		8-94124-074-0 01 1 1312- ● ● ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA 		8-94124-074-0 01 1 1312- ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA 		8-94124-074-0 01 1 1312- ● ●
5 BULB; RR COMB LAMP
(A) TURN SIGNAL 12V 21W THA 		8-97179-967-0 01 1 1310-1311 ● ● ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA 		8-97179-967-0 01 1 1310-1311 ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA 		8-97179-967-0 01 1 1310-1311 ●
5 BULB; RR COMB LAMP
(A) TURN SIGNAL 12V 21W THA 		8-97179-967-0 01 1 1312- ● ● ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA 		8-97179-967-0 01 1 1312- ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA 		8-97179-967-0 01 1 1312- ● ●
5 BULB; RR COMB LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1310-1311 ● ● ● ●
5 BULB; RR COMB LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1310-1311 ● ● ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1310-1311 ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1310-1311 ●
5 BULB; RR COMB LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1312- ● ● ● ●
5 BULB; RR COMB LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1312- ● ● ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1312- ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1312- ● ●
5 BULB; RR COMB LAMP
REAR BODY DELETE<8HH> (D) BACK-UP AND TURN SIGNAL 12V 21W THA 		8-94124-074-0 04 1 1310-1311 ●
5 BULB; RR COMB LAMP
REAR BODY DELETE<8HH> (D) BACK-UP AND TURN SIGNAL 12V 21W THA 		8-94124-074-0 04 1 1312- ● ●
5 BULB; RR COMB LAMP
REAR BODY DELETE<8HH> (E) STOP 12V 21/5W THA 		8-94125-959-0 02 1 1310-1311 ●
5 BULB; RR COMB LAMP
REAR BODY DELETE<8HH> (E) STOP 12V 21/5W THA 		8-94125-959-0 02 1 1312- ● ●
7 SCREW; RR COMB LAMP
M5X14 TAPPING W/PL WASHER THA 		0-74160-514-0 04 1 1310-1311 ● ● ● ●
7 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> M5X14 TAPPING W/PL WASHER THA 		0-74160-514-0 04 1 1310-1311 ●
7 SCREW; RR COMB LAMP
M5X14 TAPPING W/PL WASHER THA 		0-74160-514-0 04 1 1312- ● ● ● ●
7 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> M5X14 TAPPING W/PL WASHER THA 		0-74160-514-0 04 1 1312- ● ●
12 GROMMET; RR COMB LAMP
THA 		8-97349-413-0 02 1 1310-1311 ● ● ● ●
12 GROMMET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97349-413-0 02 1 1310-1311 ●
12 GROMMET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97349-413-0 02 1 1310-1311 ●
12 GROMMET; RR COMB LAMP
THA 		8-97349-413-0 02 1 1312- ● ● ● ●
12 GROMMET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97349-413-0 02 1 1312- ● ●
12 GROMMET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97349-413-0 02 1 1312- ● ●
15 SCREW; RR COMB LAMP
M4X12 TAPPING THA 		8-97376-768-0 03 1 1310-1311 ● ● ● ●
15 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA 		8-97376-768-0 03 1 1310-1311 ●
15 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA 		8-97376-768-0 03 1 1310-1311 ●
15 SCREW; RR COMB LAMP
M4X12 TAPPING THA 		8-97376-768-0 03 1 1312- ● ● ● ●
15 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA 		8-97376-768-0 03 1 1312- ● ●
15 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA 		8-97376-768-0 03 1 1312- ● ●
15 SCREW; RR COMB LAMP
REAR BODY DELETE<8HH> M4X20 TAPPING STAINLESS IMA 		0-71090-420-0 16 1 1310-1311 ●
15 SCREW; RR COMB LAMP
REAR BODY DELETE<8HH> M4X20 TAPPING STAINLESS IMA 		0-71090-420-0 16 1 1312- ● ●
31 BRACKET; RR COMB LAMP
THA 		8-98193-892-0 01 1 1310-1311 ● ● ● ●
31 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98193-892-0 01 1 1310-1311 ●
31 BRACKET; RR COMB LAMP
THA 		8-98193-892-0 01 1 1312- ● ● ● ●
31 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98193-892-0 01 1 1312- ● ●
31 BRACKET; RR COMB LAMP
THA 		8-98193-893-0 01 1 1310-1311 ● ● ● ●
31 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98193-893-0 01 1 1310-1311 ●
31 BRACKET; RR COMB LAMP
THA 		8-98193-893-0 01 1 1312- ● ● ● ●
31 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98193-893-0 01 1 1312- ● ●
98 WASHER
(B) D=16 THA 		8-94427-941-0 04 1 1310-1311 ● ● ● ●
98 WASHER
REAR BODY DBL WALL CTR PULL<E63> (B) D=16 THA 		8-94427-941-0 04 1 1310-1311 ●
98 WASHER
(B) D=16 THA 		8-94427-941-0 04 1 1312- ● ● ● ●
98 WASHER
REAR BODY DBL WALL CTR PULL<E63> (B) D=16 THA 		8-94427-941-0 04 1 1312- ● ●
98 WASHER
(A) THA 		8-94279-039-0 02 1 1310-1310 ● ● ● ●
98 WASHER
(A) D=7.8X7.8 L=18 NATURAL IMA 		8-94279-043-0 02 1 1311- ● ● ● ●
228 CLIP; COVER,RR COMB LAMP
THA 		8-97376-769-0 01 1 1310-1311 ● ● ● ●
228 CLIP; COVER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97376-769-0 01 1 1310-1311 ●
228 CLIP; COVER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97376-769-0 01 1 1310-1311 ●
228 CLIP; COVER,RR COMB LAMP
THA 		8-97376-769-0 01 1 1312- ● ● ● ●
228 CLIP; COVER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97376-769-0 01 1 1312- ● ●
228 CLIP; COVER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97376-769-0 01 1 1312- ● ●
287 LAMP UNIT; RR COMB
LAMPS TAIL AND STOP DELUXE<T81> THA 		8-98235-560-0 01 1 1310- ● ● ● ●
287 LAMP UNIT; RR COMB
LAMPS TAIL AND STOP DELUXE<T81> THA 		8-98235-561-0 01 1 1310- ● ● ● ●
287 LAMP UNIT; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81> THA 		8-98131-706-0 01 1 1310-1311 ● ● ● ●
287 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98131-706-0 01 1 1310-1311 ●
287 LAMP UNIT; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81> THA 		8-98131-706-0 01 1 1312- ● ● ● ●
287 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98131-706-0 01 1 1312- ● ●
287 LAMP UNIT; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81> THA 		8-98131-707-0 01 1 1310-1311 ● ● ● ●
287 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98131-707-0 01 1 1310-1311 ●
287 LAMP UNIT; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81> THA 		8-98131-707-0 01 1 1312- ● ● ● ●
287 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98131-707-0 01 1 1312- ● ●
298 CAP; BREATHER,RR COMB LAMP
THA 		8-97289-148-0 02 1 1310-1311 ● ● ● ●
298 CAP; BREATHER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97289-148-0 02 1 1310-1311 ●
298 CAP; BREATHER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97289-148-0 02 1 1310-1311 ●
298 CAP; BREATHER,RR COMB LAMP
THA 		8-97289-148-0 02 1 1312- ● ● ● ●
298 CAP; BREATHER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97289-148-0 02 1 1312- ● ●
298 CAP; BREATHER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97289-148-0 02 1 1312- ● ●
300 HOLDER; LAMP
THA 		8-97372-854-0 02 1 1310-1311 ● ● ● ●
300 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97372-854-0 02 1 1310-1311 ●
300 HOLDER; LAMP
THA 		8-97372-854-0 02 1 1312- ● ● ● ●
300 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97372-854-0 02 1 1312- ● ●
307 CORD ASM; LAMP
LAMPS TAIL AND STOP DELUXE<T81> (A) THA 		8-98250-079-0 01 1 1310- ● ● ● ●
307 CORD ASM; LAMP
LAMPS TAIL AND STOP DELUXE<T81> (A) THA 		8-98250-079-0 01 1 1310- ● ● ● ●
307 CORD ASM; LAMP
(C) THA 		8-98193-900-0 01 1 1310- ● ● ● ●
307 CORD ASM; LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98193-896-0 01 1 1310-1311 ● ● ● ●
307 CORD ASM; LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98193-896-0 01 1 1310-1311 ● ● ● ●
307 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98193-896-0 01 1 1310-1311 ●
307 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98193-896-0 01 1 1310-1311 ●
307 CORD ASM; LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98193-896-0 01 1 1312- ● ● ● ●
307 CORD ASM; LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98193-896-0 01 1 1312- ● ● ● ●
307 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98193-896-0 01 1 1312- ● ●
307 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98193-896-0 01 1 1312- ● ●
çizim 373354
1 5 5 15 6 3 5 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LAMP ASM; RR COMB
LAMPS TAIL AND STOP DELUXE<T81> (A) THA 		8-98222-281-2 01 1 1310- ● ● ● ●
1 LAMP ASM; RR COMB
LAMPS TAIL AND STOP DELUXE<T81> (A) THA 		8-98222-282-2 01 1 1310- ● ● ● ●
1 LAMP ASM; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98125-402-3 01 1 1310-1311 ● ● ● ●
1 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98125-402-3 01 1 1310-1311 ●
1 LAMP ASM; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98125-402-3 01 1 1312- ● ● ● ●
1 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98125-402-3 01 1 1312- ● ●
1 LAMP ASM; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98125-403-3 01 1 1310-1311 ● ● ● ●
1 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98125-403-3 01 1 1310-1311 ●
1 LAMP ASM; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA 		8-98125-403-3 01 1 1312- ● ● ● ●
1 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98125-403-3 01 1 1312- ● ●
1 LAMP ASM; RR COMB
REAR BODY DELETE<8HH> (C) IMA 		8-97137-731-0 01 1 1310-1311 ●
1 LAMP ASM; RR COMB
REAR BODY DELETE<8HH> (C) IMA 		8-97137-731-0 01 1 1312- ● ●
1 LAMP ASM; RR COMB
REAR BODY DELETE<8HH> (C) IMA 		8-97137-732-0 01 1 1310-1311 ●
1 LAMP ASM; RR COMB
REAR BODY DELETE<8HH> (C) IMA 		8-97137-732-0 01 1 1312- ● ●
3 GASKET; RR COMB LAMP
REAR BODY DELETE<8HH> IMA 		5-82236-001-0 01 1 1310-1311 ●
3 GASKET; RR COMB LAMP
REAR BODY DELETE<8HH> IMA 		5-82236-001-0 01 1 1312- ● ●
3 GASKET; RR COMB LAMP
REAR BODY DELETE<8HH> IMA 		5-82236-002-0 01 1 1310-1311 ●
3 GASKET; RR COMB LAMP
REAR BODY DELETE<8HH> IMA 		5-82236-002-0 01 1 1312- ● ●
5 BULB; RR COMB LAMP
LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL 12V 5W THA 		8-94124-595-0 01 1 1310- ● ● ● ●
5 BULB; RR COMB LAMP
LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL 12V 5W THA 		8-94124-595-0 01 1 1310- ● ● ● ●
5 BULB; RR COMB LAMP
(B) BACK-UP AND RR FOG 12V 21W THA 		8-94124-074-0 01 1 1310-1311 ● ● ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA 		8-94124-074-0 01 1 1310-1311 ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA 		8-94124-074-0 01 1 1310-1311 ●
5 BULB; RR COMB LAMP
(B) BACK-UP AND RR FOG 12V 21W THA 		8-94124-074-0 01 1 1312- ● ● ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA 		8-94124-074-0 01 1 1312- ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA 		8-94124-074-0 01 1 1312- ● ●
5 BULB; RR COMB LAMP
(A) TURN SIGNAL 12V 21W THA 		8-97179-967-0 01 1 1310-1311 ● ● ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA 		8-97179-967-0 01 1 1310-1311 ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA 		8-97179-967-0 01 1 1310-1311 ●
5 BULB; RR COMB LAMP
(A) TURN SIGNAL 12V 21W THA 		8-97179-967-0 01 1 1312- ● ● ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA 		8-97179-967-0 01 1 1312- ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA 		8-97179-967-0 01 1 1312- ● ●
5 BULB; RR COMB LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1310-1311 ● ● ● ●
5 BULB; RR COMB LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1310-1311 ● ● ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1310-1311 ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1310-1311 ●
5 BULB; RR COMB LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1312- ● ● ● ●
5 BULB; RR COMB LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1312- ● ● ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1312- ● ●
5 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (C) TAIL AND STOP 12V 21/5W THA 		8-94125-959-0 01 1 1312- ● ●
5 BULB; RR COMB LAMP
REAR BODY DELETE<8HH> (D) BACK-UP AND TURN SIGNAL 12V 21W THA 		8-94124-074-0 04 1 1310-1311 ●
5 BULB; RR COMB LAMP
REAR BODY DELETE<8HH> (D) BACK-UP AND TURN SIGNAL 12V 21W THA 		8-94124-074-0 04 1 1312- ● ●
5 BULB; RR COMB LAMP
REAR BODY DELETE<8HH> (E) STOP 12V 21/5W THA 		8-94125-959-0 02 1 1310-1311 ●
5 BULB; RR COMB LAMP
REAR BODY DELETE<8HH> (E) STOP 12V 21/5W THA 		8-94125-959-0 02 1 1312- ● ●
6 LENS; RR COMB LAMP
REAR BODY DELETE<8HH> IMA 		5-82235-001-0 01 1 1310-1311 ●
6 LENS; RR COMB LAMP
REAR BODY DELETE<8HH> IMA 		5-82235-001-0 01 1 1312- ● ●
6 LENS; RR COMB LAMP
REAR BODY DELETE<8HH> IMA 		5-82235-002-0 01 1 1310-1311 ●
6 LENS; RR COMB LAMP
REAR BODY DELETE<8HH> IMA 		5-82235-002-0 01 1 1312- ● ●
9 NUT; LAMP,RR COMB
REAR BODY DELETE<8HH> M5 FLANGE THA 		8-98049-363-0 08 1 1310-1311 ●
9 NUT; LAMP,RR COMB
REAR BODY DELETE<8HH> M5 FLANGE THA 		8-98049-363-0 08 1 1312- ● ●
15 SCREW; RR COMB LAMP
M4X12 TAPPING THA 		8-97376-768-0 03 1 1310-1311 ● ● ● ●
15 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA 		8-97376-768-0 03 1 1310-1311 ●
15 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA 		8-97376-768-0 03 1 1310-1311 ●
15 SCREW; RR COMB LAMP
M4X12 TAPPING THA 		8-97376-768-0 03 1 1312- ● ● ● ●
15 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA 		8-97376-768-0 03 1 1312- ● ●
15 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA 		8-97376-768-0 03 1 1312- ● ●
15 SCREW; RR COMB LAMP
REAR BODY DELETE<8HH> M4X20 TAPPING STAINLESS IMA 		0-71090-420-0 16 1 1310-1311 ●
15 SCREW; RR COMB LAMP
REAR BODY DELETE<8HH> M4X20 TAPPING STAINLESS IMA 		0-71090-420-0 16 1 1312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
