7-60 — SEAT BELT (#126464) — 52 parça

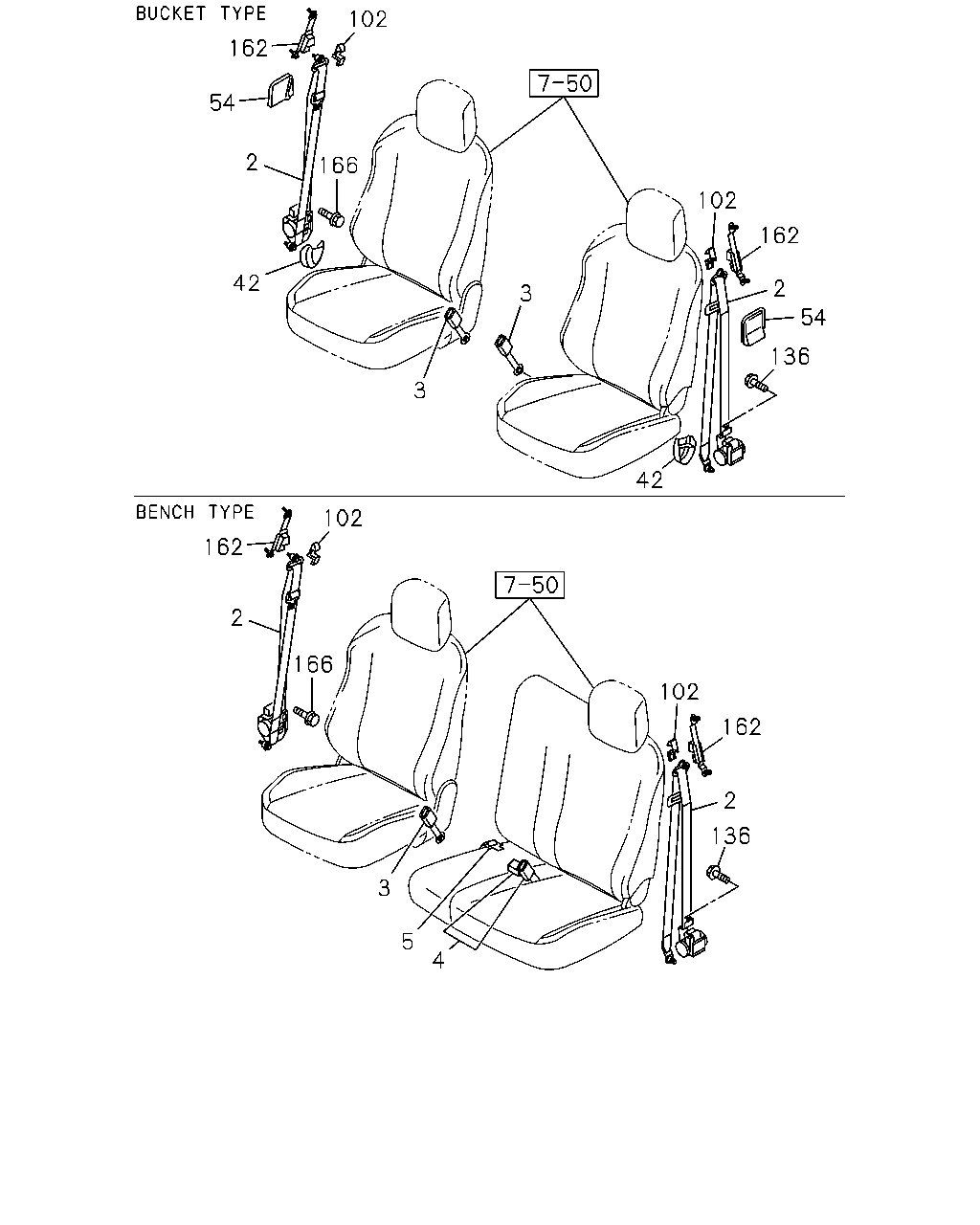

çizim 373352
102 162 54 2 166 42 3 3 42 136 54 2 162 102 102 162 2 166 3 5 4 102 162 2 136
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT SPLIT BENCH<AM6> PASSENGER SIDE BLACK THA 		8-97423-668-0 01 1 1401- ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> DRIVER SIDE BLACK THA 		8-97423-662-0 01 1 1310-1312 ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> DRIVER SIDE BLACK THA 		8-97423-662-0 01 1 1401- ● ● ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> PASSENGER SIDE BLACK THA 		8-97423-667-0 01 1 1310-1312 ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> PASSENGER SIDE BLACK THA 		8-97423-667-0 01 1 1401- ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET STANDARD<A50> PASSENGER SIDE BLACK THA 		8-97423-667-0 01 1 1401- ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> DRIVER SIDE BLACK THA 		8-97423-661-0 01 1 1310-1311 ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
DRIVER SIDE BLACK THA 		8-97423-661-0 01 1 1310-1311 ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> DRIVER SIDE BLACK THA 		8-97423-661-0 01 1 1312-1312 ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
DRIVER SIDE BLACK THA 		8-97423-661-0 01 1 1312-1312 ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> DRIVER SIDE BLACK THA 		8-97423-661-0 01 1 1401- ● ● ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> PASSENGER SIDE BLACK THA 		8-97423-665-0 01 1 1310-1311 ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> PASSENGER SIDE BLACK THA 		8-97423-665-0 01 1 1310-1311 ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> PASSENGER SIDE BLACK THA 		8-97423-665-0 01 1 1312-1312 ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> PASSENGER SIDE BLACK THA 		8-97423-665-0 01 1 1312-1312 ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> PASSENGER SIDE BLACK THA 		8-97423-665-0 01 1 1401- ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> PASSENGER SIDE BLACK THA 		8-97423-665-0 01 1 1401- ● ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB>,SEAT TRIM VINYL<8LJ>, SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK THA 		8-97416-839-0 01 1 1312-1312 ● ● ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB>,SEAT TRIM VINYL<8LJ>, SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK THA 		8-97416-839-0 01 1 1401- ● ● ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB>,SEAT TRIM VINYL<8LJ>, SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK THA 		8-97416-839-0 01 1 1310-1311 ● ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR DARK GRAY<117> SEAT TRIM VINYL<8LJ> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> BLACK THA 		8-97416-839-0 01 1 1310-1311 ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK THA 		8-97416-837-3 01 1 1310-1311 ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> ,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> BLACK THA 		8-97416-837-3 01 1 1310-1311 ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR DARK GRAY<117> SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> BLACK THA 		8-97416-837-3 01 1 1310-1311 ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK THA 		8-97426-632-0 01 1 1312-1312 ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> ,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> BLACK THA 		8-97426-632-0 01 1 1312-1312 ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR DARK GRAY<117> SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> BLACK THA 		8-97426-632-0 01 1 1312-1312 ● ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK THA 		8-97426-632-0 01 1 1401- ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> ,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> BLACK THA 		8-97426-632-0 01 1 1401- ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR DARK GRAY<117> SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> BLACK THA 		8-97426-632-0 01 1 1401- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT SPLIT BENCH<AM6> BLACK THA 		8-97417-107-1 01 1 1310-1311 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT SPLIT BENCH<AM6> BLACK THA 		8-97417-107-1 01 1 1312- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRONT SEAT SPLIT BENCH<AM6> BLACK THA 		8-97423-671-0 01 1 1310-1311 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRONT SEAT SPLIT BENCH<AM6> BLACK THA 		8-97423-671-0 01 1 1312- ● ●
42 COVER; SEAT BELT
BLACK THA 		8-97417-001-0 02 1 1310- ● ●
54 BEZEL; SEAT BELT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-758-1 01 1 1310- ●
54 BEZEL; SEAT BELT
BLACK THA 		8-97416-758-1 01 1 1310- ●
54 BEZEL; SEAT BELT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-760-1 01 1 1310- ●
54 BEZEL; SEAT BELT
BLACK THA 		8-97416-760-1 01 1 1310- ●
54 BEZEL; SEAT BELT
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-759-1 01 1 1310- ●
54 BEZEL; SEAT BELT
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-761-1 01 1 1310- ●
102 COVER; SHOULDER ANCHOR
BLACK THA 		8-97416-646-2 02 1 1310-1311 ● ● ● ● ●
102 COVER; SHOULDER ANCHOR
BLACK THA 		8-97416-646-2 02 1 1312- ● ● ● ● ● ●
136 BOLT; SEAT BELT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1310-1311 ● ● ● ● ●
136 BOLT; SEAT BELT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1312- ● ● ● ● ● ●
162 ADJUSTER; SEAT BELT
BLACK THA 		8-97416-645-1 02 1 1310-1311 ● ● ● ● ●
162 ADJUSTER; SEAT BELT
BLACK THA 		8-97416-645-1 02 1 1312- ● ● ● ● ● ●
166 BOLT; SEAT BELT ANCHOR
M6X16 FLANGE THA 		0-28650-616-0 01 1 1310-1311 ● ● ● ● ●
166 BOLT; SEAT BELT ANCHOR
M6X16 FLANGE THA 		0-28650-616-0 01 1 1312- ● ● ● ● ● ●

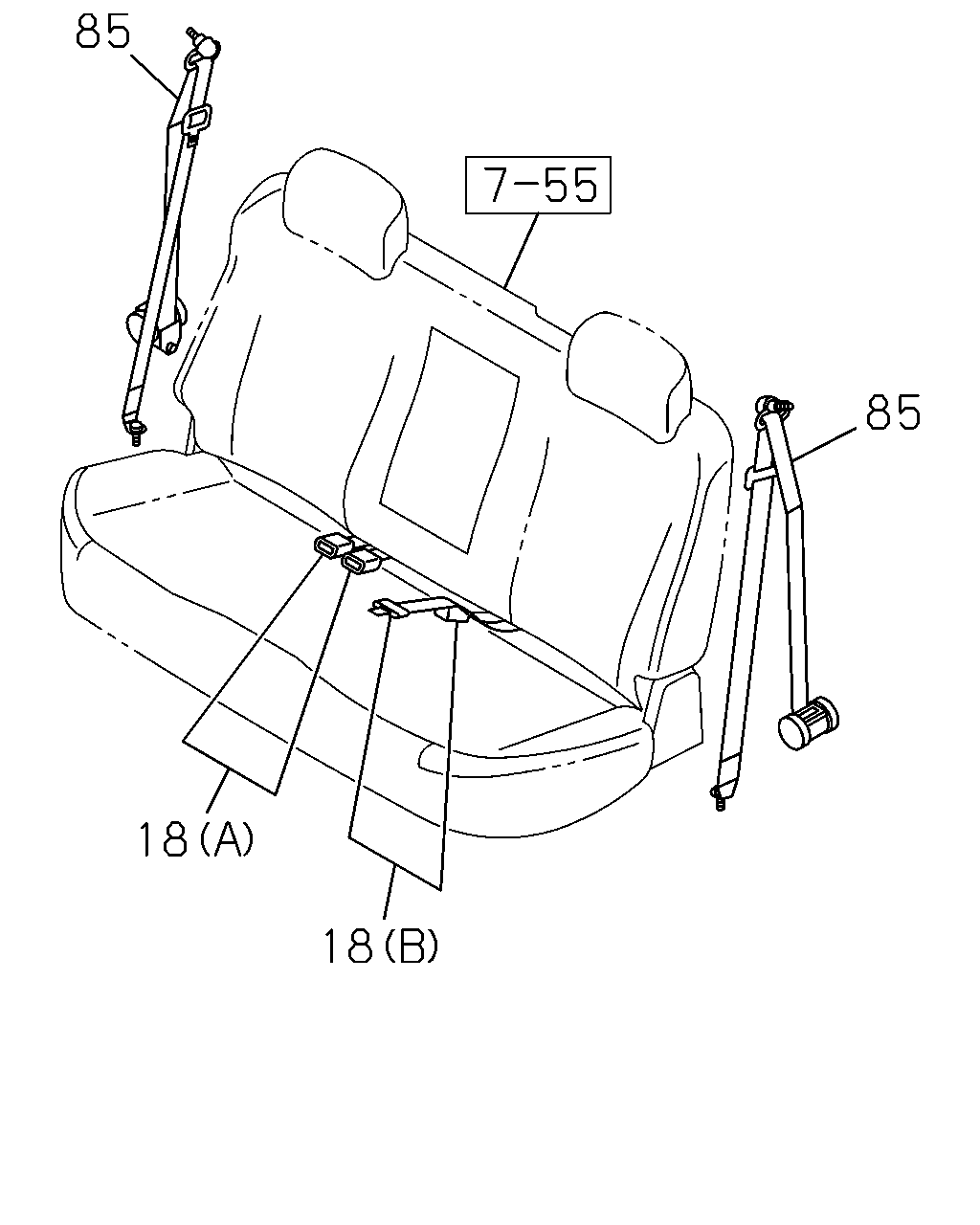

çizim 374355
85 18 18 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 BELT; SEAT,RR
(A) BLACK THA 		8-97416-937-1 01 1 1310- ● ●
18 BELT; SEAT,RR
(B) BLACK THA 		8-97423-672-0 01 1 1310- ● ●
85 BELT; SEAT,RR OUTER
BLACK THA 		8-97423-669-0 02 1 1310- ● ●
