◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#126458) — 71 parça

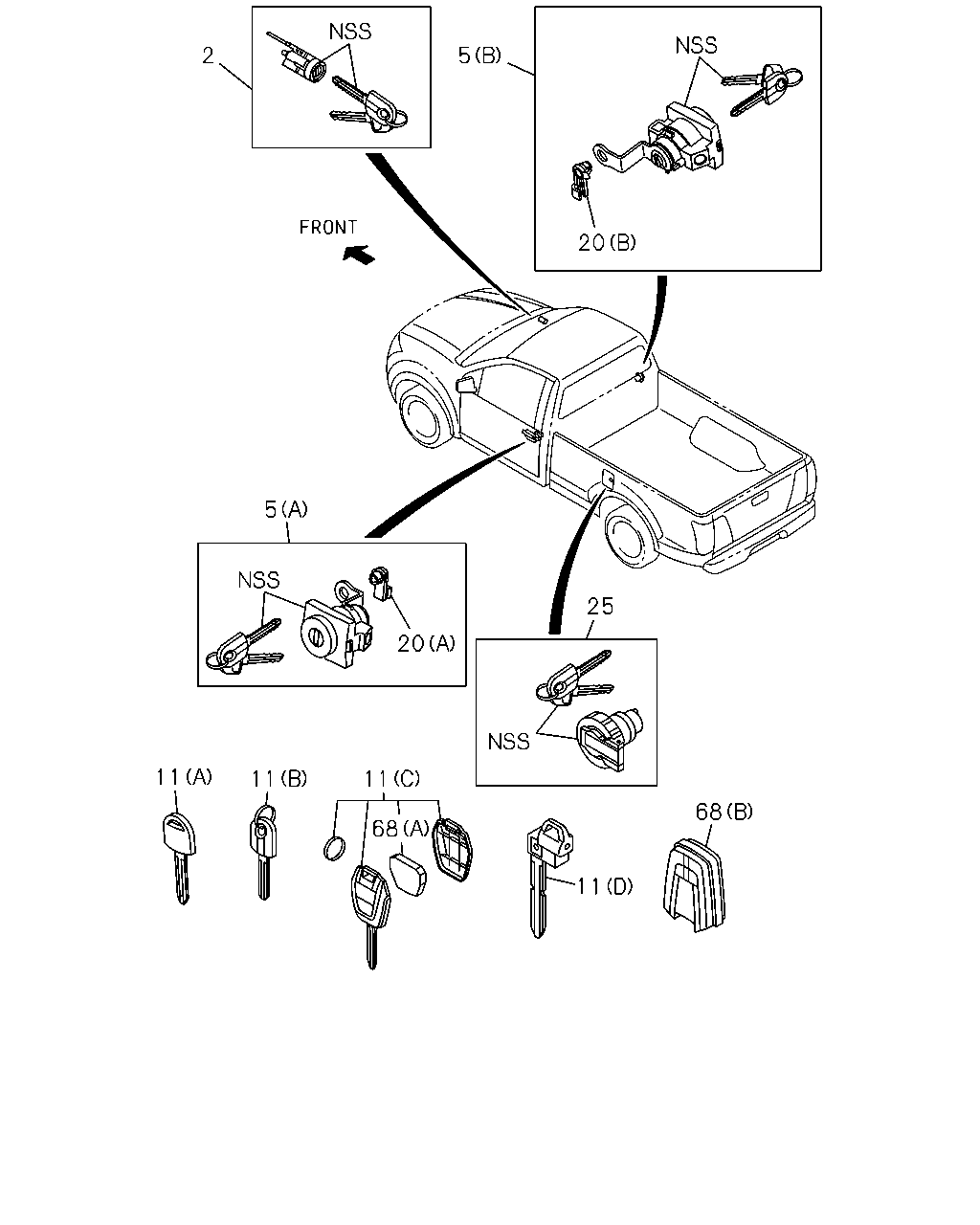

çizim 373326
2 5 20 25 20 5 68 11 68 11 11 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98274-646-0 01 1 1412- ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98274-647-0 01 1 1412- ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98193-734-0 01 1 1310-1411 ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98193-734-0 01 1 1412- ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98193-733-0 01 1 1310-1311 ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98193-733-0 01 1 1312-1411 ● ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>, IMMOBILIZER SYSTEM<7KC> THA 		8-98193-733-0 01 1 1412- ● ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA 		8-98274-650-0 01 1 1412- ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98274-649-0 01 1 1412- ● ● ●
5 CYLINDER ASM; DOOR LOCK
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98274-649-0 01 1 1412- ●
5 CYLINDER ASM; DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98193-736-0 01 1 1310-1311 ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98193-736-0 01 1 1310-1311 ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) THA 		8-98193-736-0 01 1 1310-1311 ●
5 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98193-736-0 01 1 1312-1411 ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98193-736-0 01 1 1312-1411 ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
(B) THA 		8-98193-736-0 01 1 1312-1411 ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98193-736-0 01 1 1412- ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA 		8-98193-737-0 01 1 1310-1311 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA 		8-98193-737-0 01 1 1312-1411 ● ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>, IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98193-737-0 01 1 1412- ● ● ● ● ● ●
11 KEY; BLANK
IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) IMMOBILIZER THA 		8-98274-332-0 AR 1 1412- ● ● ● ●
11 KEY; BLANK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA 		8-98274-338-0 AR 1 1412- ● ● ● ●
11 KEY; BLANK
PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> (D) THA 		8-98140-637-0 AR 1 1310-1411 ● ● ● ●
11 KEY; BLANK
PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> (D) THA 		8-98274-340-0 AR 1 1412- ● ● ● ●
11 KEY; BLANK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA 		8-98136-339-0 AR 1 1310-1411 ● ● ● ●
11 KEY; BLANK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA 		8-98136-339-0 AR 1 1412- ● ● ● ●
11 KEY; BLANK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) IMMOBILIZER THA 		8-98007-939-1 AR 1 1310-1311 ● ● ● ● ●
11 KEY; BLANK
PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA 		8-98007-939-1 AR 1 1310-1311 ● ● ● ●
11 KEY; BLANK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) IMMOBILIZER THA 		8-98007-939-1 AR 1 1312-1411 ● ● ● ● ● ●
11 KEY; BLANK
PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA 		8-98007-939-1 AR 1 1312-1411 ● ● ● ●
11 KEY; BLANK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>, IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA 		8-98007-939-1 AR 1 1412- ● ● ● ● ● ●
11 KEY; BLANK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-97350-352-0 AR 1 1310-1311 ● ● ●
11 KEY; BLANK
(A) THA 		8-97350-352-0 AR 1 1310-1311 ●
11 KEY; BLANK
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-97350-352-0 AR 1 1310-1311 ●
11 KEY; BLANK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-97350-352-0 AR 1 1312- ● ● ●
11 KEY; BLANK
(A) THA 		8-97350-352-0 AR 1 1312- ●
11 KEY; BLANK
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-97350-352-0 AR 1 1312- ●
11 KEY; BLANK
4JK1-TCX ENG<LR0> (A) THA 		8-97350-352-0 AR 1 1312- ●
20 SNAP; DOOR LOCK CYL
PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> (B) WHITE THA 		8-97350-044-0 01 1 1310-1311 ● ● ● ●
20 SNAP; DOOR LOCK CYL
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) WHITE THA 		8-97350-044-0 01 1 1310-1311 ● ● ● ●
20 SNAP; DOOR LOCK CYL
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) WHITE THA 		8-97350-044-0 01 1 1310-1311 ●
20 SNAP; DOOR LOCK CYL
IMMOBILIZER SYSTEM<7KC> (B) WHITE THA 		8-97350-044-0 01 1 1312- ● ● ● ●
20 SNAP; DOOR LOCK CYL
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> (B) WHITE THA 		8-97350-044-0 01 1 1312- ● ● ● ●
20 SNAP; DOOR LOCK CYL
(B) WHITE THA 		8-97350-044-0 01 1 1312- ● ●
20 SNAP; DOOR LOCK CYL
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) YELLOW THA 		8-97350-043-0 01 1 1310-1311 ● ● ● ● ●
20 SNAP; DOOR LOCK CYL
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) YELLOW THA 		8-97350-043-0 01 1 1312- ● ● ● ● ● ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> THA 		8-98060-587-0 01 1 1310-1311 ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> THA 		8-98060-587-0 01 1 1312- ●
25 CAP; FUEL TANK,W/KEY
4JK1-TCX ENG<LR0> FUEL TANK CAP W/LOCK<N05> THA 		8-98060-587-0 01 1 1312- ●
68 TRANSMITTER; DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98076-334-1 02 1 1310- ● ● ● ●
68 TRANSMITTER; DOOR LOCK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA 		8-98102-844-1 01 1 1310- ● ● ● ●

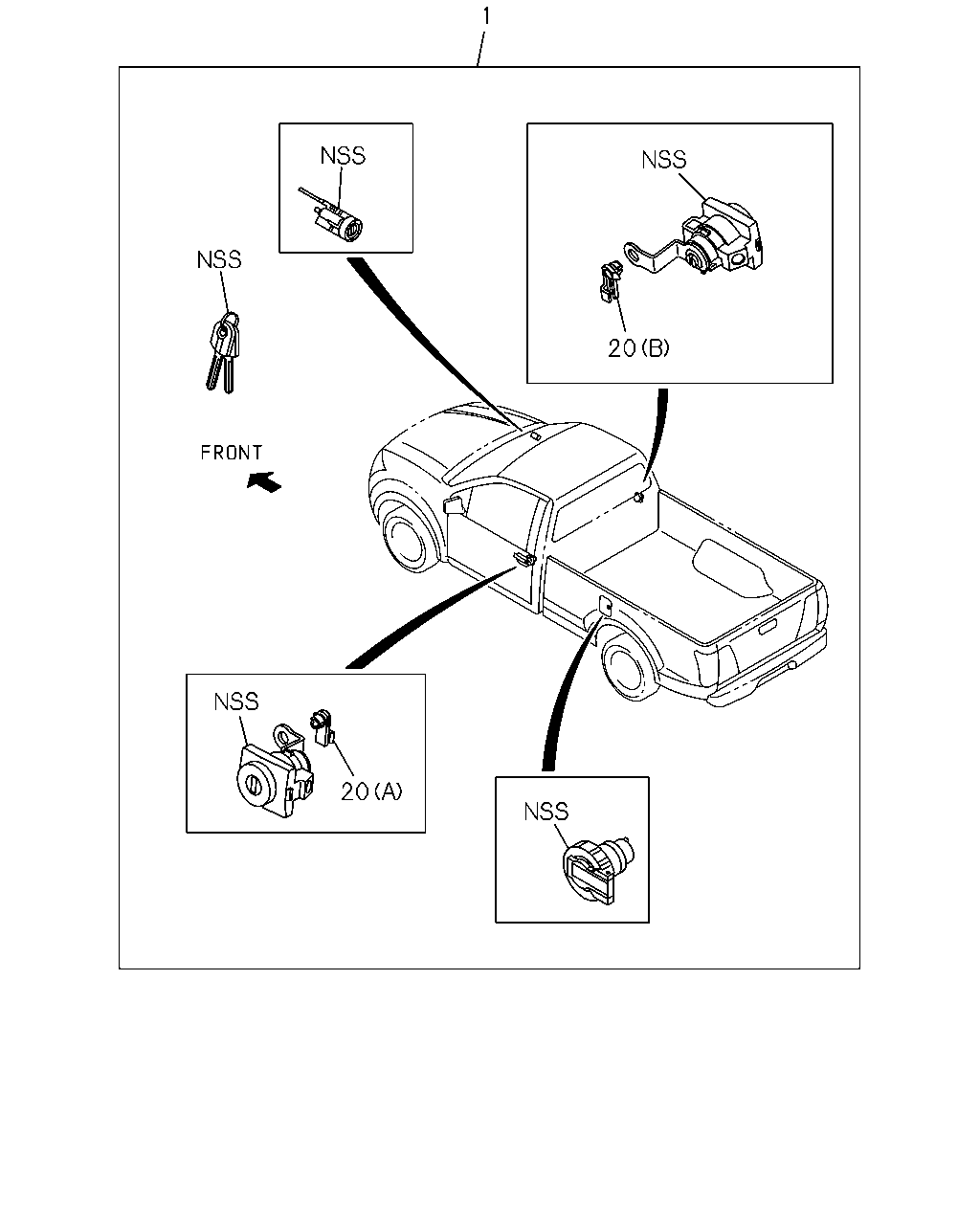

çizim 374486
20 20 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CYLINDER SET; CAR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> THA 		8-98247-632-0 01 1 1310-1411 ● ● ● ●
1 CYLINDER SET; CAR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> THA 		8-98274-618-0 01 1 1412- ● ● ● ●
1 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98247-631-0 01 1 1310-1411 ● ● ● ●
1 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98274-619-0 01 1 1412- ● ● ● ●
1 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98247-630-0 01 1 1310- ● ● ● ●
1 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98248-275-0 01 1 1310-1411 ● ● ● ●
1 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98274-624-0 01 1 1412- ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>, FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER SYSTEM<7KC> THA 		8-98248-273-0 01 1 1310-1311 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>, FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER SYSTEM<7KC> THA 		8-98248-273-0 01 1 1312- ● ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> THA 		8-98248-272-0 01 1 1310-1311 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> THA 		8-98248-272-0 01 1 1312- ●
1 CYLINDER SET; CAR LOCK
4JK1-TCX ENG<LR0> FUEL TANK CAP W/LOCK<N05> THA 		8-98248-272-0 01 1 1312- ●
20 SNAP; DOOR LOCK CYL
PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> (B) WHITE THA 		8-97350-044-0 01 1 1310-1311 ● ● ● ●
20 SNAP; DOOR LOCK CYL
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) WHITE THA 		8-97350-044-0 01 1 1310-1311 ● ● ● ●
20 SNAP; DOOR LOCK CYL
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) WHITE THA 		8-97350-044-0 01 1 1310-1311 ●
20 SNAP; DOOR LOCK CYL
IMMOBILIZER SYSTEM<7KC> (B) WHITE THA 		8-97350-044-0 01 1 1312- ● ● ● ●
20 SNAP; DOOR LOCK CYL
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> (B) WHITE THA 		8-97350-044-0 01 1 1312- ● ● ● ●
20 SNAP; DOOR LOCK CYL
(B) WHITE THA 		8-97350-044-0 01 1 1312- ● ●
20 SNAP; DOOR LOCK CYL
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) YELLOW THA 		8-97350-043-0 01 1 1310-1311 ● ● ● ● ●
20 SNAP; DOOR LOCK CYL
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) YELLOW THA 		8-97350-043-0 01 1 1312- ● ● ● ● ● ●
