◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-86 - TRUNK OPENER AND FUEL LID ▶
6-86 — TRUNK OPENER AND FUEL LID (#126453) — 24 parça

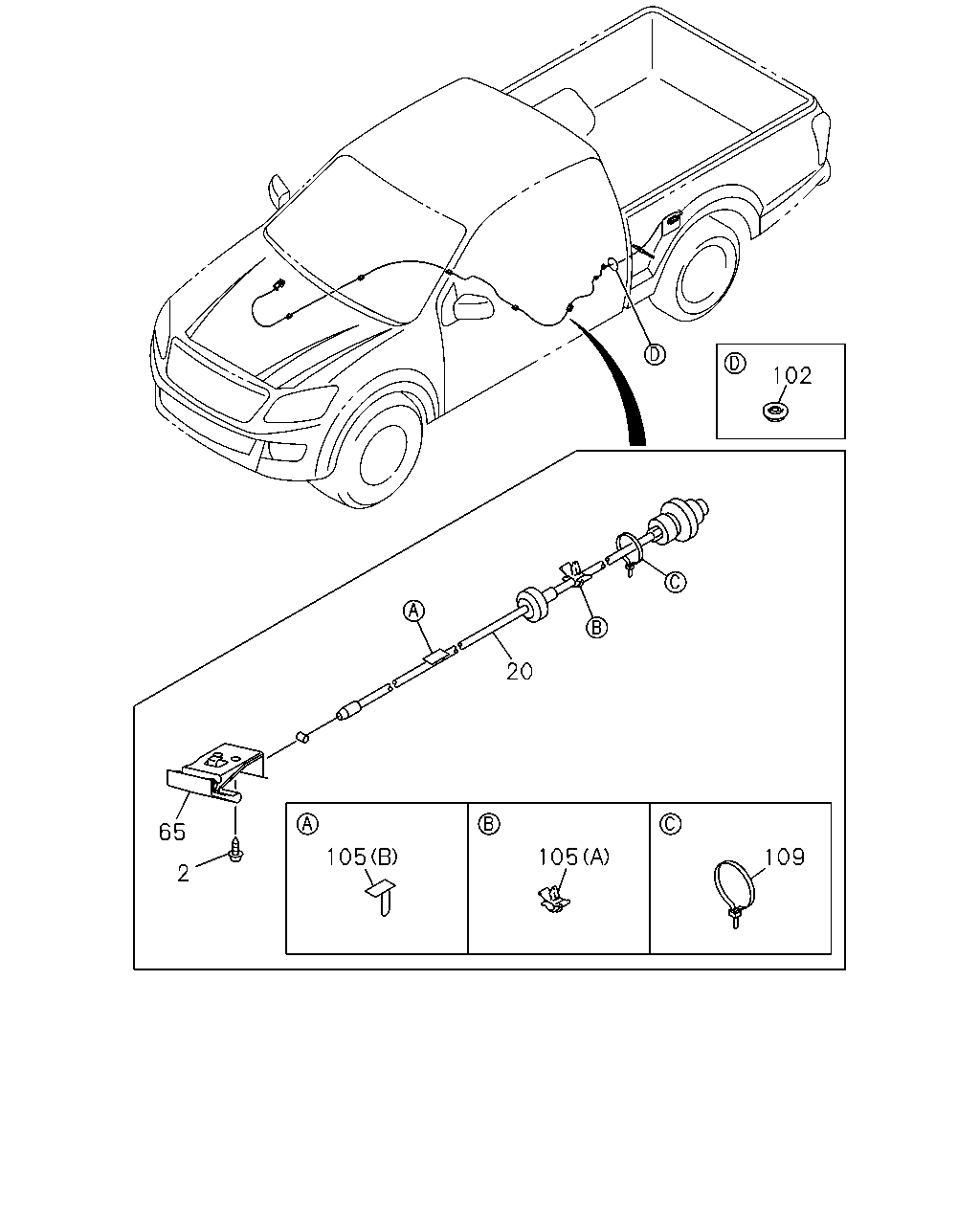

çizim 373484
102 20 105 109 105 2 65
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 SCREW; LEVER TO BODY
M5X16 TAPPING THA 		8-98167-449-0 02 1 1310-1311 ● ● ● ●
2 SCREW; LEVER TO BODY
REAR BODY DBL WALL CTR PULL<E63> M5X16 TAPPING THA 		8-98167-449-0 02 1 1310-1311 ●
2 SCREW; LEVER TO BODY
M5X16 TAPPING THA 		8-98167-449-0 02 1 1312- ● ● ● ●
2 SCREW; LEVER TO BODY
REAR BODY DBL WALL CTR PULL<E63> M5X16 TAPPING THA 		8-98167-449-0 02 1 1312- ● ●
20 CABLE; TRUNK LID & FUEL FILLER
THA 		8-98072-706-2 01 1 1310- ● ●
20 CABLE; TRUNK LID & FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98073-727-2 01 1 1310-1311 ●
20 CABLE; TRUNK LID & FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98073-727-2 01 1 1312- ● ●
20 CABLE; TRUNK LID & FUEL FILLER
THA 		8-98073-725-2 01 1 1310- ● ●
65 KNOB; FUEL FILLER DOOR
BLACK THA 		8-98103-120-0 01 1 1310-1311 ● ● ● ●
65 KNOB; FUEL FILLER DOOR
REAR BODY DBL WALL CTR PULL<E63> BLACK THA 		8-98103-120-0 01 1 1310-1311 ●
65 KNOB; FUEL FILLER DOOR
BLACK THA 		8-98103-120-0 01 1 1312- ● ● ● ●
65 KNOB; FUEL FILLER DOOR
REAR BODY DBL WALL CTR PULL<E63> BLACK THA 		8-98103-120-0 01 1 1312- ● ●
102 GROMMET
REAR BODY DELETE<8HH> THA 		8-97321-645-1 01 1 1310-1311 ●
102 GROMMET
REAR BODY DELETE<8HH> THA 		8-97321-645-1 01 1 1312- ● ●
105 CLIP; CABLE,FUEL LID OPENER
(B) ID=7 THA 		8-98158-303-0 05 1 1310- ● ● ● ●
105 CLIP; CABLE,FUEL LID OPENER
(A) THA 		8-98147-853-0 01 1 1310- ● ●
105 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL<E63> (A) D=5.8 THA 		5-09709-081-0 02 1 1310-1311 ●
105 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL<E63> (A) D=5.8 THA 		5-09709-081-0 02 1 1312- ● ●
105 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL<E63> (B) ID=7 THA 		8-98158-303-0 04 1 1310-1311 ●
105 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL<E63> (B) ID=7 THA 		8-98158-303-0 04 1 1312- ● ●
109 CLIP; CABLE
L=330 IMA 		5-09709-118-0 01 1 1310-1311 ● ● ● ●
109 CLIP; CABLE
REAR BODY DBL WALL CTR PULL<E63> L=330 IMA 		5-09709-118-0 01 1 1310-1311 ●
109 CLIP; CABLE
L=330 IMA 		5-09709-118-0 01 1 1312- ● ● ● ●
109 CLIP; CABLE
REAR BODY DBL WALL CTR PULL<E63> L=330 IMA 		5-09709-118-0 01 1 1312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
