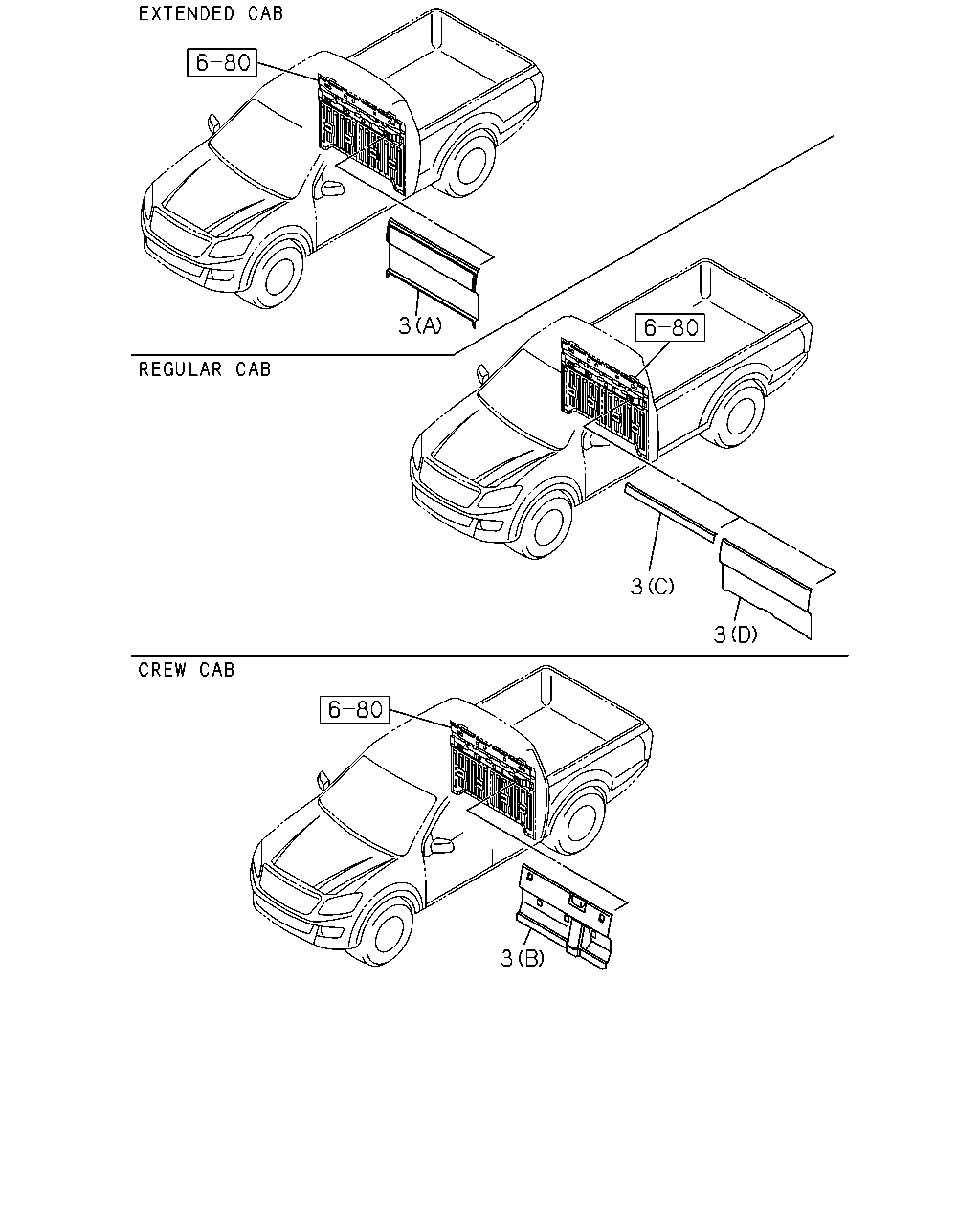

6-84 — BACK TRIM (#126452) — 11 parça

3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	TRIM; FULL,BACK UPR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) LIGHT GRAY THA	8-97421-710-5	01	1	1310-1310	●	●
3	TRIM; FULL,BACK UPR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) LIGHT GRAY THA	8-97428-389-0	01	1	1311-	●	●
3	TRIM; FULL,BACK UPR INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97416-719-5	01	1	1310-1310	●
3	TRIM; FULL,BACK UPR INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97428-388-0	01	1	1311-	●
3	TRIM; FULL,BACK UPR INTERIOR BASIC<RBA> (C) BLACK THA	8-97417-124-1	01	1	1310-1311			●
3	TRIM; FULL,BACK UPR INTERIOR BASIC<RBA> (C) BLACK THA	8-97417-124-1	01	1	1312-			●
3	TRIM; FULL,BACK UPR 4JK1-TCX ENG<LR0> (C) BLACK THA	8-97417-124-1	01	1	1312-				●
3	TRIM; FULL,BACK UPR INTERIOR DELUXE<RBB> (D) BLACK THA	8-97417-122-3	01	1	1310-			●
3	TRIM; FULL,BACK UPR INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA	8-97416-973-3	01	1	1310-					●
3	TRIM; FULL,BACK UPR (B) BLACK THA	8-97416-973-3	01	1	1310-						●
3	TRIM; FULL,BACK UPR INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97416-974-3	01	1	1310-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
