Isuzu WW
▶
PICKUP
▶
TFR
▶
51491 - TFR/TFS(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-82 - BACK GLASS AND WEATHERSTRIP
▶

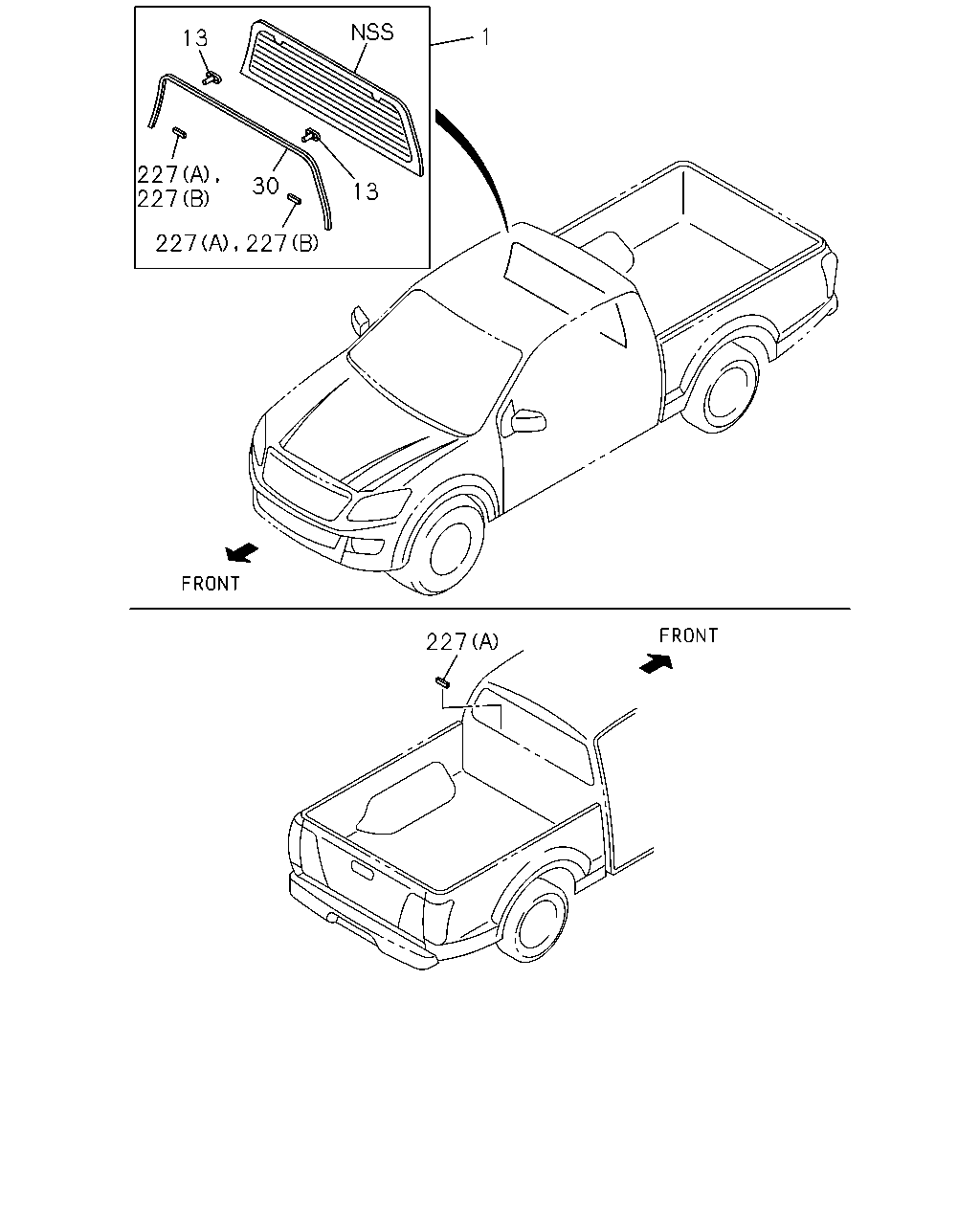

6-82 — BACK GLASS AND WEATHERSTRIP
(#126451) — 16 parça
Tümü
A - TFB5CF
B - TFB5WF
C - TFS5CF
D - TFS5WF
E - TFB5SF
F - TFS5SF
1
13
227
227
227
30
227
13
227
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
GLASS; BACKLIGHT
REAR DEFOGGER<C49> THA
8-98073-092-3
01
1
1310-
●
●
●
1
GLASS; BACKLIGHT
THA
8-98073-092-3
01
1
1310-
●
1
GLASS; BACKLIGHT
EXC. REAR DEFOGGER<C49> THA
8-98073-093-3
01
1
1310-1311
●
●
●
1
GLASS; BACKLIGHT
THA
8-98073-093-3
01
1
1310-1311
●
1
GLASS; BACKLIGHT
EXC. REAR DEFOGGER<C49> THA
8-98073-093-3
01
1
1312-
●
●
●
1
GLASS; BACKLIGHT
THA
8-98073-093-3
01
1
1312-
●
●
13
SUPPORT; BACKLIGHT GLASS
THA
8-98140-691-1
02
1
1310-1311
●
●
●
●
●
13
SUPPORT; BACKLIGHT GLASS
THA
8-98140-691-1
02
1
1312-
●
●
●
●
●
●
30
SEAL; BACKLIGHT GLASS
THA
8-98140-693-0
01
1
1310-1311
●
●
●
●
●
30
SEAL; BACKLIGHT GLASS
THA
8-98140-693-0
01
1
1312-
●
●
●
●
●
●
227
RETAINER; RR WINDOW
(B) 20X8 THA
8-98285-699-0
02
1
1409-
●
●
●
●
●
●
227
RETAINER; RR WINDOW
(A) 30X8 THA
8-98187-720-0
02
1
1310-1311
●
●
●
●
●
227
RETAINER; RR WINDOW
(A) 30X8 THA
8-98187-720-0
02
1
1310-1311
●
●
227
RETAINER; RR WINDOW
(A) 30X8 THA
8-98187-720-0
02
1
1312-1408
●
●
●
●
●
●
227
RETAINER; RR WINDOW
(A) 30X8 THA
8-98187-720-0
02
1
1312-1408
●
●
●
227
RETAINER; RR WINDOW
(A) 30X8 THA
8-98187-720-0
02
1
1409-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
