6-80 — BACK PANEL (#126450) — 14 parça

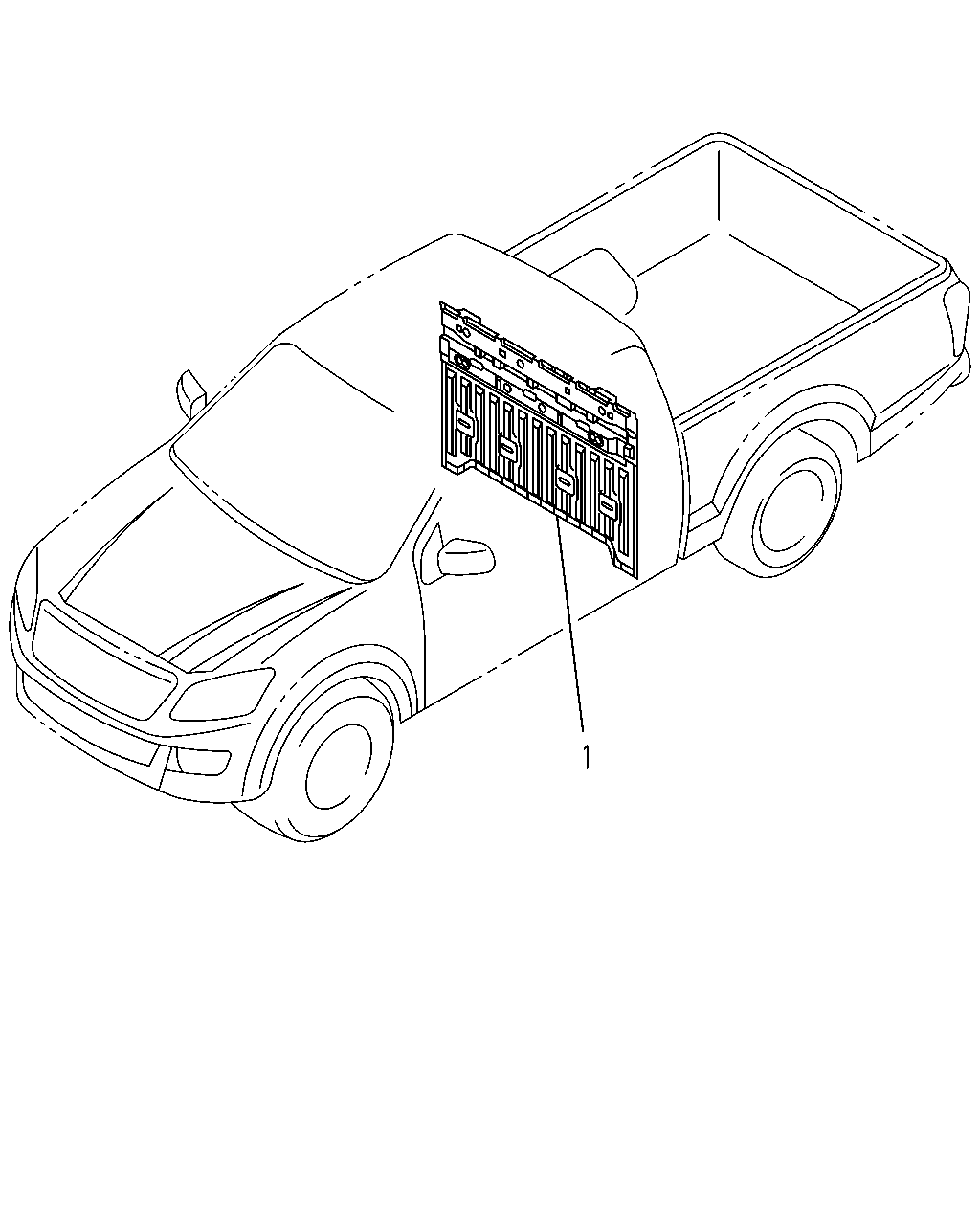

çizim 374584
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PANEL; BACK OUTER
INTERIOR BASIC<RBA> THA 		8-98234-973-0 01 1 1311-1311 ●
1 PANEL; BACK OUTER
INTERIOR BASIC<RBA> THA 		8-98234-973-0 01 1 1312- ●
1 PANEL; BACK OUTER
THA 		8-98234-973-0 01 1 1312- ●
1 PANEL; BACK OUTER
THA 		8-98103-272-1 01 1 1310-1310 ● ●
1 PANEL; BACK OUTER
THA 		8-98103-272-1 01 1 1311- ●
1 PANEL; BACK OUTER
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> THA 		8-98103-272-1 01 1 1311- ●
1 PANEL; BACK OUTER
THA 		8-98103-271-2 01 1 1310-1310 ●
1 PANEL; BACK OUTER
INTERIOR DELUXE<RBB> THA 		8-98103-271-2 01 1 1311- ●
1 PANEL; BACK OUTER
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98103-273-2 01 1 1310-1310 ● ●
1 PANEL; BACK OUTER
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98103-273-3 01 1 1311- ●
1 PANEL; BACK OUTER
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98103-273-3 01 1 1311- ●
1 PANEL; BACK OUTER
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98207-115-0 01 1 1310-1310 ● ●
1 PANEL; BACK OUTER
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98207-115-1 01 1 1311- ●
1 PANEL; BACK OUTER
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98207-115-1 01 1 1311- ●
