◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#126448) — 18 parça

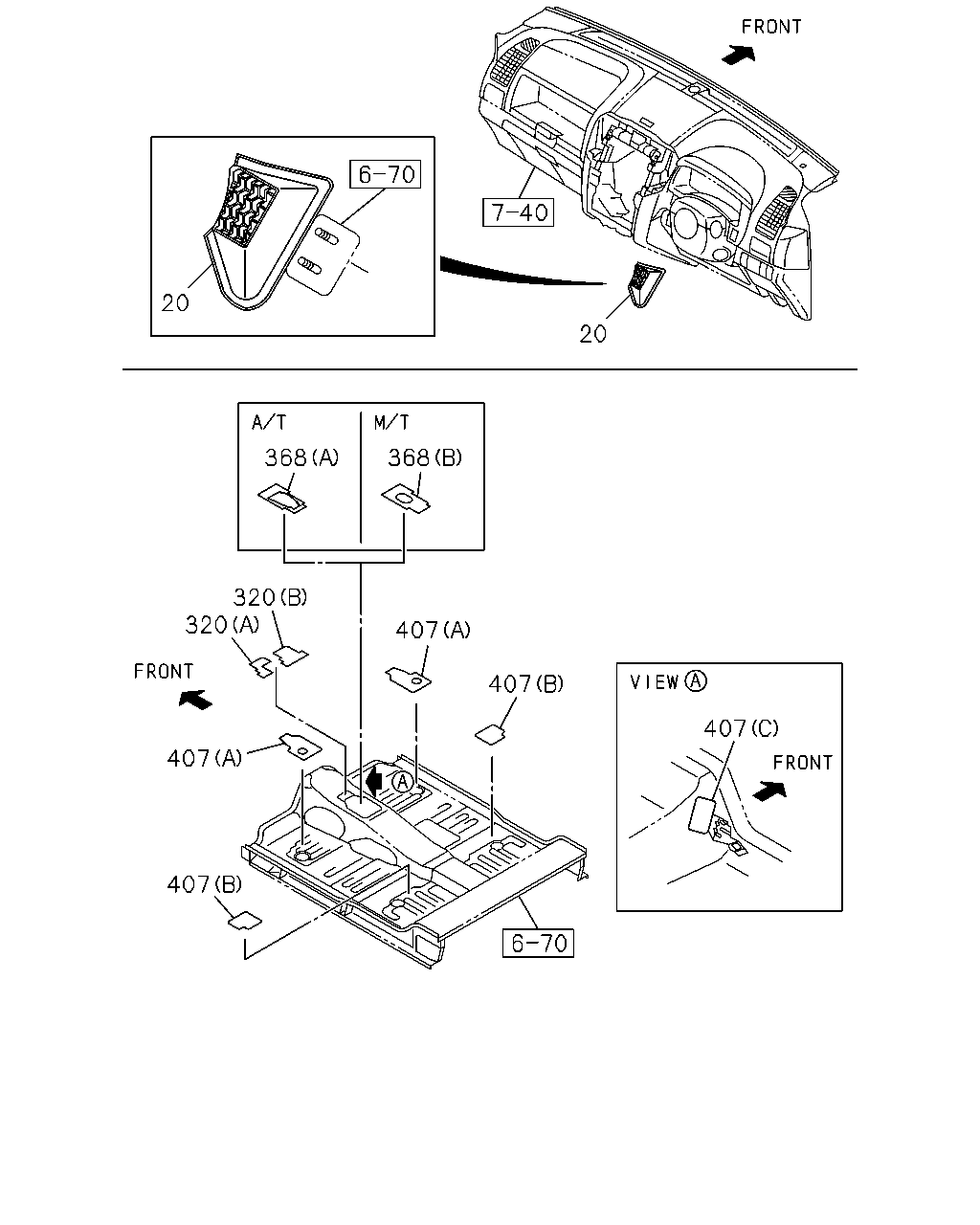

çizim 373347
407 407 407 320 320 407 407 20 20 368 368
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 REST; FOOT
DRIVER SIDE FOOT REST<7NU> THA 		8-98064-439-2 01 1 1310- ● ●
20 REST; FOOT
THA 		8-98064-439-2 01 1 1310- ● ● ●
320 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER<AK5> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (A) THA 		8-98166-704-0 01 1 1310-1312 ● ● ● ●
320 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER<AK5> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (A) THA 		8-98166-704-0 01 1 1401- ● ● ● ● ● ●
320 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER DELETE<AK6> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (B) THA 		8-98166-705-0 01 1 1310-1311 ● ● ● ● ●
320 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER DELETE<AK6> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (B) THA 		8-98166-705-0 01 1 1312- ● ● ● ● ● ●
368 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN<MA1> FLOOR CONSOLE W/LID<D55> (A) THA 		8-98166-707-0 01 1 1310- ● ●
368 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN<MA1> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (A) THA 		8-98166-707-0 01 1 1310- ● ●
368 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> FLOOR CONSOLE W/LID<D55> (B) THA 		8-98166-706-0 01 1 1310-1311 ● ● ●
368 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (B) THA 		8-98166-706-0 01 1 1310-1311 ● ●
368 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> FLOOR CONSOLE W/LID<D55> (B) THA 		8-98166-706-0 01 1 1312- ● ● ●
368 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (B) THA 		8-98166-706-0 01 1 1312- ● ●
368 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H<MWQ> FLOOR CONSOLE W/LID<D55> (B) THA 		8-98166-706-0 01 1 1312- ●
407 DEADENER; FLOOR PANEL
(A) THA 		8-98103-655-1 02 1 1310-1506 ● ● ● ●
407 DEADENER; FLOOR PANEL
(A) THA 		8-98103-655-1 02 1 1507- ● ● ● ●
407 DEADENER; FLOOR PANEL
(B) THA 		8-98155-918-0 02 1 1310-1506 ● ● ● ●
407 DEADENER; FLOOR PANEL
(B) THA 		8-98155-918-0 02 1 1507- ● ● ● ●
407 DEADENER; FLOOR PANEL
DRIVER SIDE FOOT REST<7NU> (C) THA 		8-98165-147-0 01 1 1310- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
