◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#126447) — 56 parça

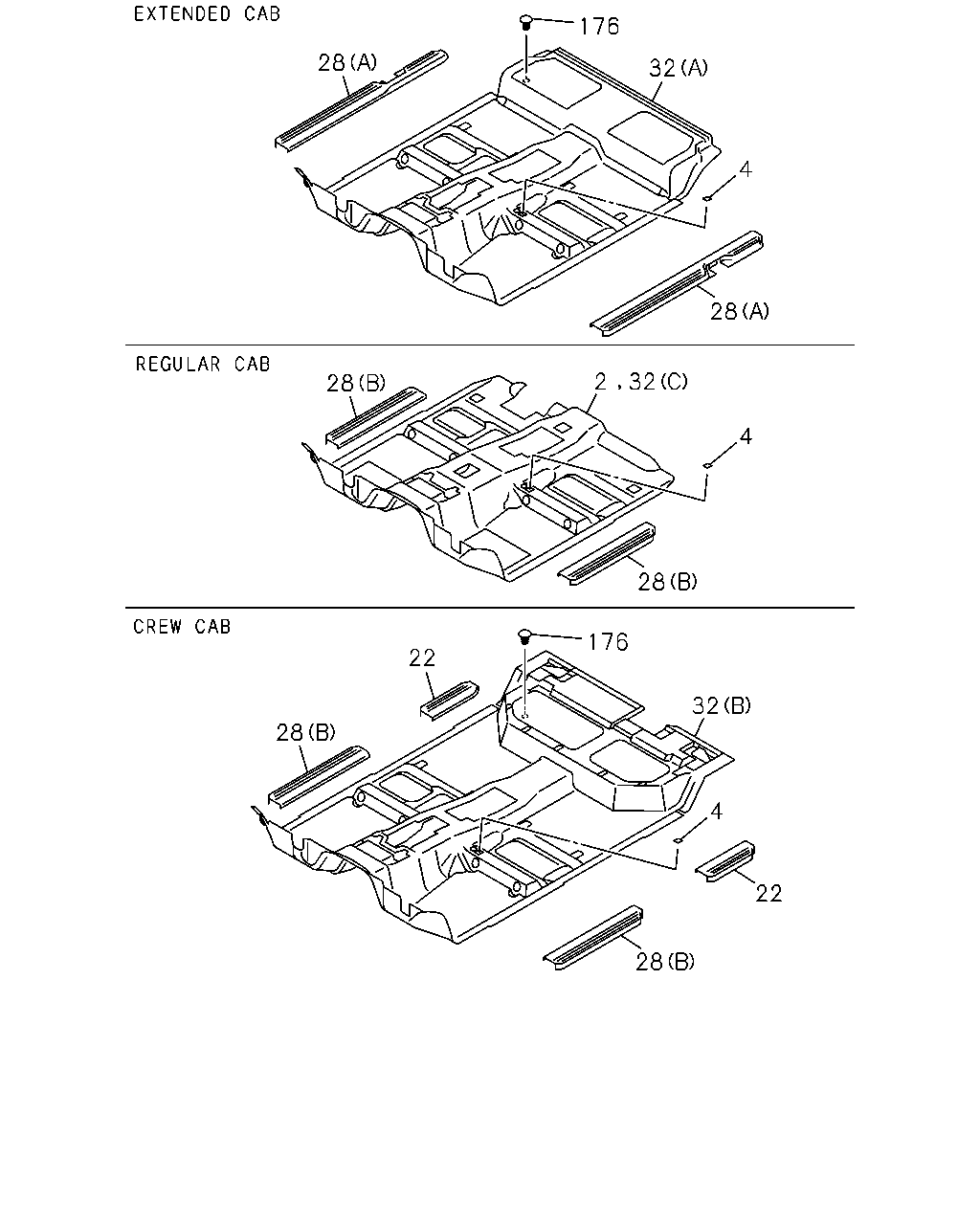

çizim 374125
176 28 32 4 22 28 28 22 32 2 28 32 4 28 28 176 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 MAT; FLOOR
FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> DRIVER SIDE FOOT REST<7NU> BLACK THA 		8-97427-634-0 01 1 1310- ●
2 MAT; FLOOR
FRONT SEAT SPLIT BENCH<AM6> COVERING FLOOR VINYL<B38> DRIVER SIDE FOOT REST<7NU> EXC. FRONT CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97425-729-0 01 1 1310- ●
2 MAT; FLOOR
FRONT SEAT SPLIT BENCH<AM6> COVERING FLOOR VINYL<B38> EXC. FRONT CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55>,DRIVER SIDE FOOT REST<7NU> BLACK THA 		8-97425-728-0 01 1 1310-1311 ●
2 MAT; FLOOR
FRONT SEAT SPLIT BENCH<AM6> COVERING FLOOR VINYL<B38> EXC. FRONT CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55>,DRIVER SIDE FOOT REST<7NU> BLACK THA 		8-97425-728-0 01 1 1312- ● ●
2 MAT; FLOOR
FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> EXC. DRIVER SIDE FOOT REST<7NU> BLACK THA 		8-97425-731-0 01 1 1310-1311 ●
2 MAT; FLOOR
FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> EXC. DRIVER SIDE FOOT REST<7NU> BLACK THA 		8-97425-731-0 01 1 1312- ● ●
2 MAT; FLOOR
FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FLOOR CONSOLE W/LID<D55> DRIVER SIDE FOOT REST<7NU> BLACK THA 		8-97417-111-5 01 1 1310- ●
2 MAT; FLOOR
FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FLOOR CONSOLE W/LID<D55> EXC. DRIVER SIDE FOOT REST<7NU> BLACK THA 		8-97422-882-4 01 1 1310-1311 ●
2 MAT; FLOOR
FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FLOOR CONSOLE W/LID<D55> EXC. DRIVER SIDE FOOT REST<7NU> BLACK THA 		8-97422-882-4 01 1 1312- ● ●
4 INSULATOR; FRT
THA 		8-98185-968-0 04 1 1310-1311 ● ● ● ● ●
4 INSULATOR; FRT
THA 		8-98185-968-0 04 1 1312- ● ● ● ● ● ●
22 PLATE; SILL,RR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-948-5 01 1 1310- ●
22 PLATE; SILL,RR
BLACK THA 		8-97416-948-5 01 1 1310- ●
22 PLATE; SILL,RR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-950-5 01 1 1310- ●
22 PLATE; SILL,RR
BLACK THA 		8-97416-950-5 01 1 1310- ●
22 PLATE; SILL,RR
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-949-5 01 1 1310- ●
22 PLATE; SILL,RR
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-951-5 01 1 1310- ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-669-2 01 1 1310- ●
28 PLATE; SILL,FRT
(A) BLACK THA 		8-97416-669-2 01 1 1310- ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-671-2 01 1 1310- ●
28 PLATE; SILL,FRT
(A) BLACK THA 		8-97416-671-2 01 1 1310- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-670-2 01 1 1310- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-672-2 01 1 1310- ●
28 PLATE; SILL,FRT
(B) BLACK THA 		8-97416-944-3 01 1 1310-1311 ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA 		8-97416-944-3 01 1 1310-1311 ●
28 PLATE; SILL,FRT
(B) BLACK THA 		8-97416-944-3 01 1 1312- ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA 		8-97416-944-3 01 1 1312- ●
28 PLATE; SILL,FRT
(B) BLACK THA 		8-97416-946-3 01 1 1310-1311 ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA 		8-97416-946-3 01 1 1310-1311 ●
28 PLATE; SILL,FRT
(B) BLACK THA 		8-97416-946-3 01 1 1312- ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA 		8-97416-946-3 01 1 1312- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (B) BEIGE THA 		8-97416-945-3 01 1 1310- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (B) BEIGE THA 		8-97416-947-3 01 1 1310- ●
32 CARPET; FLOOR
INTERIOR COLOR DARK GRAY<117> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> EXC. DRIVER SIDE FOOT REST<7NU> (A) BLACK THA 		8-97425-738-0 01 1 1310- ●
32 CARPET; FLOOR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> DRIVER SIDE FOOT REST<7NU> (A) BLACK THA 		8-97422-837-8 01 1 1310- ●
32 CARPET; FLOOR
FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUC KET STANDARD<A50> FLOOR CONSOLE W/LID<D55> (A) BLACK THA 		8-97422-837-8 01 1 1310- ●
32 CARPET; FLOOR
INTERIOR COLOR BEIGE<120> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> DRIVER SIDE FOOT REST<7NU> (A) BEIGE THA 		8-97422-838-8 01 1 1310- ●
32 CARPET; FLOOR
FRONT SEAT SPLIT BENCH<AM6> DRIVER SIDE FOOT REST<7NU> EXC. COVERING FLOOR VINYL<B38>,FRONT CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55> (C) BLACK THA 		8-97425-733-0 01 1 1310- ●
32 CARPET; FLOOR
FRONT SEAT SPLIT BENCH<AM6> EXC. COVERING FLOOR VINYL<B38>,FRONT CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55>,DRIVER SIDE FOOT REST<7NU> (C) BLACK THA 		8-97425-734-0 01 1 1310-1311 ●
32 CARPET; FLOOR
FRONT SEAT SPLIT BENCH<AM6> EXC. COVERING FLOOR VINYL<B38>,FRONT CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55>,DRIVER SIDE FOOT REST<7NU> (C) BLACK THA 		8-97425-734-0 01 1 1312- ●
32 CARPET; FLOOR
4JK1-TCX ENG<LR0> FRONT SEAT SPLIT BENCH<AM6> EXC. COVERING FLOOR VINYL<B38>,FRONT CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55> (C) BLACK THA 		8-97425-734-0 01 1 1312- ●
32 CARPET; FLOOR
FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38>,DRIVER SIDE FOOT REST<7NU> (C) BLACK THA 		8-97425-735-0 01 1 1310-1311 ●
32 CARPET; FLOOR
FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38>,DRIVER SIDE FOOT REST<7NU> (C) BLACK THA 		8-97425-735-0 01 1 1312- ●
32 CARPET; FLOOR
4JK1-TCX ENG<LR0> FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (C) BLACK THA 		8-97425-735-0 01 1 1312- ●
32 CARPET; FLOOR
FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> DRIVER SIDE FOOT REST<7NU> EXC. COVERING FLOOR VINYL<B38> (C) BLACK THA 		8-97419-950-5 01 1 1310- ●
32 CARPET; FLOOR
FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38>,DRIVER SIDE FOOT REST<7NU> (C) BLACK THA 		8-97422-880-4 01 1 1310-1311 ●
32 CARPET; FLOOR
FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38>,DRIVER SIDE FOOT REST<7NU> (C) BLACK THA 		8-97422-880-4 01 1 1312- ●
32 CARPET; FLOOR
4JK1-TCX ENG<LR0> FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (C) BLACK THA 		8-97422-880-4 01 1 1312- ●
32 CARPET; FLOOR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (B) BLACK THA 		8-97422-848-6 01 1 1310- ●
32 CARPET; FLOOR
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (B) BLACK THA 		8-97422-848-6 01 1 1310- ●
32 CARPET; FLOOR
INTERIOR COLOR BEIGE<120> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (B) BEIGE THA 		8-97422-849-6 01 1 1310- ●
176 RETAINER; CARPET
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-667-0 10 1 1310- ● ●
176 RETAINER; CARPET
BLACK THA 		8-97416-667-0 10 1 1310- ● ●
176 RETAINER; CARPET
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-668-0 10 1 1310- ● ●
176 RETAINER; CARPET
BLACK THA 		8-97416-667-0 02 1 1310-1311 ●
176 RETAINER; CARPET
BLACK THA 		8-97416-667-0 02 1 1312- ● ●
