◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#126444) — 68 parça

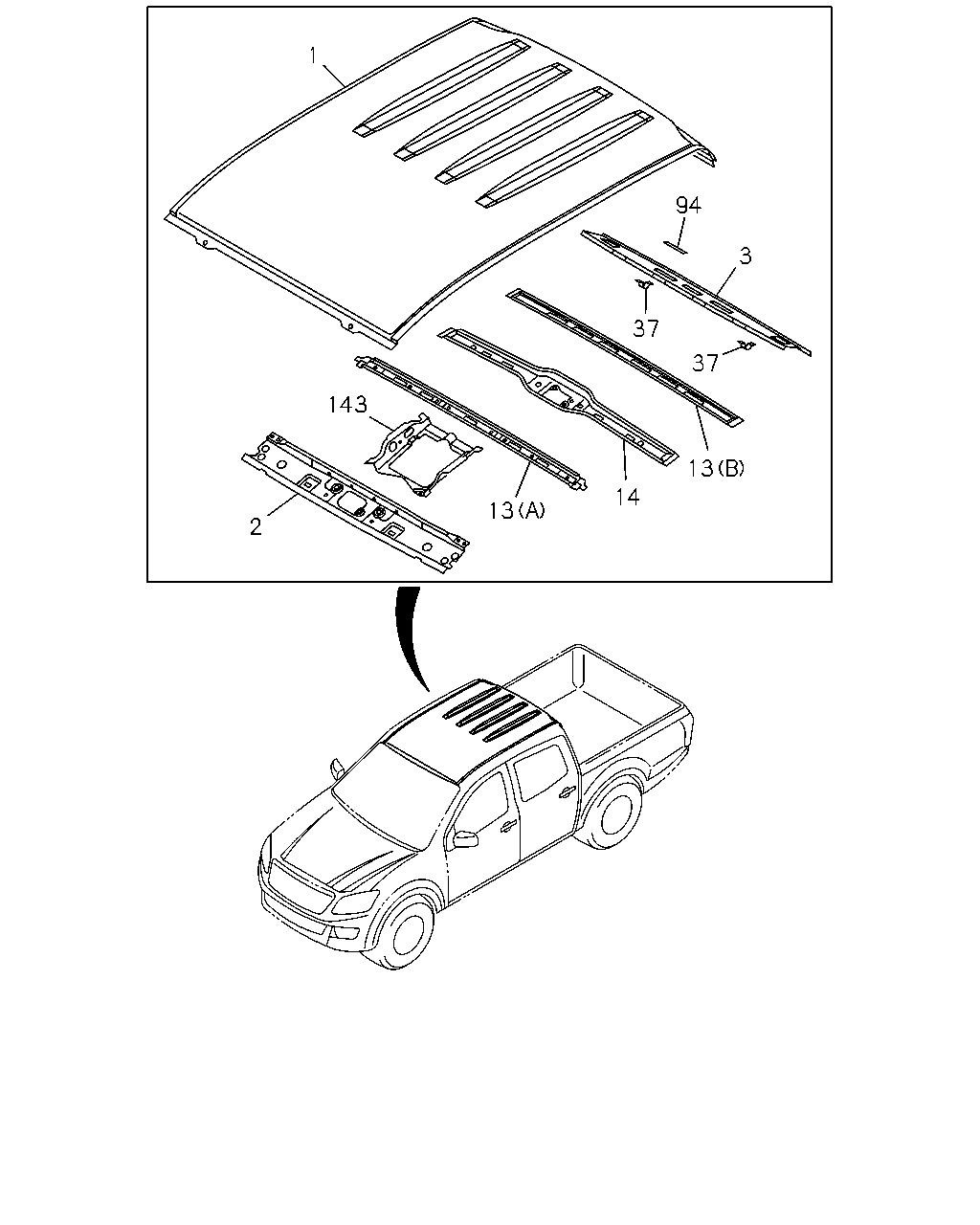

çizim 373299
1 143 2 13 14 13 37 94 3 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PANEL; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-323-1 01 1 1310- ● ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-954-3 01 1 1310- ● ●
1 PANEL; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-953-3 01 1 1310- ● ●
1 PANEL; ROOF
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98103-950-3 01 1 1310-1311 ●
1 PANEL; ROOF
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98103-950-3 01 1 1312- ●
1 PANEL; ROOF
RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98103-950-3 01 1 1312- ●
1 PANEL; ROOF
INTERIOR DELUXE<RBB> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-957-3 01 1 1310- ●
1 PANEL; ROOF
INTERIOR CUSTOM<RBD> HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-324-0 01 1 1310- ● ●
1 PANEL; ROOF
INTERIOR CUSTOM<RBD> HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-960-3 01 1 1310- ● ●
2 PANEL; ROOF,CENTER
THA 		8-98103-964-5 01 1 1310-1311 ● ● ● ● ●
2 PANEL; ROOF,CENTER
THA 		8-98103-964-5 01 1 1312- ● ● ● ● ● ●
3 PANEL; ROOF,RR
THA 		8-98103-999-3 01 1 1310-1311 ● ● ● ● ●
3 PANEL; ROOF,RR
THA 		8-98103-999-3 01 1 1312- ● ● ● ● ● ●
13 PANEL; ROOF SUPPORT
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (C) THA 		8-98150-942-0 01 1 1310-1311 ●
13 PANEL; ROOF SUPPORT
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (C) THA 		8-98150-942-0 01 1 1312- ●
13 PANEL; ROOF SUPPORT
RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (C) THA 		8-98150-942-0 01 1 1312- ●
13 PANEL; ROOF SUPPORT
(B) THA 		8-98103-982-0 01 1 1310- ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-98103-963-1 01 1 1310-1311 ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-98103-963-1 01 1 1312- ● ● ● ● ● ●
14 SUPPORT; ROOF
THA 		8-98163-386-1 01 1 1310- ● ●
14 SUPPORT; ROOF
THA 		8-98163-387-1 01 1 1310- ● ●
37 BRACKET; TRIM,ROOF BACK
THA 		8-98103-996-0 02 1 1310-1311 ● ● ●
37 BRACKET; TRIM,ROOF BACK
THA 		8-98103-996-0 02 1 1312- ● ● ● ●
94 SEAL; REINFORCEMENT
THA 		8-98201-900-0 01 1 1310- ● ●
143 BRACKET; CONSOLE
HEADER CONSOLE<DK6> THA 		8-98103-962-1 01 1 1310- ● ● ● ●

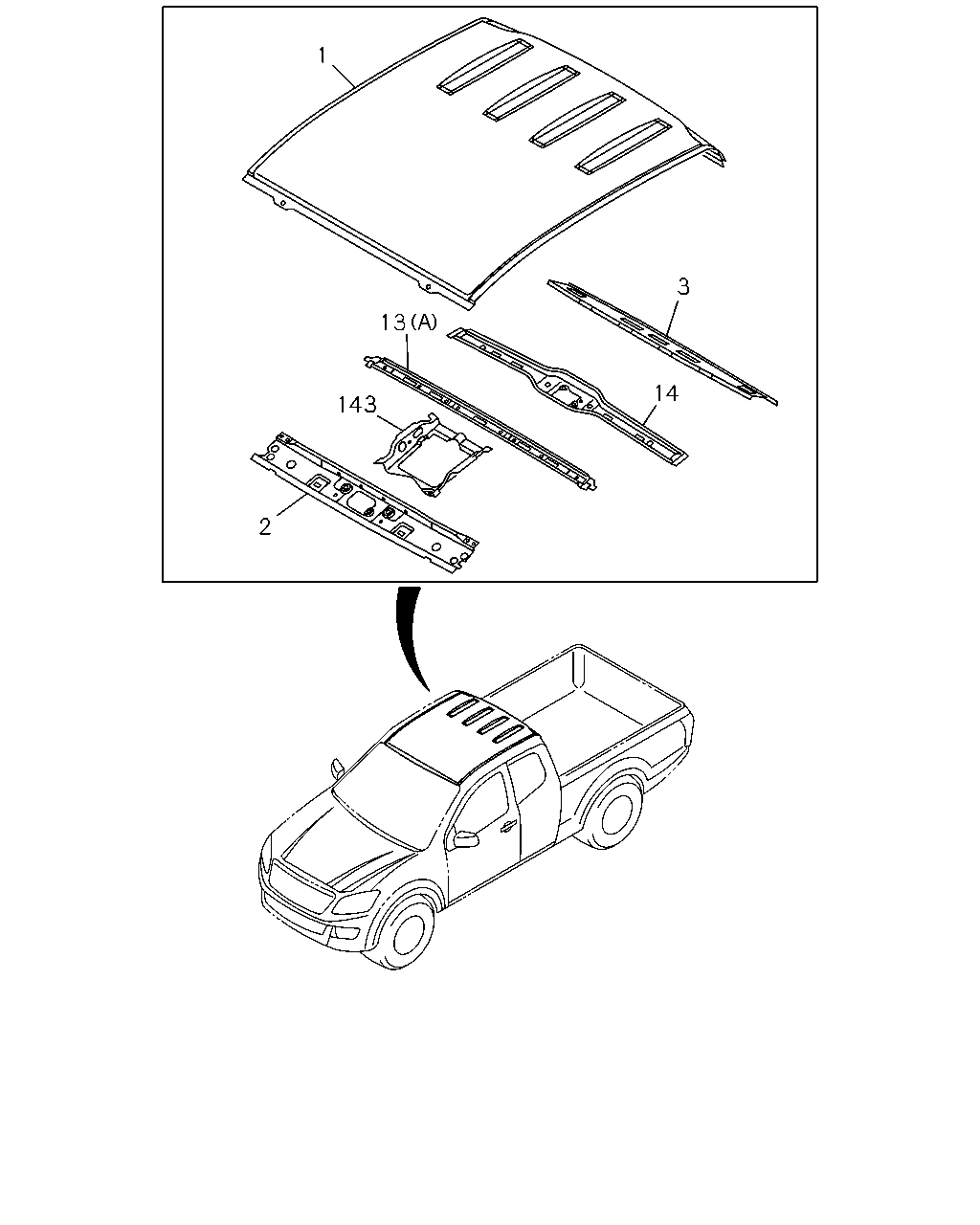

çizim 374500
1 13 143 2 3 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PANEL; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-323-1 01 1 1310- ● ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-954-3 01 1 1310- ● ●
1 PANEL; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-953-3 01 1 1310- ● ●
1 PANEL; ROOF
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98103-950-3 01 1 1310-1311 ●
1 PANEL; ROOF
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98103-950-3 01 1 1312- ●
1 PANEL; ROOF
RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98103-950-3 01 1 1312- ●
1 PANEL; ROOF
INTERIOR DELUXE<RBB> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-957-3 01 1 1310- ●
1 PANEL; ROOF
INTERIOR CUSTOM<RBD> HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-324-0 01 1 1310- ● ●
1 PANEL; ROOF
INTERIOR CUSTOM<RBD> HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-960-3 01 1 1310- ● ●
2 PANEL; ROOF,CENTER
THA 		8-98103-964-5 01 1 1310-1311 ● ● ● ● ●
2 PANEL; ROOF,CENTER
THA 		8-98103-964-5 01 1 1312- ● ● ● ● ● ●
3 PANEL; ROOF,RR
THA 		8-98103-999-3 01 1 1310-1311 ● ● ● ● ●
3 PANEL; ROOF,RR
THA 		8-98103-999-3 01 1 1312- ● ● ● ● ● ●
13 PANEL; ROOF SUPPORT
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (C) THA 		8-98150-942-0 01 1 1310-1311 ●
13 PANEL; ROOF SUPPORT
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (C) THA 		8-98150-942-0 01 1 1312- ●
13 PANEL; ROOF SUPPORT
RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (C) THA 		8-98150-942-0 01 1 1312- ●
13 PANEL; ROOF SUPPORT
(B) THA 		8-98103-982-0 01 1 1310- ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-98103-963-1 01 1 1310-1311 ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-98103-963-1 01 1 1312- ● ● ● ● ● ●
14 SUPPORT; ROOF
THA 		8-98163-386-1 01 1 1310- ● ●
14 SUPPORT; ROOF
THA 		8-98163-387-1 01 1 1310- ● ●
143 BRACKET; CONSOLE
HEADER CONSOLE<DK6> THA 		8-98103-962-1 01 1 1310- ● ● ● ●

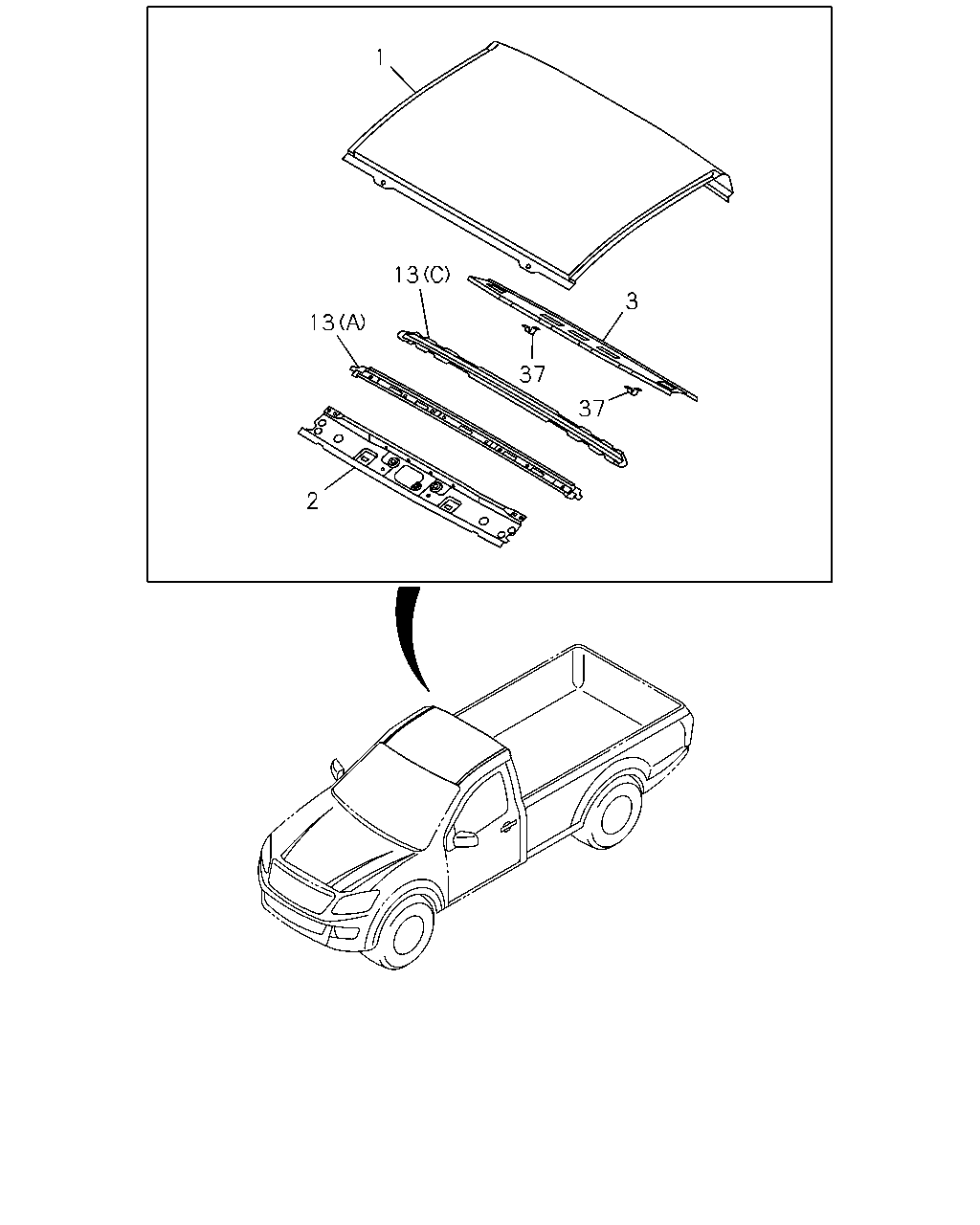

çizim 374713
3 37 37 13 13 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PANEL; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-323-1 01 1 1310- ● ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-954-3 01 1 1310- ● ●
1 PANEL; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-953-3 01 1 1310- ● ●
1 PANEL; ROOF
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98103-950-3 01 1 1310-1311 ●
1 PANEL; ROOF
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98103-950-3 01 1 1312- ●
1 PANEL; ROOF
RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98103-950-3 01 1 1312- ●
1 PANEL; ROOF
INTERIOR DELUXE<RBB> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-957-3 01 1 1310- ●
1 PANEL; ROOF
INTERIOR CUSTOM<RBD> HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-324-0 01 1 1310- ● ●
1 PANEL; ROOF
INTERIOR CUSTOM<RBD> HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-960-3 01 1 1310- ● ●
2 PANEL; ROOF,CENTER
THA 		8-98103-964-5 01 1 1310-1311 ● ● ● ● ●
2 PANEL; ROOF,CENTER
THA 		8-98103-964-5 01 1 1312- ● ● ● ● ● ●
3 PANEL; ROOF,RR
THA 		8-98103-999-3 01 1 1310-1311 ● ● ● ● ●
3 PANEL; ROOF,RR
THA 		8-98103-999-3 01 1 1312- ● ● ● ● ● ●
13 PANEL; ROOF SUPPORT
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (C) THA 		8-98150-942-0 01 1 1310-1311 ●
13 PANEL; ROOF SUPPORT
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (C) THA 		8-98150-942-0 01 1 1312- ●
13 PANEL; ROOF SUPPORT
RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (C) THA 		8-98150-942-0 01 1 1312- ●
13 PANEL; ROOF SUPPORT
(B) THA 		8-98103-982-0 01 1 1310- ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-98103-963-1 01 1 1310-1311 ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-98103-963-1 01 1 1312- ● ● ● ● ● ●
37 BRACKET; TRIM,ROOF BACK
THA 		8-98103-996-0 02 1 1310-1311 ● ● ●
37 BRACKET; TRIM,ROOF BACK
THA 		8-98103-996-0 02 1 1312- ● ● ● ●
