Sayfa 0-81 - Isuzu EPC

0-81 — GOVERNOR; INJECTION PUMP (#12643) — 181 parça

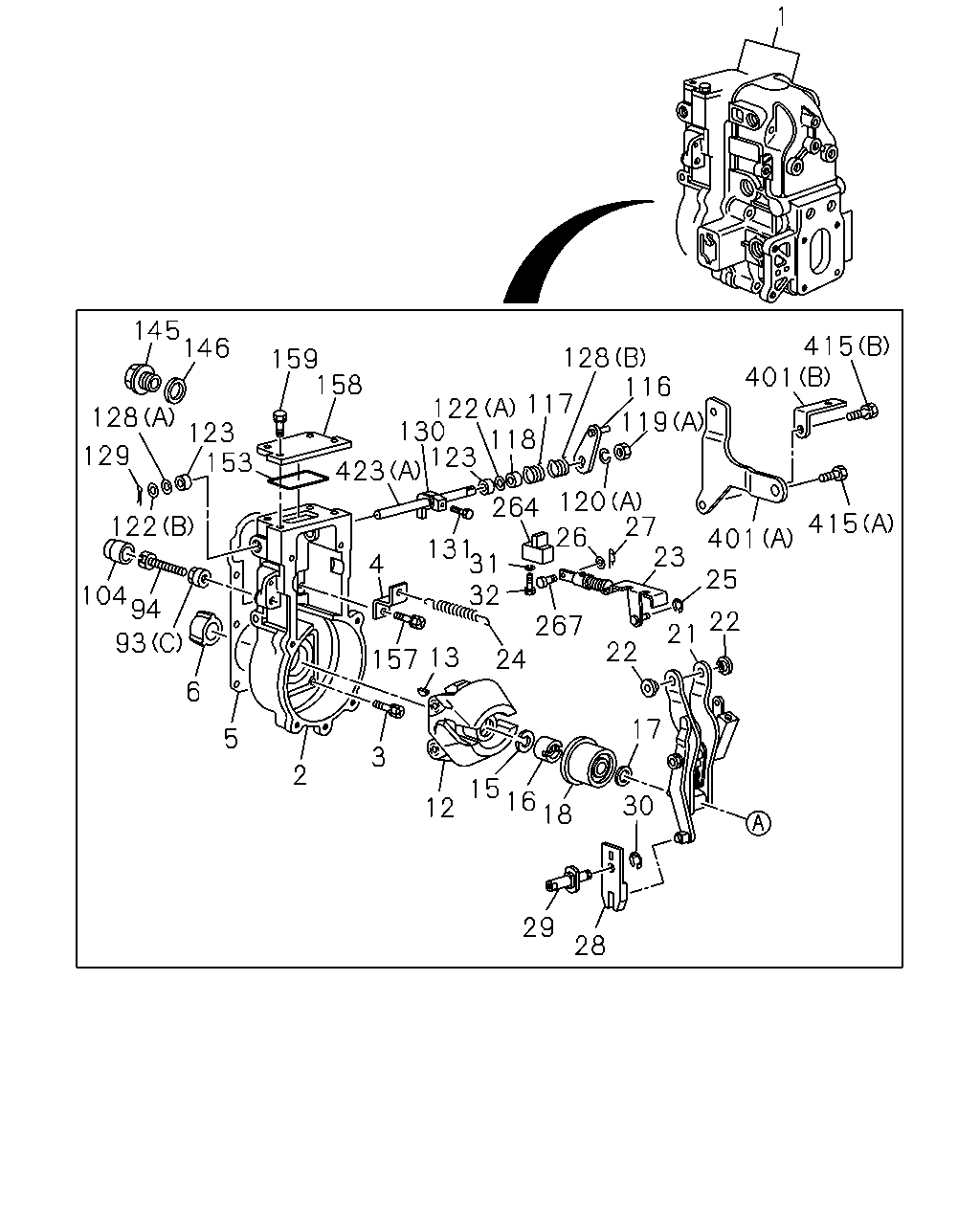

1 145 146 415 401 128 116 159 158 117 122 130 118 123 128 119 123 153 129 423 264 120 27 23 415 122 26 401 131 31 32 4 25 104 94 22 267 21 93 22 13 24 157 6 17 5 3 30 2 15 16 18 12 29 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-201-2	1-15770-866-2	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15603-203-2	1-15770-874-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-202-2	1-15770-911-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15721-121-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP M6X20 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-81325-187-0	04	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-302-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15779-086-0	01	1	-
6	IMPELLER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-81315-202-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15722-018-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	5-19619-049-0	01	1	-
13	KEY; FLYWEIGHT,GOV 13MM ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-81325-030-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	5-15729-429-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-15725-395-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: C = 1-15603-203-2	1-15725-762-0	01	1	-
22	COLLAR; LEVER,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-449-0	02	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15725-315-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15723-162-0	01	1	-
25	RING; SNAP ID=4 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-09185-404-0	01	1	-
26	SHIM; CONN PIN,CONT RACK,GOV ASM PART: C = 1-15603-203-2	9-81325-181-0	01	1	-
27	PIN; SNAP,CONN PIN,CONT RACK ASM PART: C = 1-15603-203-2	1-15729-316-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-81322-131-0	01	1	-
29	SHAFT; SUPPORTING LEVER,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-696-0	01	1	-
30	RING; SNAP,SUPPORTING LEVER,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	5-15729-023-0	01	1	-
31	WASHER; LK,CONT RACK,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-475-0	01	1	-
32	SCREW; CONT RACK,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-476-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-15729-006-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-055-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-425-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-756-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E), M6 ASM PART: C = 1-15603-203-2	9-09110-406-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (F) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-84410-027-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV M8X62 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-15729-642-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV ASM PART: C = 1-15603-203-2	5-15729-642-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	8-97085-022-0	02	1	-
116	LEVER; ENG STOP,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15725-873-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15723-260-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-464-0	01	1	-
119	NUT; ENG STOP LEVER,GOV (A) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-236-0	01	1	-
119	NUT; ENG STOP LEVER,GOV (B), M6 ASM PART: C = 1-15603-203-2	9-09110-406-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV (A) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-83579-492-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV (B), ID=6.1 ASM PART: C = 1-15603-203-2	9-09150-506-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV (A) ASM PART: C = 1-15603-203-2	9-83579-492-0	01	1	-
122	WASHER; CONT SHAFT,GOV (A), T=1 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-693-0	01	1	-
122	WASHER; CONT SHAFT,GOV (B), T=1.5 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-694-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-975-0	02	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.5 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-15779-459-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.2 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-15779-460-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.5 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-88410-122-0	01	1	-
129	PIN; SPLIT,CONT SHAFT,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-81315-191-0	01	1	-
130	LEVER; CONT,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15725-569-0	01	1	-
131	SCREW; LEVER TO SHAFT,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-15779-497-0	01	1	-
131	SCREW; LEVER TO SHAFT,GOV ASM PART: C = 1-15603-203-2	9-81315-069-0	01	1	-
145	CAP; GOV COVER,INJ PUMP ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-465-0	01	1	-
146	GASKET; COVER CAP,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15629-056-0	01	1	-
153	GASKET; GOV HSG,INJ PUMP ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-569-0	01	1	-
157	BOLT; START SPRING PLATE,GOV M6X18 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-81325-186-0	04	1	-
158	COVER; GOV HSG ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15721-195-0	01	1	-
159	BOLT; COVER M6X16 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	5-15729-071-0	04	1	-
264	CONNECTOR; CONT RACK,GOV ASM PART: C = 1-15603-203-2	1-15729-574-0	01	1	-
264	CONNECTOR; CONT RACK,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-15779-523-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: C = 1-15603-203-2	1-15729-315-0	01	1	-
401	BRACKET; HOUSING (B) ASM PART: C = 1-15603-203-2	1-15779-450-0	01	1	-
401	BRACKET; HOUSING (A) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15779-451-0	01	1	-
401	BRACKET; HOUSING (B) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-15779-465-0	01	1	-
415	BOLT; BRKT TO HOUSING (A) ASM PART: C = 1-15603-203-2	1-15779-452-0	01	1	-
415	BOLT; BRKT TO HOUSING (A) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-15779-467-0	01	1	-
415	BOLT; BRKT TO HOUSING (B), M8X18 W/LK WASHER ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-01900-818-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-463-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: C = 1-15603-203-2	1-15729-577-0	01	1	-

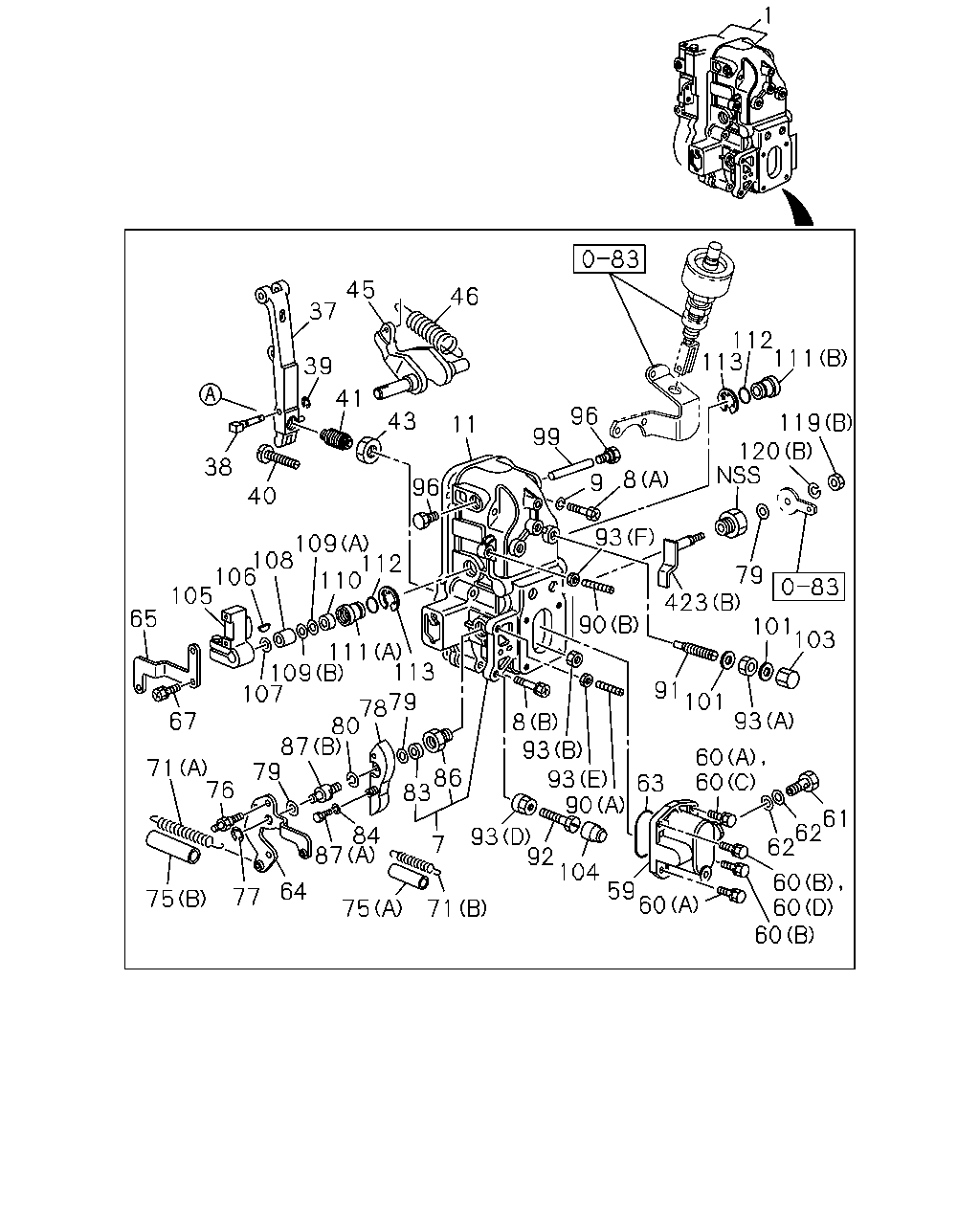

1 45 37 46 112 113 111 39 41 96 43 119 120 11 99 38 8 96 9 40 93 109 108 106 105 112 110 79 423 90 65 101 103 111 109 107 113 91 101 79 78 80 87 79 93 67 8 93 93 90 60 60 71 76 86 83 63 61 62 62 84 7 87 71 93 92 104 59 60 60 60 60 64 77 75 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-201-2	1-15770-866-2	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15603-203-2	1-15770-874-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-202-2	1-15770-911-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 1-15603-203-2	1-15721-246-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-15721-257-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (A), WO/WASHER ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-284-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	5-15729-253-0	05	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-09150-506-0	02	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15779-087-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15725-430-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-692-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV ID=4 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-09185-404-0	01	1	-
40	SCREW; LEVER ADJ,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-573-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: C = 1-15603-203-2	1-15723-337-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-15723-528-0	01	1	-
43	NUT; IDLING CONT SPRING,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-430-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15725-257-1	01	1	-
46	SPRING; GOV,INJ PUMP ASM PART: A = 1-15603-201-2, C = 1-15603-203-2	1-15723-171-0	01	1	-
46	SPRING; GOV,INJ PUMP ASM PART: B = 1-15603-202-2	1-15723-372-0	01	1	-
59	COVER; GOV COVER ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-15721-110-0	01	1	-
59	COVER; GOV COVER ASM PART: C = 1-15603-203-2	1-15721-143-0	01	1	-
60	BOLT; COVER FIX,GOV COVER (C) ASM PART: C = 1-15603-203-2	5-15619-282-0	01	1	-
60	BOLT; COVER FIX,GOV COVER (A) ASM PART: C = 1-15603-203-2	5-15729-063-0	01	1	-
60	BOLT; COVER FIX,GOV COVER (A) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	5-15729-063-0	02	1	-
60	BOLT; COVER FIX,GOV COVER (D) ASM PART: C = 1-15603-203-2	5-15729-167-0	01	1	-
60	BOLT; COVER FIX,GOV COVER (B), M6X16 W/LK WASHER ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	9-01900-616-0	02	1	-
60	BOLT; COVER FIX,GOV COVER (B), M6X16 W/LK WASHER ASM PART: C = 1-15603-203-2	9-01900-616-0	01	1	-
61	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15619-091-0	01	1	-
62	GASKET; EYE BOLT,OIL RETURN,INJ PUMP L=96 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-066-0	02	1	-
63	GASKET; COVER TO GOV COVER ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-978-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: C = 1-15603-203-2	1-15725-391-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-15725-404-0	01	1	-
65	BRACKET; RETURN SPRING,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-698-0	01	1	-
67	BOLT; SPRING BRKT,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15619-221-0	02	1	-
71	SPRING; CONT LEVER,GOV (A) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15723-166-0	01	1	-
71	SPRING; CONT LEVER,GOV (B) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15723-205-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV (A) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-405-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV (B) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-467-0	01	1	-
76	PIN; LOAD CONT LEVER,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-518-0	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	8-94324-735-0	01	1	-
78	LEVER; STOPPER,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15725-165-0	01	1	-
79	SHIM; LEVER SETTING,GOV T=0.95 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.20 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.25 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.30 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.35 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.40 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.50 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.10 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-407-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.15 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-408-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.20 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-409-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.50 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-410-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.70 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.90 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.80 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.60 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-896-0	AR	1	-
80	WASHER; LK,CONT LEVER,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-83579-492-0	01	1	-
83	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-855-0	01	1	-
84	WASHER; LK,RETURN SPR BOLT,GOV ID=6.1 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-09150-506-0	01	1	-
86	BUSHING; CONT SHAFT,GOV COVER ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-422-0	01	1	-
87	BOLT; RETURN SPRING,GOV (A) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-503-0	01	1	-
87	BOLT; RETURN SPRING,GOV (B) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-889-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-427-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=62 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	5-15729-123-0	01	1	-
91	SPRING CAPSULE; ADJ,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15723-356-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV L=47 ASM PART: C = 1-15603-203-2	1-15729-754-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV L=51 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-755-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV L=55 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-15729-815-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-15729-006-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-055-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-425-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-756-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E), M6 ASM PART: C = 1-15603-203-2	9-09110-406-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (F) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-84410-027-0	01	1	-
96	PLUG; LEVER SHAFT,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-426-0	02	1	-
99	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-448-0	01	1	-
101	GASKET; ADJ SPRING CAPSULE,GOV L=96 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-066-0	02	1	-
103	NUT; CAP,ADJ SPRING CAPSULE,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-092-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	8-97085-022-0	02	1	-
105	LEVER; SPD CONT,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15725-250-0	01	1	-
106	KEY; SWIVEL LEVER,GOV 13MM ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	9-81325-030-0	01	1	-
107	WASHER; SWIVEL LEVER,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-444-0	01	1	-
108	COLLAR; SWIVEL LEVER,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-443-0	01	1	-
109	SHIM; SWIVEL LEVER,GOV (A), T=0.40 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-438-0	01	1	-
109	SHIM; SWIVEL LEVER,GOV (B), T=0.10 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-439-0	AR	1	-
109	SHIM; SWIVEL LEVER,GOV (B), T=0.20 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-440-0	AR	1	-
109	SHIM; SWIVEL LEVER,GOV (B), T=0.30 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-441-0	AR	1	-
110	SEAL; OIL,SWIVEL LEVER,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-980-0	01	1	-
111	BUSHING; SWIVEL LEVER,GOV (A), ID=12 L=19.2 ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-435-1	01	1	-
111	BUSHING; SWIVEL LEVER,GOV (B) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15779-067-0	01	1	-
112	GASKET; SWIVEL LEVER,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-977-0	02	1	-
113	RING; SNAP,SWIVEL LEVER,GOV ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-217-0	02	1	-
119	NUT; ENG STOP LEVER,GOV (A) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-236-0	01	1	-
119	NUT; ENG STOP LEVER,GOV (B), M6 ASM PART: C = 1-15603-203-2	9-09110-406-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV (A) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2	1-83579-492-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV (B), ID=6.1 ASM PART: C = 1-15603-203-2	9-09150-506-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV (A) ASM PART: C = 1-15603-203-2	9-83579-492-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: A = 1-15603-201-2, B = 1-15603-202-2, C = 1-15603-203-2	1-15729-463-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: C = 1-15603-203-2	1-15729-577-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
