◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#126429) — 24 parça

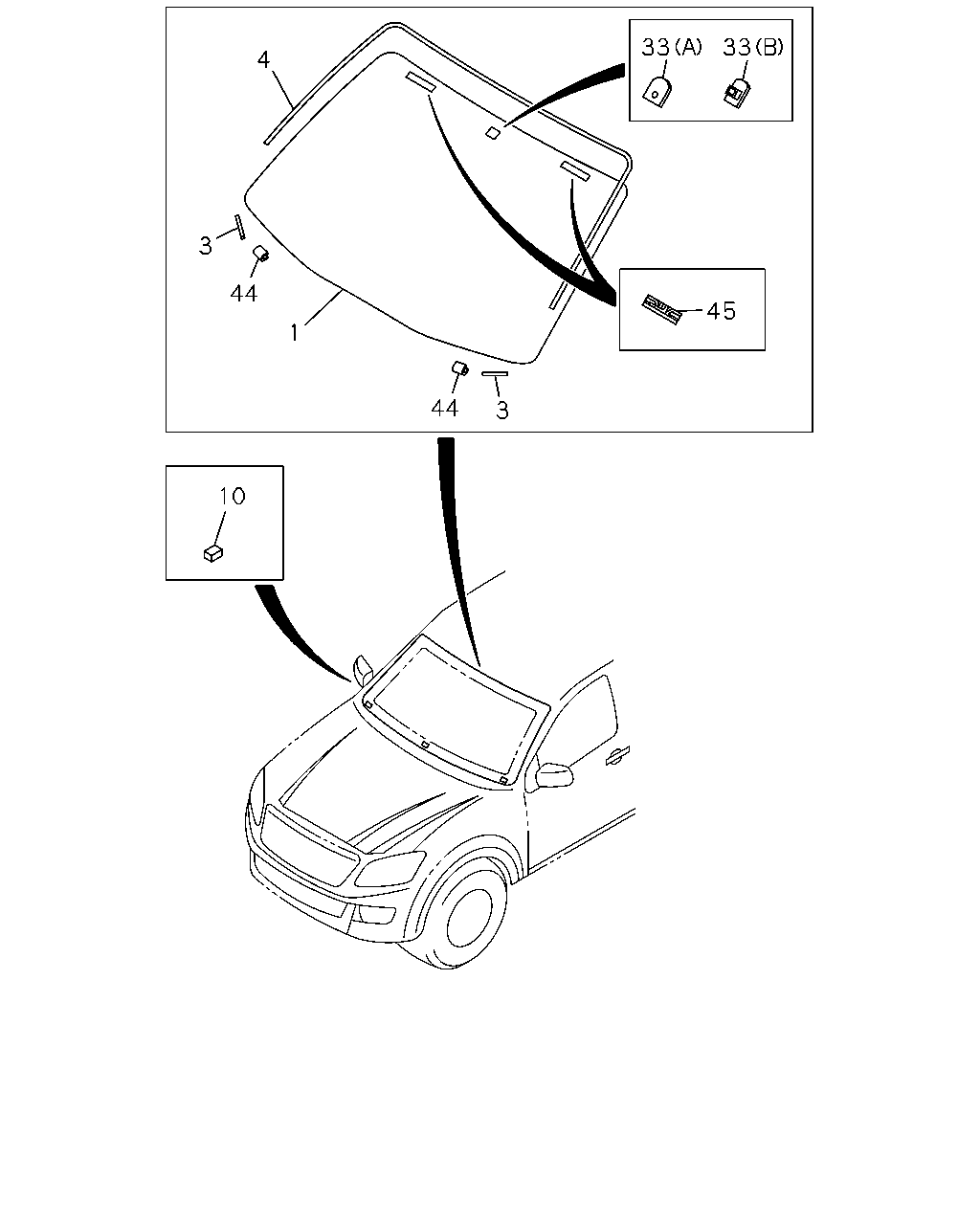

çizim 373480
10 44 3 45 44 3 4 33 33 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> THA 		8-98140-681-3 01 1 1310- ● ● ●
1 GLASS; WINDSHIELD
THA 		8-98140-681-3 01 1 1310- ●
1 GLASS; WINDSHIELD
EXC. RR VIEW MIRROR DAY & NIGHT<D31> THA 		8-98140-682-3 01 1 1310-1311 ● ● ●
1 GLASS; WINDSHIELD
THA 		8-98140-682-3 01 1 1310-1311 ●
1 GLASS; WINDSHIELD
EXC. RR VIEW MIRROR DAY & NIGHT<D31> THA 		8-98140-682-3 01 1 1312- ● ● ●
1 GLASS; WINDSHIELD
THA 		8-98140-682-3 01 1 1312- ● ●
3 MOLDING; WINDSHIELD
THA 		8-98194-205-0 01 1 1310-1311 ● ● ● ● ●
3 MOLDING; WINDSHIELD
THA 		8-98194-205-0 01 1 1312- ● ● ● ● ● ●
3 MOLDING; WINDSHIELD
THA 		8-98194-206-0 01 1 1310-1311 ● ● ● ● ●
3 MOLDING; WINDSHIELD
THA 		8-98194-206-0 01 1 1312- ● ● ● ● ● ●
4 MOLDING; WINDSHIELD,UPR
THA 		8-98140-685-0 01 1 1310-1311 ● ● ● ● ●
4 MOLDING; WINDSHIELD,UPR
THA 		8-98140-685-0 01 1 1312- ● ● ● ● ● ●
10 SPACER; WINDSHIELD GLASS
THA 		8-94434-770-0 03 1 1310-1311 ● ● ● ● ●
10 SPACER; WINDSHIELD GLASS
THA 		8-94434-770-0 03 1 1312- ● ● ● ● ● ●
33 SUPPORT; WINDSHIELD,LWR
RR VIEW MIRROR DAY & NIGHT<D31> (A) THA 		8-15954-649-0 01 1 1310- ● ● ●
33 SUPPORT; WINDSHIELD,LWR
(A) THA 		8-15954-649-0 01 1 1310- ●
33 SUPPORT; WINDSHIELD,LWR
EXC. RR VIEW MIRROR DAY & NIGHT<D31> (B) THA 		8-97331-592-0 01 1 1310-1311 ● ● ●
33 SUPPORT; WINDSHIELD,LWR
(B) THA 		8-97331-592-0 01 1 1310-1311 ●
33 SUPPORT; WINDSHIELD,LWR
EXC. RR VIEW MIRROR DAY & NIGHT<D31> (B) THA 		8-97331-592-0 01 1 1312- ● ● ●
33 SUPPORT; WINDSHIELD,LWR
(B) THA 		8-97331-592-0 01 1 1312- ● ●
44 SPONGE
THA 		8-98194-202-0 02 1 1310-1311 ● ● ● ● ●
44 SPONGE
THA 		8-98194-202-0 02 1 1312- ● ● ● ● ● ●
45 SUPPORT; WINDSHIELD
THA 		8-98140-687-0 02 1 1310-1311 ● ● ● ● ●
45 SUPPORT; WINDSHIELD
THA 		8-98140-687-0 02 1 1312- ● ● ● ● ● ●
