6-05 — FRONT PANEL (#126428) — 98 parça

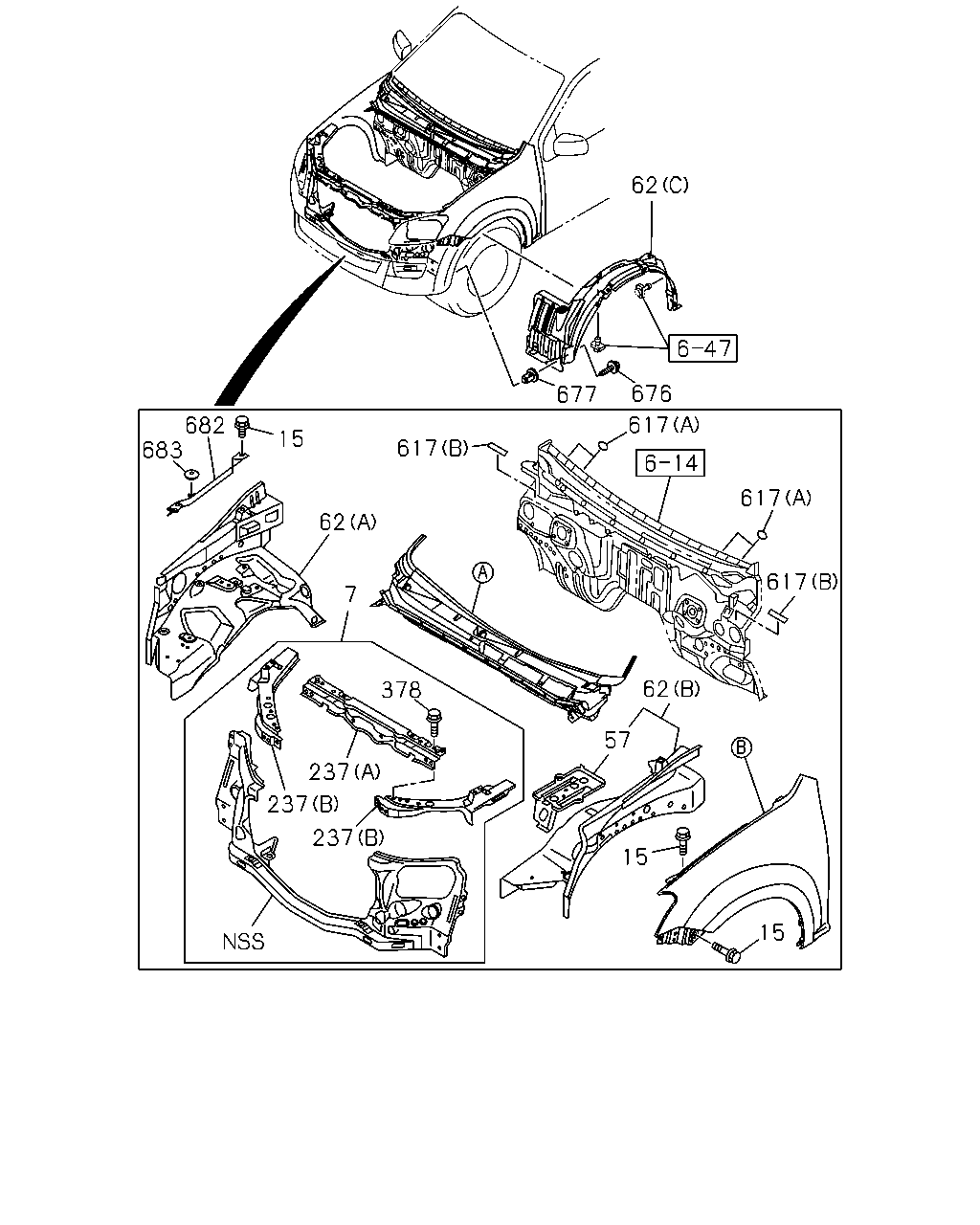

çizim 374057
62 677 676 617 617 617 62 617 62 15 682 683 378 237 237 237 15 57 15 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 PANEL; DEFLECTOR
THA 		8-98103-202-0 01 1 1310-1311 ● ● ● ● ●
7 PANEL; DEFLECTOR
THA 		8-98103-202-0 01 1 1312- ● ● ● ● ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER THA 		8-98167-615-0 12 1 1310-1311 ● ● ● ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER THA 		8-98167-615-0 12 1 1312- ● ● ● ● ● ●
57 TRAY; BATTERY
THA 		8-98104-480-5 01 1 1310-1311 ● ● ● ● ●
57 TRAY; BATTERY
THA 		8-98104-480-5 01 1 1312- ● ● ● ● ● ●
62 PANEL; WHEEL HOUSE
BATTERY 75D26L<7TT> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) THA 		8-98256-639-0 01 1 1403-1404 ● ● ● ● ● ●
62 PANEL; WHEEL HOUSE
BATTERY 75D26L<7TT> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) THA 		8-98256-639-2 01 1 1405- ● ● ● ● ●
62 PANEL; WHEEL HOUSE
BATTERY 75D26L<7TT> EXC. REFRIGERATION KIT<7FH> (A) THA 		8-98256-639-2 01 1 1405- ●
62 PANEL; WHEEL HOUSE
BATTERY 75D26L<7TT> (A) THA 		8-98193-272-0 01 1 1310-1311 ● ● ● ● ●
62 PANEL; WHEEL HOUSE
BATTERY 75D26L<7TT> (A) THA 		8-98193-272-0 01 1 1312-1402 ● ● ● ● ● ●
62 PANEL; WHEEL HOUSE
BATTERY 75D26L<7TT> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) THA 		8-98193-272-0 01 1 1403-1404 ● ● ● ●
62 PANEL; WHEEL HOUSE
BATTERY 75D26L<7TT> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) THA 		8-98193-272-2 01 1 1405- ● ● ● ●
62 PANEL; WHEEL HOUSE
BATTERY 75D26L<7TT> REFRIGERATION KIT<7FH> (A) THA 		8-98193-272-2 01 1 1405- ●
62 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98077-253-6 01 1 1310-1311 ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98077-253-6 01 1 1310-1311 ● ●
62 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98077-253-6 01 1 1312- ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98077-253-6 01 1 1312- ● ● ●
62 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98077-256-6 01 1 1310-1311 ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98077-256-6 01 1 1310-1311 ● ●
62 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98077-256-6 01 1 1312- ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98077-256-6 01 1 1312- ● ● ●
62 PANEL; WHEEL HOUSE
(B) THA 		8-98103-211-2 01 1 1310-1311 ● ● ● ● ●
62 PANEL; WHEEL HOUSE
(B) THA 		8-98103-211-2 01 1 1312- ● ● ● ● ● ●
62 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98077-251-4 01 1 1310- ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98077-251-4 01 1 1310- ●
62 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98077-255-4 01 1 1310- ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98077-255-4 01 1 1310- ●
237 SUPPORT; DEFLECTOR
(A) THA 		8-98104-224-4 01 1 1310-1311 ● ● ● ● ●
237 SUPPORT; DEFLECTOR
(A) THA 		8-98104-224-4 01 1 1312- ● ● ● ● ● ●
237 SUPPORT; DEFLECTOR
(B) THA 		8-98104-244-4 01 1 1310-1311 ● ● ● ● ●
237 SUPPORT; DEFLECTOR
(B) THA 		8-98104-244-4 01 1 1312- ● ● ● ● ● ●
237 SUPPORT; DEFLECTOR
(B) THA 		8-98104-253-4 01 1 1310-1311 ● ● ● ● ●
237 SUPPORT; DEFLECTOR
(B) THA 		8-98104-253-4 01 1 1312- ● ● ● ● ● ●
378 BOLT; SUPPORT
M6X12 FLANGE THA 		0-28060-612-0 08 1 1310-1311 ● ● ● ● ●
378 BOLT; SUPPORT
M6X12 FLANGE THA 		0-28060-612-0 08 1 1312- ● ● ● ● ● ●
617 SEAL; DASH
(A) OD=25 BLACK THA 		1-76798-019-0 04 1 1310-1311 ● ● ● ● ●
617 SEAL; DASH
(A) OD=25 BLACK THA 		1-76798-019-0 04 1 1312- ● ● ● ● ● ●
617 SEAL; DASH
(B) 110X10 THA 		8-98192-905-0 02 1 1310-1311 ● ● ● ● ●
617 SEAL; DASH
(B) 110X10 THA 		8-98192-905-0 02 1 1312- ● ● ● ● ● ●
617 SEAL; DASH
(C) T=5.0 THA 		8-98134-005-0 01 1 1310-1311 ● ● ● ● ●
617 SEAL; DASH
(C) T=5.0 THA 		8-98134-005-0 01 1 1312- ● ● ● ● ● ●
676 BOLT; WHEEL HOUSE
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 02 1 1310-1311 ● ● ● ● ●
676 BOLT; WHEEL HOUSE
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 02 1 1312- ● ● ● ● ● ●
677 NUT; WHEEL HOUSE
D=9.7X9.7 L=8 THA 		8-94222-314-0 02 1 1310-1311 ● ● ● ● ●
677 NUT; WHEEL HOUSE
D=9.7X9.7 L=8 THA 		8-94222-314-0 02 1 1312- ● ● ● ● ● ●
682 PROTECTOR; HEAT,ENG
THA 		8-98139-849-3 01 1 1310-1311 ● ● ● ● ●
682 PROTECTOR; HEAT,ENG
THA 		8-98139-849-3 01 1 1312- ● ● ● ● ● ●
683 RIVET; PROTECTOR,HEAT
THA 		8-98057-864-0 02 1 1310-1311 ● ● ● ● ●
683 RIVET; PROTECTOR,HEAT
THA 		8-98057-864-0 02 1 1312- ● ● ● ● ● ●

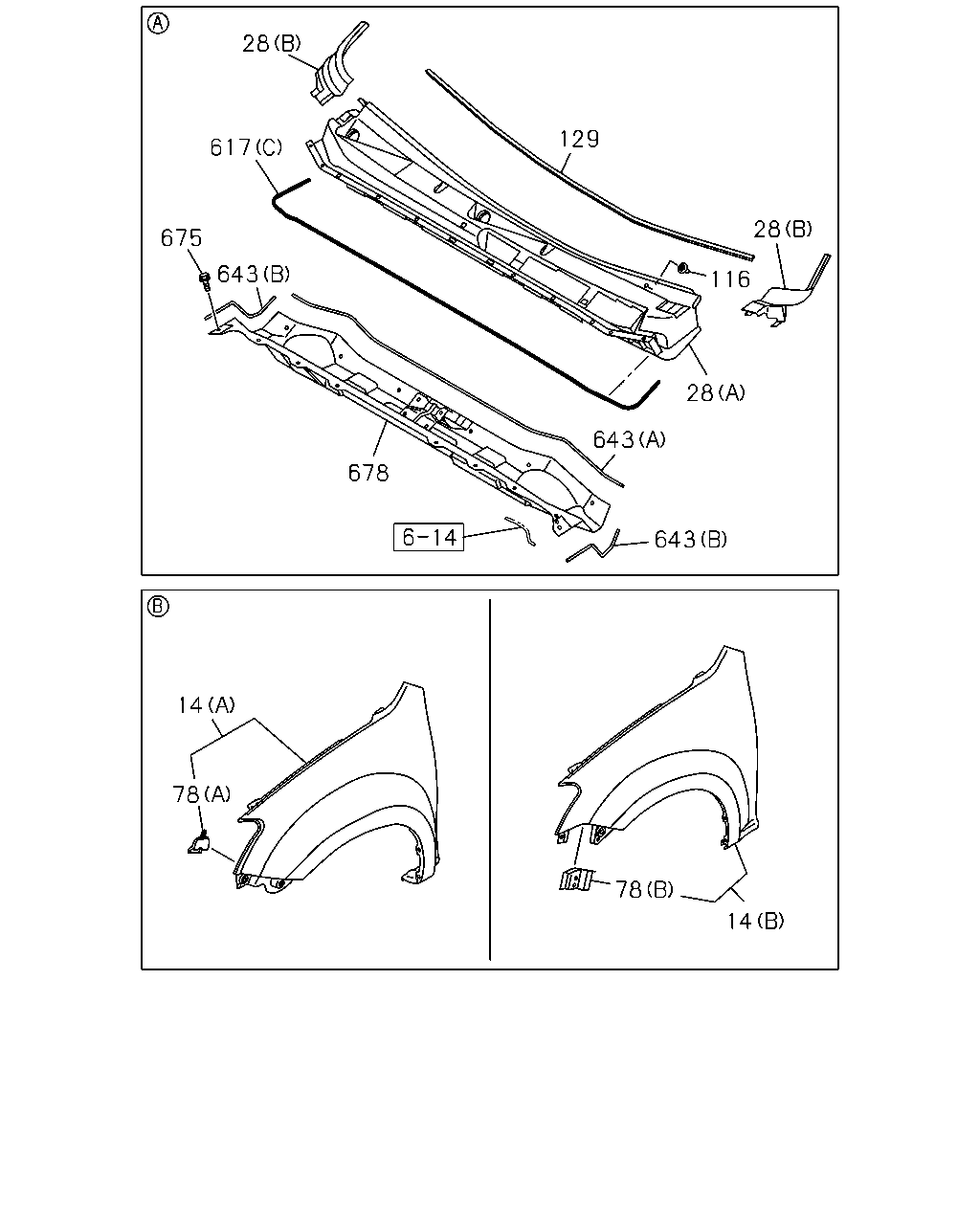

çizim 374068
28 617 675 129 643 678 643 643 28 28 14 78 78 14 116
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 FENDER; FRT
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98103-207-0 01 1 1310-1311 ● ●
14 FENDER; FRT
(A) THA 		8-98103-207-0 01 1 1310-1311 ● ●
14 FENDER; FRT
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98103-207-0 01 1 1312- ● ●
14 FENDER; FRT
(A) THA 		8-98103-207-0 01 1 1312- ● ● ●
14 FENDER; FRT
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98103-209-0 01 1 1310-1311 ● ●
14 FENDER; FRT
(A) THA 		8-98103-209-0 01 1 1310-1311 ● ●
14 FENDER; FRT
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98103-209-0 01 1 1312- ● ●
14 FENDER; FRT
(A) THA 		8-98103-209-0 01 1 1312- ● ● ●
14 FENDER; FRT
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98103-206-0 01 1 1310- ● ●
14 FENDER; FRT
(B) THA 		8-98103-206-0 01 1 1310- ●
14 FENDER; FRT
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98103-208-0 01 1 1310- ● ●
14 FENDER; FRT
(B) THA 		8-98103-208-0 01 1 1310- ●
28 COVER; DASH COWL
(B) THA 		8-98133-981-6 01 1 1310-1311 ● ● ● ● ●
28 COVER; DASH COWL
(B) THA 		8-98133-981-6 01 1 1312- ● ● ● ● ● ●
28 COVER; DASH COWL
(B) THA 		8-98133-982-5 01 1 1310-1311 ● ● ● ● ●
28 COVER; DASH COWL
(B) THA 		8-98133-982-5 01 1 1312- ● ● ● ● ● ●
28 COVER; DASH COWL
(A) THA 		8-98133-983-0 01 1 1310-1311 ● ● ● ● ●
28 COVER; DASH COWL
(A) THA 		8-98133-983-0 01 1 1312- ● ● ● ● ● ●
78 BRACKET; FENDER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-033-1 01 1 1310-1311 ● ●
78 BRACKET; FENDER
(A) THA 		8-98104-033-1 01 1 1310-1311 ● ●
78 BRACKET; FENDER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-033-1 01 1 1312- ● ●
78 BRACKET; FENDER
(A) THA 		8-98104-033-1 01 1 1312- ● ● ●
78 BRACKET; FENDER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-034-1 01 1 1310-1311 ● ●
78 BRACKET; FENDER
(A) THA 		8-98104-034-1 01 1 1310-1311 ● ●
78 BRACKET; FENDER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-034-1 01 1 1312- ● ●
78 BRACKET; FENDER
(A) THA 		8-98104-034-1 01 1 1312- ● ● ●
78 BRACKET; FENDER
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-031-1 01 1 1310- ● ●
78 BRACKET; FENDER
(B) THA 		8-98104-031-1 01 1 1310- ●
78 BRACKET; FENDER
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-032-1 01 1 1310- ● ●
78 BRACKET; FENDER
(B) THA 		8-98104-032-1 01 1 1310- ●
116 CLIP; COWL COVER
THA 		8-98134-004-1 06 1 1310-1311 ● ● ● ● ●
116 CLIP; COWL COVER
THA 		8-98134-004-1 06 1 1312- ● ● ● ● ● ●
129 FINISHER; COWL COVER
THA 		8-98133-991-0 01 1 1310-1311 ● ● ● ● ●
129 FINISHER; COWL COVER
THA 		8-98133-991-0 01 1 1312- ● ● ● ● ● ●
617 SEAL; DASH
(A) OD=25 BLACK THA 		1-76798-019-0 04 1 1310-1311 ● ● ● ● ●
617 SEAL; DASH
(A) OD=25 BLACK THA 		1-76798-019-0 04 1 1312- ● ● ● ● ● ●
617 SEAL; DASH
(B) 110X10 THA 		8-98192-905-0 02 1 1310-1311 ● ● ● ● ●
617 SEAL; DASH
(B) 110X10 THA 		8-98192-905-0 02 1 1312- ● ● ● ● ● ●
617 SEAL; DASH
(C) T=5.0 THA 		8-98134-005-0 01 1 1310-1311 ● ● ● ● ●
617 SEAL; DASH
(C) T=5.0 THA 		8-98134-005-0 01 1 1312- ● ● ● ● ● ●
643 SEAL; COWL
BATTERY 75D26L<7TT> (A) THA 		8-98110-283-1 01 1 1310-1311 ● ● ● ● ●
643 SEAL; COWL
BATTERY 75D26L<7TT> (A) THA 		8-98110-283-1 01 1 1312- ● ● ● ● ● ●
643 SEAL; COWL
BATTERY 75D26L<7TT> (B) THA 		8-98110-284-1 02 1 1310-1311 ● ● ● ● ●
643 SEAL; COWL
BATTERY 75D26L<7TT> (B) THA 		8-98110-284-1 02 1 1312- ● ● ● ● ● ●
675 BOLT; PANEL
BATTERY 75D26L<7TT> M6X12 W/PL WASHER THA 		8-98180-459-2 08 1 1310-1311 ● ● ● ● ●
675 BOLT; PANEL
BATTERY 75D26L<7TT> M6X12 W/PL WASHER THA 		8-98180-459-2 08 1 1312- ● ● ● ● ● ●
678 PANEL; COWL
BATTERY 75D26L<7TT> THA 		8-98065-803-3 01 1 1310-1311 ● ● ● ● ●
678 PANEL; COWL
BATTERY 75D26L<7TT> THA 		8-98065-803-3 01 1 1312- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
