◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#126426) — 97 parça

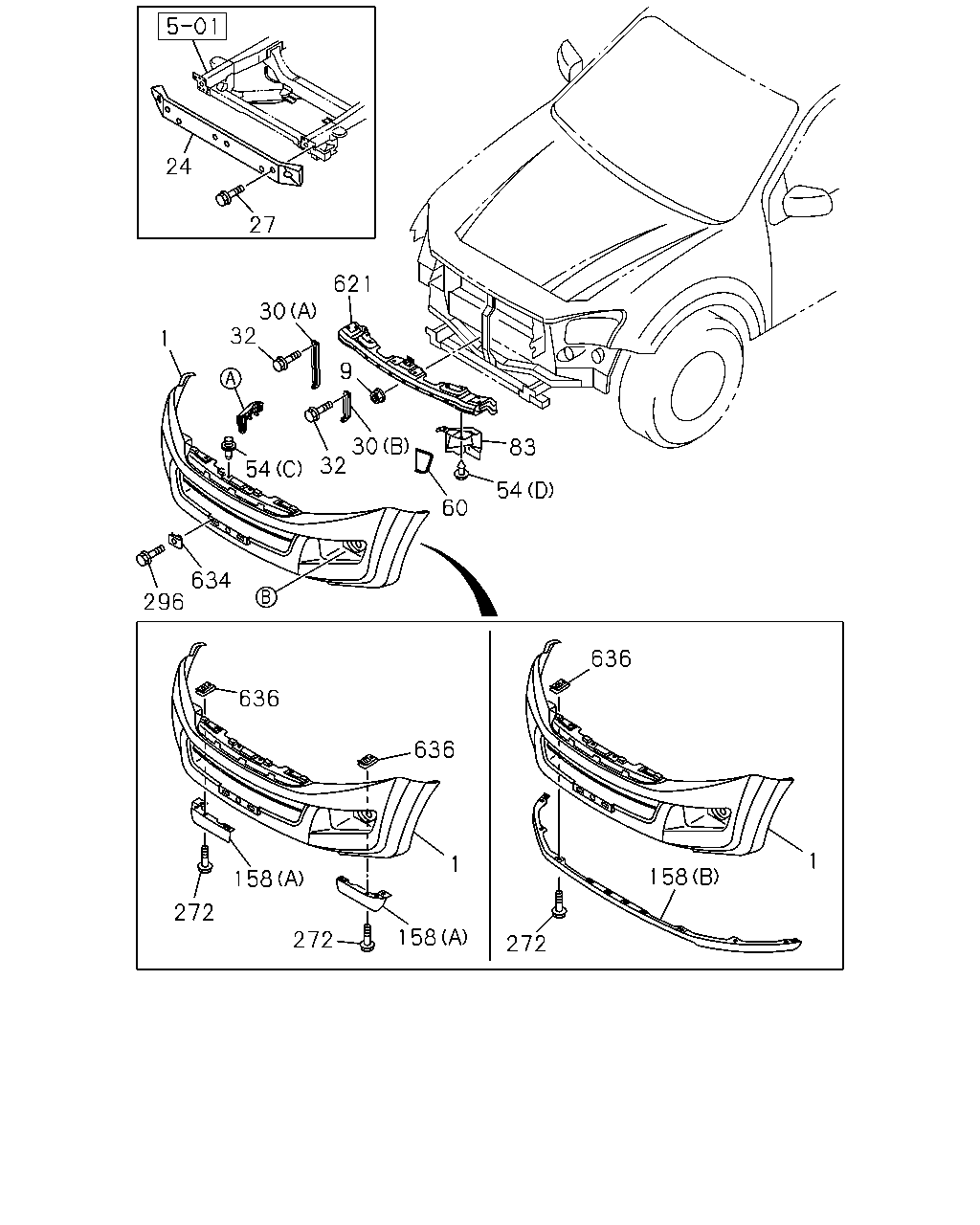

çizim 374046
24 27 621 9 30 32 1 296 636 636 636 158 158 272 272 158 272 634 54 32 30 60 83 54 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BUMPER ASM; FRT
HIGH RIDE SUSPENSION<7YC> EXC. COLOR KEYED BUMPER<VT4>,LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> THA 		8-98193-447-2 01 1 1310-1311 ●
1 BUMPER ASM; FRT
HIGH RIDE SUSPENSION<7YC> EXC. COLOR KEYED BUMPER<VT4>,LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> THA 		8-98193-447-2 01 1 1312- ●
1 BUMPER ASM; FRT
4JK1-TCX ENG<LR0> EXC. COLOR KEYED BUMPER<VT4> THA 		8-98193-447-2 01 1 1312- ●
1 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER<VT4>,HIGH RIDE SUSPENSION<7YC>,LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> THA 		8-98193-444-2 01 1 1310- ●
1 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER<VT4> THA 		8-98193-444-2 01 1 1310- ●
1 BUMPER ASM; FRT
COLOR KEYED BUMPER<VT4> HIGH RIDE SUSPENSION<7YC> PRIMER THA 		8-98196-573-2 01 1 1310- ● ●
1 BUMPER ASM; FRT
PRIMER THA 		8-98196-573-2 01 1 1310- ● ●
1 BUMPER ASM; FRT
COLOR KEYED BUMPER<VT4> EXC. HIGH RIDE SUSPENSION<7YC> PRIMER THA 		8-98196-570-2 01 1 1310- ● ●
1 BUMPER ASM; FRT
COLOR KEYED BUMPER<VT4> PRIMER THA 		8-98196-570-2 01 1 1310- ●
9 NUT; REINF,FRT BUMPER
M6 FLANGE THA 		0-91180-106-0 06 1 1310-1311 ● ● ● ● ●
9 NUT; REINF,FRT BUMPER
M6 FLANGE THA 		0-91180-106-0 06 1 1312- ● ● ● ● ● ●
24 BAR; FRT BUMPER
THA 		8-98165-112-1 01 1 1310-1311 ● ● ● ● ●
24 BAR; FRT BUMPER
THA 		8-98165-112-1 01 1 1312- ● ● ● ● ● ●
27 BOLT; BUMPER TO BACK BAR
M10X25 FLANGE THA 		0-28661-025-0 04 1 1310-1311 ● ● ● ● ●
27 BOLT; BUMPER TO BACK BAR
M10X25 FLANGE THA 		0-28661-025-0 04 1 1312- ● ● ● ● ● ●
30 BRACKET; FRT BUMPER
(A) THA 		8-98087-391-2 02 1 1310-1311 ● ● ● ● ●
30 BRACKET; FRT BUMPER
(A) THA 		8-98087-391-2 02 1 1312- ● ● ● ● ● ●
30 BRACKET; FRT BUMPER
(B) THA 		8-98087-392-0 02 1 1310-1311 ● ● ● ● ●
30 BRACKET; FRT BUMPER
(B) THA 		8-98087-392-0 02 1 1312- ● ● ● ● ● ●
32 BOLT; BRKT,BUMPER
M6X16 FLANGE THA 		0-28650-616-0 06 1 1310-1311 ● ● ● ● ●
32 BOLT; BRKT,BUMPER
M6X16 FLANGE THA 		0-28650-616-0 06 1 1312- ● ● ● ● ● ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98074-258-4 01 1 1310-1311 ● ●
54 RETAINER; FRT BUMPER
(A) THA 		8-98074-258-4 01 1 1310-1311 ● ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98074-258-4 01 1 1312- ● ●
54 RETAINER; FRT BUMPER
(A) THA 		8-98074-258-4 01 1 1312- ● ● ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98074-259-4 01 1 1310-1311 ● ●
54 RETAINER; FRT BUMPER
(A) THA 		8-98074-259-4 01 1 1310-1311 ● ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98074-259-4 01 1 1312- ● ●
54 RETAINER; FRT BUMPER
(A) THA 		8-98074-259-4 01 1 1312- ● ● ●
54 RETAINER; FRT BUMPER
(C) THA 		8-97301-188-0 10 1 1310-1311 ● ● ● ● ●
54 RETAINER; FRT BUMPER
(C) THA 		8-97301-188-0 10 1 1312- ● ● ● ● ● ●
54 RETAINER; FRT BUMPER
(D) THA 		8-98050-462-0 06 1 1310-1311 ● ● ● ● ●
54 RETAINER; FRT BUMPER
(D) THA 		8-98050-462-0 06 1 1312- ● ● ● ● ● ●
54 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98074-256-3 01 1 1310- ● ●
54 RETAINER; FRT BUMPER
(B) THA 		8-98074-256-3 01 1 1310- ●
54 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98074-257-3 01 1 1310- ● ●
54 RETAINER; FRT BUMPER
(B) THA 		8-98074-257-3 01 1 1310- ●
60 SPACER; FRT BUMPER
THA 		8-98140-340-1 01 1 1310-1311 ● ● ● ● ●
60 SPACER; FRT BUMPER
THA 		8-98140-340-1 01 1 1312- ● ● ● ● ● ●
83 GUIDE; AIR,FRT BUMPER
THA 		8-98139-694-0 01 1 1310-1311 ● ● ● ● ●
83 GUIDE; AIR,FRT BUMPER
THA 		8-98139-694-0 01 1 1312- ● ● ● ● ● ●
83 GUIDE; AIR,FRT BUMPER
THA 		8-98139-695-0 01 1 1310-1311 ● ● ● ● ●
83 GUIDE; AIR,FRT BUMPER
THA 		8-98139-695-0 01 1 1312- ● ● ● ● ● ●
158 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98101-950-0 01 1 1310-1311 ● ●
158 EXTENSION; FRT BUMPER
(A) THA 		8-98101-950-0 01 1 1310-1311 ● ●
158 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98101-950-0 01 1 1312- ● ●
158 EXTENSION; FRT BUMPER
(A) THA 		8-98101-950-0 01 1 1312- ● ● ●
158 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98101-951-0 01 1 1310-1311 ● ●
158 EXTENSION; FRT BUMPER
(A) THA 		8-98101-951-0 01 1 1310-1311 ● ●
158 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98101-951-0 01 1 1312- ● ●
158 EXTENSION; FRT BUMPER
(A) THA 		8-98101-951-0 01 1 1312- ● ● ●
158 EXTENSION; FRT BUMPER
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98099-823-1 01 1 1310- ● ●
158 EXTENSION; FRT BUMPER
(B) THA 		8-98099-823-1 01 1 1310- ●
272 BOLT; BUMPER TO EXT
HIGH RIDE SUSPENSION<7YC> M6X15 TAPPING W/PL WASHER THA 		8-98164-799-0 04 1 1310-1311 ● ●
272 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER THA 		8-98164-799-0 04 1 1310-1311 ● ●
272 BOLT; BUMPER TO EXT
HIGH RIDE SUSPENSION<7YC> M6X15 TAPPING W/PL WASHER THA 		8-98164-799-0 04 1 1312- ● ●
272 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER THA 		8-98164-799-0 04 1 1312- ● ● ●
272 BOLT; BUMPER TO EXT
EXC. HIGH RIDE SUSPENSION<7YC> M6X15 TAPPING W/PL WASHER THA 		8-98164-799-0 10 1 1310- ● ●
272 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER THA 		8-98164-799-0 10 1 1310- ●
296 BOLT; LICENSE PLATE,FRT
M6X16 FLANGE THA 		0-28050-616-0 02 1 1310-1311 ● ● ● ● ●
296 BOLT; LICENSE PLATE,FRT
M6X16 FLANGE THA 		0-28050-616-0 02 1 1312- ● ● ● ● ● ●
621 SUPPORT; FRT BUMPER
THA 		8-98087-390-1 01 1 1310-1311 ● ● ● ● ●
621 SUPPORT; FRT BUMPER
THA 		8-98087-390-1 01 1 1312- ● ● ● ● ● ●
634 NUT; LICENCE PLATE
THA 		8-98054-813-0 02 1 1310-1311 ● ● ● ● ●
634 NUT; LICENCE PLATE
THA 		8-98054-813-0 02 1 1312- ● ● ● ● ● ●
636 NUT; EXT,FRT BUMPER
HIGH RIDE SUSPENSION<7YC> THA 		8-98072-786-0 04 1 1310-1311 ● ●
636 NUT; EXT,FRT BUMPER
THA 		8-98072-786-0 04 1 1310-1311 ● ●
636 NUT; EXT,FRT BUMPER
HIGH RIDE SUSPENSION<7YC> THA 		8-98072-786-0 04 1 1312- ● ●
636 NUT; EXT,FRT BUMPER
THA 		8-98072-786-0 04 1 1312- ● ● ●
636 NUT; EXT,FRT BUMPER
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98072-786-0 10 1 1310- ● ●
636 NUT; EXT,FRT BUMPER
THA 		8-98072-786-0 10 1 1310- ●

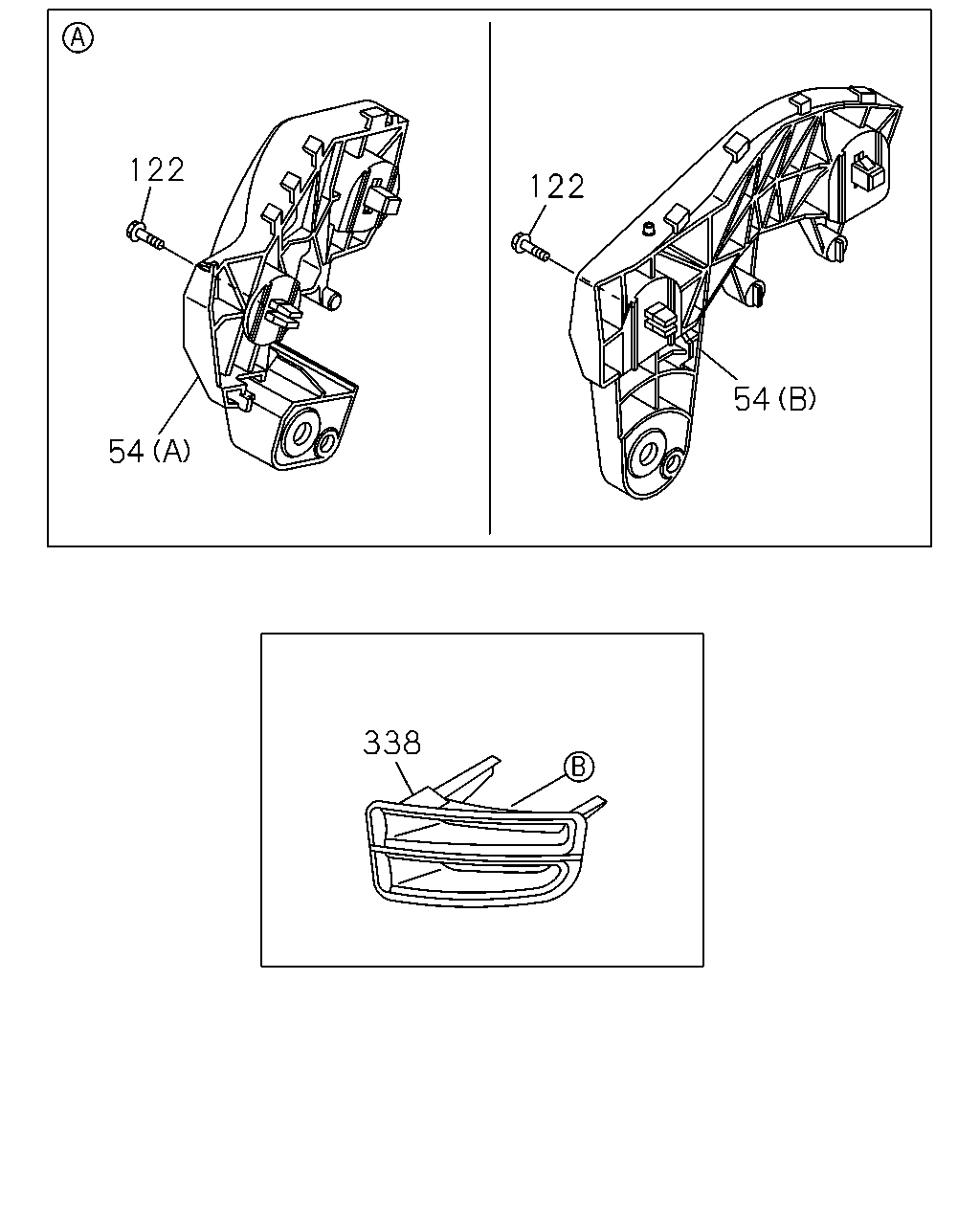

çizim 374675
122 122 54 54 338
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98074-258-4 01 1 1310-1311 ● ●
54 RETAINER; FRT BUMPER
(A) THA 		8-98074-258-4 01 1 1310-1311 ● ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98074-258-4 01 1 1312- ● ●
54 RETAINER; FRT BUMPER
(A) THA 		8-98074-258-4 01 1 1312- ● ● ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98074-259-4 01 1 1310-1311 ● ●
54 RETAINER; FRT BUMPER
(A) THA 		8-98074-259-4 01 1 1310-1311 ● ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98074-259-4 01 1 1312- ● ●
54 RETAINER; FRT BUMPER
(A) THA 		8-98074-259-4 01 1 1312- ● ● ●
54 RETAINER; FRT BUMPER
(C) THA 		8-97301-188-0 10 1 1310-1311 ● ● ● ● ●
54 RETAINER; FRT BUMPER
(C) THA 		8-97301-188-0 10 1 1312- ● ● ● ● ● ●
54 RETAINER; FRT BUMPER
(D) THA 		8-98050-462-0 06 1 1310-1311 ● ● ● ● ●
54 RETAINER; FRT BUMPER
(D) THA 		8-98050-462-0 06 1 1312- ● ● ● ● ● ●
54 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98074-256-3 01 1 1310- ● ●
54 RETAINER; FRT BUMPER
(B) THA 		8-98074-256-3 01 1 1310- ●
54 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98074-257-3 01 1 1310- ● ●
54 RETAINER; FRT BUMPER
(B) THA 		8-98074-257-3 01 1 1310- ●
122 BOLT; RET,FRT BUMPER
M6X16 TAPPING W/PL WASHER THA 		0-74160-616-0 02 1 1310-1311 ● ● ● ● ●
122 BOLT; RET,FRT BUMPER
M6X16 TAPPING W/PL WASHER THA 		0-74160-616-0 02 1 1312- ● ● ● ● ● ●
338 BEZEL; FOG LAMP
EXC. LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> THA 		8-98099-827-1 01 1 1310-1311 ● ● ● ●
338 BEZEL; FOG LAMP
THA 		8-98099-827-1 01 1 1310-1311 ●
338 BEZEL; FOG LAMP
EXC. LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> THA 		8-98099-827-1 01 1 1312- ● ● ● ●
338 BEZEL; FOG LAMP
THA 		8-98099-827-1 01 1 1312- ● ●
338 BEZEL; FOG LAMP
EXC. LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> THA 		8-98099-828-1 01 1 1310-1311 ● ● ● ●
338 BEZEL; FOG LAMP
THA 		8-98099-828-1 01 1 1310-1311 ●
338 BEZEL; FOG LAMP
EXC. LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> THA 		8-98099-828-1 01 1 1312- ● ● ● ●
338 BEZEL; FOG LAMP
THA 		8-98099-828-1 01 1 1312- ● ●
