◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#126425) — 20 parça

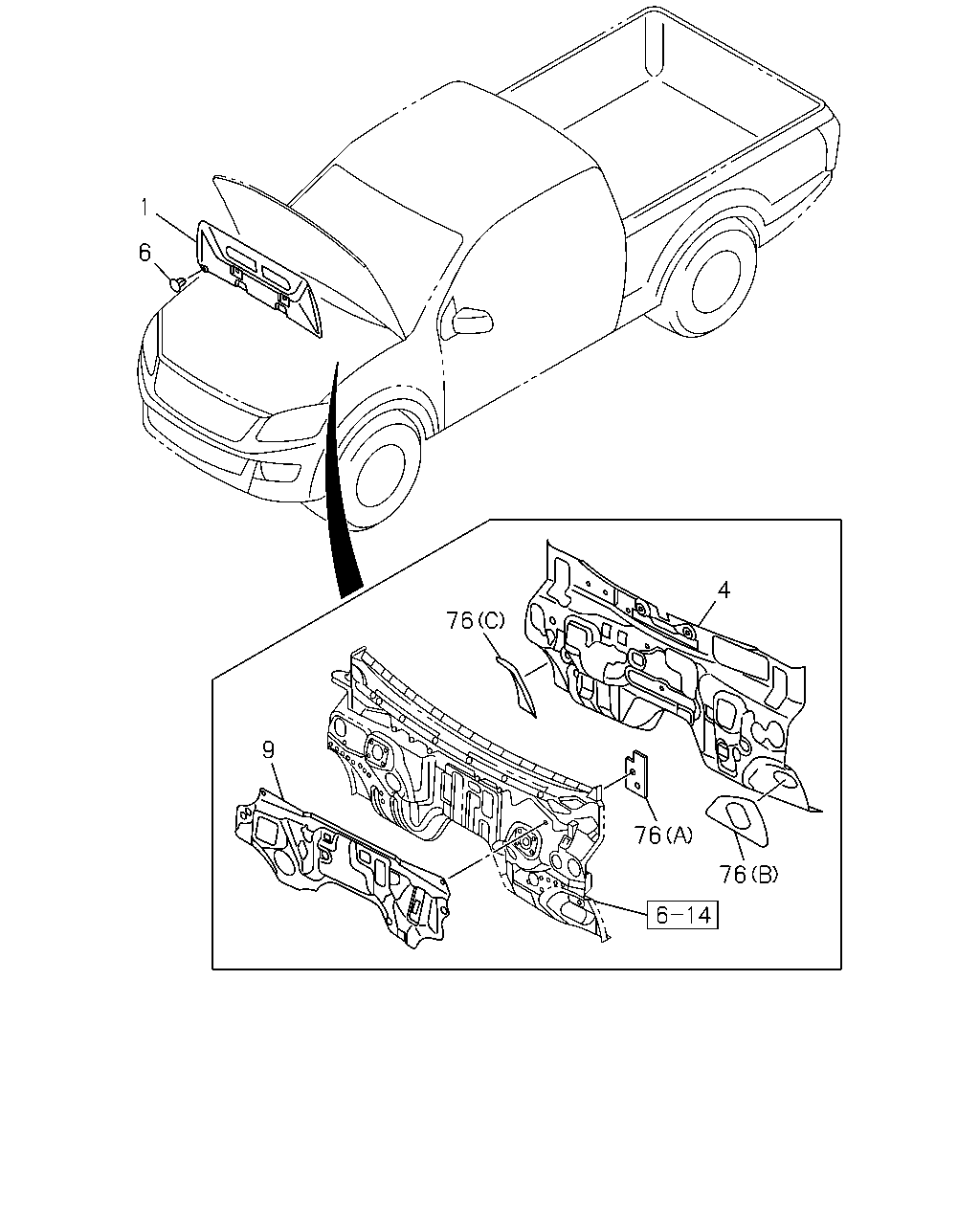

çizim 373435
1 6 76 9 76 4 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 INSULATION; ENG HOOD
THA 		8-98074-100-1 01 1 1310-1311 ● ● ●
1 INSULATION; ENG HOOD
EXC. REFRIGERATION KIT<7FH> THA 		8-98074-100-1 01 1 1310-1311 ●
1 INSULATION; ENG HOOD
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> THA 		8-98074-100-1 01 1 1310-1311 ●
1 INSULATION; ENG HOOD
THA 		8-98074-100-1 01 1 1312- ● ● ●
1 INSULATION; ENG HOOD
EXC. REFRIGERATION KIT<7FH> THA 		8-98074-100-1 01 1 1312- ●
1 INSULATION; ENG HOOD
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> THA 		8-98074-100-1 01 1 1312- ●
1 INSULATION; ENG HOOD
4JK1-TCX ENG<LR0> THA 		8-98074-100-1 01 1 1312- ●
1 INSULATION; ENG HOOD
REFRIGERATION KIT<7FH> THA 		8-98202-596-0 01 1 1310- ●
4 INSULATION; DASH PNL,INNER
THA 		8-98074-011-1 01 1 1310-1311 ● ● ● ● ●
4 INSULATION; DASH PNL,INNER
THA 		8-98074-011-1 01 1 1312- ● ● ● ● ● ●
6 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 THA 		8-97808-623-0 09 1 1310-1311 ● ● ● ● ●
6 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 THA 		8-97808-623-0 09 1 1312- ● ● ● ● ● ●
9 INSULATION; DASH ENG ROOM
THA 		8-98074-008-0 01 1 1310-1311 ● ● ● ● ●
9 INSULATION; DASH ENG ROOM
THA 		8-98074-008-0 01 1 1312- ● ● ● ● ● ●
76 DEADENER; DASH ENG ROOM
(A) THA 		8-98104-578-2 01 1 1310-1311 ● ● ● ● ●
76 DEADENER; DASH ENG ROOM
(A) THA 		8-98104-578-2 01 1 1312- ● ● ● ● ● ●
76 DEADENER; DASH ENG ROOM
(B) THA 		8-98161-052-0 01 1 1310-1311 ● ● ● ● ●
76 DEADENER; DASH ENG ROOM
(B) THA 		8-98161-052-0 01 1 1312- ● ● ● ● ● ●
76 DEADENER; DASH ENG ROOM
(C) THA 		8-98161-053-0 01 1 1310-1311 ● ● ● ● ●
76 DEADENER; DASH ENG ROOM
(C) THA 		8-98161-053-0 01 1 1312- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
