Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#126420) — 305 parça

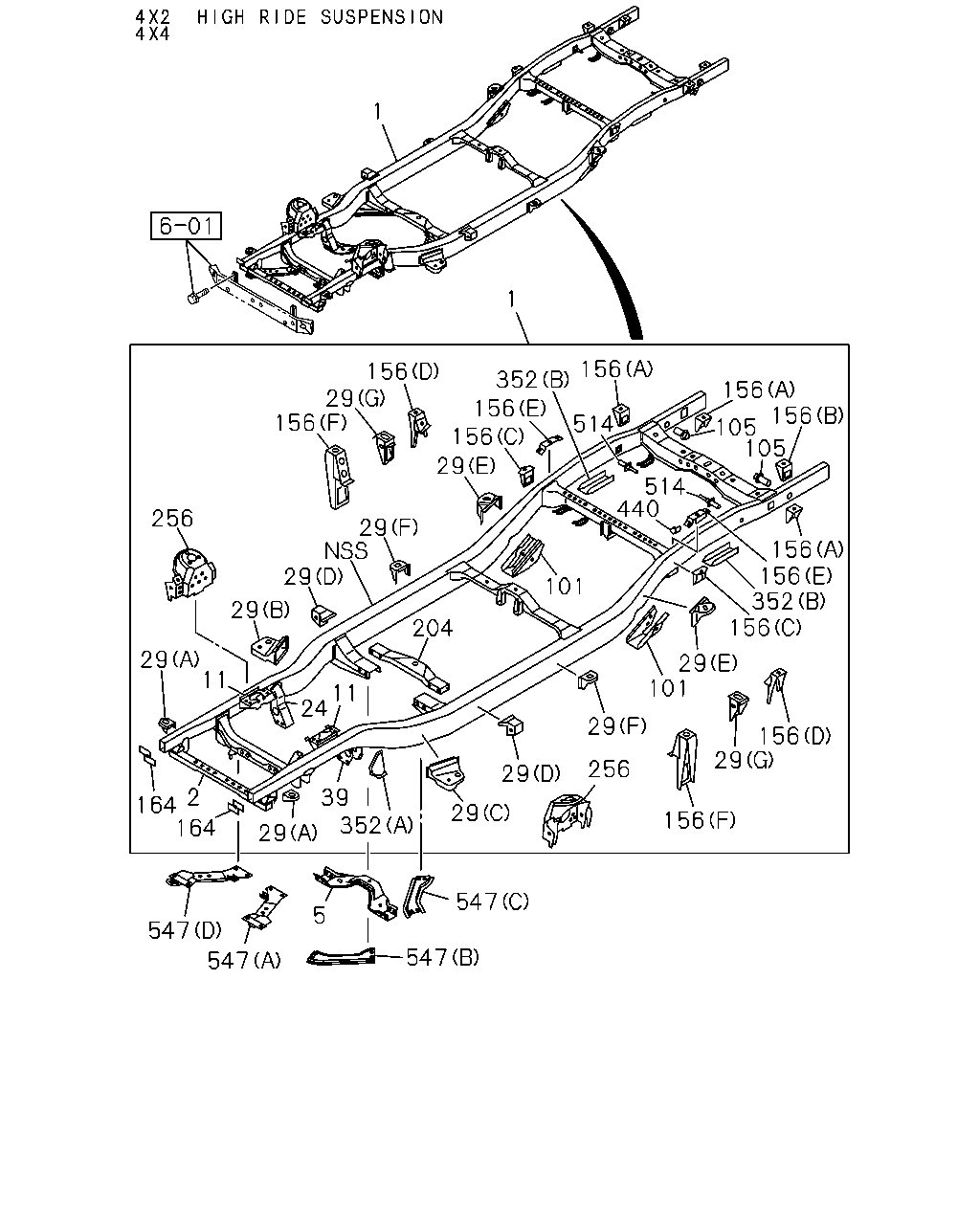

547 547 5 547 547 29 164 164 11 29 24 29 256 29 204 11 302 101 29 29 29 302 256 156 29 156 29 101 156 156 105 156 156 156 156 1 156 156 29 29 156 29 156 1 514 514 440 39 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FRAME ASM 4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA	8-98260-873-0	01	1	1312-	●
1	FRAME ASM A/T 5 SPEED-AISIN<MA1> HIGH RIDE SUSPENSION<7YC> THA	8-98102-285-4	01	1	1310-		●
1	FRAME ASM M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> THA	8-98159-167-3	01	1	1310-		●
1	FRAME ASM M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98102-253-6	01	1	1310-		●
1	FRAME ASM M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> THA	8-98159-165-3	01	1	1310-		●
1	FRAME ASM A/T 5 SPEED-AISIN<MA1> THA	8-98102-296-4	01	1	1310-			●
1	FRAME ASM M/T MUA 5 SPEED 5H<MWQ> THA	8-98102-252-5	01	1	1310-			●
1	FRAME ASM M/T MUX 5 SPEED 5S<MZJ> THA	8-98105-148-5	01	1	1310-			●
1	FRAME ASM A/T 5 SPEED-AISIN<MA1> HIGH RIDE SUSPENSION<7YC> THA	8-98159-168-2	01	1	1310-				●
1	FRAME ASM A/T 5 SPEED-AISIN<MA1> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98102-251-4	01	1	1310-				●
1	FRAME ASM M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> THA	8-98159-169-3	01	1	1310-				●
1	FRAME ASM M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98159-178-4	01	1	1310-				●
1	FRAME ASM M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> THA	8-98159-166-3	01	1	1310-				●
1	FRAME ASM M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98159-172-2	01	1	1310-					●
1	FRAME ASM A/T 5 SPEED-AISIN<MA1> THA	8-98159-173-2	01	1	1310-						●
1	FRAME ASM 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98159-174-2	01	1	1310-						●
2	MEMBER; CROSS,1ST THA	8-98106-701-1	01	1	1310-1311		●	●	●	●	●
2	MEMBER; CROSS,1ST THA	8-98106-701-1	01	1	1312-	●	●	●	●	●	●
5	MEMBER; CROSS,SUSPENSION HIGH RIDE SUSPENSION<7YC> THA	8-98173-915-1	01	1	1310-		●		●
5	MEMBER; CROSS,SUSPENSION EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-736-2	01	1	1310-		●		●
5	MEMBER; CROSS,SUSPENSION THA	8-98106-736-2	01	1	1310-			●
5	MEMBER; CROSS,SUSPENSION THA	8-98229-450-0	01	1	1310-1311					●	●
5	MEMBER; CROSS,SUSPENSION THA	8-98229-450-0	01	1	1312-	●				●	●
11	BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-793-2	01	1	1310-		●		●
11	BRACKET; ENG MTG THA	8-98106-793-2	01	1	1310-			●
11	BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-795-1	01	1	1310-		●		●
11	BRACKET; ENG MTG THA	8-98106-795-1	01	1	1310-			●
11	BRACKET; ENG MTG HIGH RIDE SUSPENSION<7YC> THA	8-98106-794-2	01	1	1310-1311		●		●
11	BRACKET; ENG MTG THA	8-98106-794-2	01	1	1310-1311					●	●
11	BRACKET; ENG MTG HIGH RIDE SUSPENSION<7YC> THA	8-98106-794-2	01	1	1312-		●		●
11	BRACKET; ENG MTG THA	8-98106-794-2	01	1	1312-	●				●	●
11	BRACKET; ENG MTG HIGH RIDE SUSPENSION<7YC> THA	8-98106-796-2	01	1	1310-1311		●		●
11	BRACKET; ENG MTG THA	8-98106-796-2	01	1	1310-1311					●	●
11	BRACKET; ENG MTG HIGH RIDE SUSPENSION<7YC> THA	8-98106-796-2	01	1	1312-		●		●
11	BRACKET; ENG MTG THA	8-98106-796-2	01	1	1312-	●				●	●
24	BRACKET; FRT SPR,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-806-3	01	1	1310-		●		●
24	BRACKET; FRT SPR,FRT THA	8-98106-806-3	01	1	1310-			●
24	BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-807-1	01	1	1310-1311		●		●
24	BRACKET; FRT SPR,FRT THA	8-98106-807-1	01	1	1310-1311					●	●
24	BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-807-1	01	1	1312-		●		●
24	BRACKET; FRT SPR,FRT THA	8-98106-807-1	01	1	1312-	●				●	●
29	BRACKET; CAB MTG (A) THA	8-97942-341-3	02	1	1310-1311		●	●	●	●	●
29	BRACKET; CAB MTG (A) THA	8-97942-341-3	02	1	1312-	●	●	●	●	●	●
29	BRACKET; CAB MTG (B) THA	8-98106-784-3	01	1	1310-1311		●	●	●	●	●
29	BRACKET; CAB MTG (B) THA	8-98106-784-3	01	1	1312-	●	●	●	●	●	●
29	BRACKET; CAB MTG (C) THA	8-98106-791-3	01	1	1310-1311		●	●	●	●	●
29	BRACKET; CAB MTG (C) THA	8-98106-791-3	01	1	1312-	●	●	●	●	●	●
29	BRACKET; CAB MTG (D) THA	8-98107-534-0	02	1	1310-1311		●	●	●	●	●
29	BRACKET; CAB MTG (D) THA	8-98107-534-0	02	1	1312-	●	●	●	●	●	●
29	BRACKET; CAB MTG (G) THA	8-98106-842-2	01	1	1310-		●			●
29	BRACKET; CAB MTG (G) THA	8-98106-843-2	01	1	1310-		●			●
29	BRACKET; CAB MTG (F) THA	8-98173-497-0	02	1	1310-1311			●	●		●
29	BRACKET; CAB MTG (F) THA	8-98173-497-0	02	1	1312-	●		●	●		●
29	BRACKET; CAB MTG (E) THA	8-98106-844-2	01	1	1310-				●		●
29	BRACKET; CAB MTG (E) THA	8-98106-845-2	01	1	1310-				●		●
39	BRACKET; FRT SPR,RR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-808-3	01	1	1310-		●		●
39	BRACKET; FRT SPR,RR THA	8-98106-808-3	01	1	1310-			●
39	BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION<7YC> THA	8-98106-809-1	01	1	1310-1311		●		●
39	BRACKET; FRT SPR,RR THA	8-98106-809-1	01	1	1310-1311					●	●
39	BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION<7YC> THA	8-98106-809-1	01	1	1312-		●		●
39	BRACKET; FRT SPR,RR THA	8-98106-809-1	01	1	1312-	●				●	●
101	BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-866-0	01	1	1310-		●		●
101	BRACKET; RR SPR,FRT THA	8-98106-866-0	01	1	1310-			●
101	BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-867-0	01	1	1310-		●		●
101	BRACKET; RR SPR,FRT THA	8-98106-867-0	01	1	1310-			●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-868-0	01	1	1310-1311		●		●
101	BRACKET; RR SPR,FRT THA	8-98106-868-0	01	1	1310-1311					●	●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-868-0	01	1	1312-		●		●
101	BRACKET; RR SPR,FRT THA	8-98106-868-0	01	1	1312-	●				●	●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-869-0	01	1	1310-1311		●		●
101	BRACKET; RR SPR,FRT THA	8-98106-869-0	01	1	1310-1311					●	●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-869-0	01	1	1312-		●		●
101	BRACKET; RR SPR,FRT THA	8-98106-869-0	01	1	1312-	●				●	●
105	BRACKET; RR SPR,RR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97942-294-0	02	1	1310-		●		●
105	BRACKET; RR SPR,RR THA	8-97942-294-0	02	1	1310-			●
105	BRACKET; RR SPR,RR HIGH RIDE SUSPENSION<7YC> THA	8-98106-870-0	02	1	1310-1311		●		●
105	BRACKET; RR SPR,RR THA	8-98106-870-0	02	1	1310-1311					●	●
105	BRACKET; RR SPR,RR HIGH RIDE SUSPENSION<7YC> THA	8-98106-870-0	02	1	1312-		●		●
105	BRACKET; RR SPR,RR THA	8-98106-870-0	02	1	1312-	●				●	●
156	BRACKET; RR BODY MTG (A) THA	8-98213-874-0	03	1	1310-1311		●	●	●	●	●
156	BRACKET; RR BODY MTG (A) THA	8-98213-874-0	03	1	1312-	●	●	●	●	●	●
156	BRACKET; RR BODY MTG (B) THA	8-98213-875-0	01	1	1310-1311		●	●	●	●	●
156	BRACKET; RR BODY MTG (B) THA	8-98213-875-0	01	1	1312-	●	●	●	●	●	●
156	BRACKET; RR BODY MTG (E) THA	8-98106-864-0	01	1	1310-1311		●	●		●
156	BRACKET; RR BODY MTG (E) THA	8-98106-864-0	01	1	1312-	●	●	●		●
156	BRACKET; RR BODY MTG (E) THA	8-98106-865-0	01	1	1310-1311		●	●		●
156	BRACKET; RR BODY MTG (E) THA	8-98106-865-0	01	1	1312-	●	●	●		●
156	BRACKET; RR BODY MTG (D) THA	8-98213-872-0	01	1	1310-1311		●	●		●
156	BRACKET; RR BODY MTG (D) THA	8-98213-872-0	01	1	1312-	●	●	●		●
156	BRACKET; RR BODY MTG (D) THA	8-98213-873-0	01	1	1310-1311		●	●		●
156	BRACKET; RR BODY MTG (D) THA	8-98213-873-0	01	1	1312-	●	●	●		●
156	BRACKET; RR BODY MTG (F) THA	8-98213-870-0	01	1	1310-1311			●
156	BRACKET; RR BODY MTG (F) THA	8-98213-870-0	01	1	1312-	●		●
156	BRACKET; RR BODY MTG (F) THA	8-98213-871-0	01	1	1310-1311			●
156	BRACKET; RR BODY MTG (F) THA	8-98213-871-0	01	1	1312-	●		●
156	BRACKET; RR BODY MTG (C) THA	8-98214-084-0	02	1	1310-				●		●
164	PLATE; FRT THA	8-98106-814-0	01	1	1310-1311		●	●	●	●	●
164	PLATE; FRT THA	8-98106-814-0	01	1	1312-	●	●	●	●	●	●
164	PLATE; FRT THA	8-98106-815-0	01	1	1310-1311		●	●	●	●	●
164	PLATE; FRT THA	8-98106-815-0	01	1	1312-	●	●	●	●	●	●
204	MEMBER; CROSS,TRANS MTG A/T 5 SPEED-AISIN<MA1> THA	8-98106-760-5	01	1	1310-		●	●	●
204	MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5H<MWQ> THA	8-98106-759-4	01	1	1310-		●	●	●
204	MEMBER; CROSS,TRANS MTG M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-758-5	01	1	1310-		●	●	●
204	MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-761-4	01	1	1310-1311					●	●
204	MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-761-4	01	1	1312-	●				●	●
204	MEMBER; CROSS,TRANS MTG A/T 5 SPEED-AISIN<MA1> THA	8-98106-762-4	01	1	1310-						●
256	BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-800-2	01	1	1310-		●		●
256	BRACKET; S/ABS THA	8-98106-800-2	01	1	1310-			●
256	BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-802-1	01	1	1310-		●		●
256	BRACKET; S/ABS THA	8-98106-802-1	01	1	1310-			●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION<7YC> THA	8-98106-801-6	01	1	1310-1311		●		●
256	BRACKET; S/ABS THA	8-98106-801-6	01	1	1310-1311					●	●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION<7YC> THA	8-98106-801-6	01	1	1312-		●		●
256	BRACKET; S/ABS THA	8-98106-801-6	01	1	1312-	●				●	●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION<7YC> THA	8-98106-803-4	01	1	1310-1311		●		●
256	BRACKET; S/ABS THA	8-98106-803-4	01	1	1310-1311					●	●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION<7YC> THA	8-98106-803-4	01	1	1312-		●		●
256	BRACKET; S/ABS THA	8-98106-803-4	01	1	1312-	●				●	●
302	REINFORCEMENT; S/MBR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98125-713-0	01	1	1310-		●
302	REINFORCEMENT; S/MBR THA	8-98125-713-0	01	1	1310-			●
302	REINFORCEMENT; S/MBR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98125-714-0	01	1	1310-		●
302	REINFORCEMENT; S/MBR THA	8-98125-714-0	01	1	1310-			●
440	BRACKET; HOSE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-872-1	01	1	1310-		●		●
440	BRACKET; HOSE THA	8-98106-872-1	01	1	1310-			●
440	BRACKET; HOSE HIGH RIDE SUSPENSION<7YC> THA	8-98106-873-1	01	1	1310-1311		●		●
440	BRACKET; HOSE THA	8-98106-873-1	01	1	1310-1311					●	●
440	BRACKET; HOSE HIGH RIDE SUSPENSION<7YC> THA	8-98106-873-1	01	1	1312-		●		●
440	BRACKET; HOSE THA	8-98106-873-1	01	1	1312-	●				●	●
514	PIN; S/ABS THA	8-97942-395-1	02	1	1310-1311		●	●	●	●	●
514	PIN; S/ABS THA	8-97942-395-1	02	1	1312-	●	●	●	●	●	●
547	BRACE; C/MBR (A) THA	8-98173-910-1	01	1	1310-		●	●	●
547	BRACE; C/MBR (B) THA	8-98173-913-0	01	1	1310-		●	●	●
547	BRACE; C/MBR (C) THA	8-98173-914-0	01	1	1310-		●	●	●
547	BRACE; C/MBR (D) THA	8-98177-568-3	01	1	1310-		●	●	●
547	BRACE; C/MBR (D) THA	8-98229-465-0	01	1	1310-1311					●	●
547	BRACE; C/MBR (D) THA	8-98229-465-0	01	1	1312-	●				●	●
547	BRACE; C/MBR (A) THA	8-98229-466-0	01	1	1310-1311					●	●
547	BRACE; C/MBR (A) THA	8-98229-466-0	01	1	1312-	●				●	●
547	BRACE; C/MBR (B) THA	8-98173-911-0	01	1	1310-1311					●	●
547	BRACE; C/MBR (B) THA	8-98173-911-0	01	1	1312-	●				●	●
547	BRACE; C/MBR (C) THA	8-98173-912-0	01	1	1310-1311					●	●
547	BRACE; C/MBR (C) THA	8-98173-912-0	01	1	1312-	●				●	●

497 497 497 497 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
485	NUT; TRANS MTG MBR,FRAME M10 FLANGE THA	0-91180-210-0	04	1	1310-1311		●	●	●	●	●
485	NUT; TRANS MTG MBR,FRAME M10 FLANGE THA	0-91180-210-0	04	1	1312-	●	●	●	●	●	●
497	BOLT; C/MBR (C) M10X120 FLANGE THA	0-28066-012-0	04	1	1310-1311		●	●	●	●	●
497	BOLT; C/MBR (C) M10X120 FLANGE THA	0-28066-012-0	04	1	1312-	●	●	●	●	●	●
497	BOLT; C/MBR HIGH RIDE SUSPENSION<7YC> (B) M10X35 FLANGE THA	0-28661-035-0	06	1	1310-1311		●		●
497	BOLT; C/MBR (B) M10X35 FLANGE THA	0-28661-035-0	06	1	1310-1311					●	●
497	BOLT; C/MBR HIGH RIDE SUSPENSION<7YC> (B) M10X35 FLANGE THA	0-28661-035-0	06	1	1312-		●		●
497	BOLT; C/MBR (B) M10X35 FLANGE THA	0-28661-035-0	06	1	1312-	●				●	●
497	BOLT; C/MBR (A) M10X28 W/LK&PL WASHER THA	8-97945-706-0	02	1	1310-		●	●	●
497	BOLT; C/MBR (D) M12X30 FLANGE THA	0-28651-230-0	08	1	1310-1311		●	●	●	●	●
497	BOLT; C/MBR (D) M12X30 FLANGE THA	0-28651-230-0	08	1	1312-	●	●	●	●	●	●
497	BOLT; C/MBR EXC. HIGH RIDE SUSPENSION<7YC> (B) M10X35 FLANGE THA	0-28661-035-0	04	1	1310-		●		●
497	BOLT; C/MBR (B) M10X35 FLANGE THA	0-28661-035-0	04	1	1310-			●

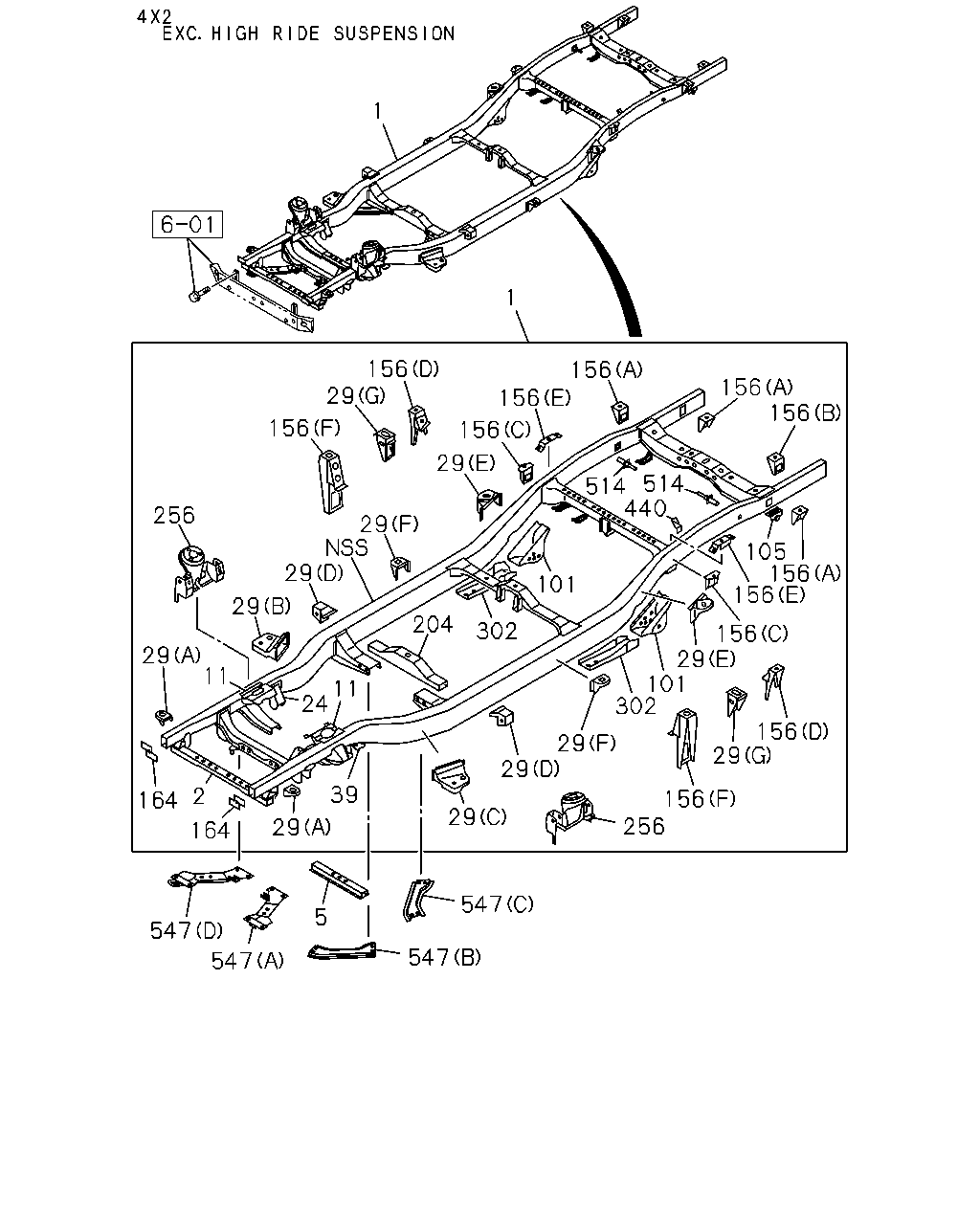

1 1 156 29 156 256 29 29 29 29 204 156 156 352 156 156 514 514 440 101 101 29 156 352 156 156 105 105 156 39 24 11 29 11 164 164 2 29 547 547 547 5 547 352 29 29 29 256 29 156 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FRAME ASM 4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA	8-98260-873-0	01	1	1312-	●
1	FRAME ASM A/T 5 SPEED-AISIN<MA1> HIGH RIDE SUSPENSION<7YC> THA	8-98102-285-4	01	1	1310-		●
1	FRAME ASM M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> THA	8-98159-167-3	01	1	1310-		●
1	FRAME ASM M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98102-253-6	01	1	1310-		●
1	FRAME ASM M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> THA	8-98159-165-3	01	1	1310-		●
1	FRAME ASM A/T 5 SPEED-AISIN<MA1> THA	8-98102-296-4	01	1	1310-			●
1	FRAME ASM M/T MUA 5 SPEED 5H<MWQ> THA	8-98102-252-5	01	1	1310-			●
1	FRAME ASM M/T MUX 5 SPEED 5S<MZJ> THA	8-98105-148-5	01	1	1310-			●
1	FRAME ASM A/T 5 SPEED-AISIN<MA1> HIGH RIDE SUSPENSION<7YC> THA	8-98159-168-2	01	1	1310-				●
1	FRAME ASM A/T 5 SPEED-AISIN<MA1> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98102-251-4	01	1	1310-				●
1	FRAME ASM M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> THA	8-98159-169-3	01	1	1310-				●
1	FRAME ASM M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98159-178-4	01	1	1310-				●
1	FRAME ASM M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> THA	8-98159-166-3	01	1	1310-				●
1	FRAME ASM M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98159-172-2	01	1	1310-					●
1	FRAME ASM A/T 5 SPEED-AISIN<MA1> THA	8-98159-173-2	01	1	1310-						●
1	FRAME ASM 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98159-174-2	01	1	1310-						●
2	MEMBER; CROSS,1ST THA	8-98106-701-1	01	1	1310-1311		●	●	●	●	●
2	MEMBER; CROSS,1ST THA	8-98106-701-1	01	1	1312-	●	●	●	●	●	●
5	MEMBER; CROSS,SUSPENSION HIGH RIDE SUSPENSION<7YC> THA	8-98173-915-1	01	1	1310-		●		●
5	MEMBER; CROSS,SUSPENSION EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-736-2	01	1	1310-		●		●
5	MEMBER; CROSS,SUSPENSION THA	8-98106-736-2	01	1	1310-			●
5	MEMBER; CROSS,SUSPENSION THA	8-98229-450-0	01	1	1310-1311					●	●
5	MEMBER; CROSS,SUSPENSION THA	8-98229-450-0	01	1	1312-	●				●	●
11	BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-793-2	01	1	1310-		●		●
11	BRACKET; ENG MTG THA	8-98106-793-2	01	1	1310-			●
11	BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-795-1	01	1	1310-		●		●
11	BRACKET; ENG MTG THA	8-98106-795-1	01	1	1310-			●
11	BRACKET; ENG MTG HIGH RIDE SUSPENSION<7YC> THA	8-98106-794-2	01	1	1310-1311		●		●
11	BRACKET; ENG MTG THA	8-98106-794-2	01	1	1310-1311					●	●
11	BRACKET; ENG MTG HIGH RIDE SUSPENSION<7YC> THA	8-98106-794-2	01	1	1312-		●		●
11	BRACKET; ENG MTG THA	8-98106-794-2	01	1	1312-	●				●	●
11	BRACKET; ENG MTG HIGH RIDE SUSPENSION<7YC> THA	8-98106-796-2	01	1	1310-1311		●		●
11	BRACKET; ENG MTG THA	8-98106-796-2	01	1	1310-1311					●	●
11	BRACKET; ENG MTG HIGH RIDE SUSPENSION<7YC> THA	8-98106-796-2	01	1	1312-		●		●
11	BRACKET; ENG MTG THA	8-98106-796-2	01	1	1312-	●				●	●
24	BRACKET; FRT SPR,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-806-3	01	1	1310-		●		●
24	BRACKET; FRT SPR,FRT THA	8-98106-806-3	01	1	1310-			●
24	BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-807-1	01	1	1310-1311		●		●
24	BRACKET; FRT SPR,FRT THA	8-98106-807-1	01	1	1310-1311					●	●
24	BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-807-1	01	1	1312-		●		●
24	BRACKET; FRT SPR,FRT THA	8-98106-807-1	01	1	1312-	●				●	●
29	BRACKET; CAB MTG (A) THA	8-97942-341-3	02	1	1310-1311		●	●	●	●	●
29	BRACKET; CAB MTG (A) THA	8-97942-341-3	02	1	1312-	●	●	●	●	●	●
29	BRACKET; CAB MTG (B) THA	8-98106-784-3	01	1	1310-1311		●	●	●	●	●
29	BRACKET; CAB MTG (B) THA	8-98106-784-3	01	1	1312-	●	●	●	●	●	●
29	BRACKET; CAB MTG (C) THA	8-98106-791-3	01	1	1310-1311		●	●	●	●	●
29	BRACKET; CAB MTG (C) THA	8-98106-791-3	01	1	1312-	●	●	●	●	●	●
29	BRACKET; CAB MTG (D) THA	8-98107-534-0	02	1	1310-1311		●	●	●	●	●
29	BRACKET; CAB MTG (D) THA	8-98107-534-0	02	1	1312-	●	●	●	●	●	●
29	BRACKET; CAB MTG (G) THA	8-98106-842-2	01	1	1310-		●			●
29	BRACKET; CAB MTG (G) THA	8-98106-843-2	01	1	1310-		●			●
29	BRACKET; CAB MTG (F) THA	8-98173-497-0	02	1	1310-1311			●	●		●
29	BRACKET; CAB MTG (F) THA	8-98173-497-0	02	1	1312-	●		●	●		●
29	BRACKET; CAB MTG (E) THA	8-98106-844-2	01	1	1310-				●		●
29	BRACKET; CAB MTG (E) THA	8-98106-845-2	01	1	1310-				●		●
39	BRACKET; FRT SPR,RR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-808-3	01	1	1310-		●		●
39	BRACKET; FRT SPR,RR THA	8-98106-808-3	01	1	1310-			●
39	BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION<7YC> THA	8-98106-809-1	01	1	1310-1311		●		●
39	BRACKET; FRT SPR,RR THA	8-98106-809-1	01	1	1310-1311					●	●
39	BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION<7YC> THA	8-98106-809-1	01	1	1312-		●		●
39	BRACKET; FRT SPR,RR THA	8-98106-809-1	01	1	1312-	●				●	●
101	BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-866-0	01	1	1310-		●		●
101	BRACKET; RR SPR,FRT THA	8-98106-866-0	01	1	1310-			●
101	BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-867-0	01	1	1310-		●		●
101	BRACKET; RR SPR,FRT THA	8-98106-867-0	01	1	1310-			●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-868-0	01	1	1310-1311		●		●
101	BRACKET; RR SPR,FRT THA	8-98106-868-0	01	1	1310-1311					●	●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-868-0	01	1	1312-		●		●
101	BRACKET; RR SPR,FRT THA	8-98106-868-0	01	1	1312-	●				●	●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-869-0	01	1	1310-1311		●		●
101	BRACKET; RR SPR,FRT THA	8-98106-869-0	01	1	1310-1311					●	●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-869-0	01	1	1312-		●		●
101	BRACKET; RR SPR,FRT THA	8-98106-869-0	01	1	1312-	●				●	●
105	BRACKET; RR SPR,RR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97942-294-0	02	1	1310-		●		●
105	BRACKET; RR SPR,RR THA	8-97942-294-0	02	1	1310-			●
105	BRACKET; RR SPR,RR HIGH RIDE SUSPENSION<7YC> THA	8-98106-870-0	02	1	1310-1311		●		●
105	BRACKET; RR SPR,RR THA	8-98106-870-0	02	1	1310-1311					●	●
105	BRACKET; RR SPR,RR HIGH RIDE SUSPENSION<7YC> THA	8-98106-870-0	02	1	1312-		●		●
105	BRACKET; RR SPR,RR THA	8-98106-870-0	02	1	1312-	●				●	●
156	BRACKET; RR BODY MTG (A) THA	8-98213-874-0	03	1	1310-1311		●	●	●	●	●
156	BRACKET; RR BODY MTG (A) THA	8-98213-874-0	03	1	1312-	●	●	●	●	●	●
156	BRACKET; RR BODY MTG (B) THA	8-98213-875-0	01	1	1310-1311		●	●	●	●	●
156	BRACKET; RR BODY MTG (B) THA	8-98213-875-0	01	1	1312-	●	●	●	●	●	●
156	BRACKET; RR BODY MTG (E) THA	8-98106-864-0	01	1	1310-1311		●	●		●
156	BRACKET; RR BODY MTG (E) THA	8-98106-864-0	01	1	1312-	●	●	●		●
156	BRACKET; RR BODY MTG (E) THA	8-98106-865-0	01	1	1310-1311		●	●		●
156	BRACKET; RR BODY MTG (E) THA	8-98106-865-0	01	1	1312-	●	●	●		●
156	BRACKET; RR BODY MTG (D) THA	8-98213-872-0	01	1	1310-1311		●	●		●
156	BRACKET; RR BODY MTG (D) THA	8-98213-872-0	01	1	1312-	●	●	●		●
156	BRACKET; RR BODY MTG (D) THA	8-98213-873-0	01	1	1310-1311		●	●		●
156	BRACKET; RR BODY MTG (D) THA	8-98213-873-0	01	1	1312-	●	●	●		●
156	BRACKET; RR BODY MTG (F) THA	8-98213-870-0	01	1	1310-1311			●
156	BRACKET; RR BODY MTG (F) THA	8-98213-870-0	01	1	1312-	●		●
156	BRACKET; RR BODY MTG (F) THA	8-98213-871-0	01	1	1310-1311			●
156	BRACKET; RR BODY MTG (F) THA	8-98213-871-0	01	1	1312-	●		●
156	BRACKET; RR BODY MTG (C) THA	8-98214-084-0	02	1	1310-				●		●
164	PLATE; FRT THA	8-98106-814-0	01	1	1310-1311		●	●	●	●	●
164	PLATE; FRT THA	8-98106-814-0	01	1	1312-	●	●	●	●	●	●
164	PLATE; FRT THA	8-98106-815-0	01	1	1310-1311		●	●	●	●	●
164	PLATE; FRT THA	8-98106-815-0	01	1	1312-	●	●	●	●	●	●
204	MEMBER; CROSS,TRANS MTG A/T 5 SPEED-AISIN<MA1> THA	8-98106-760-5	01	1	1310-		●	●	●
204	MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5H<MWQ> THA	8-98106-759-4	01	1	1310-		●	●	●
204	MEMBER; CROSS,TRANS MTG M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-758-5	01	1	1310-		●	●	●
204	MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-761-4	01	1	1310-1311					●	●
204	MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-761-4	01	1	1312-	●				●	●
204	MEMBER; CROSS,TRANS MTG A/T 5 SPEED-AISIN<MA1> THA	8-98106-762-4	01	1	1310-						●
256	BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-800-2	01	1	1310-		●		●
256	BRACKET; S/ABS THA	8-98106-800-2	01	1	1310-			●
256	BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-802-1	01	1	1310-		●		●
256	BRACKET; S/ABS THA	8-98106-802-1	01	1	1310-			●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION<7YC> THA	8-98106-801-6	01	1	1310-1311		●		●
256	BRACKET; S/ABS THA	8-98106-801-6	01	1	1310-1311					●	●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION<7YC> THA	8-98106-801-6	01	1	1312-		●		●
256	BRACKET; S/ABS THA	8-98106-801-6	01	1	1312-	●				●	●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION<7YC> THA	8-98106-803-4	01	1	1310-1311		●		●
256	BRACKET; S/ABS THA	8-98106-803-4	01	1	1310-1311					●	●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION<7YC> THA	8-98106-803-4	01	1	1312-		●		●
256	BRACKET; S/ABS THA	8-98106-803-4	01	1	1312-	●				●	●
352	BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION<7YC> (A) THA	8-98106-835-3	01	1	1310-1311		●		●
352	BRACKET; BUMPER RUBBER (A) THA	8-98106-835-3	01	1	1310-1311					●	●
352	BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION<7YC> (A) THA	8-98106-835-3	01	1	1312-		●		●
352	BRACKET; BUMPER RUBBER (A) THA	8-98106-835-3	01	1	1312-	●				●	●
352	BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION<7YC> (A) THA	8-98106-836-3	01	1	1310-1311		●		●
352	BRACKET; BUMPER RUBBER (A) THA	8-98106-836-3	01	1	1310-1311					●	●
352	BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION<7YC> (A) THA	8-98106-836-3	01	1	1312-		●		●
352	BRACKET; BUMPER RUBBER (A) THA	8-98106-836-3	01	1	1312-	●				●	●
352	BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION<7YC> (B) THA	8-98106-871-1	02	1	1310-1311		●		●
352	BRACKET; BUMPER RUBBER (B) THA	8-98106-871-1	02	1	1310-1311					●	●
352	BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION<7YC> (B) THA	8-98106-871-1	02	1	1312-		●		●
352	BRACKET; BUMPER RUBBER (B) THA	8-98106-871-1	02	1	1312-	●				●	●
440	BRACKET; HOSE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-872-1	01	1	1310-		●		●
440	BRACKET; HOSE THA	8-98106-872-1	01	1	1310-			●
440	BRACKET; HOSE HIGH RIDE SUSPENSION<7YC> THA	8-98106-873-1	01	1	1310-1311		●		●
440	BRACKET; HOSE THA	8-98106-873-1	01	1	1310-1311					●	●
440	BRACKET; HOSE HIGH RIDE SUSPENSION<7YC> THA	8-98106-873-1	01	1	1312-		●		●
440	BRACKET; HOSE THA	8-98106-873-1	01	1	1312-	●				●	●
514	PIN; S/ABS THA	8-97942-395-1	02	1	1310-1311		●	●	●	●	●
514	PIN; S/ABS THA	8-97942-395-1	02	1	1312-	●	●	●	●	●	●
547	BRACE; C/MBR (A) THA	8-98173-910-1	01	1	1310-		●	●	●
547	BRACE; C/MBR (B) THA	8-98173-913-0	01	1	1310-		●	●	●
547	BRACE; C/MBR (C) THA	8-98173-914-0	01	1	1310-		●	●	●
547	BRACE; C/MBR (D) THA	8-98177-568-3	01	1	1310-		●	●	●
547	BRACE; C/MBR (D) THA	8-98229-465-0	01	1	1310-1311					●	●
547	BRACE; C/MBR (D) THA	8-98229-465-0	01	1	1312-	●				●	●
547	BRACE; C/MBR (A) THA	8-98229-466-0	01	1	1310-1311					●	●
547	BRACE; C/MBR (A) THA	8-98229-466-0	01	1	1312-	●				●	●
547	BRACE; C/MBR (B) THA	8-98173-911-0	01	1	1310-1311					●	●
547	BRACE; C/MBR (B) THA	8-98173-911-0	01	1	1312-	●				●	●
547	BRACE; C/MBR (C) THA	8-98173-912-0	01	1	1310-1311					●	●
547	BRACE; C/MBR (C) THA	8-98173-912-0	01	1	1312-	●				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
