2 |

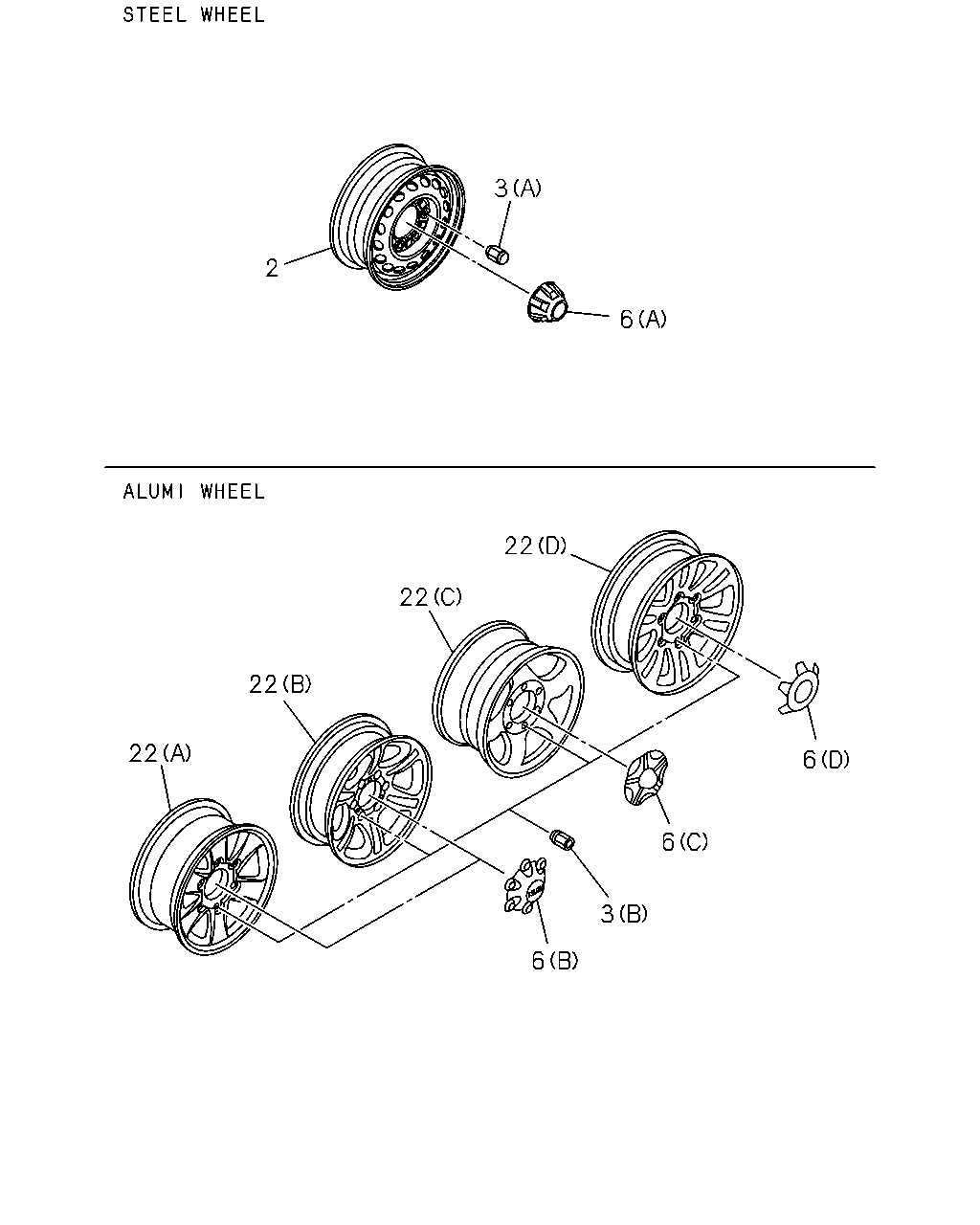

WHEEL; DISC
FRT&RR 205R16C<CUY>
DISC WHEEL 16X6.5 STEEL<QB5>
SPARE
16X6.5J OFFSET=33 6-HOLE STEEL WHEEL
THA
|
8-98218-147-0 |
01 |
1 |
1310-1311 |
● |
● |
● |
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205R16C<CUY>
DISC WHEEL 16X6.5 STEEL<QB5>
SPARE
16X6.5J OFFSET=33 6-HOLE STEEL WHEEL
THA
|
8-98218-147-0 |
01 |
1 |
1312- |
● |
● |
● |
● |
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205R16C<CUY>
DISC WHEEL 16X6.5 STEEL<QB5>
FRONT,REAR
16X6.5J OFFSET=33 6-HOLE STEEL WHEEL
THA
|
8-98218-147-0 |
04 |
1 |
1310-1311 |
● |
● |
● |
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205R16C<CUY>
DISC WHEEL 16X6.5 STEEL<QB5>
FRONT,REAR
16X6.5J OFFSET=33 6-HOLE STEEL WHEEL
THA
|
8-98218-147-0 |
04 |
1 |
1312- |
● |
● |
● |
● |
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 195R15C(R611)<CWN>
DISC WHEEL 15X6-41 STEEL<PG1>
SPARE
15X6.0J OFFSET=41 6-HOLE STEEL WHEEL
THA
|
8-98218-142-0 |
01 |
1 |
1310- |
● |
● |
|
|
|
● |
| |
2 |
WHEEL; DISC
FRT&RR 195R15C(R611)<CWN>
DISC WHEEL 15X6-41 STEEL<PG1>
FRONT,REAR
15X6.0J OFFSET=41 6-HOLE STEEL WHEEL
THA
|
8-98218-142-0 |
04 |
1 |
1310- |
● |
● |
|
|
|
● |
| |
2 |
WHEEL; DISC
FRT&RR 215/70R15C DUNLOP TIRE<CWP>,FRT&RR
215/70R15C<QBQ>
DISC WHEEL 15X6.5-41 STEEL<BSY>
FRONT,REAR
15X6.5J OFFSET=41 6-HOLE STEEL WHEEL
THA
|
8-98218-140-0 |
04 |
1 |
1310- |
● |
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 215/70R15C DUNLOP TIRE<CWP>
DISC WHEEL 15X6.5-41 STEEL<BSY>
FRONT,REAR
15X6.5J OFFSET=41 6-HOLE STEEL WHEEL
THA
|
8-98218-140-0 |
04 |
1 |
1310- |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
FRT&RR 215/70R15C DUNLOP TIRE<CWP>,FRT&RR
215/70R15C<QBQ>
DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL
15X6.5-41 ALUMI<PF3>
SPARE
15X6.5J OFFSET=41 6-HOLE STEEL WHEEL
THA
|
8-98218-140-0 |
01 |
1 |
1310- |
● |
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 215/70R15C DUNLOP TIRE<CWP>
DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL
15X6.5-41 ALUMI<PF3>
SPARE
15X6.5J OFFSET=41 6-HOLE STEEL WHEEL
THA
|
8-98218-140-0 |
01 |
1 |
1310- |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
FRT&RR 245/70R16<QCQ>
DISC WHEEL 16X7 ALUMI DARK GRAY PAINT<CXL>,
DISC WHEEL 16X7 ALUMI<PF4>,DISC WHEEL 16X7
STEEL<QC1>
SPARE
16X7.0J OFFSET=33 6-HOLE STEEL WHEEL
THA
|
8-98218-148-0 |
01 |
1 |
1310-1311 |
● |
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 245/70R16<QCQ>
DISC WHEEL 16X7 ALUMI<PF4>,DISC WHEEL 16X7
STEEL<QC1>
SPARE
16X7.0J OFFSET=33 6-HOLE STEEL WHEEL
THA
|
8-98218-148-0 |
01 |
1 |
1310-1311 |
|
|
● |
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 245/70R16<QCQ>
DISC WHEEL 16X7 ALUMI DARK GRAY PAINT<CXL>,
DISC WHEEL 16X7 ALUMI<PF4>,DISC WHEEL 16X7
STEEL<QC1>
SPARE
16X7.0J OFFSET=33 6-HOLE STEEL WHEEL
THA
|
8-98218-148-0 |
01 |
1 |
1312- |
● |
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 245/70R16<QCQ>
DISC WHEEL 16X7 ALUMI<PF4>,DISC WHEEL 16X7
STEEL<QC1>
SPARE
16X7.0J OFFSET=33 6-HOLE STEEL WHEEL
THA
|
8-98218-148-0 |
01 |
1 |
1312- |
|
|
● |
● |
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 245/70R16<QCQ>
DISC WHEEL 16X7 STEEL<QC1>
FRONT,REAR
16X7.0J OFFSET=33 6-HOLE STEEL WHEEL
THA
|
8-98218-148-0 |
04 |
1 |
1310-1311 |
● |
● |
● |
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 245/70R16<QCQ>
DISC WHEEL 16X7 STEEL<QC1>
FRONT,REAR
16X7.0J OFFSET=33 6-HOLE STEEL WHEEL
THA
|
8-98218-148-0 |
04 |
1 |
1312- |
● |
● |
● |
● |
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 255/65R17<QZX>
DISC WHEEL 17X7 ALUMI DARK GRAY PAINT<CXK>,
DISC WHEEL 17X7 ALUMI<PFE>
SPARE
17X7.0J OFFSET=33 6-HOLE STEEL WHEEL
THA
|
8-98218-149-0 |
01 |
1 |
1310-1311 |
● |
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 255/65R17<QZX>
DISC WHEEL 17X7 ALUMI<PFE>
SPARE
17X7.0J OFFSET=33 6-HOLE STEEL WHEEL
THA
|
8-98218-149-0 |
01 |
1 |
1310-1311 |
|
|
● |
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 255/65R17<QZX>
DISC WHEEL 17X7 ALUMI DARK GRAY PAINT<CXK>,
DISC WHEEL 17X7 ALUMI<PFE>
SPARE
17X7.0J OFFSET=33 6-HOLE STEEL WHEEL
THA
|
8-98218-149-0 |
01 |
1 |
1312- |
● |
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 255/65R17<QZX>
DISC WHEEL 17X7 ALUMI<PFE>
SPARE
17X7.0J OFFSET=33 6-HOLE STEEL WHEEL
THA
|
8-98218-149-0 |
01 |
1 |
1312- |
|
|
● |
● |
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 215/70R16C<QZY>
DISC WHEEL 16X6.5 ALUMI DARK GRAY PAINT<CXJ>,
DISC WHEEL 16X6.5 ALUMI<PY0>
SPARE
16X6.5J OFFSET=41 6-HOLE STEEL WHEEL
THA
|
8-98218-146-0 |
01 |
1 |
1310- |
● |
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 215/70R16C<QZY>
DISC WHEEL 16X6.5 ALUMI<PY0>
SPARE
16X6.5J OFFSET=41 6-HOLE STEEL WHEEL
THA
|
8-98218-146-0 |
01 |
1 |
1310- |
|
|
|
|
|
● |
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL
15X6-41 STEEL<PG1>,DISC WHEEL 16X6.5 STEEL<QB5>,
DISC WHEEL 16X7 STEEL<QC1>
(A)
M12 H=30.5
THA
|
8-97333-108-0 |
24 |
1 |
1310-1311 |
● |
● |
|
|
|
|
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL
15X6-41 STEEL<PG1>
(A)
M12 H=30.5
THA
|
8-97333-108-0 |
24 |
1 |
1310-1311 |
|
|
|
|
|
● |
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 16X6.5 STEEL<QB5>,DISC WHEEL 16X7
STEEL<QC1>
(A)
M12 H=30.5
THA
|
8-97333-108-0 |
24 |
1 |
1310-1311 |
|
|
● |
● |
|
|
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL
15X6-41 STEEL<PG1>,DISC WHEEL 16X6.5 STEEL<QB5>,
DISC WHEEL 16X7 STEEL<QC1>
(A)
M12 H=30.5
THA
|
8-97333-108-0 |
24 |
1 |
1312- |
● |
● |
|
|
|
|
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL
15X6-41 STEEL<PG1>
(A)
M12 H=30.5
THA
|
8-97333-108-0 |
24 |
1 |
1312- |
|
|
|
|
|
● |
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 16X6.5 STEEL<QB5>,DISC WHEEL 16X7
STEEL<QC1>
(A)
M12 H=30.5
THA
|
8-97333-108-0 |
24 |
1 |
1312- |
|
|
● |
● |
● |
|
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 16X6.5 ALUMI DARK GRAY PAINT<CXJ>,
DISC WHEEL 17X7 ALUMI DARK GRAY PAINT<CXK>,
DISCWHEEL 16X7 ALUMI DARK GRAY PAINT<CXL>,DISC
WHEEL 17X7 ALUMI<PFE>,DISC WHEEL 15X6.5-41
ALUMI<PF3>,DISC WHEEL 16X7 ALUMI<PF4>,DISC WHEEL
16X6.5 ALUMI<PY0>
(B)
M12 H=23
THA
|
8-98101-983-0 |
24 |
1 |
1310-1311 |
● |
● |
|
|
|
|
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5-41 ALUMI<PF3>,DISC WHEEL
16X6.5 ALUMI<PY0>
(B)
M12 H=23
THA
|
8-98101-983-0 |
24 |
1 |
1310-1311 |
|
|
|
|
|
● |
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 17X7 ALUMI<PFE>,DISC WHEEL 16X7
ALUMI<PF4>
(B)
M12 H=23
THA
|
8-98101-983-0 |
24 |
1 |
1310-1311 |
|
|
● |
● |
|
|
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 16X6.5 ALUMI DARK GRAY PAINT<CXJ>,
DISC WHEEL 17X7 ALUMI DARK GRAY PAINT<CXK>,
DISCWHEEL 16X7 ALUMI DARK GRAY PAINT<CXL>,DISC
WHEEL 17X7 ALUMI<PFE>,DISC WHEEL 15X6.5-41
ALUMI<PF3>,DISC WHEEL 16X7 ALUMI<PF4>,DISC WHEEL
16X6.5 ALUMI<PY0>
(B)
M12 H=23
THA
|
8-98101-983-0 |
24 |
1 |
1312- |
● |
● |
|
|
|
|
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5-41 ALUMI<PF3>,DISC WHEEL
16X6.5 ALUMI<PY0>
(B)
M12 H=23
THA
|
8-98101-983-0 |
24 |
1 |
1312- |
|
|
|
|
|
● |
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 17X7 ALUMI<PFE>,DISC WHEEL 16X7
ALUMI<PF4>
(B)
M12 H=23
THA
|
8-98101-983-0 |
24 |
1 |
1312- |
|
|
● |
● |
● |
|
| |
6 |
CAP; WHEEL
DISC WHEEL 16X6.5 ALUMI DARK GRAY PAINT<CXJ>
(D)
ISUZU MARK
THA
|
8-98214-686-0 |
04 |
1 |
1310- |
● |
● |
|
|
|
|
| |
6 |
CAP; WHEEL
DISC WHEEL 17X7 ALUMI DARK GRAY PAINT<CXK>
(C)
ISUZU MARK
THA
|
8-98214-687-0 |
04 |
1 |
1310- |
● |
● |
|
|
|
|
| |
6 |
CAP; WHEEL
DISC WHEEL 16X7 ALUMI DARK GRAY PAINT<CXL>
(B)
ISUZU MARK
THA
|
8-98220-295-0 |
04 |
1 |
1310- |
● |
● |
|
|
|
|
| |
6 |
CAP; WHEEL
DISC WHEEL 17X7 ALUMI<PFE>
(C)
ISUZU MARK
THA
|
8-98107-318-3 |
04 |
1 |
1310-1311 |
● |
● |
● |
● |
|
|
| |
6 |
CAP; WHEEL
DISC WHEEL 17X7 ALUMI<PFE>
(C)
ISUZU MARK
THA
|
8-98107-318-3 |
04 |
1 |
1312- |
● |
● |
● |
● |
● |
|
| |
6 |
CAP; WHEEL
DISC WHEEL 15X6.5-41 ALUMI<PF3>,DISC WHEEL
16X7 ALUMI<PF4>
(B)
ISUZU MARK
THA
|
8-98102-993-0 |
04 |
1 |
1310-1311 |
● |
● |
|
|
|
|
| |
6 |
CAP; WHEEL
DISC WHEEL 15X6.5-41 ALUMI<PF3>
(B)
ISUZU MARK
THA
|
8-98102-993-0 |
04 |
1 |
1310-1311 |
|
|
|
|
|
● |
| |
6 |
CAP; WHEEL
DISC WHEEL 16X7 ALUMI<PF4>
(B)
ISUZU MARK
THA
|
8-98102-993-0 |
04 |
1 |
1310-1311 |
|
|
● |
● |
|
|
| |
6 |
CAP; WHEEL
DISC WHEEL 15X6.5-41 ALUMI<PF3>,DISC WHEEL
16X7 ALUMI<PF4>
(B)
ISUZU MARK
THA
|
8-98102-993-0 |
04 |
1 |
1312- |
● |
● |
|
|
|
|
| |
6 |
CAP; WHEEL
DISC WHEEL 15X6.5-41 ALUMI<PF3>
(B)
ISUZU MARK
THA
|
8-98102-993-0 |
04 |
1 |
1312- |
|
|
|
|
|
● |
| |
6 |
CAP; WHEEL
DISC WHEEL 16X7 ALUMI<PF4>
(B)
ISUZU MARK
THA
|
8-98102-993-0 |
04 |
1 |
1312- |
|
|
● |
● |
● |
|
| |
6 |
CAP; WHEEL
DISC WHEEL 16X6.5 ALUMI<PY0>
(D)
ISUZU MARK
THA
|
8-98102-994-0 |
04 |
1 |
1310- |
● |
● |
|
|
|
● |
| |
6 |
CAP; WHEEL
INTERIOR BASIC<RBA>
DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL
15X6-41 STEEL<PG1>
EXC. HIGH RIDE SUSPENSION<7YC>
(A)
ISUZU MARK
THA
|
8-97301-998-1 |
04 |
1 |
1310- |
● |
|
|
|
|
|
| |
6 |
CAP; WHEEL
INTERIOR BASIC<RBA>
DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL
15X6-41 STEEL<PG1>
(A)
ISUZU MARK
THA
|
8-97301-998-1 |
04 |
1 |
1310- |
|
|
|
|
|
● |
| |
6 |
CAP; WHEEL
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD>
DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL
15X6-41 STEEL<PG1>,DISC WHEEL 16X6.5 STEEL<QB5>,D
ISC WHEEL 16X7 STEEL<QC1>
(A)
ISUZU MARK
THA
|
8-98160-806-0 |
04 |
1 |
1310-1311 |
● |
● |
|
|
|
|
| |
6 |
CAP; WHEEL
INTERIOR BASIC<RBA>
DISC WHEEL 16X6.5 STEEL<QB5>,DISC WHEEL 16X7
STEEL<QC1>
(A)
ISUZU MARK
THA
|
8-98160-806-0 |
04 |
1 |
1310-1311 |
● |
|
|
|
|
|
| |
6 |
CAP; WHEEL
INTERIOR DELUXE<RBB>
DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL
15X6-41 STEEL<PG1>
(A)
ISUZU MARK
THA
|
8-98160-806-0 |
04 |
1 |
1310-1311 |
|
|
|
|
|
● |
| |
6 |
CAP; WHEEL
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD>
DISC WHEEL 16X6.5 STEEL<QB5>,DISC WHEEL 16X7
STEEL<QC1>
(A)
ISUZU MARK
THA
|
8-98160-806-0 |
04 |
1 |
1310-1311 |
|
|
● |
|
|
|
| |
6 |
CAP; WHEEL
DISC WHEEL 16X6.5 STEEL<QB5>,DISC WHEEL 16X7
STEEL<QC1>
(A)
ISUZU MARK
THA
|
8-98160-806-0 |
04 |
1 |
1310-1311 |
|
|
|
● |
|
|
| |
6 |
CAP; WHEEL
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD>
DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL
15X6-41 STEEL<PG1>,DISC WHEEL 16X6.5 STEEL<QB5>,D
ISC WHEEL 16X7 STEEL<QC1>
(A)
ISUZU MARK
THA
|
8-98160-806-0 |
04 |
1 |
1312- |
● |
● |
|
|
|
|
| |
6 |
CAP; WHEEL
INTERIOR BASIC<RBA>
DISC WHEEL 16X6.5 STEEL<QB5>,DISC WHEEL 16X7
STEEL<QC1>
(A)
ISUZU MARK
THA
|
8-98160-806-0 |
04 |
1 |
1312- |
● |
|
|
|
|
|
| |
6 |
CAP; WHEEL
INTERIOR DELUXE<RBB>
DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL
15X6-41 STEEL<PG1>
(A)
ISUZU MARK
THA
|
8-98160-806-0 |
04 |
1 |
1312- |
|
|
|
|
|
● |
| |
6 |
CAP; WHEEL
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD>
DISC WHEEL 16X6.5 STEEL<QB5>,DISC WHEEL 16X7
STEEL<QC1>
(A)
ISUZU MARK
THA
|
8-98160-806-0 |
04 |
1 |
1312- |
|
|
● |
|
|
|
| |
6 |
CAP; WHEEL
DISC WHEEL 16X6.5 STEEL<QB5>,DISC WHEEL 16X7
STEEL<QC1>
(A)
ISUZU MARK
THA
|
8-98160-806-0 |
04 |
1 |
1312- |
|
|
|
● |
● |
|
| |
22 |
WHEEL; DISC,AL
FRT&RR 215/70R15C DUNLOP TIRE<CWP>,FRT&RR
215/70R15C<QBQ>
DISC WHEEL 15X6.5-41 ALUMI<PF3>
(B) FRONT,REAR
15X6.5J OFFSET=41 6-HOLE
THA
|
8-98218-150-0 |
04 |
1 |
1310- |
● |
● |
|
|
|
|
| |
22 |
WHEEL; DISC,AL
FRT&RR 215/70R15C DUNLOP TIRE<CWP>
DISC WHEEL 15X6.5-41 ALUMI<PF3>
(B) FRONT,REAR
15X6.5J OFFSET=41 6-HOLE
THA
|
8-98218-150-0 |
04 |
1 |
1310- |
|
|
|
|
|
● |
| |
22 |
WHEEL; DISC,AL
FRT&RR 245/70R16<QCQ>
DISC WHEEL 16X7 ALUMI DARK GRAY PAINT<CXL>
(A) FRONT,REAR
16X7.0J OFFSET=33 6-HOLE
THA
|
8-98216-554-0 |
04 |
1 |
1310- |
● |
● |
|
|
|
|
| |
22 |
WHEEL; DISC,AL
FRT&RR 245/70R16<QCQ>
DISC WHEEL 16X7 ALUMI<PF4>
(A) FRONT,REAR
16X7.0J OFFSET=33 6-HOLE
THA
|
8-98218-151-0 |
04 |
1 |
1310-1311 |
● |
● |
● |
● |
|
|
| |
22 |
WHEEL; DISC,AL
FRT&RR 245/70R16<QCQ>
DISC WHEEL 16X7 ALUMI<PF4>
(A) FRONT,REAR
16X7.0J OFFSET=33 6-HOLE
THA
|
8-98218-151-0 |
04 |
1 |
1312- |
● |
● |
● |
● |
● |
|
| |
22 |
WHEEL; DISC,AL
FRT&RR 255/65R17<QZX>
DISC WHEEL 17X7 ALUMI DARK GRAY PAINT<CXK>
(C) FRONT,REAR
17X7.0J OFFSET=33 6-HOLE
THA
|
8-98218-158-0 |
04 |
1 |
1310- |
● |
● |
|
|
|
|
| |
22 |
WHEEL; DISC,AL
FRT&RR 255/65R17<QZX>
DISC WHEEL 17X7 ALUMI<PFE>
(C) FRONT,REAR
17X7.0J OFFSET=33 6-HOLE
THA
|
8-98218-152-0 |
04 |
1 |
1310-1311 |
● |
● |
● |
● |
|
|
| |
22 |
WHEEL; DISC,AL
FRT&RR 255/65R17<QZX>
DISC WHEEL 17X7 ALUMI<PFE>
(C) FRONT,REAR
17X7.0J OFFSET=33 6-HOLE
THA
|
8-98218-152-0 |
04 |
1 |
1312- |
● |
● |
● |
● |
● |
|
| |
22 |
WHEEL; DISC,AL
FRT&RR 215/70R16C<QZY>
DISC WHEEL 16X6.5 ALUMI DARK GRAY PAINT<CXJ>
(D) FRONT,REAR
THA
|
8-98219-759-0 |
04 |
1 |
1310- |
● |
● |
|
|
|
|
| |
22 |
WHEEL; DISC,AL
FRT&RR 215/70R16C<QZY>
DISC WHEEL 16X6.5 ALUMI<PY0>
(D) FRONT,REAR
16X6.5J OFFSET=41 6-HOLE
THA
|
8-98219-758-0 |
04 |
1 |
1310- |
● |
● |
|
|
|
● |
