Sayfa 4-65 - Isuzu EPC

4-65 — REAR LEAF SPRING (#126418) — 247 parça

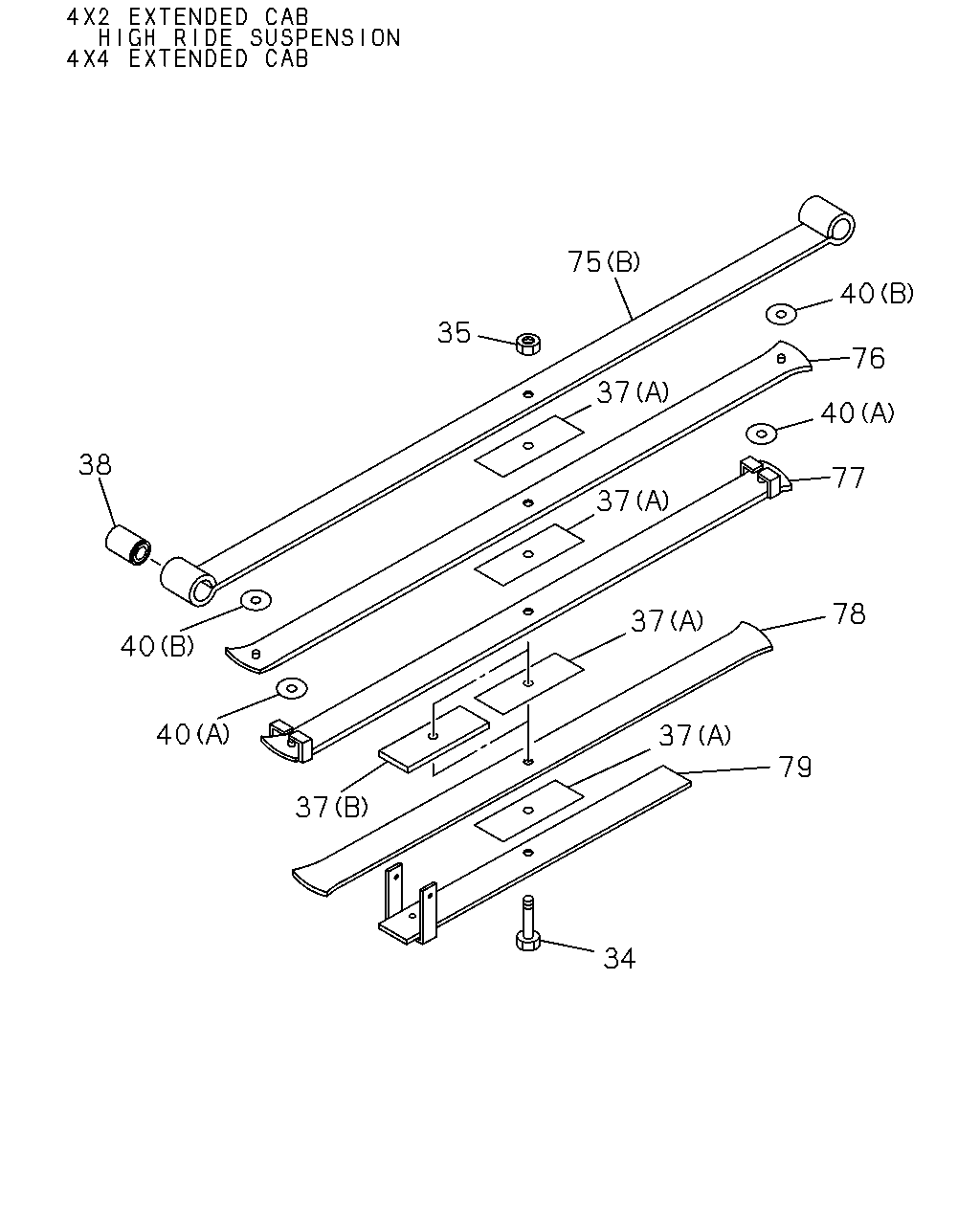

38 34 75 40 40 76 77 37 37 37 78 37 79 40 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X75, THA ASM PART: B = 8-98201-544-2	8-97304-264-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X60, THA ASM PART: C = 8-98201-545-2	8-97947-194-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X62, THA ASM PART: A = 8-98201-543-3	8-97947-234-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X64, THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98161-928-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X66, THA ASM PART: D = 8-98215-684-0, E = 8-98218-552-0, G = 8-98282-590-1, H = 8-98282-594-1	8-98161-929-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M10, THA ASM PART: D = 8-98215-684-0, E = 8-98218-552-0, F = 8-98218-556-0, G = 8-98282-590-1, H = 8-98282-594-1, I = 8-98282-595-1	1-09400-055-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2	8-97947-195-0	04	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: E = 8-98218-552-0, F = 8-98218-556-0	8-98161-302-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: D = 8-98215-684-0	8-98161-302-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: G = 8-98282-590-1	8-98161-302-0	02	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: H = 8-98282-594-1, I = 8-98282-595-1	8-98161-302-0	03	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (B), THA ASM PART: G = 8-98282-590-1, H = 8-98282-594-1, I = 8-98282-595-1	8-98288-935-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2	8-98296-471-0	04	1	1505-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: H = 8-98282-594-1, I = 8-98282-595-1	8-98296-472-0	03	1	1505-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: G = 8-98282-590-1	8-98296-472-0	02	1	1505-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2, D = 8-98215-684-0, E = 8-98218-552-0, F = 8-98218-556-0, G = 8-98282-590-1, H = 8-98282-594-1, I = 8-98282-595-1	8-97947-171-0	01	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: B = 8-98201-544-2, D = 8-98215-684-0, G = 8-98282-590-1	8-97360-246-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-98201-544-2, D = 8-98215-684-0, G = 8-98282-590-1	8-97947-218-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-98201-543-3, C = 8-98201-545-2, E = 8-98218-552-0, F = 8-98218-556-0, H = 8-98282-594-1, I = 8-98282-595-1	8-98218-583-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-98201-543-3, C = 8-98201-545-2, E = 8-98218-552-0, F = 8-98218-556-0, H = 8-98282-594-1, I = 8-98282-595-1	8-98218-584-0	02	1	-
75	SPRING; LEAF,NO 1,RR (E), THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-446-1	01	1	-
75	SPRING; LEAF,NO 1,RR (C), THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-97947-451-1	01	1	-
75	SPRING; LEAF,NO 1,RR (B), THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98193-953-1	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: A = 8-98201-543-3	8-98210-417-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D), THA ASM PART: B = 8-98201-544-2	8-98210-422-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: C = 8-98201-545-2	8-98210-428-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-447-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: A = 8-98201-543-3	8-98210-418-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: B = 8-98201-544-2	8-98210-423-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: C = 8-98201-545-2	8-98210-429-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98218-574-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98218-578-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-448-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: A = 8-98201-543-3	8-98210-419-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: B = 8-98201-544-2	8-98210-424-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: C = 8-98201-545-2	8-98210-430-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98218-577-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98218-579-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98193-957-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: A = 8-98201-543-3	8-98210-420-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: B = 8-98201-544-2	8-98210-425-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: C = 8-98201-545-2	8-98210-431-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-98215-883-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98215-884-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-450-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: A = 8-98201-543-3	8-98210-421-2	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: B = 8-98201-544-2	8-98210-426-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: C = 8-98201-545-2	8-98210-432-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98215-882-0	01	1	-

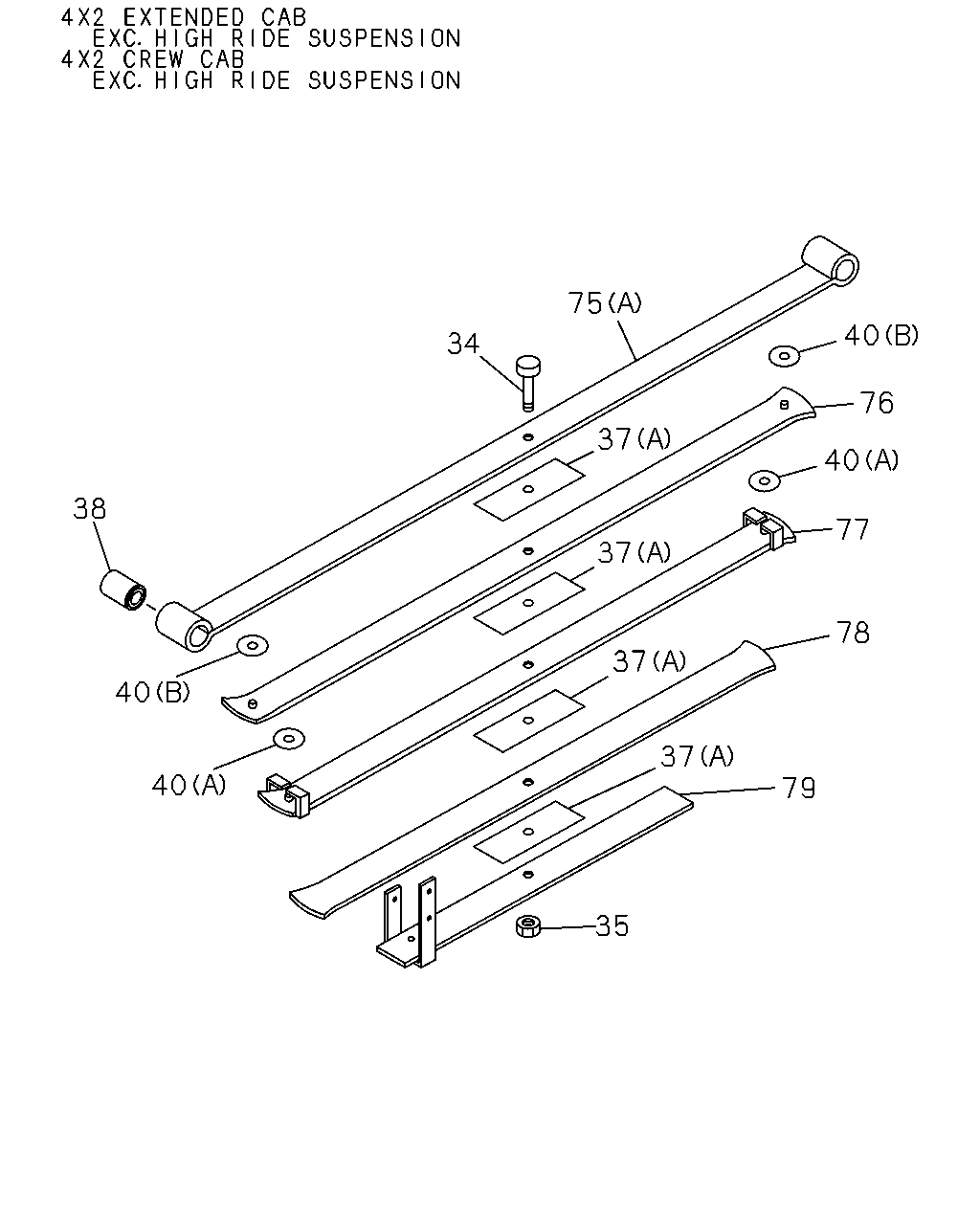

35 75 37 37 37 37 34 79 78 77 40 76 40 40 38 40 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X75, THA ASM PART: B = 8-98201-544-2	8-97304-264-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X60, THA ASM PART: C = 8-98201-545-2	8-97947-194-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X62, THA ASM PART: A = 8-98201-543-3	8-97947-234-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X64, THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98161-928-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X66, THA ASM PART: D = 8-98215-684-0, E = 8-98218-552-0, G = 8-98282-590-1, H = 8-98282-594-1	8-98161-929-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M10, THA ASM PART: D = 8-98215-684-0, E = 8-98218-552-0, F = 8-98218-556-0, G = 8-98282-590-1, H = 8-98282-594-1, I = 8-98282-595-1	1-09400-055-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2	8-97947-195-0	04	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: E = 8-98218-552-0, F = 8-98218-556-0	8-98161-302-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: D = 8-98215-684-0	8-98161-302-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: G = 8-98282-590-1	8-98161-302-0	02	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: H = 8-98282-594-1, I = 8-98282-595-1	8-98161-302-0	03	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (B), THA ASM PART: G = 8-98282-590-1, H = 8-98282-594-1, I = 8-98282-595-1	8-98288-935-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2	8-98296-471-0	04	1	1505-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: H = 8-98282-594-1, I = 8-98282-595-1	8-98296-472-0	03	1	1505-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: G = 8-98282-590-1	8-98296-472-0	02	1	1505-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2, D = 8-98215-684-0, E = 8-98218-552-0, F = 8-98218-556-0, G = 8-98282-590-1, H = 8-98282-594-1, I = 8-98282-595-1	8-97947-171-0	01	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: B = 8-98201-544-2, D = 8-98215-684-0, G = 8-98282-590-1	8-97360-246-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-98201-544-2, D = 8-98215-684-0, G = 8-98282-590-1	8-97947-218-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-98201-543-3, C = 8-98201-545-2, E = 8-98218-552-0, F = 8-98218-556-0, H = 8-98282-594-1, I = 8-98282-595-1	8-98218-583-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-98201-543-3, C = 8-98201-545-2, E = 8-98218-552-0, F = 8-98218-556-0, H = 8-98282-594-1, I = 8-98282-595-1	8-98218-584-0	02	1	-
75	SPRING; LEAF,NO 1,RR (E), THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-446-1	01	1	-
75	SPRING; LEAF,NO 1,RR (C), THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-97947-451-1	01	1	-
75	SPRING; LEAF,NO 1,RR (B), THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98193-953-1	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: A = 8-98201-543-3	8-98210-417-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D), THA ASM PART: B = 8-98201-544-2	8-98210-422-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: C = 8-98201-545-2	8-98210-428-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-447-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: A = 8-98201-543-3	8-98210-418-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: B = 8-98201-544-2	8-98210-423-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: C = 8-98201-545-2	8-98210-429-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98218-574-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98218-578-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-448-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: A = 8-98201-543-3	8-98210-419-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: B = 8-98201-544-2	8-98210-424-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: C = 8-98201-545-2	8-98210-430-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98218-577-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98218-579-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98193-957-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: A = 8-98201-543-3	8-98210-420-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: B = 8-98201-544-2	8-98210-425-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: C = 8-98201-545-2	8-98210-431-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-98215-883-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98215-884-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-450-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: A = 8-98201-543-3	8-98210-421-2	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: B = 8-98201-544-2	8-98210-426-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: C = 8-98201-545-2	8-98210-432-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98215-882-0	01	1	-

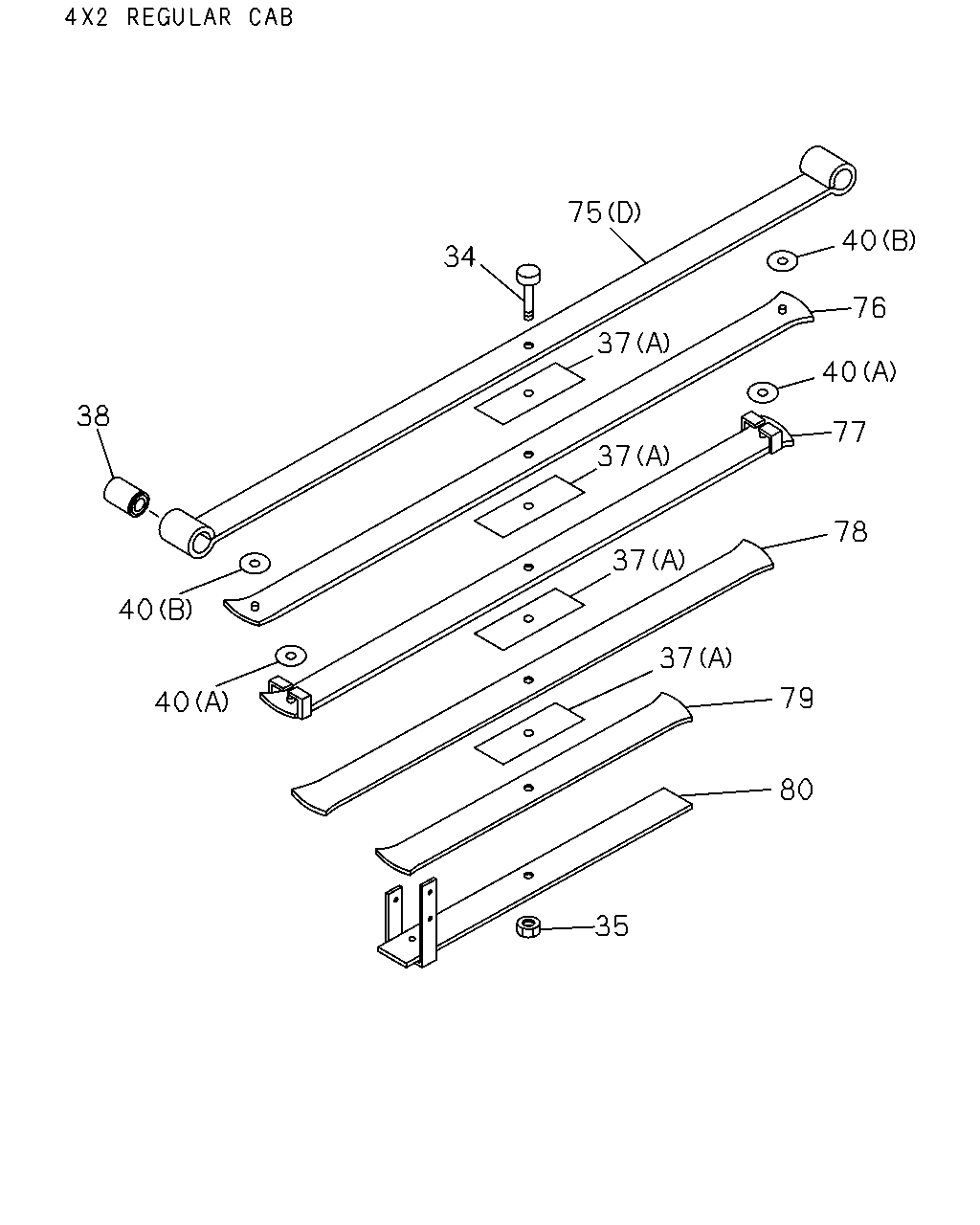

38 40 40 37 34 78 37 77 37 37 40 76 40 75 35 39 37 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X75, THA ASM PART: B = 8-98201-544-2	8-97304-264-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X60, THA ASM PART: C = 8-98201-545-2	8-97947-194-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X62, THA ASM PART: A = 8-98201-543-3	8-97947-234-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X64, THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98161-928-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X66, THA ASM PART: D = 8-98215-684-0, E = 8-98218-552-0, G = 8-98282-590-1, H = 8-98282-594-1	8-98161-929-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M10, THA ASM PART: D = 8-98215-684-0, E = 8-98218-552-0, F = 8-98218-556-0, G = 8-98282-590-1, H = 8-98282-594-1, I = 8-98282-595-1	1-09400-055-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2	8-97947-195-0	04	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: E = 8-98218-552-0, F = 8-98218-556-0	8-98161-302-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: D = 8-98215-684-0	8-98161-302-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: G = 8-98282-590-1	8-98161-302-0	02	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: H = 8-98282-594-1, I = 8-98282-595-1	8-98161-302-0	03	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (B), THA ASM PART: G = 8-98282-590-1, H = 8-98282-594-1, I = 8-98282-595-1	8-98288-935-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2	8-98296-471-0	04	1	1505-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: H = 8-98282-594-1, I = 8-98282-595-1	8-98296-472-0	03	1	1505-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: G = 8-98282-590-1	8-98296-472-0	02	1	1505-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2, D = 8-98215-684-0, E = 8-98218-552-0, F = 8-98218-556-0, G = 8-98282-590-1, H = 8-98282-594-1, I = 8-98282-595-1	8-97947-171-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98161-304-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: B = 8-98201-544-2, D = 8-98215-684-0, G = 8-98282-590-1	8-97360-246-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-98201-544-2, D = 8-98215-684-0, G = 8-98282-590-1	8-97947-218-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-98201-543-3, C = 8-98201-545-2, E = 8-98218-552-0, F = 8-98218-556-0, H = 8-98282-594-1, I = 8-98282-595-1	8-98218-583-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-98201-543-3, C = 8-98201-545-2, E = 8-98218-552-0, F = 8-98218-556-0, H = 8-98282-594-1, I = 8-98282-595-1	8-98218-584-0	02	1	-
75	SPRING; LEAF,NO 1,RR (E), THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-446-1	01	1	-
75	SPRING; LEAF,NO 1,RR (C), THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-97947-451-1	01	1	-
75	SPRING; LEAF,NO 1,RR (B), THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98193-953-1	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: A = 8-98201-543-3	8-98210-417-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D), THA ASM PART: B = 8-98201-544-2	8-98210-422-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: C = 8-98201-545-2	8-98210-428-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-447-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: A = 8-98201-543-3	8-98210-418-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: B = 8-98201-544-2	8-98210-423-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: C = 8-98201-545-2	8-98210-429-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98218-574-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98218-578-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-448-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: A = 8-98201-543-3	8-98210-419-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: B = 8-98201-544-2	8-98210-424-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: C = 8-98201-545-2	8-98210-430-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98218-577-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98218-579-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98193-957-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: A = 8-98201-543-3	8-98210-420-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: B = 8-98201-544-2	8-98210-425-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: C = 8-98201-545-2	8-98210-431-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-98215-883-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98215-884-0	01	1	-

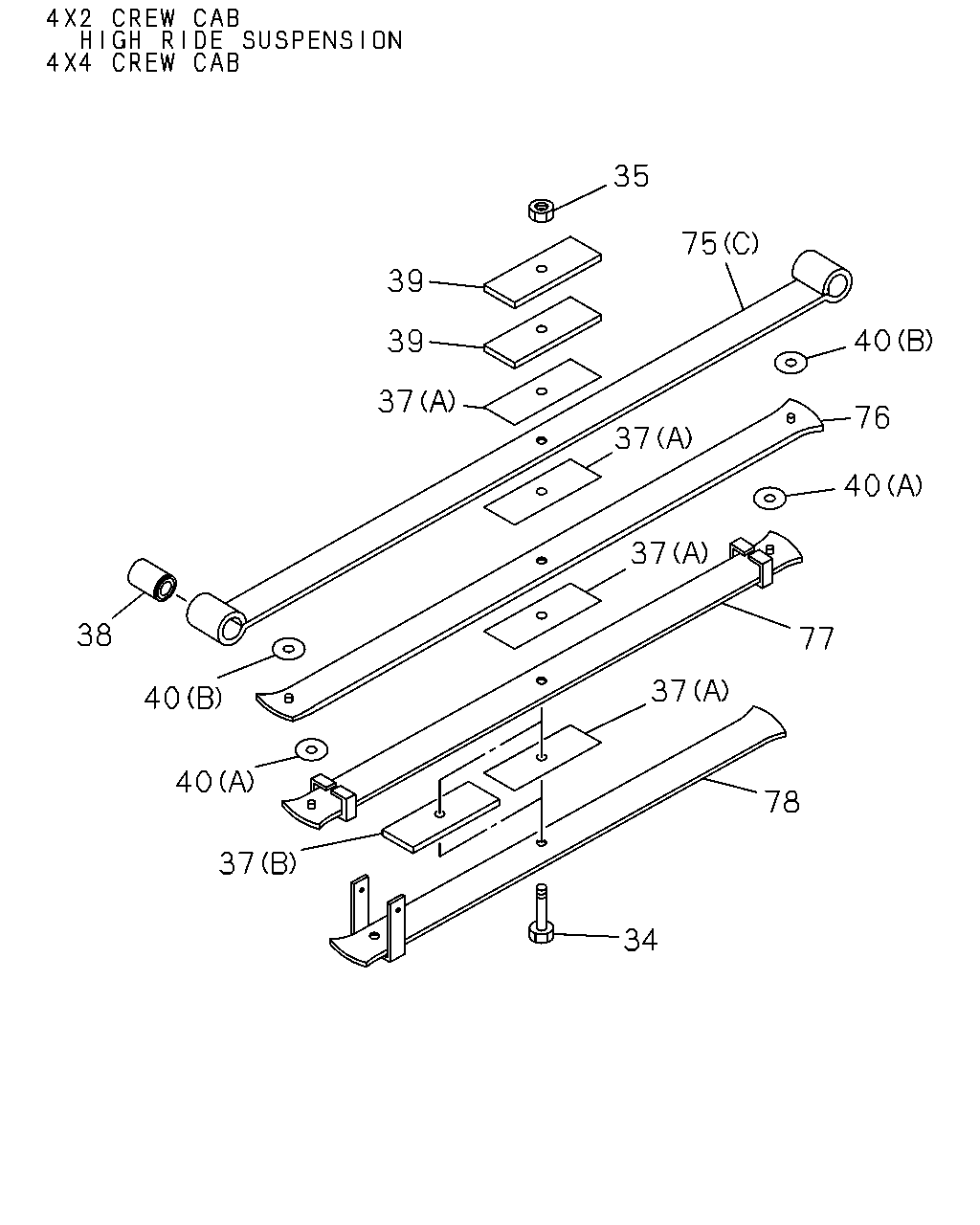

38 40 40 35 80 79 37 37 37 78 40 77 76 40 37 75 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X75, THA ASM PART: B = 8-98201-544-2	8-97304-264-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X60, THA ASM PART: C = 8-98201-545-2	8-97947-194-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X62, THA ASM PART: A = 8-98201-543-3	8-97947-234-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X64, THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98161-928-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X66, THA ASM PART: D = 8-98215-684-0, E = 8-98218-552-0, G = 8-98282-590-1, H = 8-98282-594-1	8-98161-929-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M10, THA ASM PART: D = 8-98215-684-0, E = 8-98218-552-0, F = 8-98218-556-0, G = 8-98282-590-1, H = 8-98282-594-1, I = 8-98282-595-1	1-09400-055-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2	8-97947-195-0	04	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: E = 8-98218-552-0, F = 8-98218-556-0	8-98161-302-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: D = 8-98215-684-0	8-98161-302-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: G = 8-98282-590-1	8-98161-302-0	02	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: H = 8-98282-594-1, I = 8-98282-595-1	8-98161-302-0	03	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (B), THA ASM PART: G = 8-98282-590-1, H = 8-98282-594-1, I = 8-98282-595-1	8-98288-935-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2	8-98296-471-0	04	1	1505-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: H = 8-98282-594-1, I = 8-98282-595-1	8-98296-472-0	03	1	1505-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: G = 8-98282-590-1	8-98296-472-0	02	1	1505-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2, D = 8-98215-684-0, E = 8-98218-552-0, F = 8-98218-556-0, G = 8-98282-590-1, H = 8-98282-594-1, I = 8-98282-595-1	8-97947-171-0	01	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: B = 8-98201-544-2, D = 8-98215-684-0, G = 8-98282-590-1	8-97360-246-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-98201-544-2, D = 8-98215-684-0, G = 8-98282-590-1	8-97947-218-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-98201-543-3, C = 8-98201-545-2, E = 8-98218-552-0, F = 8-98218-556-0, H = 8-98282-594-1, I = 8-98282-595-1	8-98218-583-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-98201-543-3, C = 8-98201-545-2, E = 8-98218-552-0, F = 8-98218-556-0, H = 8-98282-594-1, I = 8-98282-595-1	8-98218-584-0	02	1	-
75	SPRING; LEAF,NO 1,RR (E), THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-446-1	01	1	-
75	SPRING; LEAF,NO 1,RR (C), THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-97947-451-1	01	1	-
75	SPRING; LEAF,NO 1,RR (B), THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98193-953-1	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: A = 8-98201-543-3	8-98210-417-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D), THA ASM PART: B = 8-98201-544-2	8-98210-422-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: C = 8-98201-545-2	8-98210-428-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-447-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: A = 8-98201-543-3	8-98210-418-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: B = 8-98201-544-2	8-98210-423-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: C = 8-98201-545-2	8-98210-429-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98218-574-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98218-578-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-448-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: A = 8-98201-543-3	8-98210-419-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: B = 8-98201-544-2	8-98210-424-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: C = 8-98201-545-2	8-98210-430-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98218-577-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98218-579-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98193-957-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: A = 8-98201-543-3	8-98210-420-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: B = 8-98201-544-2	8-98210-425-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: C = 8-98201-545-2	8-98210-431-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-98215-883-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98215-884-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-450-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: A = 8-98201-543-3	8-98210-421-2	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: B = 8-98201-544-2	8-98210-426-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: C = 8-98201-545-2	8-98210-432-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98215-882-0	01	1	-
80	SPRING; LEAF,NO 6,RR THA ASM PART: B = 8-98201-544-2	8-98210-427-1	01	1	-

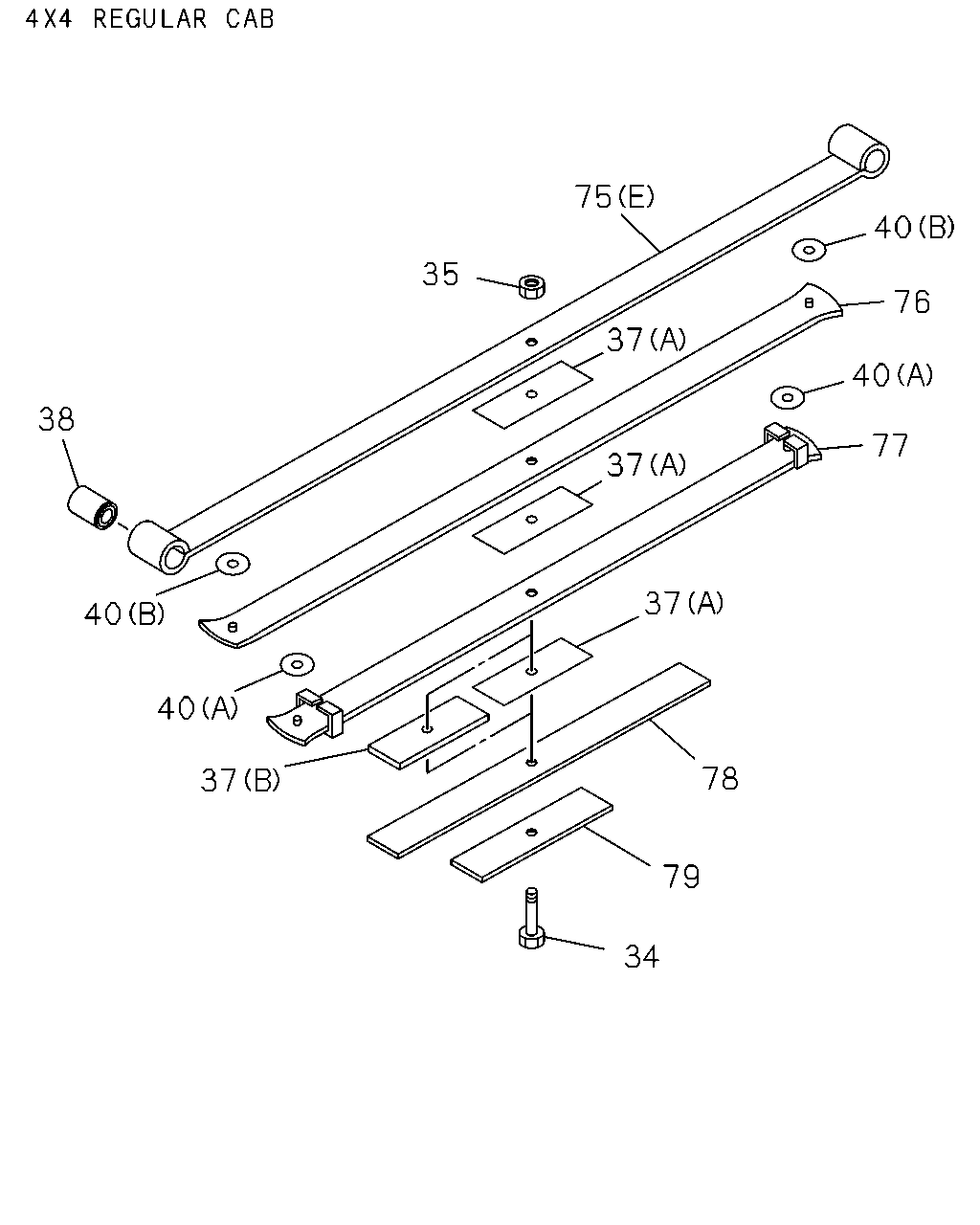

38 40 40 37 34 79 78 37 37 77 40 76 40 37 35 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X75, THA ASM PART: B = 8-98201-544-2	8-97304-264-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X60, THA ASM PART: C = 8-98201-545-2	8-97947-194-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X62, THA ASM PART: A = 8-98201-543-3	8-97947-234-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X64, THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98161-928-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X66, THA ASM PART: D = 8-98215-684-0, E = 8-98218-552-0, G = 8-98282-590-1, H = 8-98282-594-1	8-98161-929-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M10, THA ASM PART: D = 8-98215-684-0, E = 8-98218-552-0, F = 8-98218-556-0, G = 8-98282-590-1, H = 8-98282-594-1, I = 8-98282-595-1	1-09400-055-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2	8-97947-195-0	04	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: E = 8-98218-552-0, F = 8-98218-556-0	8-98161-302-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: D = 8-98215-684-0	8-98161-302-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: G = 8-98282-590-1	8-98161-302-0	02	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: H = 8-98282-594-1, I = 8-98282-595-1	8-98161-302-0	03	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (B), THA ASM PART: G = 8-98282-590-1, H = 8-98282-594-1, I = 8-98282-595-1	8-98288-935-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2	8-98296-471-0	04	1	1505-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: H = 8-98282-594-1, I = 8-98282-595-1	8-98296-472-0	03	1	1505-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: G = 8-98282-590-1	8-98296-472-0	02	1	1505-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-98201-543-3, B = 8-98201-544-2, C = 8-98201-545-2, D = 8-98215-684-0, E = 8-98218-552-0, F = 8-98218-556-0, G = 8-98282-590-1, H = 8-98282-594-1, I = 8-98282-595-1	8-97947-171-0	01	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: B = 8-98201-544-2, D = 8-98215-684-0, G = 8-98282-590-1	8-97360-246-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-98201-544-2, D = 8-98215-684-0, G = 8-98282-590-1	8-97947-218-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-98201-543-3, C = 8-98201-545-2, E = 8-98218-552-0, F = 8-98218-556-0, H = 8-98282-594-1, I = 8-98282-595-1	8-98218-583-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-98201-543-3, C = 8-98201-545-2, E = 8-98218-552-0, F = 8-98218-556-0, H = 8-98282-594-1, I = 8-98282-595-1	8-98218-584-0	02	1	-
75	SPRING; LEAF,NO 1,RR (E), THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-446-1	01	1	-
75	SPRING; LEAF,NO 1,RR (C), THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-97947-451-1	01	1	-
75	SPRING; LEAF,NO 1,RR (B), THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98193-953-1	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: A = 8-98201-543-3	8-98210-417-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D), THA ASM PART: B = 8-98201-544-2	8-98210-422-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: C = 8-98201-545-2	8-98210-428-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-447-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: A = 8-98201-543-3	8-98210-418-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: B = 8-98201-544-2	8-98210-423-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: C = 8-98201-545-2	8-98210-429-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98218-574-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98218-578-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-448-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: A = 8-98201-543-3	8-98210-419-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: B = 8-98201-544-2	8-98210-424-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: C = 8-98201-545-2	8-98210-430-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98218-577-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98218-579-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98193-957-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: A = 8-98201-543-3	8-98210-420-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: B = 8-98201-544-2	8-98210-425-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: C = 8-98201-545-2	8-98210-431-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-98215-883-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: F = 8-98218-556-0, I = 8-98282-595-1	8-98215-884-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: D = 8-98215-684-0, G = 8-98282-590-1	8-97947-450-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: A = 8-98201-543-3	8-98210-421-2	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: B = 8-98201-544-2	8-98210-426-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: C = 8-98201-545-2	8-98210-432-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: E = 8-98218-552-0, H = 8-98282-594-1	8-98215-882-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
