4-61 — SHOCK ABSORBER; REAR SUSPENSION (#126417) — 18 parça

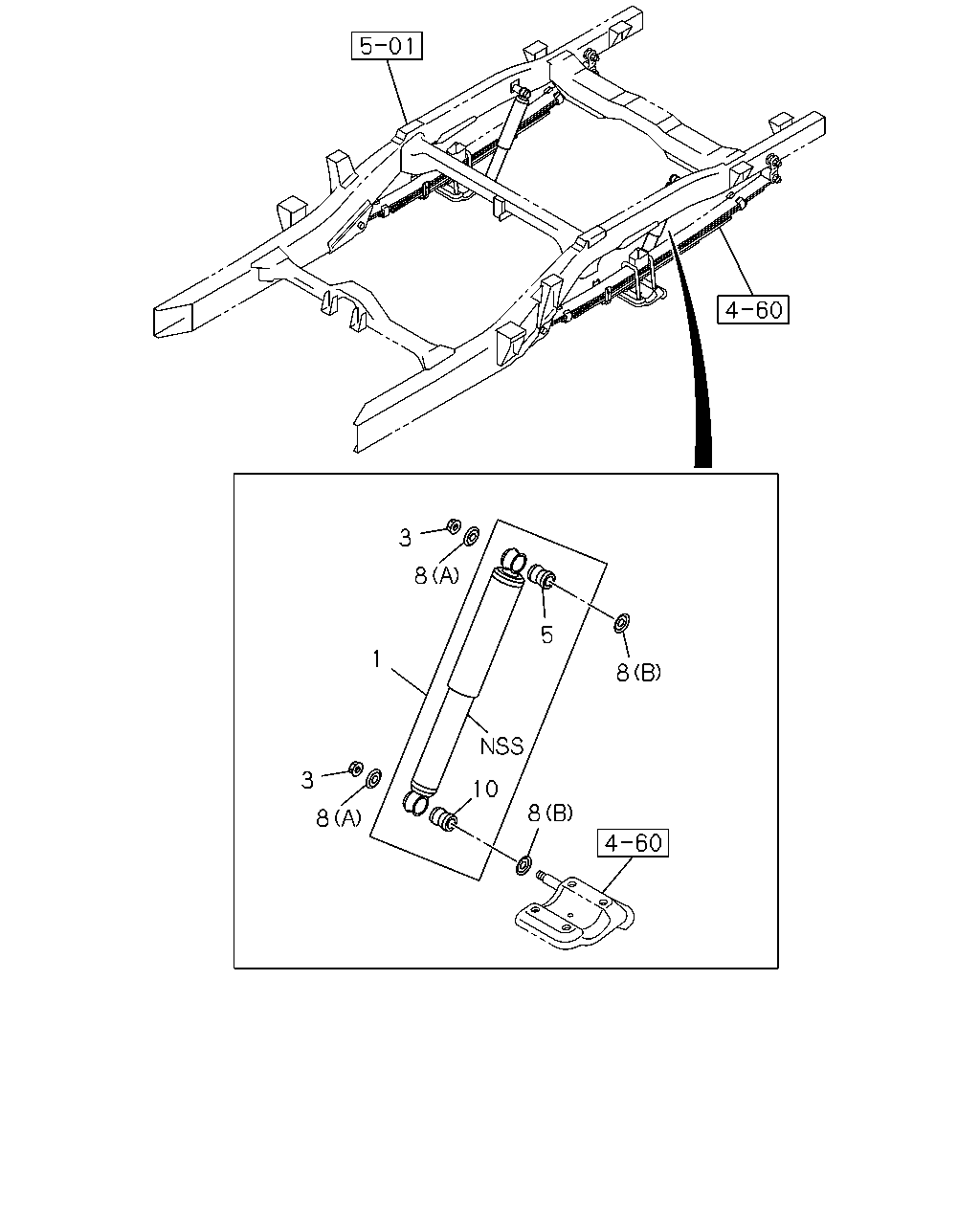

çizim 373317
3 8 1 3 8 10 8 8 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 ABSORBER ASM; SHOCK,RR
THA 		8-97947-017-2 02 1 1312- ●
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-016-2 02 1 1310- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97947-016-2 02 1 1310- ●
1 ABSORBER ASM; SHOCK,RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-013-2 02 1 1310- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-98211-979-0 02 1 1310- ●
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-018-2 02 1 1310- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97947-018-2 02 1 1310- ●
1 ABSORBER ASM; SHOCK,RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98214-030-0 02 1 1310- ●
3 NUT; S/ABS
M12 FLANGE THA 		8-97256-670-0 04 1 1310-1311 ● ● ● ● ●
3 NUT; S/ABS
M12 FLANGE THA 		8-97256-670-0 04 1 1312- ● ● ● ● ● ●
5 BUSHING; RUBBER,S/ABS,UPR
THA 		8-97302-810-0 02 1 1310-1311 ● ● ● ● ●
5 BUSHING; RUBBER,S/ABS,UPR
THA 		8-97302-810-0 02 1 1312- ● ● ● ● ● ●
8 WASHER; S/ABS
(A) ID=12.5 THA 		8-98005-969-0 04 1 1310-1311 ● ● ● ● ●
8 WASHER; S/ABS
(A) ID=12.5 THA 		8-98005-969-0 04 1 1312- ● ● ● ● ● ●
8 WASHER; S/ABS
(B) ID=16.5 THA 		8-98005-970-0 04 1 1310-1311 ● ● ● ● ●
8 WASHER; S/ABS
(B) ID=16.5 THA 		8-98005-970-0 04 1 1312- ● ● ● ● ● ●
10 BUSHING; RUBBER,S/ABS
THA 		8-97302-810-0 02 1 1310-1311 ● ● ● ● ●
10 BUSHING; RUBBER,S/ABS
THA 		8-97302-810-0 02 1 1312- ● ● ● ● ● ●
