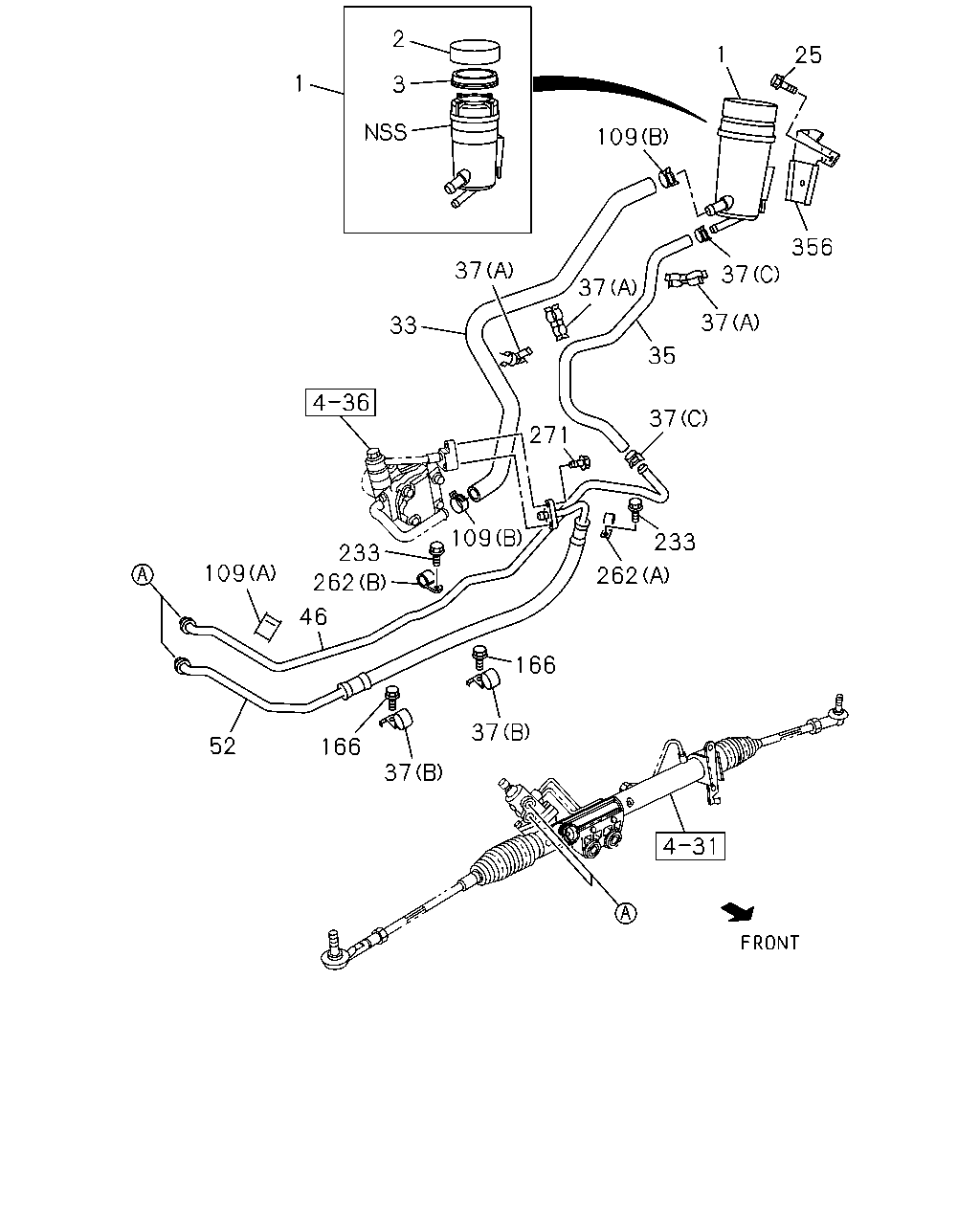

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#126411) — 48 parça

2 3 1 25 356 37 37 35 37 233 262 271 37 109 166 37 37 166 52 109 233 262 109 46 33 37 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK ASM; OIL,P/S THA	8-97234-350-0	01	1	1310-1311	●	●	●	●	●
1	TANK ASM; OIL,P/S THA	8-97234-350-0	01	1	1312-	●	●	●	●	●	●
2	CAP; OIL TANK,P/S THA	8-97349-476-0	01	1	1310-1311	●	●	●	●	●
2	CAP; OIL TANK,P/S THA	8-97349-476-0	01	1	1312-	●	●	●	●	●	●
3	GASKET; OIL TANK,P/S THA	8-97349-477-0	01	1	1310-1311	●	●	●	●	●
3	GASKET; OIL TANK,P/S THA	8-97349-477-0	01	1	1312-	●	●	●	●	●	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	1310-1311	●	●	●	●	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	1312-	●	●	●	●	●	●
33	HOSE; RUBBER,POWER STRG THA	8-97946-138-2	01	1	1310-1311	●	●	●	●	●
33	HOSE; RUBBER,POWER STRG THA	8-97946-138-2	01	1	1312-	●	●	●	●	●	●
35	HOSE; RETURN,P/S TANK THA	8-97946-140-1	01	1	1310-1311	●	●	●	●	●
35	HOSE; RETURN,P/S TANK THA	8-97946-140-1	01	1	1312-	●	●	●	●	●	●
37	CLIP; HOSE,P/S (A) ID=17.5 & 21 THA	8-97177-580-0	01	1	1310-1311	●	●	●	●	●
37	CLIP; HOSE,P/S (A) ID=17.5 & 21 THA	8-97177-580-0	01	1	1312-	●	●	●	●	●	●
37	CLIP; HOSE,P/S (A) ID=17.5 & 21 THA	8-97177-580-0	02	1	1310-1311	●	●	●	●	●
37	CLIP; HOSE,P/S (A) ID=17.5 & 21 THA	8-97177-580-0	02	1	1312-	●	●	●	●	●	●
37	CLIP; HOSE,P/S (C) ID=16 THA	8-98030-682-0	02	1	1310-1311	●	●	●	●	●
37	CLIP; HOSE,P/S (C) ID=16 THA	8-98030-682-0	02	1	1312-	●	●	●	●	●	●
37	CLIP; HOSE,P/S (B) ID=21.5 L=21 THA	8-98211-907-0	02	1	1310-1311	●	●	●	●	●
37	CLIP; HOSE,P/S (B) ID=21.5 L=21 THA	8-98211-907-0	02	1	1312-	●	●	●	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK HIGH RIDE SUSPENSION<7YC> THA	8-98228-468-1	01	1	1310-1311	●		●
46	PIPE; OIL,P/S UNIT TO OIL TANK THA	8-98228-468-1	01	1	1310-1311				●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK HIGH RIDE SUSPENSION<7YC> THA	8-98228-468-1	01	1	1312-	●		●
46	PIPE; OIL,P/S UNIT TO OIL TANK THA	8-98228-468-1	01	1	1312-				●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98228-467-1	01	1	1310-	●		●
46	PIPE; OIL,P/S UNIT TO OIL TANK THA	8-98228-467-1	01	1	1310-		●
52	HOSE; FLEX,P/S CONT VLV HIGH RIDE SUSPENSION<7YC> THA	8-98228-466-0	01	1	1310-1311	●		●
52	HOSE; FLEX,P/S CONT VLV THA	8-98228-466-0	01	1	1310-1311				●	●
52	HOSE; FLEX,P/S CONT VLV HIGH RIDE SUSPENSION<7YC> THA	8-98228-466-0	01	1	1312-	●		●
52	HOSE; FLEX,P/S CONT VLV THA	8-98228-466-0	01	1	1312-				●	●	●
52	HOSE; FLEX,P/S CONT VLV EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98228-465-0	01	1	1310-	●		●
52	HOSE; FLEX,P/S CONT VLV THA	8-98228-465-0	01	1	1310-		●
109	CLIP; RUBBER HOSE (A) ID=10X2 H=22 THA	8-94252-455-2	01	1	1310-1311	●	●	●	●	●
109	CLIP; RUBBER HOSE (A) ID=10X2 H=22 THA	8-94252-455-2	01	1	1312-	●	●	●	●	●	●
109	CLIP; RUBBER HOSE (B) ID=20.8 THA	8-97944-127-0	02	1	1310-1311	●	●	●	●	●
109	CLIP; RUBBER HOSE (B) ID=20.8 THA	8-97944-127-0	02	1	1312-	●	●	●	●	●	●
166	BOLT; CLIP M6X16 FLANGE THA	0-28650-616-0	02	1	1310-1311	●	●	●	●	●
166	BOLT; CLIP M6X16 FLANGE THA	0-28650-616-0	02	1	1312-	●	●	●	●	●	●
233	BOLT; PIPE CLIP,P/S M6X16 FLANGE THA	0-28650-616-0	02	1	1310-1311	●	●	●	●	●
233	BOLT; PIPE CLIP,P/S M6X16 FLANGE THA	0-28650-616-0	02	1	1312-	●	●	●	●	●	●
262	CLIP; P/S PIPE (A) ID=11 H=20 L=20 IMA	0-95207-310-0	01	1	1310-1311	●	●	●	●	●
262	CLIP; P/S PIPE (A) ID=11 H=20 L=20 IMA	0-95207-310-0	01	1	1312-	●	●	●	●	●	●
262	CLIP; P/S PIPE (B) ID=11 L=20 IMA	0-95235-032-0	01	1	1310-1311	●	●	●	●	●
262	CLIP; P/S PIPE (B) ID=11 L=20 IMA	0-95235-032-0	01	1	1312-	●	●	●	●	●	●
271	BOLT; P/S OIL PIPE FIX M6X16 FLANGE THA	0-28650-616-0	02	1	1310-1311	●	●	●	●	●
271	BOLT; P/S OIL PIPE FIX M6X16 FLANGE THA	0-28650-616-0	02	1	1312-	●	●	●	●	●	●
356	BRACKET; P/S,RESERVOIR THA	8-97946-163-0	01	1	1310-1311	●	●	●	●	●
356	BRACKET; P/S,RESERVOIR THA	8-97946-163-0	01	1	1312-	●	●	●	●	●	●
