◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#126403) — 171 parça

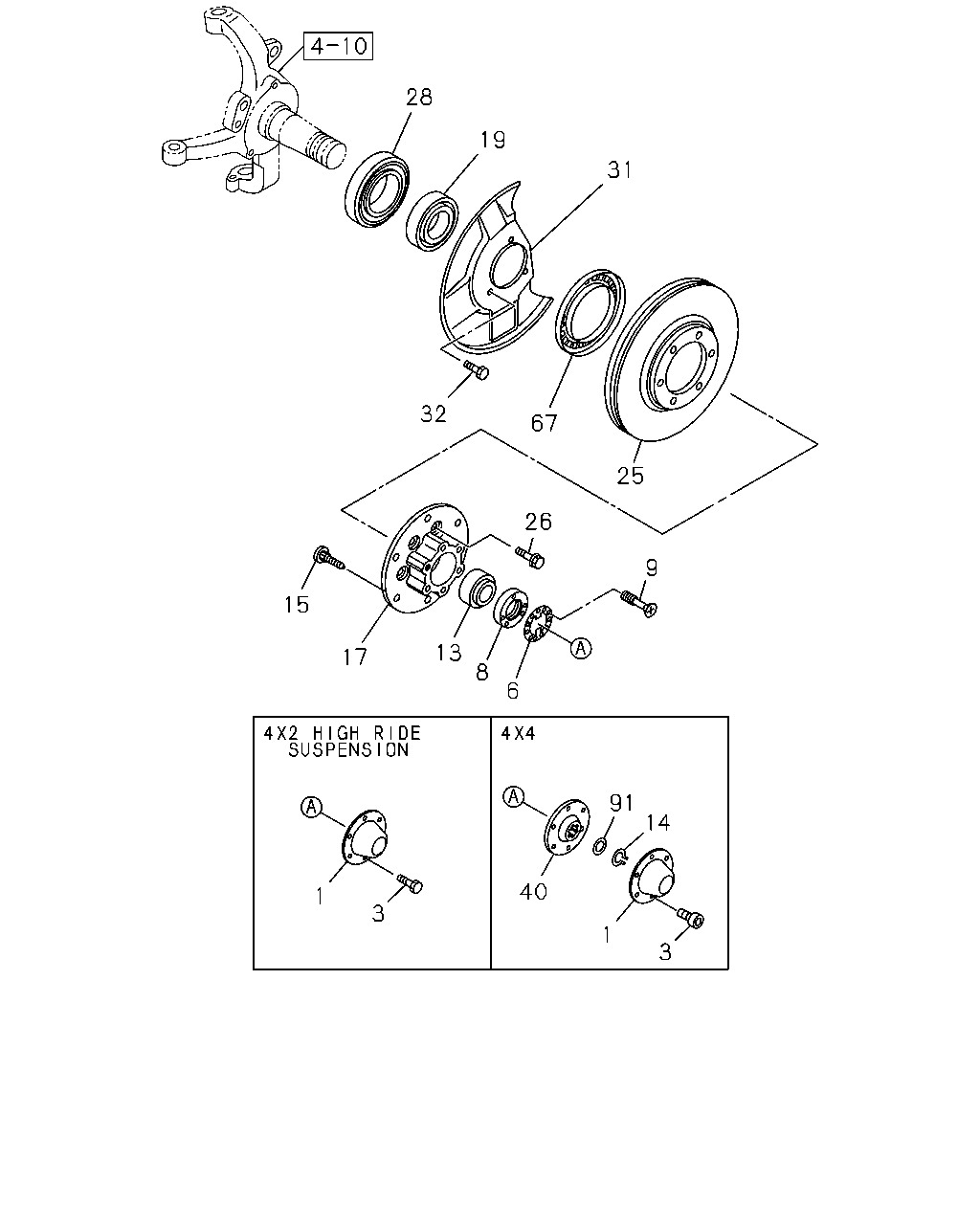

çizim 373708
28 19 31 25 67 32 9 26 6 8 13 17 15 91 14 3 1 40 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CAP; HUB,FRT AXLE
HIGH RIDE SUSPENSION<7YC> THA 		8-97944-565-0 02 1 1310-1311 ● ●
1 CAP; HUB,FRT AXLE
THA 		8-97944-565-0 02 1 1310-1311 ● ●
1 CAP; HUB,FRT AXLE
HIGH RIDE SUSPENSION<7YC> THA 		8-97944-565-0 02 1 1312- ● ●
1 CAP; HUB,FRT AXLE
THA 		8-97944-565-0 02 1 1312- ● ● ●
1 CAP; HUB,FRT AXLE
EXC. HIGH RIDE SUSPENSION<7YC> IMA 		8-98006-055-0 02 1 1310- ● ●
1 CAP; HUB,FRT AXLE
IMA 		8-98006-055-0 02 1 1310- ●
3 BOLT; HUB CAP,FRT WHEEL
HIGH RIDE SUSPENSION<7YC> M10X20 THA 		0-20951-020-0 12 1 1310- ● ●
3 BOLT; HUB CAP,FRT WHEEL
M10X33 THA 		8-98117-920-0 12 1 1310-1311 ● ●
3 BOLT; HUB CAP,FRT WHEEL
M10X33 THA 		8-98117-920-0 12 1 1312- ● ● ●
6 WASHER; LK,FRT HUB
HIGH RIDE SUSPENSION<7YC> T=1.8 OD=65 IMA 		8-94442-398-0 02 1 1310-1311 ● ●
6 WASHER; LK,FRT HUB
T=1.8 OD=65 IMA 		8-94442-398-0 02 1 1310-1311 ● ●
6 WASHER; LK,FRT HUB
HIGH RIDE SUSPENSION<7YC> T=1.8 OD=65 IMA 		8-94442-398-0 02 1 1312- ● ●
6 WASHER; LK,FRT HUB
T=1.8 OD=65 IMA 		8-94442-398-0 02 1 1312- ● ● ●
6 WASHER; LK,FRT HUB
EXC. HIGH RIDE SUSPENSION<7YC> T=3.2 OD=35 IMA 		8-97382-661-0 02 1 1310- ● ●
6 WASHER; LK,FRT HUB
T=3.2 OD=35 IMA 		8-97382-661-0 02 1 1310- ●
8 NUT; ADJ,FRT HUB
HIGH RIDE SUSPENSION<7YC> ID=40 OD=65 T=8 IMA 		8-94442-399-1 02 1 1310-1311 ● ●
8 NUT; ADJ,FRT HUB
ID=40 OD=65 T=8 IMA 		8-94442-399-1 02 1 1310-1311 ● ●
8 NUT; ADJ,FRT HUB
HIGH RIDE SUSPENSION<7YC> ID=40 OD=65 T=8 IMA 		8-94442-399-1 02 1 1312- ● ●
8 NUT; ADJ,FRT HUB
ID=40 OD=65 T=8 IMA 		8-94442-399-1 02 1 1312- ● ● ●
9 SCREW; ADJ,NUT
HIGH RIDE SUSPENSION<7YC> M4X8 CK-HEAD THA 		8-98008-301-0 06 1 1310-1311 ● ●
9 SCREW; ADJ,NUT
M4X8 CK-HEAD THA 		8-98008-301-0 06 1 1310-1311 ● ●
9 SCREW; ADJ,NUT
HIGH RIDE SUSPENSION<7YC> M4X8 CK-HEAD THA 		8-98008-301-0 06 1 1312- ● ●
9 SCREW; ADJ,NUT
M4X8 CK-HEAD THA 		8-98008-301-0 06 1 1312- ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
HIGH RIDE SUSPENSION<7YC> NSK THA 		8-94227-041-0 02 1 1310-1311 ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK THA 		8-94227-041-0 02 1 1310-1311 ● ●
13 BEARING; HUB OUTER,FRT AXLE
HIGH RIDE SUSPENSION<7YC> NSK THA 		8-94227-041-0 02 1 1312- ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK THA 		8-94227-041-0 02 1 1312- ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
EXC. HIGH RIDE SUSPENSION<7YC> NSK THA 		8-94242-913-0 02 1 1310- ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK THA 		8-94242-913-0 02 1 1310- ●
14 RING; SPR,FRT WHEEL
ID=25.9 IMA 		9-09180-028-0 02 1 1310-1311 ● ●
14 RING; SPR,FRT WHEEL
ID=25.9 IMA 		9-09180-028-0 02 1 1312- ● ● ●
15 PIN; WHEEL,FRT AXLE
M12X37.5 THA 		8-97944-564-1 12 1 1310-1311 ● ● ● ● ●
15 PIN; WHEEL,FRT AXLE
M12X37.5 THA 		8-97944-564-1 12 1 1312- ● ● ● ● ● ●
17 HUB; FRT AXLE
HIGH RIDE SUSPENSION<7YC> THA 		8-98054-665-0 02 1 1310-1311 ● ●
17 HUB; FRT AXLE
THA 		8-98054-665-0 02 1 1310-1311 ● ●
17 HUB; FRT AXLE
HIGH RIDE SUSPENSION<7YC> THA 		8-98054-665-0 02 1 1312- ● ●
17 HUB; FRT AXLE
THA 		8-98054-665-0 02 1 1312- ● ● ●
17 HUB; FRT AXLE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97238-417-1 02 1 1310- ● ●
17 HUB; FRT AXLE
THA 		8-97238-417-1 02 1 1310- ●
19 BEARING; HUB INNER,FRT AXLE
HIGH RIDE SUSPENSION<7YC> NSK THA 		8-94258-819-0 02 1 1310-1311 ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK THA 		8-94258-819-0 02 1 1310-1311 ● ●
19 BEARING; HUB INNER,FRT AXLE
HIGH RIDE SUSPENSION<7YC> NSK THA 		8-94258-819-0 02 1 1312- ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK THA 		8-94258-819-0 02 1 1312- ● ● ●
19 BEARING; HUB INNER,FRT AXLE
EXC. HIGH RIDE SUSPENSION<7YC> NSK THA 		8-94242-683-0 02 1 1310- ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK THA 		8-94242-683-0 02 1 1310- ●
25 ROTOR; DISC BRK,FRT
HIGH RIDE SUSPENSION<7YC> THA 		8-98124-663-4 02 1 1310-1311 ● ●
25 ROTOR; DISC BRK,FRT
THA 		8-98124-663-4 02 1 1310-1311 ● ●
25 ROTOR; DISC BRK,FRT
HIGH RIDE SUSPENSION<7YC> THA 		8-98124-663-4 02 1 1312- ● ●
25 ROTOR; DISC BRK,FRT
THA 		8-98124-663-4 02 1 1312- ● ● ●
25 ROTOR; DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97360-677-2 02 1 1310- ● ●
25 ROTOR; DISC BRK,FRT
THA 		8-97360-677-2 02 1 1310- ●
26 BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE THA 		8-98006-065-0 12 1 1310-1311 ● ● ● ● ●
26 BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE THA 		8-98006-065-0 12 1 1312- ● ● ● ● ● ●
28 SEAL; OIL,FRT HUB
HIGH RIDE SUSPENSION<7YC> THA 		8-98036-594-0 02 1 1310-1311 ● ●
28 SEAL; OIL,FRT HUB
THA 		8-98036-594-0 02 1 1310-1311 ● ●
28 SEAL; OIL,FRT HUB
HIGH RIDE SUSPENSION<7YC> THA 		8-98036-594-0 02 1 1312- ● ●
28 SEAL; OIL,FRT HUB
THA 		8-98036-594-0 02 1 1312- ● ● ●
28 SEAL; OIL,FRT HUB
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98036-593-0 02 1 1310- ● ●
28 SEAL; OIL,FRT HUB
THA 		8-98036-593-0 02 1 1310- ●
31 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98062-190-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-190-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98062-191-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-191-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98008-148-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98008-149-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-188-0 01 1 1310-1311 ● ●
31 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-188-0 01 1 1310-1311 ● ●
31 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-188-0 01 1 1312- ● ●
31 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-188-0 01 1 1312- ● ●
31 COVER; DUST,FRT BRAKE
THA 		8-98062-188-0 01 1 1312- ●
31 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-189-0 01 1 1310-1311 ● ●
31 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-189-0 01 1 1310-1311 ● ●
31 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-189-0 01 1 1312- ● ●
31 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-189-0 01 1 1312- ● ●
31 COVER; DUST,FRT BRAKE
THA 		8-98062-189-0 01 1 1312- ●
31 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98008-150-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
THA 		8-98008-150-0 01 1 1310- ●
31 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98008-151-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
THA 		8-98008-151-0 01 1 1310- ●
32 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER THA 		8-98006-352-0 06 1 1310-1311 ● ● ● ● ●
32 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER THA 		8-98006-352-0 06 1 1312- ● ● ● ● ● ●
40 FLANGE; FRT WHEEL HUB
THA 		8-98197-869-0 02 1 1310-1311 ● ●
40 FLANGE; FRT WHEEL HUB
THA 		8-98197-869-0 02 1 1312- ● ● ●
67 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-97238-280-0 02 1 1310- ● ●
67 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97238-280-0 02 1 1310- ● ●
67 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97238-278-0 02 1 1310- ● ●
91 SPACER; HUB BRG
T=0.20 IMA 		8-94178-929-0 AR 1 1310-1311 ● ●
91 SPACER; HUB BRG
T=0.20 IMA 		8-94178-929-0 AR 1 1312- ● ● ●
91 SPACER; HUB BRG
T=0.30 IMA 		8-94178-930-0 AR 1 1310-1311 ● ●
91 SPACER; HUB BRG
T=0.30 IMA 		8-94178-930-0 AR 1 1312- ● ● ●
91 SPACER; HUB BRG
T=0.50 IMA 		8-94178-931-0 AR 1 1310-1311 ● ●
91 SPACER; HUB BRG
T=0.50 IMA 		8-94178-931-0 AR 1 1312- ● ● ●
91 SPACER; HUB BRG
T=1.00 IMA 		8-94178-932-0 AR 1 1310-1311 ● ●
91 SPACER; HUB BRG
T=1.00 IMA 		8-94178-932-0 AR 1 1312- ● ● ●

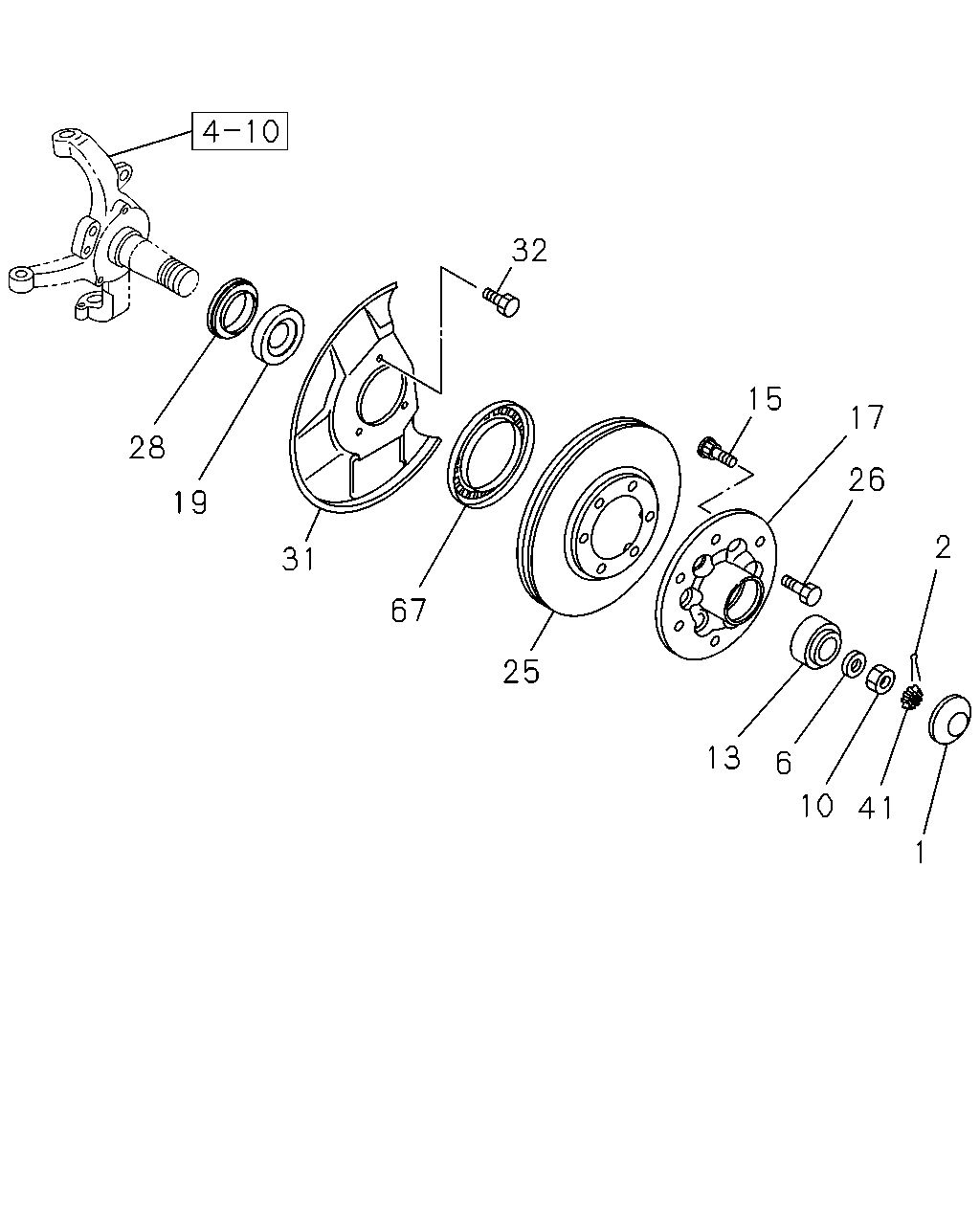

çizim 373990
1 41 10 2 6 13 26 17 15 25 67 31 19 28 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CAP; HUB,FRT AXLE
HIGH RIDE SUSPENSION<7YC> THA 		8-97944-565-0 02 1 1310-1311 ● ●
1 CAP; HUB,FRT AXLE
THA 		8-97944-565-0 02 1 1310-1311 ● ●
1 CAP; HUB,FRT AXLE
HIGH RIDE SUSPENSION<7YC> THA 		8-97944-565-0 02 1 1312- ● ●
1 CAP; HUB,FRT AXLE
THA 		8-97944-565-0 02 1 1312- ● ● ●
1 CAP; HUB,FRT AXLE
EXC. HIGH RIDE SUSPENSION<7YC> IMA 		8-98006-055-0 02 1 1310- ● ●
1 CAP; HUB,FRT AXLE
IMA 		8-98006-055-0 02 1 1310- ●
2 PIN; SPLIT,HUB TO AXLE SHAFT
EXC. HIGH RIDE SUSPENSION<7YC> OD=3.7 L=30 IMA 		0-81124-030-0 02 1 1310- ● ●
2 PIN; SPLIT,HUB TO AXLE SHAFT
OD=3.7 L=30 IMA 		0-81124-030-0 02 1 1310- ●
6 WASHER; LK,FRT HUB
HIGH RIDE SUSPENSION<7YC> T=1.8 OD=65 IMA 		8-94442-398-0 02 1 1310-1311 ● ●
6 WASHER; LK,FRT HUB
T=1.8 OD=65 IMA 		8-94442-398-0 02 1 1310-1311 ● ●
6 WASHER; LK,FRT HUB
HIGH RIDE SUSPENSION<7YC> T=1.8 OD=65 IMA 		8-94442-398-0 02 1 1312- ● ●
6 WASHER; LK,FRT HUB
T=1.8 OD=65 IMA 		8-94442-398-0 02 1 1312- ● ● ●
6 WASHER; LK,FRT HUB
EXC. HIGH RIDE SUSPENSION<7YC> T=3.2 OD=35 IMA 		8-97382-661-0 02 1 1310- ● ●
6 WASHER; LK,FRT HUB
T=3.2 OD=35 IMA 		8-97382-661-0 02 1 1310- ●
10 NUT; FRT HUB BRG
EXC. HIGH RIDE SUSPENSION<7YC> M18 IMA 		8-94243-927-1 02 1 1310- ● ●
10 NUT; FRT HUB BRG
M18 IMA 		8-94243-927-1 02 1 1310- ●
13 BEARING; HUB OUTER,FRT AXLE
HIGH RIDE SUSPENSION<7YC> NSK THA 		8-94227-041-0 02 1 1310-1311 ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK THA 		8-94227-041-0 02 1 1310-1311 ● ●
13 BEARING; HUB OUTER,FRT AXLE
HIGH RIDE SUSPENSION<7YC> NSK THA 		8-94227-041-0 02 1 1312- ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK THA 		8-94227-041-0 02 1 1312- ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
EXC. HIGH RIDE SUSPENSION<7YC> NSK THA 		8-94242-913-0 02 1 1310- ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK THA 		8-94242-913-0 02 1 1310- ●
15 PIN; WHEEL,FRT AXLE
M12X37.5 THA 		8-97944-564-1 12 1 1310-1311 ● ● ● ● ●
15 PIN; WHEEL,FRT AXLE
M12X37.5 THA 		8-97944-564-1 12 1 1312- ● ● ● ● ● ●
17 HUB; FRT AXLE
HIGH RIDE SUSPENSION<7YC> THA 		8-98054-665-0 02 1 1310-1311 ● ●
17 HUB; FRT AXLE
THA 		8-98054-665-0 02 1 1310-1311 ● ●
17 HUB; FRT AXLE
HIGH RIDE SUSPENSION<7YC> THA 		8-98054-665-0 02 1 1312- ● ●
17 HUB; FRT AXLE
THA 		8-98054-665-0 02 1 1312- ● ● ●
17 HUB; FRT AXLE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97238-417-1 02 1 1310- ● ●
17 HUB; FRT AXLE
THA 		8-97238-417-1 02 1 1310- ●
19 BEARING; HUB INNER,FRT AXLE
HIGH RIDE SUSPENSION<7YC> NSK THA 		8-94258-819-0 02 1 1310-1311 ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK THA 		8-94258-819-0 02 1 1310-1311 ● ●
19 BEARING; HUB INNER,FRT AXLE
HIGH RIDE SUSPENSION<7YC> NSK THA 		8-94258-819-0 02 1 1312- ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK THA 		8-94258-819-0 02 1 1312- ● ● ●
19 BEARING; HUB INNER,FRT AXLE
EXC. HIGH RIDE SUSPENSION<7YC> NSK THA 		8-94242-683-0 02 1 1310- ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK THA 		8-94242-683-0 02 1 1310- ●
25 ROTOR; DISC BRK,FRT
HIGH RIDE SUSPENSION<7YC> THA 		8-98124-663-4 02 1 1310-1311 ● ●
25 ROTOR; DISC BRK,FRT
THA 		8-98124-663-4 02 1 1310-1311 ● ●
25 ROTOR; DISC BRK,FRT
HIGH RIDE SUSPENSION<7YC> THA 		8-98124-663-4 02 1 1312- ● ●
25 ROTOR; DISC BRK,FRT
THA 		8-98124-663-4 02 1 1312- ● ● ●
25 ROTOR; DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97360-677-2 02 1 1310- ● ●
25 ROTOR; DISC BRK,FRT
THA 		8-97360-677-2 02 1 1310- ●
26 BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE THA 		8-98006-065-0 12 1 1310-1311 ● ● ● ● ●
26 BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE THA 		8-98006-065-0 12 1 1312- ● ● ● ● ● ●
28 SEAL; OIL,FRT HUB
HIGH RIDE SUSPENSION<7YC> THA 		8-98036-594-0 02 1 1310-1311 ● ●
28 SEAL; OIL,FRT HUB
THA 		8-98036-594-0 02 1 1310-1311 ● ●
28 SEAL; OIL,FRT HUB
HIGH RIDE SUSPENSION<7YC> THA 		8-98036-594-0 02 1 1312- ● ●
28 SEAL; OIL,FRT HUB
THA 		8-98036-594-0 02 1 1312- ● ● ●
28 SEAL; OIL,FRT HUB
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98036-593-0 02 1 1310- ● ●
28 SEAL; OIL,FRT HUB
THA 		8-98036-593-0 02 1 1310- ●
31 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98062-190-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-190-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98062-191-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-191-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98008-148-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98008-149-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-188-0 01 1 1310-1311 ● ●
31 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-188-0 01 1 1310-1311 ● ●
31 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-188-0 01 1 1312- ● ●
31 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-188-0 01 1 1312- ● ●
31 COVER; DUST,FRT BRAKE
THA 		8-98062-188-0 01 1 1312- ●
31 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-189-0 01 1 1310-1311 ● ●
31 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-189-0 01 1 1310-1311 ● ●
31 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-189-0 01 1 1312- ● ●
31 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98062-189-0 01 1 1312- ● ●
31 COVER; DUST,FRT BRAKE
THA 		8-98062-189-0 01 1 1312- ●
31 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98008-150-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
THA 		8-98008-150-0 01 1 1310- ●
31 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98008-151-0 01 1 1310- ● ●
31 COVER; DUST,FRT BRAKE
THA 		8-98008-151-0 01 1 1310- ●
32 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER THA 		8-98006-352-0 06 1 1310-1311 ● ● ● ● ●
32 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER THA 		8-98006-352-0 06 1 1312- ● ● ● ● ● ●
41 RETAINER; NUT,FRT HUB
EXC. HIGH RIDE SUSPENSION<7YC> IMA 		8-94243-928-1 02 1 1310- ● ●
41 RETAINER; NUT,FRT HUB
IMA 		8-94243-928-1 02 1 1310- ●
67 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-97238-280-0 02 1 1310- ● ●
67 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97238-280-0 02 1 1310- ● ●
67 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97238-278-0 02 1 1310- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
